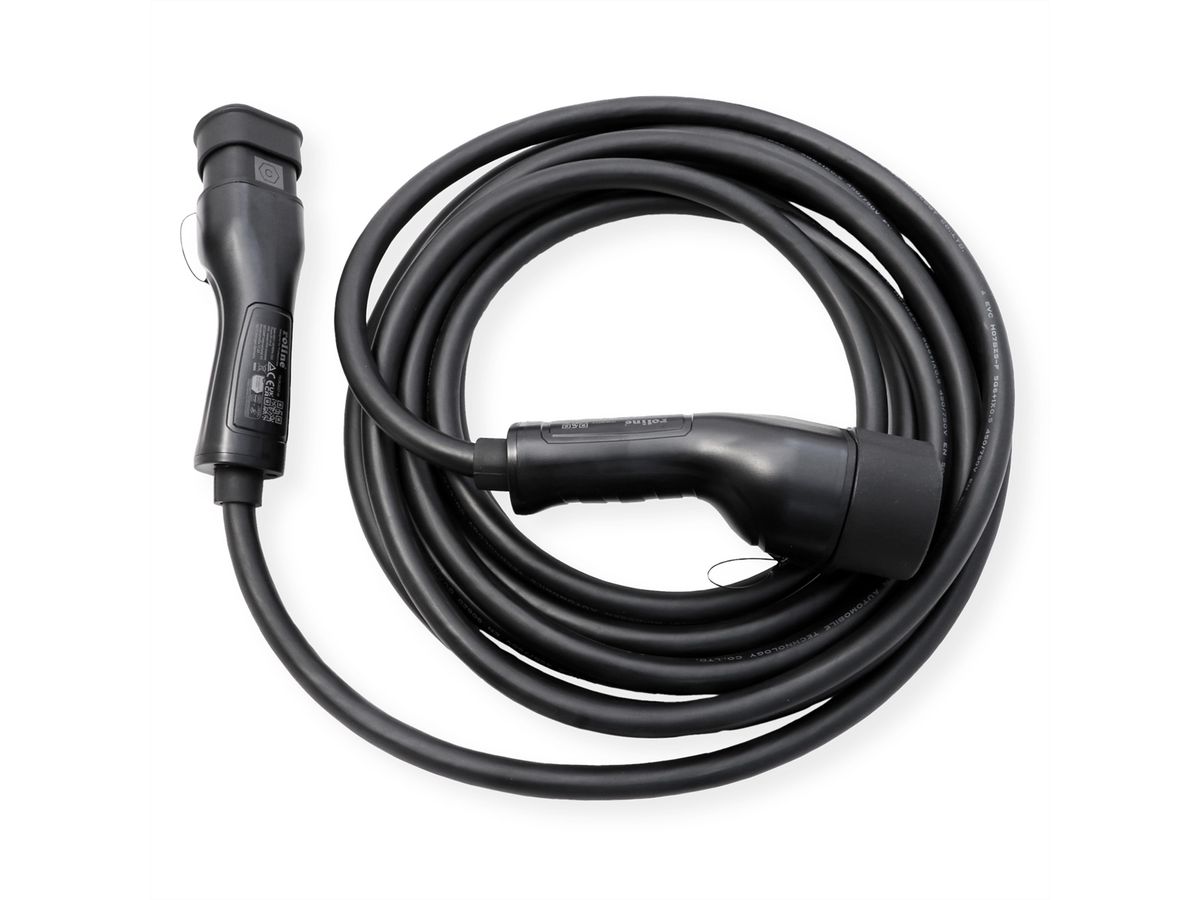

ROLINE EV Charging Cable Assembly Type2, 3-Phase, 480VAC (3P+N+E), 32 A, 22 kW, 7.5 m

ROLINE EV Charging Cable Assembly Type2, 3-Phase, 480VAC (3P+N+E), 32 A, 22 kW, 7.5 m

Please log in to be able to use the shopping cart and then complete orders.

Log in
Ordered until 3 pm - usually dispatched on the same day
Item no. 19.08.0027-3
Brand / Manufacturer ROLINE
Manuf. no. 19.08.0027
EAN 7630049688148
Package weight 5 kg


Type2 charging cable for electric and hybrid cars with 22 kW, 3-phase, 480 V AC

  • Enables easy / fast charging at public charging stations and private wall boxes (wallbox)
  • Suitable for charging electric and hybrid vehicles
  • Mode 3 / Type 2 car charging cable
  • Connections: Type 2 on both sides
  • For all electric cars with type 2 connection
  • Ergonomically shaped plug and coupler
  • Moisture protection (IP65 - connected state, IP54 - unconnected cable with protective caps attached)
  • 32 A / 3- phase (480 VAC)
  • Max. Charging power: 22 kW


Manufacturer ROLINE
Product group Power Cables
Product type Electric car charging cable
Colour black
Length 7.5 m
Scope of delivery E-car charging cable, carrying bag
Charging power 22 kW
Current 32 A
Number of phases 3-phase
Supported charging technology Mode-3
Side 1 Connector Type IEC 62196-2 Type 2 (VDE-AR-E 2623-2-2)
Side 1 Connector Gender Male
Side 2 Connector Type IEC 62196-2 Type 2 (VDE-AR-E 2623-2-2)
Side 2 Connector Gender Female
Cable LSOH flame retardant
Protection class (IP Code)
  • IP65
  • IP54
Mains connection IEC 62196-2 Type 2 plug, 3Ph.
Operating temperature min. -30 °C
Operating temperature max. 50 °C
Storage temperature min. -40 °C
Storage temperature max. 85 °C
Height 40 mm
Width 390 mm
Depth 390 mm
Weight 2.6 kg
Height of packaging (single piece) 100 mm
Width of packaging (single piece) 370 mm
Depth of packaging (single piece) 370 mm
Package weight (single piece) 5 kg


Product data sheet - English (55.6 KB)


User manual - Deutsch (557.4 KB)


User manual - English (557.4 KB)


User manual - Français (557.4 KB)


The products of our own brand ROLINE are designed for professional continuous operation.

With a 2-year functional guarantee, we stand by our performance promise.

ROLINE – Quality makes the difference.
