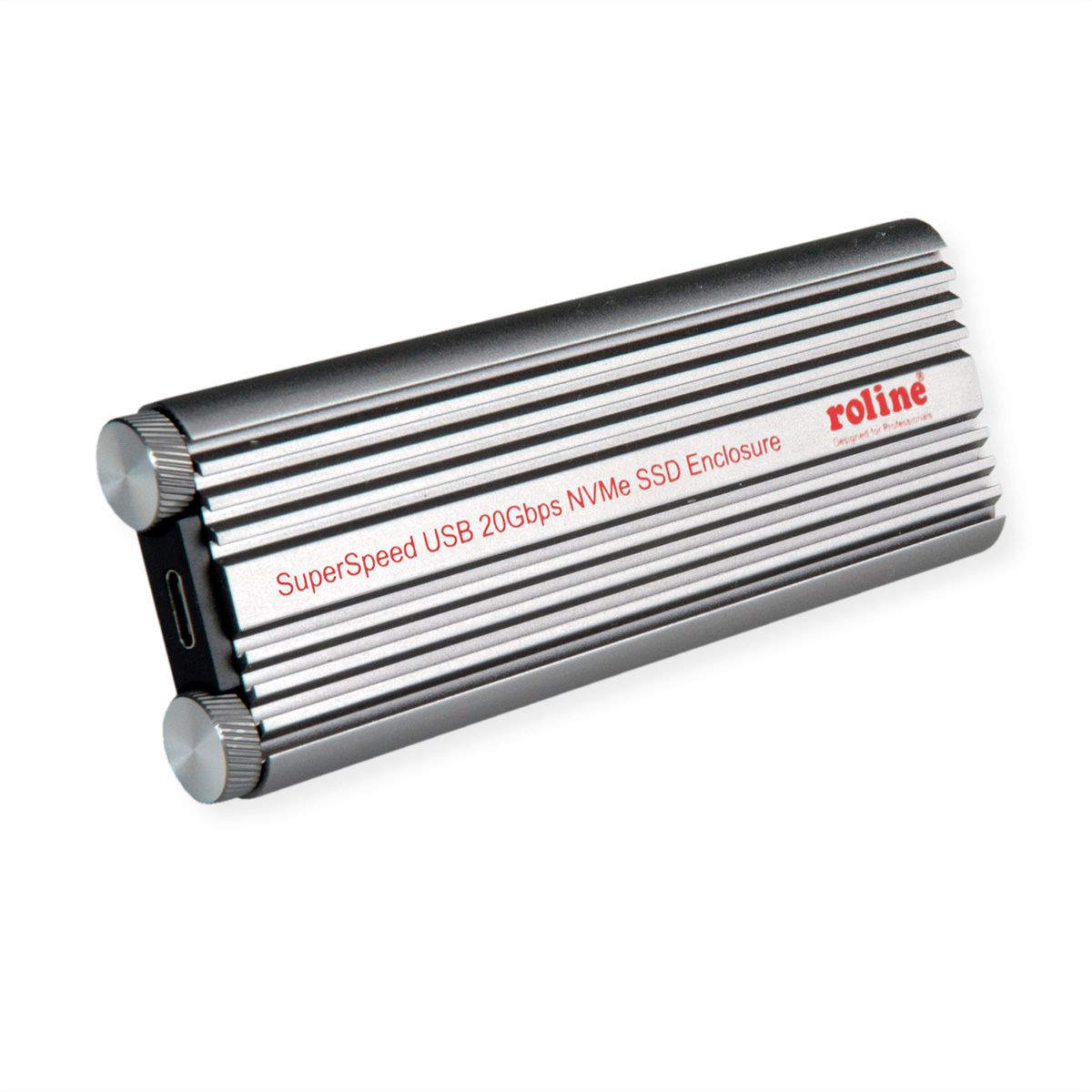

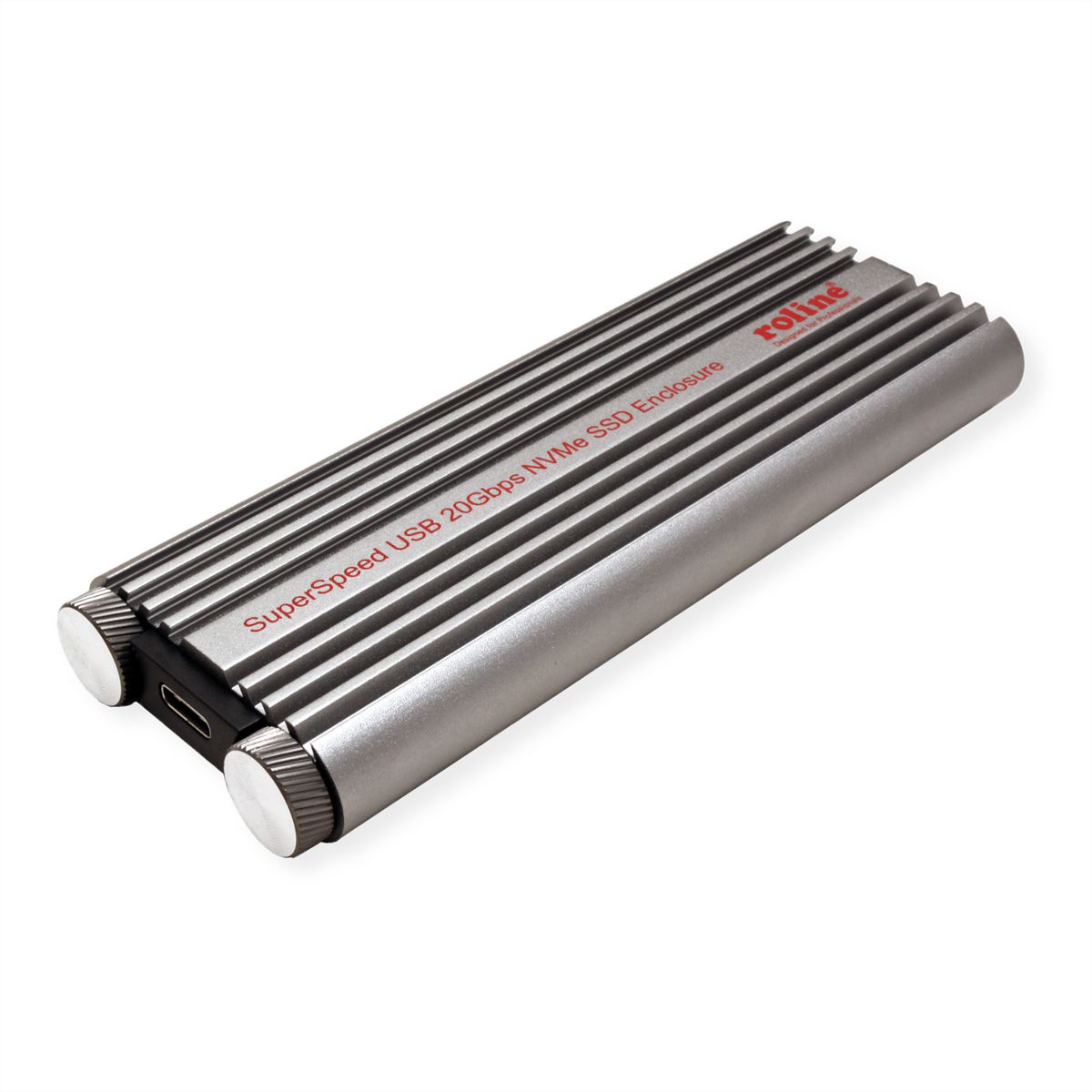

ROLINE External Type M.2 NVMe SSD Enclosure, USB 3.2 Gen 2x2 Type C

Item no. 16.01.4147-10 Brand / Manufacturer ROLINE Manuf. no. 16.01.4147 EAN 7630049697546 Package weight 0.186 kg
ROLINE

Please log in to be able to use the shopping cart and then complete orders.

Log in
Available
Ordered until 3 pm - usually dispatched on the same day
Download PDF

Description

Extra narrow empty housing made of matt aluminium for M.2 SSDs, for connection via USB 3.1 / USB 3.2 Gen 2 Type C

  • Empty housing for M.2 SSDs with USB Type C connector
  • External interface: USB type C
  • Compatible with USB 3.1 / USB 3.2 Gen 2x2 with data transfer rates up to 20 Gbps
  • Supports M.2 SSDs 2230, 2242, 2260, 2280 (M key)
  • Matt, silver aluminium housing

Note: According to the current specifications of USB.org we have adapted the technical data of our USB 3 products. The new designation for the already known USB specifications has been changed to USB 3.2 Gen 1 (formerly USB 3.0 / USB 3.1 Gen 1) and USB 3.2 Gen 2 (formerly USB 3.1 / USB 3.1 Gen 2).

Specifications

Manufacturer
ROLINE
Product group
Drive housing
Product type
M.2 SSD Enclosure
Colour
anthracite
Scope of delivery
M.2 SSD Enclosure, manual, USB Type C cable
Quantity of Drives
1
Drive form
M.2
External connections
USB 3.2, Gen2x2, Type C
Dimensions (HxWxD)
15 x 46 x 118.5 mm
Material (casing)
Aluminium
Power supply
over USB port
Height
15 mm
Width
46 mm
Depth
118.5 mm
Weight
111.6 g
Height of packaging (single piece)
20 mm
Width of packaging (single piece)
100 mm
Depth of packaging (single piece)
100 mm
Package weight (single piece)
0.186 kg

Downloads

Product data sheet - English (53.8 KB) User manual - Deutsch (900.8 KB) User manual - English (881.6 KB) User manual - Français (901.5 KB)
