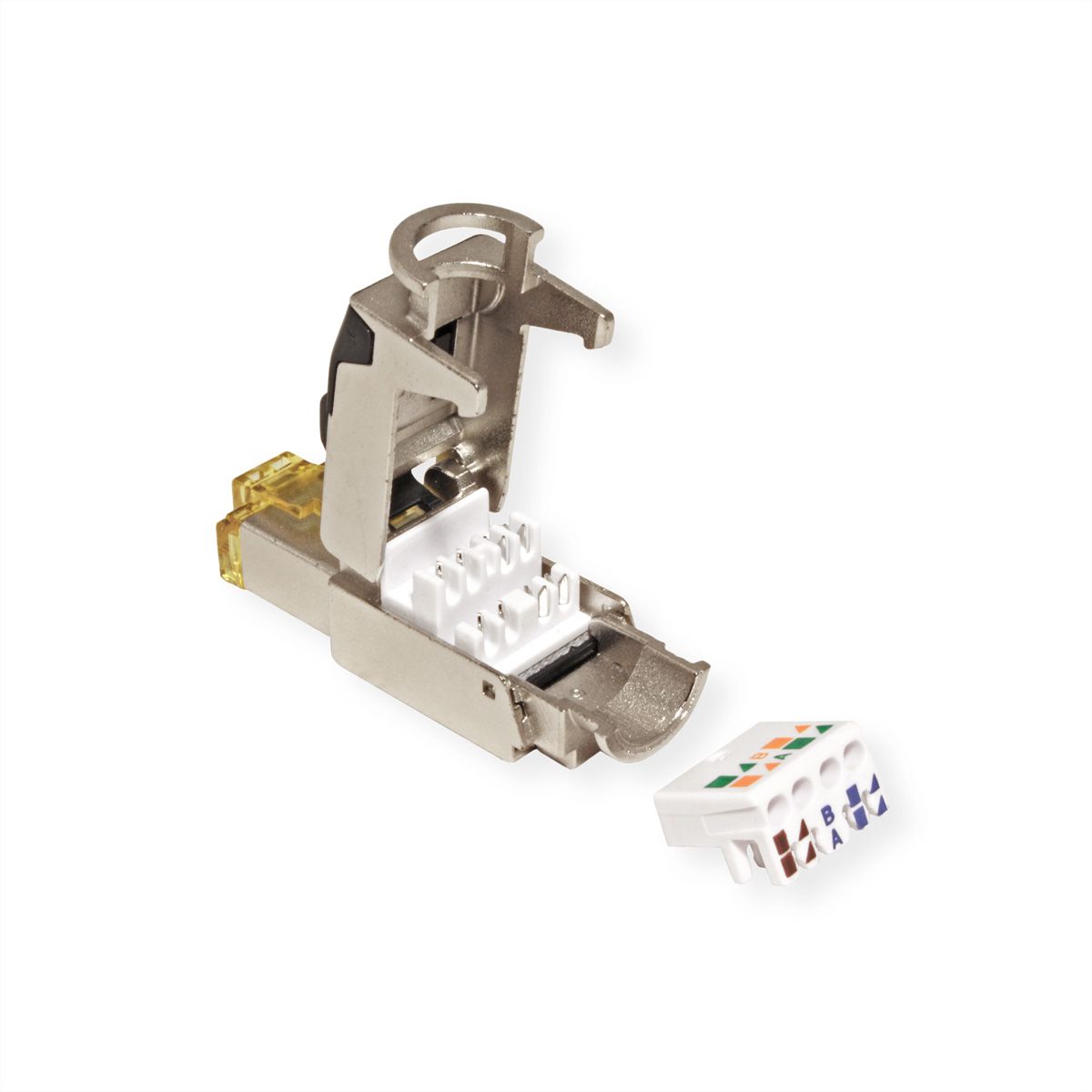

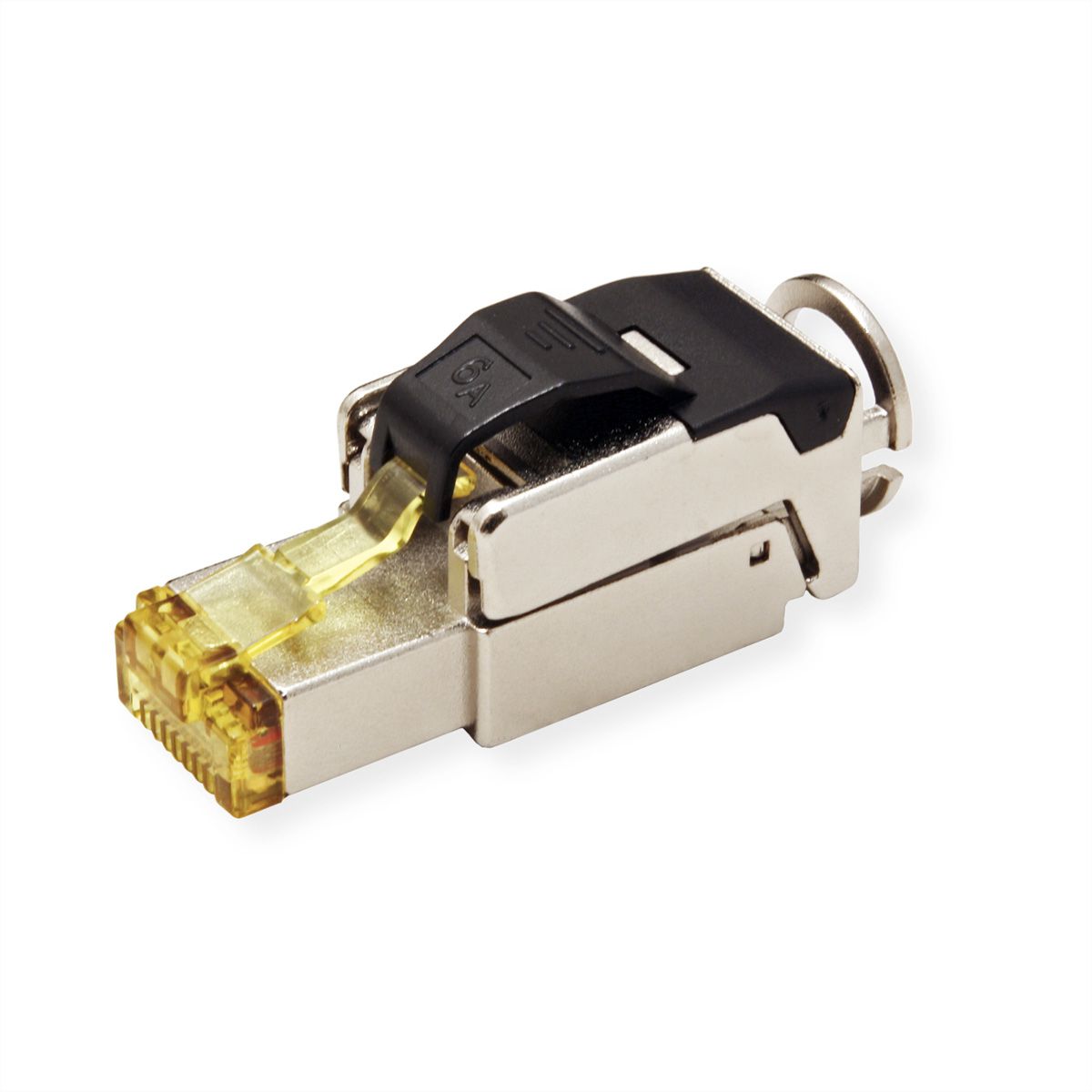

ROLINE Field Plug Cat.6A (Class EA), STP, silver

Item no. 21.17.0323-50 Brand / Manufacturer ROLINE Manuf. no. 21.17.0323 EAN 7630049694651 Package weight 0.019 kg
ROLINE

Please log in to be able to use the shopping cart and then complete orders.

Log in
Available
Ordered until 3 pm - usually dispatched on the same day
Download PDF

Description

  • Fast and easy tool-free installable unshielded RJ45 connector
  • Cat.6A / Class EA performance according to ISO/IEC11801 and IEC60603-7
  • Compact cable manager for round Solid cable AWG 23-26(1/0.41-1/0.575mm) and stranded cable AWG 24-26(7/0.16-7/0.20mm)
  • For cable with outer diameter OD: 6.0 - 9.0mm
  • Pair management according to TIA 568B and TIA 568A colour codes
  • Robust zinc die-cast housing

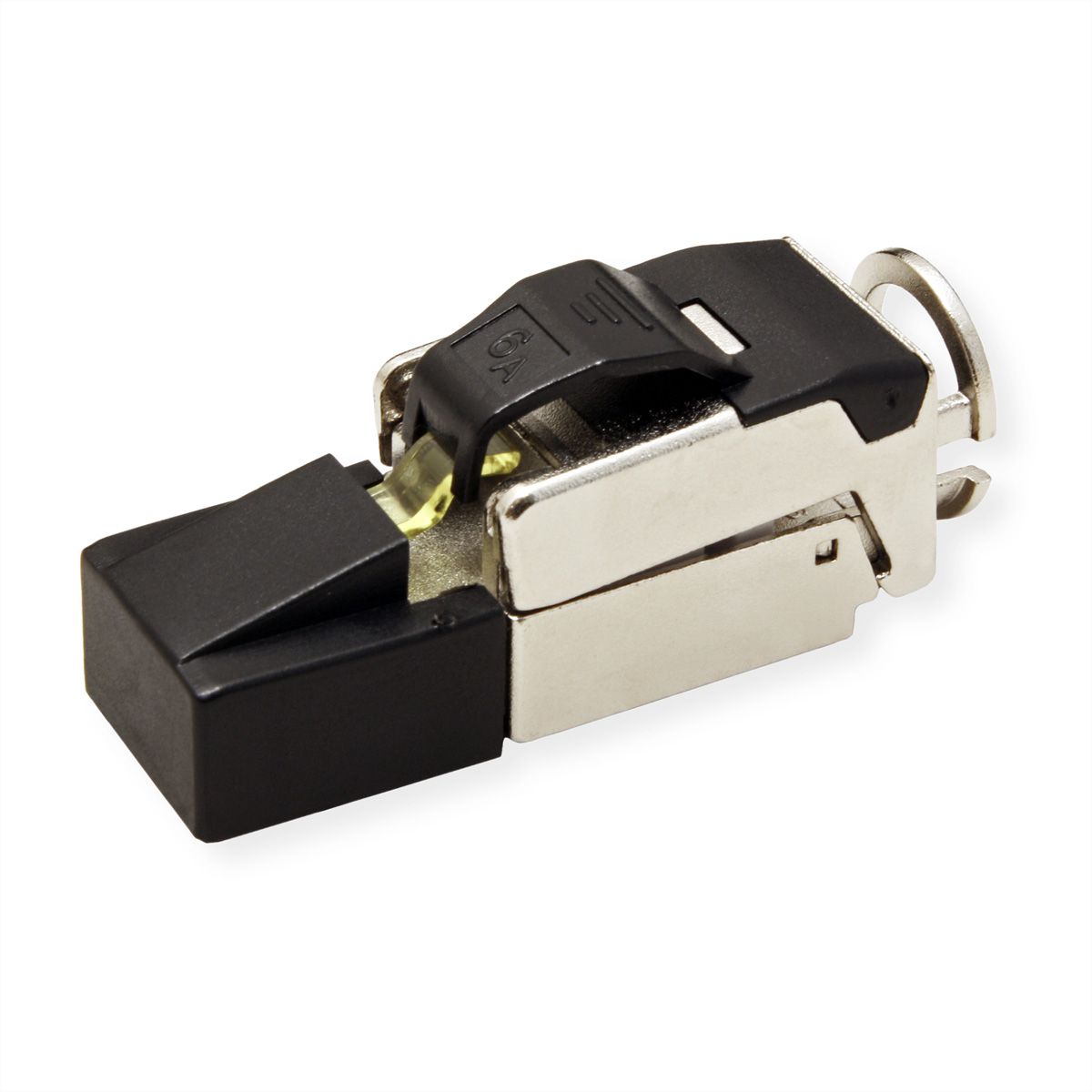

  • Strain relief with cable tie and black transparent dust cup and boot
  • Color: silver

Specifications

Manufacturer
ROLINE
Product group
Connection technology TP
Product type
Connectors RJ-45
Colour
silver
Scope of delivery
1x RJ-45 plug
Shield type
Screened
Transfer quality
Cat6A / Class EA
Quantity of ports
1
Side 1 Connector Type
RJ-45
Side 1 Connector Gender
Male
Shield contacts
ja
separate strain relief
yes
Operating temperature min.
-10 °C
Operating temperature max.
60 °C
Height
16.8 mm
Width
13.8 mm
Depth
41.8 mm
Weight
14.8 g
Height of packaging (single piece)
20 mm
Width of packaging (single piece)
100 mm
Depth of packaging (single piece)
200 mm
Package weight (single piece)
0.019 kg

Downloads

Product data sheet - English (41.6 KB) Manufacturer data sheet - English (725.0 KB)

The products of our own brand ROLINE are designed for professional continuous operation.

With a 2-year functional guarantee, we stand by our performance promise.

ROLINE – Quality makes the difference.
