Description

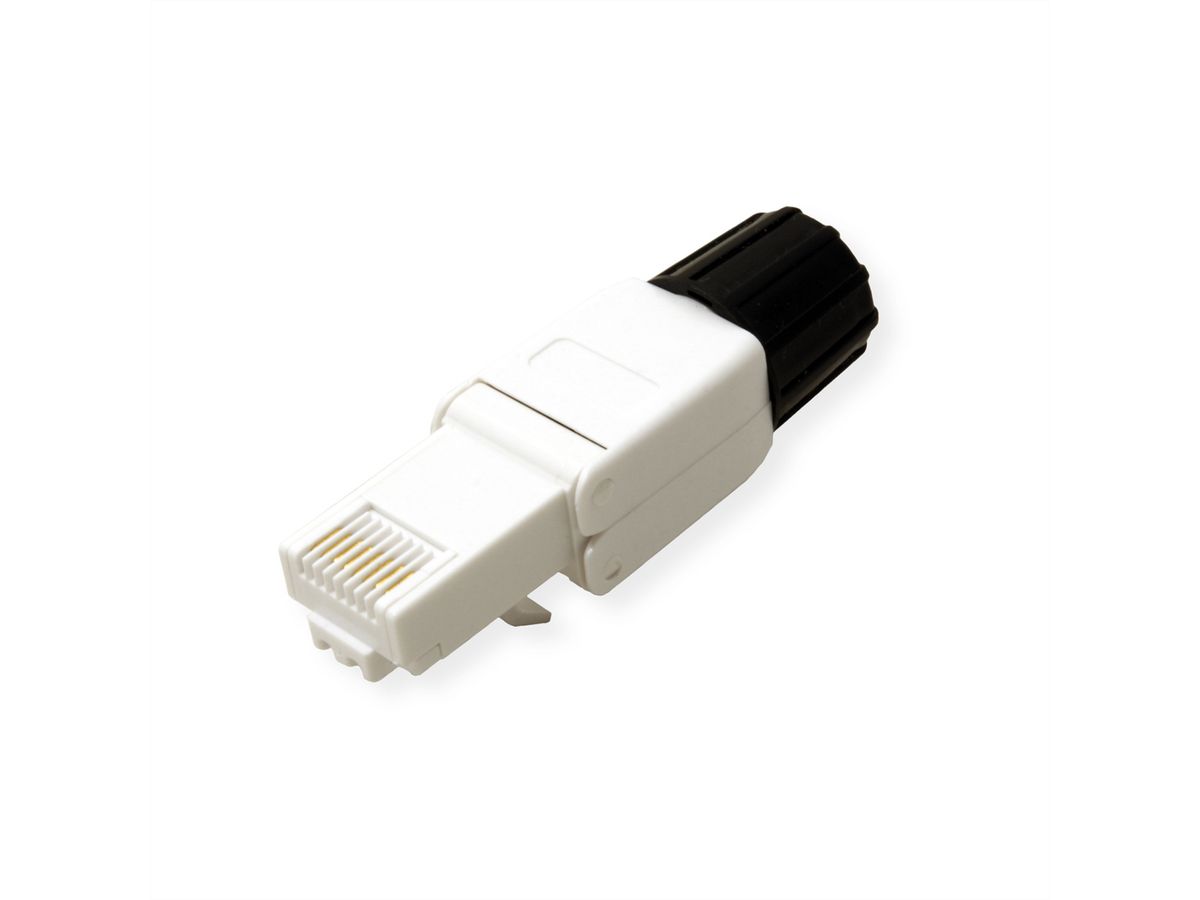

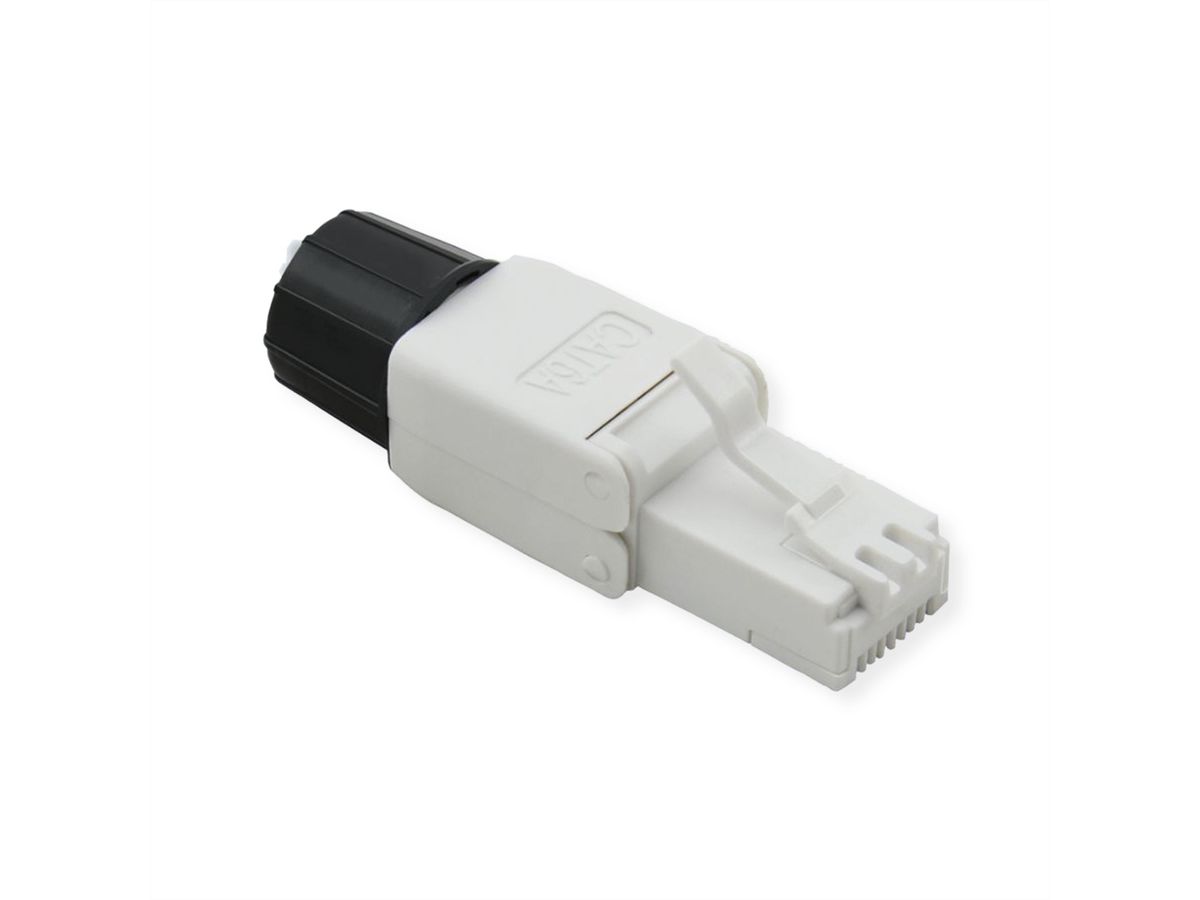

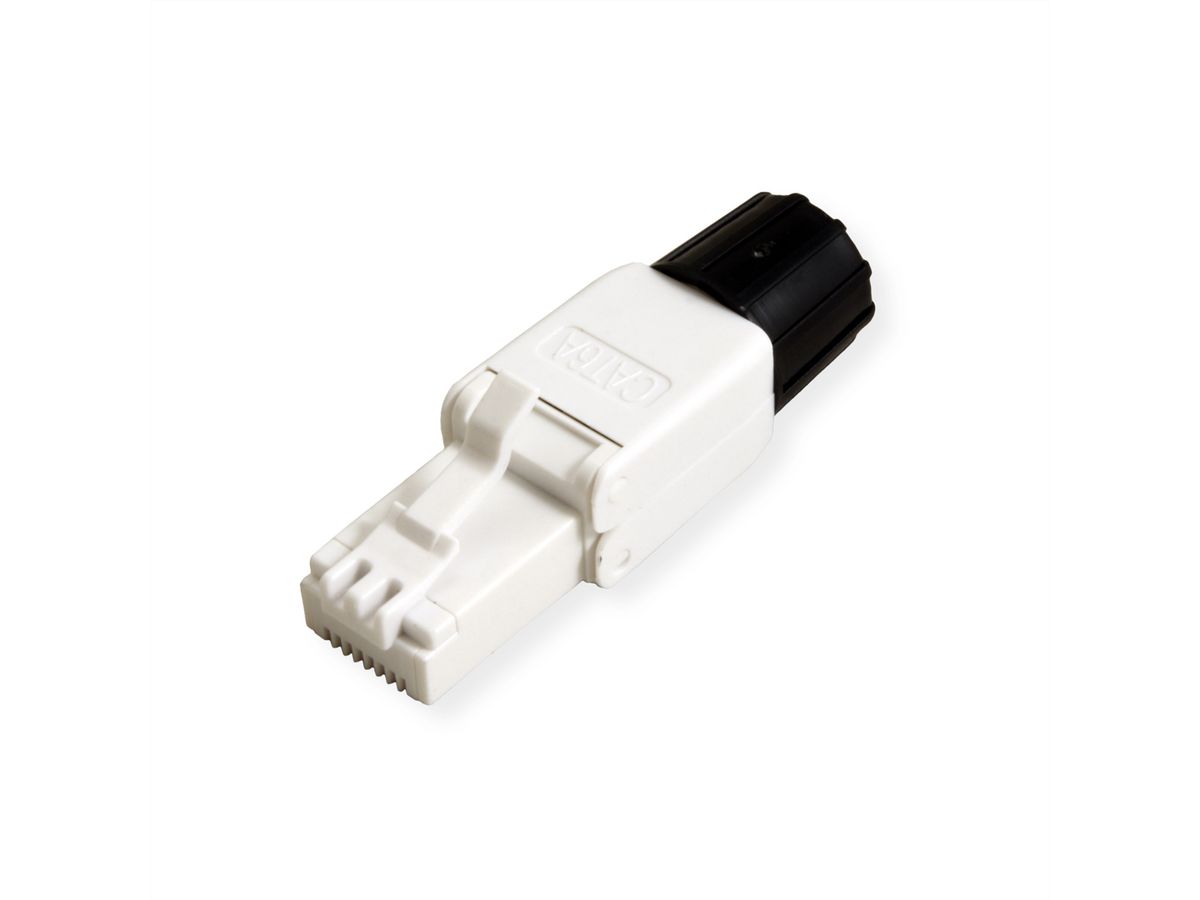

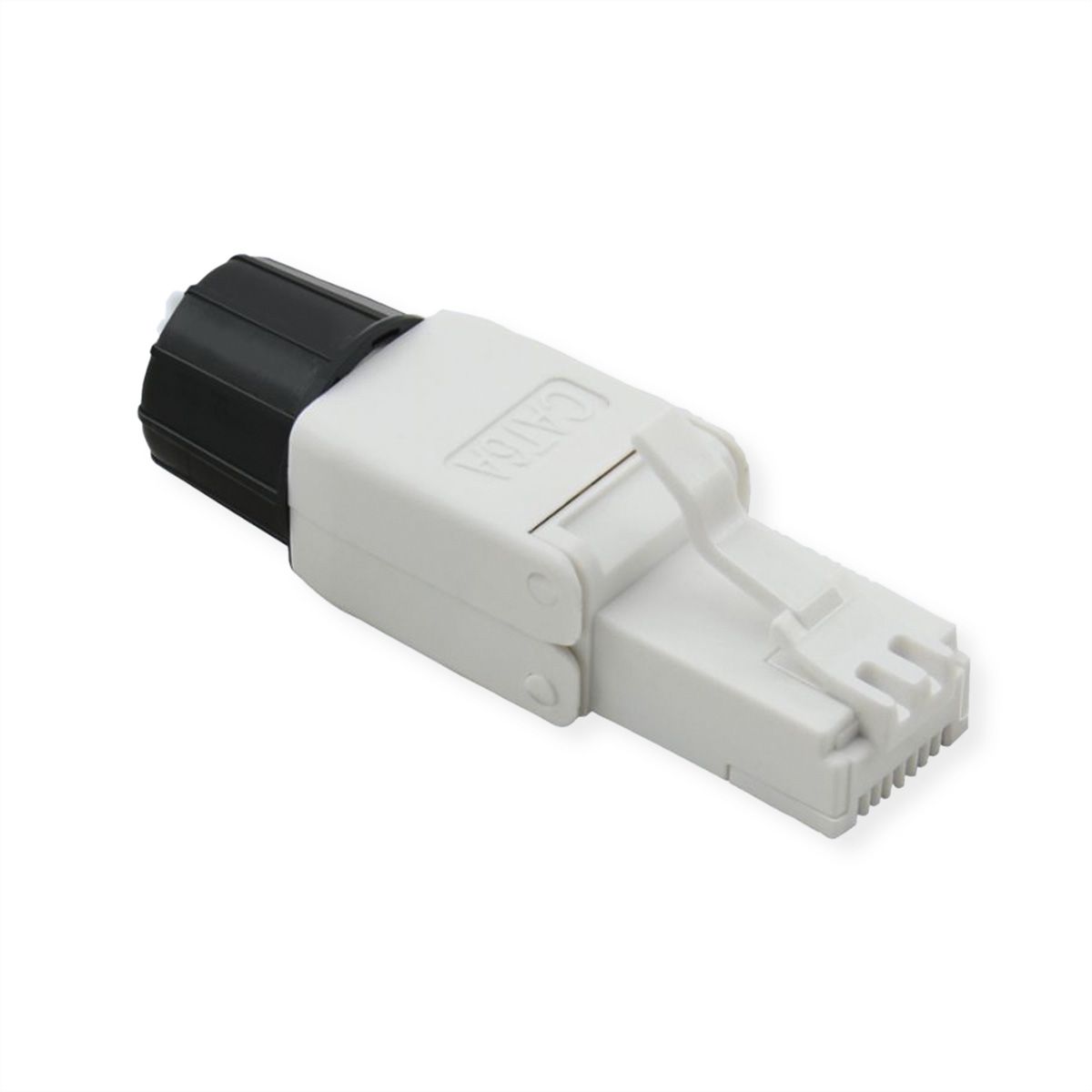

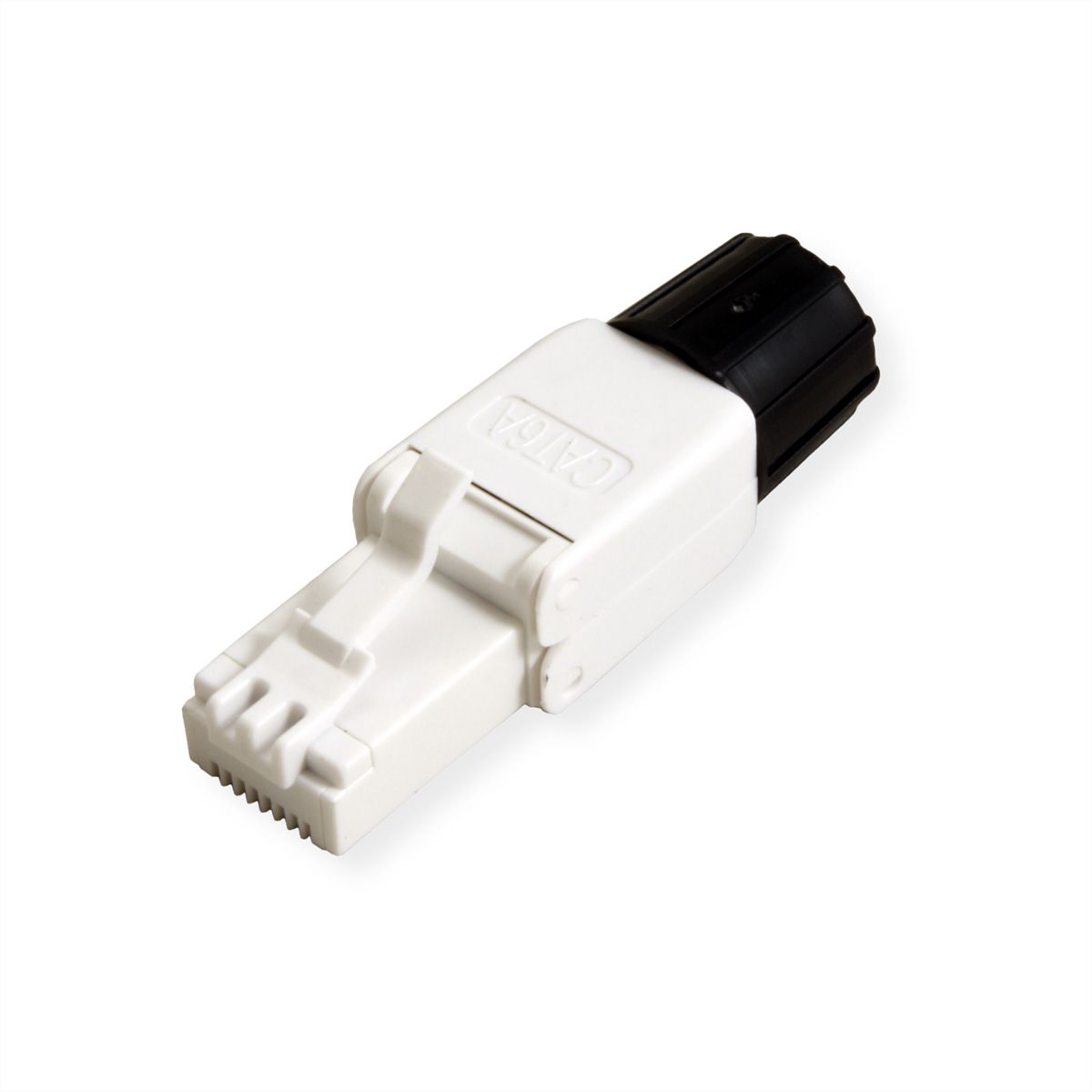

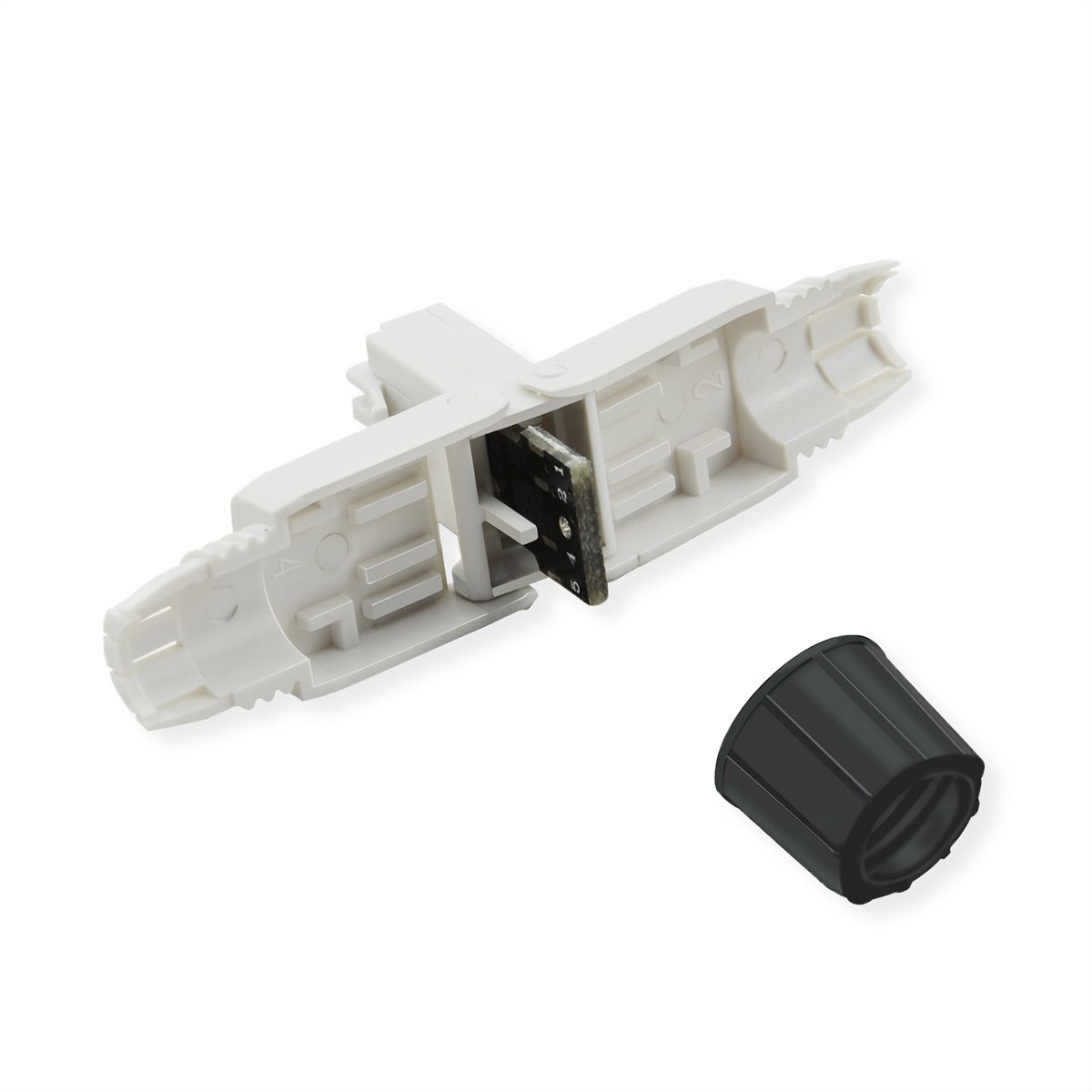

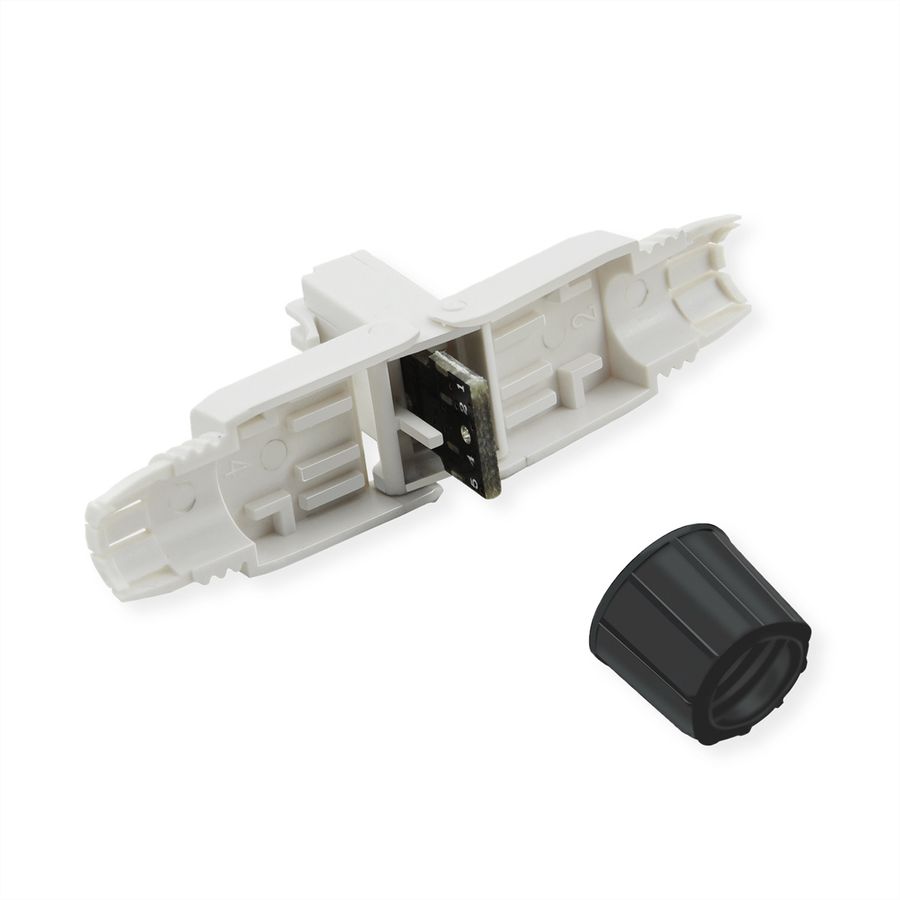

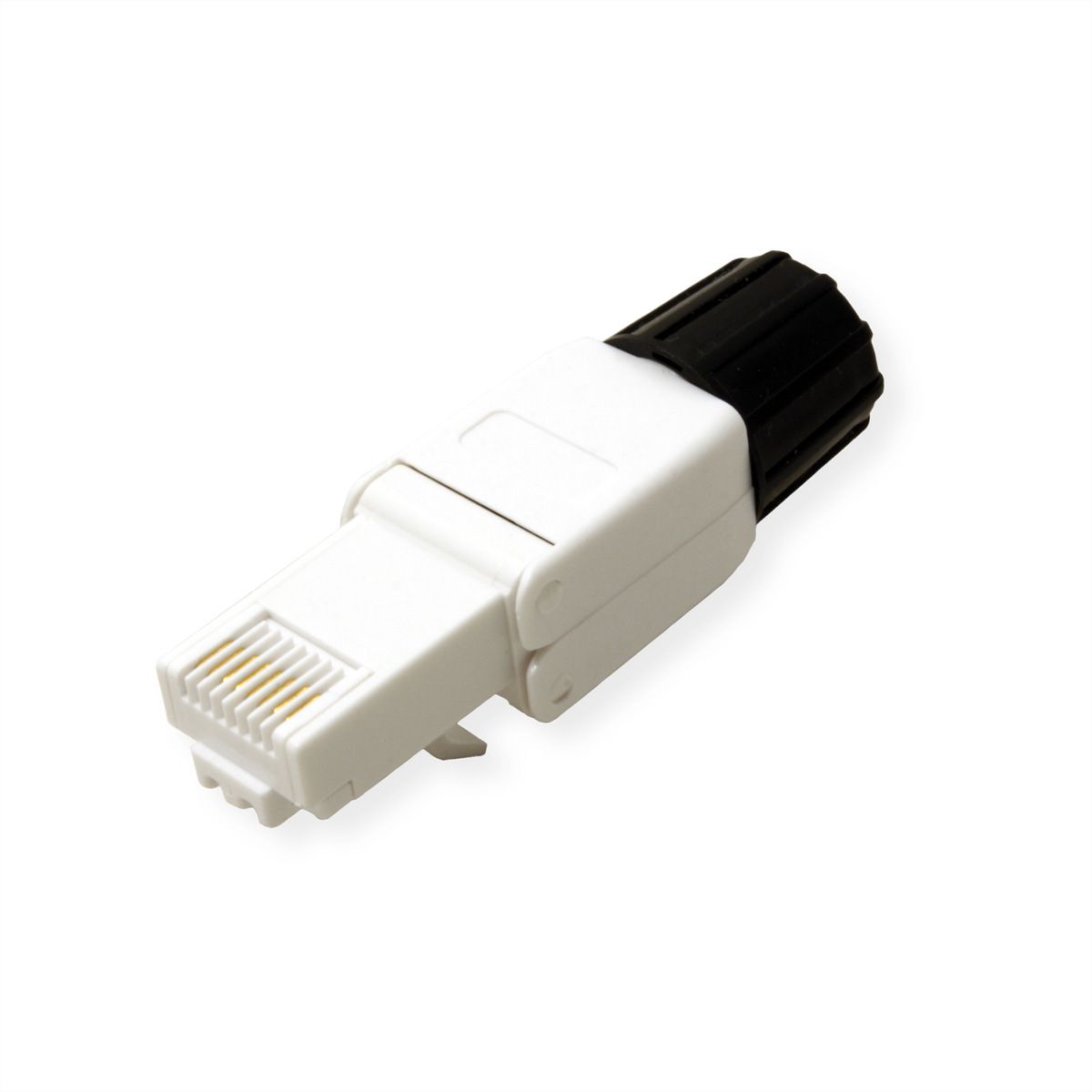

• Fast and easy tool-free installable unshielded RJ45 connector
• Cat.6A / Class EA performance according to ISO/IEC11801 and IEC60603-7

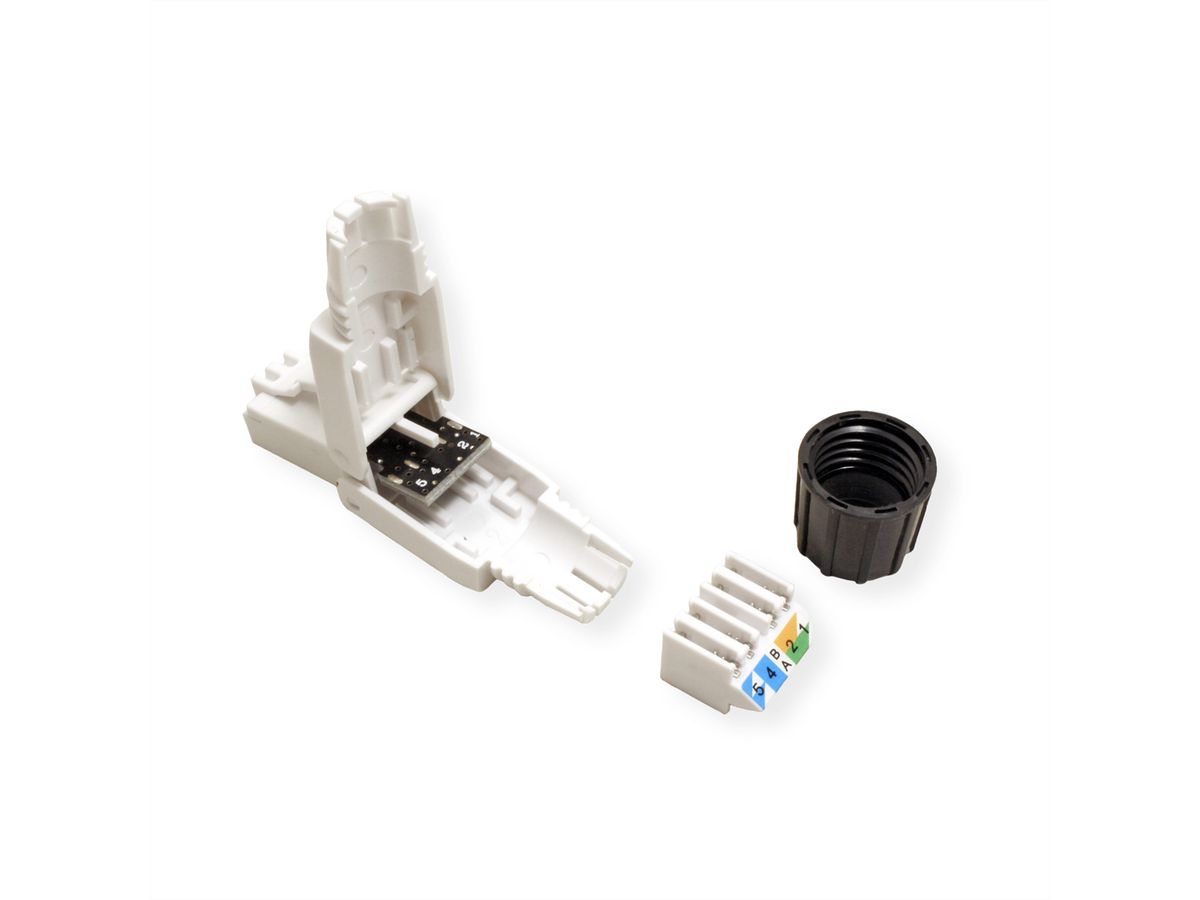

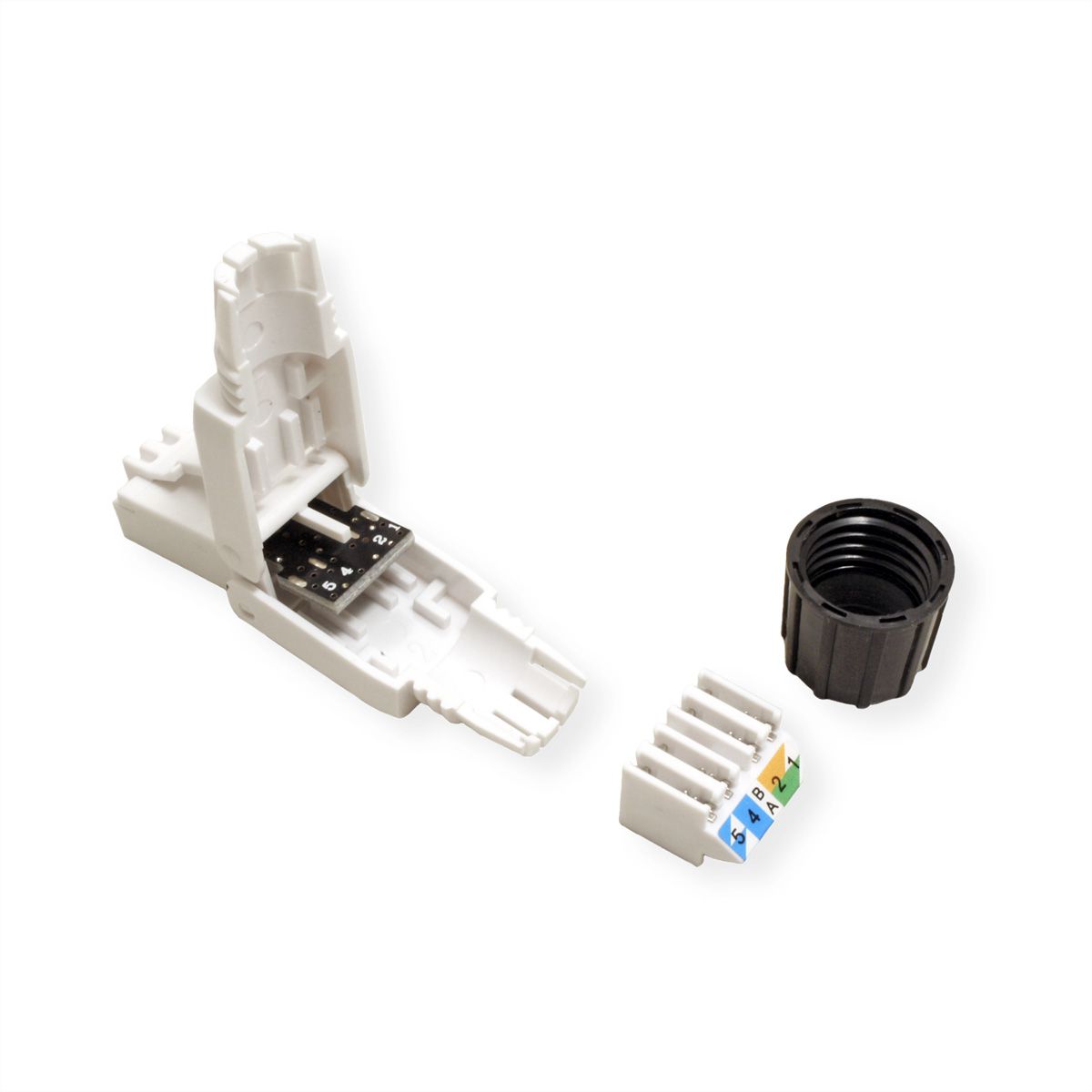

• Compact cable manager for round Solid cable AWG 22-24(1/0.41-1/0.575mm)
• For cable with outer diameter OD: 5.0 - 7.5mm

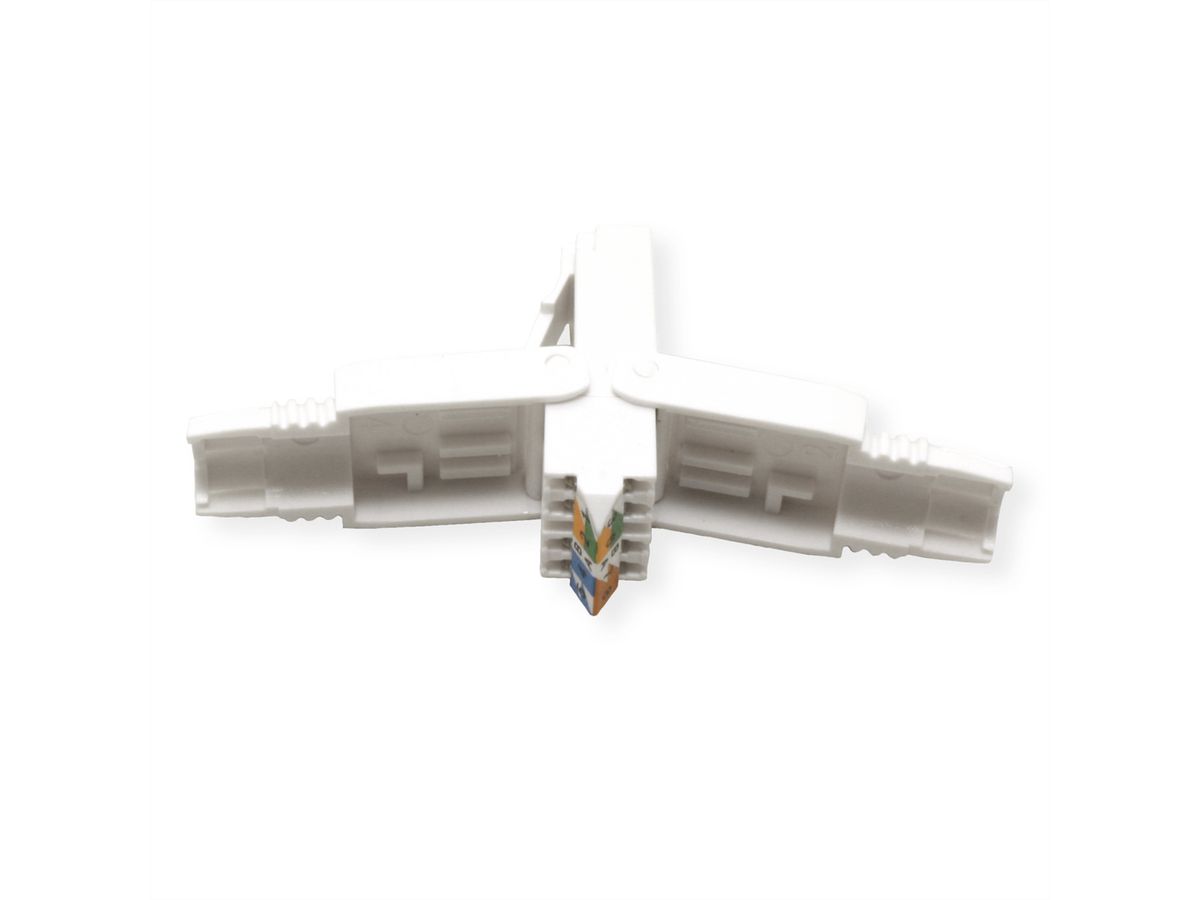

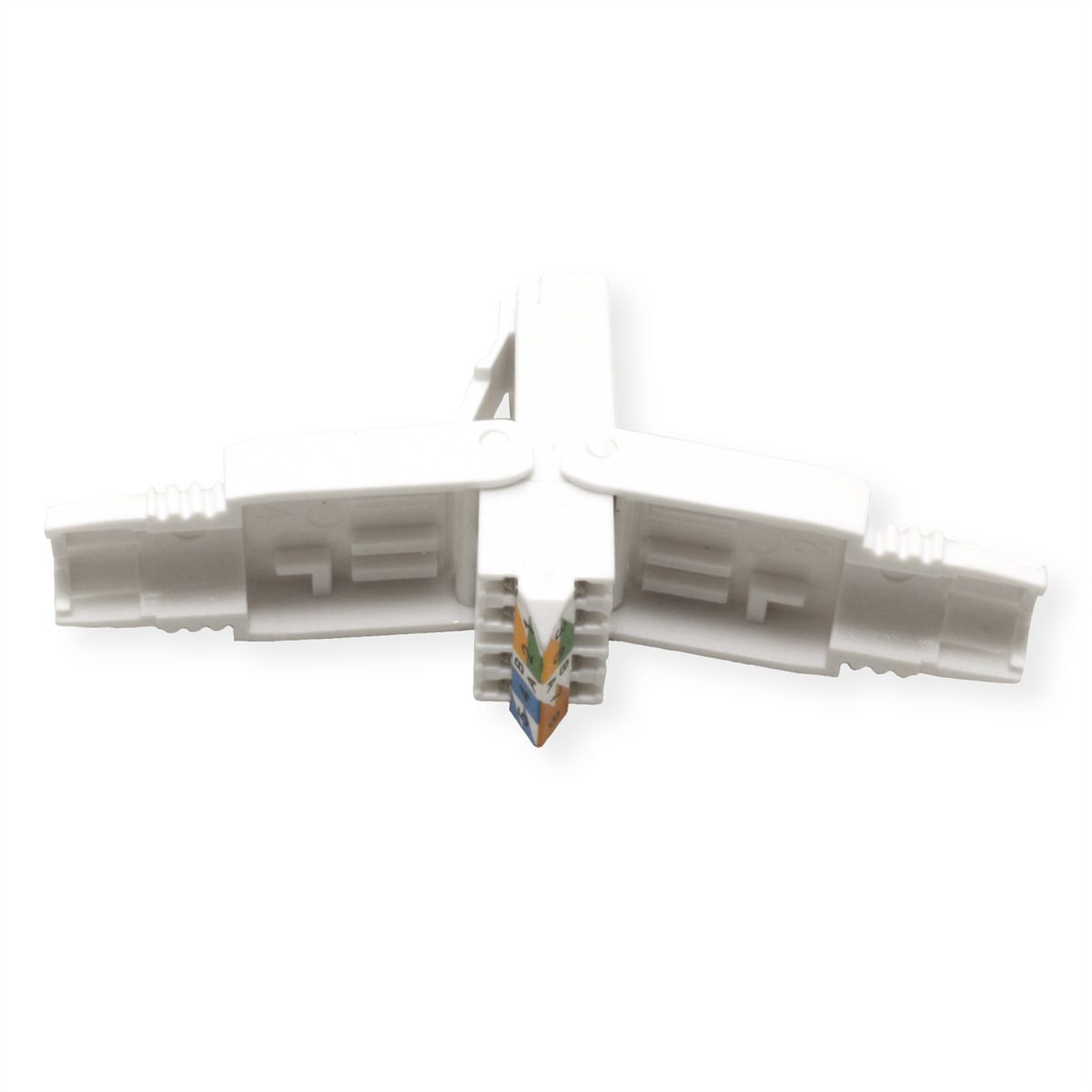

• Pair management according to TIA 568B and TIA 568A colour codes
• Plastic housing

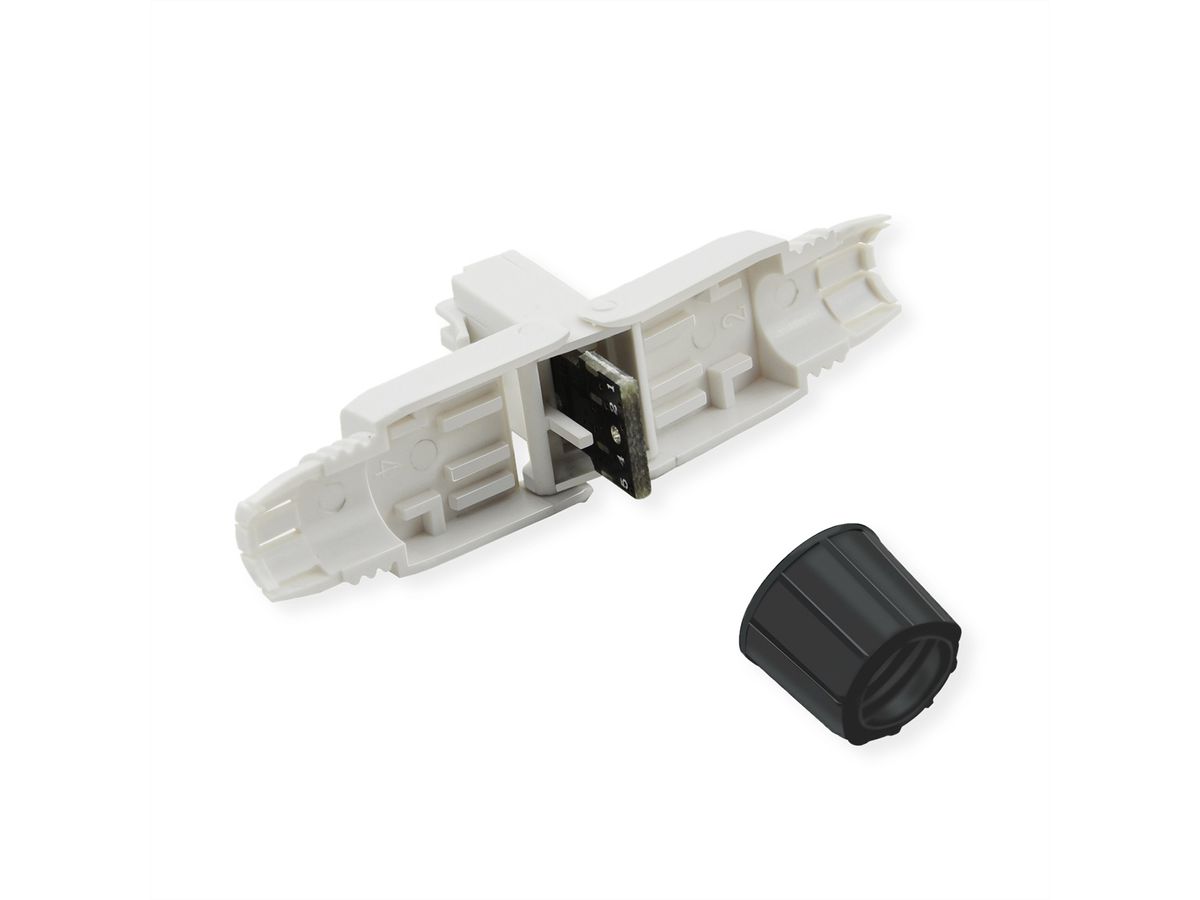

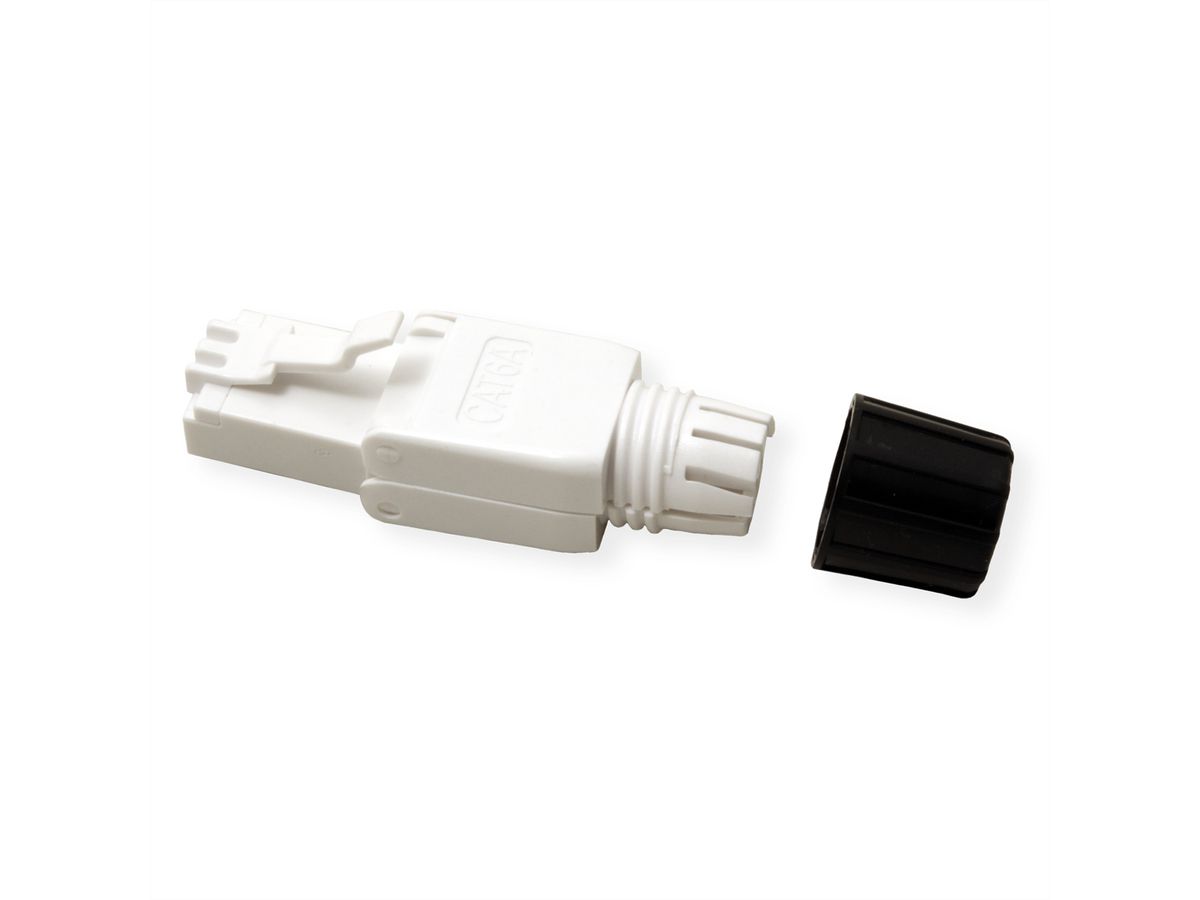

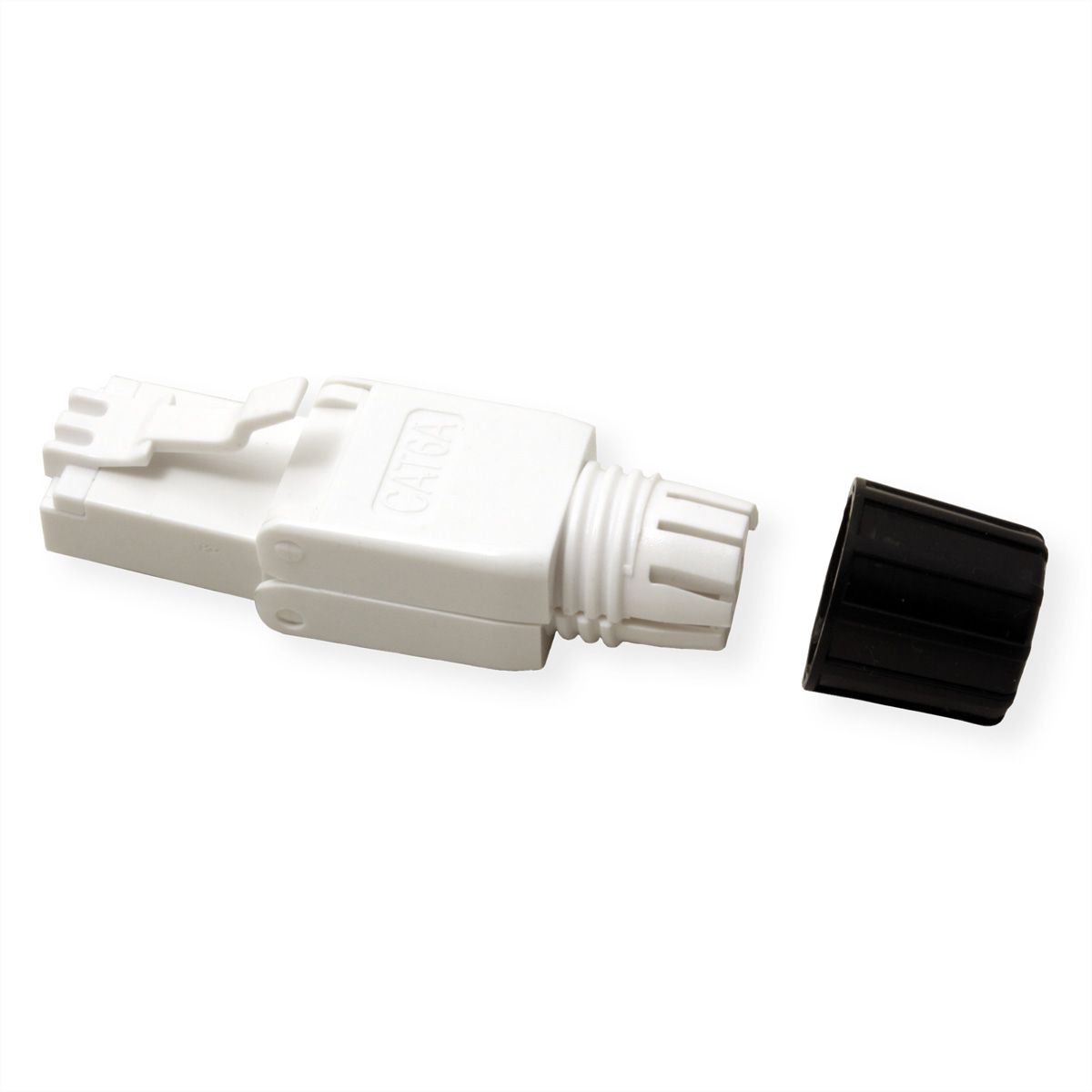

• Strain relief with cable tie and black transparent dust cup and boot

Specifications

Manufacturer	ROLINE
Product group	Connection technology TP
Product type	Connectors RJ-45
Colour	white
Shield type	Not screened
Transfer quality	Cat6A / Class EA
Quantity of ports	1
Side 1 Connector Type	RJ-45
Side 1 Connector Gender	Male
separate strain relief	yes
Height	15.7 mm
Width	16 mm
Depth	69 mm
Weight	5.3 g
Height of packaging (single piece)	10 mm
Width of packaging (single piece)	10 mm
Depth of packaging (single piece)	50 mm
Package weight (single piece)	0.005 kg
