ROLINE FTP Cable Cat.5e (Class D), Stranded Wire, 100 m
Please log in to be able to use the shopping cart and then complete orders.
Log inDescription
- Structured building wiring
- Impedance: 100 Ohm
- Colour: Grey

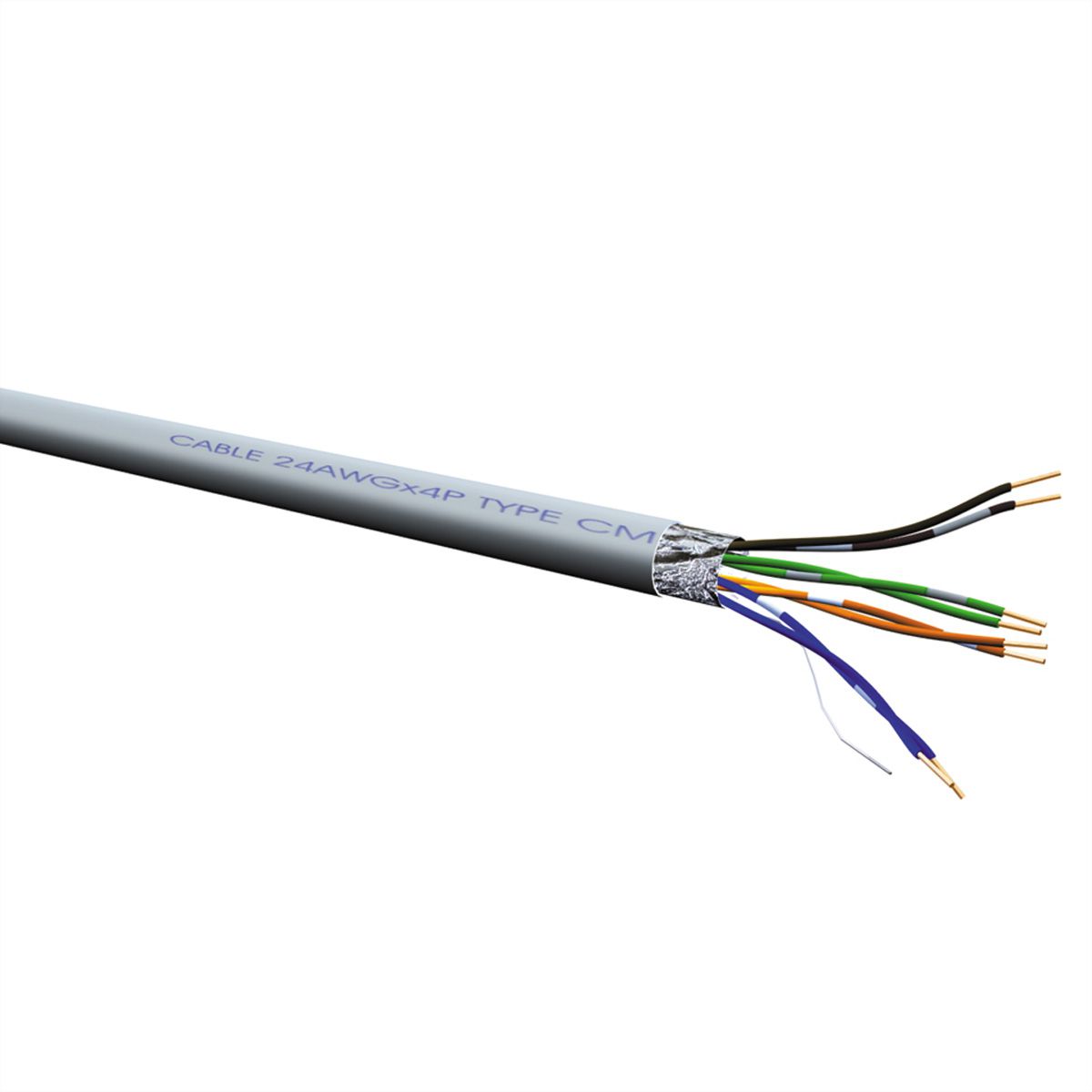

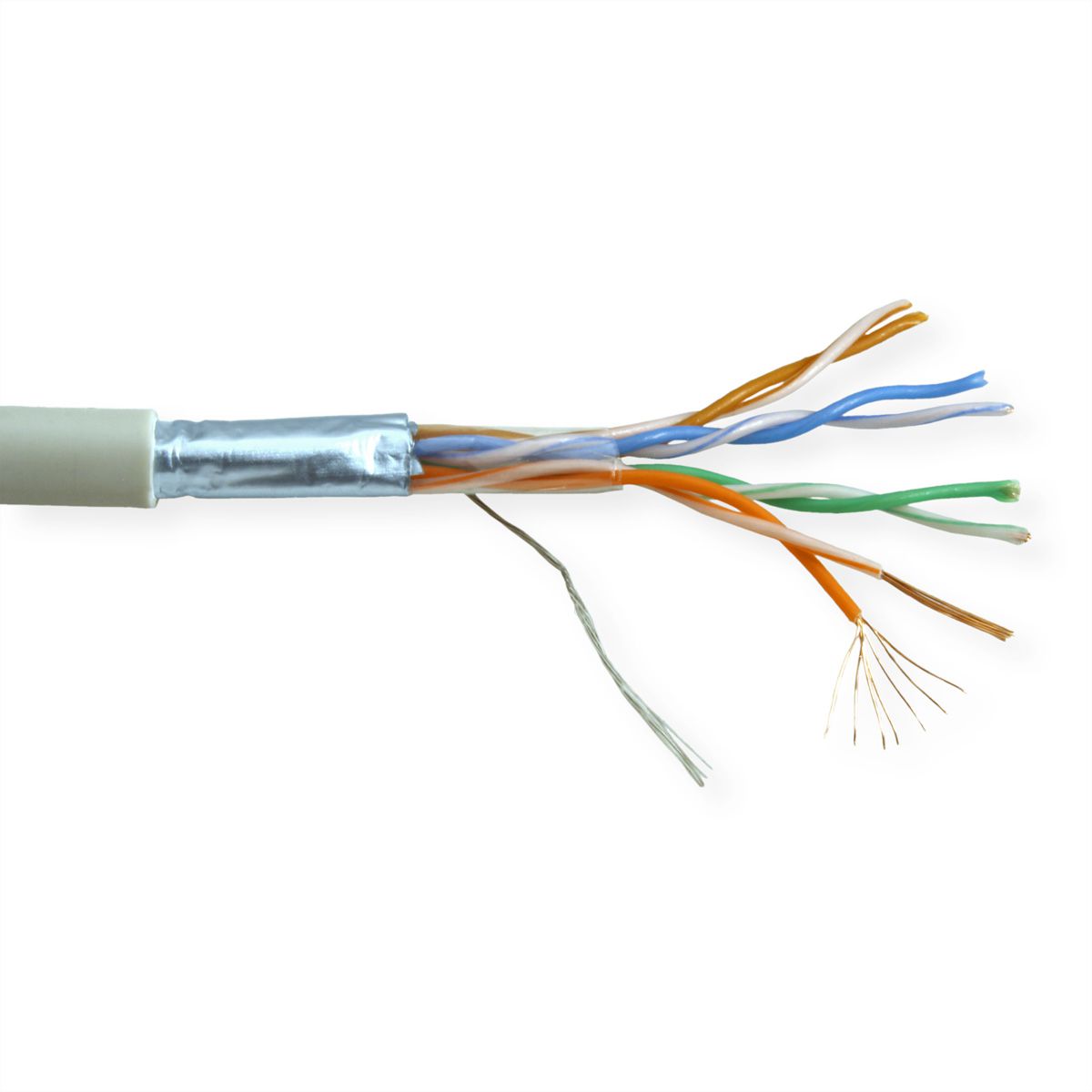

- Construction 21.15.0119: 8 lines, copper, stranded wire AWG26, screening: alu-laminated foil

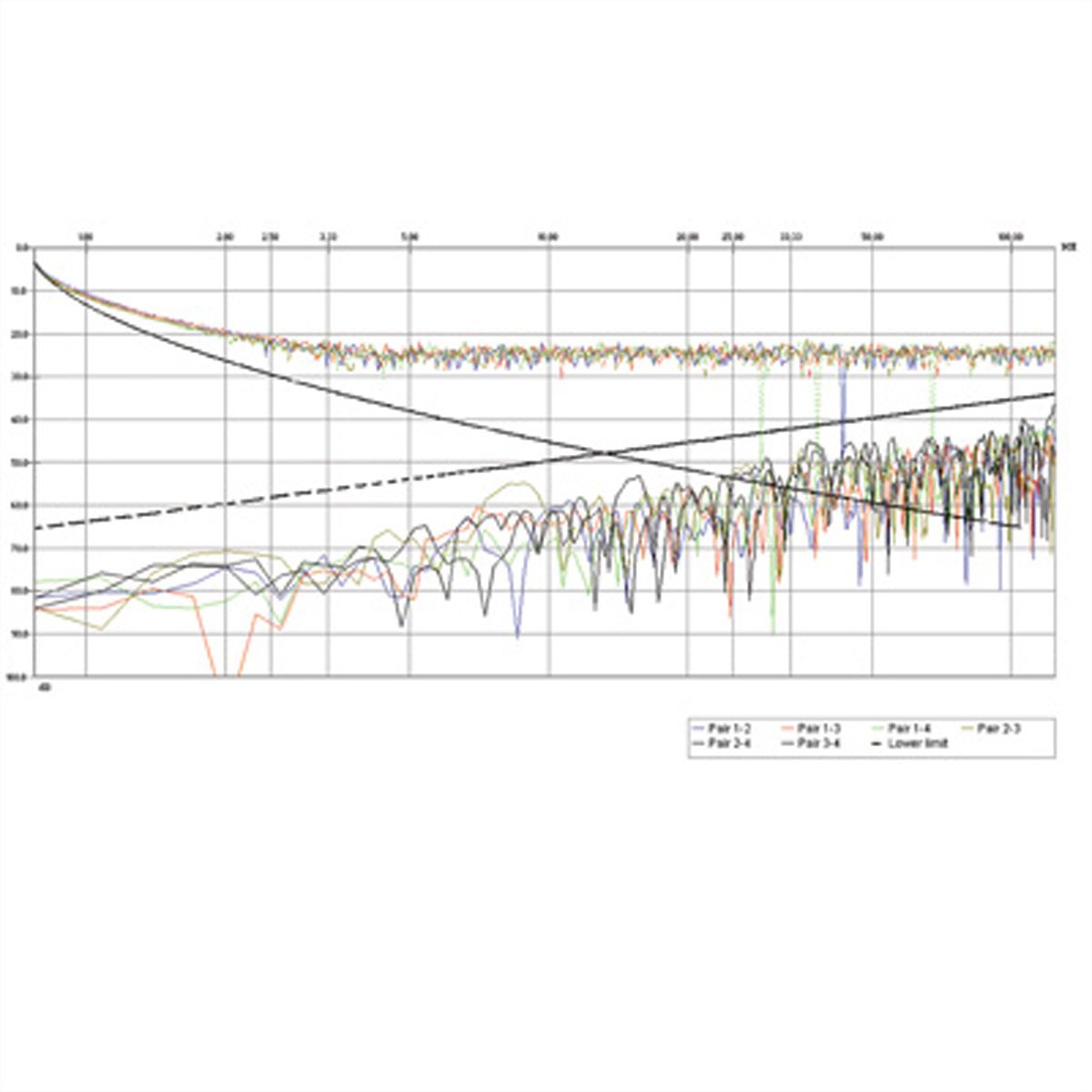

- Diagram: attenuation/near end crosstalk
For a structured cabling system we recommend to use the following components:
ROLINE Cat.5e FTP Cable, Solid Wire, AWG24: 21.15.0009 (100 m), 21.15.0010 (300 m)
ROLINE Cat.5e Flush/Surface Mount Wall Jack, shielded: 25.16.8487 (white), 25.16.8486 (ivory)/25.16.8387 (white), 25.16.8386 (ivory)
ROLINE Cat.5e 19" Patch Panel, 24 Ports, shielded: 26.11.0329 (light grey), 26.11.0328 (black)
ROLINE Cat.5e FTP Patch Cord, grey, 5 m: 21.15.0105
Our in-house laboratory has tested this cable-plug combination, in a Channel of 100 meters, in compliance with Class D specifications.
Specifications
Manufacturer | ROLINE |
---|---|
Product group | Twisted Pair Cable |
Product type | Raw cable Cat.5e |
Colour | grey |
Length | 100 m |
Contents | 100 m |
Shield type | FTP |
Transfer quality | Cat5e / Class D |
Impedance | 100 Ohm |
Quantity of wires | 8 |
Conductor cross section (AWG) | AWG 26 |
Conductor type | Stranded |
Cable LSOH | no |
Material (external cable mantle) | PVC |
Weight | 3120.8 g |
Height of packaging (single piece) | 290 mm |
Width of packaging (single piece) | 180 mm |
Depth of packaging (single piece) | 290 mm |
Package weight (single piece) | 3.503 kg |
