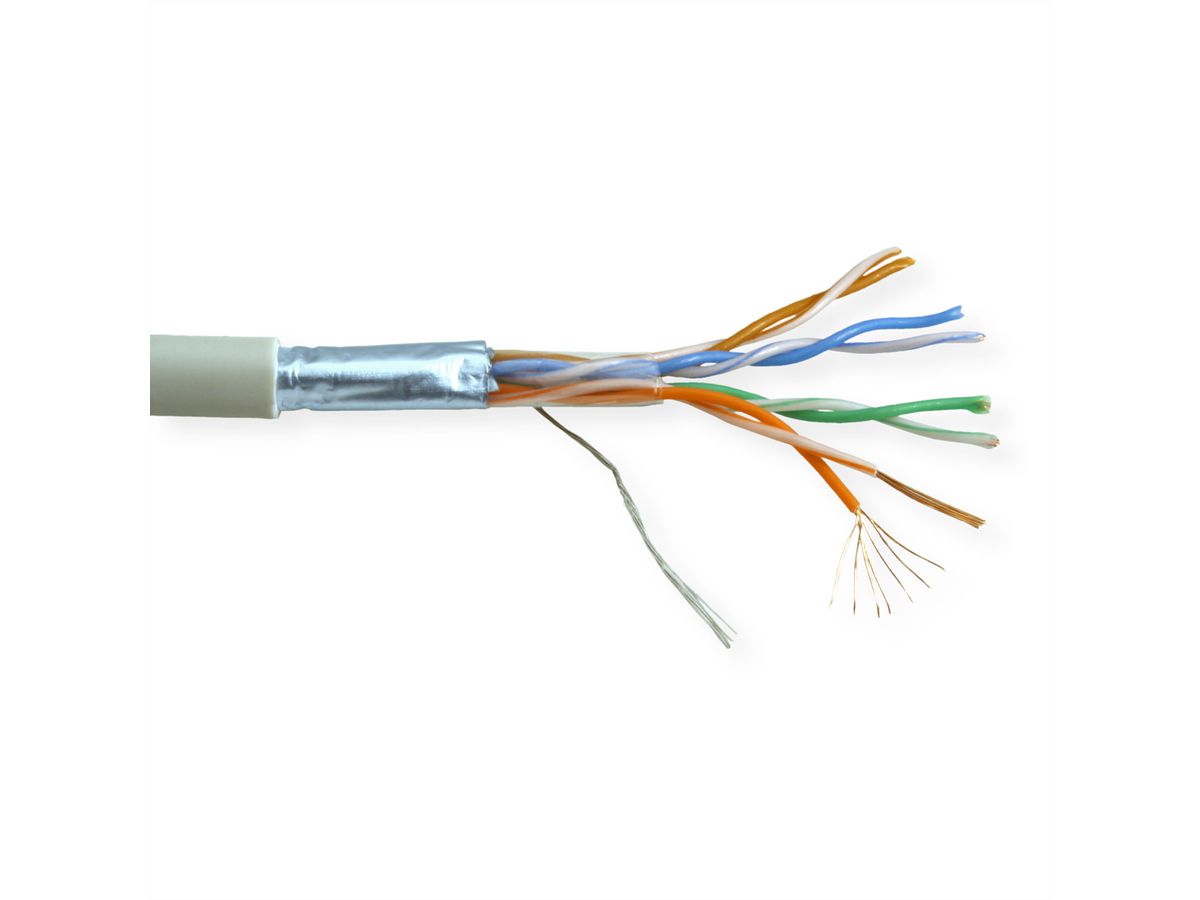

ROLINE FTP Cable Cat.5e (Class D), Stranded Wire, 300 m

ROLINE FTP Cable Cat.5e (Class D), Stranded Wire, 300 m

Please log in to be able to use the shopping cart and then complete orders.

Log in
Ordered until 3 pm - usually dispatched on the same day
Item no. 21.15.0121-1
Brand / Manufacturer ROLINE
Manuf. no. 21.15.0121
EAN 7611990935901
Package weight 10.329 kg


  • Structured building wiring
  • Impedance: 100 Ohm
  • Colour: Grey
  • Construction 21.15.0121: 8 lines, copper, stranded wire AWG26, screening: alu-laminated foil

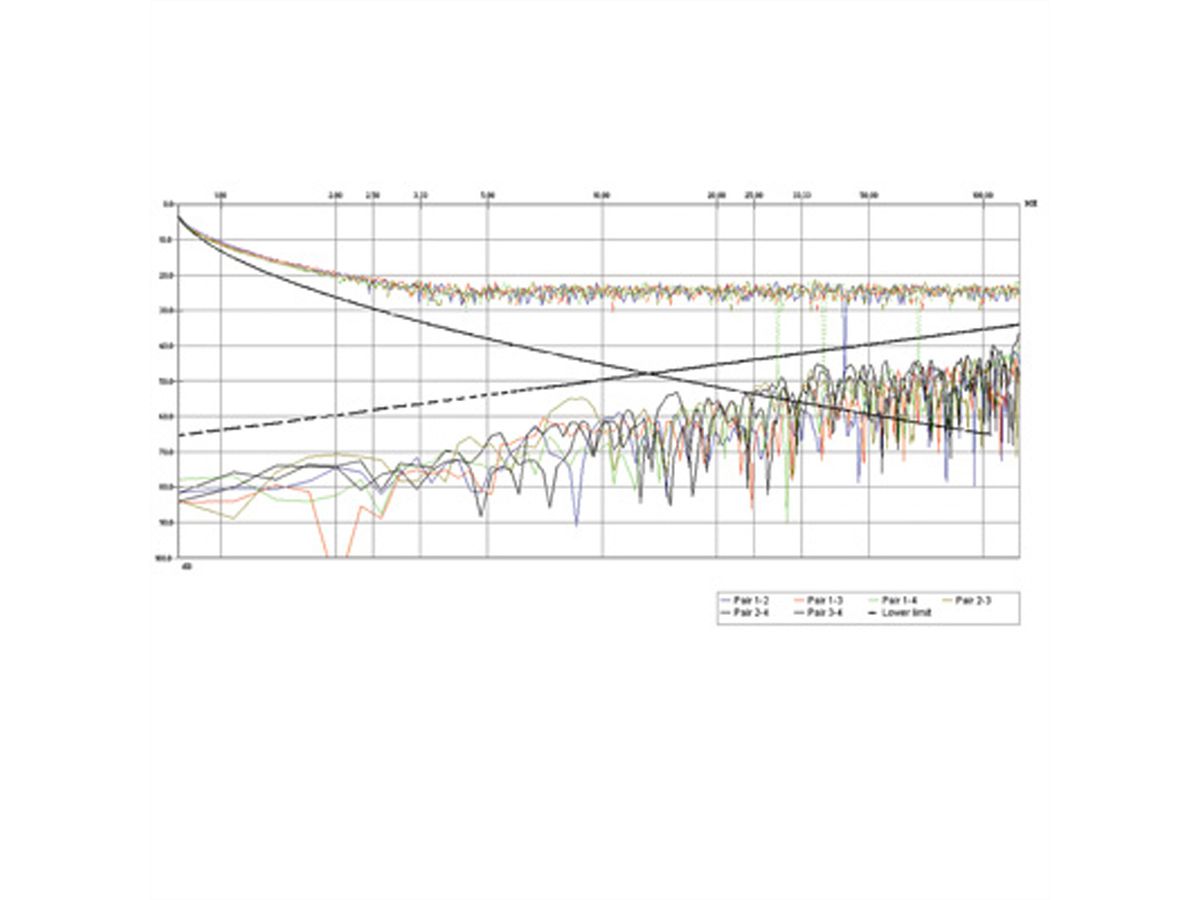

  • Diagram: attenuation/near end crosstalk

For a structured cabling system we recommend to use the following components:

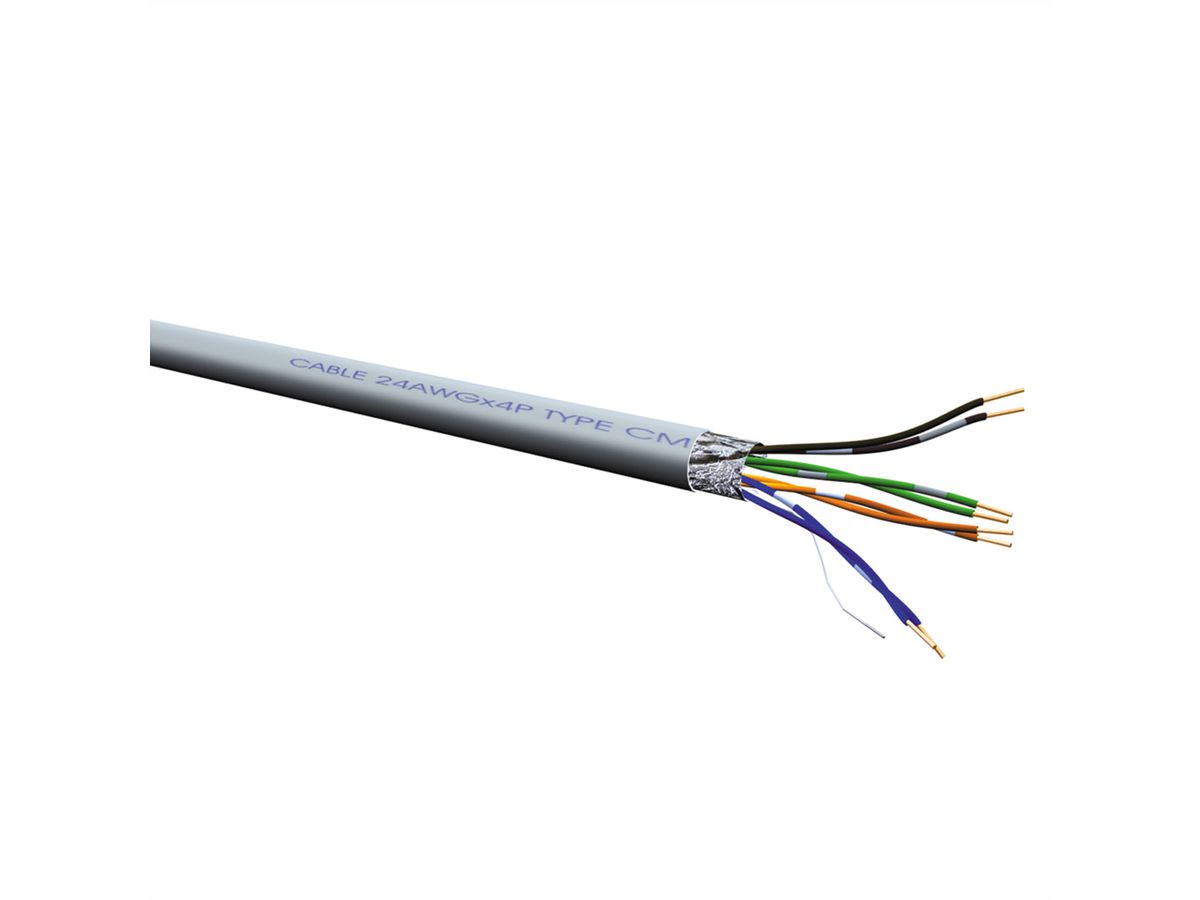

ROLINE Cat.5e FTP Cable, Solid Wire, AWG24: 21.15.0009 (100 m), 21.15.0010 (300 m)
ROLINE Cat.5e Flush/Surface Mount Wall Jack, shielded: 25.16.8487 (white), 25.16.8486 (ivory)/25.16.8387 (white), 25.16.8386 (ivory)
ROLINE Cat.5e 19" Patch Panel, 24 Ports, shielded: 26.11.0329 (light grey), 26.11.0328 (black)
ROLINE Cat.5e FTP Patch Cord, grey, 5 m: 21.15.0105

Our in-house laboratory has tested this cable-plug combination, in a Channel of 100 meters, in compliance with Class D specifications.


Manufacturer ROLINE
Product group Twisted Pair Cable
Product type Raw cable Cat.5e
Colour grey
Length 300 m
Contents 300 m
Shield type FTP
Transfer quality Cat5e / Class D
Impedance 100 Ohm
Quantity of wires 8
Conductor cross section (AWG) AWG 26
Conductor type Wire
Cable LSOH no
Material (external cable mantle) PVC
Weight 9873.8 g
Height of packaging (single piece) 300 mm
Width of packaging (single piece) 440 mm
Depth of packaging (single piece) 450 mm
Package weight (single piece) 10.329 kg


Product data sheet - English (49.3 KB)


Manufacturer data sheet - English (682.3 KB)


The products of our own brand ROLINE are designed for professional continuous operation.

With a 2-year functional guarantee, we stand by our performance promise.

ROLINE – Quality makes the difference.
