The products of our own brand ROLINE are designed for professional continuous operation.
With a 2-year functional guarantee, we stand by our performance promise.
ROLINE – Quality makes the difference.
:strip_icc():strip_exif()/bilder/s21/21131069_a_102.jpg "ROLINE Gigabit Converter, incl. mini GBIC, RJ45 to LC")
:strip_icc():strip_exif()/bilder/s21/21131069_2015_b_1_hi.jpg "ROLINE Gigabit Converter, incl. mini GBIC, RJ45 to LC")
:strip_icc():strip_exif()/bilder/s21/21131069_b_102.jpg "ROLINE Gigabit Converter, incl. mini GBIC, RJ45 to LC")

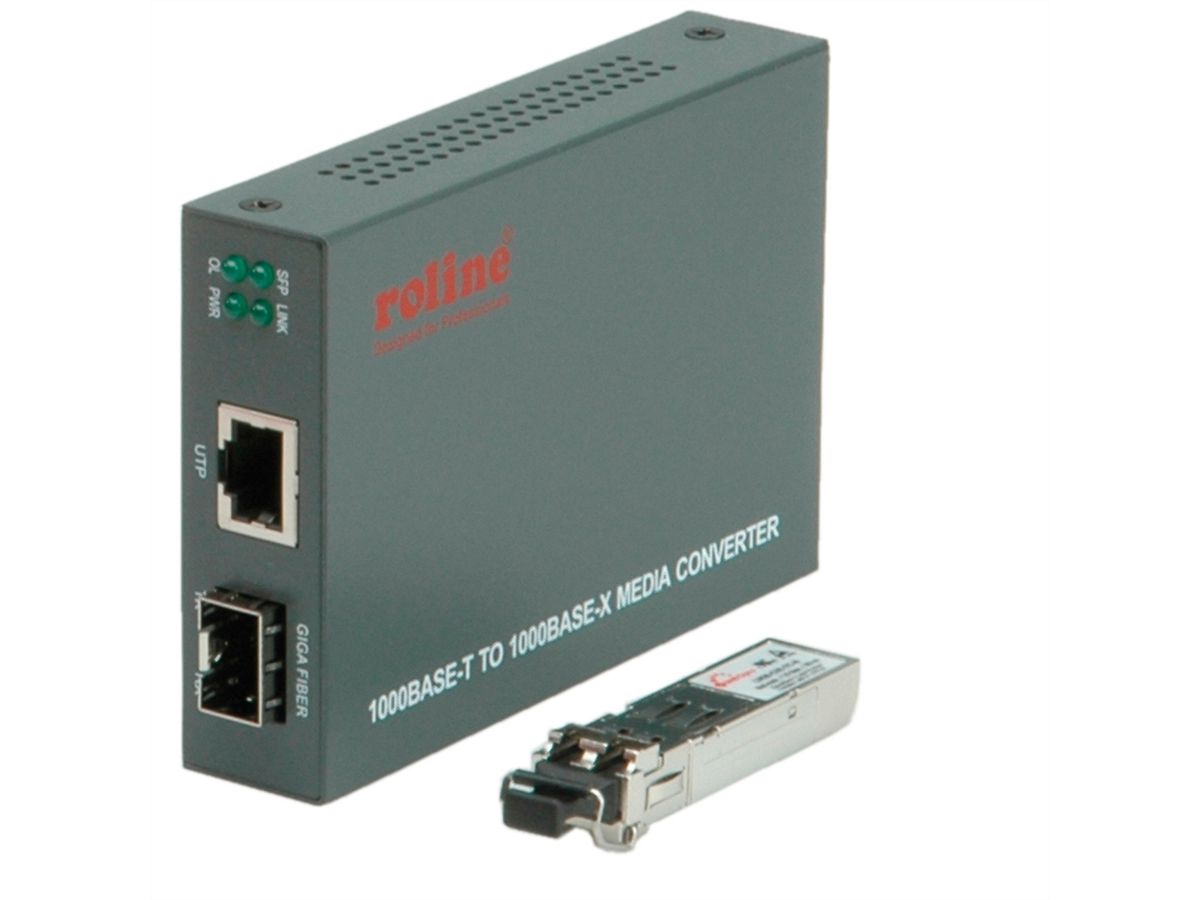

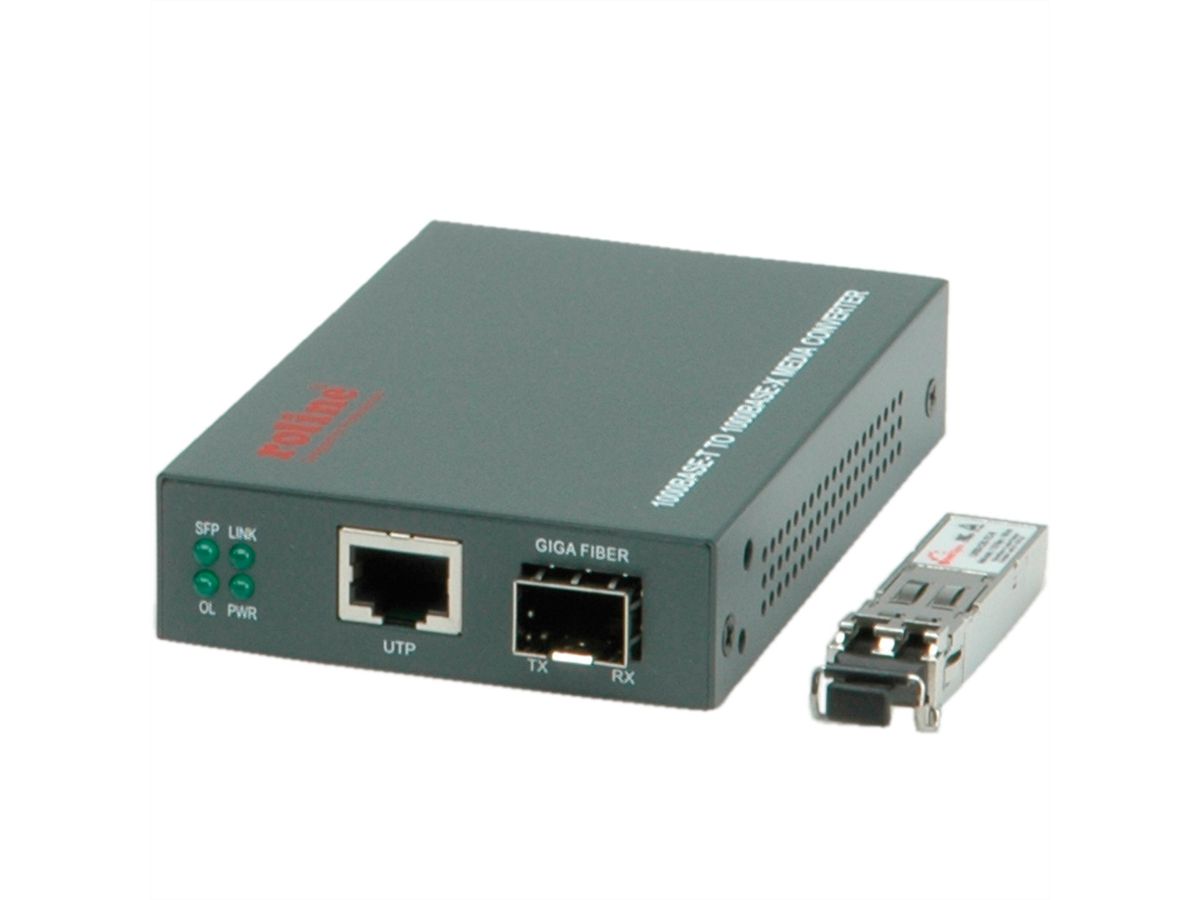

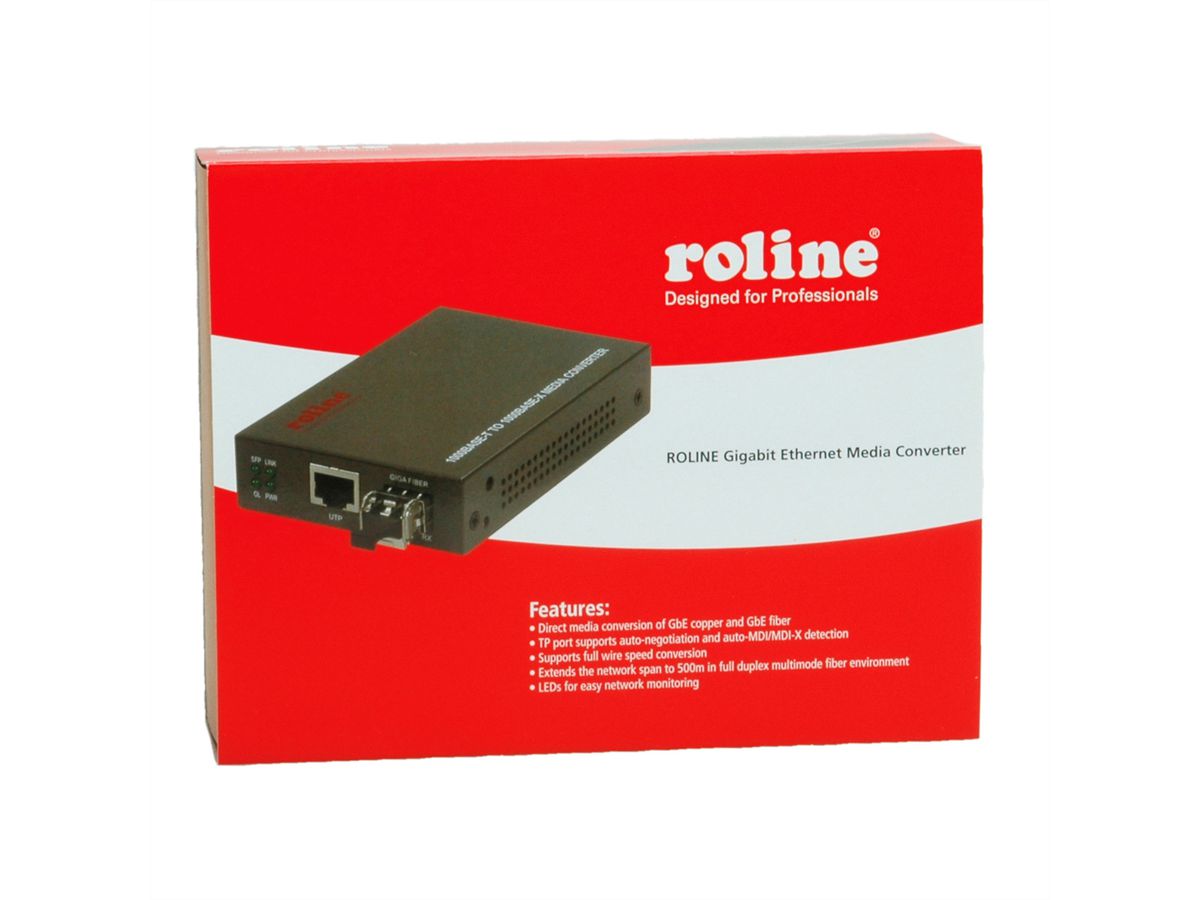

ROLINE Gigabit Converter, incl. mini GBIC, RJ45 to LC
Please log in to be able to use the shopping cart and then complete orders.
Log in| Item no. | 21.13.1069-5 |
|---|---|
| Brand / Manufacturer | ROLINE |
| Manuf. no. | 21.13.1069 |
| EAN | 7611990970049 |
| Package weight | 0.456 kg |
:strip_icc():strip_exif()/logos/roline.png "ROLINE")
Description
- These converters are the ideal connectivity solution for networks using a combination of STP and fiber optic types
- Provides media conversion from STP to multimode LC fibre media type
- RC-1000SX/LC: The maximum cable length for fiber is 500m by using a 50/125µm fiber
- Supports transparent conversion of any packet types with no packet length limitation
- Supports auto-negotiation with link partners
- Provides link pass through between copper and fiber link
- Provides SFP on fiber port for mounting variety of fiber options
- Supports optional DIN-Rail installation
- Dimension;(WxDxH) 72,5x108x23mm
- Supports center chassis installation to achieve the advantages of central power, optional power redundancy and management
- Ideal solution for multimode, short reach up to long reach single mode fiber, Bi-Di and CWDM applications
- Compliant with IEEE 802.3ab, 802.3z
- Network ports: 1x shielded RJ-45, 1000Mbps, Auto-negotiation capable, Auto-MDI/MDI-X; 1x SFP connector with pre-configured SFP fib
- Content: Converter, Manual, PSU (7,5V DC, 500mA), Mini-GBIC Module SX/LC
Specifications
| Manufacturer | ROLINE |
|---|---|
| Product group | Network converters |
| Product type | Network Media Converters |
| Colour | black |
| Scope of delivery | Converter, Manual, PSU (7,5V DC, 500mA), Mini-GBIC Module SX/LC (21.14.3500 |
| RJ-45 Port (Mbps/s) | 1000 |
| Fibre Ports (Mbps) | 1000 |
| Quantity of RJ45 ports | 1 |
| Quantity of fibre LC ports | 1 |
| Converts to | RJ-45/LC |
| Fibre | Multi mode |
| Ethernet fibre standard | 1000Base-SX |
| Max. range 50 µm fibre | 500m |
| Height | 23 mm |
| Width | 72.5 mm |
| Depth | 108 mm |
| Weight | 222.7 g |
| Height of packaging (single piece) | 70 mm |
| Width of packaging (single piece) | 150 mm |
| Depth of packaging (single piece) | 210 mm |
| Package weight (single piece) | 0.456 kg |
