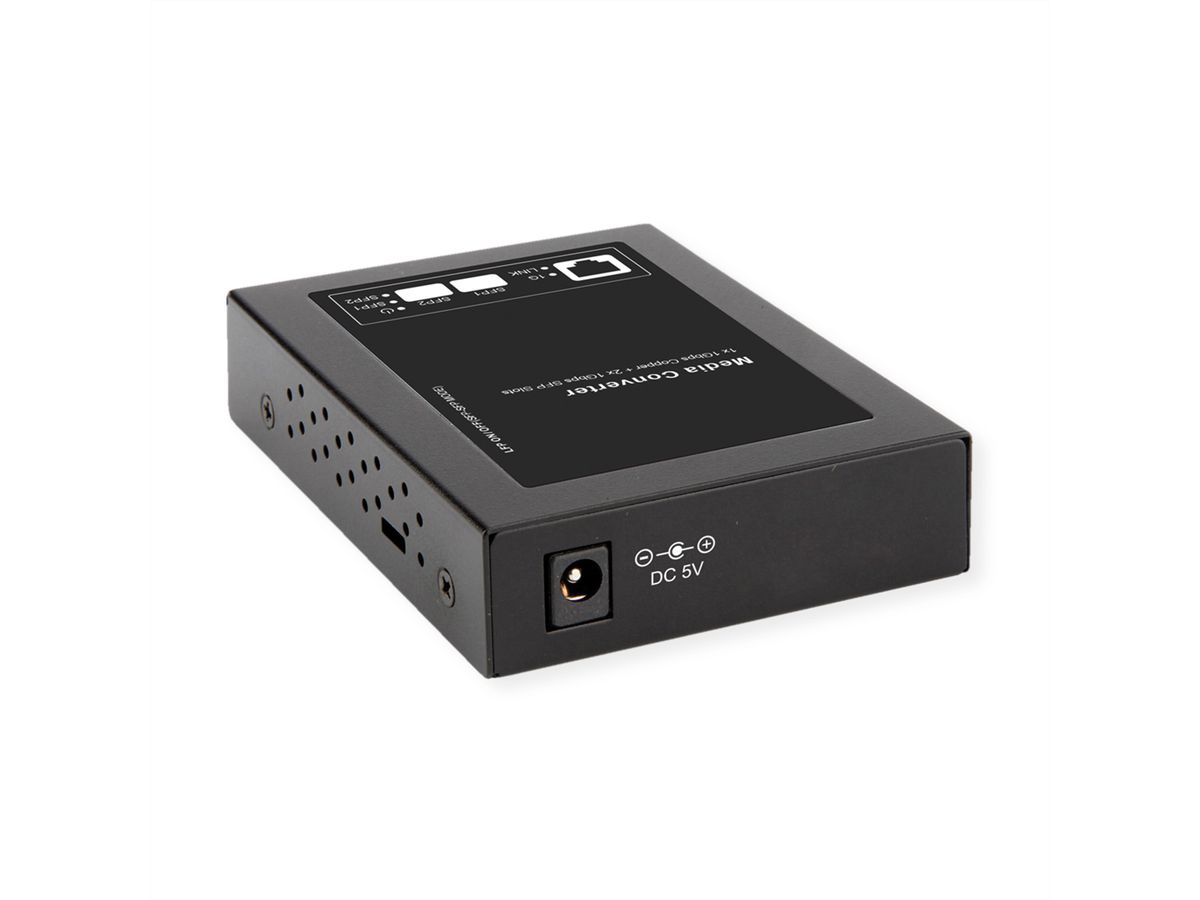

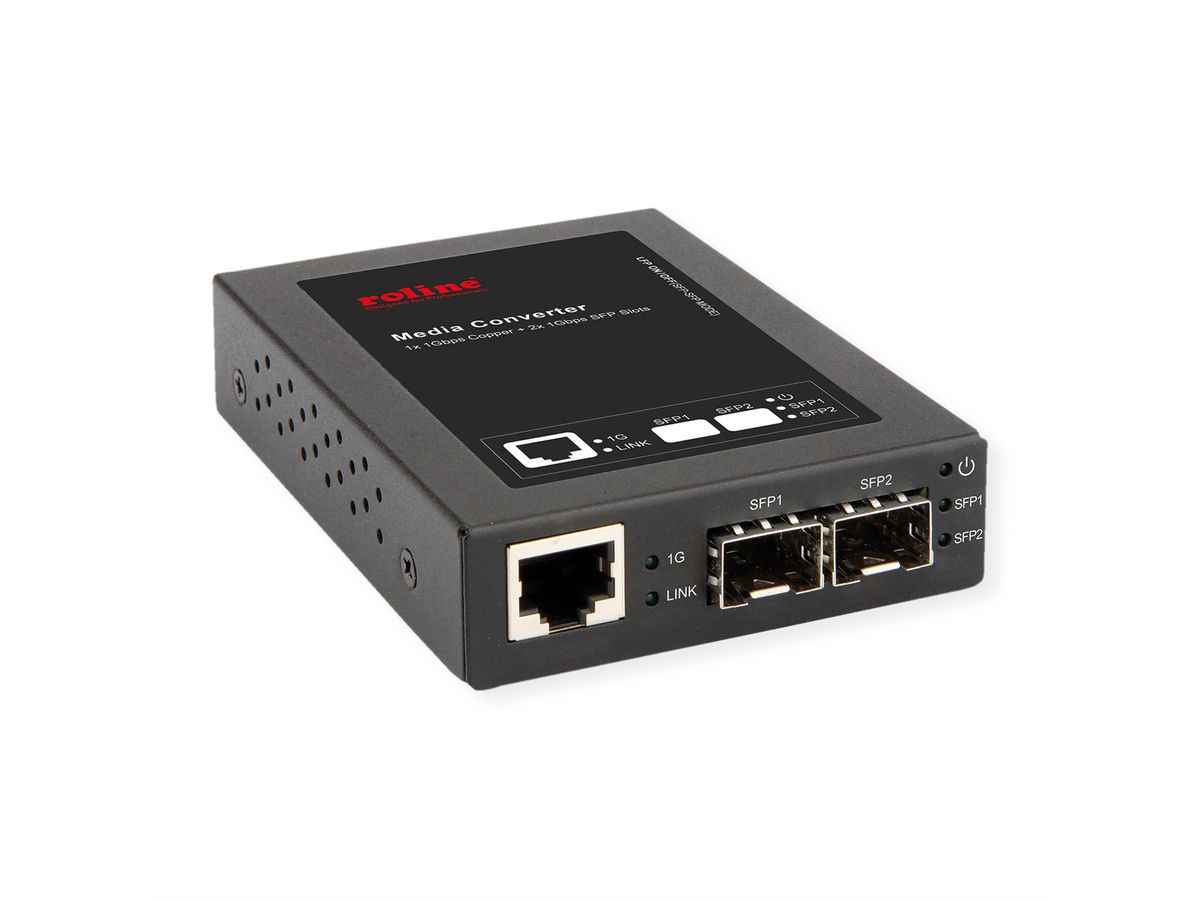

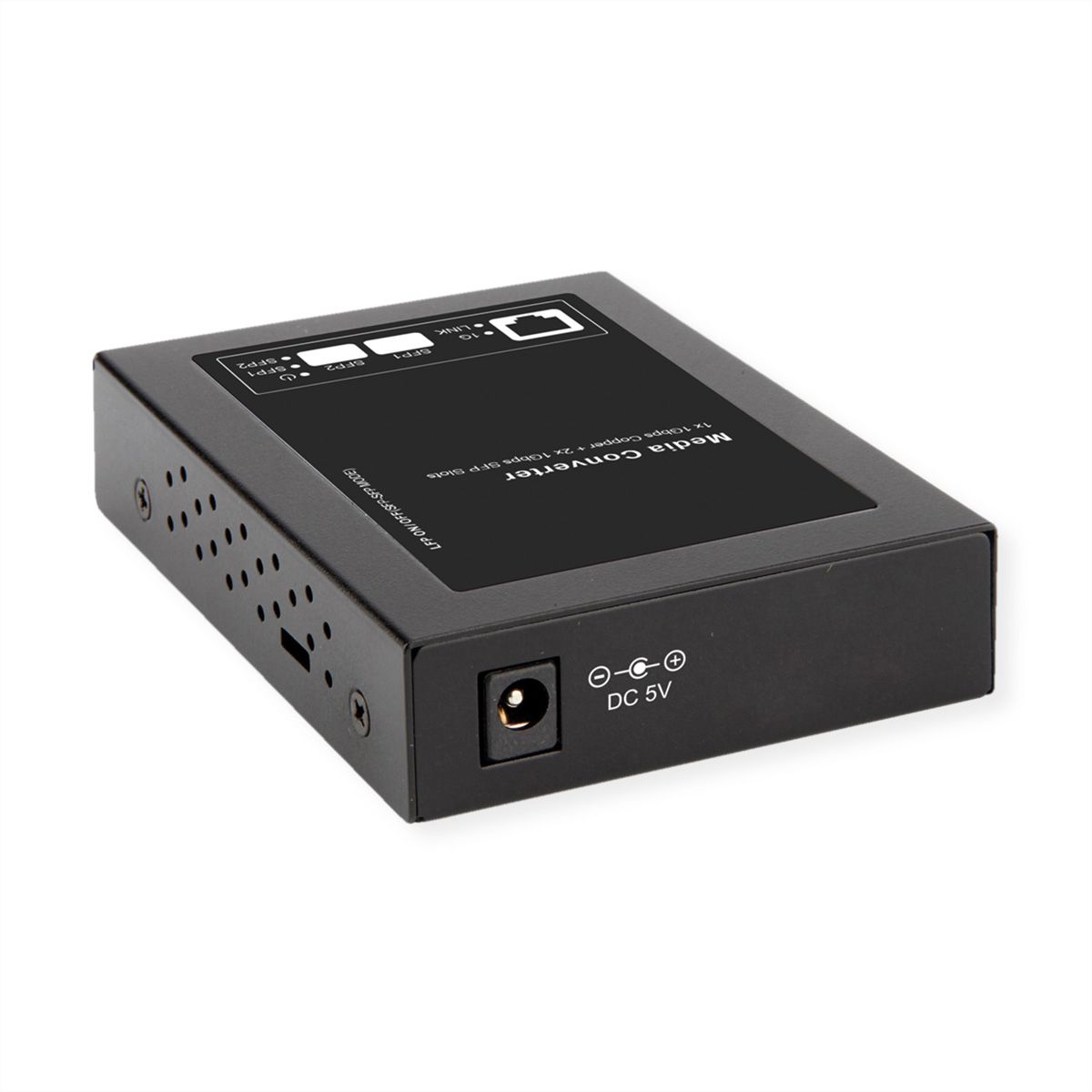

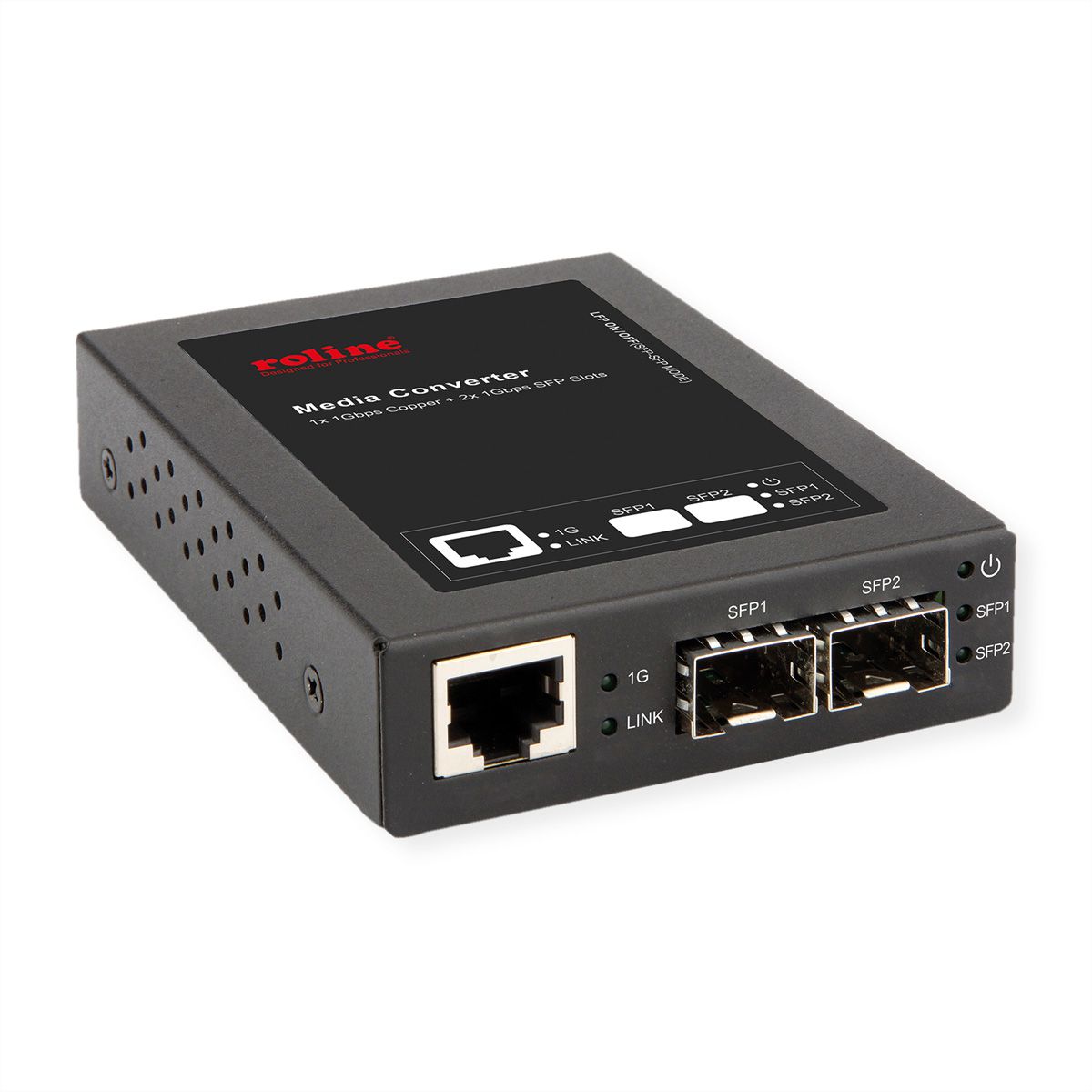

ROLINE Gigabit Converter, RJ-45 to Mini GBIC
Please log in to be able to use the shopping cart and then complete orders.
Log in| Item no. | 21.13.1074-2 |
|---|---|
| Brand / Manufacturer | ROLINE |
| Manuf. no. | 21.13.1074 |
| EAN | 7630049675124 |
| Package weight | 0.3 kg |
:strip_icc():strip_exif()/logos/roline.png "ROLINE")
Description
Fiber optic converters can be used to adapt different cabling within a LAN to create a functional network. Whether for converting fiber optics to a classic twisted pair network with a Mini-GBIC or for converting fiber optics to another fiber optic network with two Mini-GBICs. The ROLINE GigaBit converter offers both options.
The ROLINE Gigabit Converter converts a Gigabit Ethernet TP port to fiber optic or a fiber optic port to a second fiber optic port. The fiber optic connections can be freely selected using a Mini-GBIC module. Mini-GBIC modules are available for SX/LC (21.14.3500) and LX/LC (21.14.3501: 10km, 21.14.3502: 20km).- Compliant with IEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX, IEEE 802.3ab 1000BaseT and IEEE 802.3z 1000BaseSX/LXGigabit Ethernet Standards
- Connectors: 1x 10/100/1000BaseT Gigabit Ethernet TP port and 2x Mini-GBIC slots on the fiber optic side
- Power is supplied via an external power supply (included)
- TP port supports Full-Duplex, Auto-MDI/MDI-X, Auto-Negotiation
- Each SFP slot supports both singlemode and multimode or mixed
- Link Loss Forwarding (LLF) / Link Fault Pass Through (LFP)
- Dimensions: 22 x 74 x 102 mm
- Scope of delivery: converter, quick installation guide, plug-in power supply unit (5V DC, 2A)
Specifications
| Manufacturer | ROLINE |
|---|---|
| Product group | Network converters |
| Product type | Network Media Converters |
| Colour | black |
| Scope of delivery | Converter, Quick Installation Guide, Power Adapter (5V DC, 2A) |
| RJ-45 Port (Mbps/s) | 1000 |
| Fibre Ports (Mbps) | 1000 |
| Quantity of RJ45 ports | 1 |
| Technical particularity | Fibre optic connection is realized by MiniGBIC Module |
| Operating temperature min. | 0 °C |
| Operating temperature max. | 50 °C |
| Storage temperature min. | -20 °C |
| Storage temperature max. | 80 °C |
| Height | 22 mm |
| Width | 74 mm |
| Depth | 102 mm |
| Weight | 201 g |
| Height of packaging (single piece) | 60 mm |
| Width of packaging (single piece) | 160 mm |
| Depth of packaging (single piece) | 200 mm |
| Package weight (single piece) | 0.3 kg |
