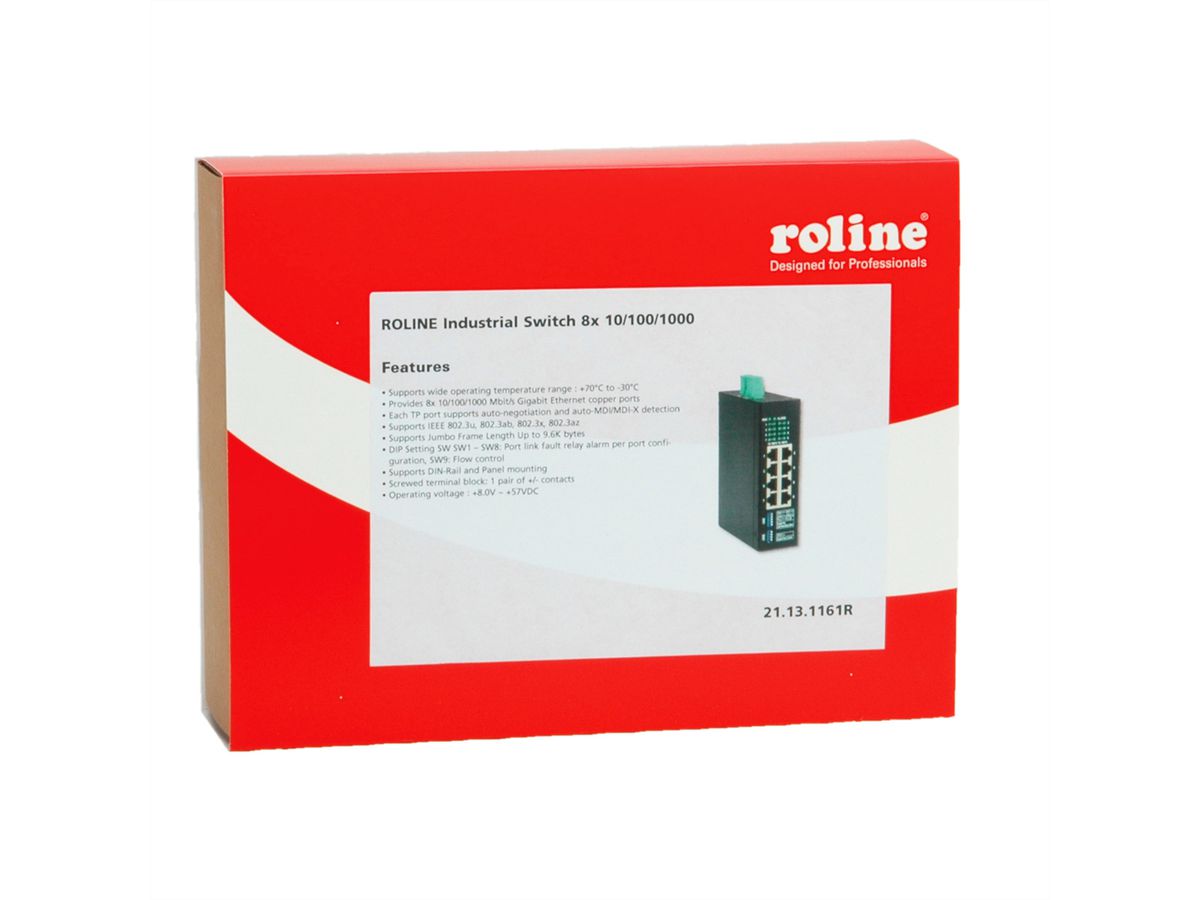

ROLINE Gigabit Ethernet Industrial Switch, 8x RJ45
Please log in to be able to use the shopping cart and then complete orders.
Log in| Item no. | 21.13.1161-1 |
|---|---|
| Brand / Manufacturer | ROLINE |
| Manuf. no. | 21.13.1161 |
| EAN | 7611990117413 |
| Package weight | 0.651 kg |
:strip_icc():strip_exif()/logos/roline.png "ROLINE")
Description
Network switch for use in a industrial environment
- Provides 8x 10/100/1000Mbps copper ports
- Auto-negotiation
- Auto MDI/MDI-X crossover function
- Supports IEEE 802.3x flow control for full duplex
- Supports back pressure flow control for half duplex
- Fully non-blocking Gigabit full wire speed switching performance
- Jumbo frame support
- Operating Power: +8.0 to +57VDC
- Alarm relay output for power failure event and configured port link fault events
- Wide operating temperature range
- Supports Green Ethernet power saving
- Entry DC by clamp
- Supports IEEE 802.3az Energy Efficient Ethernet
- Supports DIN-Rail mounting and panel mounting
- As PSU we recommend 21.13.1311
- Industrial-rated emission and immunity performance
Specifications
| Manufacturer | ROLINE |
|---|---|
| Product group | Network Switches |
| Product type | Gigabit Ethernet Switch |
| Colour | black |
| Scope of delivery | Switch |
| Network standard | Gigabit Ethernet |
| LAN (Mbps) | 10/100/1000 |
| Quantity of ports | 8 |
| Gigabit Ethernet Ports RJ-45 | 8 |
| Mounting form | DIN Rail |
| Stackable | no |
| Dimensions (HxWxD) | 42 x 106 x 140 mm |
| Power supply unit (internal/external) | External |
| Mains connection | Loose cable / screw terminals |
| Operating temperature min. | -30 °C |
| Operating temperature max. | 70 °C |
| Storage temperature min. | -40 °C |
| Storage temperature max. | 85 °C |
| Height | 42 mm |
| Width | 106 mm |
| Depth | 140 mm |
| Weight | 547.6 g |
| Height of packaging (single piece) | 80 mm |
| Width of packaging (single piece) | 150 mm |
| Depth of packaging (single piece) | 210 mm |
| Package weight (single piece) | 0.651 kg |
