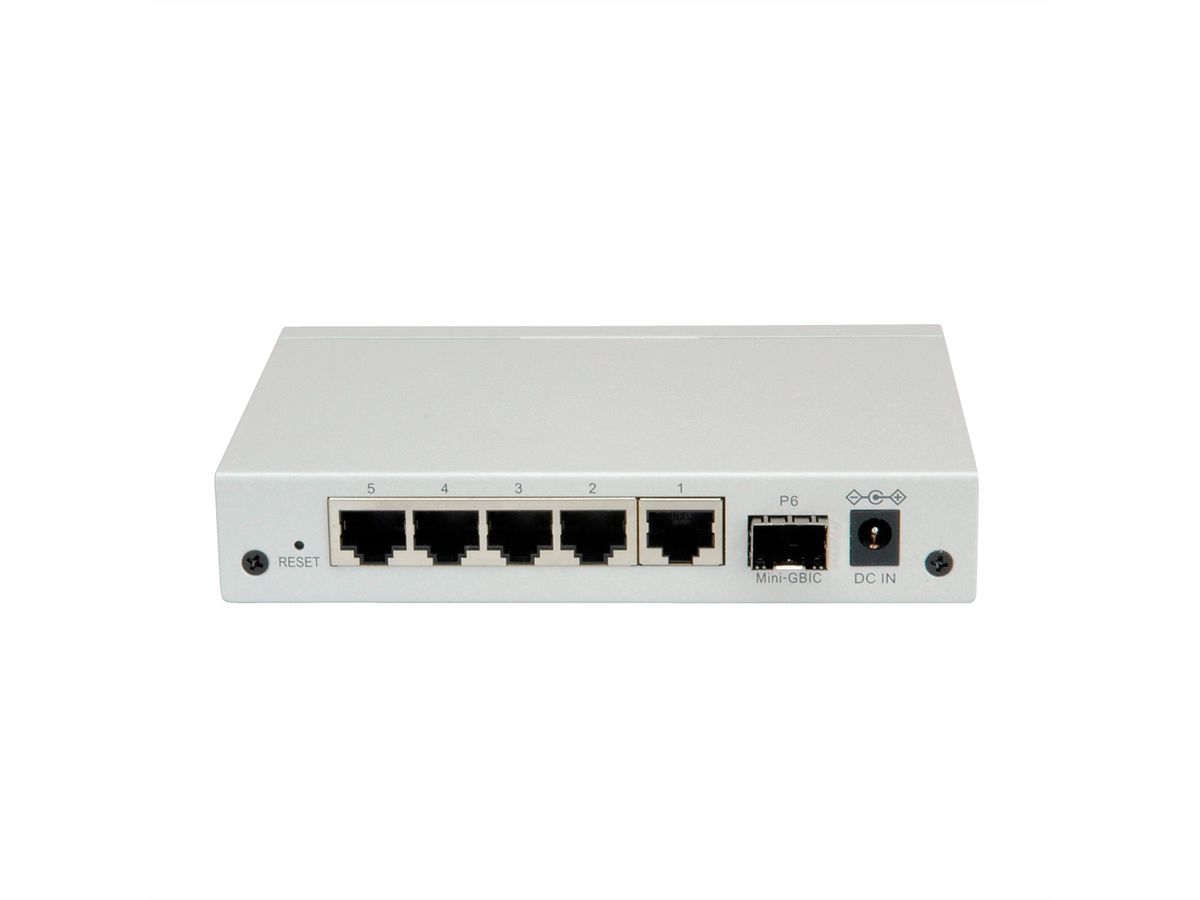

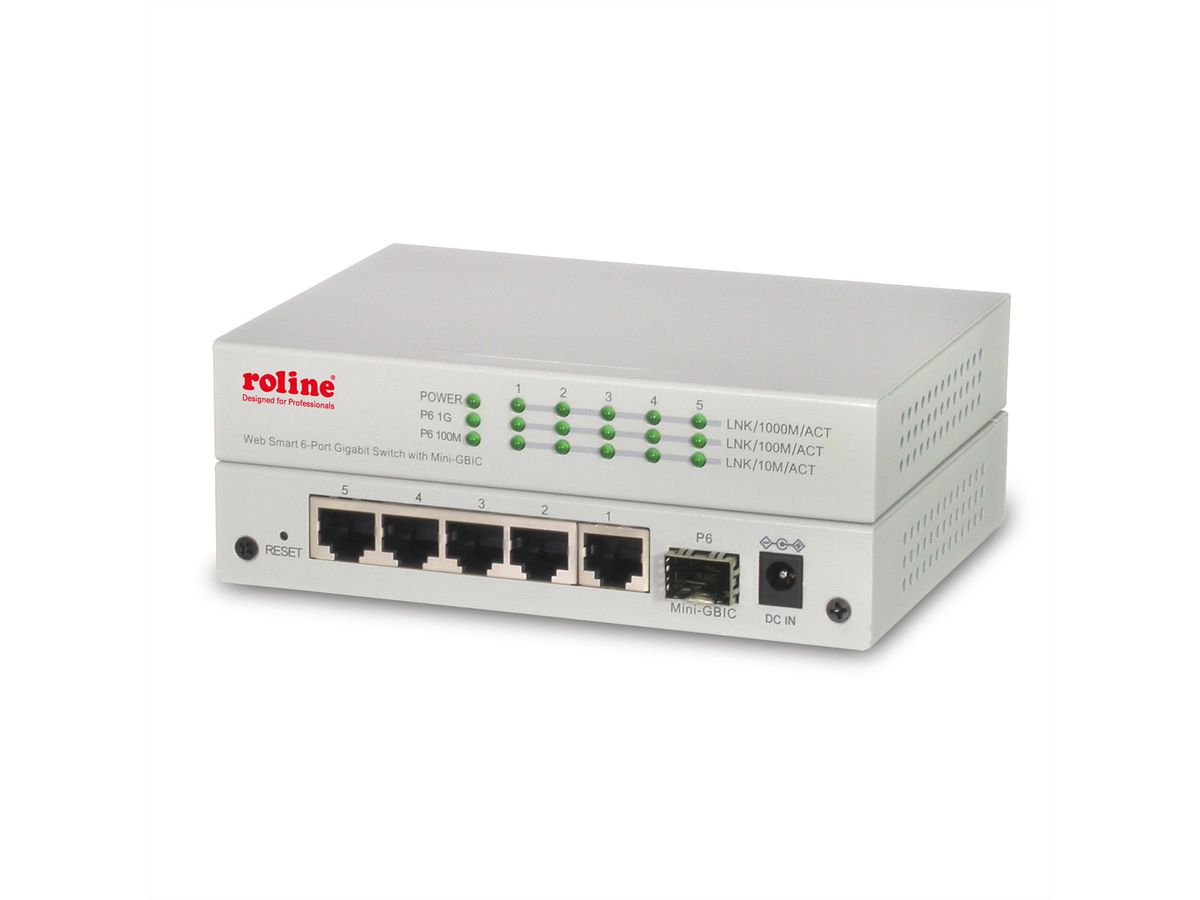

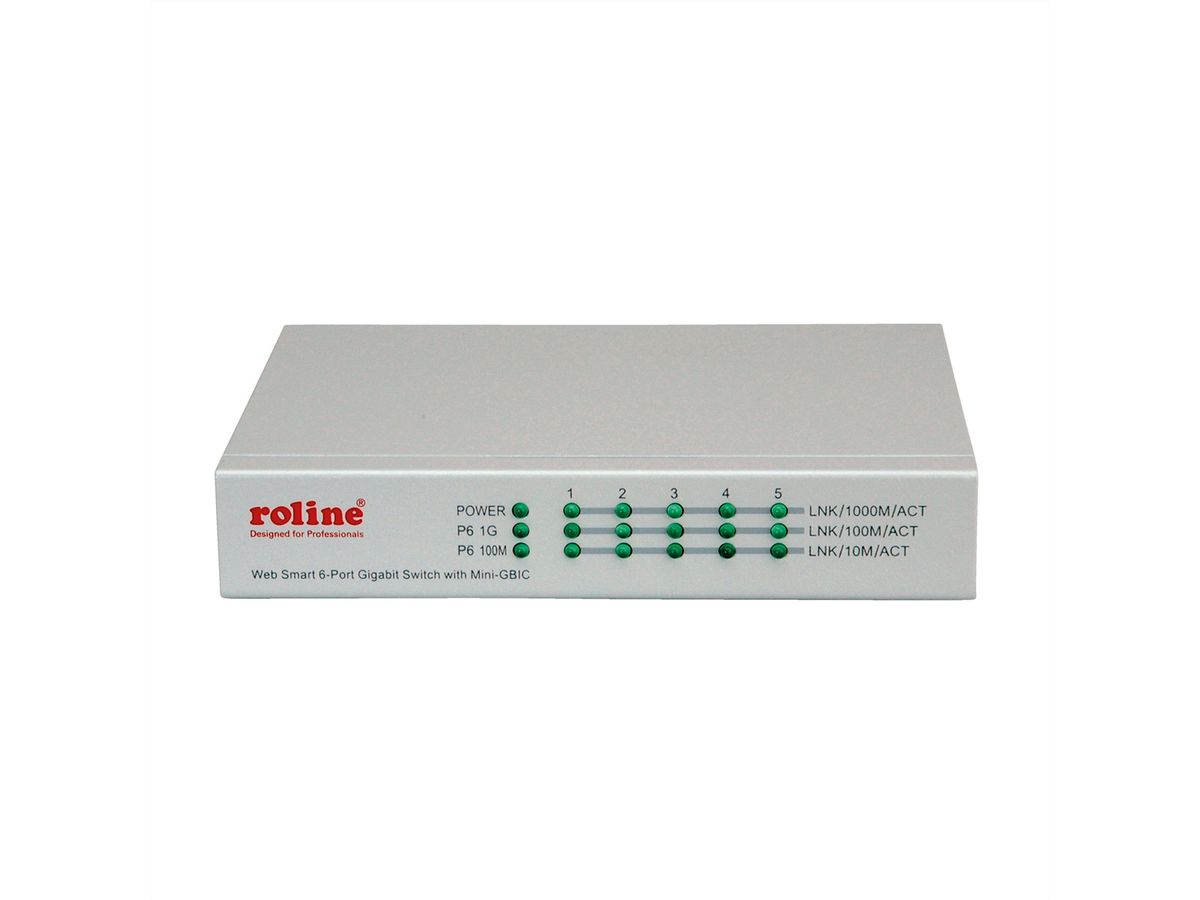

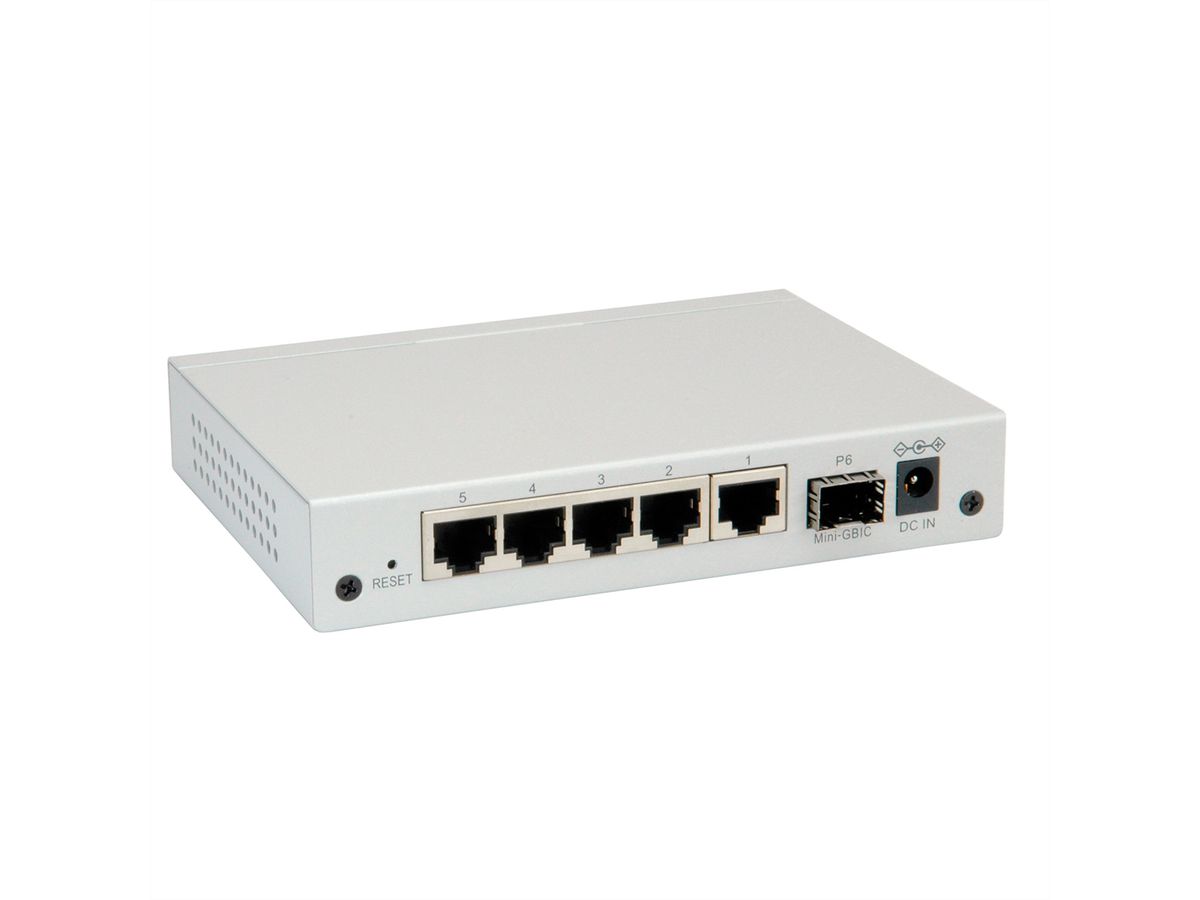

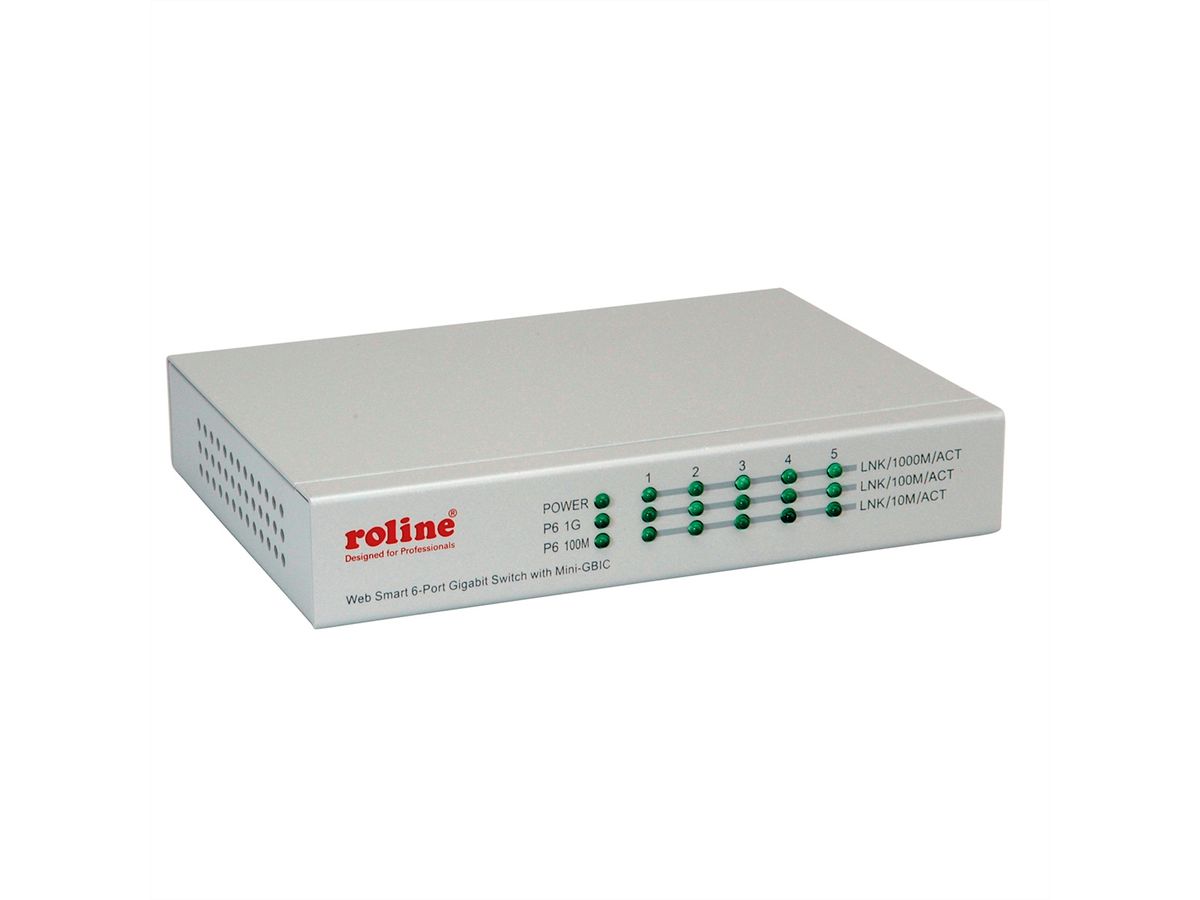

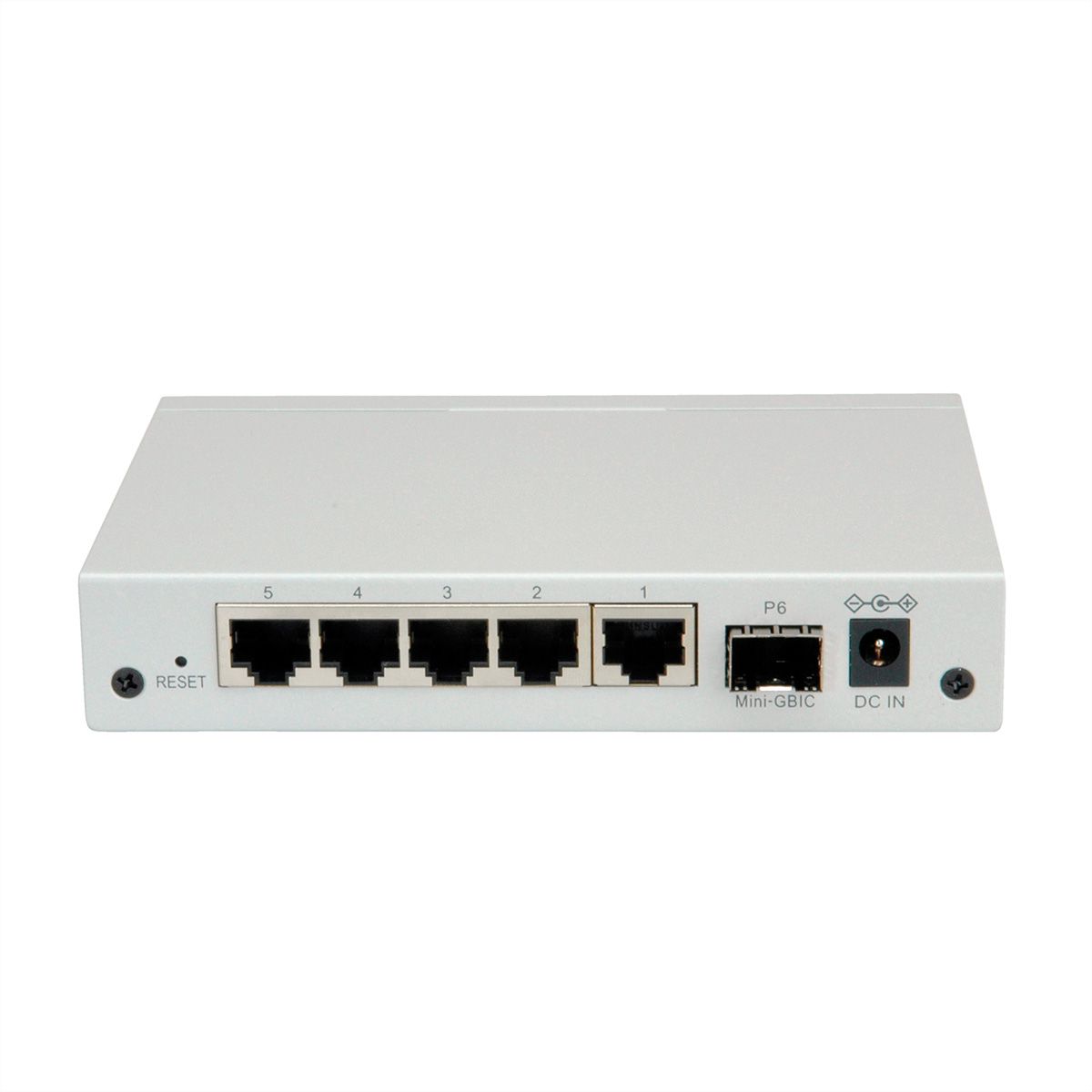

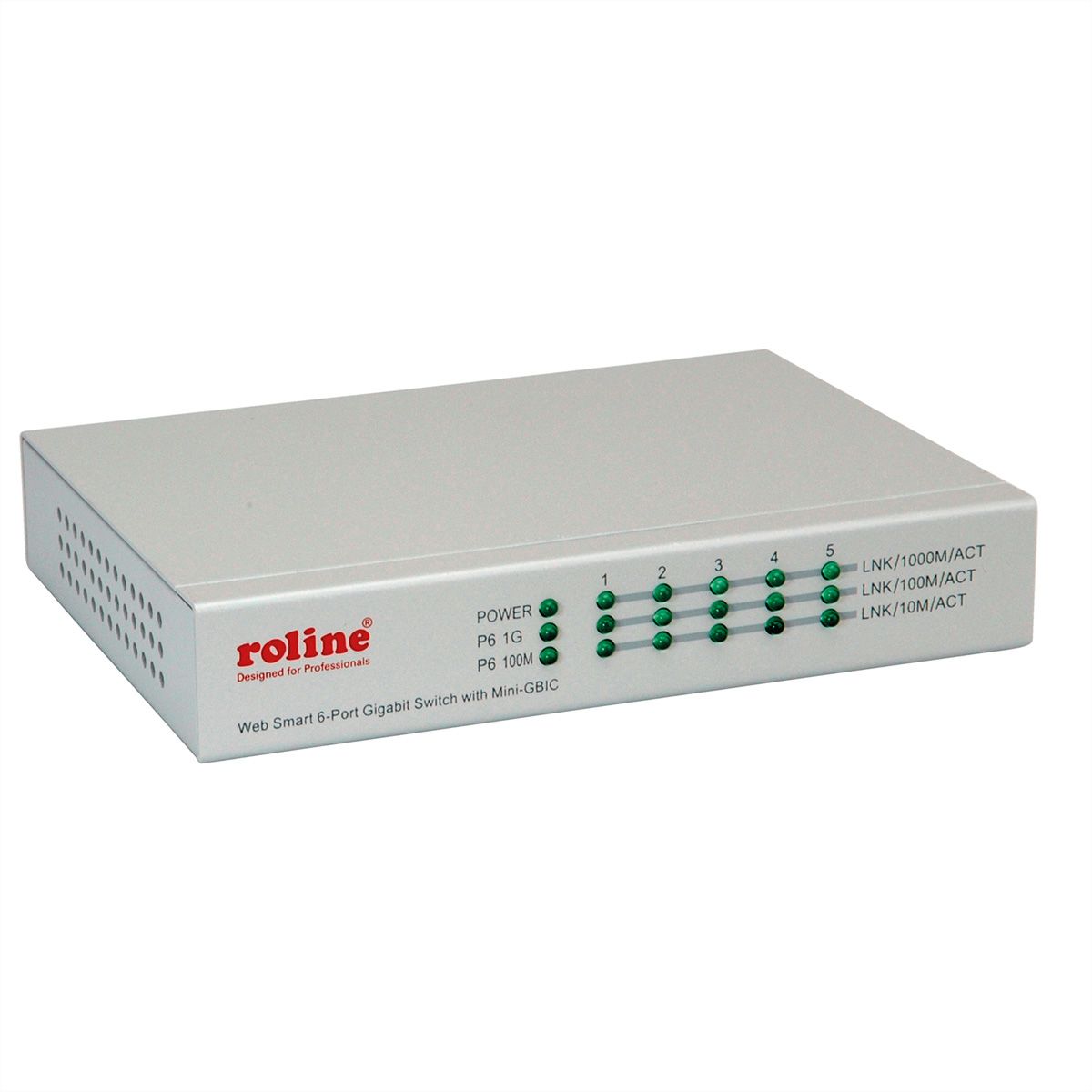

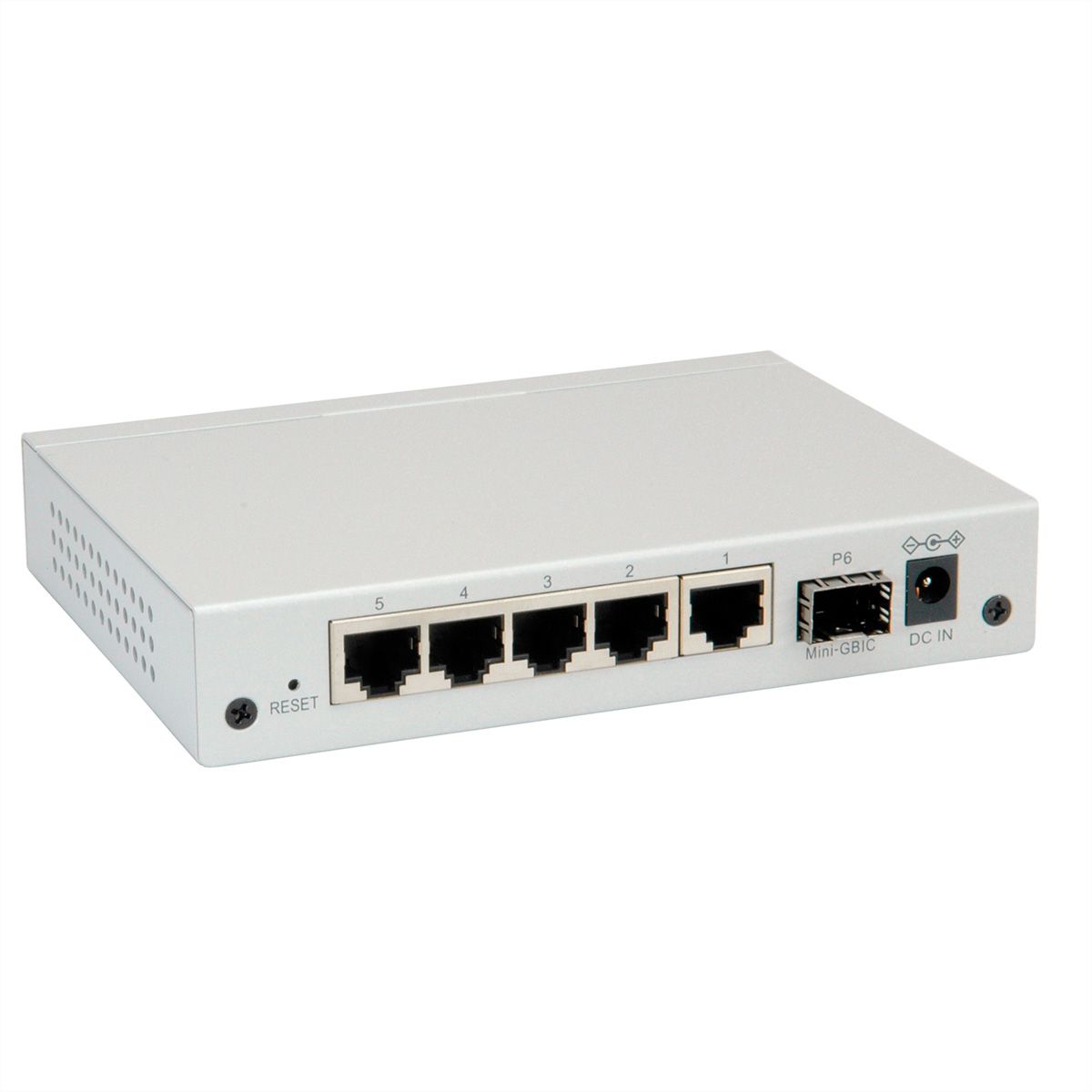

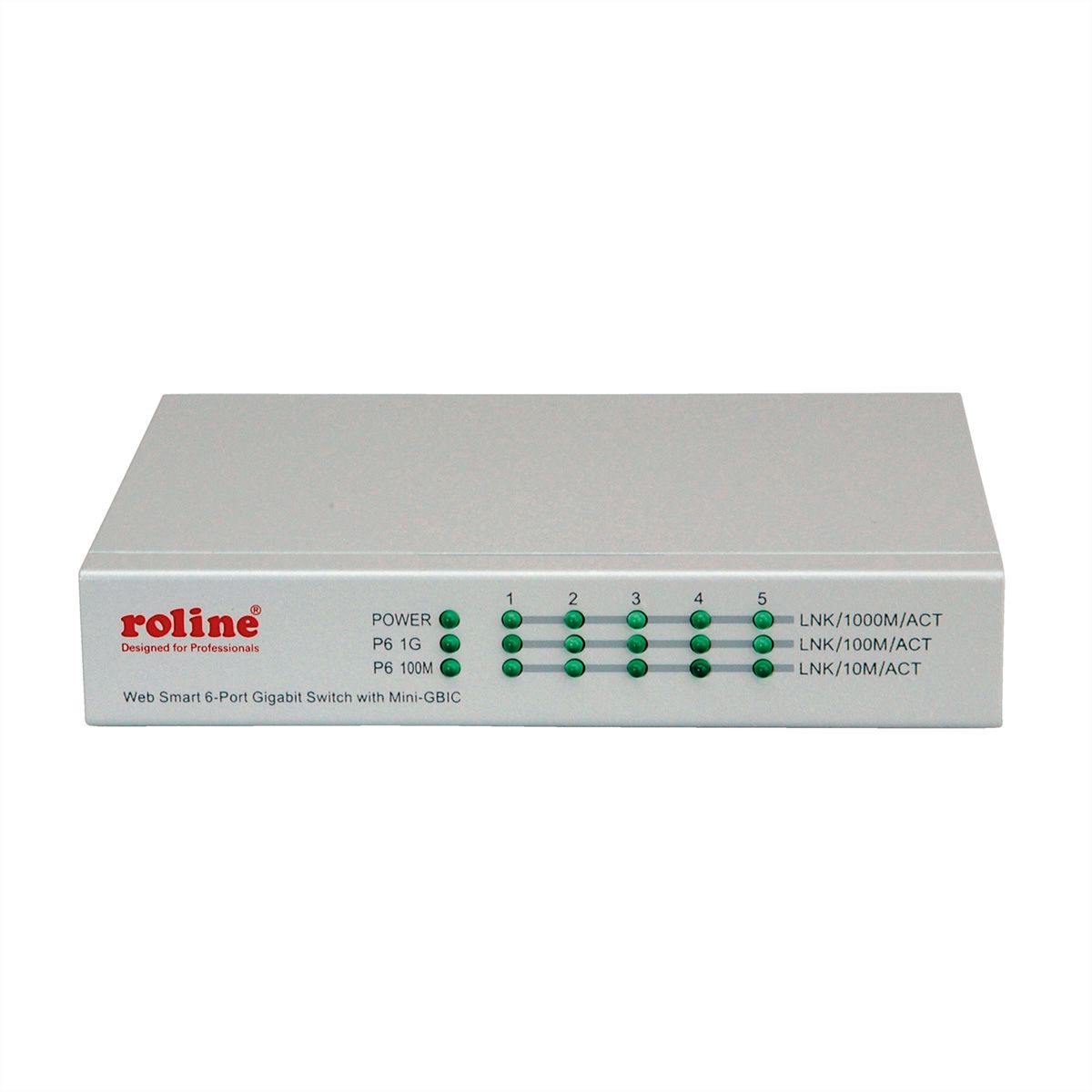

ROLINE Gigabit Ethernet Switch, 6x (5xGbE + 1x Gbic(SFP)), managed

ROLINE Gigabit Ethernet Switch, 6x (5xGbE + 1x Gbic(SFP)), managed

Please log in to be able to use the shopping cart and then complete orders.

Log in
Available
Ordered until 3 pm - usually dispatched on the same day
Item no. 21.14.3523-1
Brand / Manufacturer ROLINE
Manuf. no. 21.14.3523
EAN 7611990138128
Package weight 0.6 kg
ROLINE

Description

Managed 5-Port Gigabit network switch for use in a industrial environment - including an additional SFP-Port!

  • Provides 5x TP 10/100/1000Mbps Gigabit Ethernet ports and 1x Gbic (SFP)) 100/1000Mbps Fibre: MultiMode 50/125μm, 60/125μm, SingleMode 9/125μm
  • All 10/100/1000M ports support auto-negotiation and auto-MDI/MDI-X detection
  • Supports full/half-duplex transfer mode for 10/100Mbps
  • Supports full-duplex transfer mode for 1000Mbps
  • Store-and-Forward switching method
  • Supports SFP with Digital Diagnostic Monitoring (DDM)
  • Provides Automatic Laser Shutdown (ALS) function
  • Provides fiber optical power Alarm (OPA) function
  • Alarm e-mail notification
  • Wire-speed packet filtering and forwarding rate
  • Supports IEEE 802.3x flow control
  • MAC Address Table: 8K
  • Buffer Memory: 0.5 MB
  • LED Indication
  • Environment Operating Temperature: 0°C - 40°C (main device)
  • Dimensions (WxDxH): 144 x 104.5 x 26 mm

Specifications

Manufacturer ROLINE
Product group Network Switches
Product type Gigabit Ethernet Switch
Colour grey
Scope of delivery Switch, power supply (5V DC, 2A), manual
Network standard Gigabit Ethernet
LAN (Mbps) 10/100/1000
Quantity of ports 6
Gigabit Ethernet Ports RJ-45 5
Gigabit Ethernet Ports Fibre 1
Stackable no
Dimensions (HxWxD) 144 x 104.5 x 26 mm
Power supply unit (internal/external) External
Mains connection Appliance Europlug, Type-C
Operating temperature min. -10 °C
Operating temperature max. 45 °C
Height 144 mm
Width 104.5 mm
Depth 26 mm
Weight 386.3 g
Height of packaging (single piece) 60 mm
Width of packaging (single piece) 200 mm
Depth of packaging (single piece) 300 mm
Package weight (single piece) 0.6 kg
