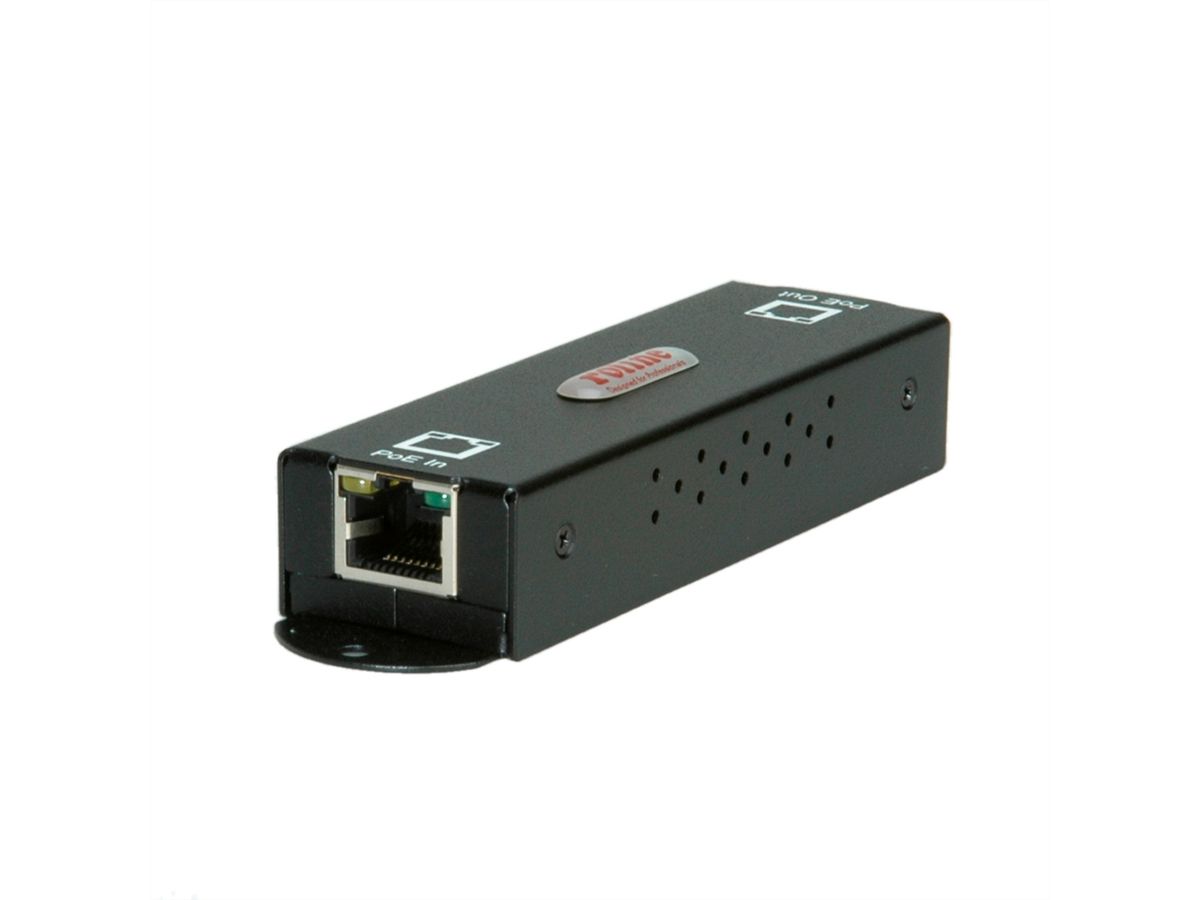

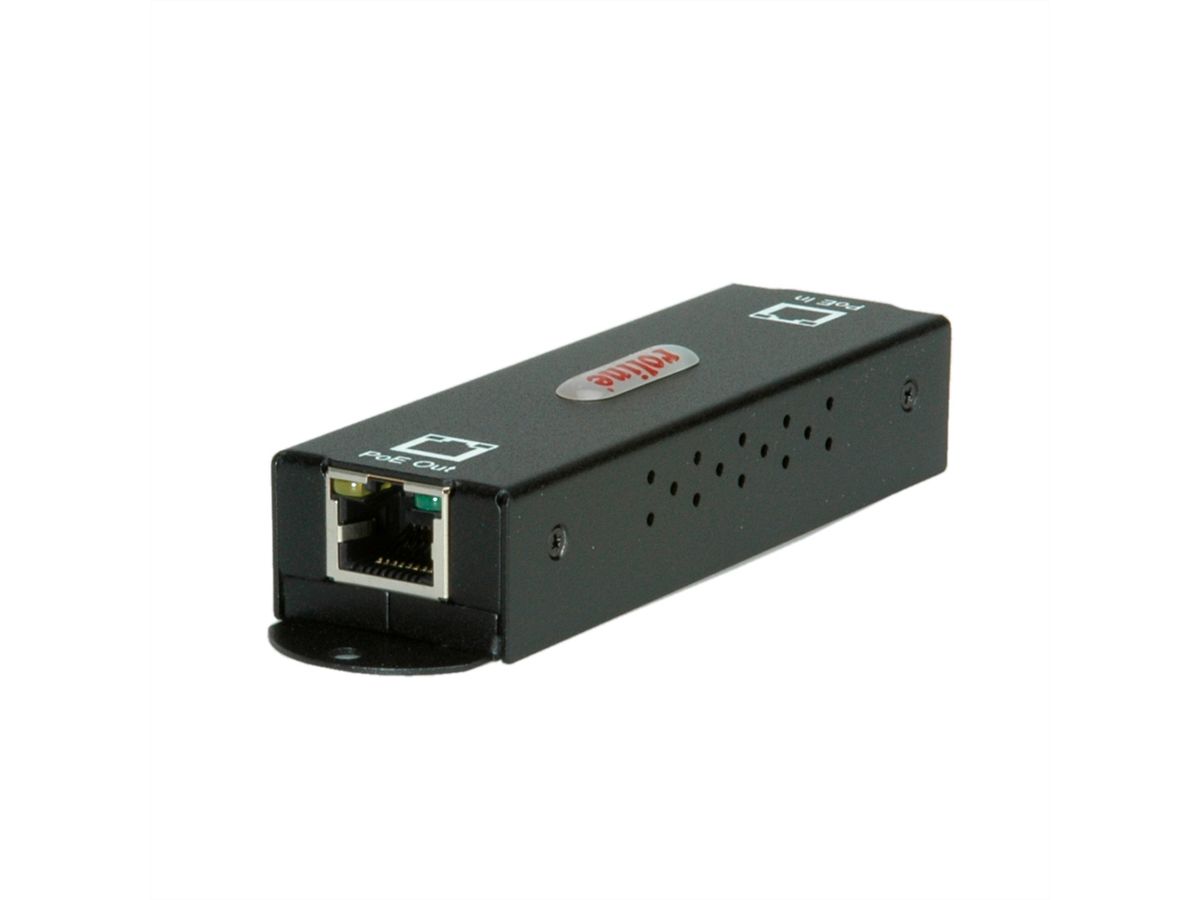

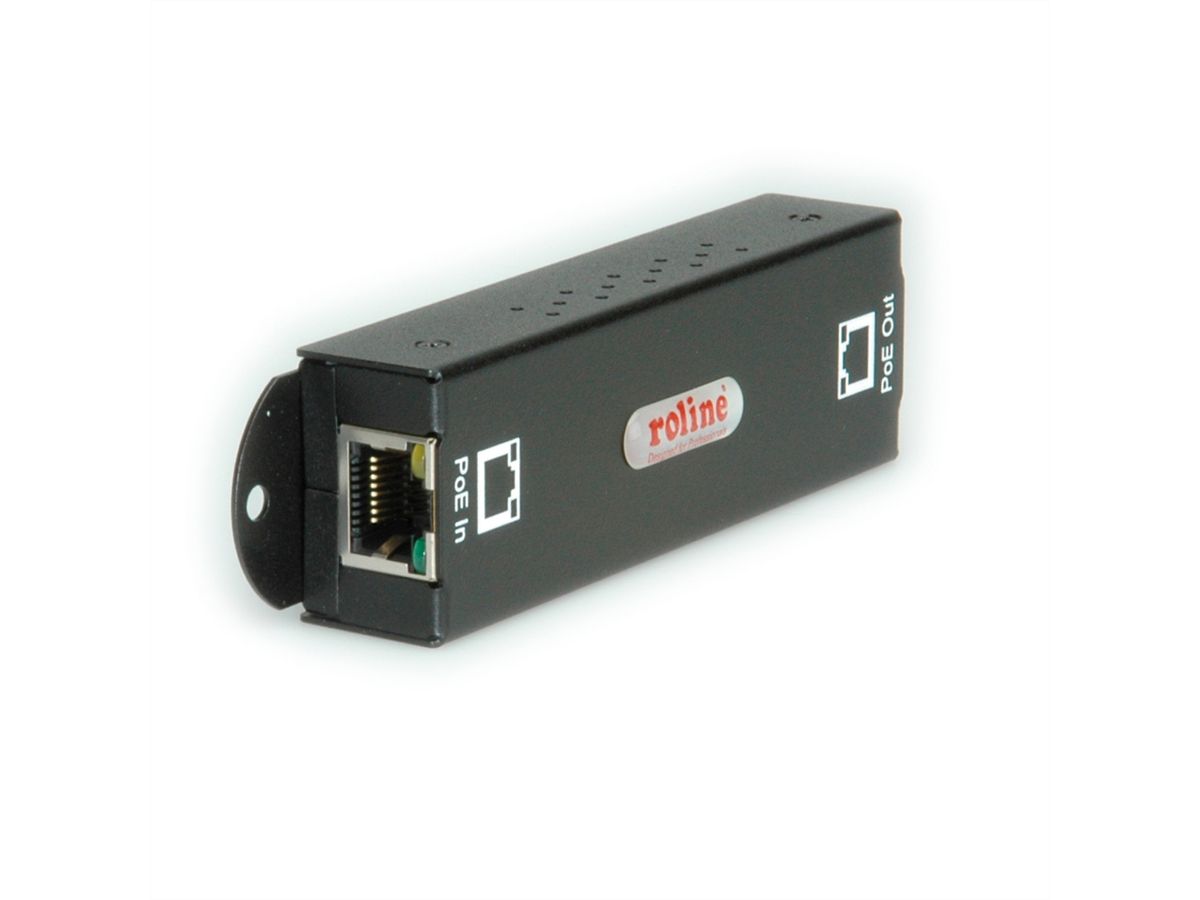

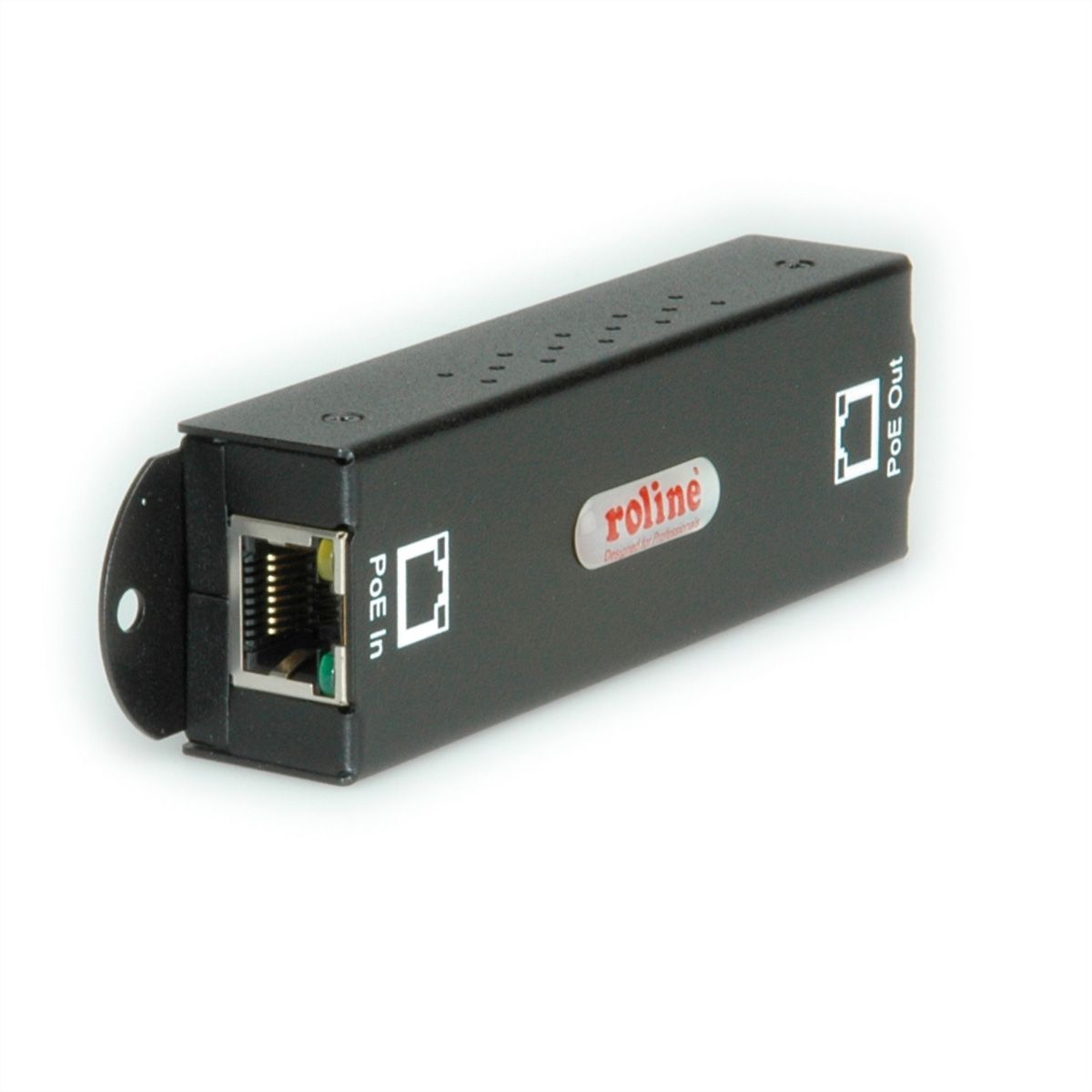

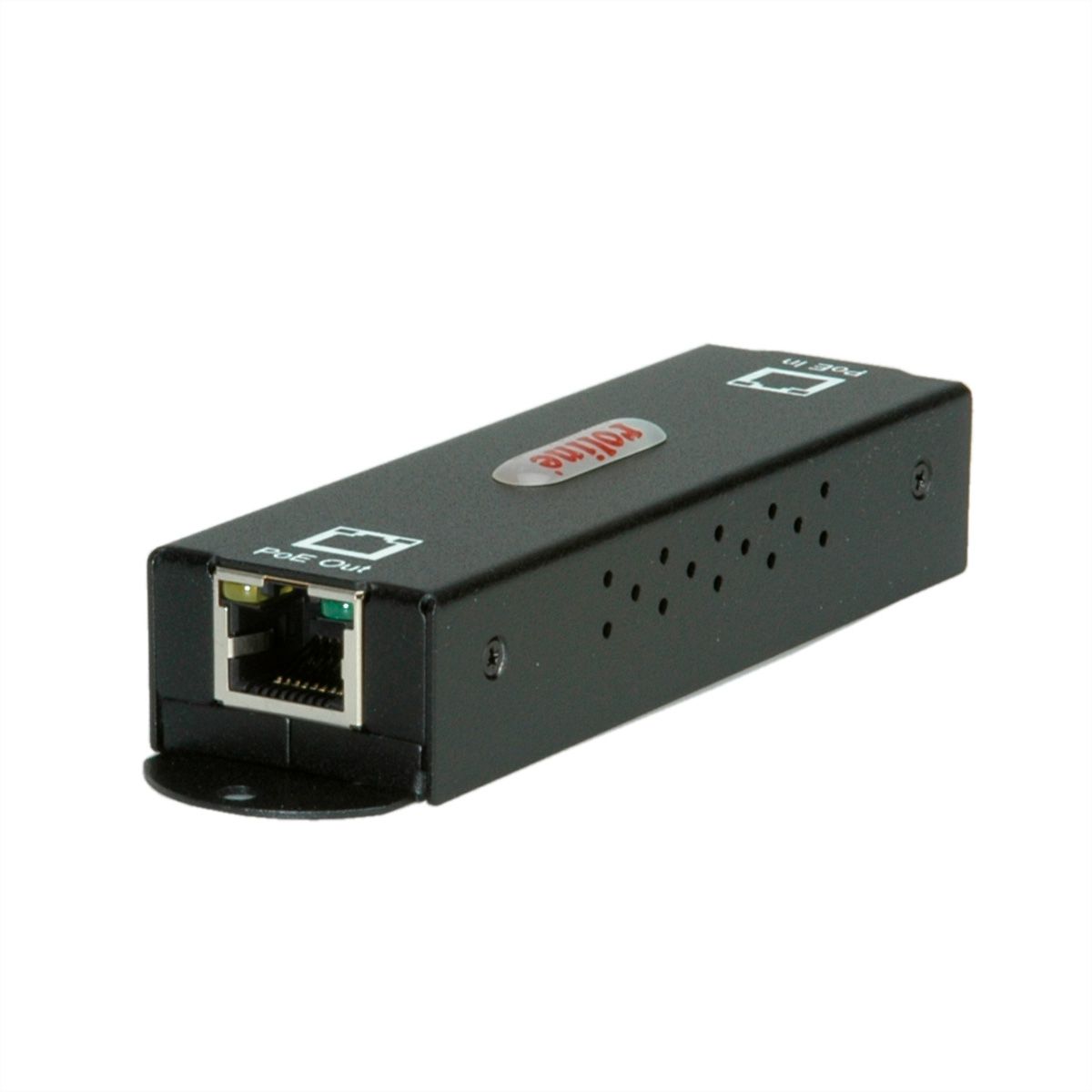

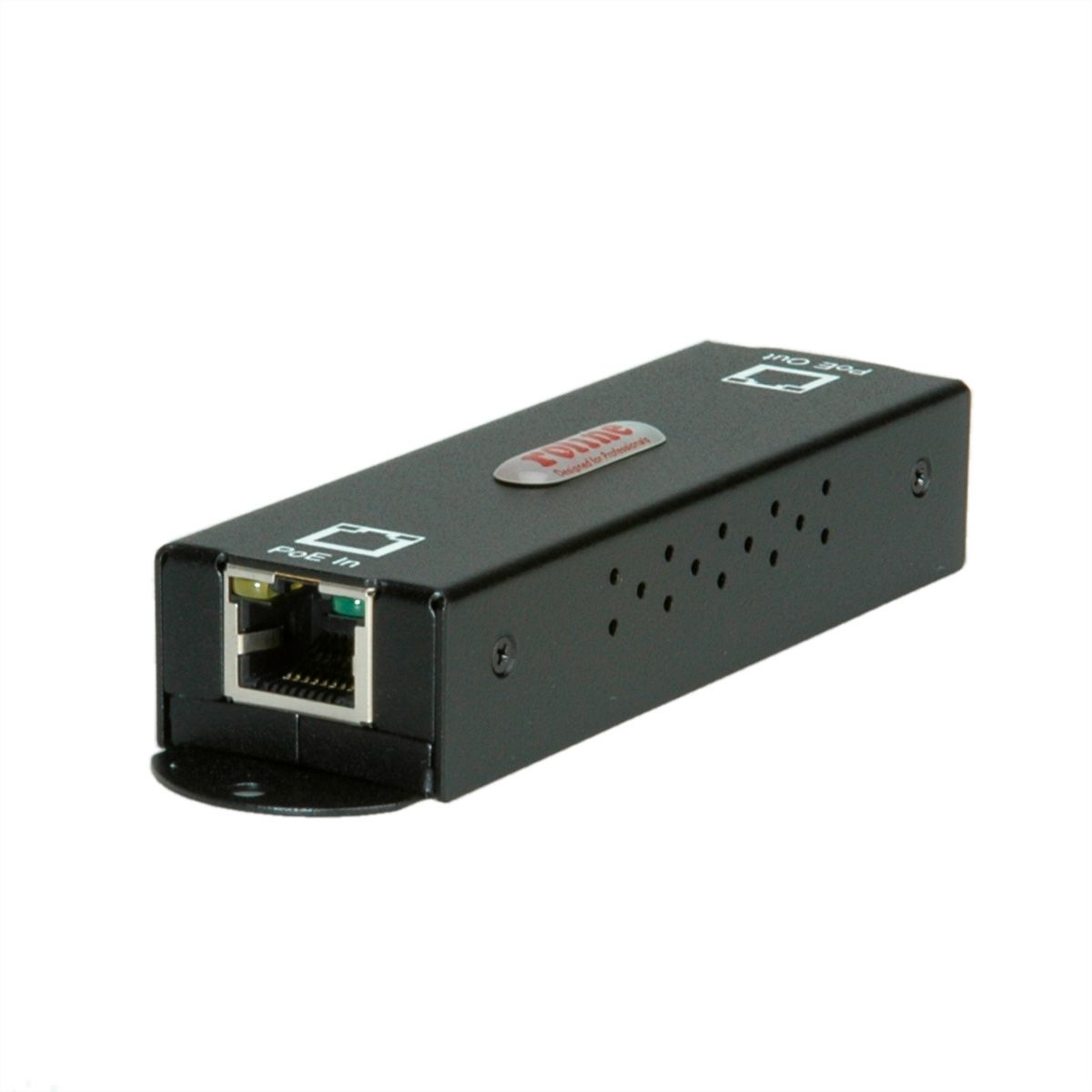

ROLINE Gigabit PoE+ Extender

ROLINE Gigabit PoE+ Extender

Please log in to be able to use the shopping cart and then complete orders.

Log in
Available
Ordered until 3 pm - usually dispatched on the same day
Item no. 21.13.1188-12
Brand / Manufacturer ROLINE
Manuf. no. 21.13.1188
EAN 7611990924813
Package weight 0.174 kg

Description

Gigabit PoE extender designed for extending connection distance for another 100m on both ends via Cat-5e cable or better

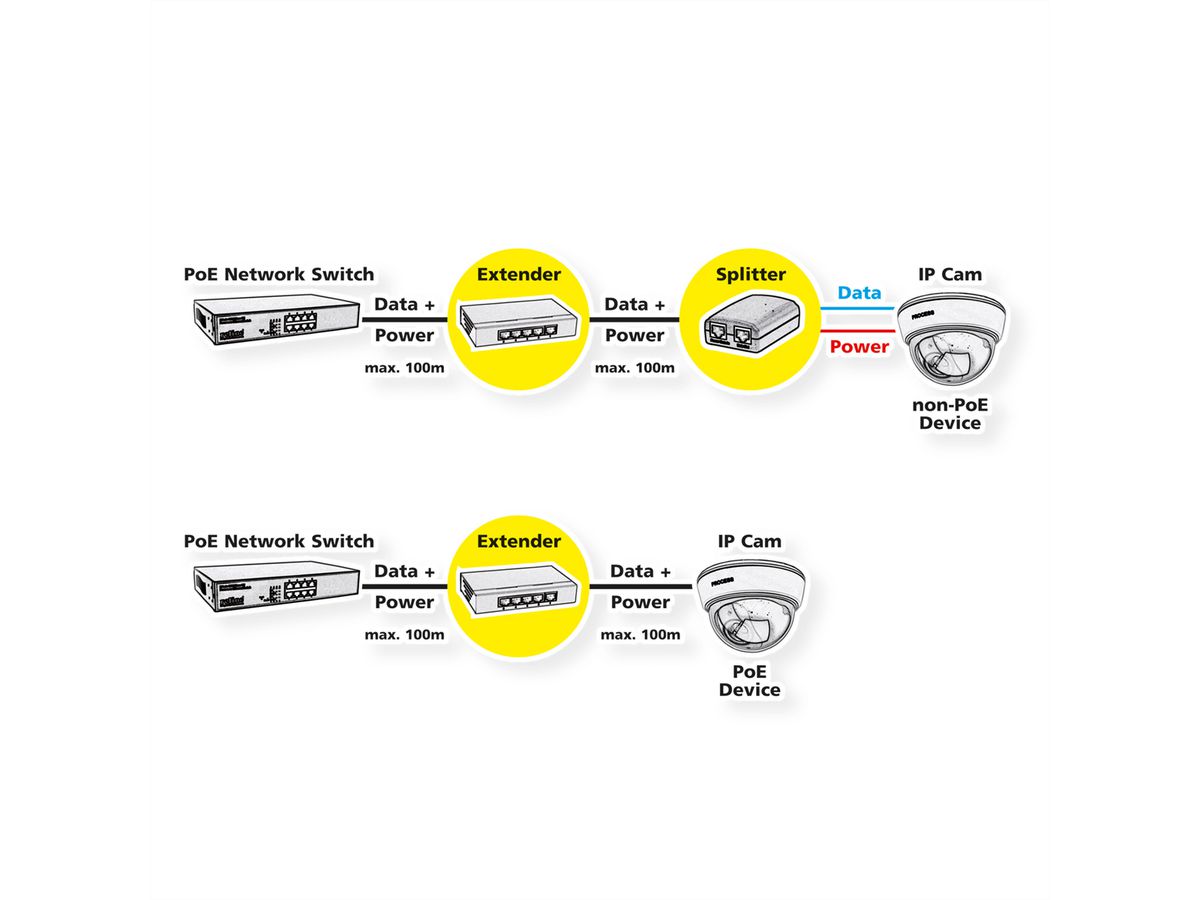

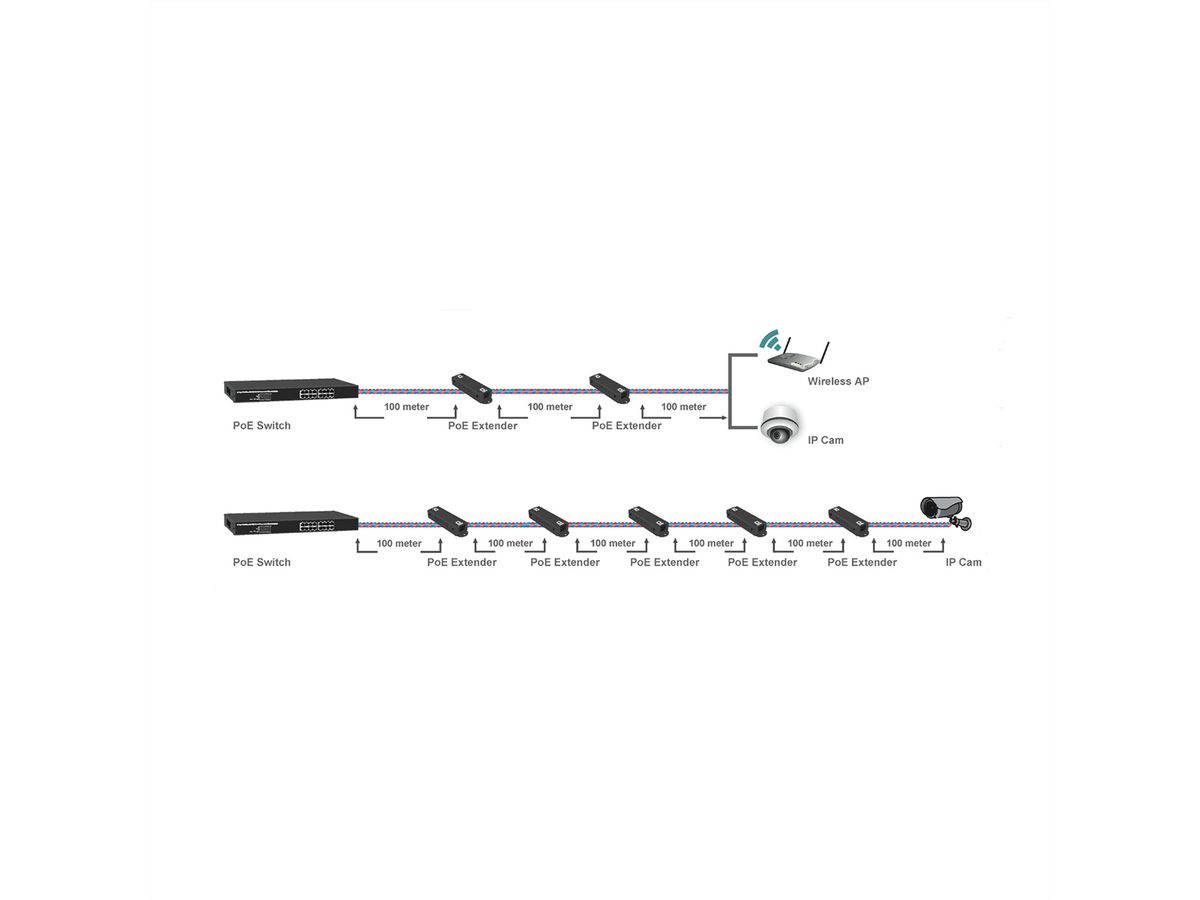

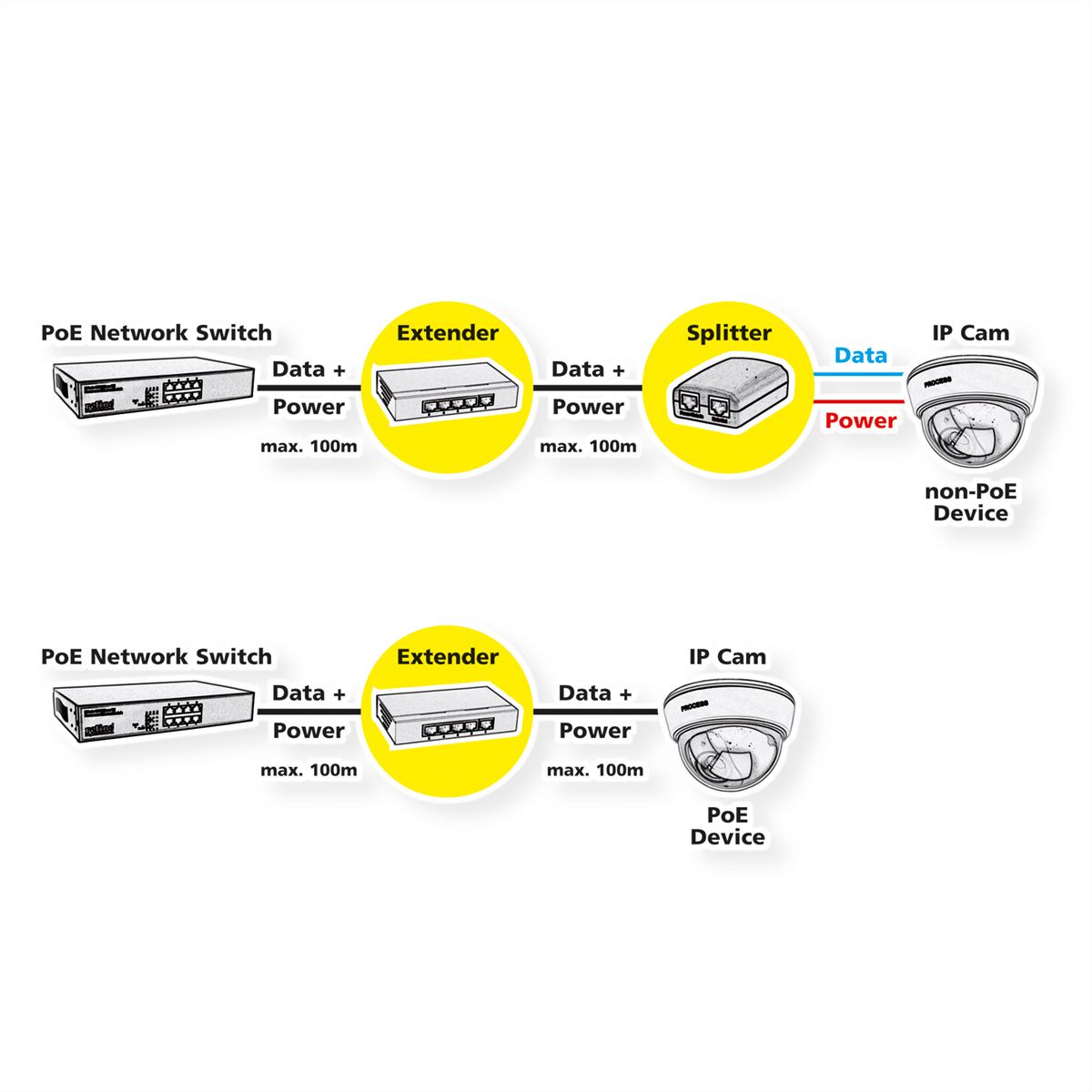

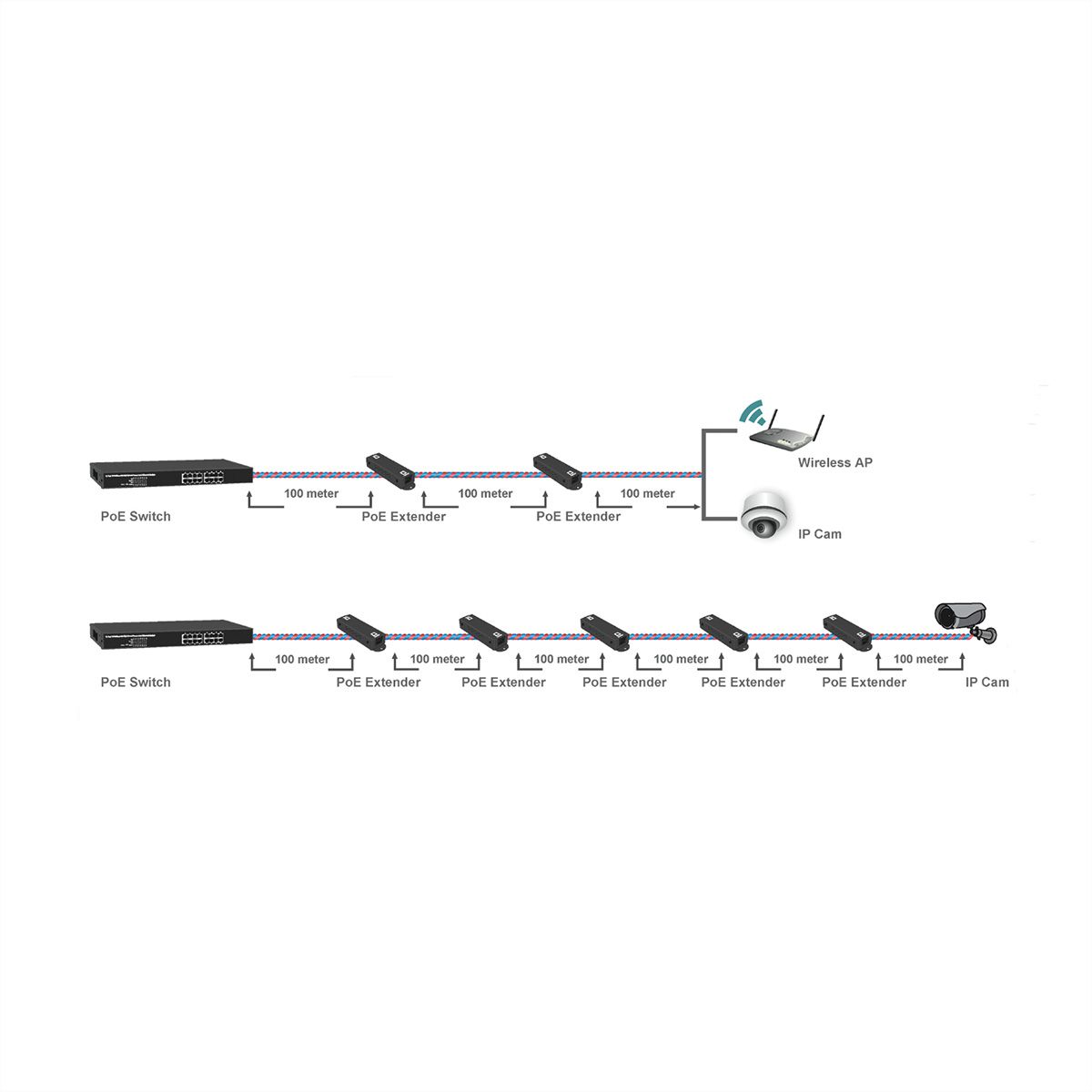

  • For covering longer distances by cascading multiple PoE extender together on a network
  • No need any additional power supply
  • LAN cable to power IEEE 802.3at compliant network devices
  • Features PoE awareness to verify whether the network device receives power is IEEE 802.3at compliant, or only the data will be sent through LAN cable
  • No special networking cable required
  • Input: 1x 10/100/1000 port for data and power
  • Output: 1x 10/100/1000 port for data and power
  • By adding PoE devices, it's possible to use an existing standard Cat-5e or Cat-6 Ethernet cable without a new electrical outlet for both power and data
  • Supports PoE IEEE 802.3af/at
  • Own power supply via PoE - consumption about 2W
  • Weight: 100 g
  • Dimensions (H x W x D): 20 × 32 × 123 mm
  • Metal enclosure - Wall mounting possible

Specifications

Manufacturer ROLINE
Product group PoE adapter
Product type PoE-Extender
Colour black
Scope of delivery Power over Ethernet extender
LAN (Mbps) 10/100/1000
Quantity of ports 1
Power over Ethernet (PoE) PoE+
Quantity of PoE ports 1
Max. PoE output power per port 30 W
Max. PoE output power (total) 30 W
Dimensions (HxWxD) 20 x 32 x 123mm
Height 20 mm
Width 32 mm
Depth 123 mm
Weight 0.1 kg
Height of packaging (single piece) 40 mm
Width of packaging (single piece) 110 mm
Depth of packaging (single piece) 160 mm
Package weight (single piece) 0.174 kg

Downloads

Product data sheet - English (43.4 KB)

Download

Manufacturer data sheet - DATA SHEET - English (134.9 KB)

Download

User manual - Français (269.8 KB)

Download

User manual - Deutsch (347.5 KB)

Download

User manual - English (344.3 KB)

Download

The products of our own brand ROLINE are designed for professional continuous operation.

With a 2-year functional guarantee, we stand by our performance promise.

ROLINE – Quality makes the difference.
