Description

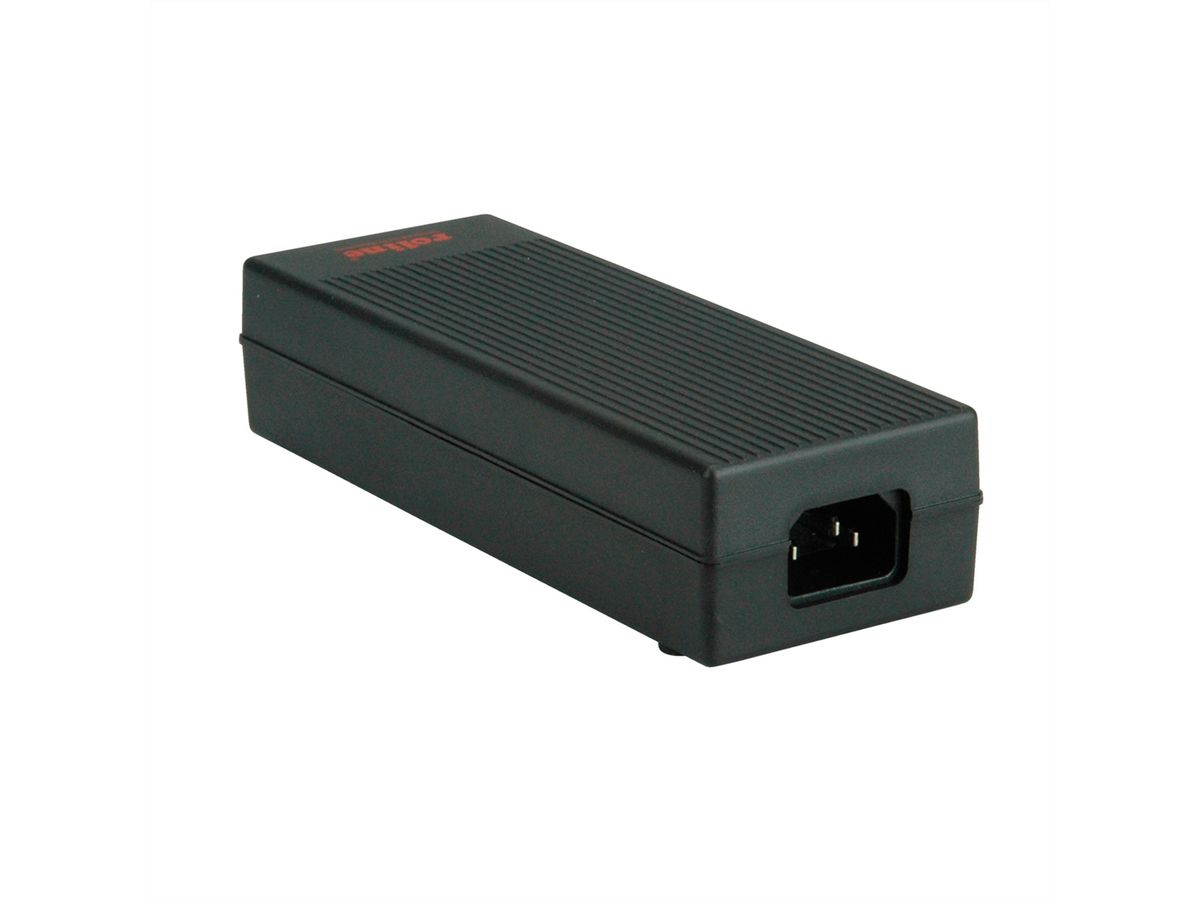

The ROLINE Gigabit PoE Injector is a so-called PSE, a unit to supply power for e.g. surveillance cameras, and LAN devices such as access points, bridges and routers over Ethernet cable.

A PSE supplies the current together with the data in the network cable. It doesn't need no longer an additional own power supply of the device.

• Supply of data and power into the network cables

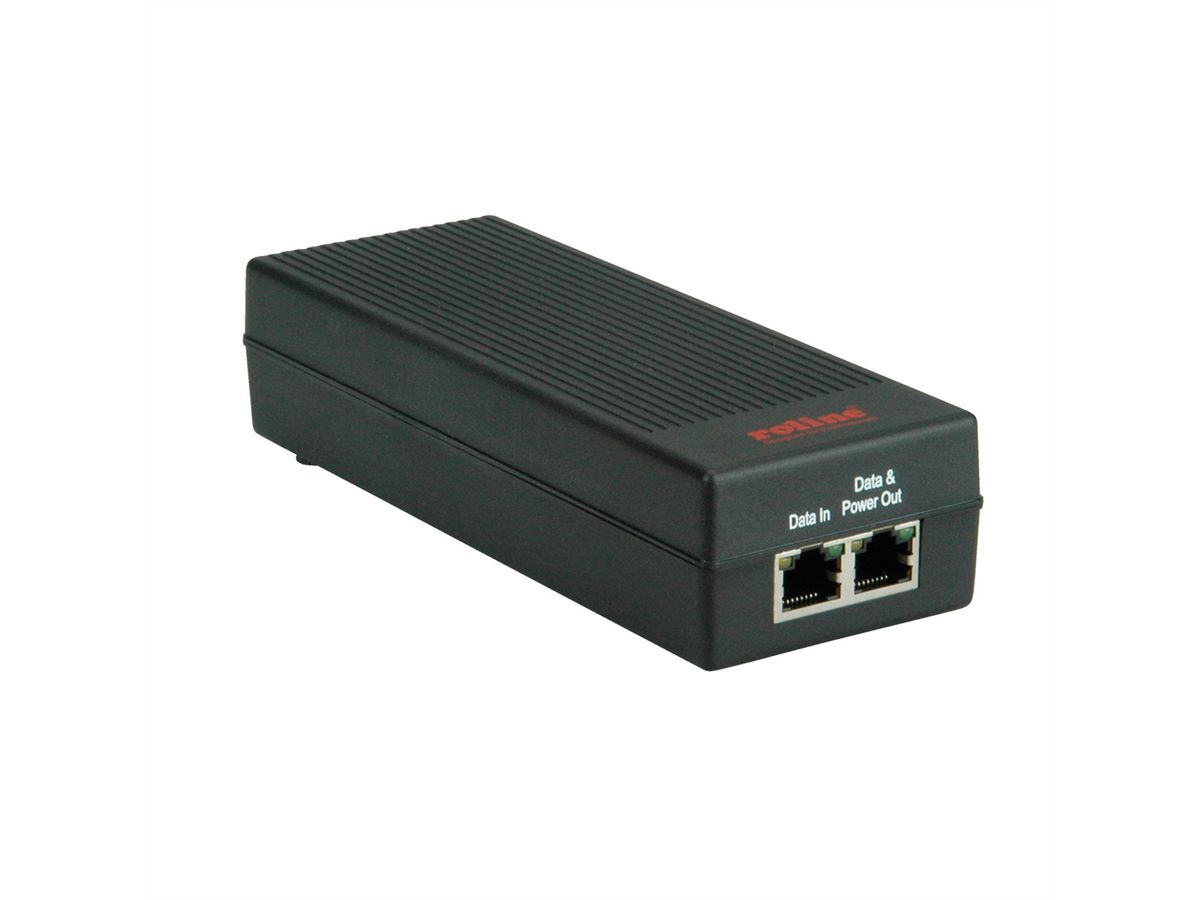

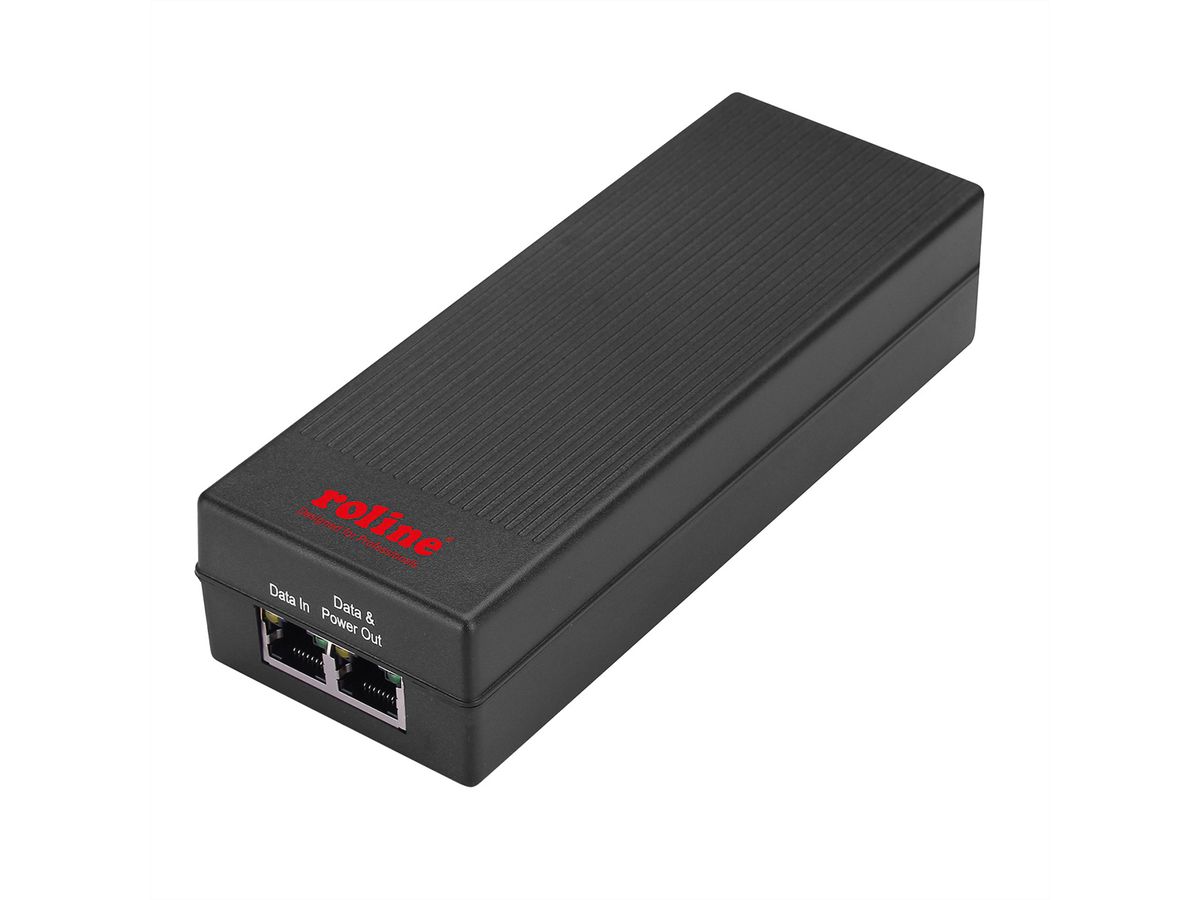

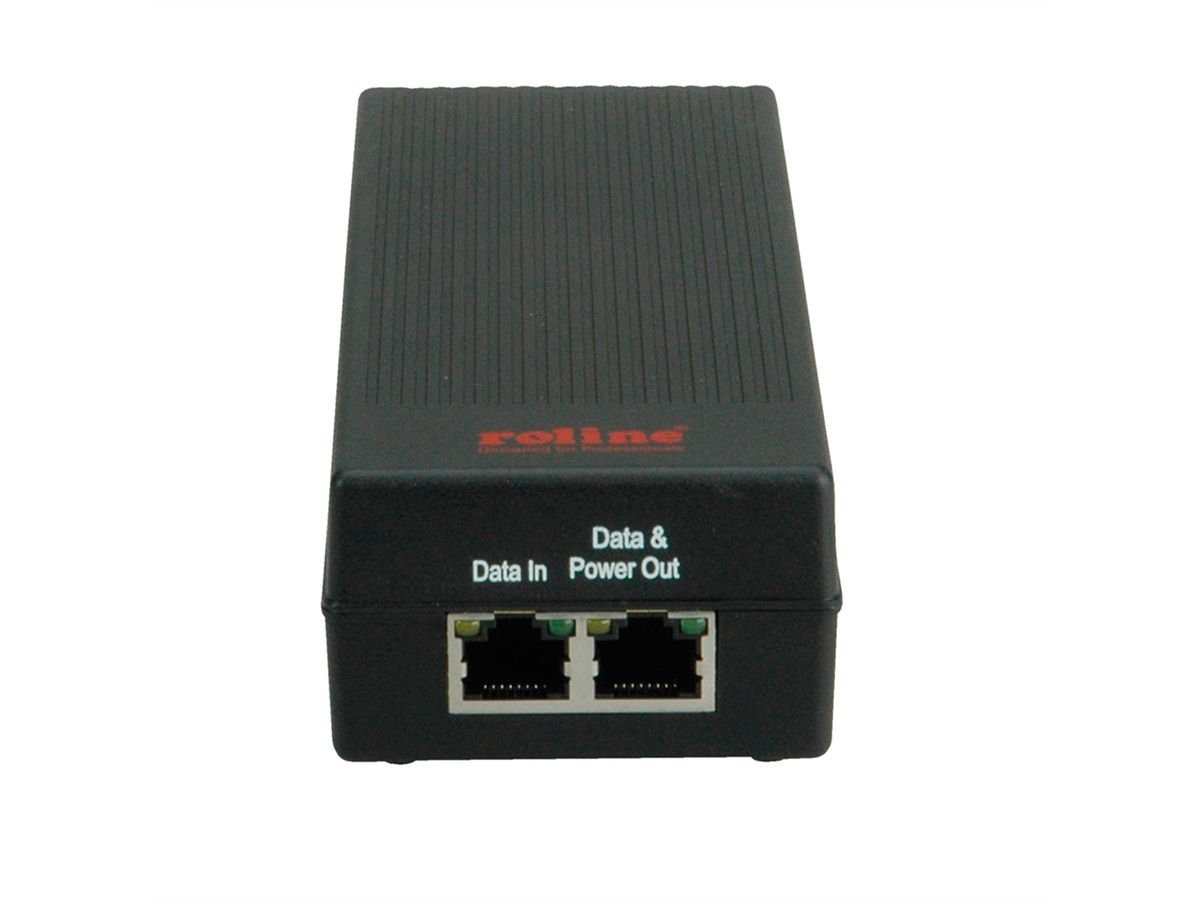

• Connectors: 1x RJ-45 port (Data In, Data input), 1x IEC power socket (Power In, input power supply), 1x RJ-45 port (Data & Power Out, output data and power)
• Compatible with 802.3af and 802.3at
• Power via PoE: up to 30W
• LED indicators for Power, Link / Act. and PoE
• Output voltage: 802.3af standard (46V-52V DC)
• Contents: Injector, manual

Specifications

Manufacturer	ROLINE
Product group	PoE adapter
Product type	Gigabit PoE-Injector
Colour	black
Quantity of ports	1
Power over Ethernet (PoE)	PoE
Quantity of PoE ports	1
Max. PoE output power per port	30 W
Max. PoE output power (total)	30 W
Mains connection	Appliance Europlug, Type-C
Height	38.5 mm
Width	62 mm
Depth	165 mm
Weight	405.1 g
Height of packaging (single piece)	70 mm
Width of packaging (single piece)	130 mm
Depth of packaging (single piece)	180 mm
Package weight (single piece)	0.462 kg

Downloads

Product data sheet - English (50.0 KB)

Download
