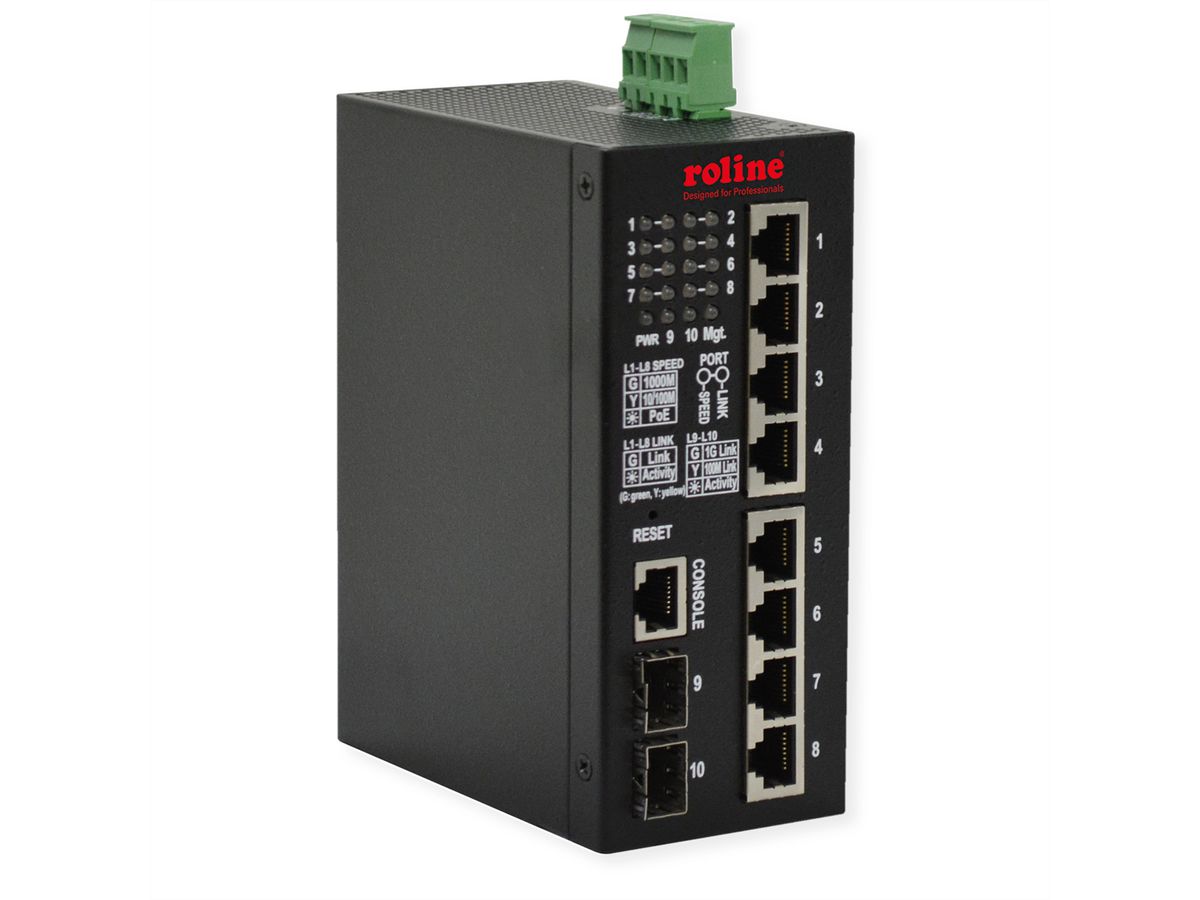

ROLINE Gigabit Switch 10-Port, (8x RJ45+2x SFP) Layer2 PoE+ Smart Managed, 240W
Please log in to be able to use the shopping cart and then complete orders.
Log in| Item no. | 21.13.1131-1 |
|---|---|
| Brand / Manufacturer | ROLINE |
| Manuf. no. | 21.13.1131 |
| EAN | 7630049628939 |
| Package weight | 1 kg |
:strip_icc():strip_exif()/logos/roline.png "ROLINE")
Description
Industrial Managed Gigabit Switch with 8x 10/100/1000Mbps RJ-45 and two dual-speed SFP slots.
- Eight 10/100/1000Mbps RJ-45 and two dual-speed SFP slots
- All copper ports support auto-negotiation and auto-MDI/MDI-X detection
- All copper ports are equipped with 802.3bt-compliant PoE PSE
- Two SFP slots support dual speed for 100BASE-FX and 1000BASE-X SFP transceivers
- Full wire speed forwarding
- Supports 802.3x flow control for full-duplex and backpressure for half-duplex
- Supports SFP with Digital Diagnostic Monitoring (DDM)
- IEEE 802.3, 802.3ab, 802.3z, 802.3x, 802.3af, 802.3at, 802.3bt, 802.1x, 802.1w, 802.1D, 802.1Q
- Provides PoE PSE redundancy function
- Provides fiber optical power alarm function, Automatic Laser Shutdown function
- Power voltage DC 12V-60V (General applications) / 45 - 57VDC (PoE applications)
- Operating Temperature: -30ºC - 70ºC
- Storage Temperature: -40ºC - 85ºC
- Relative Humidity: 5% - 95% non-condensing
- HTTP/HTTPS/SSHv2/CLI telnet/CLI console/SNMP v1/v2c/v3/RMON
- DHCP/DHCPv6 client, DNS client, NTPv4
- IPv6 support, System Syslog, Configuration down/upload, Software upload
- private MIB for DDM monitoring, Remote boot, TFTP firmware update via SNMP
Security:
- NAS, 802.1X, MAC-based/Web/CLI authentication, IP MAC binding, TACACS+, IP source guard
Layer 2:
- QoS, 802.1Q/MAC-based/Protocol-based/Private/IP subnet VLAN, Port Isolation
- Storm control for UC/MC/BC packets
- Static MAC configuration
- IGMP v2/v3 snooping, MLD v1/v2 snooping, DHCP snooping
- Multiple Spanning Tree – MSTP, RSTP, STP
Auto Multi-Ring (KAMR) Technology:
- Fast failover response time
- Auto recovery when failure is repaired
- Supports up to Five redundant rings
- Works with RSTP network
- Supports ring member status monitoring for up to 100 units
Specifications
| Manufacturer | ROLINE |
|---|---|
| Product group | Network Components |
| Product type | PoE Gigabit Switch |
| Colour | black |
| Scope of delivery | Industrial Managed Gigabit Switch, Installation Instructions |
| Network standard | Gigabit Ethernet |
| LAN (Mbps) | 10/100/1000 |
| Quantity of ports | 10 |
| Gigabit Ethernet Ports RJ-45 | 8 |
| Free slots for SFPs | 2 |
| Power over Ethernet (PoE) | PoE+ |
| Quantity of PoE ports | 8 |
| Max. PoE output power per port | 30 W |
| Max. PoE output power (total) | 240 W |
| Dimensions (HxWxD) | 60 x 106 x 140 mm |
| Mains connection | Loose cable / screw terminals |
| Operating temperature min. | -30 °C |
| Operating temperature max. | 70 °C |
| Height | 60 mm |
| Width | 106 mm |
| Depth | 140 mm |
| Weight | 768.1 g |
| Height of packaging (single piece) | 90 mm |
| Width of packaging (single piece) | 160 mm |
| Depth of packaging (single piece) | 260 mm |
| Package weight (single piece) | 1 kg |
