Description

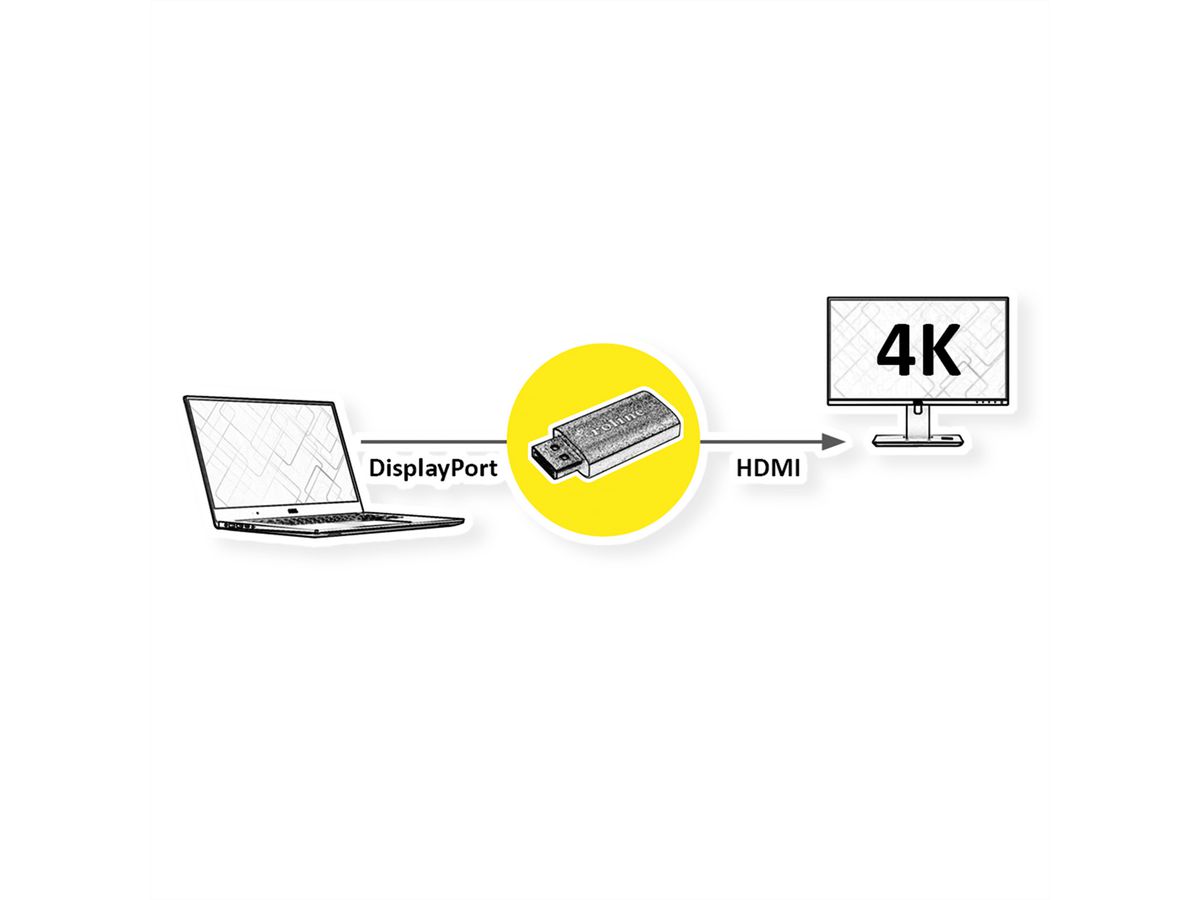

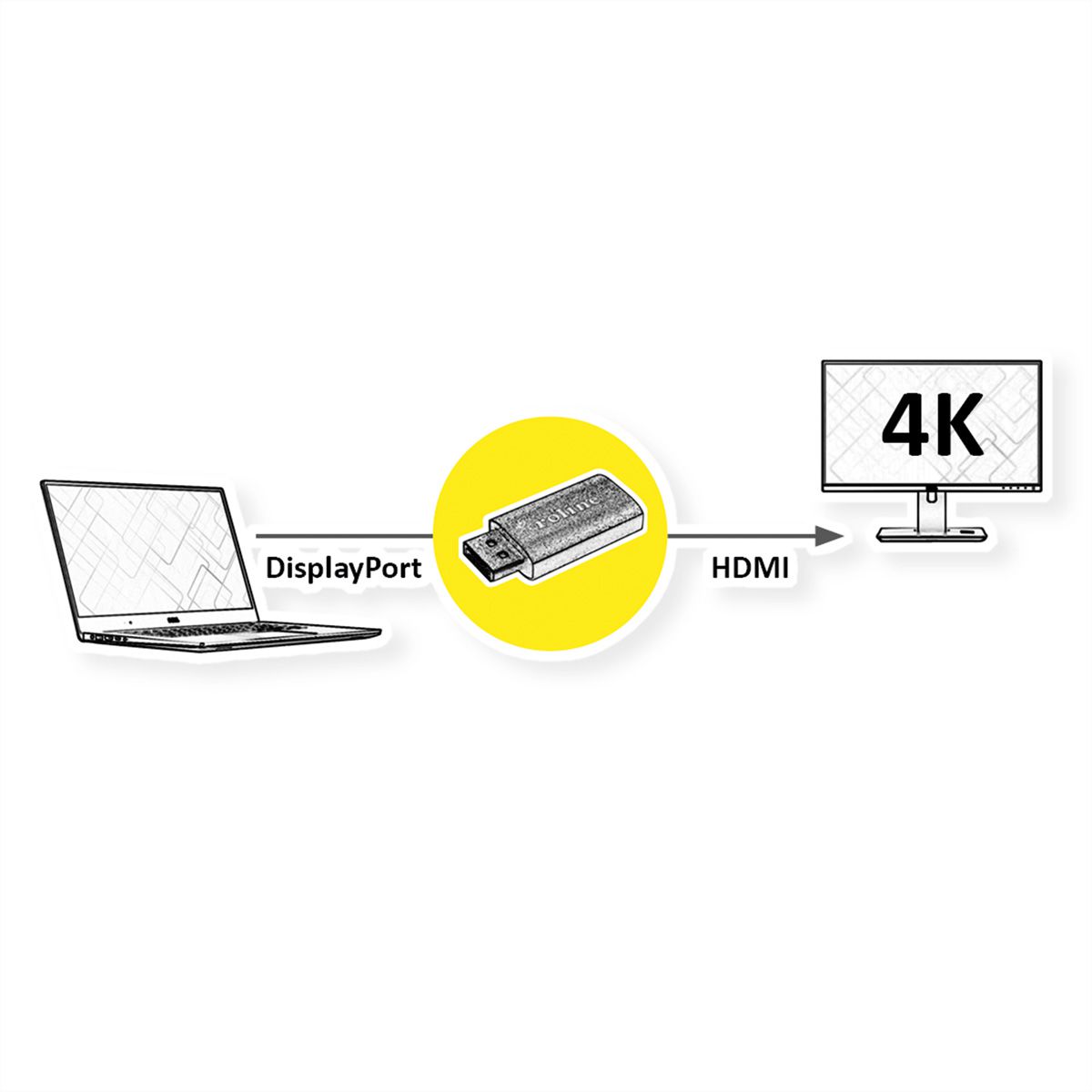

DisplayPort to HDMI adapter for connecting a graphics card with DP to a monitor with HDMI connection - with a resolution of up to 3840x2160 @60Hz!

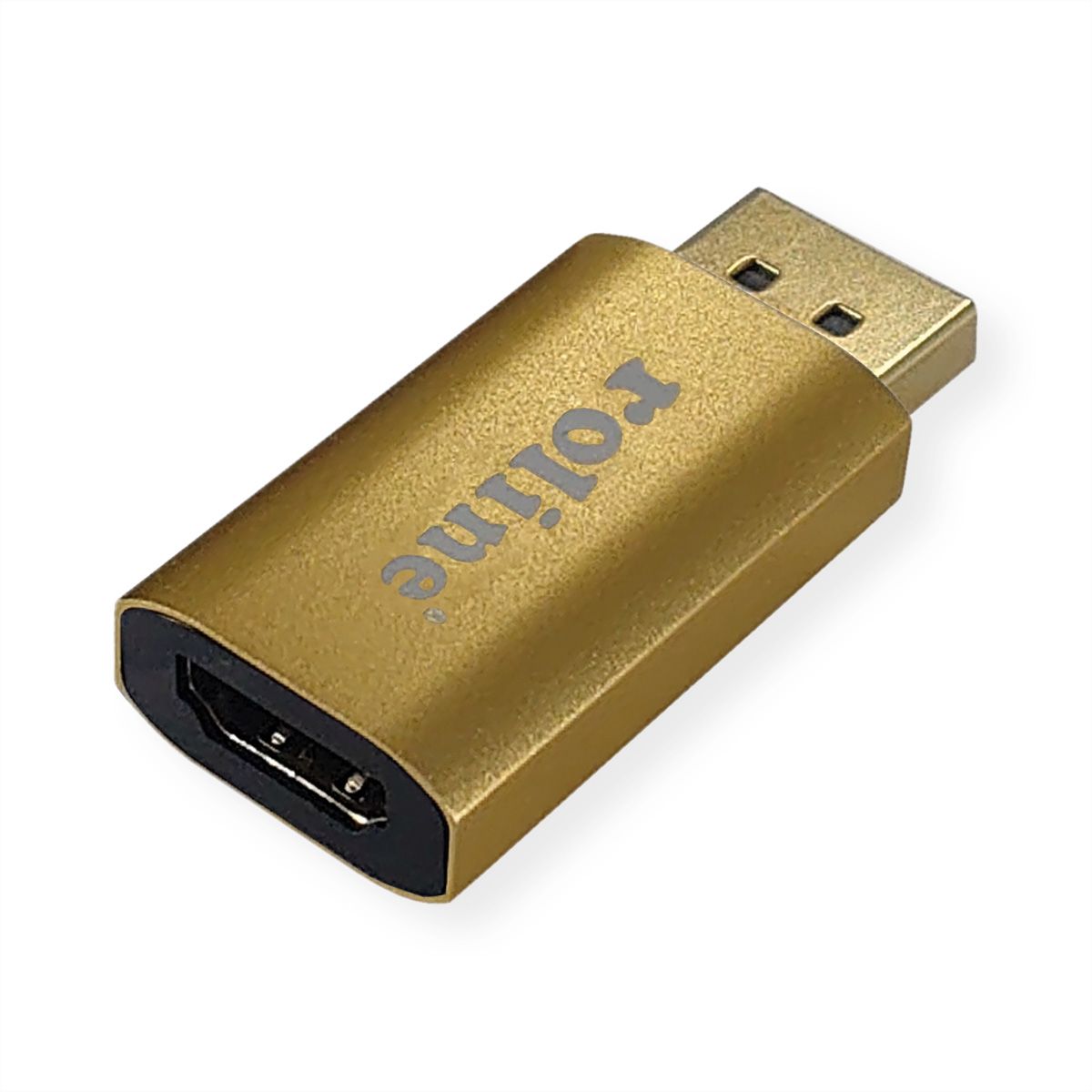

• DisplayPort to HDMI Plug Adapter to connect an HDMI cable to a DisplayPort socket of the graphics card

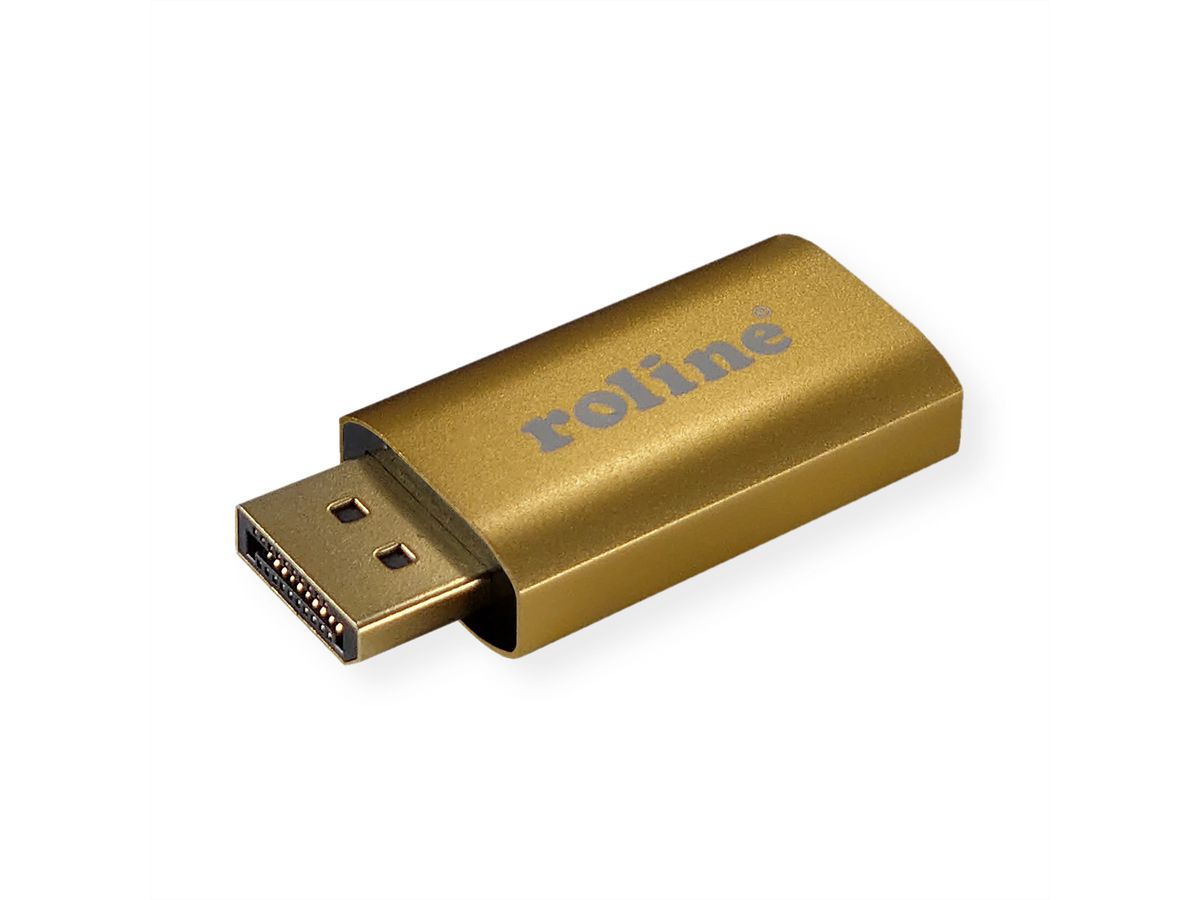

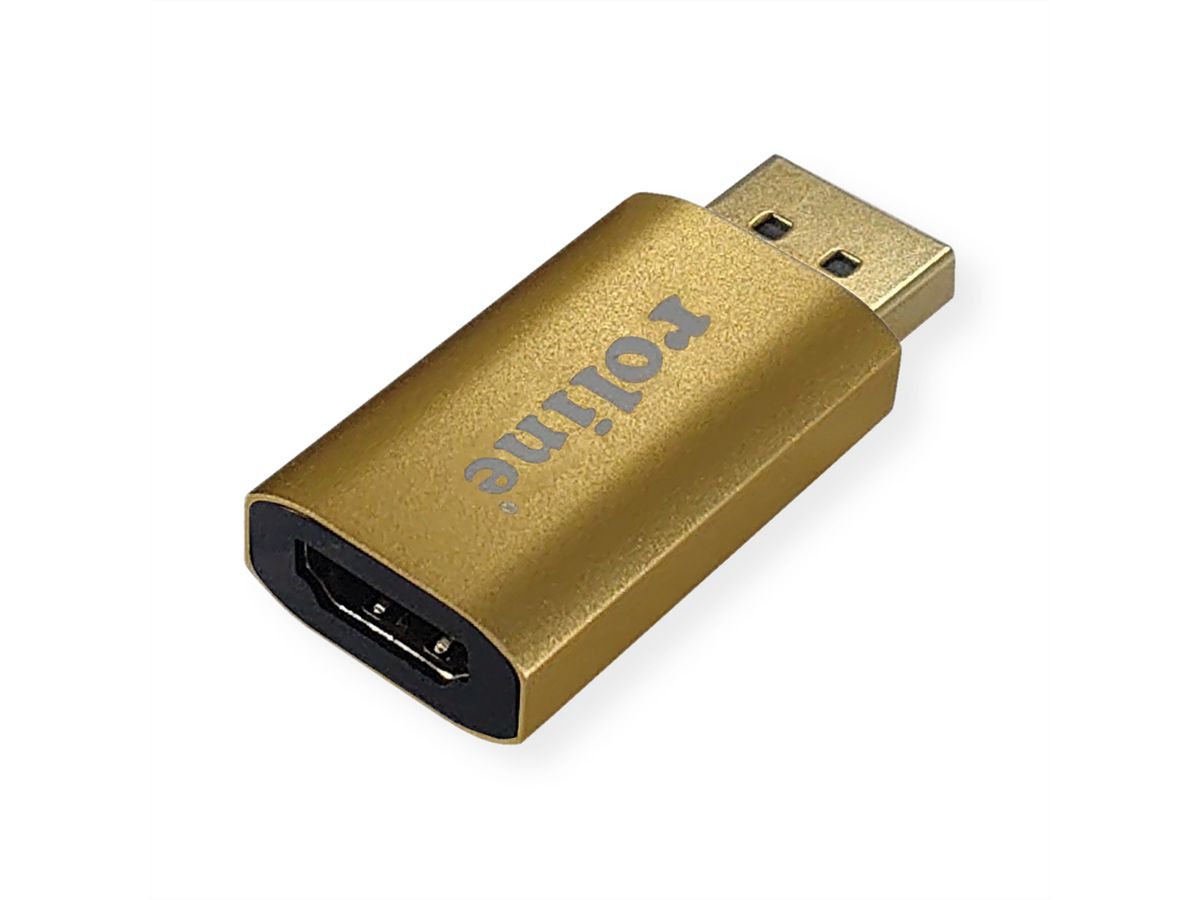

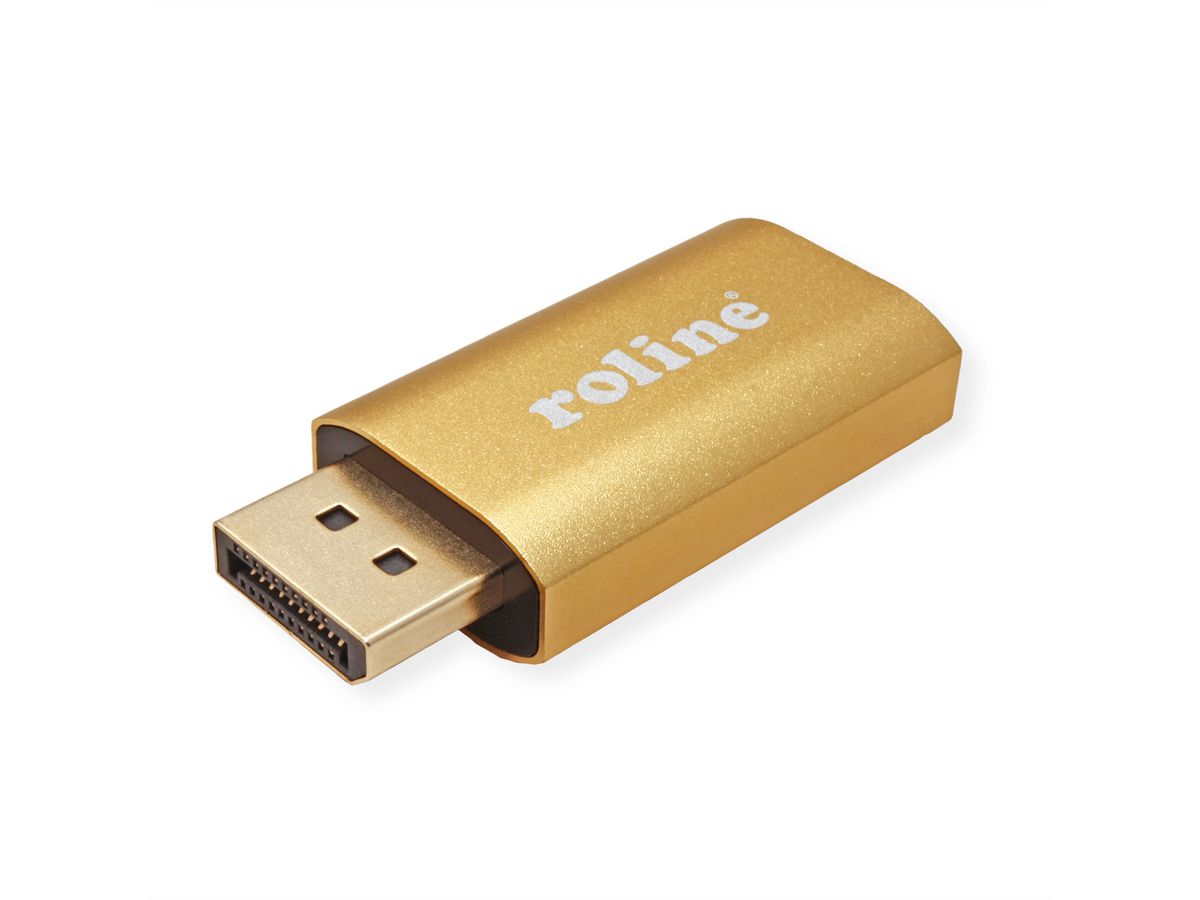

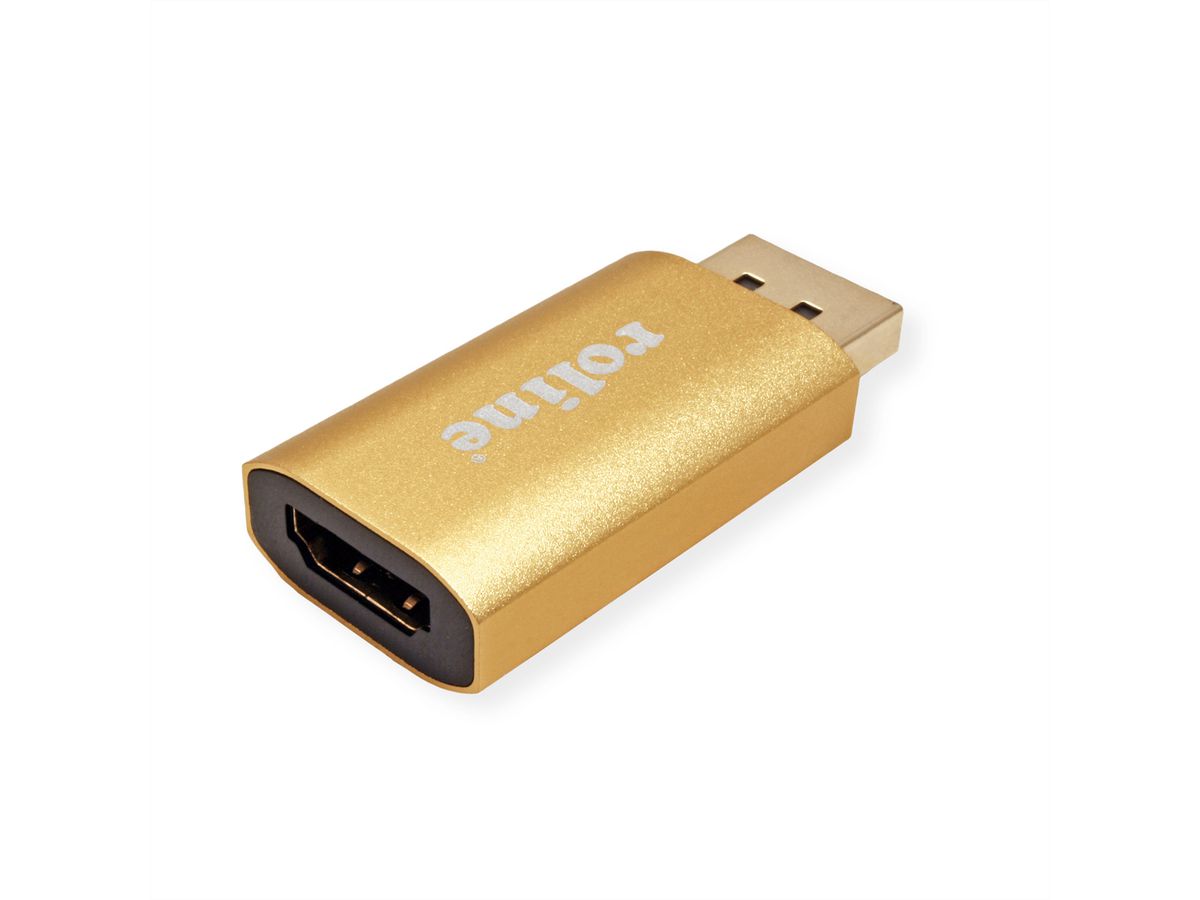

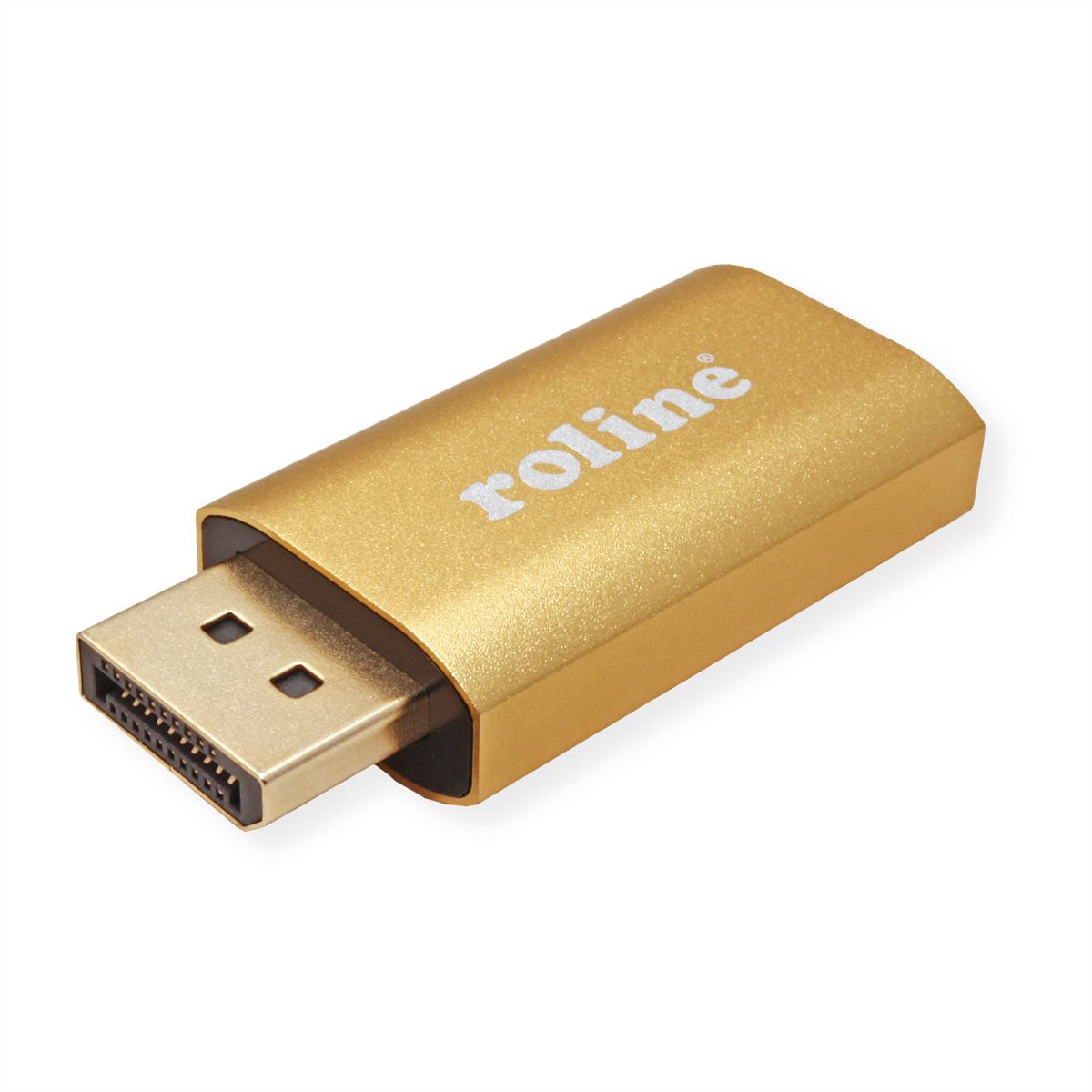

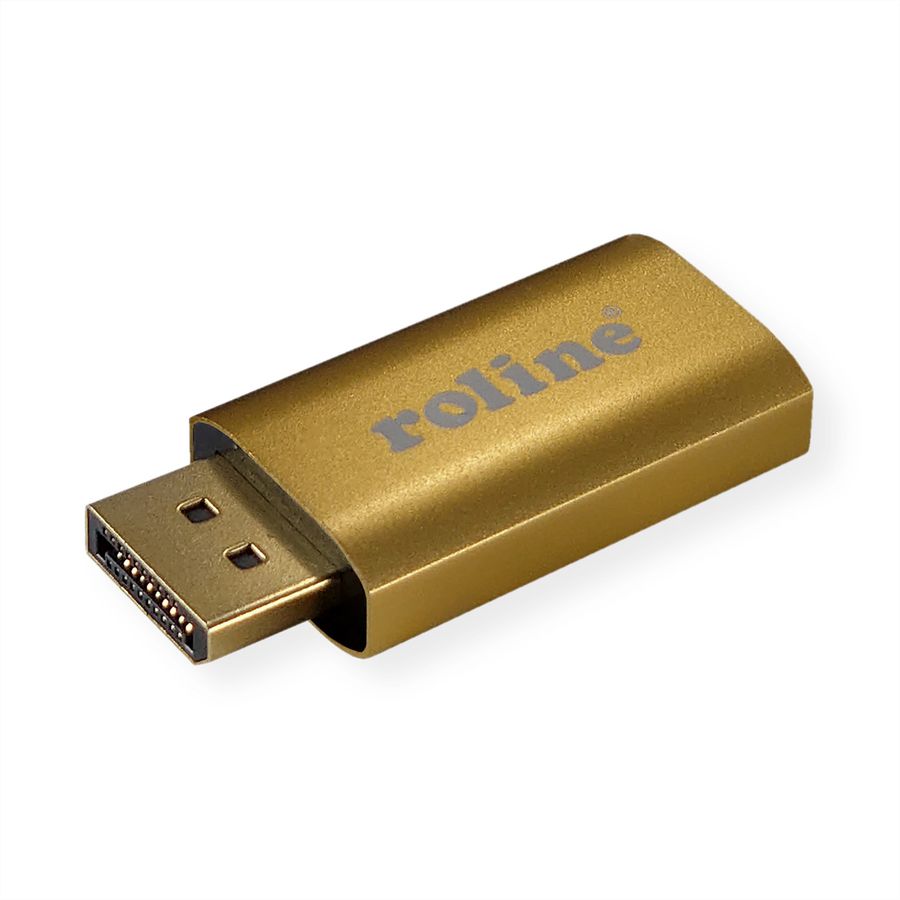

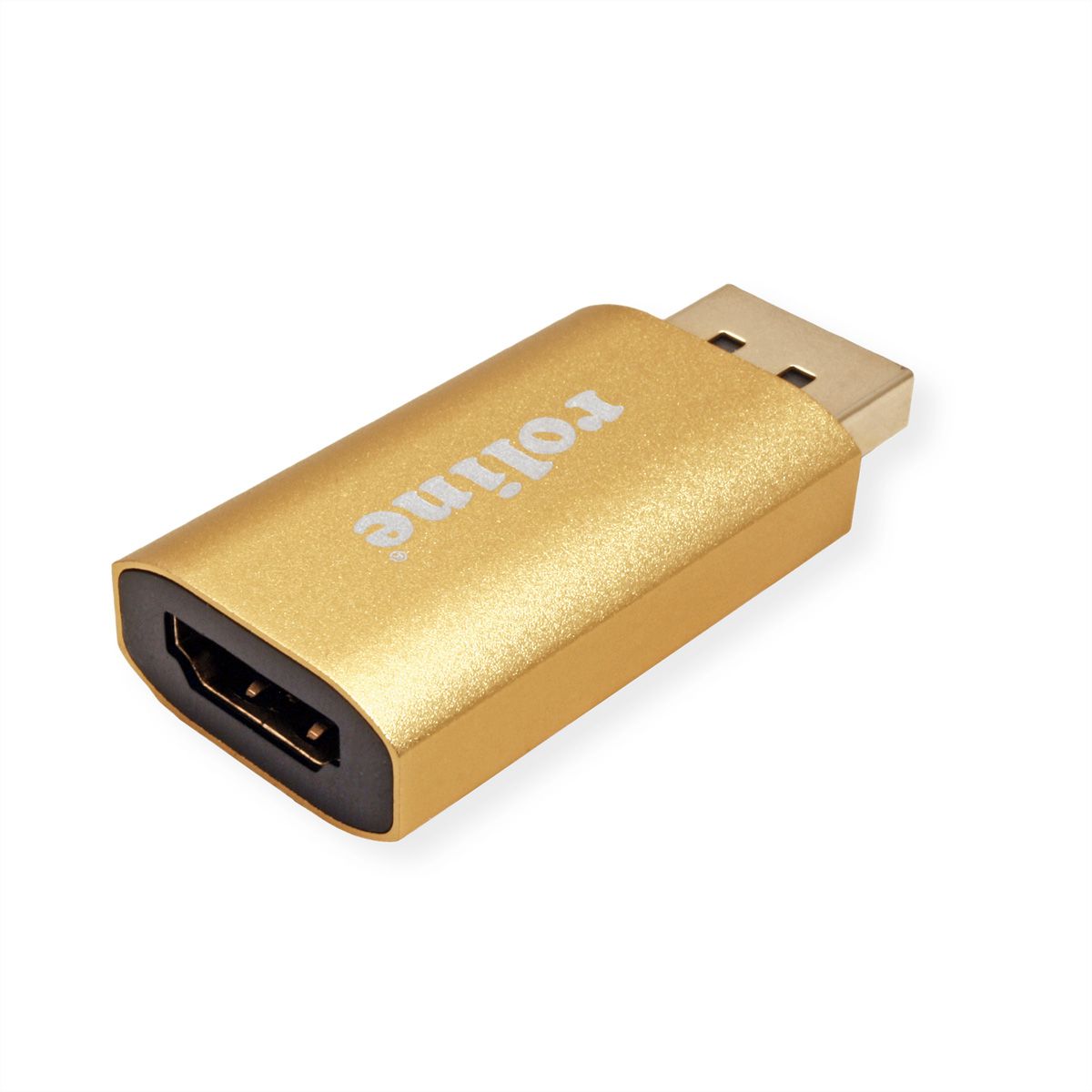

• Active adapter with DisplayPort connector and HDMI socket
• DisplayPort v1.2 with resolutions up to 3840x2160 @60Hz
• Golden aluminium housing, golden plug and socket
• Note: The DisplayPort HDMI adapter only works in one direction: the DisplayPort connector can only be used on the data source side (e.g. graphics card)

Specifications

Manufacturer	ROLINE
Product group	Adapters, Terminators, Converters
Product type	DisplayPort-HDMI Adapter
Colour	gold
Max. resolution	3840 x 2160 @60Hz (4K, UHD-1)
Side 1 connection (PC)	DisplayPort Male
Side 2 connection (Peripherals)	HDMI Female
Side 1 Connector Type	DisplayPort
Side 1 Connector Gender	Male
Side 2 Connector Type	HDMI Type A
Side 2 Connector Gender	Female
Active / Passive	Active
Area of application	External
Technical particularity	DisplayPort Version 1.2, active
Height	10.8 mm
Width	23.3 mm
Depth	50.2 mm
Weight	14.1 g
Height of packaging (single piece)	40 mm
Width of packaging (single piece)	130 mm
Depth of packaging (single piece)	210 mm
Package weight (single piece)	0.02 kg

Downloads

Product data sheet - English (52.5 KB)

Download

Manufacturer data sheet - English (143.4 KB)

Download
