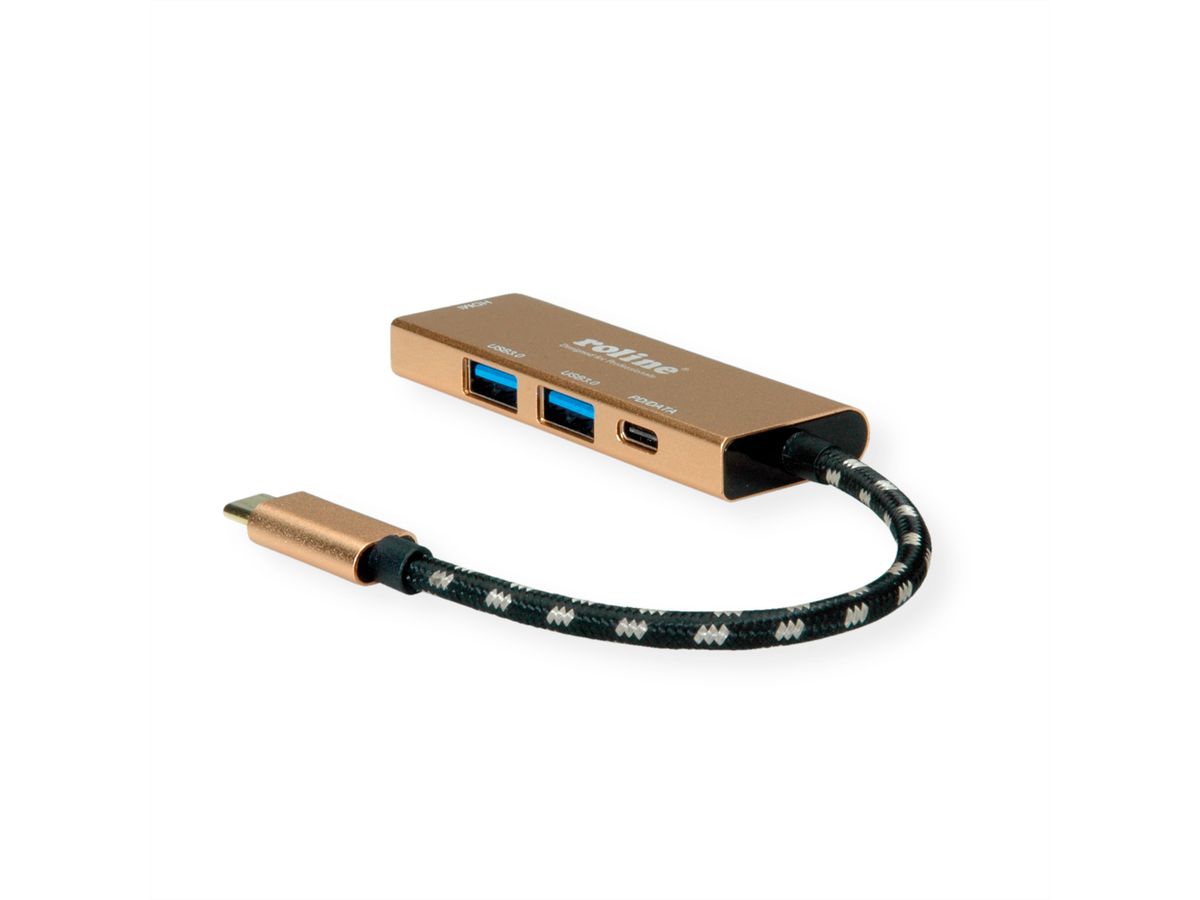

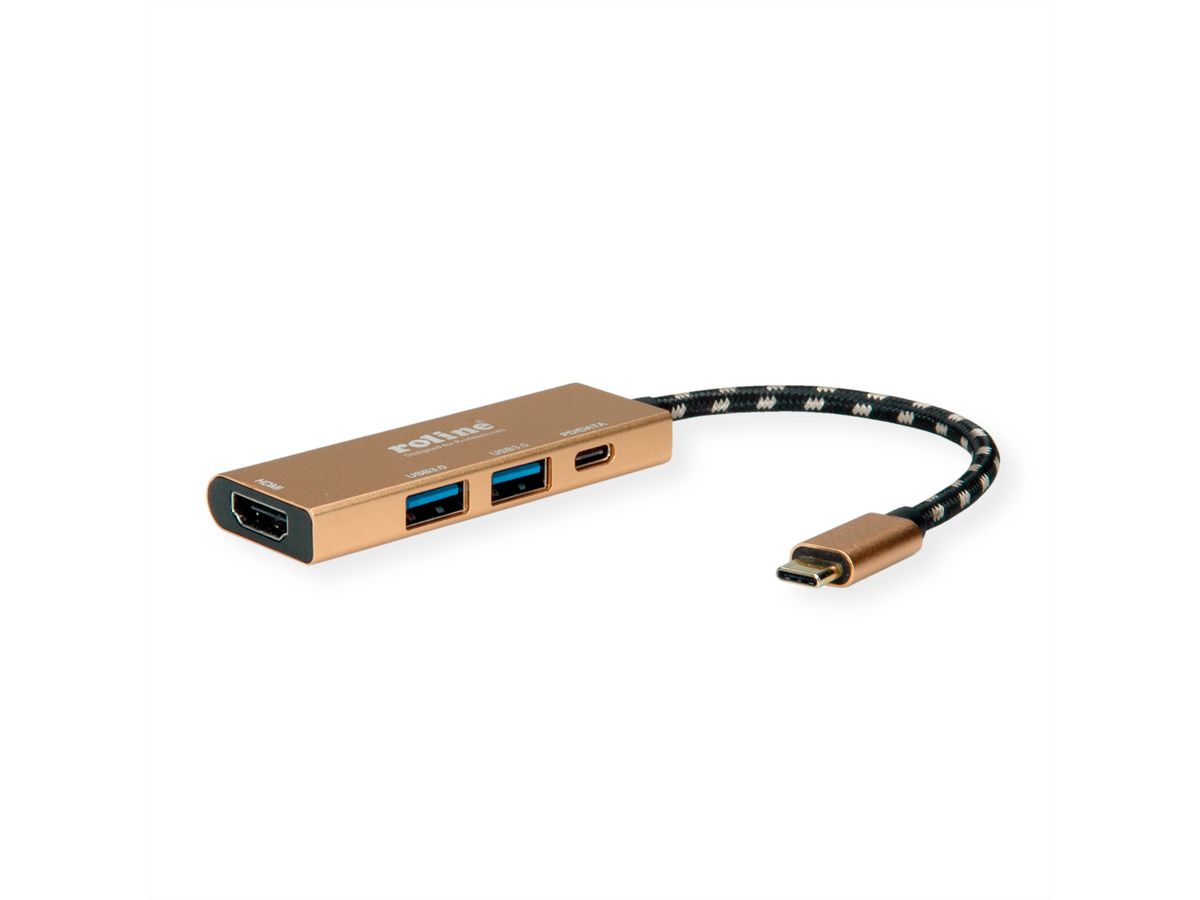

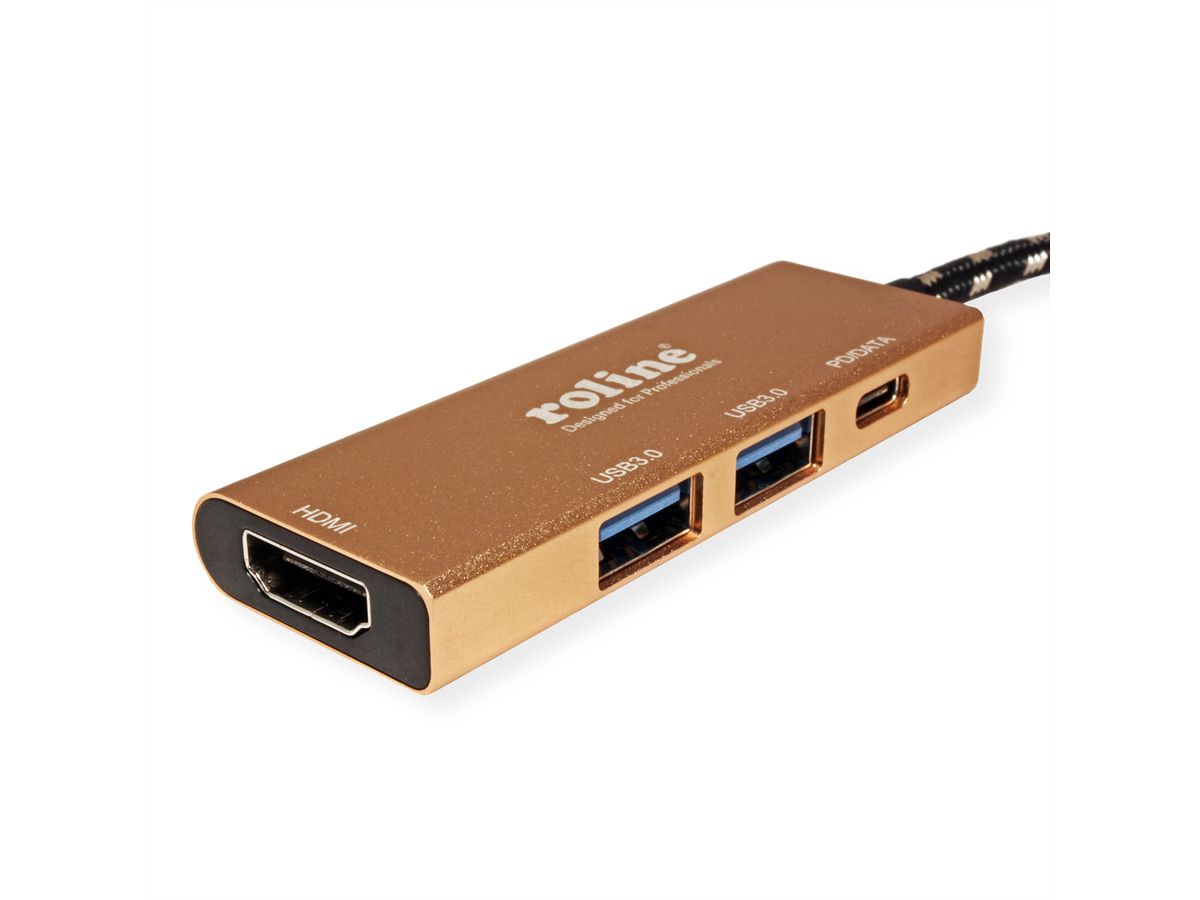

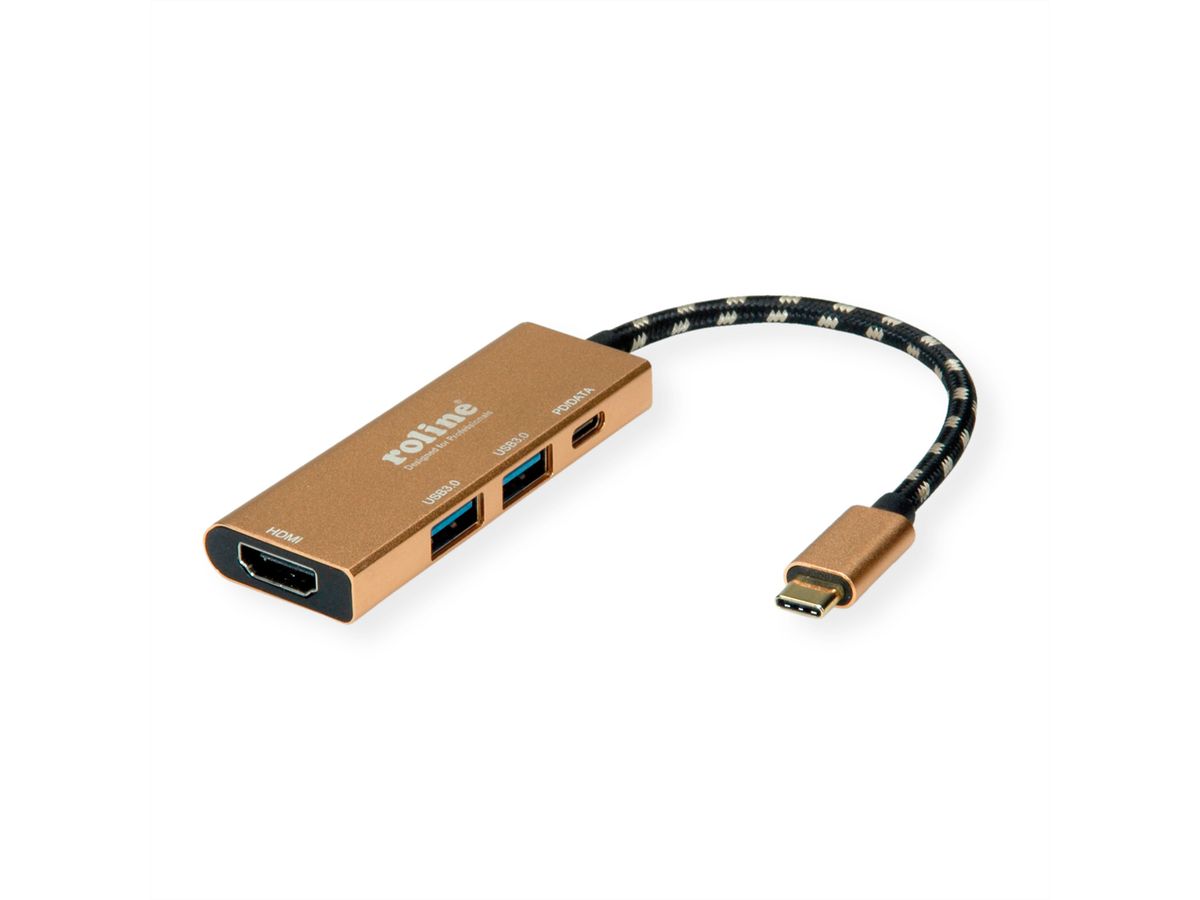

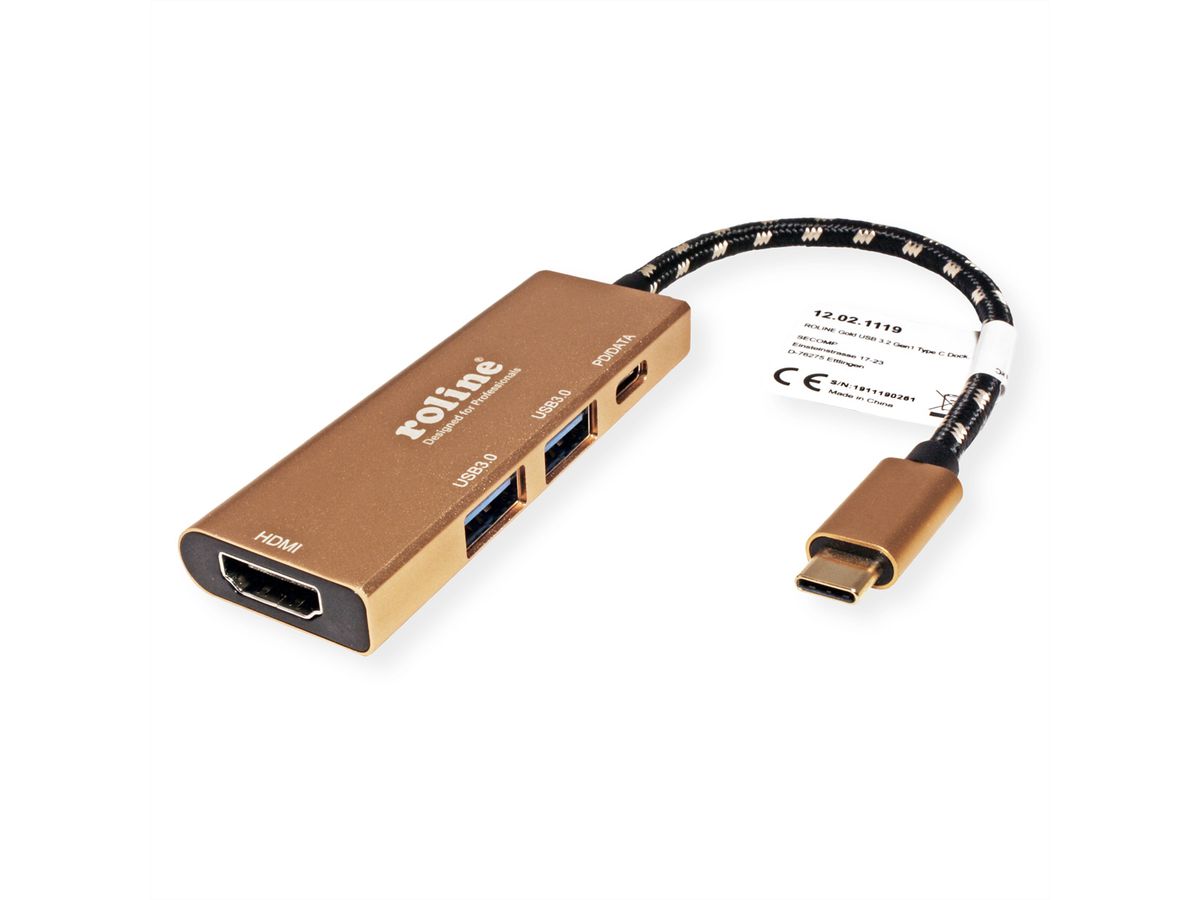

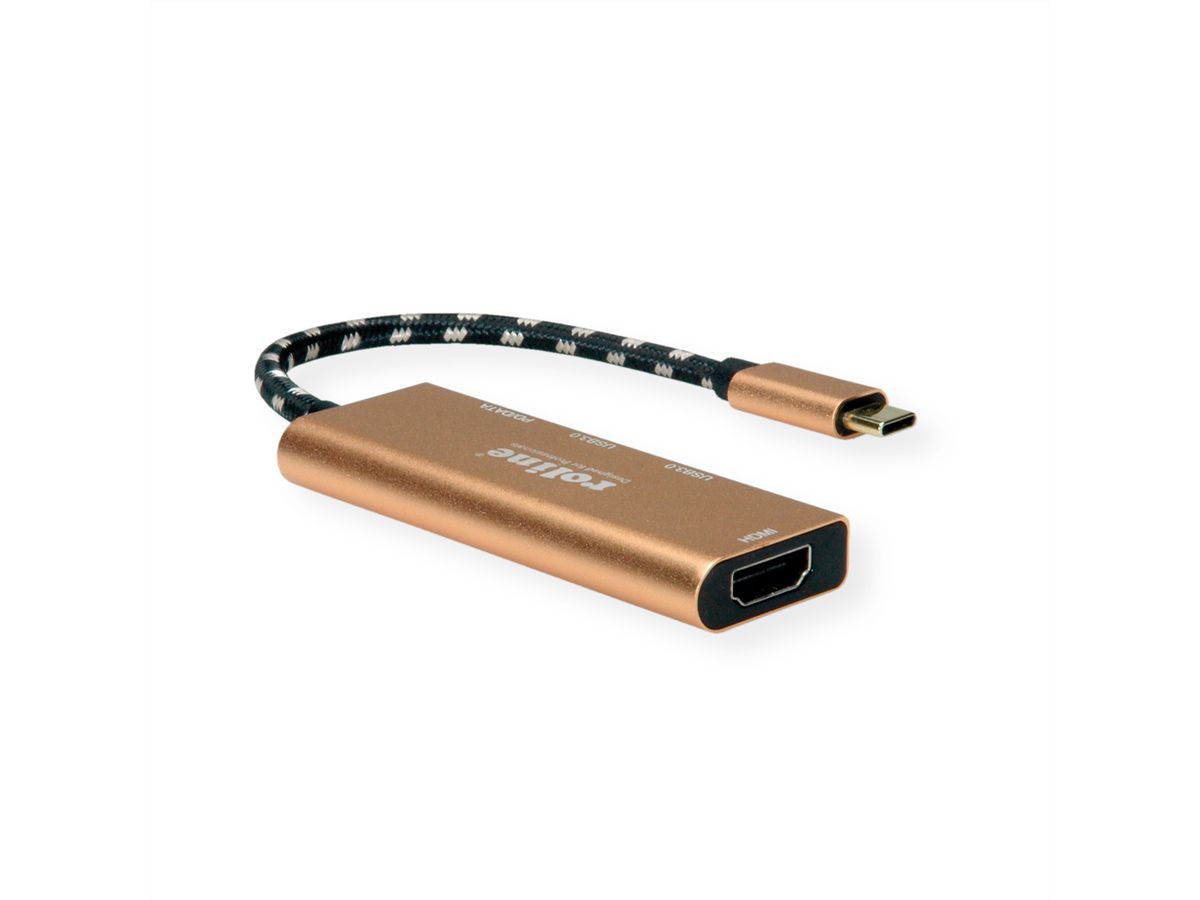

ROLINE GOLD USB Type C Docking Station, 4K HDMI, 2x USB 3.2 Gen 1 ports, 1x USB Type C PD (Power Delivery)

ROLINE GOLD USB Type C Docking Station, 4K HDMI, 2x USB 3.2 Gen 1 ports, 1x USB Type C PD (Power Delivery)

Please log in to be able to use the shopping cart and then complete orders.

Log in
Available
Ordered until 3 pm - usually dispatched on the same day
Item no. 12.02.1119-5
Brand / Manufacturer ROLINE
Manuf. no. 12.02.1119
EAN 7630049696402
Package weight 0.05 kg

Description

The docking station is supplied for Macbooks, Ultrabooks or Notebooks/Laptops and provides a quick and easy connection to the workplace peripherals that you use every day, including one HDMI connector, that allows you a maximum resolution of up to 3840x2160 @30Hz!

  • Golden aluminium case
  • Narrow, flat design
  • Black golden nylon braid around the cable
  • Golden shield plates and contacts for reliable signal transmission

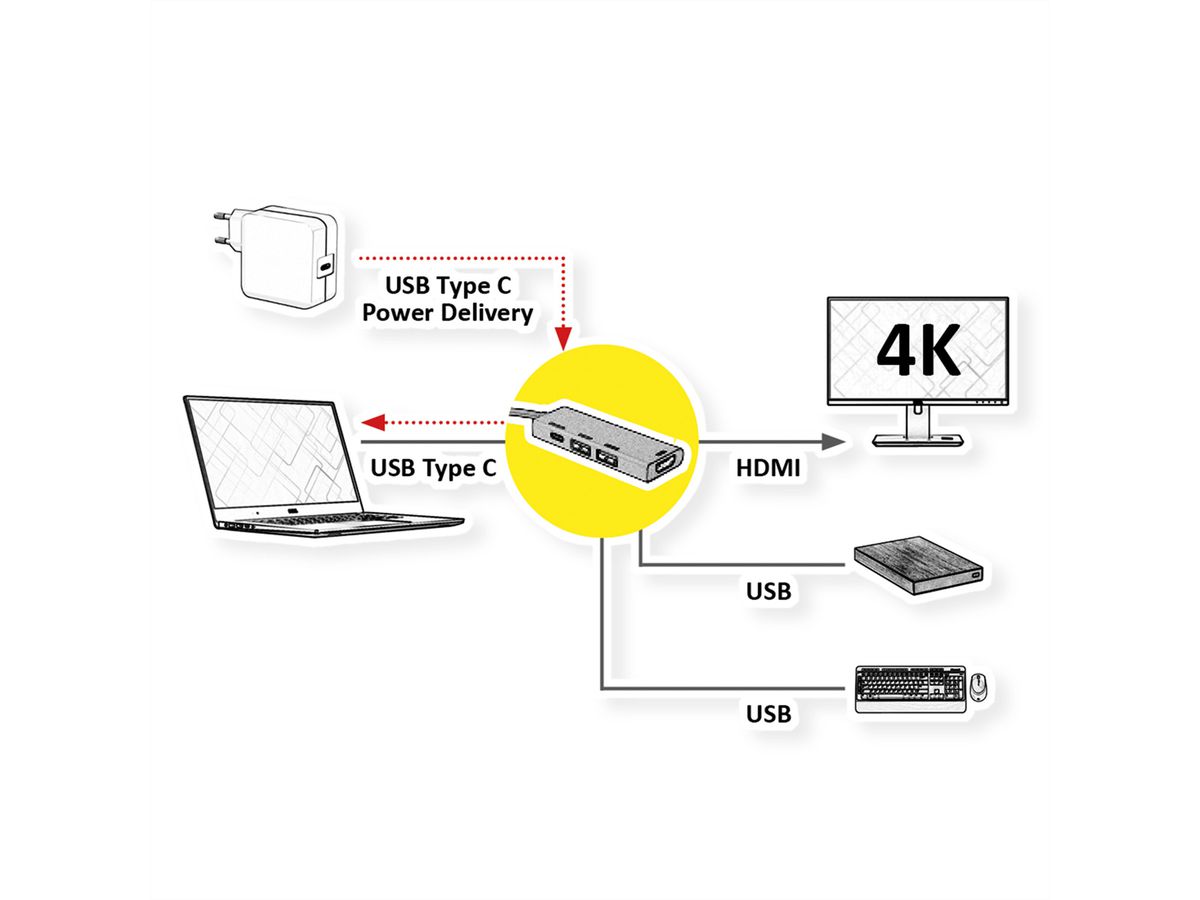

Connection to the mobile device:
  • 1x USB 3.1 / USB 3.2 Gen 2 Type C

Connections for peripheral devices:
  • 1x HDMI video output: mirror or expand your screen to a TV, monitor or projector
  • 2x USB 3.0 / USB 3.2 Gen 1 Type A ports (data transfer rate up to 5Gbit/s), to connect e.g. keyboard / mouse, USB HDD / SSD, etc.
  • 1x USB Type C PD (Power Delivery)

Remark: Support of "Alternate Mode (DP Alt Mode)" required

Note: According to the current specifications of USB.org we have adapted the technical data of our USB 3 products. The new designation for the already known USB specifications has been changed to USB 3.2 Gen 1 (formerly USB 3.0 / USB 3.1 Gen 1) and USB 3.2 Gen 2 (formerly USB 3.1 / USB 3.1 Gen 2).

Specifications

Manufacturer ROLINE
Product group Adapters, Terminators, Converters
Product type Notebook-Docking-Station
Colour gold
Length 0.1 m
Scope of delivery Docking Station
Transfer quality USB 3.2 Gen 1 SuperSpeed 5 Gbit/s (USB 3.1 Gen 1, USB 3.0)
Max. resolution 3840 x 2160 @30Hz (4K, Full HD)
Side 1 connection (PC) USB Type C
Side 2 connection (Peripherals) 1x HDMI, 2x USB 3.0 / USB 3.2 Gen 1 Type A, 1x USB Type C PD
Side 1 Connector Type USB Type C (USB-C)
Side 1 Connector Gender Male
Side 2 Connector Type
  • HDMI Type A
  • USB 3 Type A
  • USB Type C PD (Power Delivery)
Side 2 Connector Gender Female
Area of application External
Weight 37 g
Height of packaging (single piece) 20 mm
Width of packaging (single piece) 20 mm
Depth of packaging (single piece) 80 mm
Package weight (single piece) 0.05 kg

Downloads

Product data sheet - English (48.5 KB)

Download

Manufacturer data sheet - English (121.7 KB)

Download

User manual - Deutsch (415.5 KB)

Download

User manual - English (413.3 KB)

Download

The products of our own brand ROLINE are designed for professional continuous operation.

With a 2-year functional guarantee, we stand by our performance promise.

ROLINE – Quality makes the difference.
