ROLINE GREEN U/FTP DataCenter Patch Cord Cat.6A (Class EA), LSOH, slim, white, 1 m

Item no. 21.44.1701-100 Brand / Manufacturer ROLINE GREEN Manuf. no. 21.44.1701 EAN 7630049699533 Package weight 0.021 kg
ROLINE GREEN
Colour:
Length:

Please log in to be able to use the shopping cart and then complete orders.

Log in
Available
Ordered until 3 pm - usually dispatched on the same day
Download PDF

Description

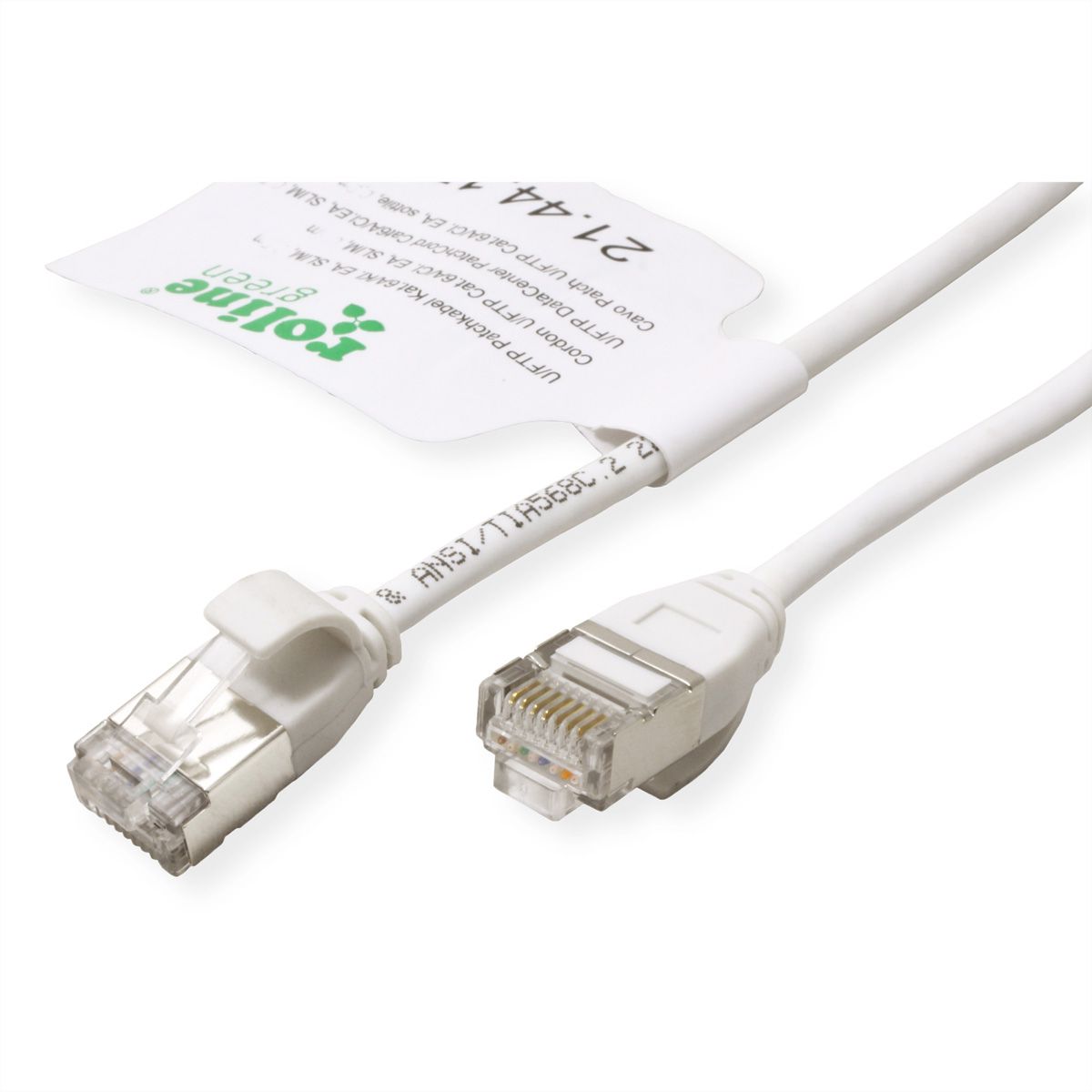

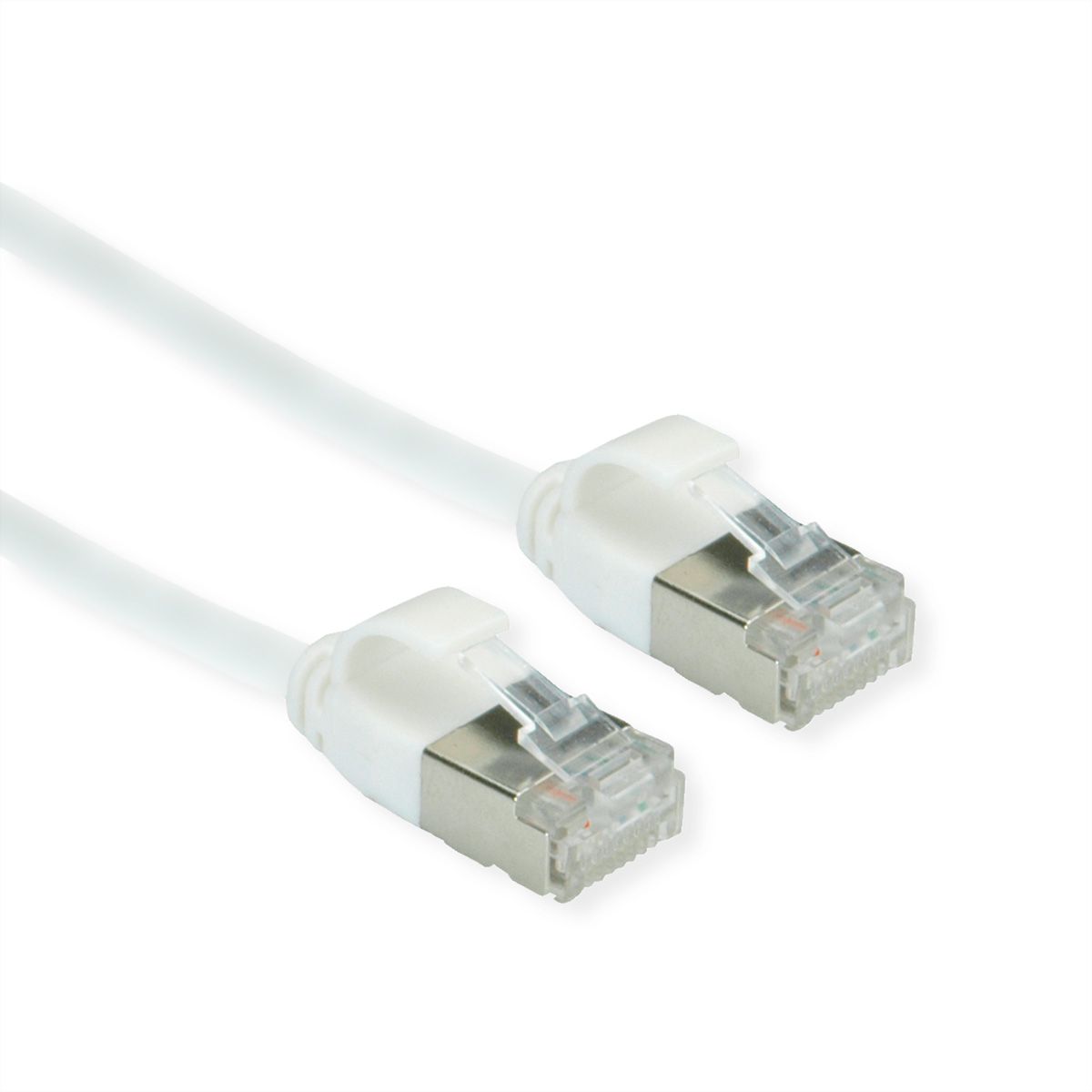

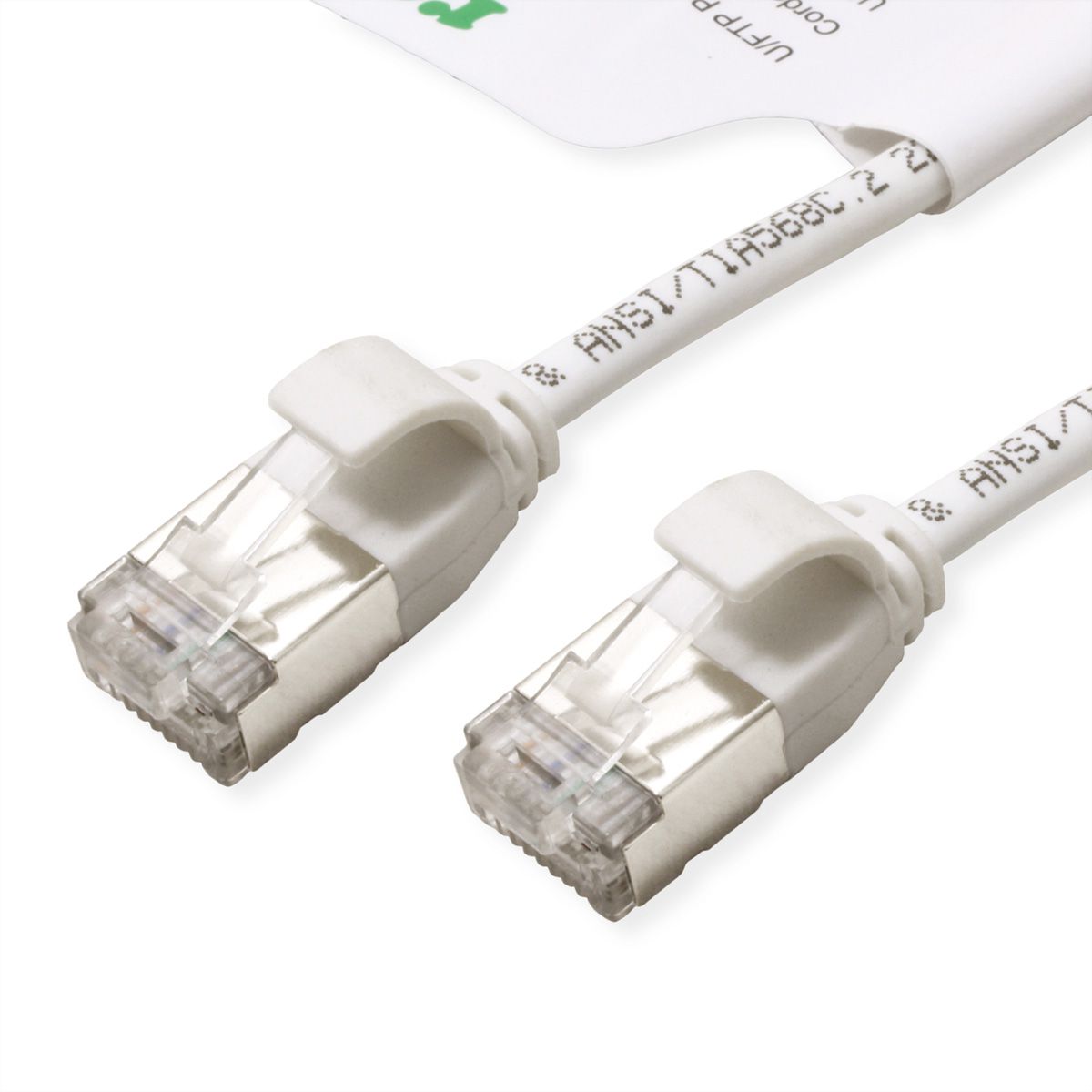

Category 6a twisted-pair patch cable with shielded RJ-45 connectors on both sides. Particularly thin and flexible cable with individual pairs of wires in aluminium-laminated foil for use in confined spaces, such as in data centres.

  • Durable thanks to moulded-on kink protection
  • Suitable as patch cable in patch panels or as device connection cable and intended for use in the LAN
  • Contact assignment: 1:1 according to EIA/TIA568, 8 cores
  • Structure: 8 cores stranded wire, pairs shielded with alu-laminated foil

ROLINE GREEN products are marked only with a paper tag and build with halogen-free TPE material, without plastic bags and without plastic cable straps for use in eco-friendly environments.

Specifications

Manufacturer
ROLINE GREEN
Product group
Twisted Pair Cable
Product type
U/FTP patch cord
Colour
white
Length
1 m
Scope of delivery
Cable without plastic bag, only marked with a paper label
Shield type
U/FTP
Transfer quality
Cat6A / Class EA
Quantity of wires
8
Conductor cross section (AWG)
AWG 32
Inner conductor material
BC (Bare Copper)
Conductor type
Stranded
Crossed
no
Slim cable
yes
Locking lever
yes
Anti-kink sleeve
Moulded-on
Colour (Spout)
white
Cable LSOH
yes
Material (external cable mantle)
LSOH-TPE
Side 1 Connector Type
RJ-45
Side 1 Connector Gender
Male
Side 2 Connector Type
RJ-45
Side 2 Connector Gender
Male
Connector Type RJ45
Standard
Operating temperature min.
-10 °C
Operating temperature max.
60 °C
Storage temperature min.
-20 °C
Storage temperature max.
75 °C
Weight
21.1 g
Height of packaging (single piece)
30 mm
Width of packaging (single piece)
140 mm
Depth of packaging (single piece)
130 mm
Package weight (single piece)
0.021 kg

Downloads

Product data sheet - English (98.9 KB) Manufacturer data sheet - English (272.7 KB)

Help our environment and avoid unnecessary plastic waste



For our ROLINE GREEN series, we have selected a number of well-known ROLINE quality products for which we do not use plastic bags and plastic cable ties.

Instead, the products are only marked with a paper label.

The cables themselves are made of halogen-free TPE material to avoid the classic sheath material PVC.

More about ROLINE GREEN
