ROLINE HDMI 4K Audio Extractor LPCM 7.1

ROLINE HDMI 4K Audio Extractor LPCM 7.1

Please log in to be able to use the shopping cart and then complete orders.

Log in
Available
Ordered until 3 pm - usually dispatched on the same day
Item no. 14.01.3442-10
Brand / Manufacturer ROLINE
Manuf. no. 14.01.3442
EAN 7611990916375
Package weight 0.396 kg

Description

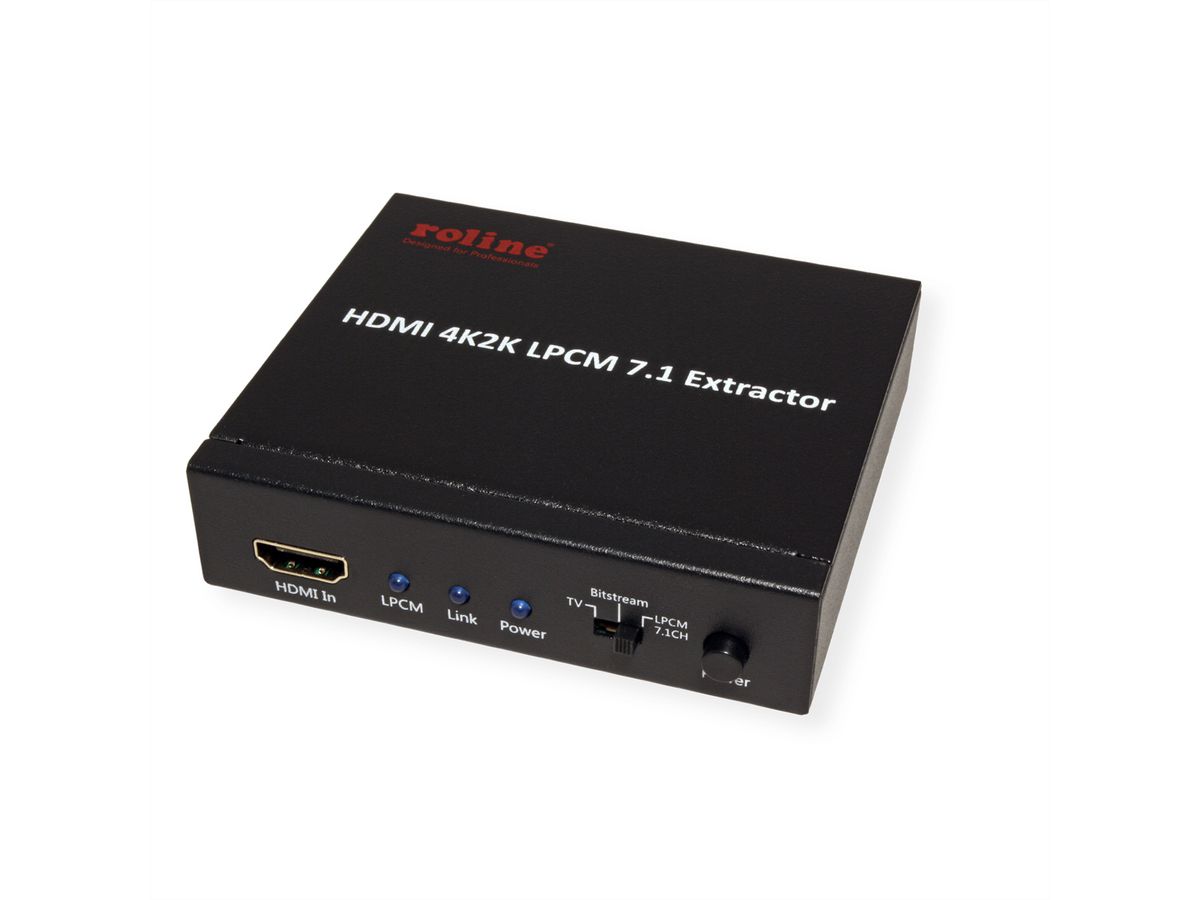

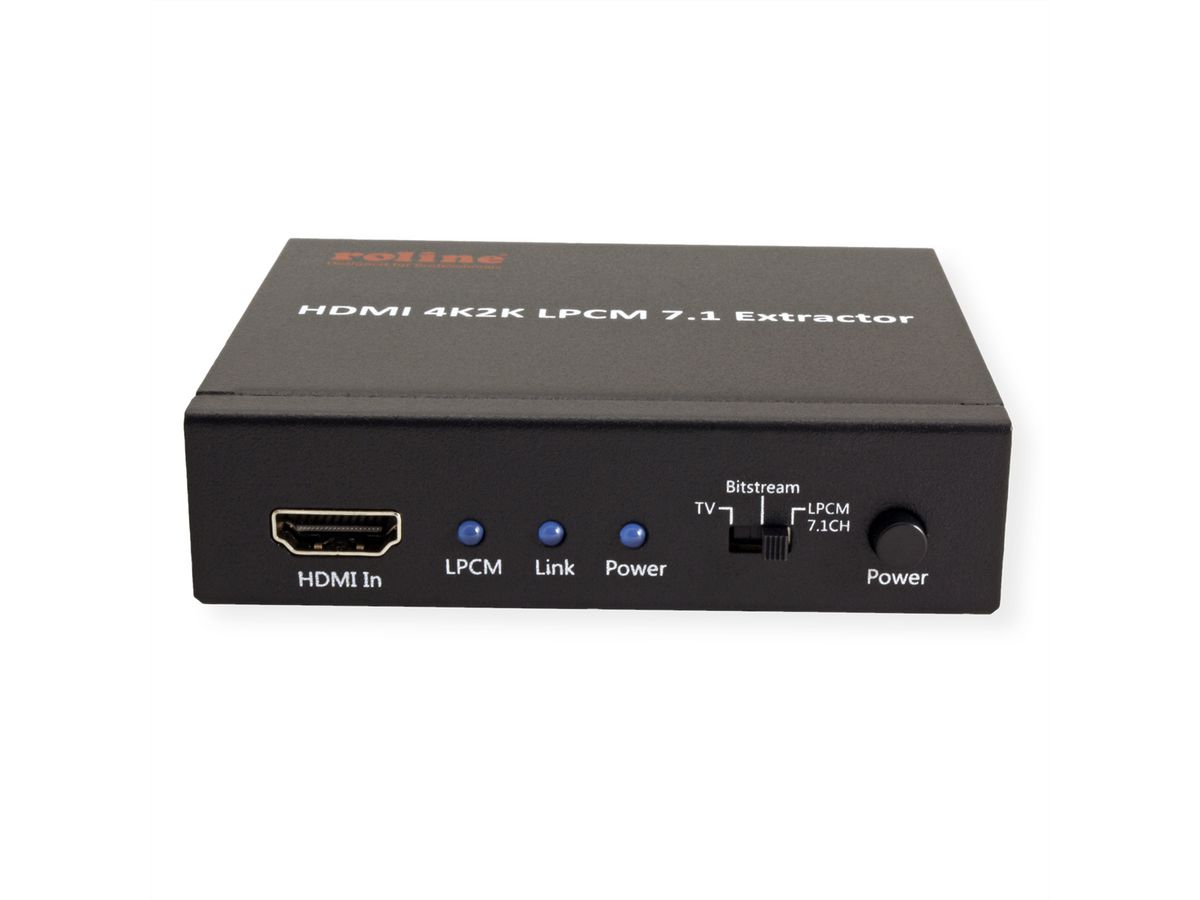

The ROLINE HDMI 4K2K Audio Extractor allows to uncouple audio signals from the HDMI signal.

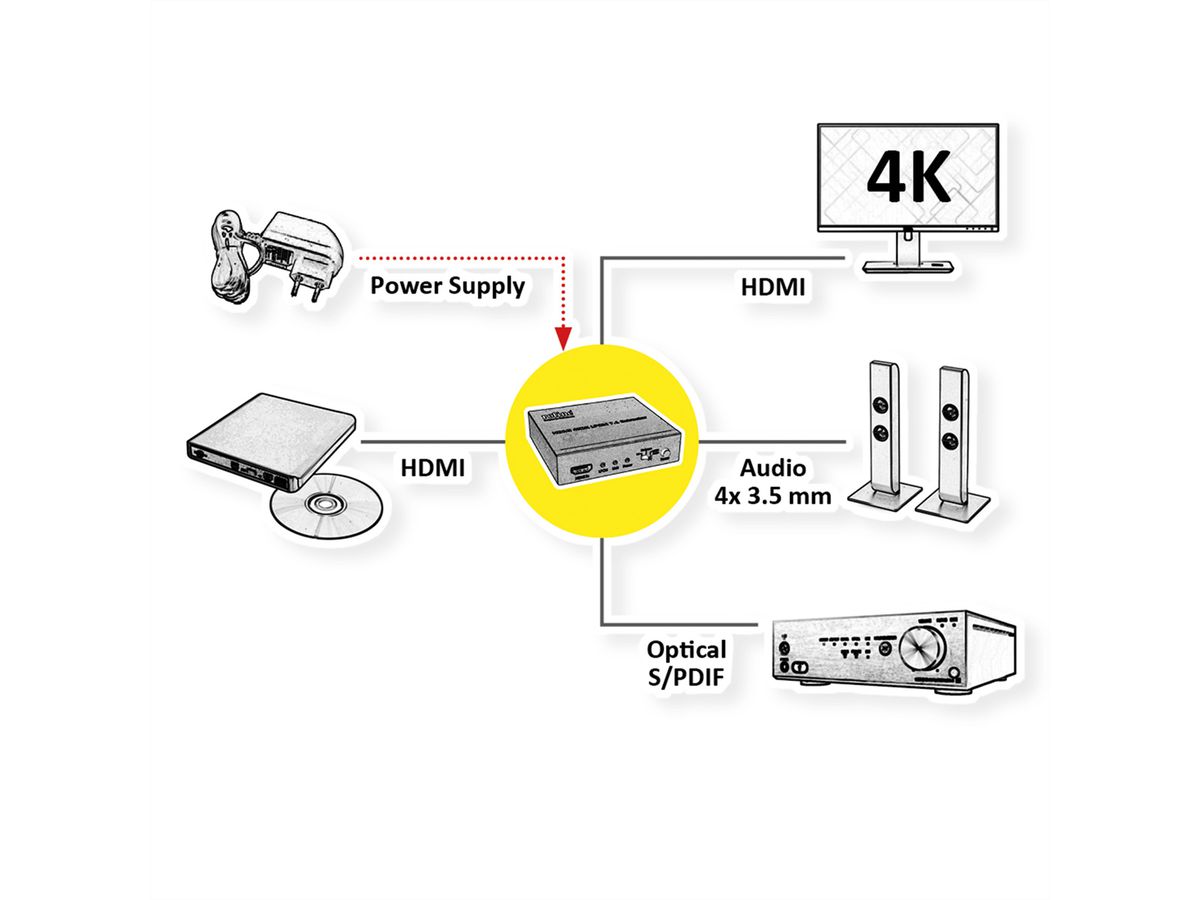

Not all monitors have good speakers. With the extractor you can redirect the audio signals via S/PDIF (optical) or analog via 3.5mm ports on a speaker system, the pure image signal goes to the screen.
  • Supports HDMI, HDCP 1.2
  • Audio-rate (sampling frequency for S/PDIF as HDMI) to 192kHz
  • Supports high bit-rate audio
  • Supports video resolution up 4K2K and 3D
  • HBR audio supported
  • Supports CEC bypass
  • Supports up to 4 x 3.5 mm phone jacks for analog multi-channel audio outputs
  • Power supply (5 V DC, 2 A) included
  • Contents: extractor, power adapter, user manual

Specifications

Manufacturer ROLINE
Product group Adapters, Terminators, Converters
Product type HDMI Audio Extractor
Colour black
Scope of delivery Extractor, main adapter, manual
Max. resolution 3840 x 2160 @30Hz (4K, Full HD)
Side 1 connection (PC) HDMI

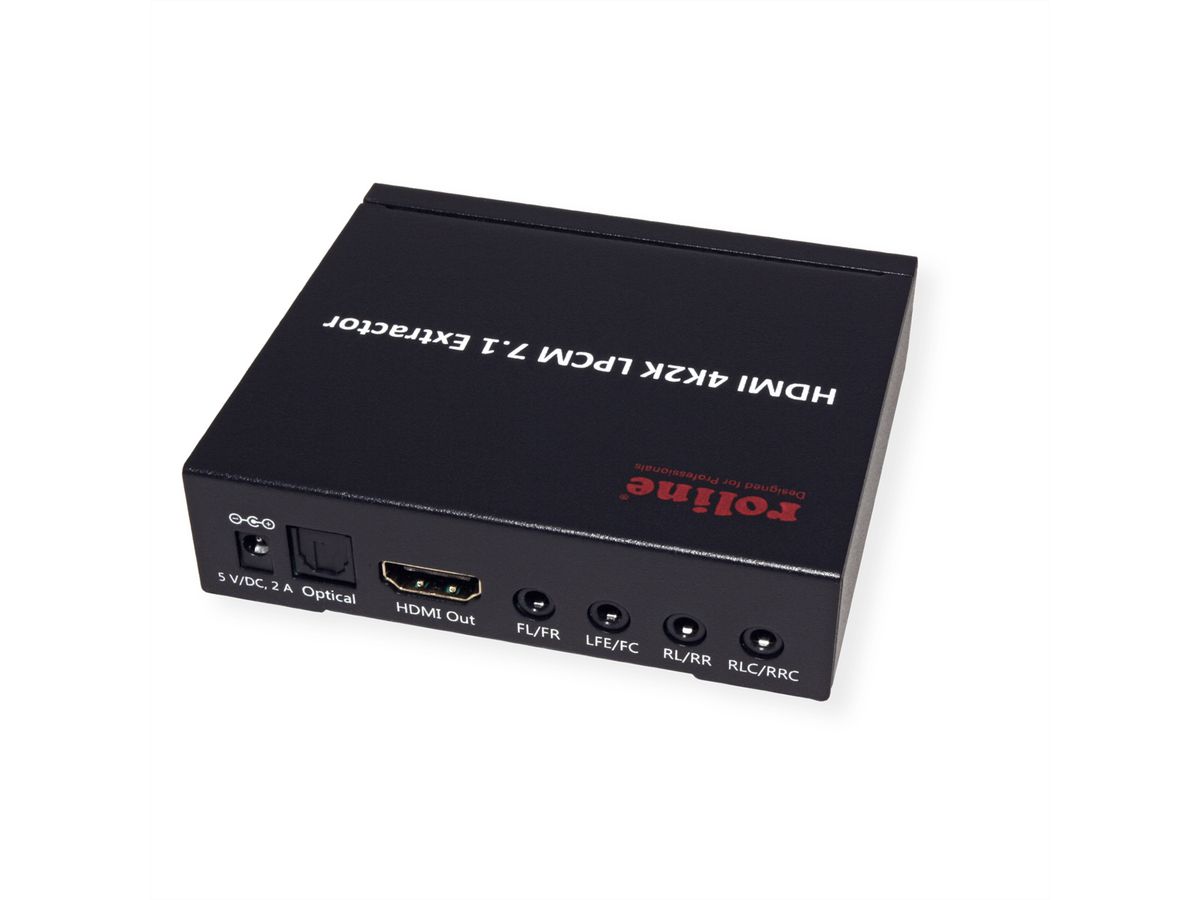

Side 2 connection (Peripherals) HDMI, Opt. S/PDIF / 4x 3,5mm female
Side 1 Connector Type HDMI Type A
Side 1 Connector Gender Female
Side 2 Connector Type
  • HDMI Type A
  • Mini Phone Stereo 3.5 mm, 3-pin
  • Toslink
Side 2 Connector Gender Female
Area of application External
Dimensions (HxWxD) 27 x 95 x 85 mm
Height 27 mm
Width 95 mm
Depth 85 mm
Weight 200.3 g
Height of packaging (single piece) 60 mm
Width of packaging (single piece) 170 mm
Depth of packaging (single piece) 230 mm
Package weight (single piece) 0.396 kg

Downloads

Product data sheet - English (53.8 KB)

Download

Manufacturer data sheet - English (281.7 KB)

Download

User manual - Français (701.2 KB)

Download

User manual - Deutsch (701.5 KB)

Download

User manual - English (698.7 KB)

Download

The products of our own brand ROLINE are designed for professional continuous operation.

With a 2-year functional guarantee, we stand by our performance promise.

ROLINE – Quality makes the difference.
