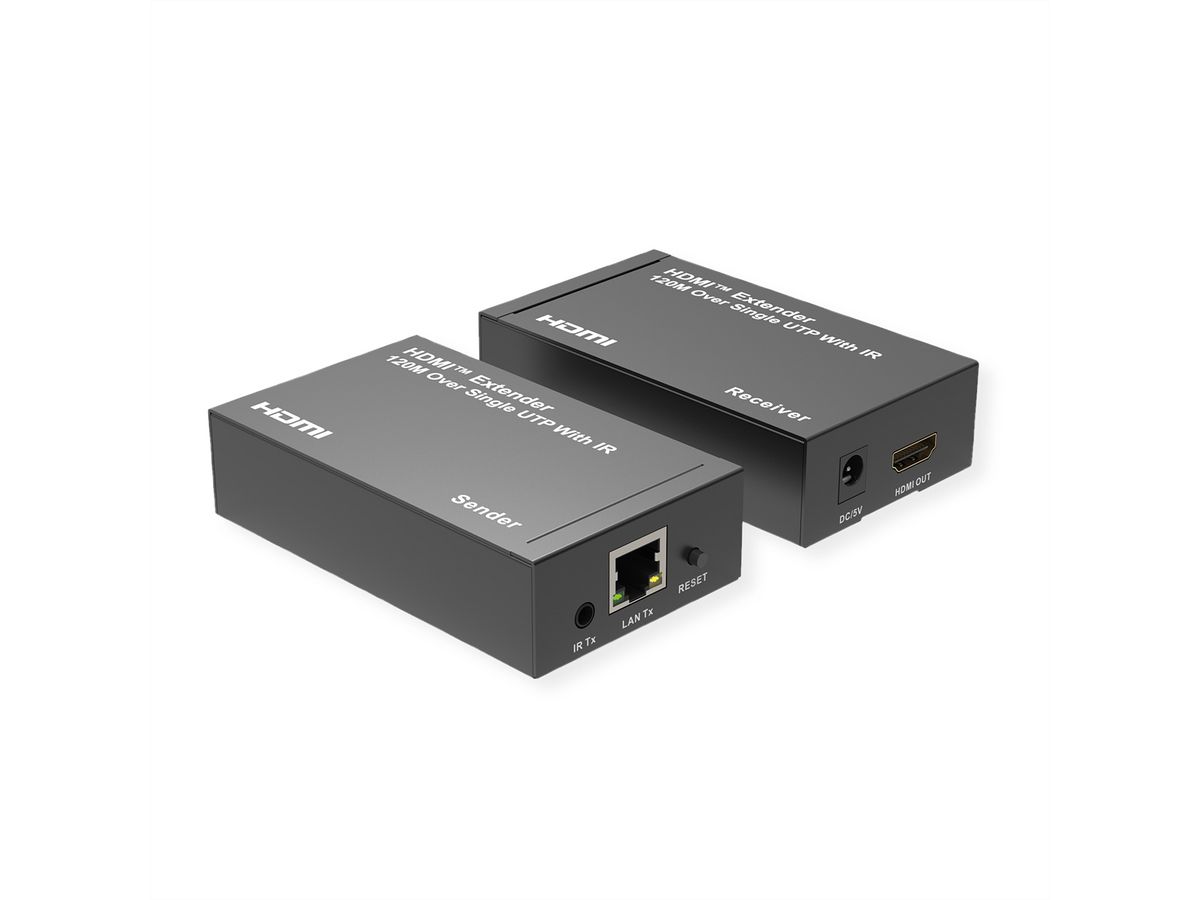

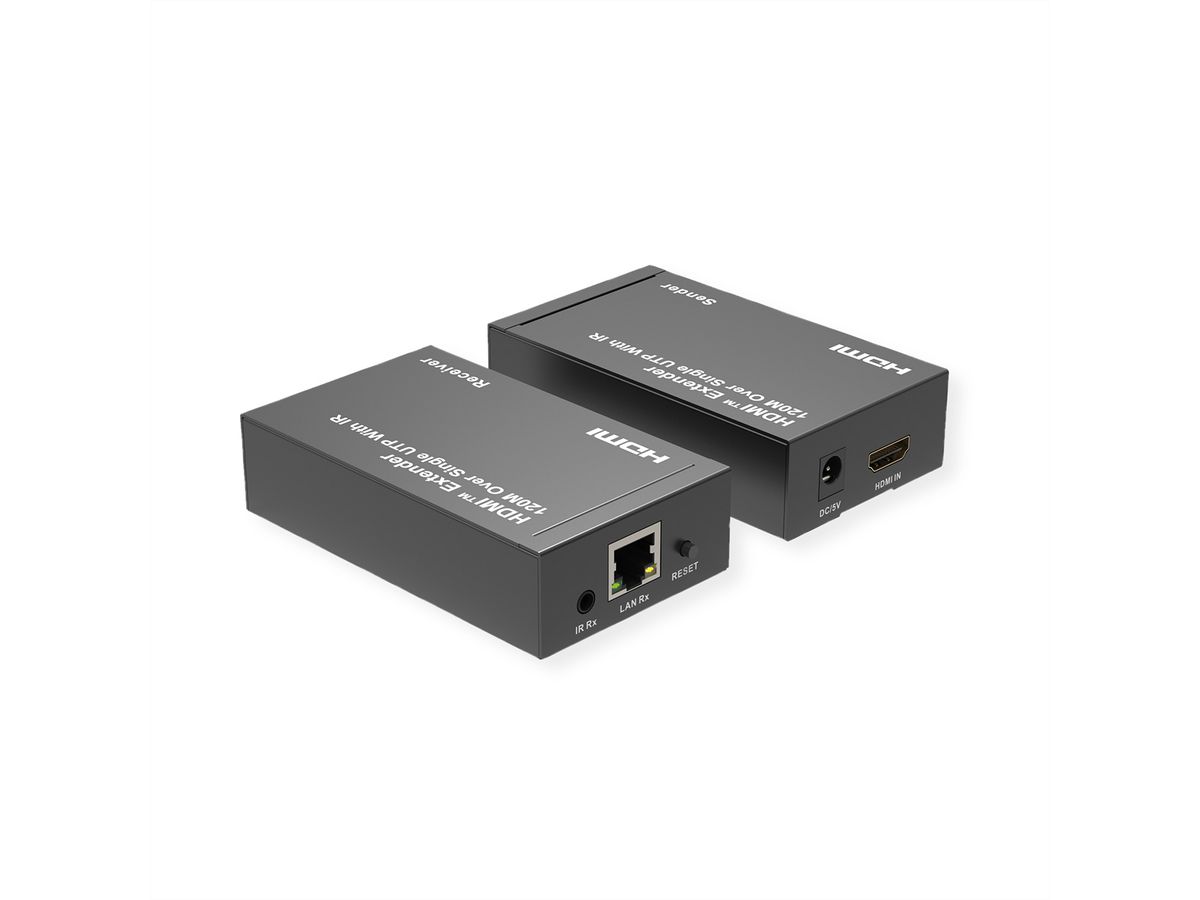

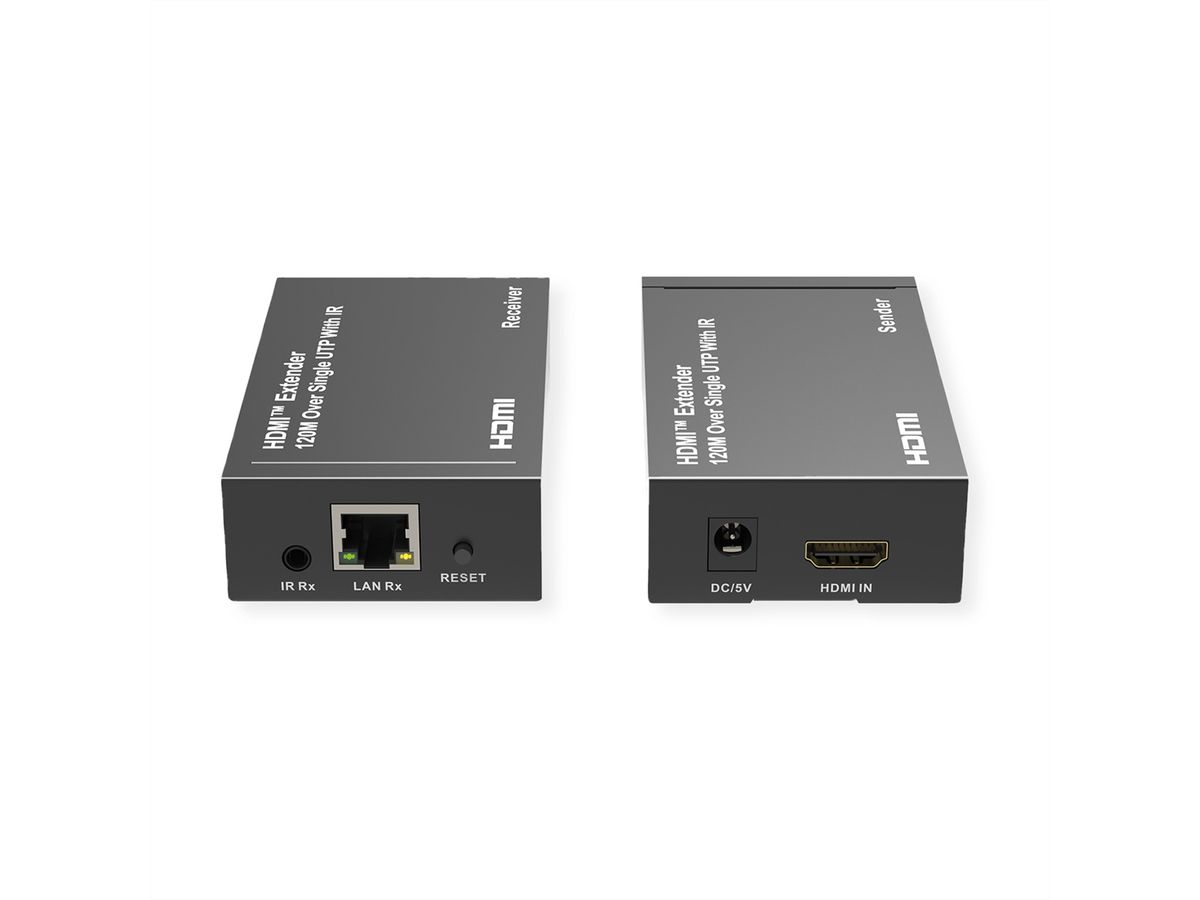

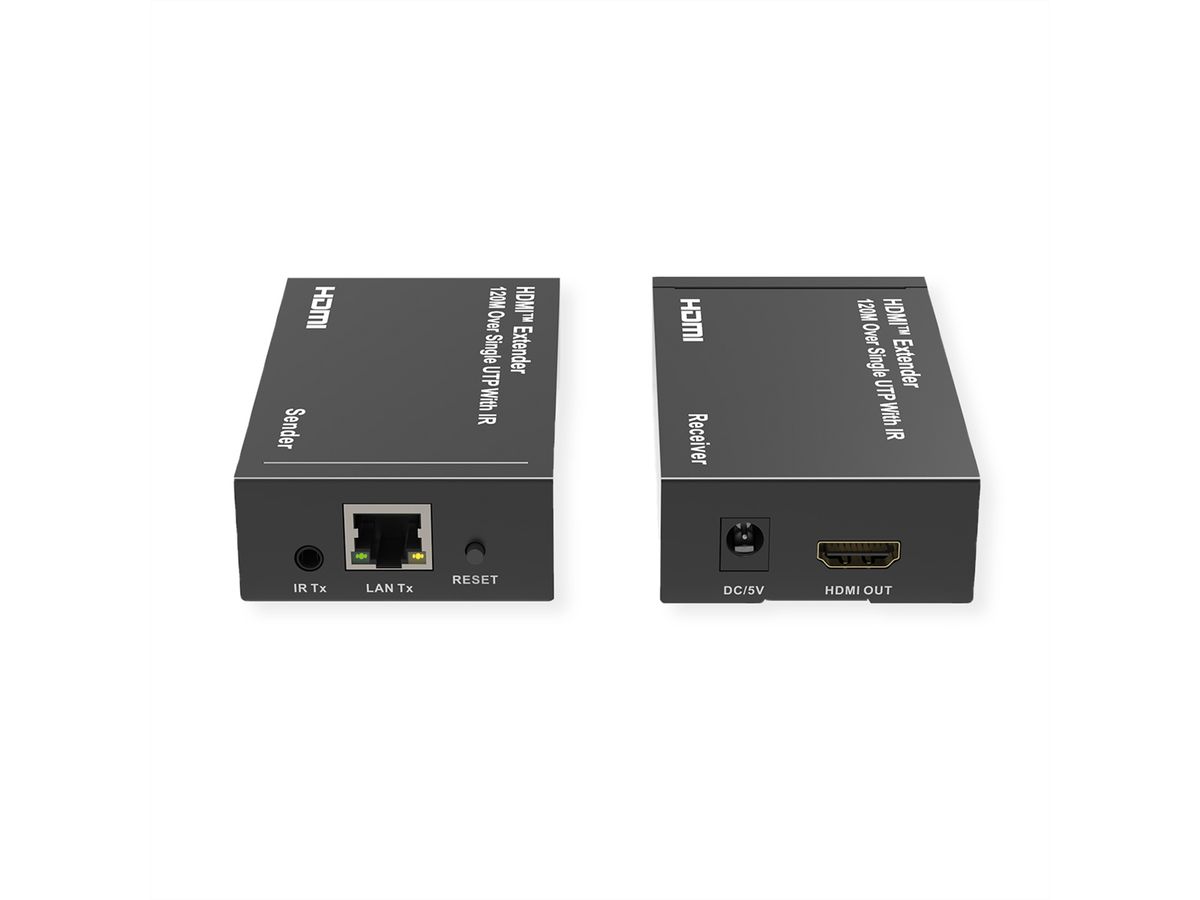

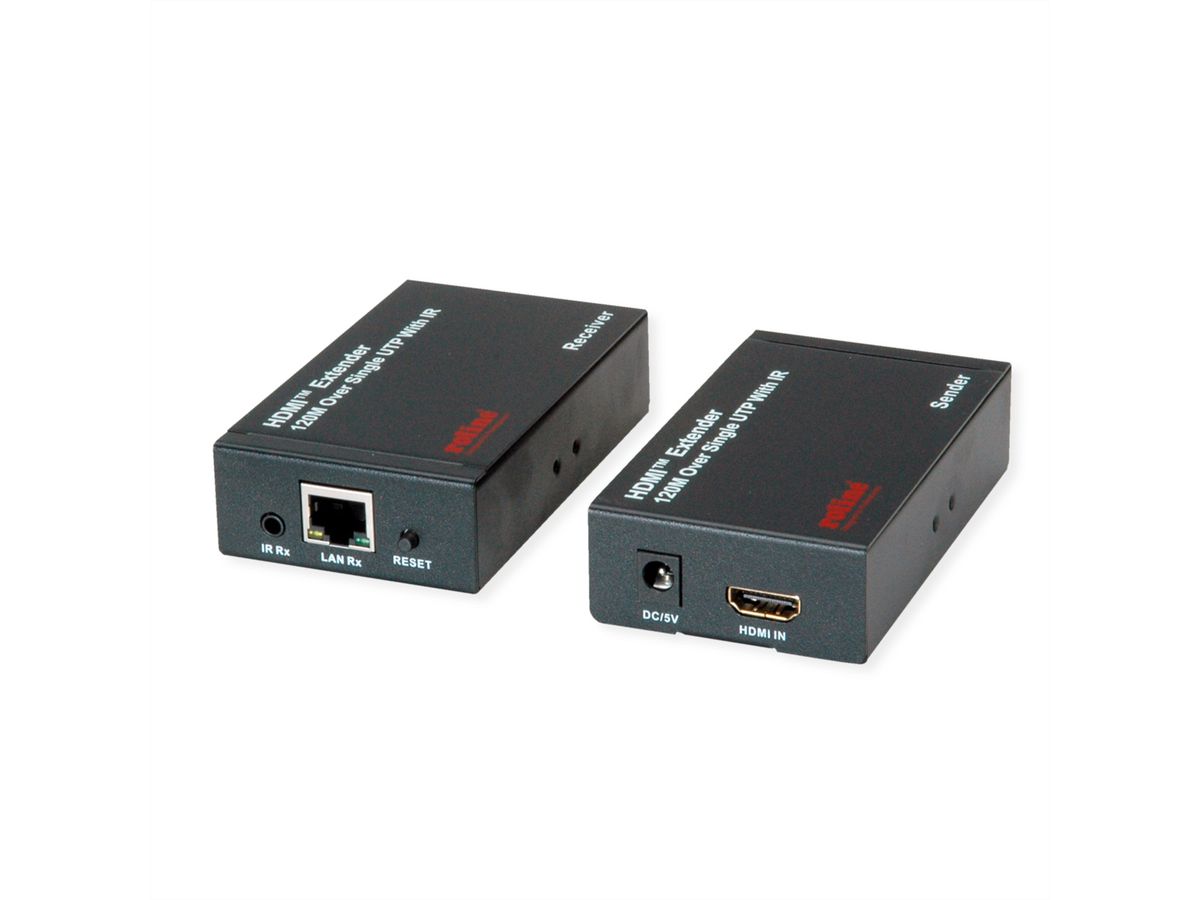

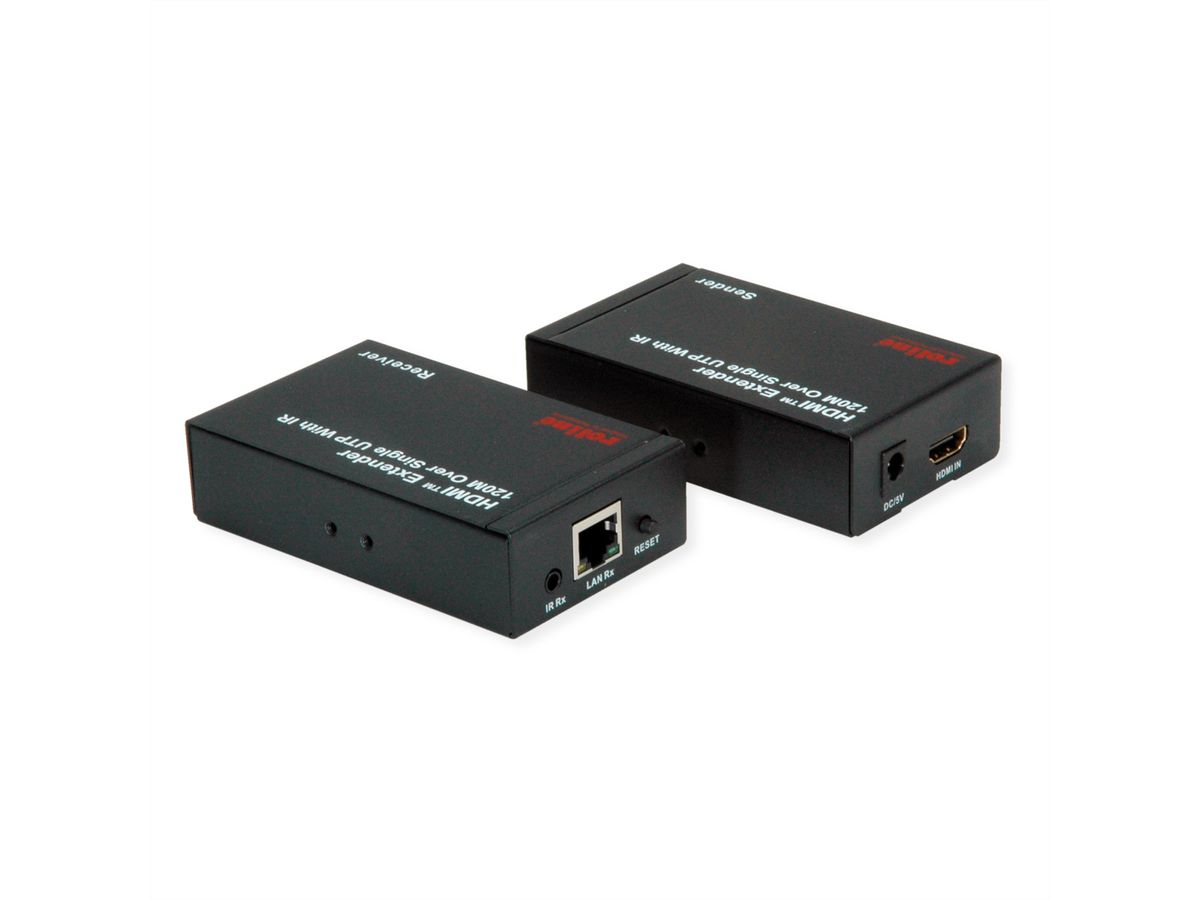

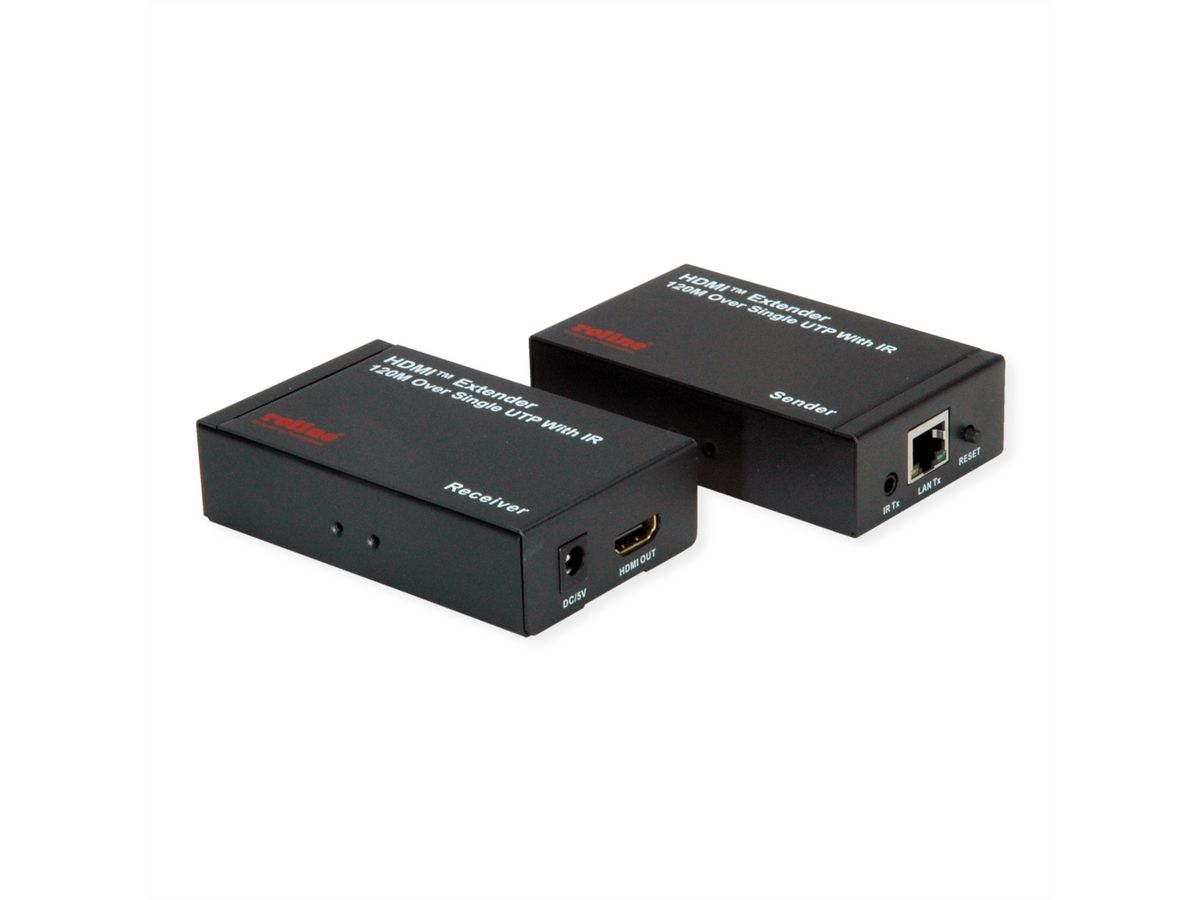

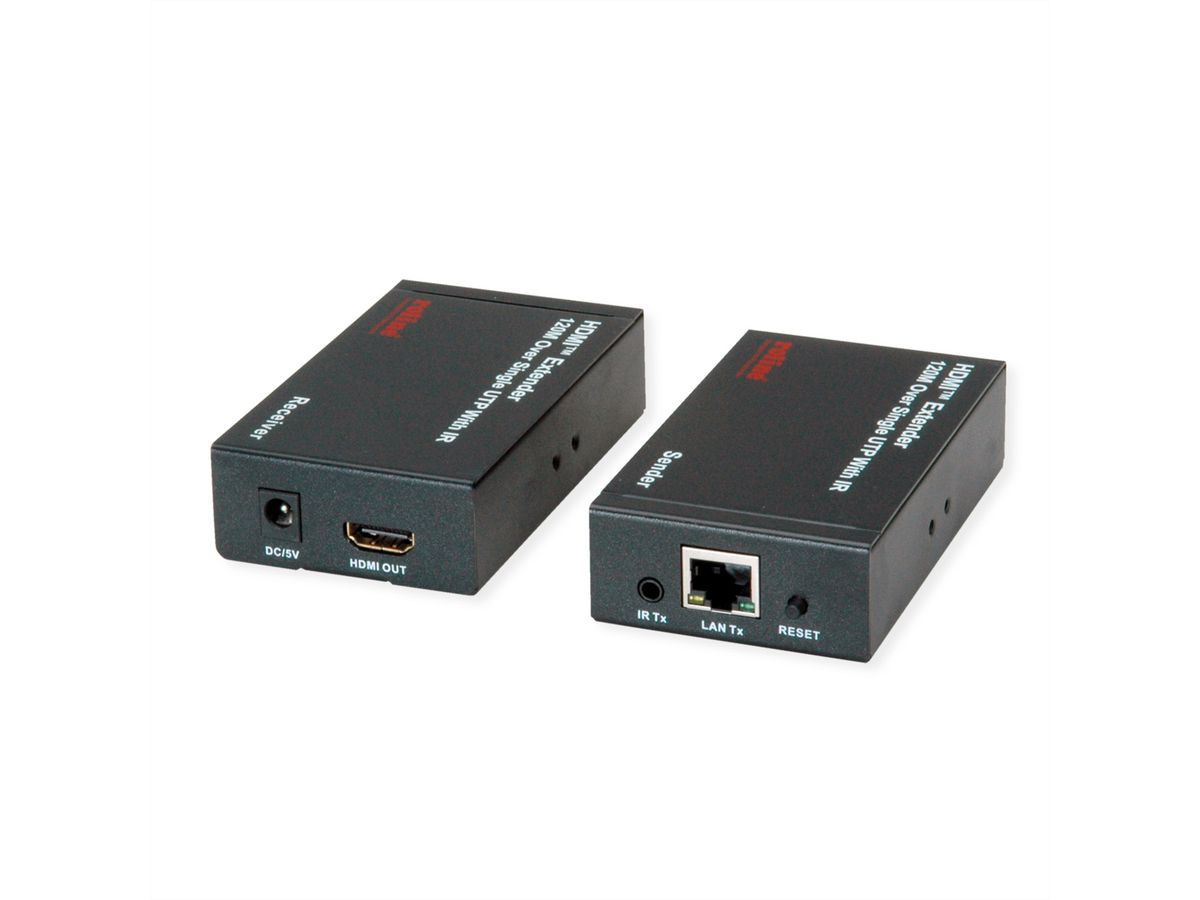

ROLINE HDMI over IP Extender, 1080P, 120 m, W/IR
Please log in to be able to use the shopping cart and then complete orders.
Log in| Item no. | 14.01.3641-4 |
|---|---|
| Brand / Manufacturer | ROLINE |
| Manuf. no. | 14.01.3641 |
| EAN | 7630049673380 |
:strip_icc():strip_exif()/bilder/icons/icon_resolution_2k.png){kind=icon}
:strip_icc():strip_exif()/bilder/icons/icon_hdmi_1080p_fhd.png){kind=icon}
:strip_icc():strip_exif()/bilder/icons/icon_3d.png){kind=icon}
|
|
:strip_icc():strip_exif()/logos/roline.png "ROLINE")
Description

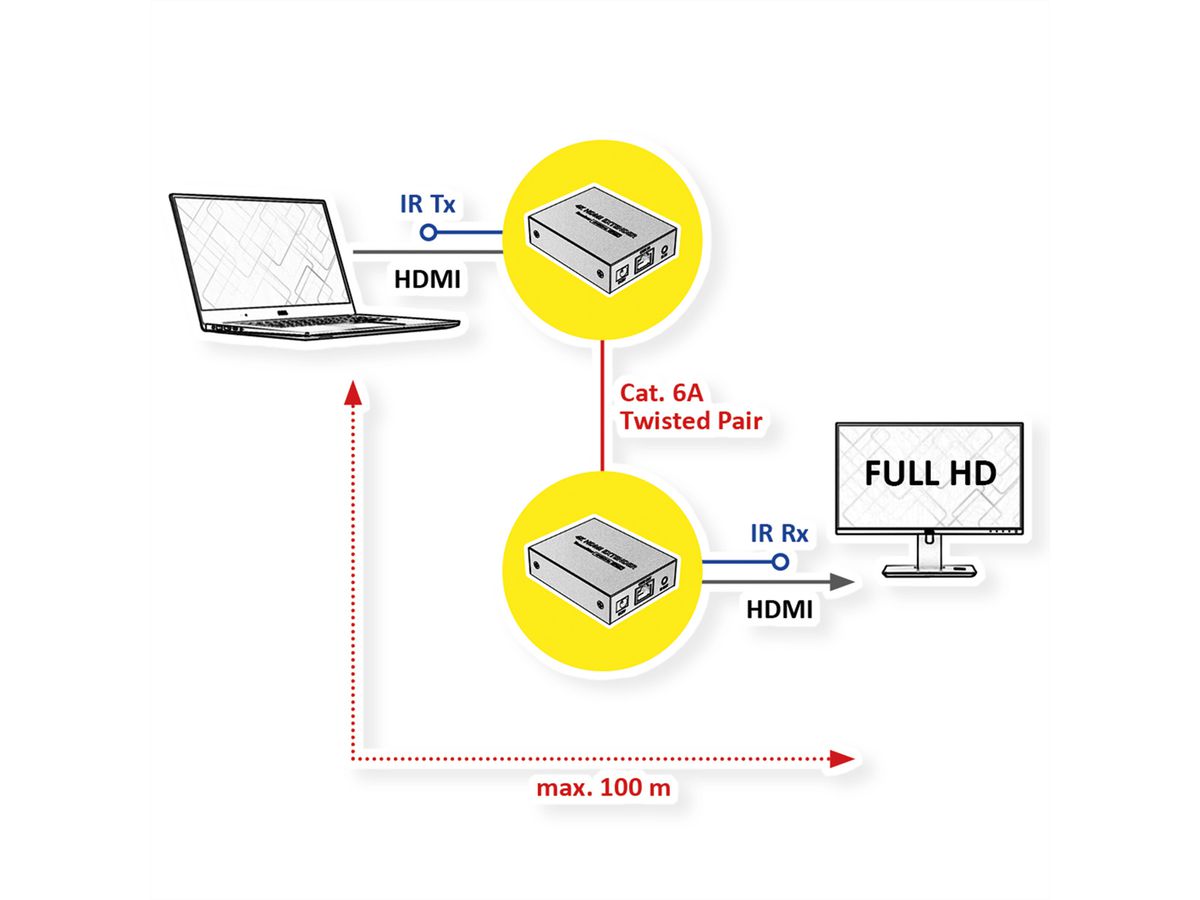

With this HDMI over IP Extender, you can extend HDMI signals up to 120 m with Full HD via a network cable of Cat. 5e or higher. An ideal solution for sharing a screen or projector over a LAN network. IR signals from a remote control of the video source can also be redirected - perfect for controlling your video source from your video destination.

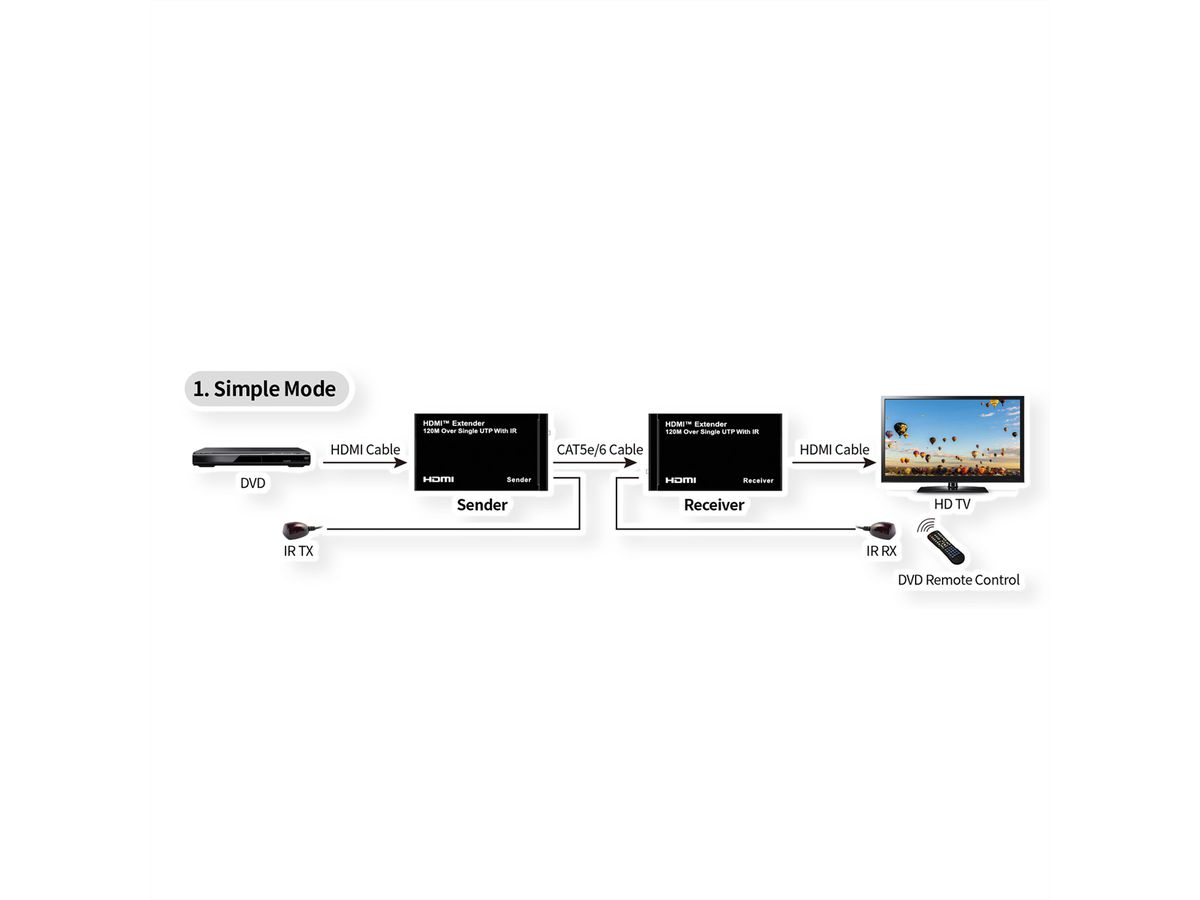

- Easily connect the transmitter and the receiver unit with a twisted pair cable with Cat5e or higher
- Max. distance is 120m
- Max. resolution is 1920x1080
- External infrared emitters - allow using the remote control of the source device
- Metal housing
- Dimensions (TX, RX each): 25 x 58 x 99 mm
- Weight: TX: 148g, RX: 143 g

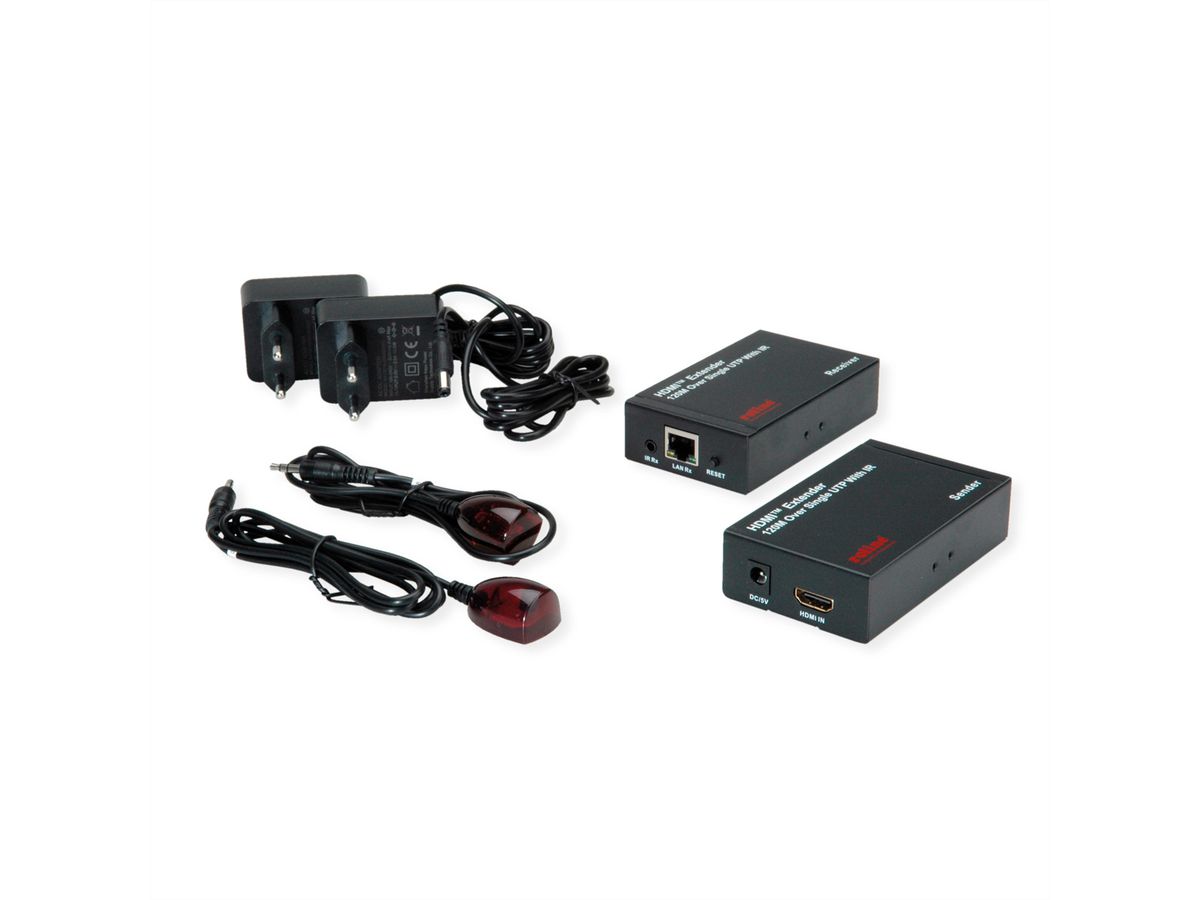

- Contents: 1x Transmitter, 1x Receiver, 1x IR Extender Transmitter, 1x IR Extender Receiver, 2x Power Adapter, 4x Mounting Ears, 1x User Manual
Specifications
| Manufacturer | ROLINE |
|---|---|
| Product group | Video Extender |
| Product type | HDMI Extender |
| Colour | black |
| Scope of delivery | 1x Transmitter, 1x Receiver, 1x IR Extender Transmitter, 1x IR Extender Receiver, 2x Power Adapters, 4x Mounting Ears, 1x User Manual |
| Interface | HDMI |
| Audio | HDMI |
| Inputs | 1 |
| Outputs | 1 |
| Max. distance | 120 m |
| Video input | HDMI |
| Audio input | HDMI |
| Video output | HDMI |
| Audio output | HDMI |
| Video band width | 4.95 Gbps |
| Max. resolution (nom.) | 1920 x 1080 |
| Max. resolution | 1920 x 1080 @60Hz (2K, Full HD) |
| Dimensions (HxWxD) | 25 x 58 x 99 mm |
| Power supply unit | 2x |
| Power supply output | DC 5V 2A |
| Technical particularity | External infrared emitters allow using the remote control of the source device |
| Operating temperature min. | 0 °C |
| Operating temperature max. | 50 °C |
| Storage temperature min. | -10 °C |
| Storage temperature max. | 80 °C |
| Height | 25 mm |
| Width | 58 mm |
| Depth | 99 mm |
| Weight | 291 g |
| Height of packaging (single piece) | 0 mm |
| Width of packaging (single piece) | 0 mm |
| Depth of packaging (single piece) | 0 mm |
| Package weight (single piece) | 0 kg |
