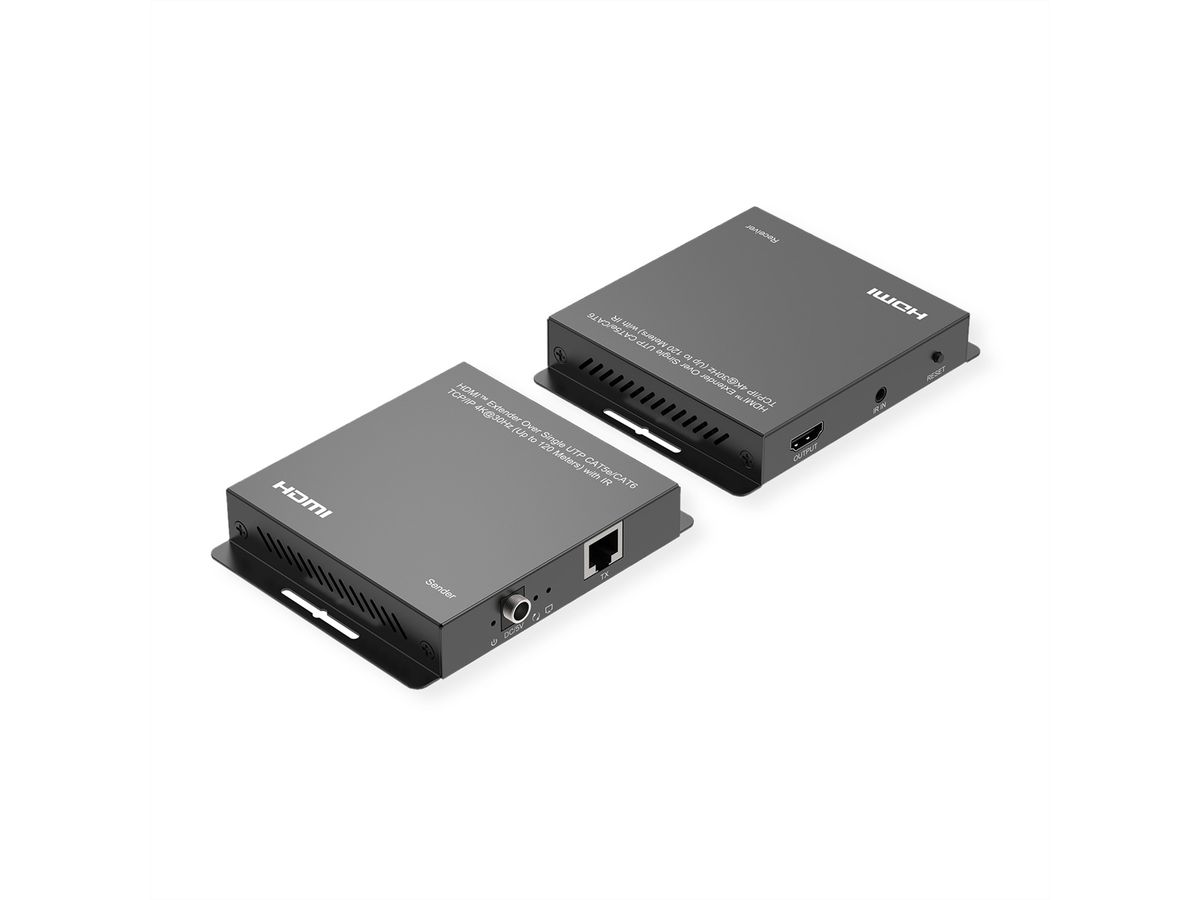

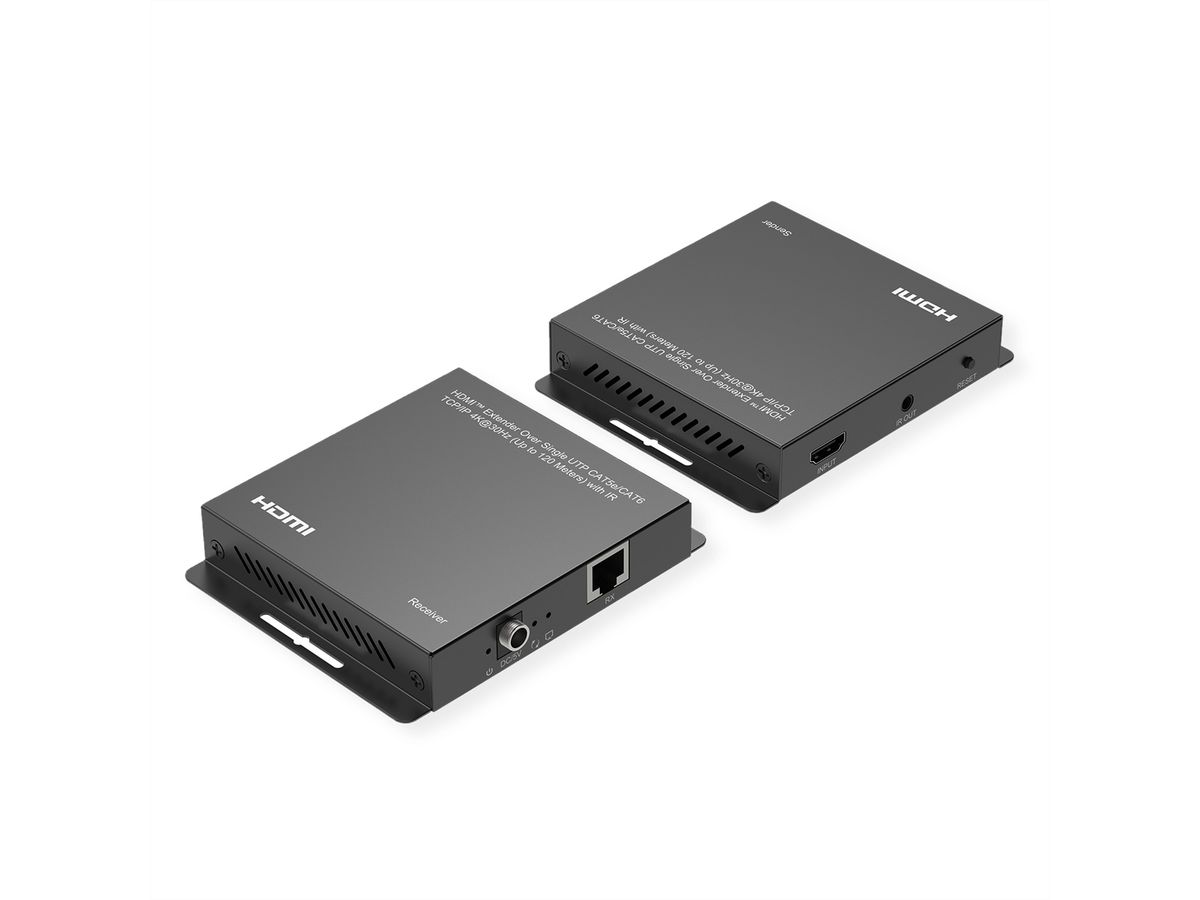

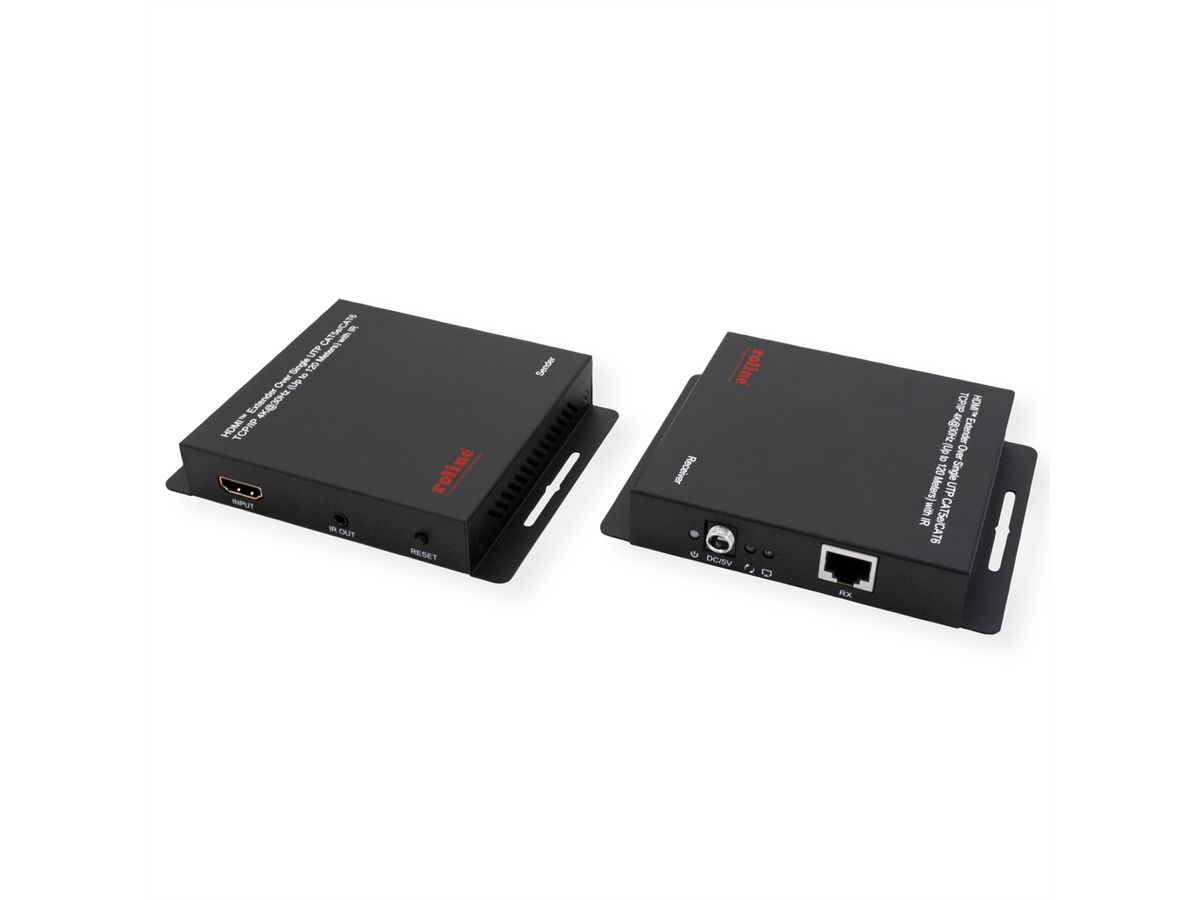

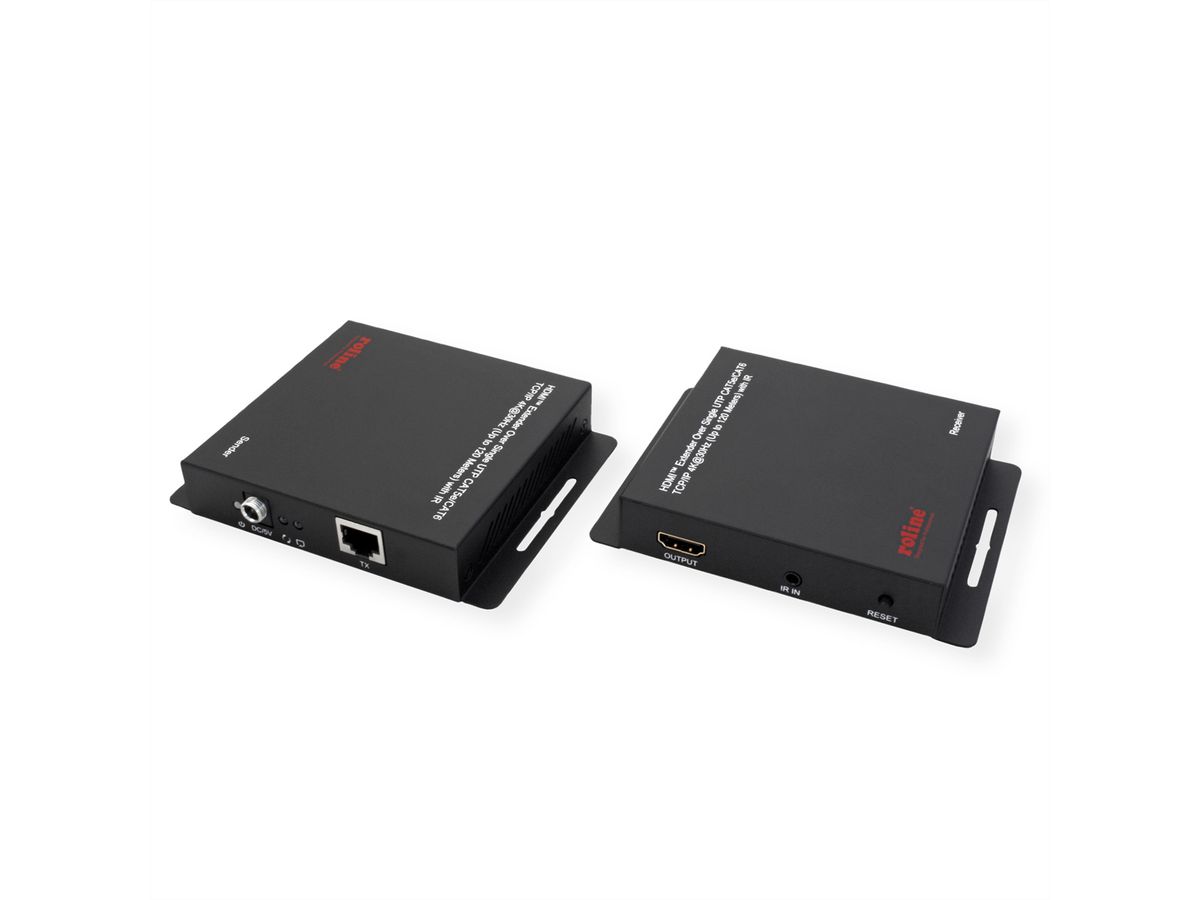

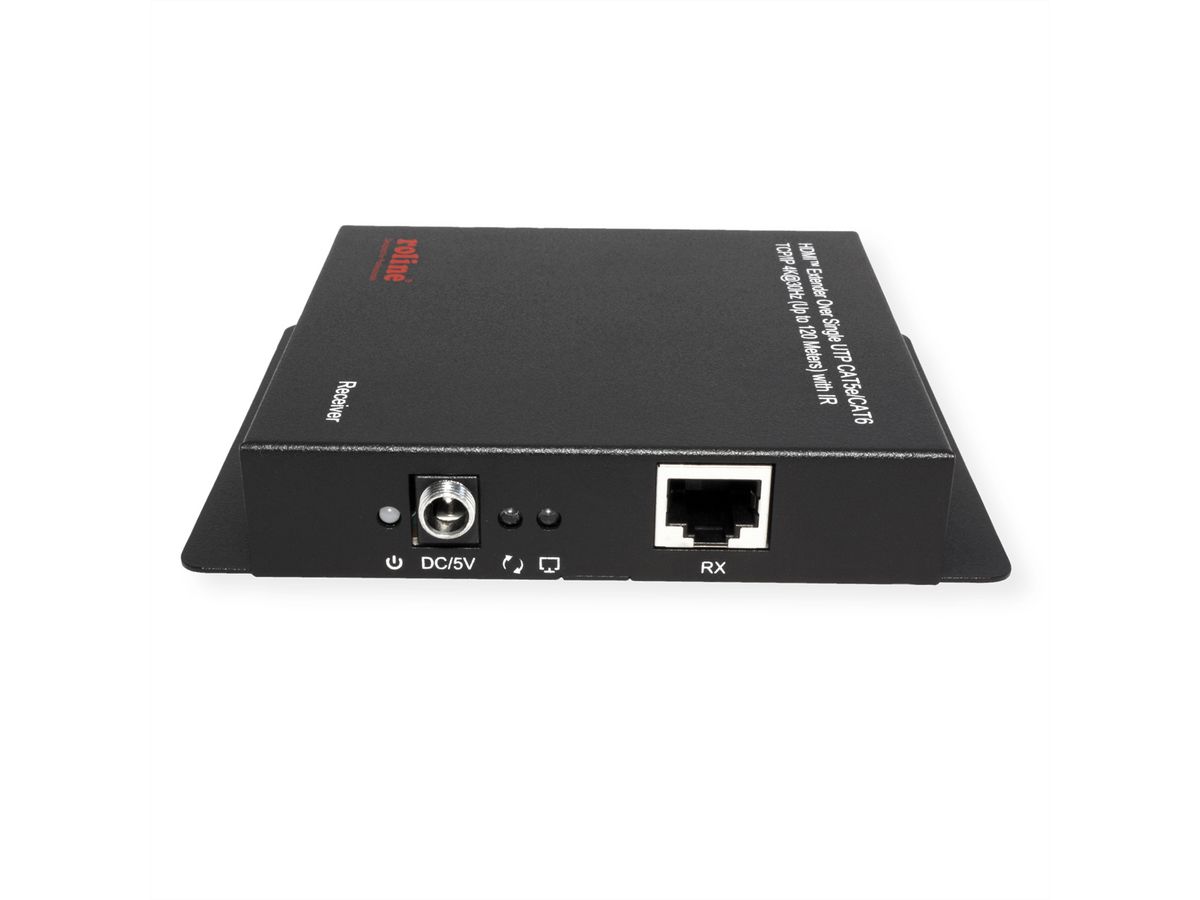

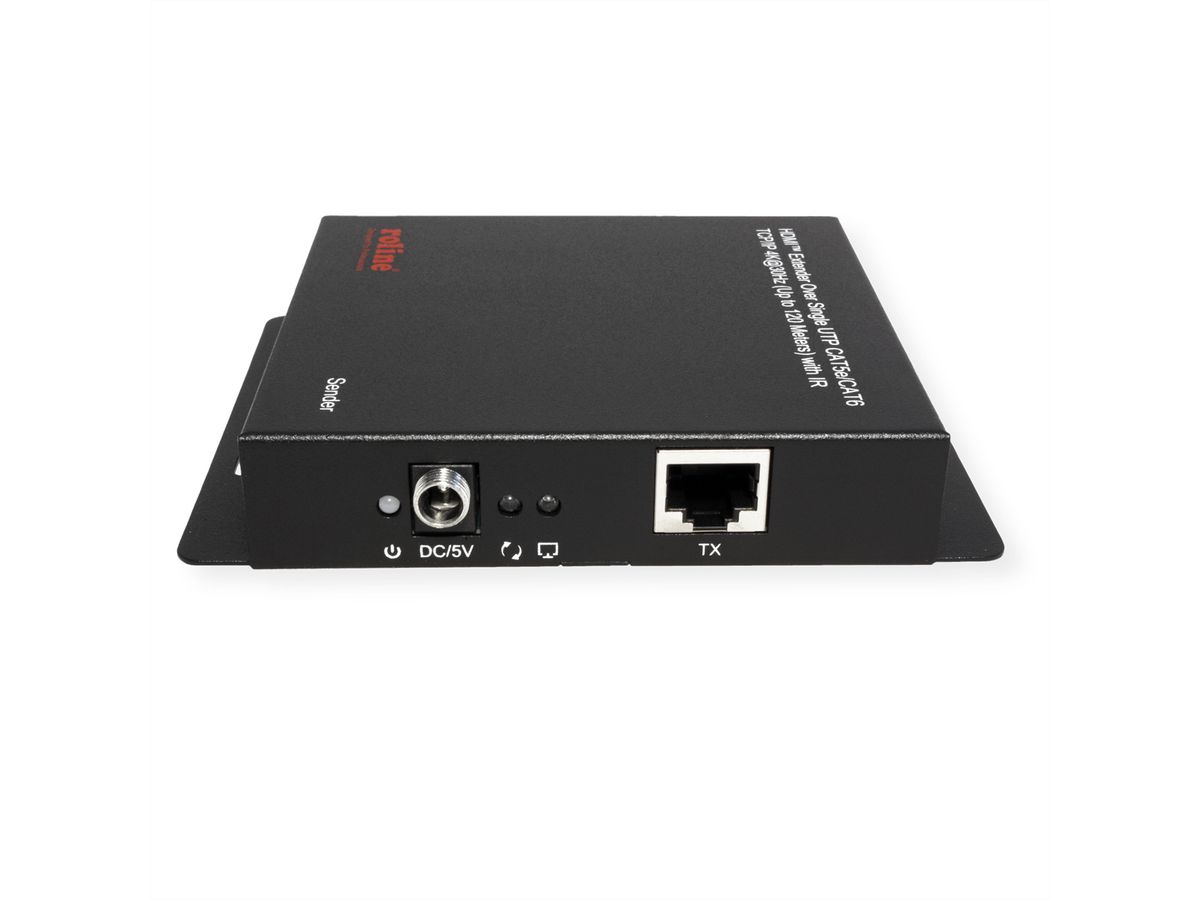

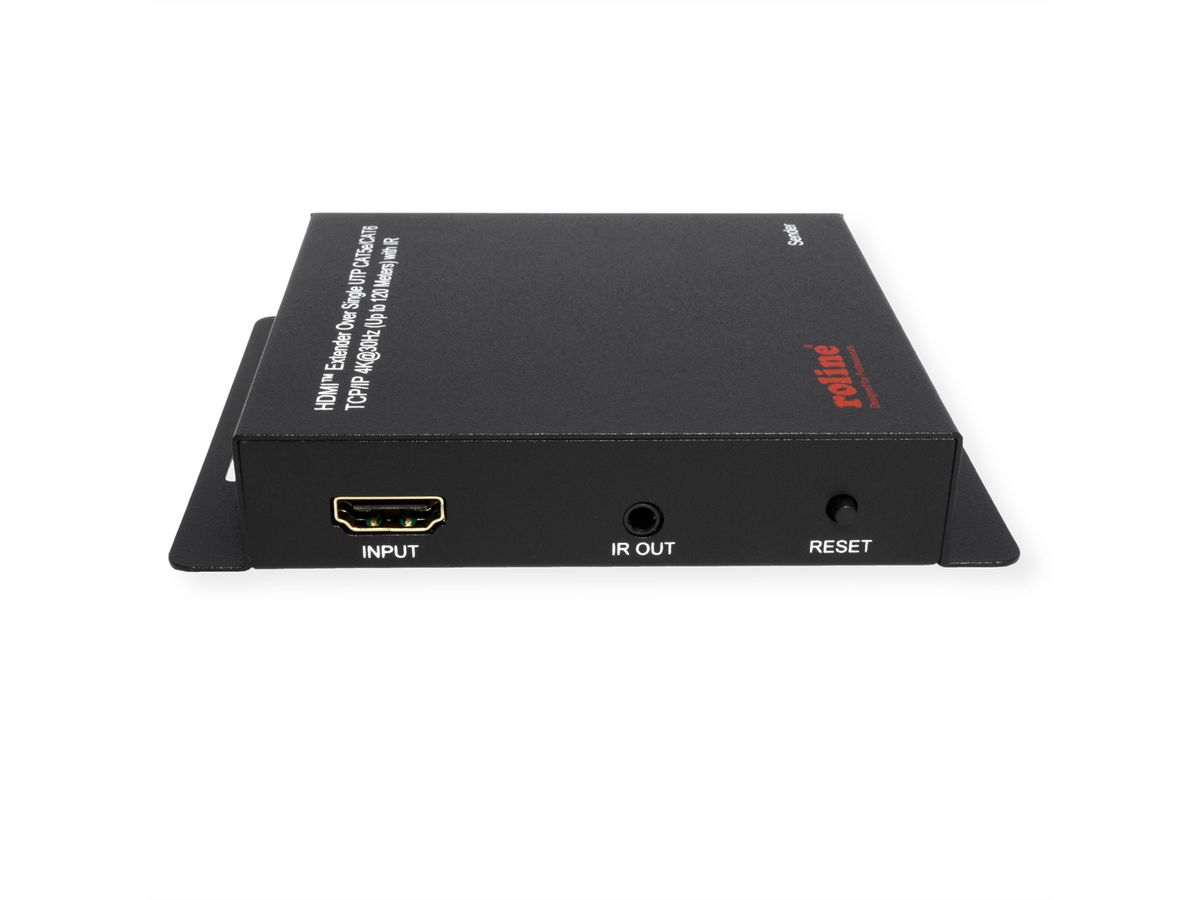

ROLINE HDMI over IP Extender, 4K30Hz, 120m, W/IR
Please log in to be able to use the shopping cart and then complete orders.
Log in| Item no. | 14.01.3642-2 |
|---|---|
| Brand / Manufacturer | ROLINE |
| Manuf. no. | 14.01.3642 |
| EAN | 7630049673397 |
| Package weight | 1 kg |
:strip_icc():strip_exif()/bilder/icons/icon_hdmi_2160p_fhd.png){kind=icon}
:strip_icc():strip_exif()/bilder/icons/icon_resolution_4k.png){kind=icon}
|
|
:strip_icc():strip_exif()/logos/roline.png "ROLINE")
Description

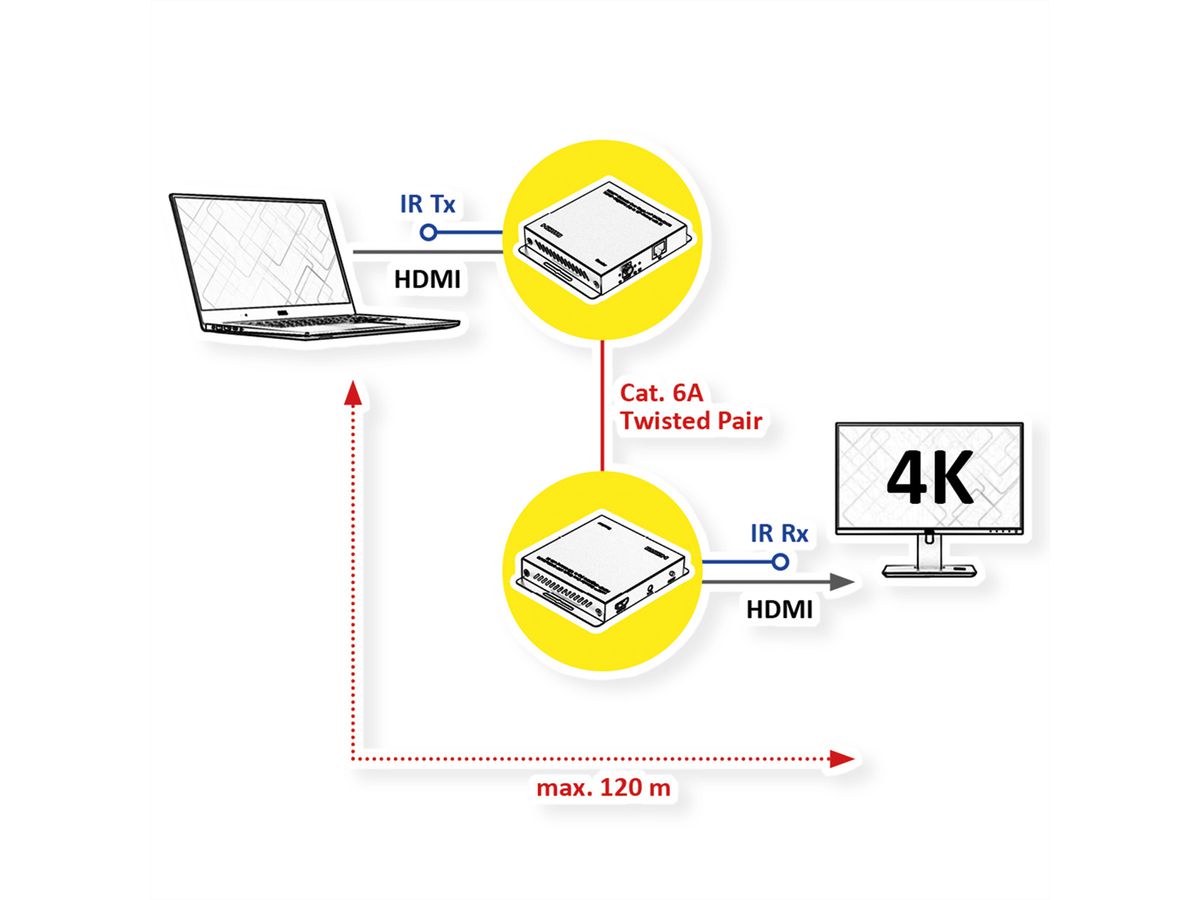

With this HDMI over IP Extender, you can extend HDMI signals up to 120 m with 4K@30Hz via a network cable of Cat. 5e or higher. An ideal solution for sharing a screen or projector over a LAN network. IR signals from a remote control of the video source can also be redirected - perfect for controlling your video source from your video destination.
Suitable for advertising, studios, multimedia classrooms, etc.- Following TCP/IP standard
- Supports resolutions up to 4K@30Hz
- Max. distance is 120m
- Supports max video bandwidth of 3.4Gbps/340MHz per channel (10.2 Gbps all channels)
- Cat5e/6 cable needs to follow the standard of IEEE-568B

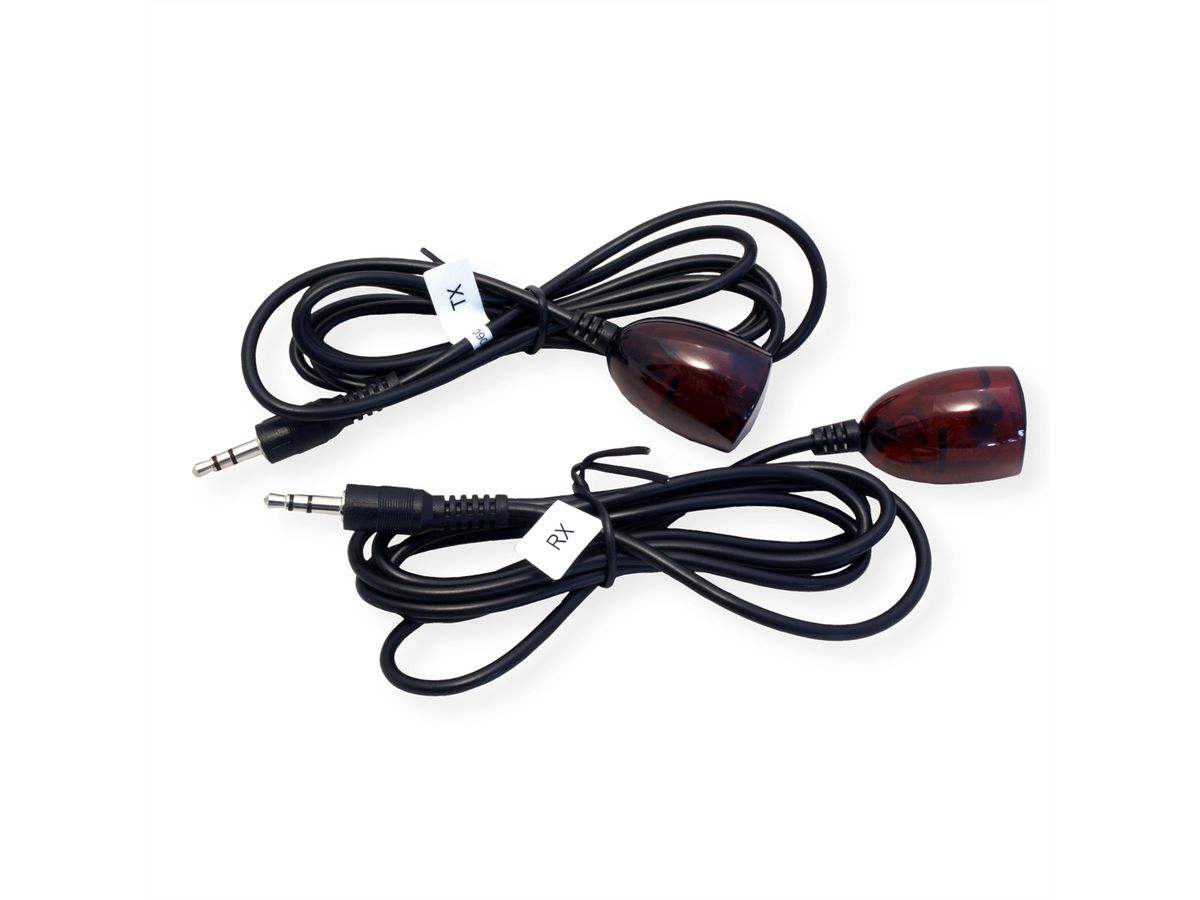

- Features IR return, which enables you to control the video source from your video destination

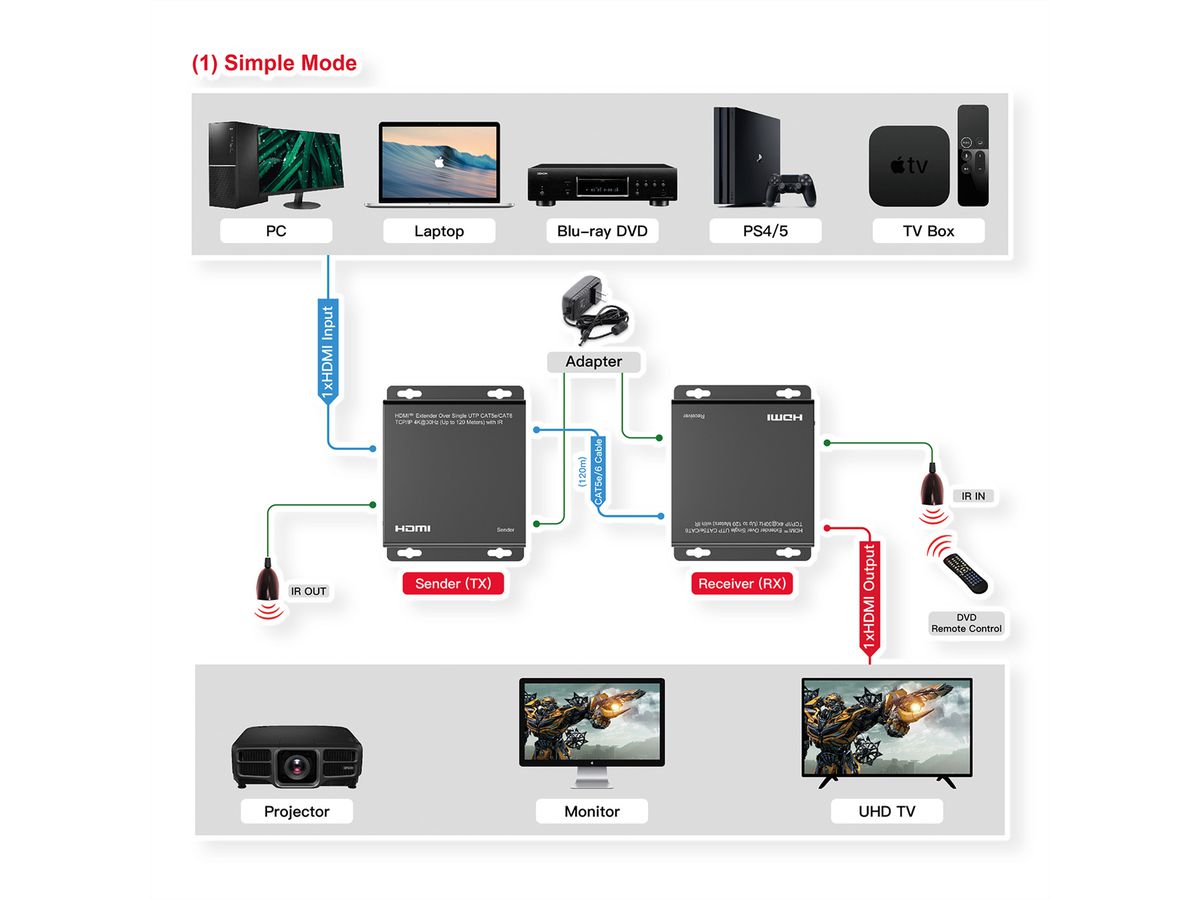

- Features 2 extension modes: simple mode (1:1) and allocation mode (1:N)
- Stable metal casing
- Dimensions: TX/RX: 24 x 94 x 120 mm
- Weight: TX/RX: 214 g
- Contents: 1x Transmitter, 1x Receiver, 2x Power Supply (TX: 1x 5 VDC 1A, RX: 1x 5VDC 1A), User Manual
Specifications
| Manufacturer | ROLINE |
|---|---|
| Product group | Splitters and selectors |
| Product type | HDMI Extender |
| Colour | black |
| Scope of delivery | 1x Transmitter, 1x Receiver, 2x Power Supply (TX: 1x 5 VDC 1A, RX: 1x 5 VDC 1A), User Manual |
| Interface | HDMI |
| Audio | HDMI |
| Inputs | 1 |
| Outputs | 1 |
| Max. distance | 120 m |
| Video input | HDMI |
| Audio input | HDMI |
| Video output | HDMI |
| Audio output | HDMI |
| Video band width | 10.2 Gbps |
| Max. resolution (nom.) | 3840 x 2160 @30Hz |
| Max. resolution | 3840 x 2160 @30Hz (4K, Full HD) |
| Dimensions (HxWxD) | TX: 24 x 94 x 120 mm, RX: 24 x 94 x 120 mm |
| Power supply unit | 2x |
| Power supply output | DC 5V 1A |
| Technical particularity | Extends the signal up to 120m |
| Operating temperature min. | 0 °C |
| Operating temperature max. | 50 °C |
| Height | 24 mm |
| Width | 94 mm |
| Depth | 120 mm |
| Weight | 428 g |
| Height of packaging (single piece) | 60 mm |
| Width of packaging (single piece) | 230 mm |
| Depth of packaging (single piece) | 300 mm |
| Package weight (single piece) | 1 kg |
