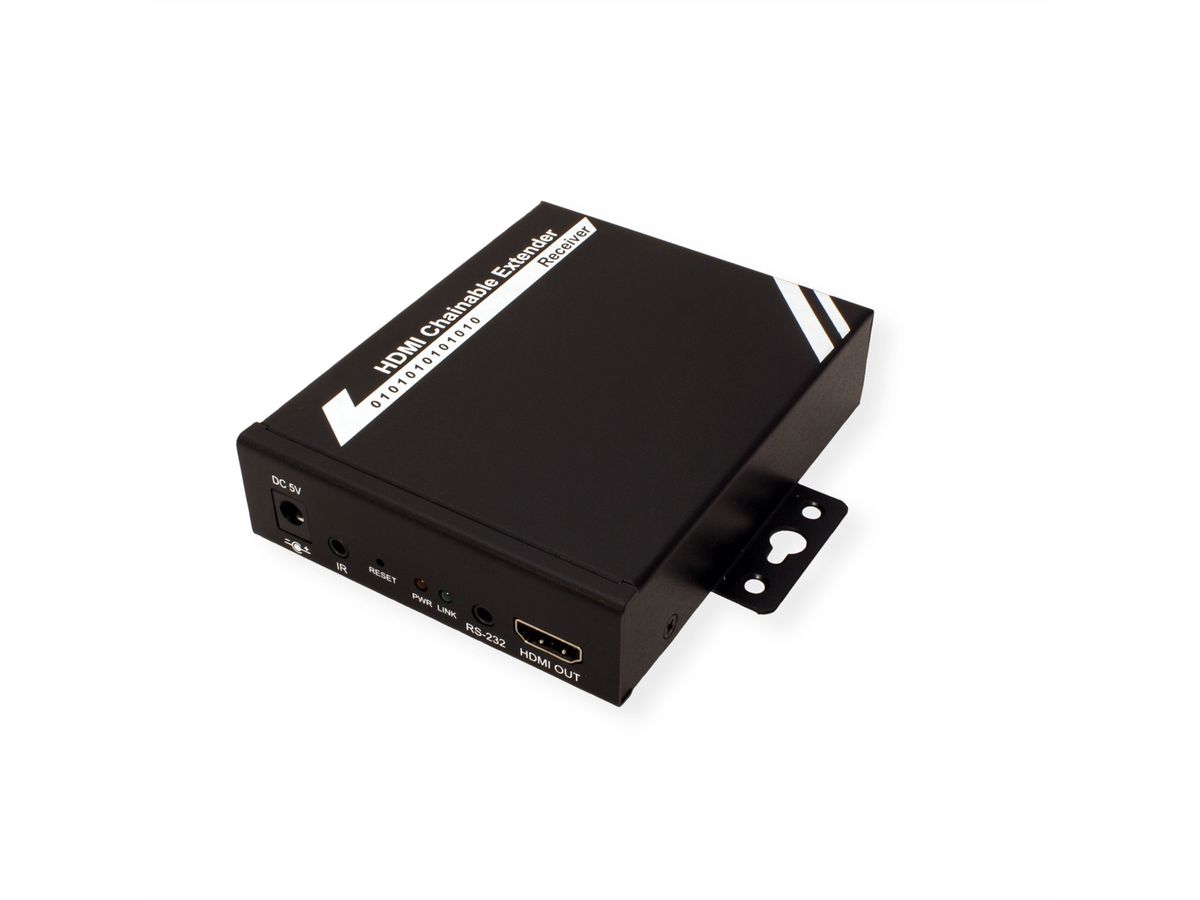

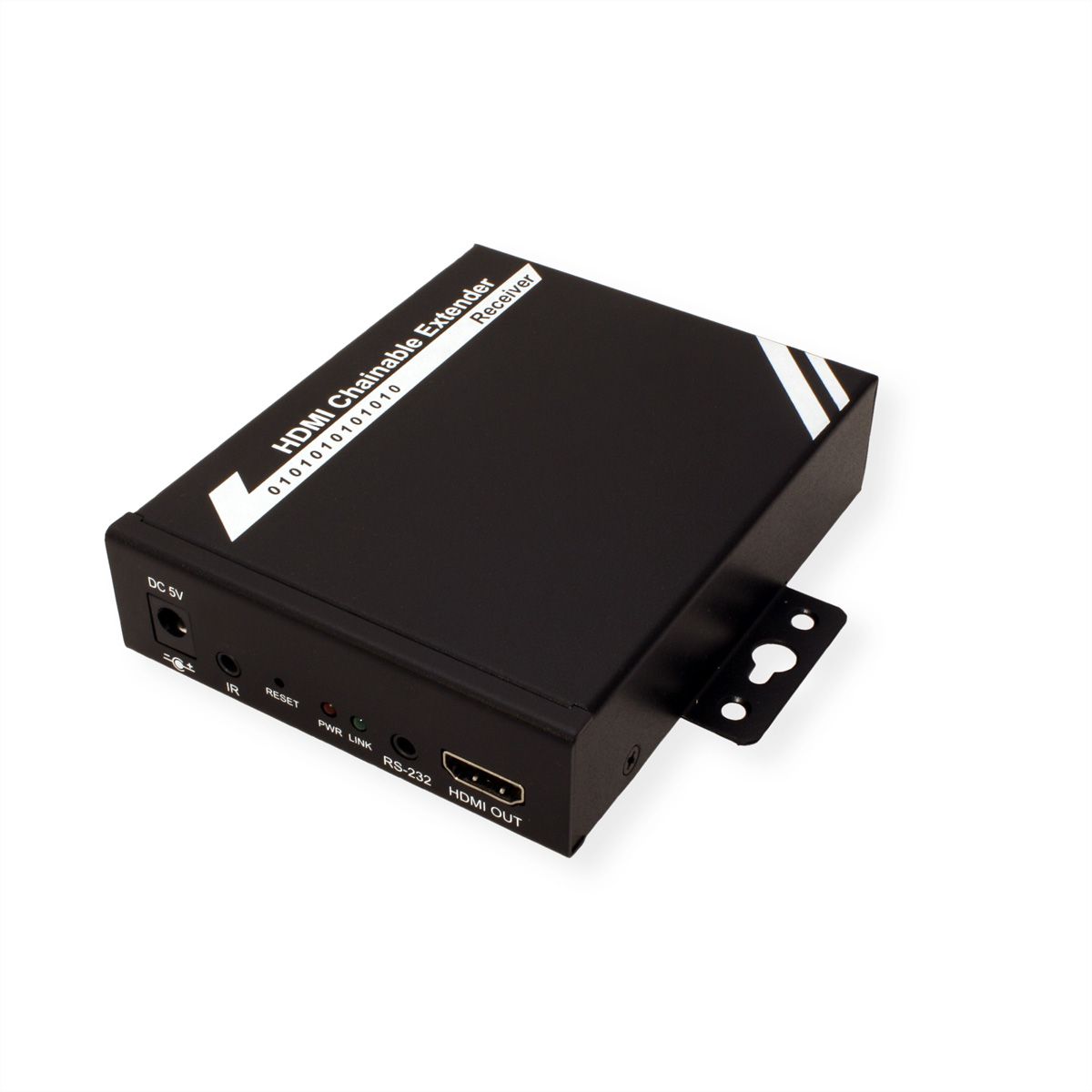

ROLINE HDMI Receiver over TP, for 14.01.3468, 100 m
Please log in to be able to use the shopping cart and then complete orders.
Log in| Item no. | 14.01.3469-1 |
|---|---|
| Brand / Manufacturer | ROLINE |
| Manuf. no. | 14.01.3469 |
| EAN | 7611990123742 |
| Package weight | 0.707 kg |
:strip_icc():strip_exif()/bilder/icons/icon_resolution_2k.png){kind=icon}
:strip_icc():strip_exif()/bilder/icons/icon_hdmi_1080p_fhd.png){kind=icon}
:strip_icc():strip_exif()/bilder/icons/icon_3d.png){kind=icon}
|
|
:strip_icc():strip_exif()/logos/roline.png "ROLINE")
Description

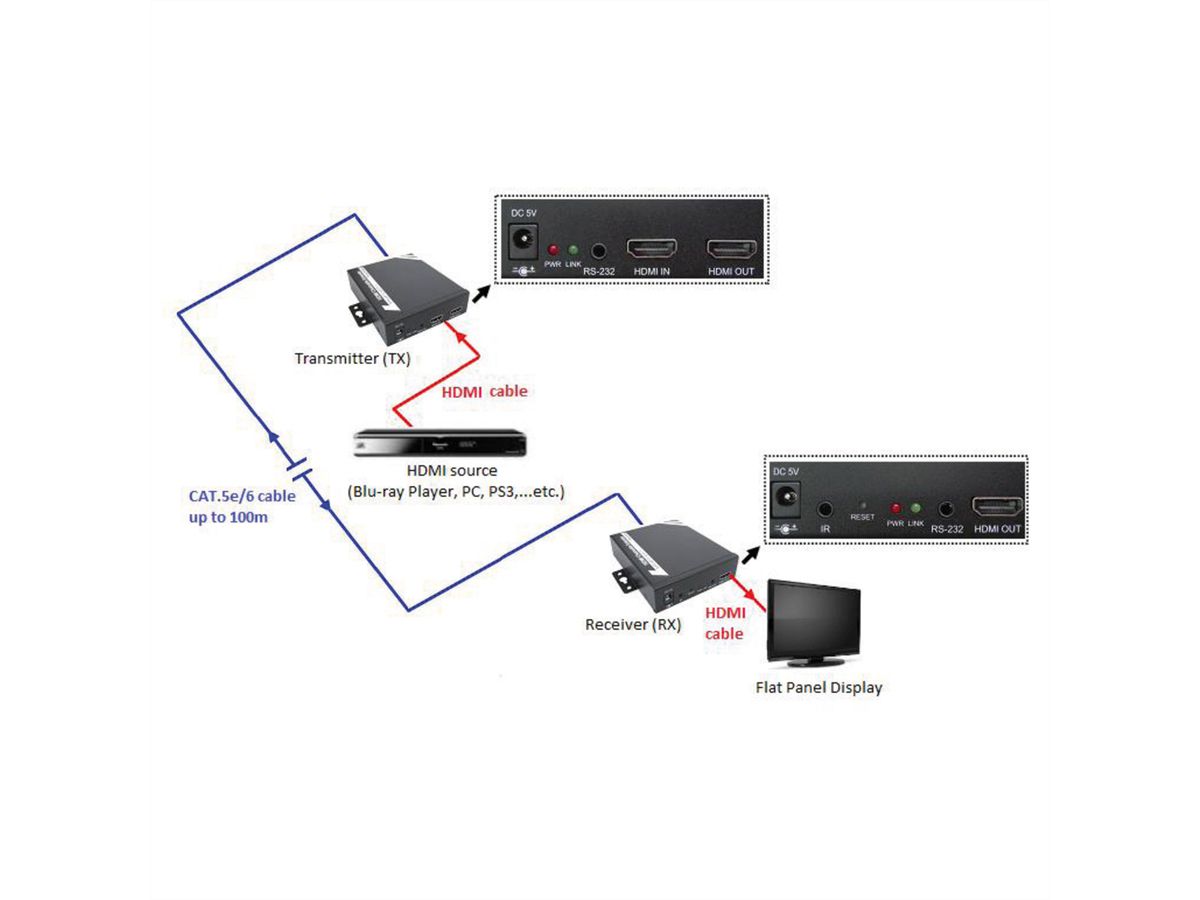

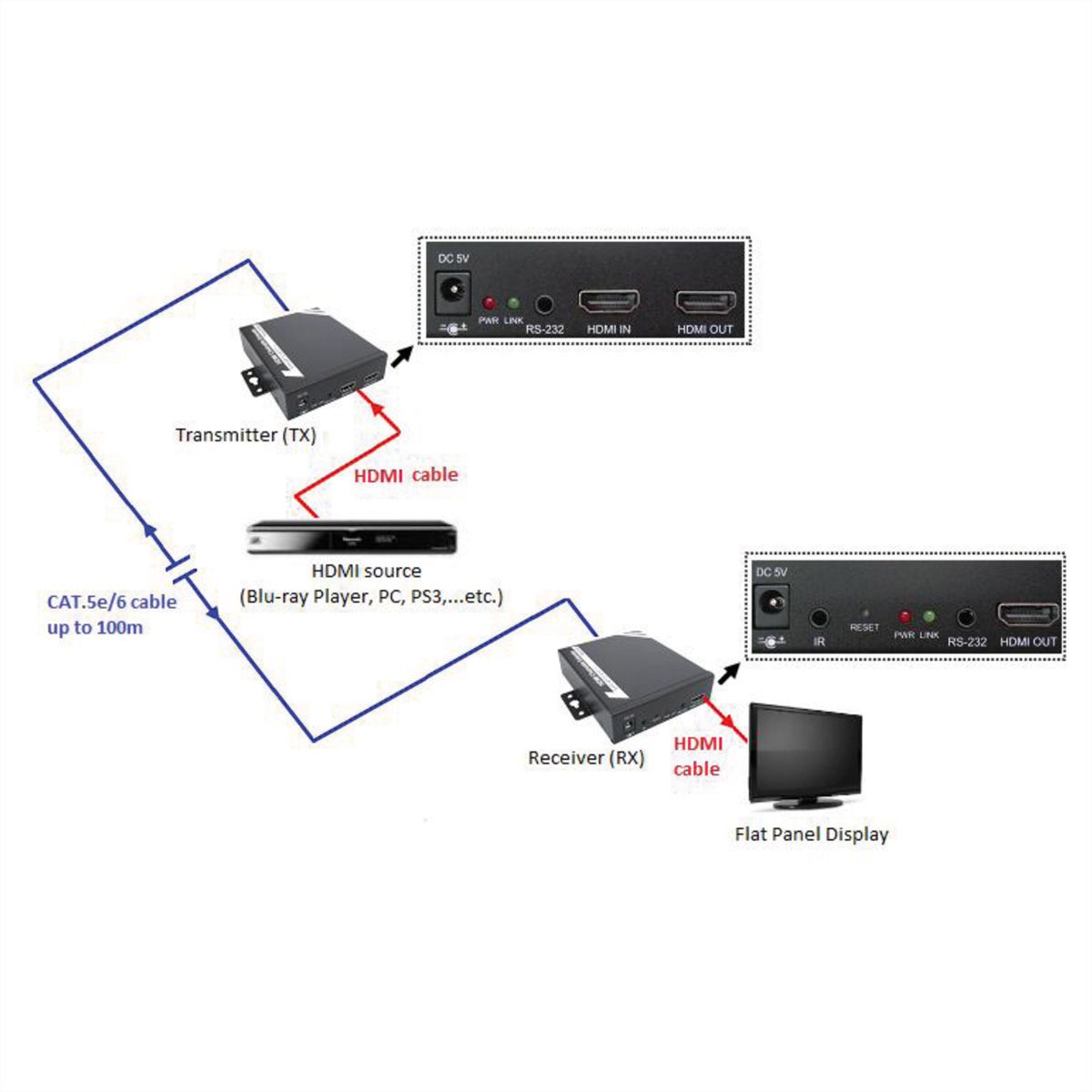

The transmission distance of the HDMI signal can be extended (chained) up to 100 m by using one Cat.5e or Cat.6 cable in combination with 14.01.3468- Easily connect the receiver to a second receiver unit with a twisted pair cable of up to 100 m length in combination with 14.01.3468
- Max. resolution (nominal) over 100 m: 1920 x 1200, 1080p
- Supports uncompressed HDMI signal
- Supports CEC pass-through
- Supports uncompressed audio stereo

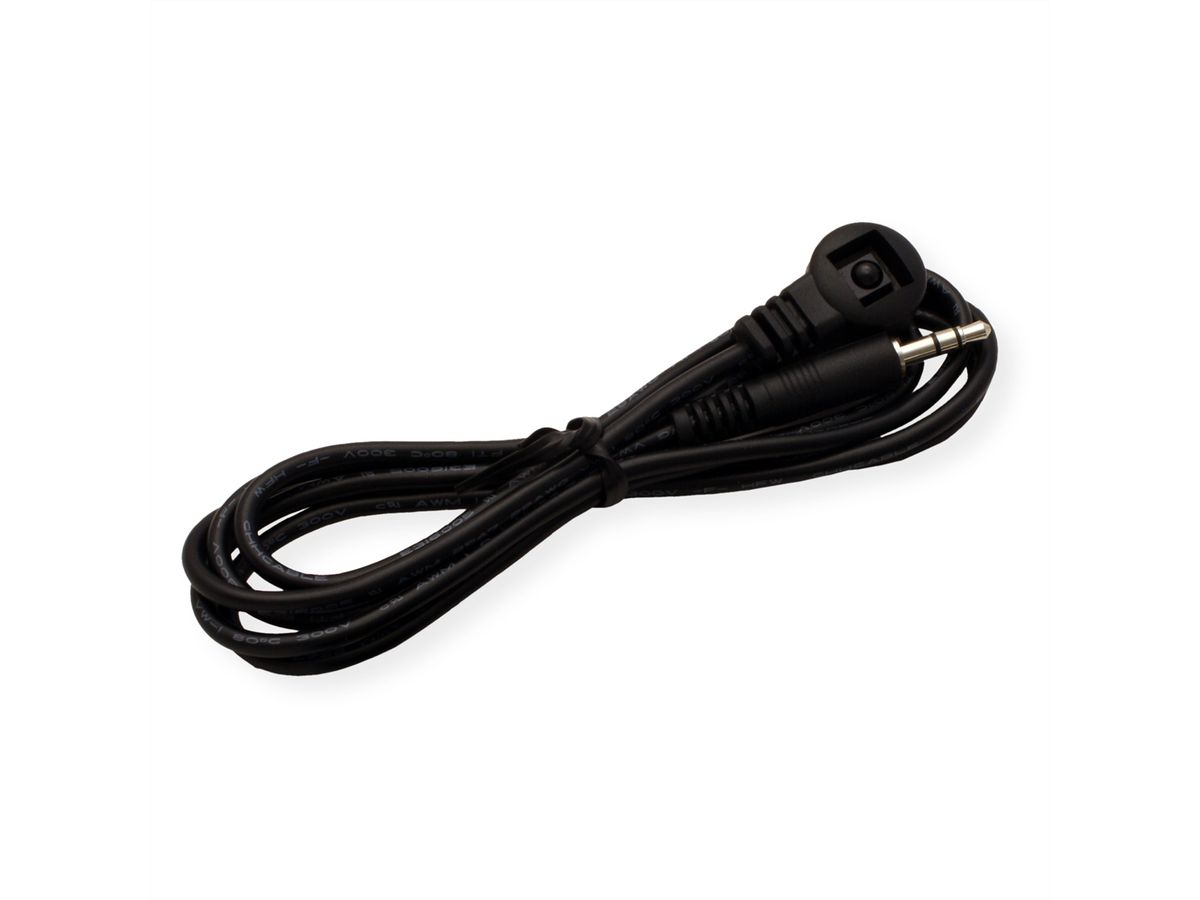

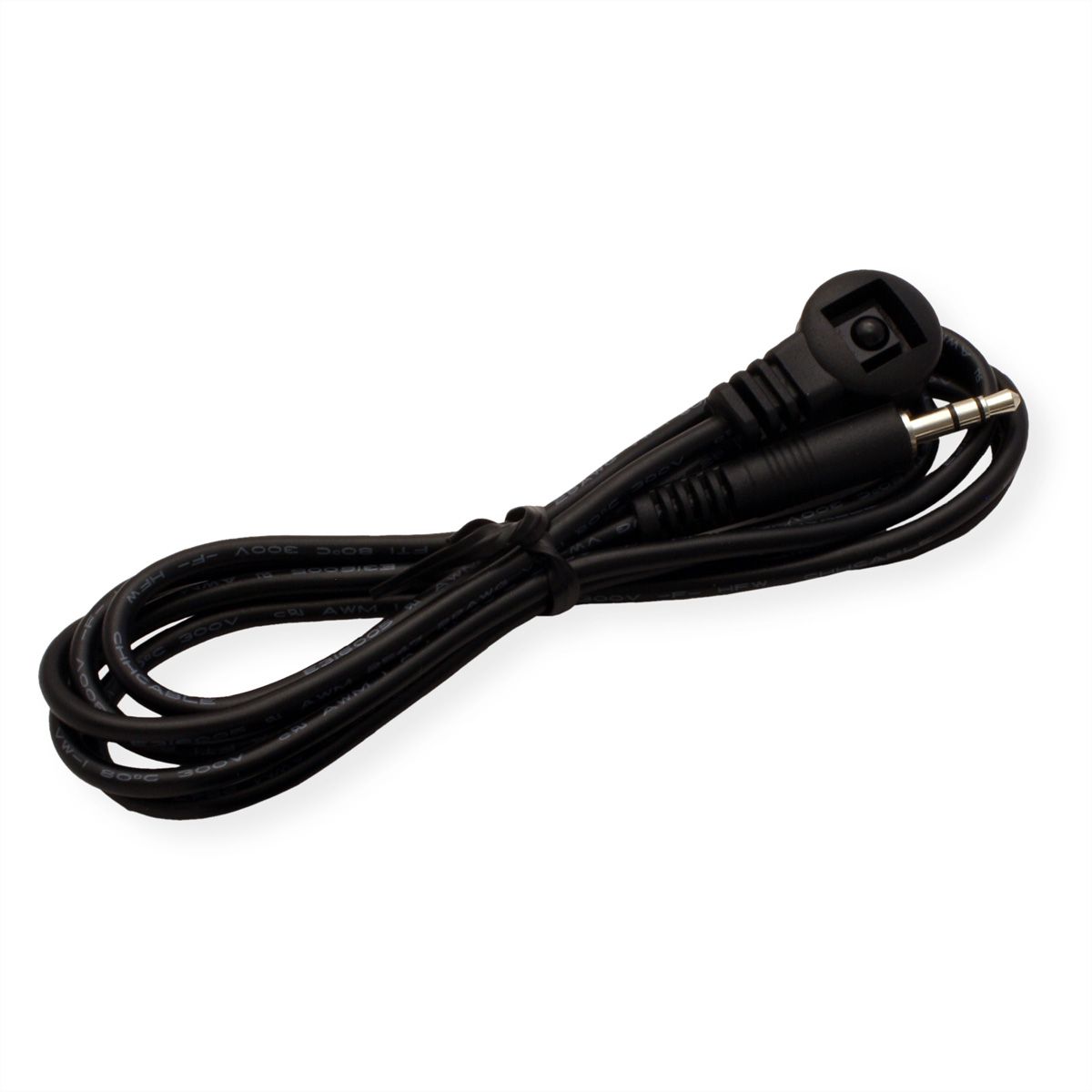

- External infrared emitter - allow using the remote control of the source device
- Metal housing
- Power supply included in content of delivery

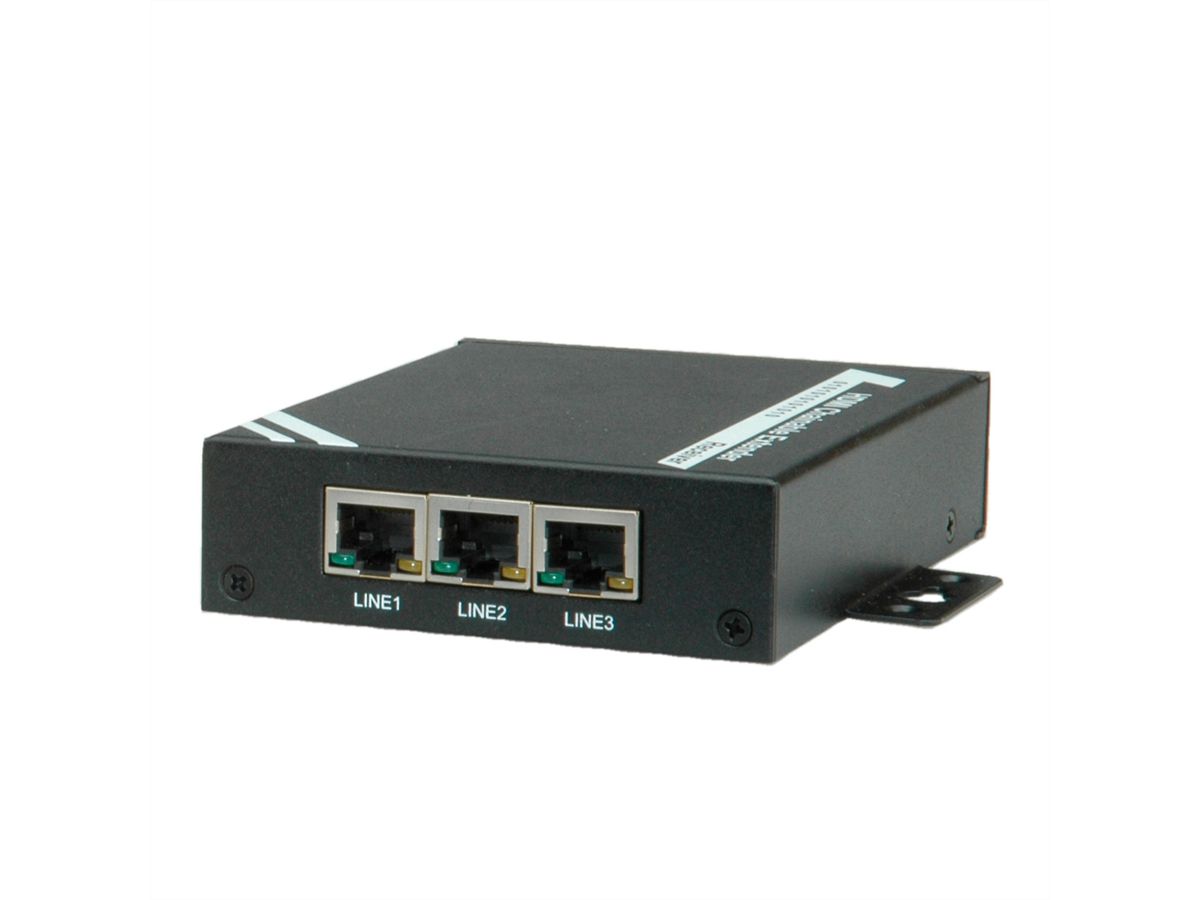

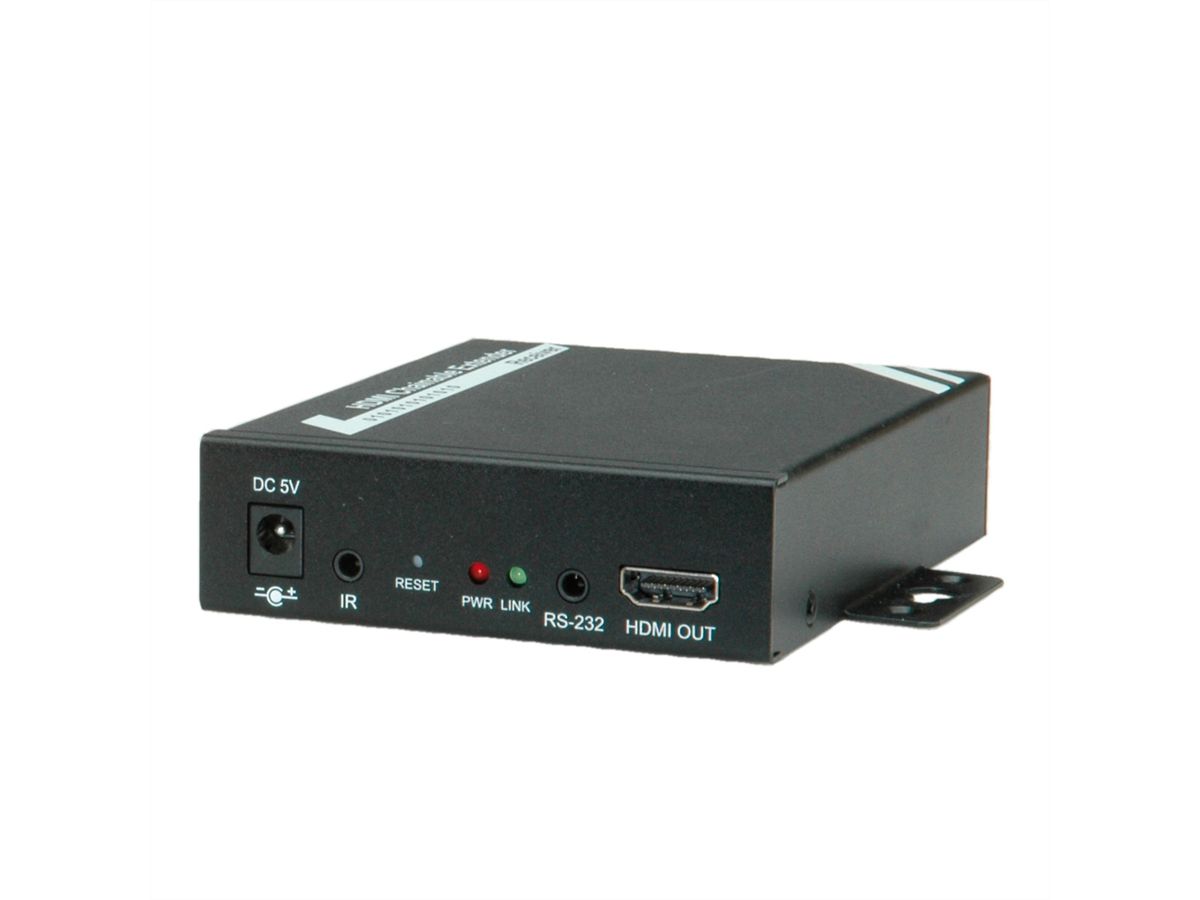

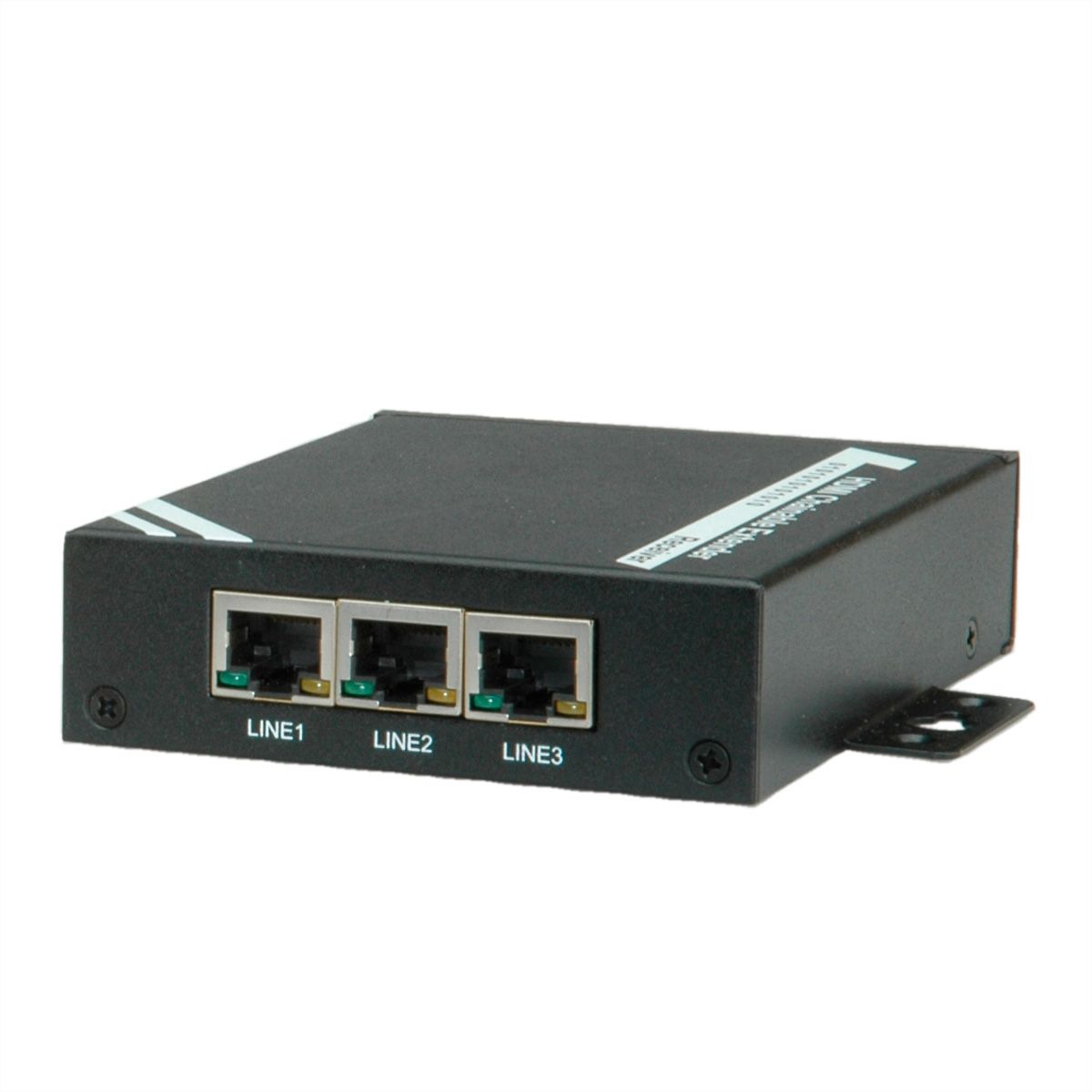

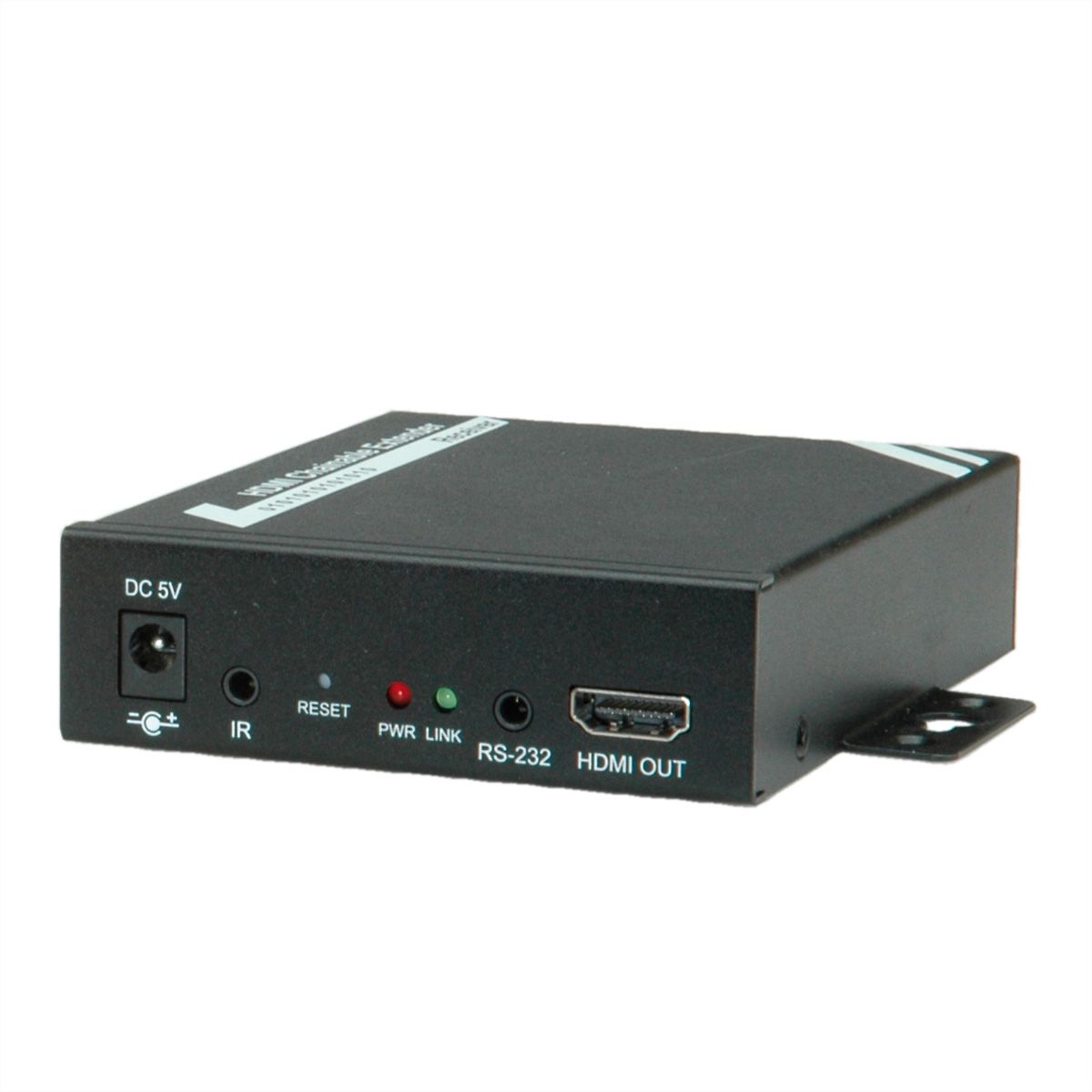

- Contents: Receiver (3x RJ-45 F, 1x HDMI F), infrared extender receiver, 1x power supply, 1x cables IR (1.1m), 1x serial cables (3.5mm/DB9F, 1.1m), manual
Specifications
| Manufacturer | ROLINE |
|---|---|
| Product group | Splitters and selectors |
| Product type | HDMI Extender |
| Colour | black |
| Scope of delivery | Receiver (3x RJ-45 F, 1x HDMI F), infrared extender receiver, 1x power supply, manual |
| Interface | HDMI |
| Max. distance | 100 m |
| Video input | HDMI |
| Audio input | HDMI |
| Video output | HDMI |
| Audio output | HDMI |
| Max. resolution (nom.) | 1.920 x 1.080 |
| Max. resolution | 1920 x 1080 / 1920 x 1200 @60Hz (2K, Full HD) |
| Dimensions (HxWxD) | 28 x 115 x 91 mm |
| Power supply unit | 1 |
| Technical particularity | External infrared emitters allow using the remote control of the source device |
| Height | 28 mm |
| Width | 115 mm |
| Depth | 91 mm |
| Weight | 562.87 g |
| Height of packaging (single piece) | 70 mm |
| Width of packaging (single piece) | 150 mm |
| Depth of packaging (single piece) | 240 mm |
| Package weight (single piece) | 0.707 kg |
