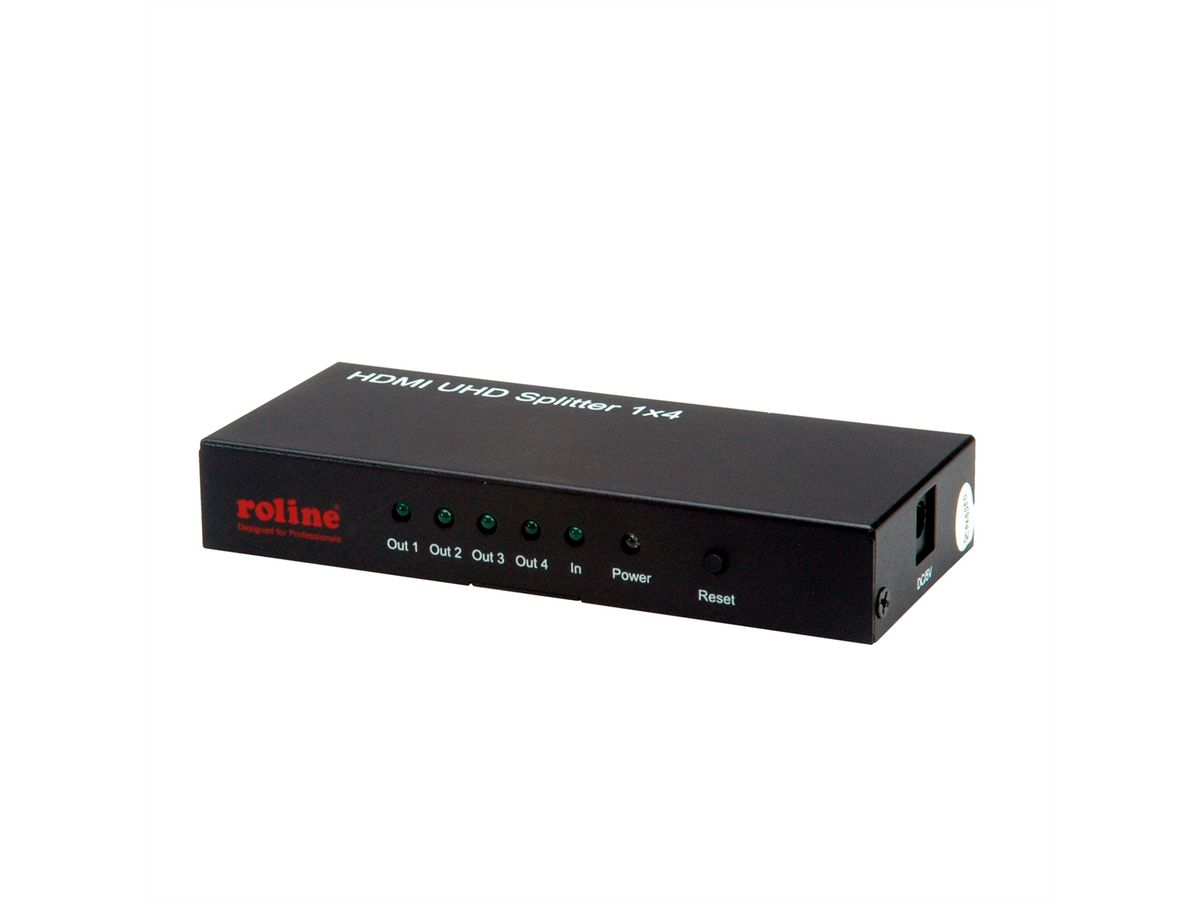

ROLINE HDMI Splitter, 4K, 4-way

ROLINE HDMI Splitter, 4K, 4-way

Please log in to be able to use the shopping cart and then complete orders.

Log in
Available
Ordered until 3 pm - usually dispatched on the same day
Item no. 14.01.3586-5
Brand / Manufacturer ROLINE
Manuf. no. 14.01.3586
EAN 7611990945924
Package weight 0.459 kg

Description

Reproduces an HDMI video signal, e.g. From a BluRay/DVD player, to 4 output devices with a maximum resolution of 3840x2160 @60Hz!

  • Duplicates a HDMI video signal to four HDMI video signals with a 4K resolution

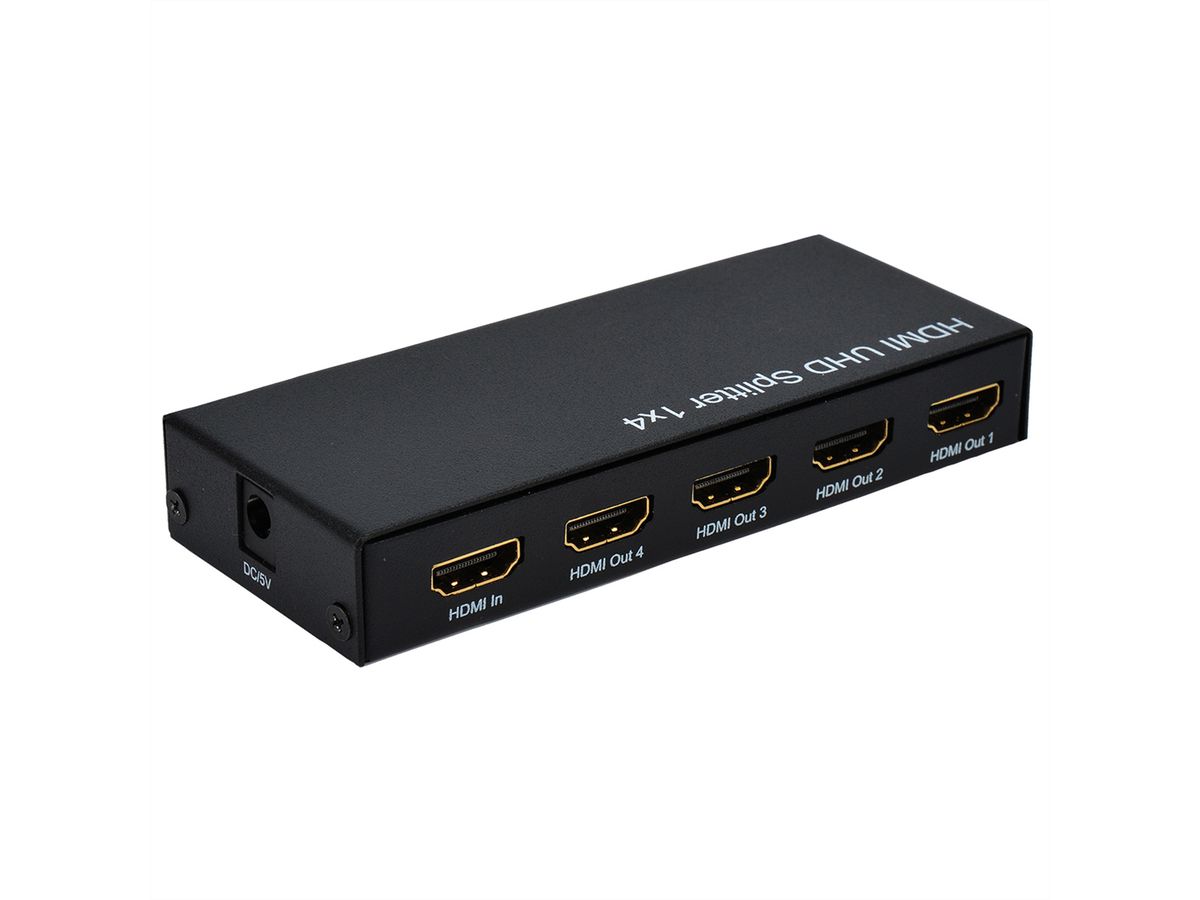

  • Connectors: 1 HDMI Input (for e.g. BluRay/DVD-player), 4 HDMI outputs
  • Supports 480i, 480p, 720i, 720p, 1080i, 1080p, 2160p @60Hz
  • Supports VGA, SVGA, XGA, UXGA
  • Supports 3D
  • Plug & play, easy to install and simple to operate
  • No software installation required
  • Power supply included (5VDC, 2A)

ROLINE 4-PORT HDMI SPLITTER FOR IMAGE TRANSFERS UP TO 4K2K ULTRA HD AND IN 3D QUALITY

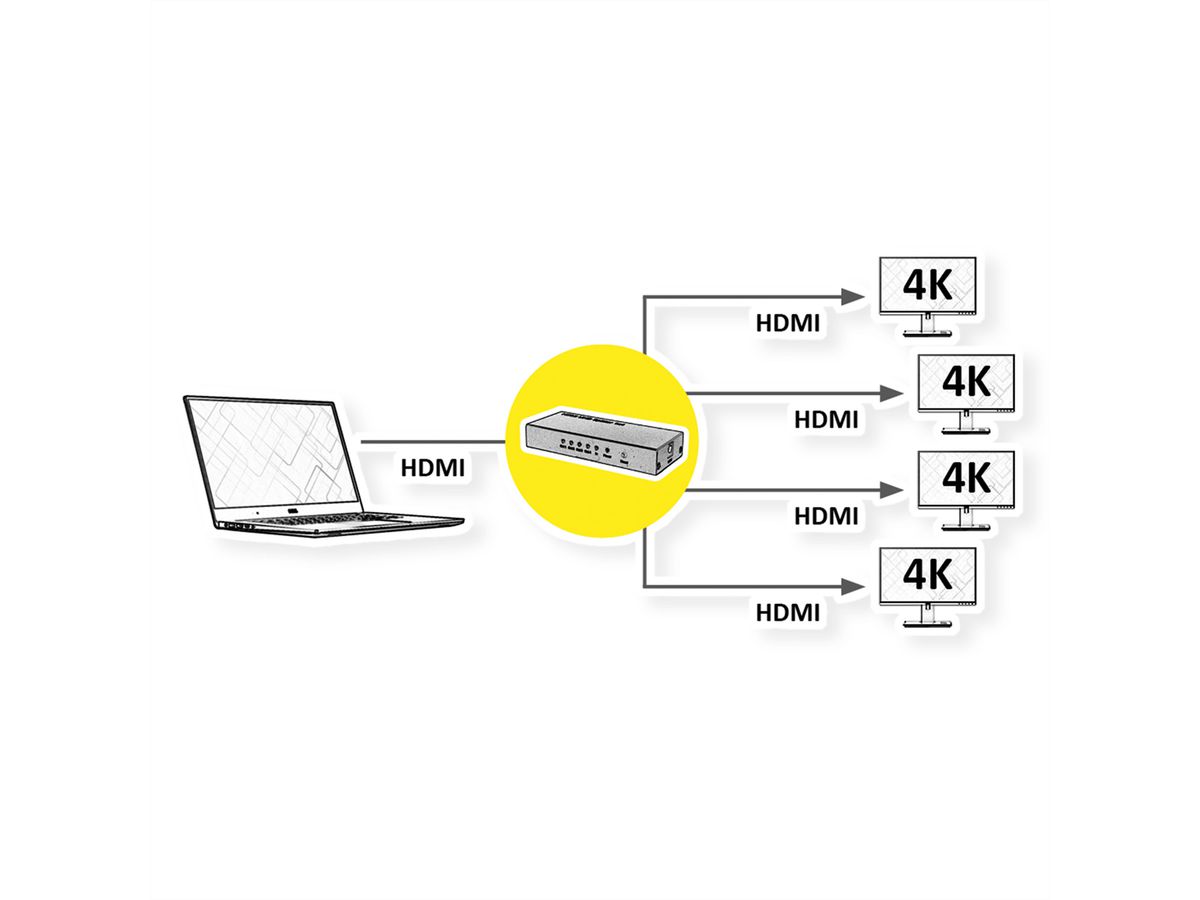

The ROLINE HDMI video splitter allows you to distribute picture and sound signals reliably to up to four HDMI indicators without any loss of quality. For example, video formats from PC or notebook can be distributed to four devices such as a monitor, TV or projector. An additional power supply is included in the delivery. The high-quality metal housing improves the shielding of the signals and provides an absolutely interference-free data transfer. The ROLINE HDMI Splitter is particularly suitable for professional use, e.g. For training purposes or in advertising, which is to be carried out in high resolution with up to 4k. No software is required.

Specifications

Manufacturer ROLINE
Product group Splitters and selectors
Product type HDMI-Video-Splitter
Colour black
Scope of delivery splitter, manual, powersupply
Interface HDMI
Inputs 1
Outputs 4
Video input 1x HDMI Female
Video output 4x HDMI Female
Max. resolution (nom.) 3840 x 2160 @60Hz
Dimensions (HxWxD) 20 x 123 x 51 mm
Power supply output 5 VDC; 2A
Height 20 mm
Width 123 mm
Depth 51 mm
Weight 154.7 g
Height of packaging (single piece) 90 mm
Width of packaging (single piece) 130 mm
Depth of packaging (single piece) 180 mm
Package weight (single piece) 0.459 kg

Downloads

Product data sheet - English (59.8 KB)

Download

User manual - Français (167.8 KB)

Download

User manual - Deutsch (395.7 KB)

Download

User manual - English (426.5 KB)

Download

The products of our own brand ROLINE are designed for professional continuous operation.

With a 2-year functional guarantee, we stand by our performance promise.

ROLINE – Quality makes the difference.
