Description

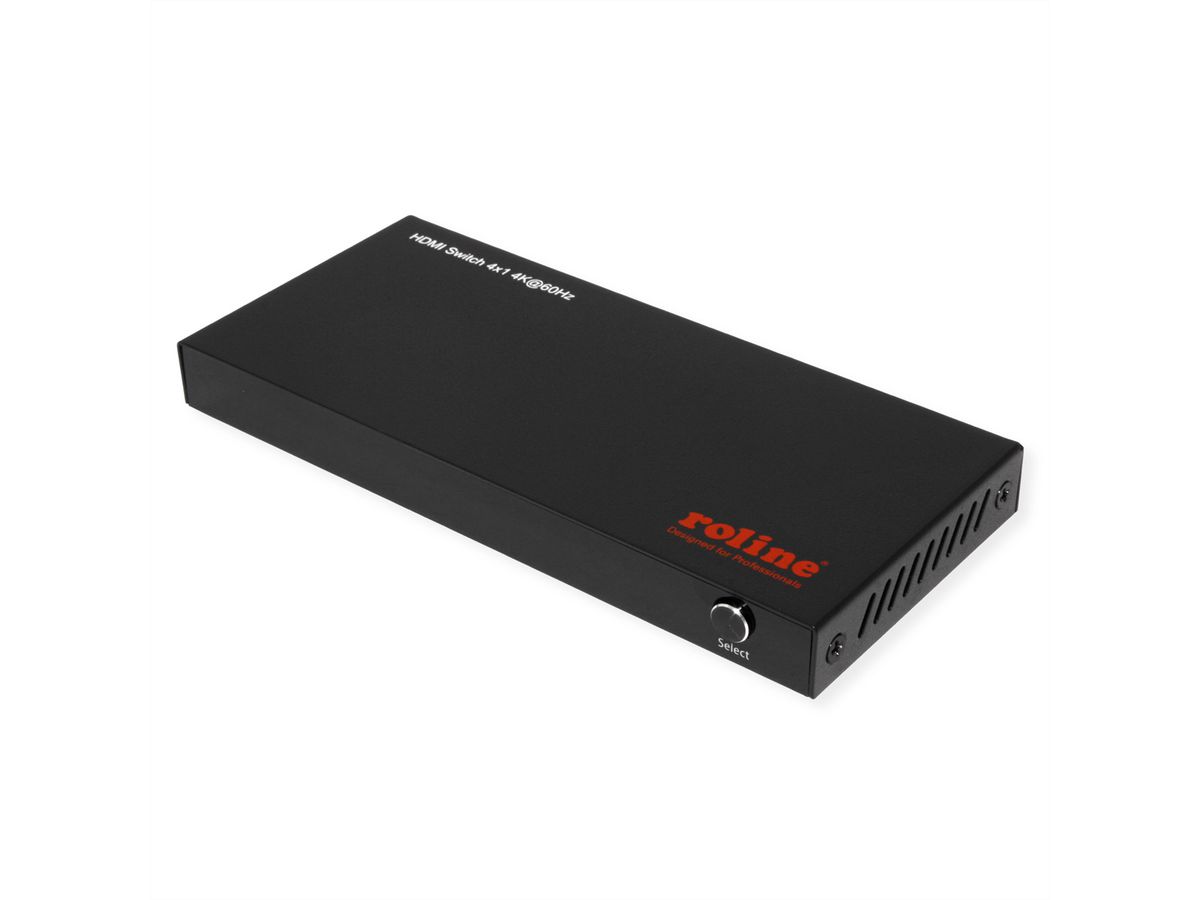

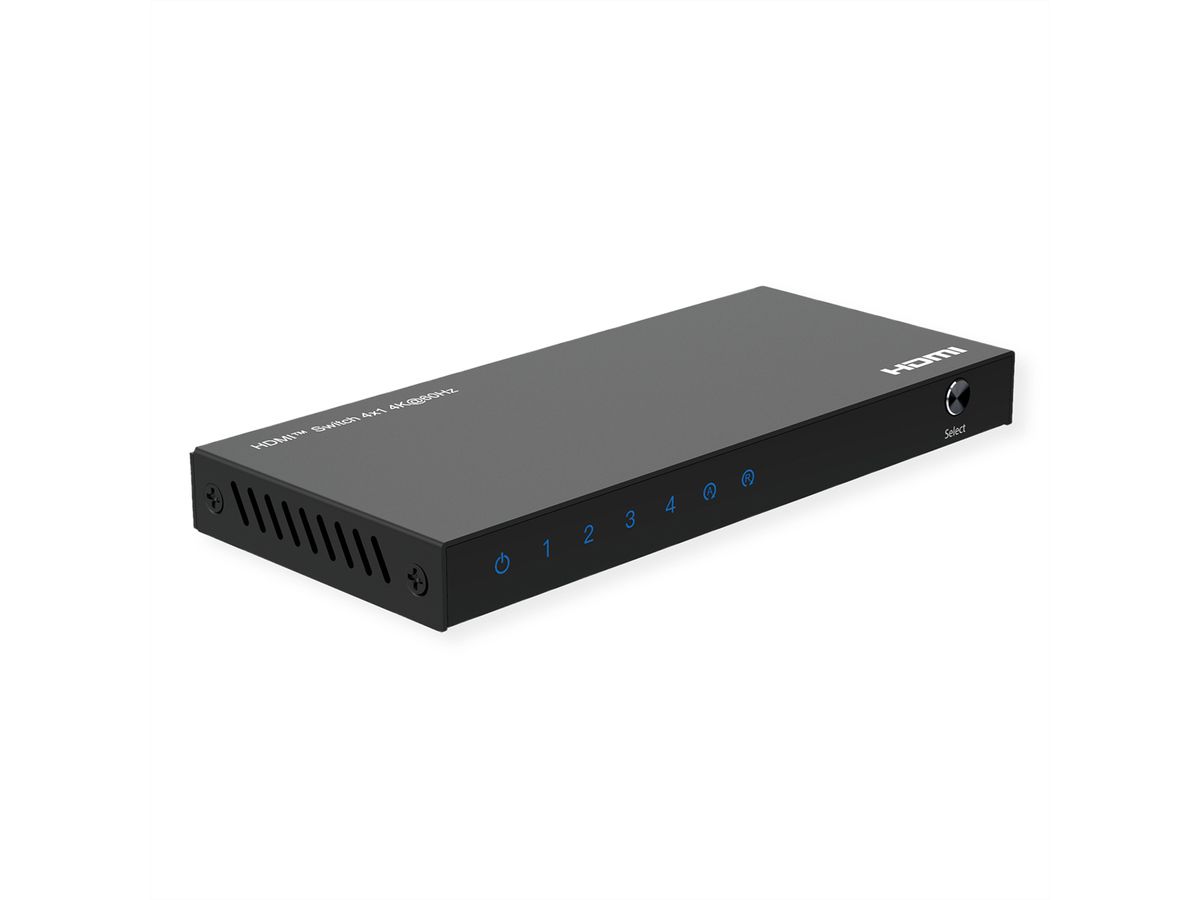

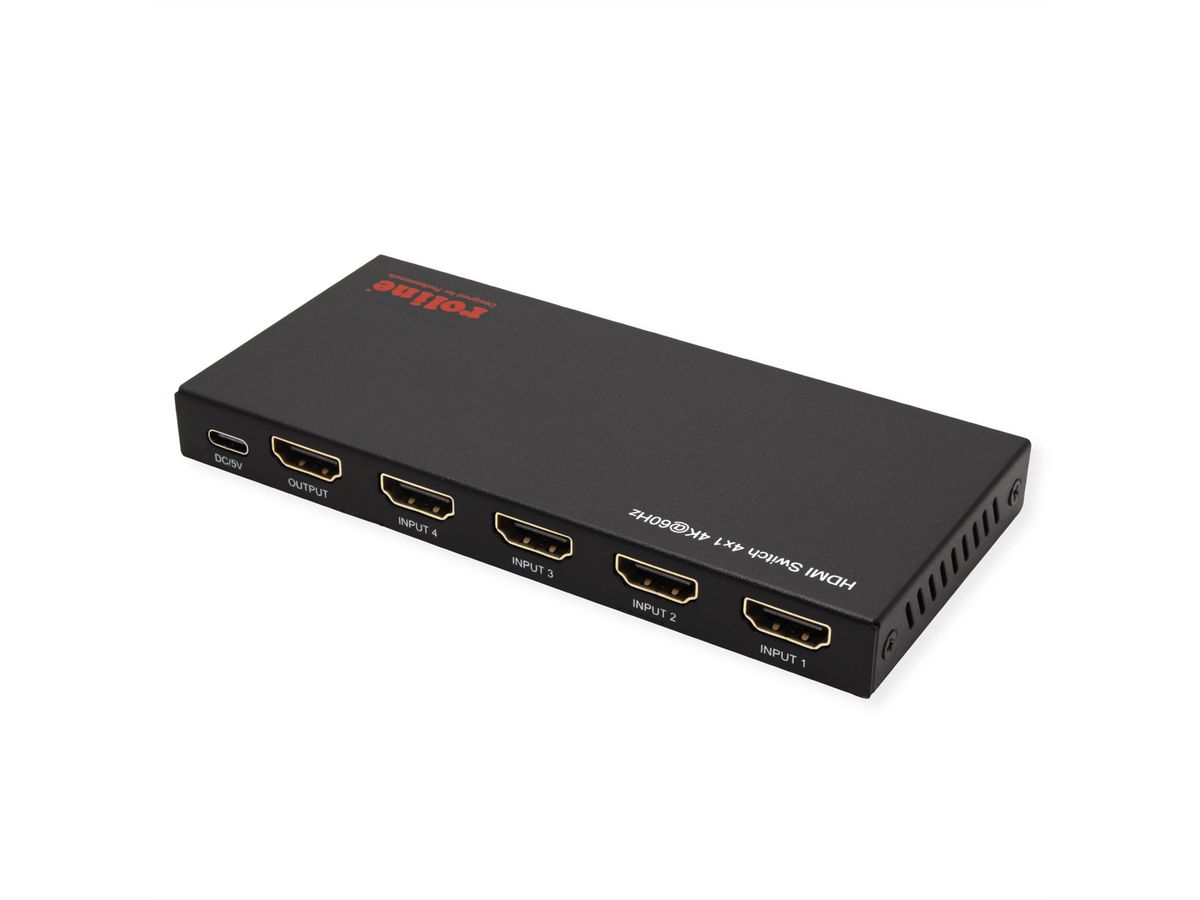

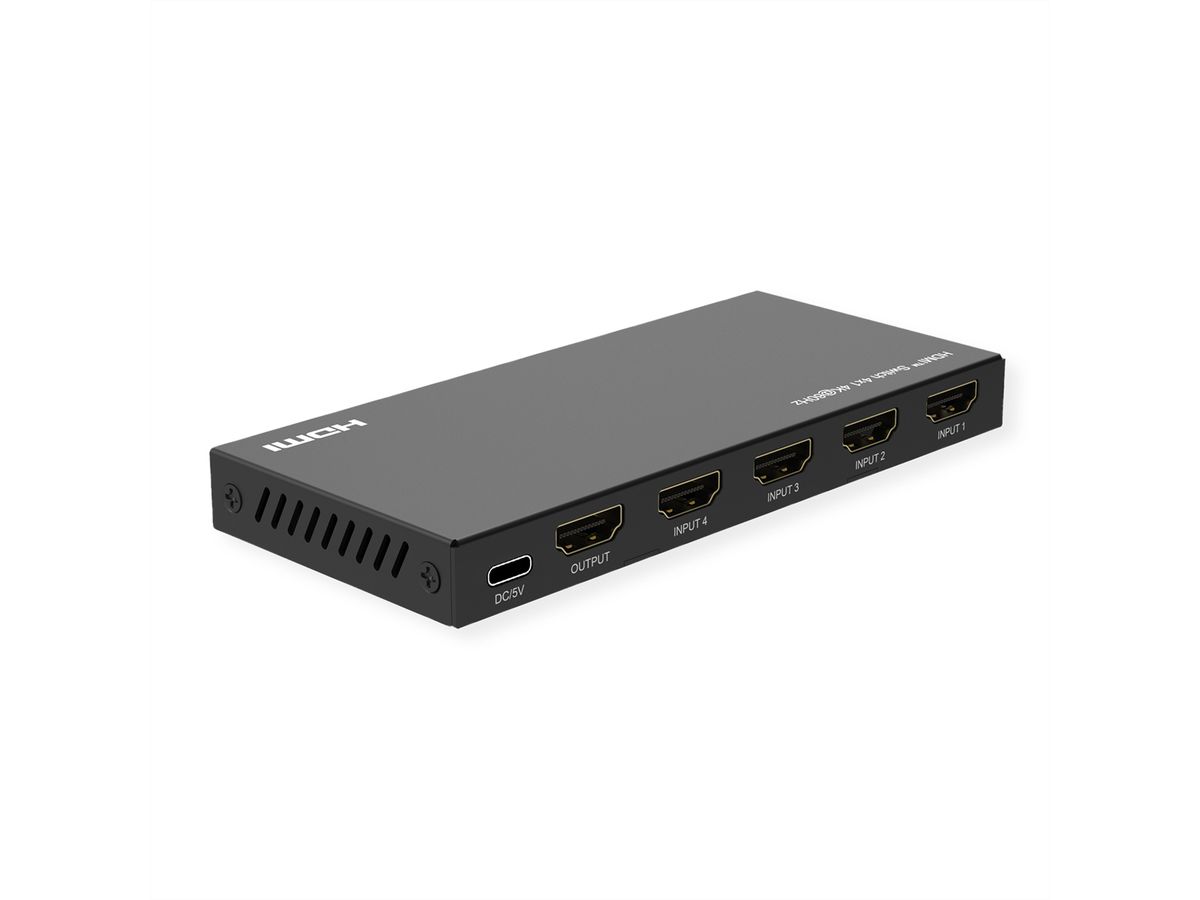

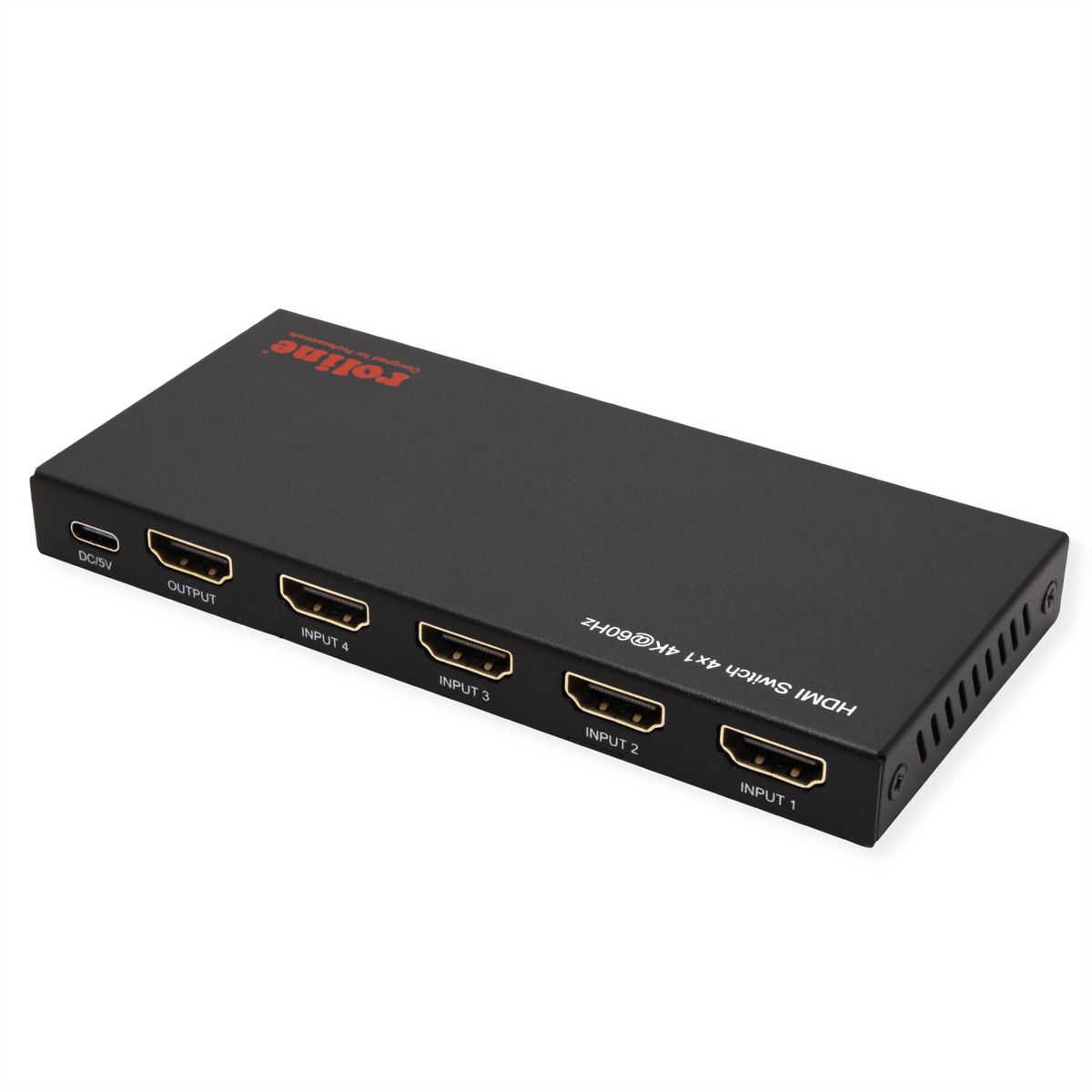

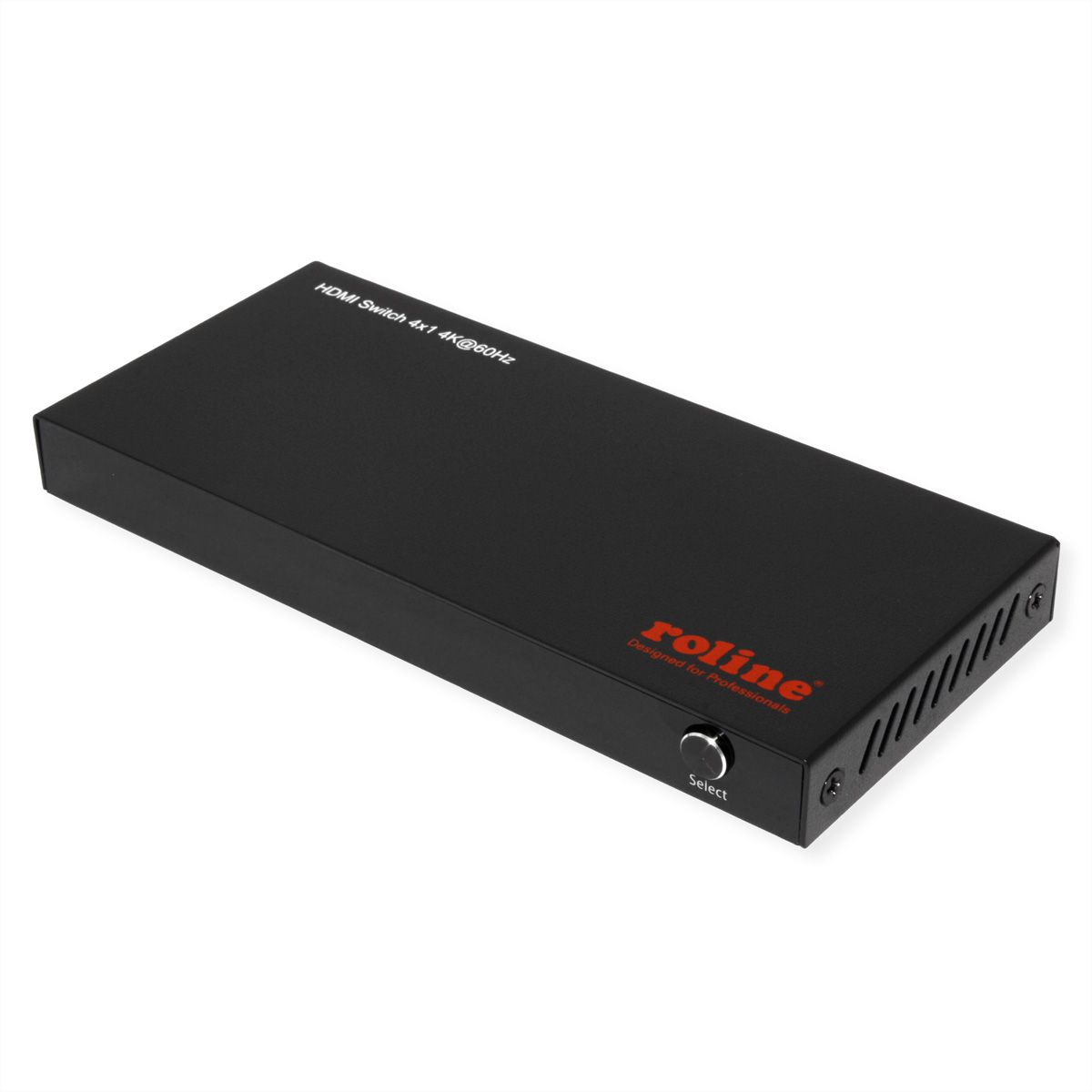

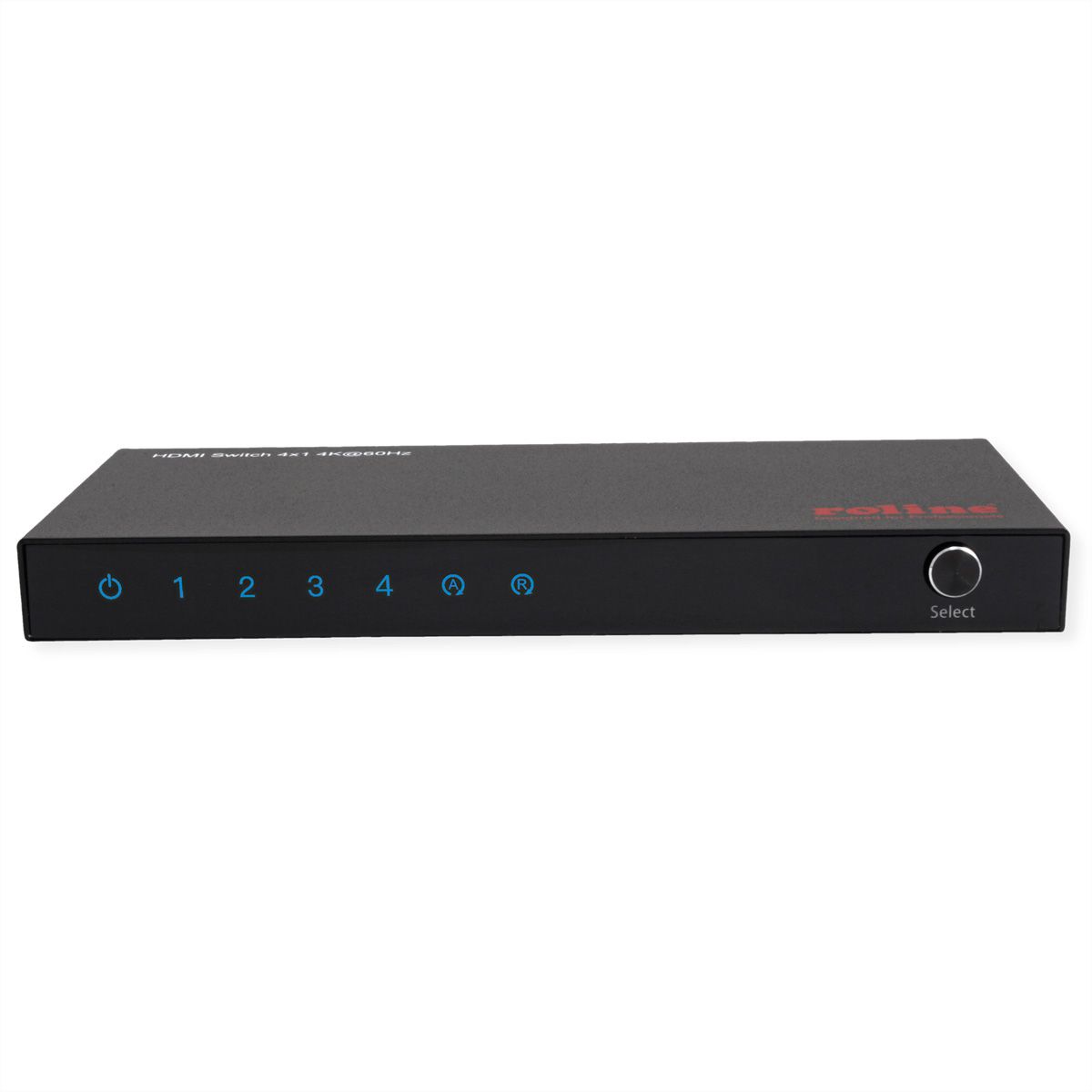

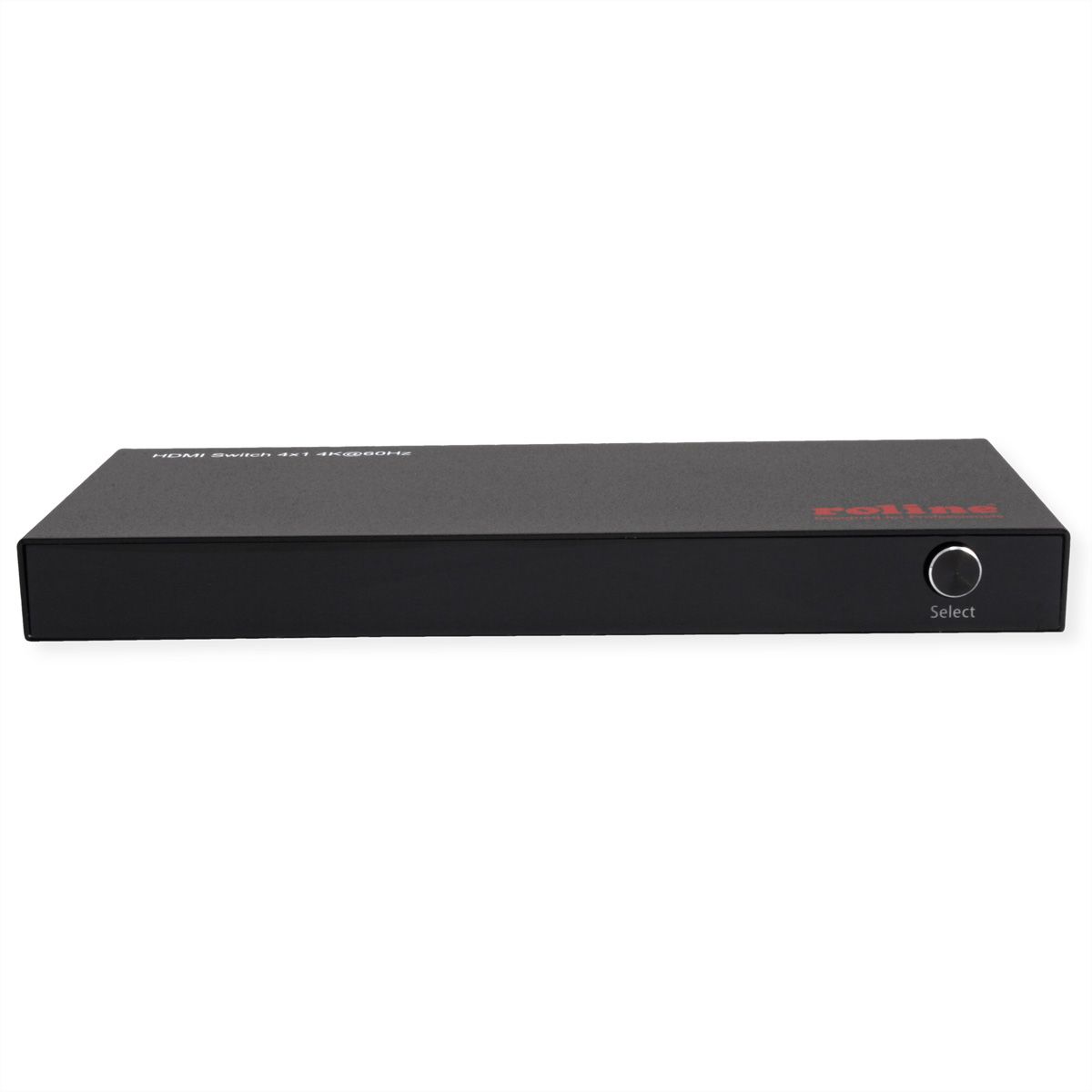

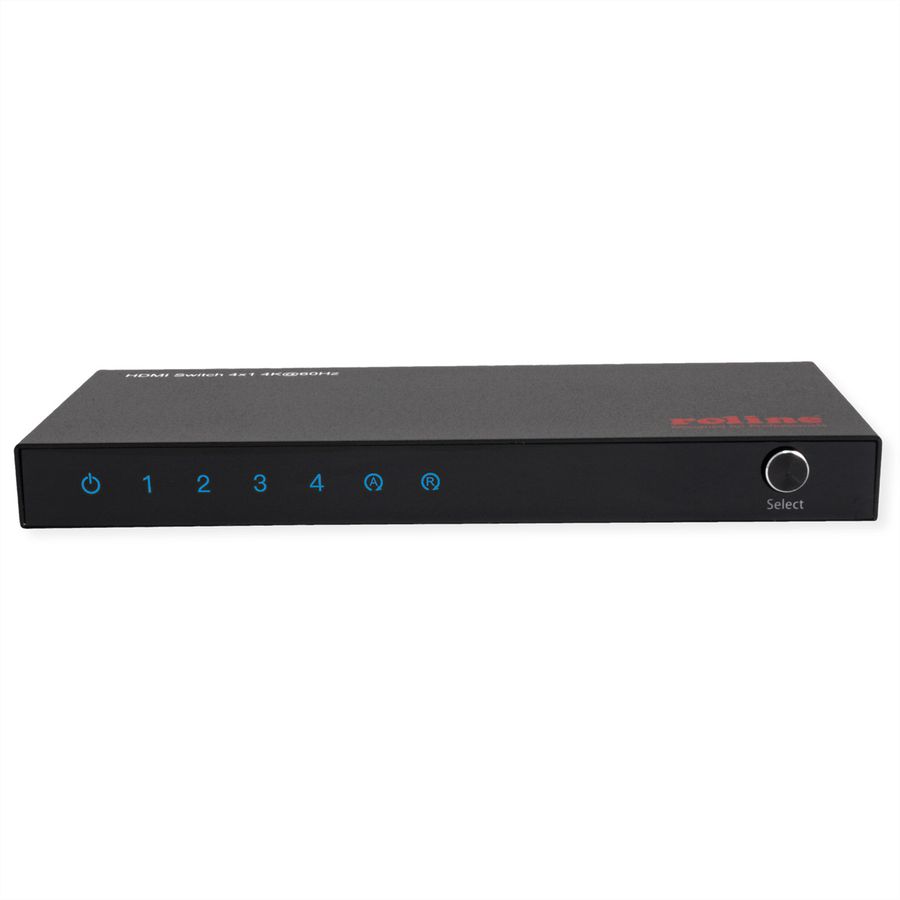

This ROLINE HDMI Switch displays the video output of up to 4 HDMI sources on a monitor or projector with a resolution of up to 4K@60Hz.

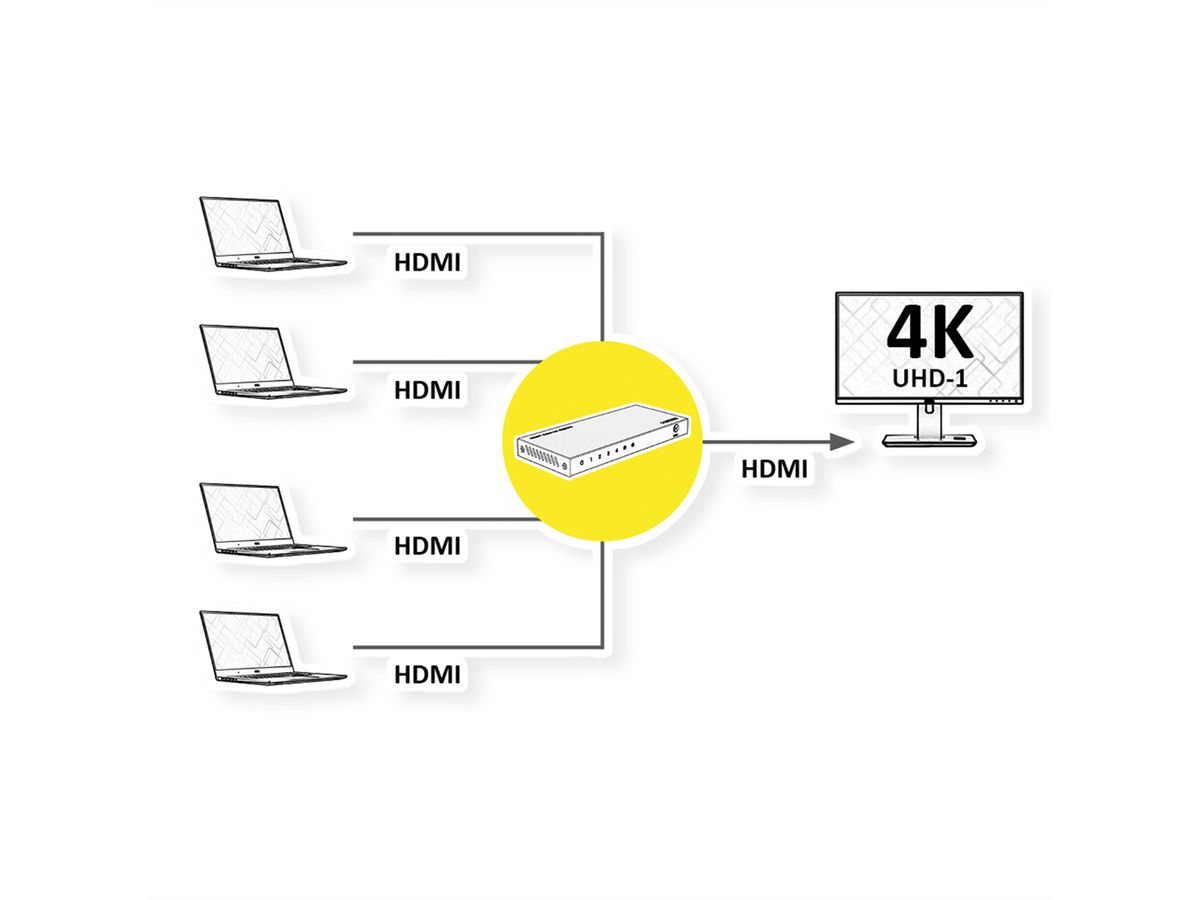

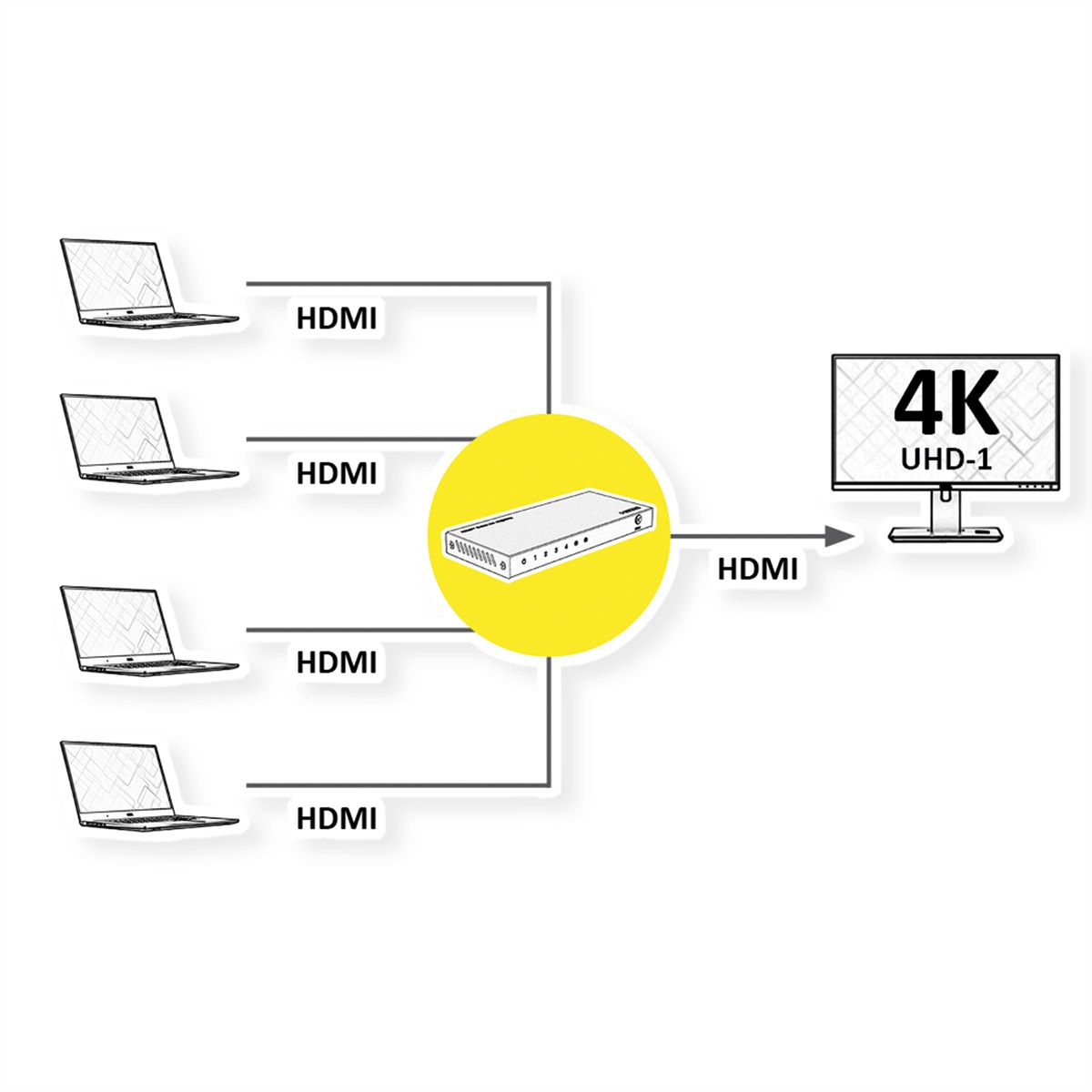

• Shows the video output of 4 HDMI devices like e.g. notebook, laptop, pc, video camera or game console on one monitor.
• Supports resolution of up to 4K@60Hz and full 3D.

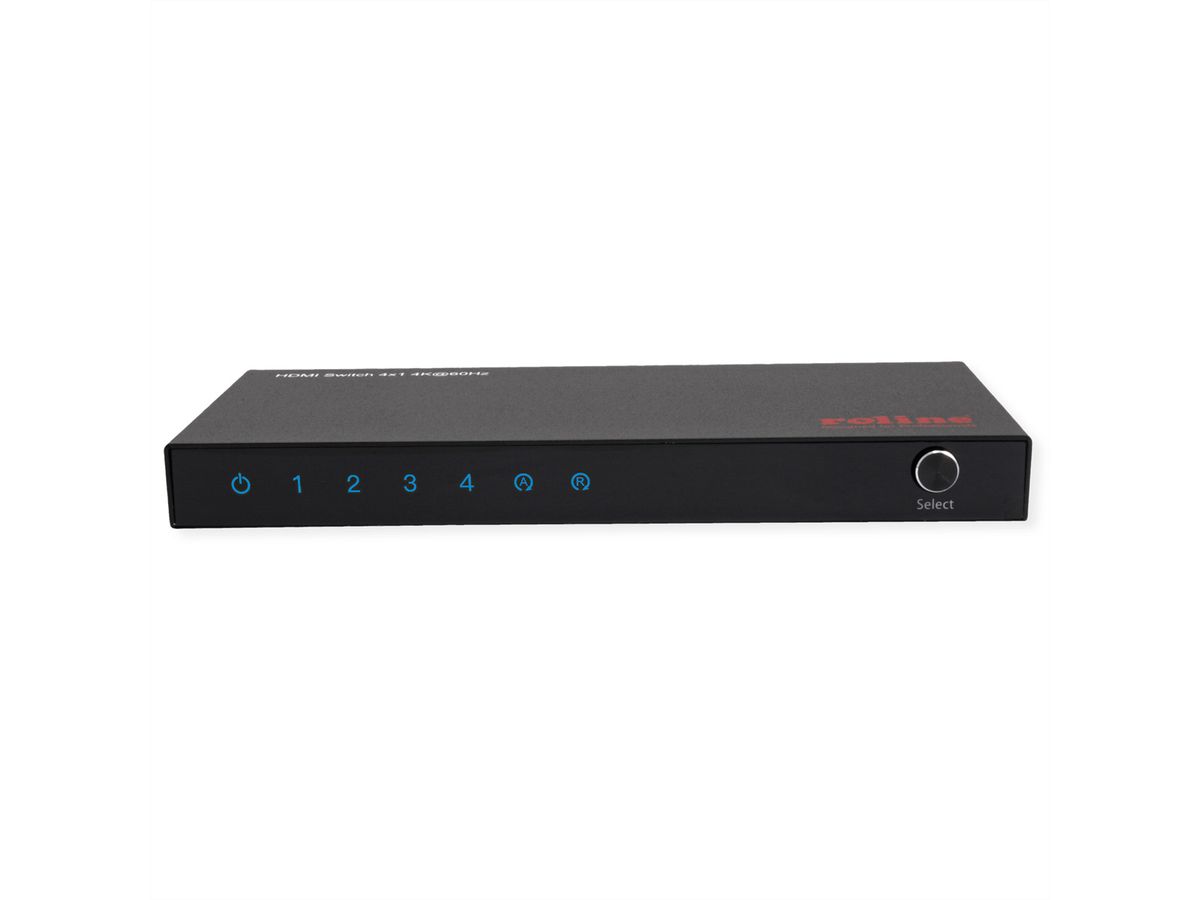

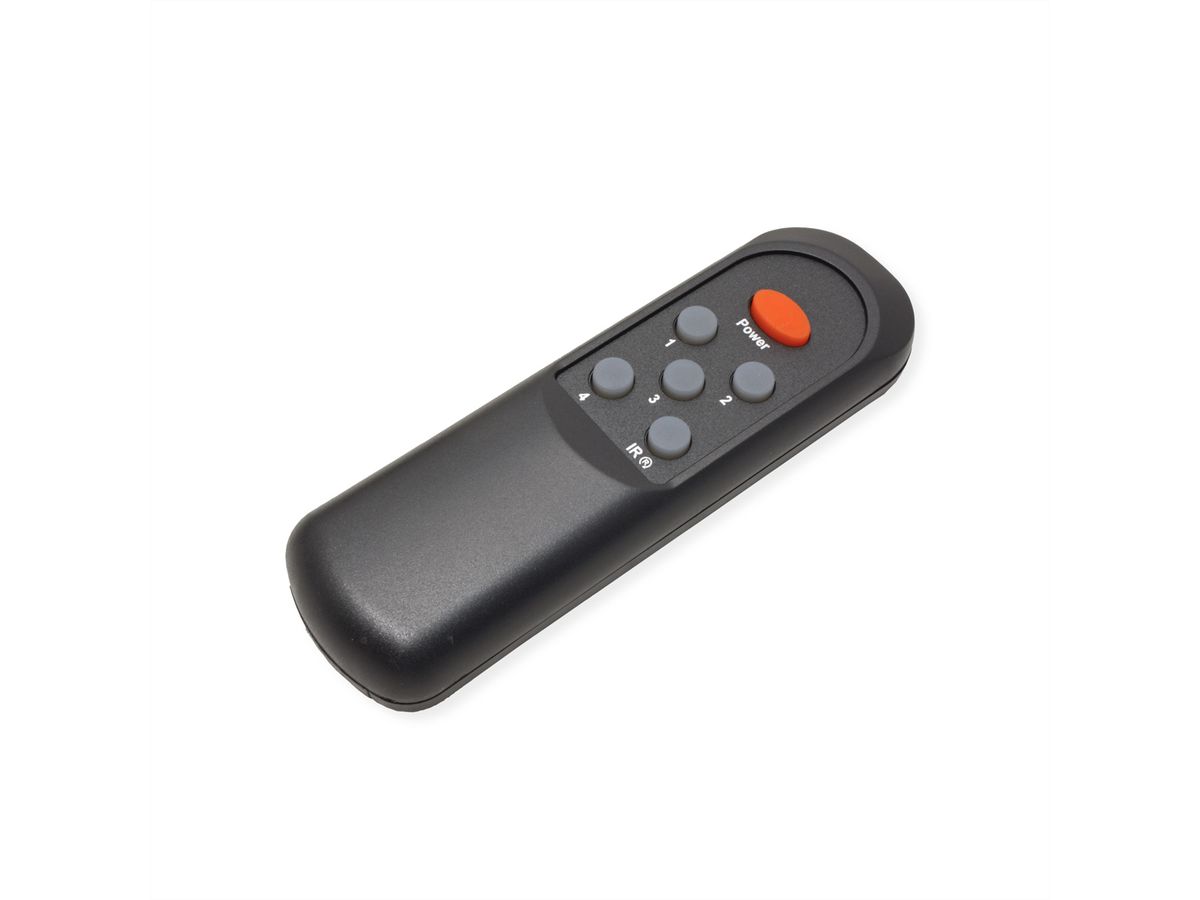

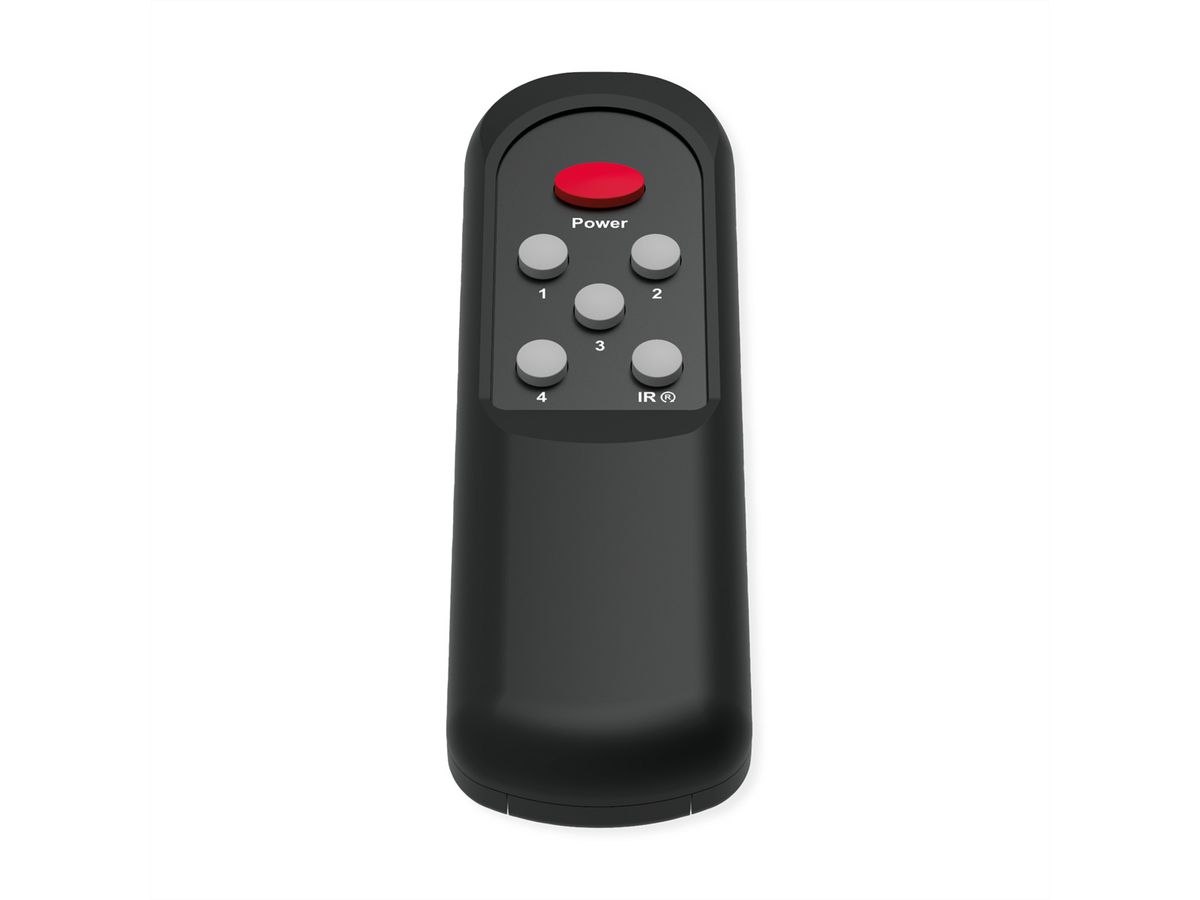

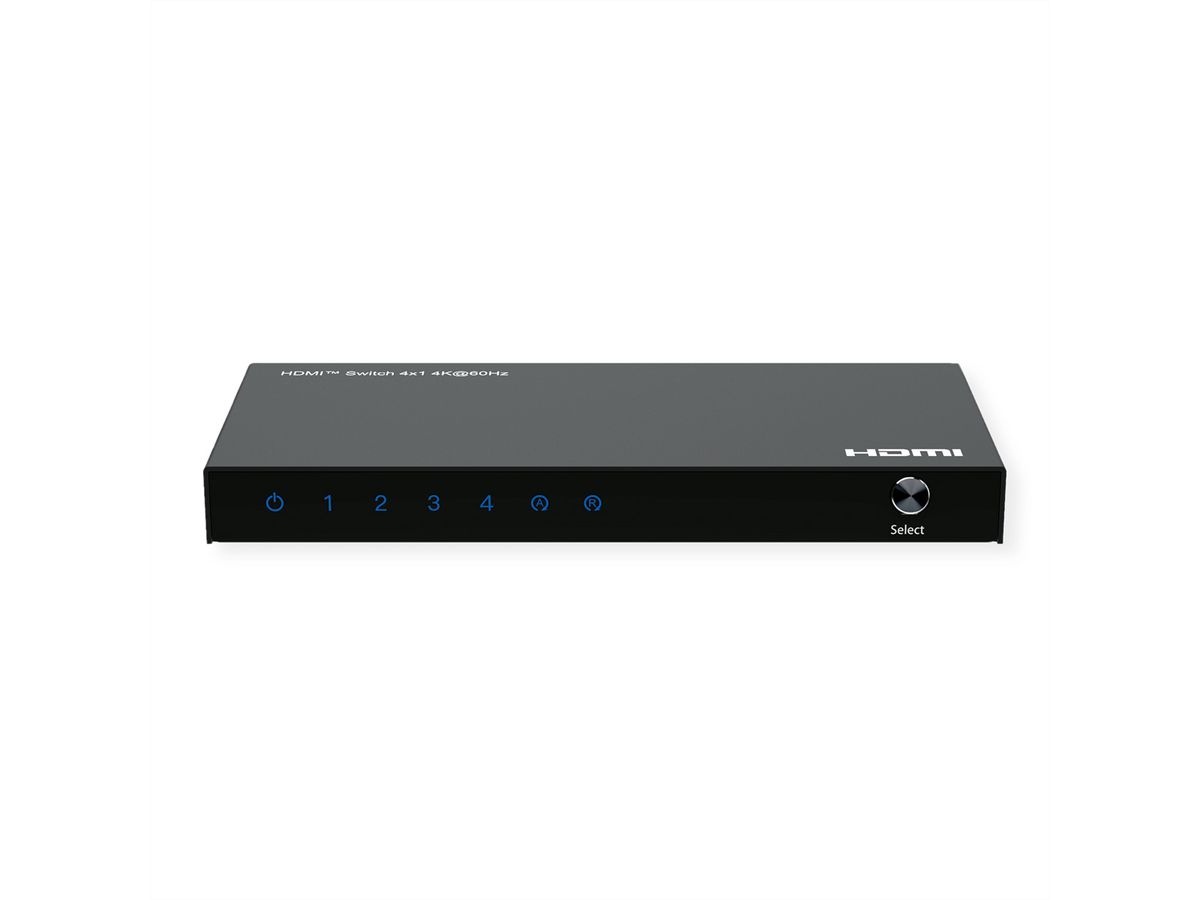

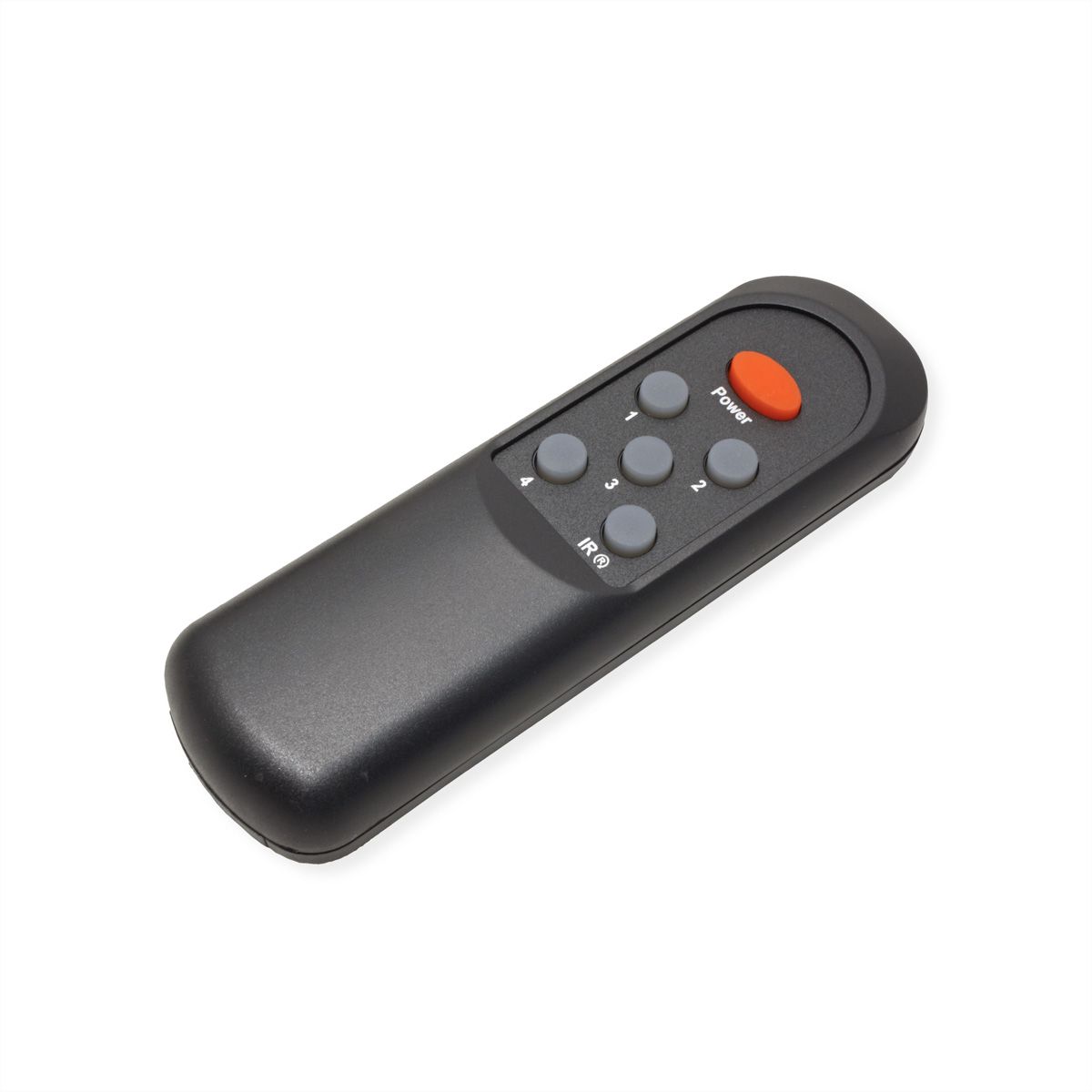

• HDMI input can be switched by button on the switch, automatically or by remote control (included).
• Automatic switching enables your most recently activated video source to be displayed automatically.
• USB power supply cable needed (included)
• Colour: black

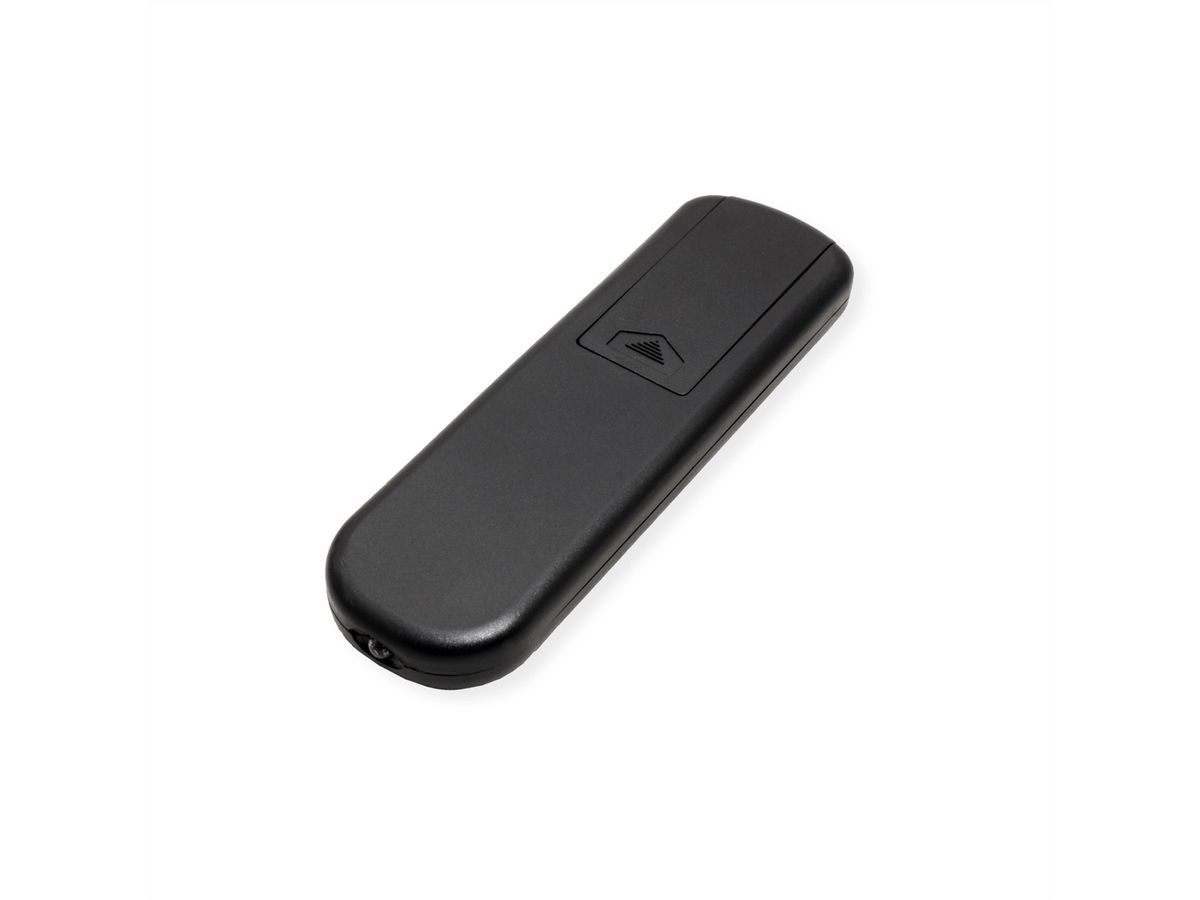

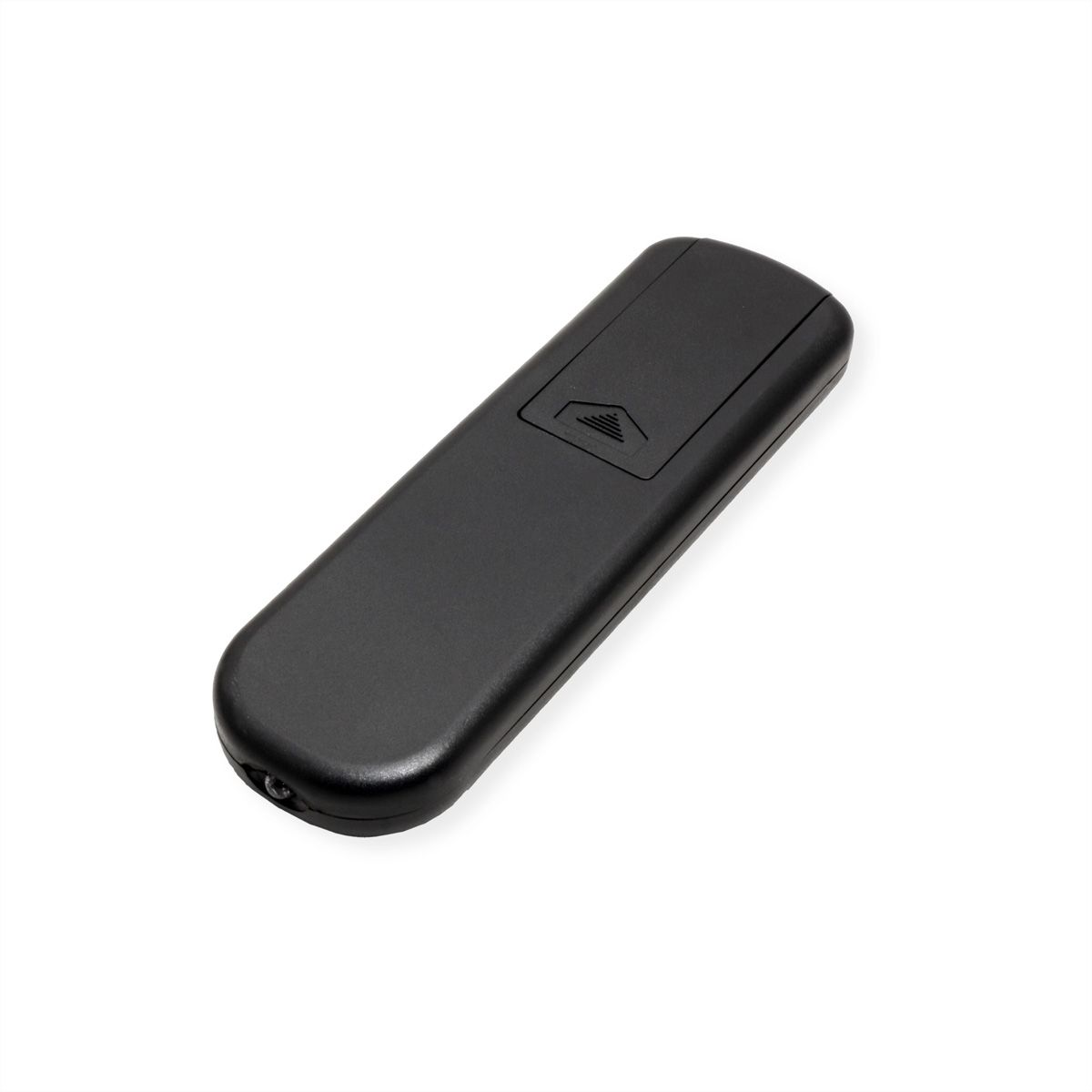

• Contents: HDMI switch, USB power cable, remote control (2x AAA batteries, not included)

Specifications

Manufacturer	ROLINE
Product group	Splitters and selectors
Product type	HDMI-Video-Switch
Colour	black
Scope of delivery	HDMI Switch, USB Power Cable, Remote Control (2x AAA batteries, not included)
Interface	HDMI
Inputs	4
Outputs	1

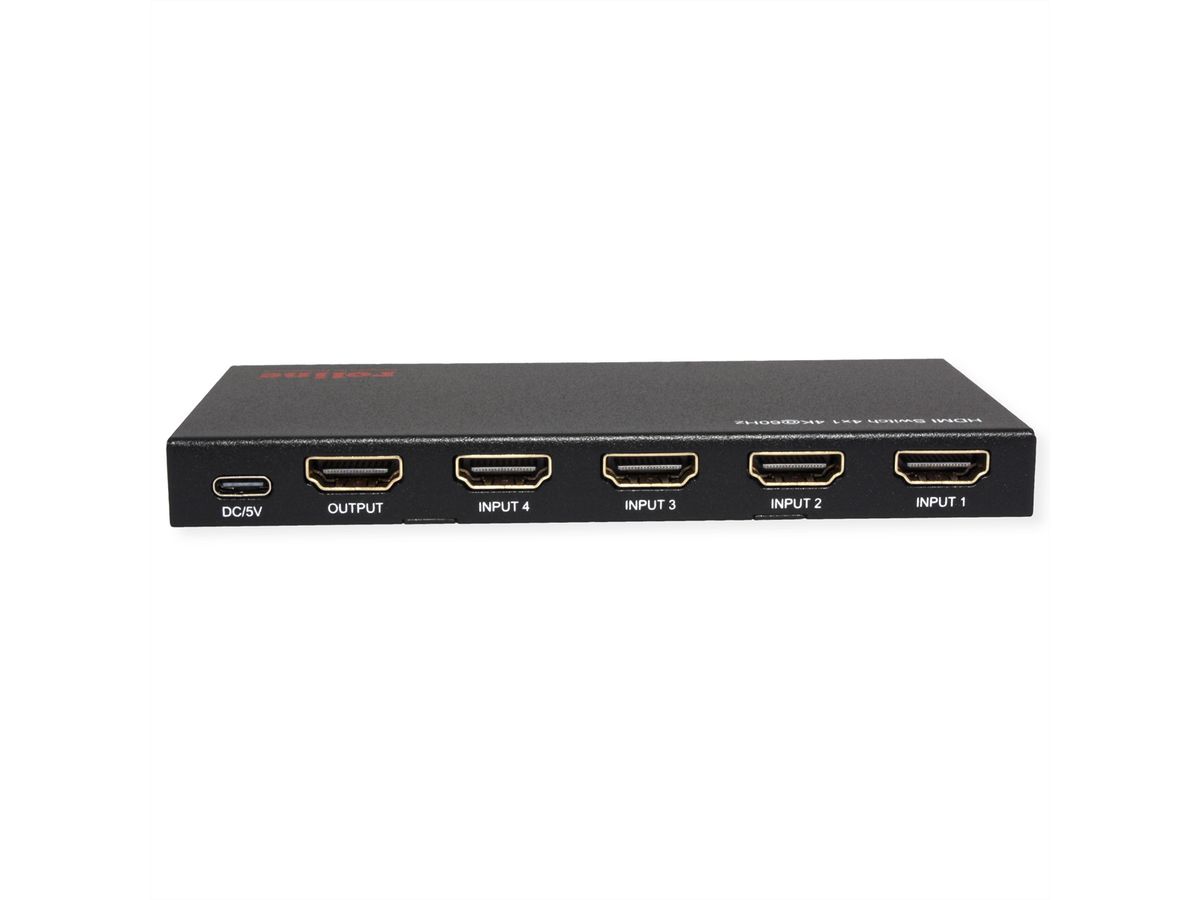

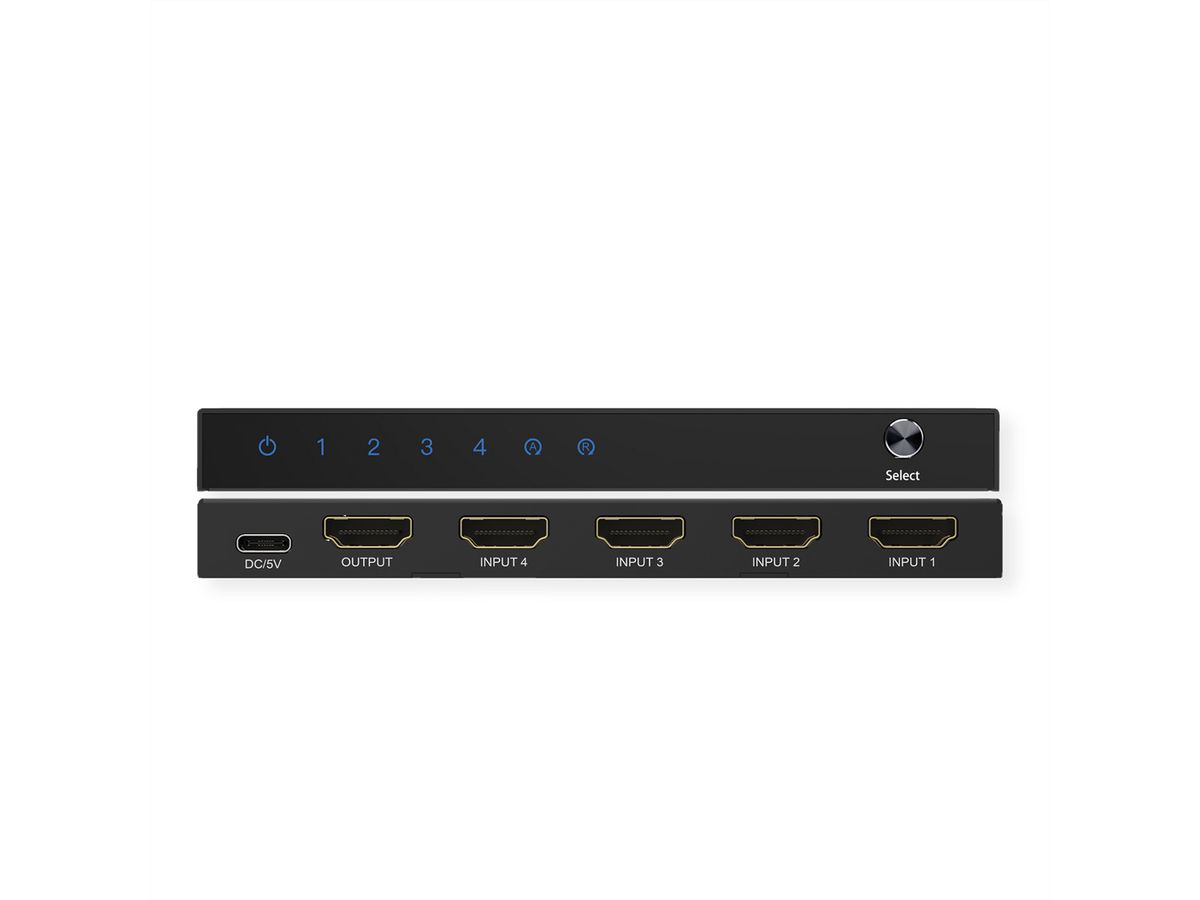

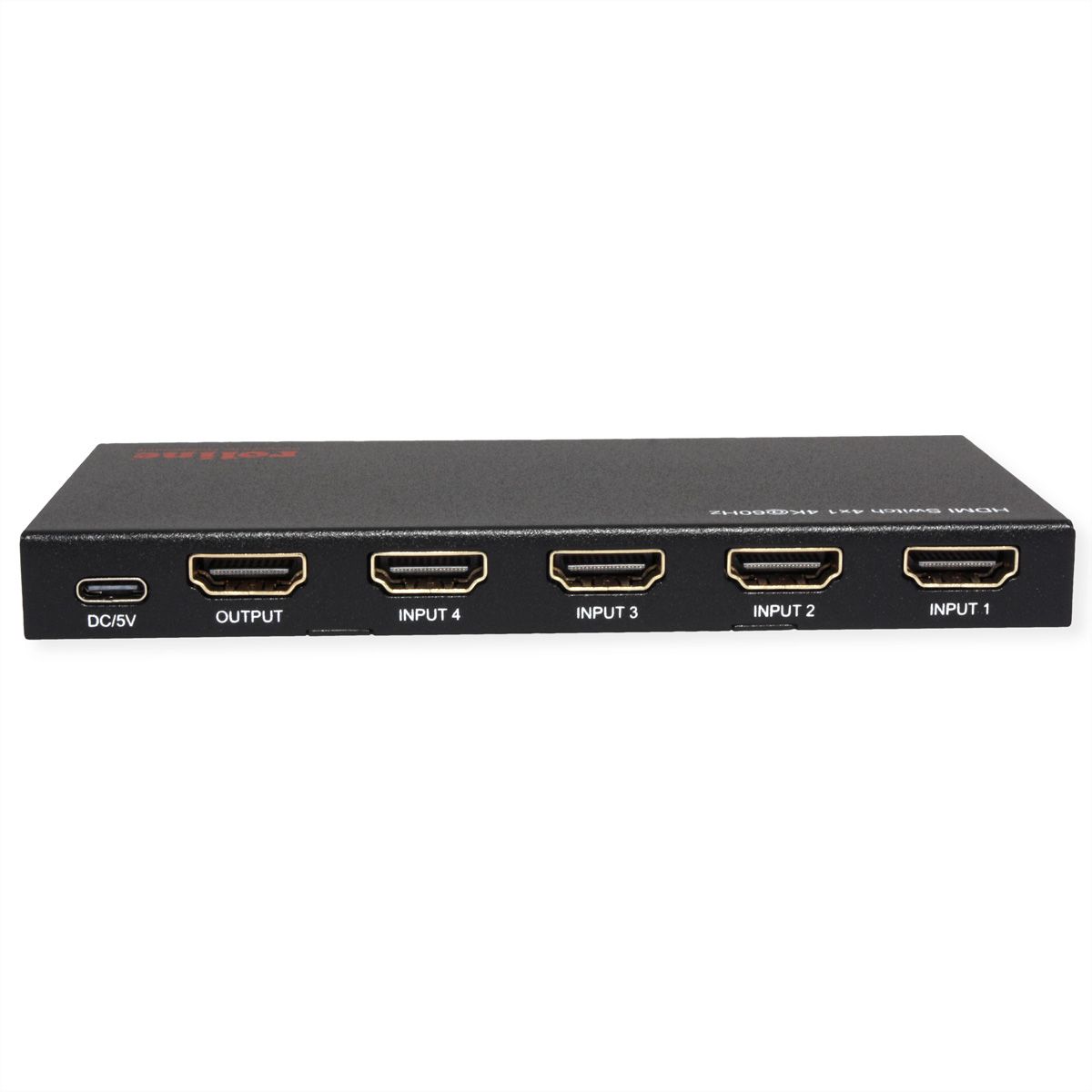

Video input	4x HDMI Female
Video output	1x HDMI Female
Video band width	18 Gbps
Max. resolution (nom.)	max. 3840x2160@60Hz
Dimensions (HxWxD)	14,5 x 136 x 61,5 mm

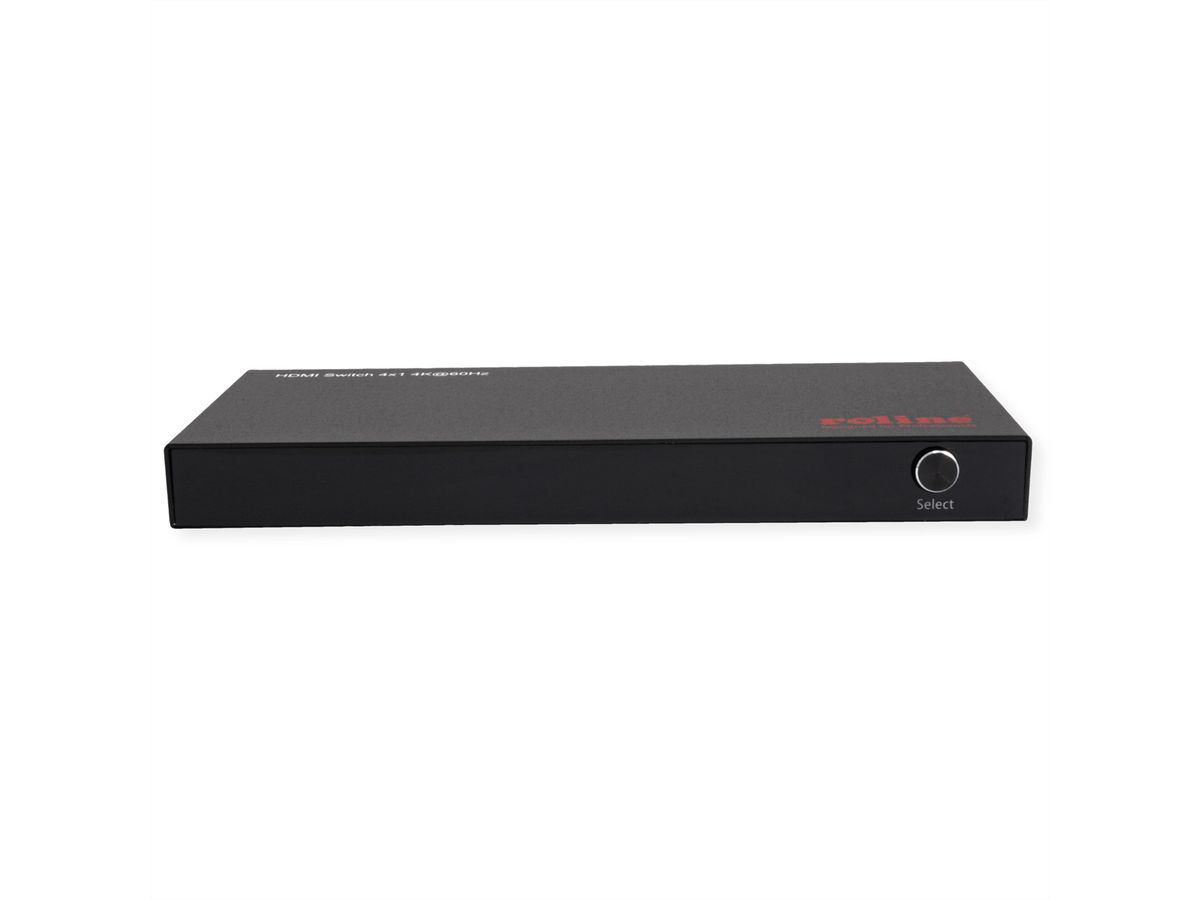

Technical particularity	Switching by push buttons, automatically, or by remote control
Operating temperature min.	0 °C
Operating temperature max.	70 °C
Height	14.5 mm
Width	136 mm
Depth	61.5 mm
Weight	194 g
Height of packaging (single piece)	40 mm
Width of packaging (single piece)	110 mm
Depth of packaging (single piece)	180 mm
Package weight (single piece)	0.3 kg

Downloads

Product data sheet - English (53.4 KB)

Download
