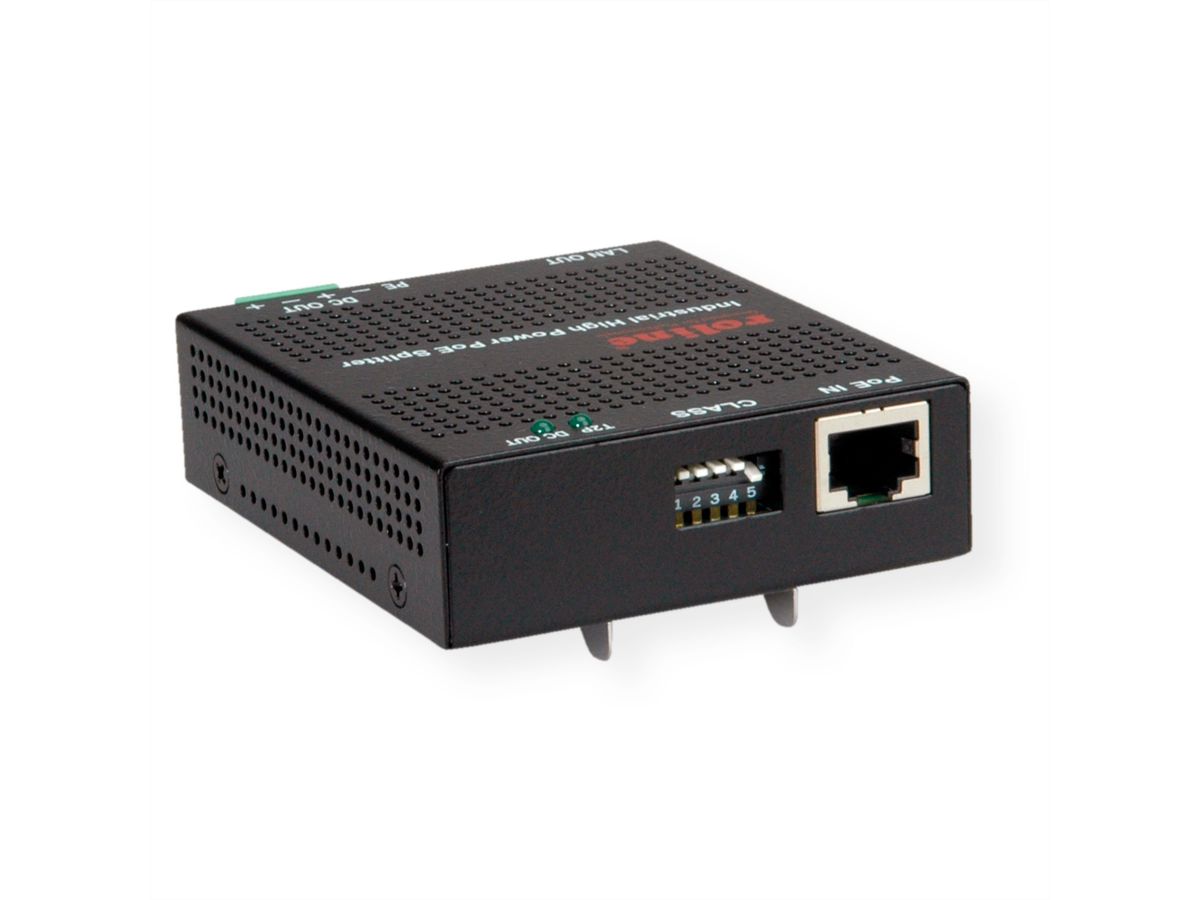

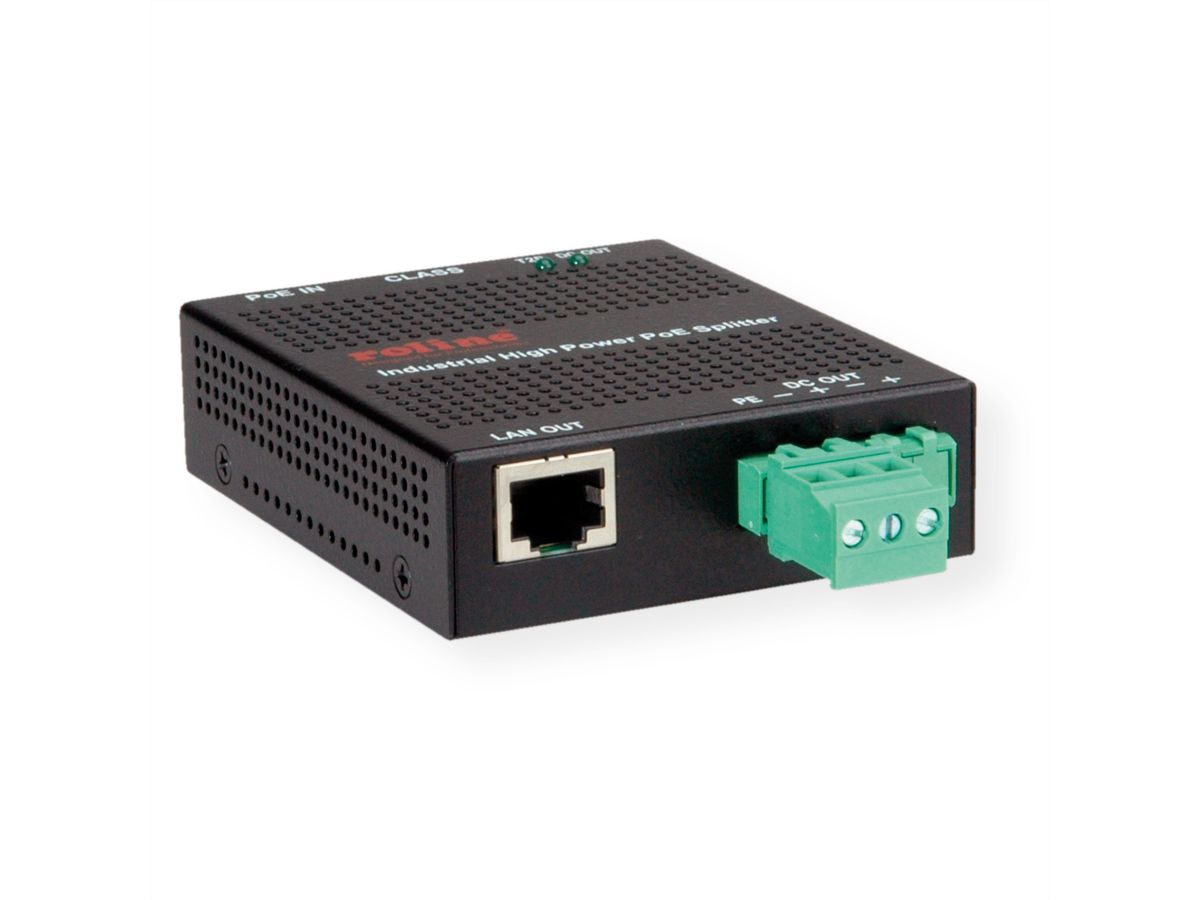

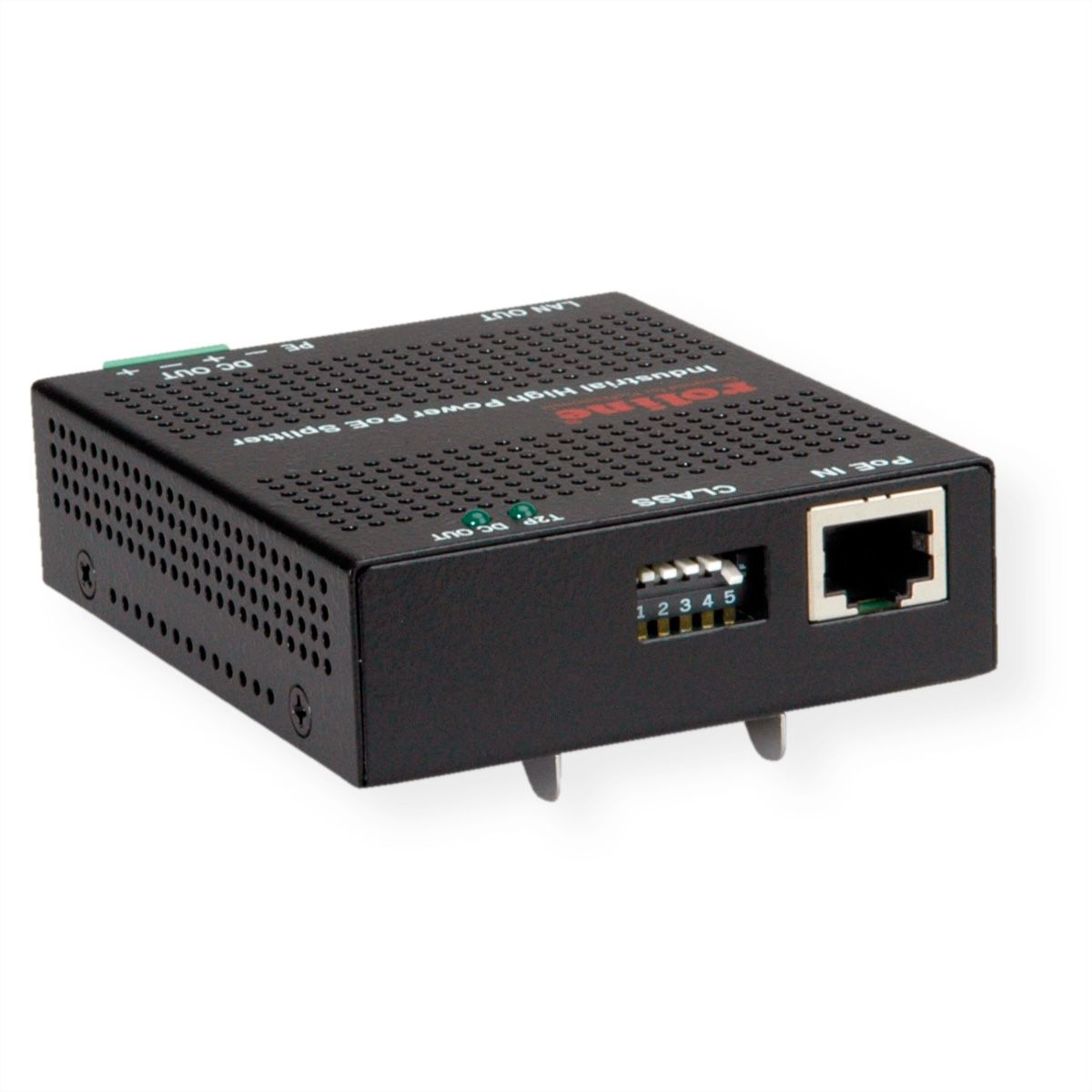

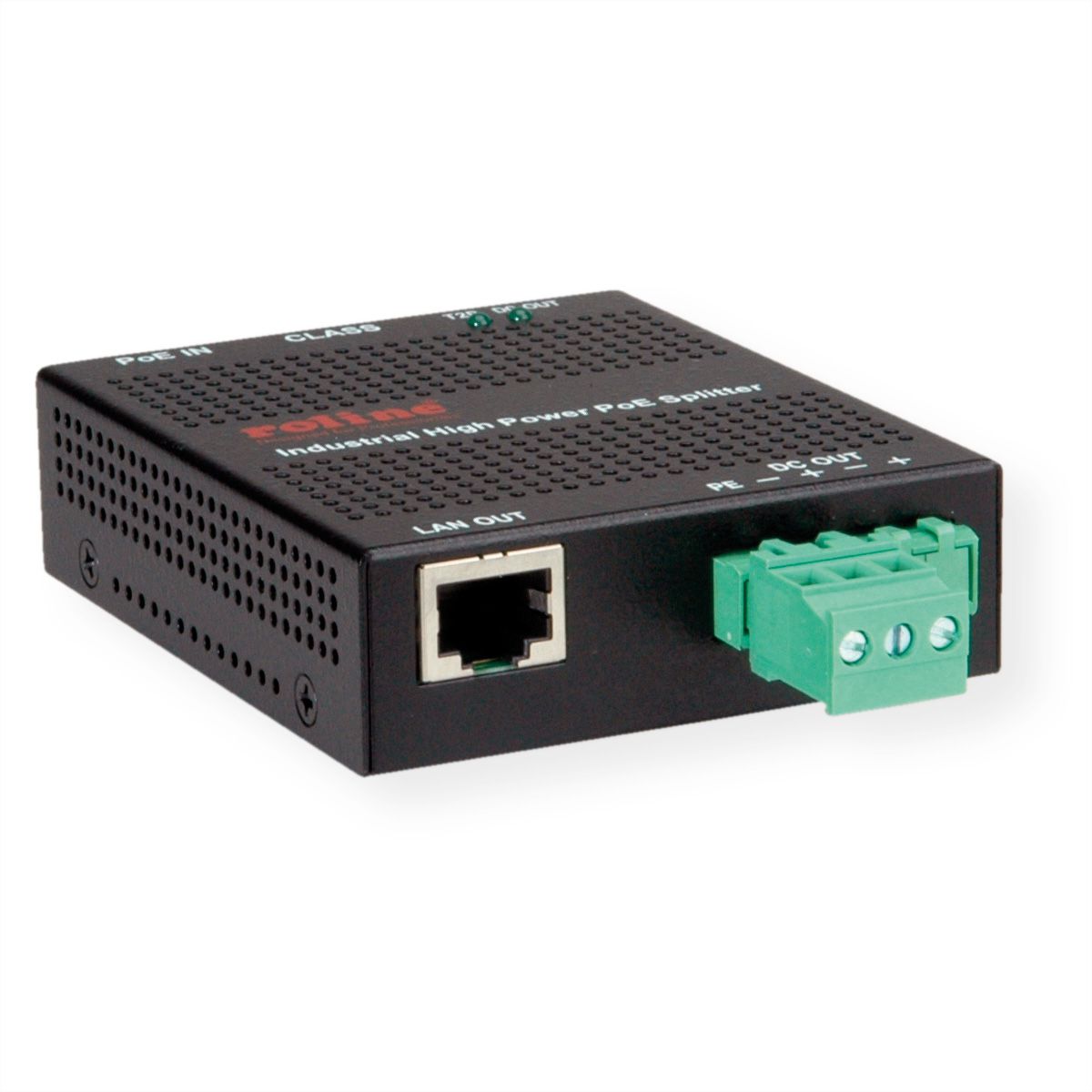

ROLINE High Power PoE Splitter, 30W
Please log in to be able to use the shopping cart and then complete orders.
Log in| Item no. | 21.13.1175-1 |
|---|---|
| Brand / Manufacturer | ROLINE |
| Manuf. no. | 21.13.1175 |
| EAN | 7630049623644 |
| Package weight | 0.34 kg |
:strip_icc():strip_exif()/logos/roline.png "ROLINE")
Description

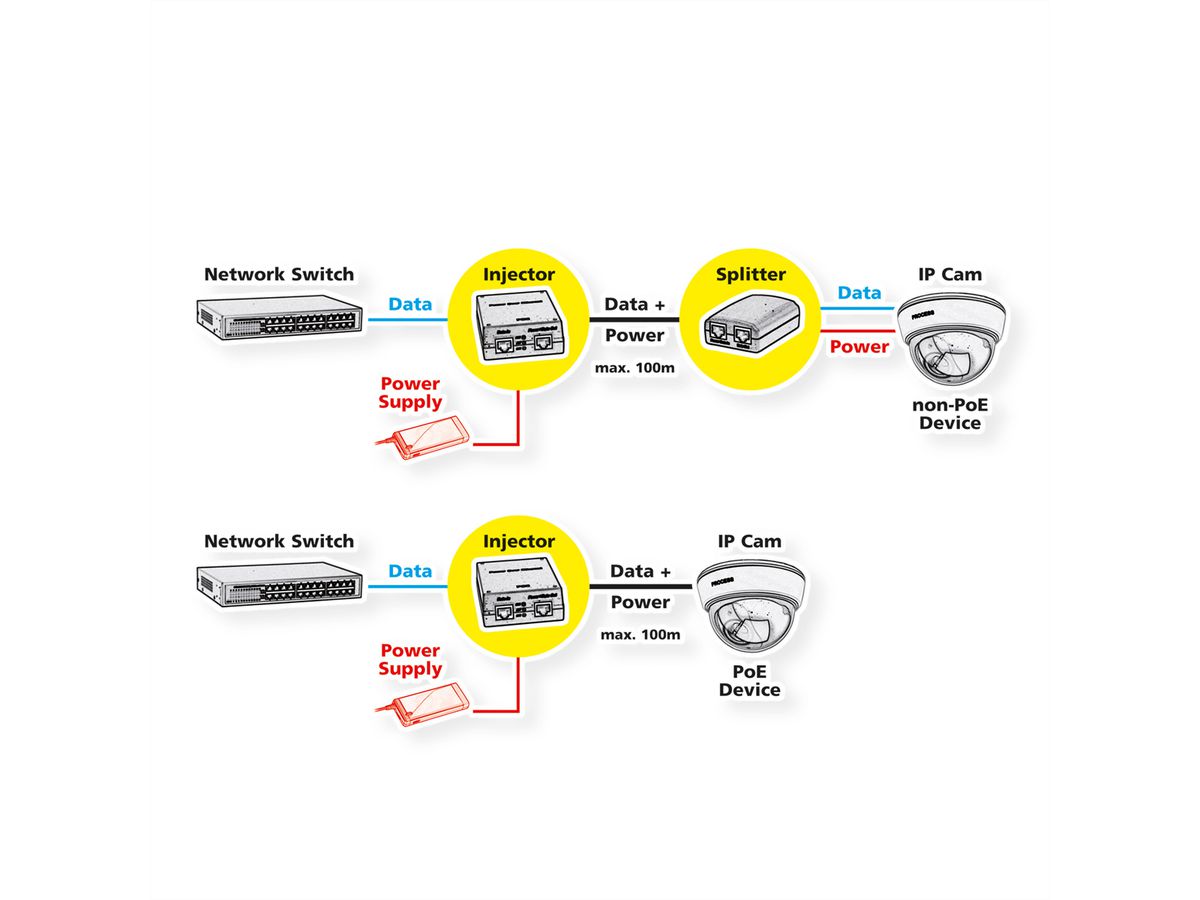

- High power PoE splitter which integrates Power over Ethernet (PoE) technology to PoE incapable network device by just using a single Cat.5 cable for both power and data transaction
- For easier, cost-effective PoE network installation, the PoE splitter is the best solution to protect original investment.
- IEEE 802.3at and 802.3af compliance
- Support 10BASE-T, 100BASE-TX, and 1000BASE-T
- Support Alternative A or Alternative B PoE input over Cat.5
- Provide a power class selection DIP for demanding power from PSE
- Support Type 1 PSE classification (for power up to 13 Watts min.) and Type 2 PSE 2-event classification (for power up to 30 Watts)
- Regulated DC power output
- Flexible mounting support, light weight and compact
- Metal housing
- Dimension: 73 x 85 x 24 mm
Specifications
| Manufacturer | ROLINE |
|---|---|
| Product group | PoE adapter |
| Product type | PoE-Splitter |
| Colour | black |
| Network standard | Gigabit Ethernet |
| LAN (Mbps) | 10/100/1000 |
| Quantity of ports | 1 |
| Power over Ethernet (PoE) | PoE (IEEE 802.3af) |
| Quantity of PoE ports | 1 |
| Max. PoE output power per port | 30 W |
| Max. PoE output power (total) | 30 W |
| Technical particularity | 12 VDC (output voltage) |
| Mains connection | Loose cable / screw terminals |
| Height | 24 mm |
| Width | 85 mm |
| Depth | 73 mm |
| Weight | 193.4 g |
| Height of packaging (single piece) | 160 mm |
| Width of packaging (single piece) | 60 mm |
| Depth of packaging (single piece) | 160 mm |
| Package weight (single piece) | 0.34 kg |
