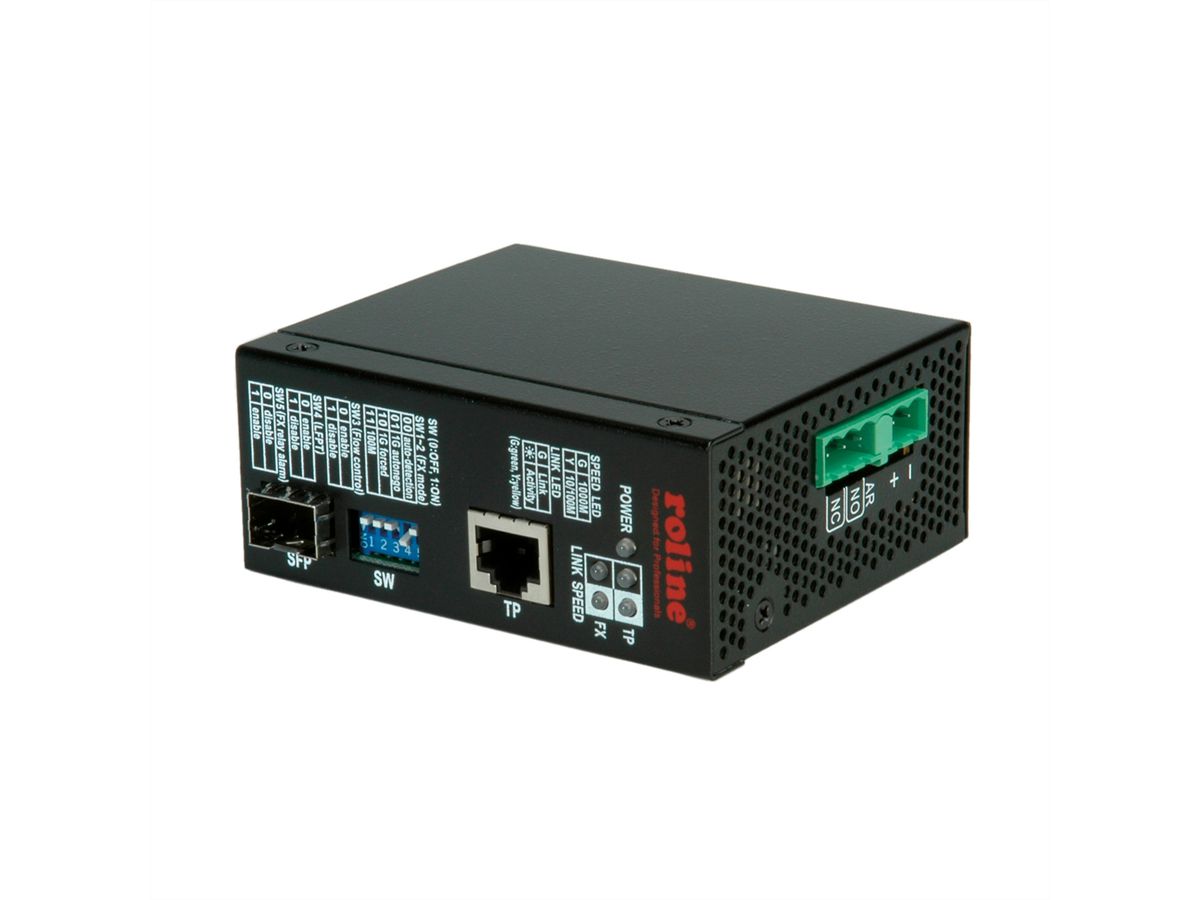

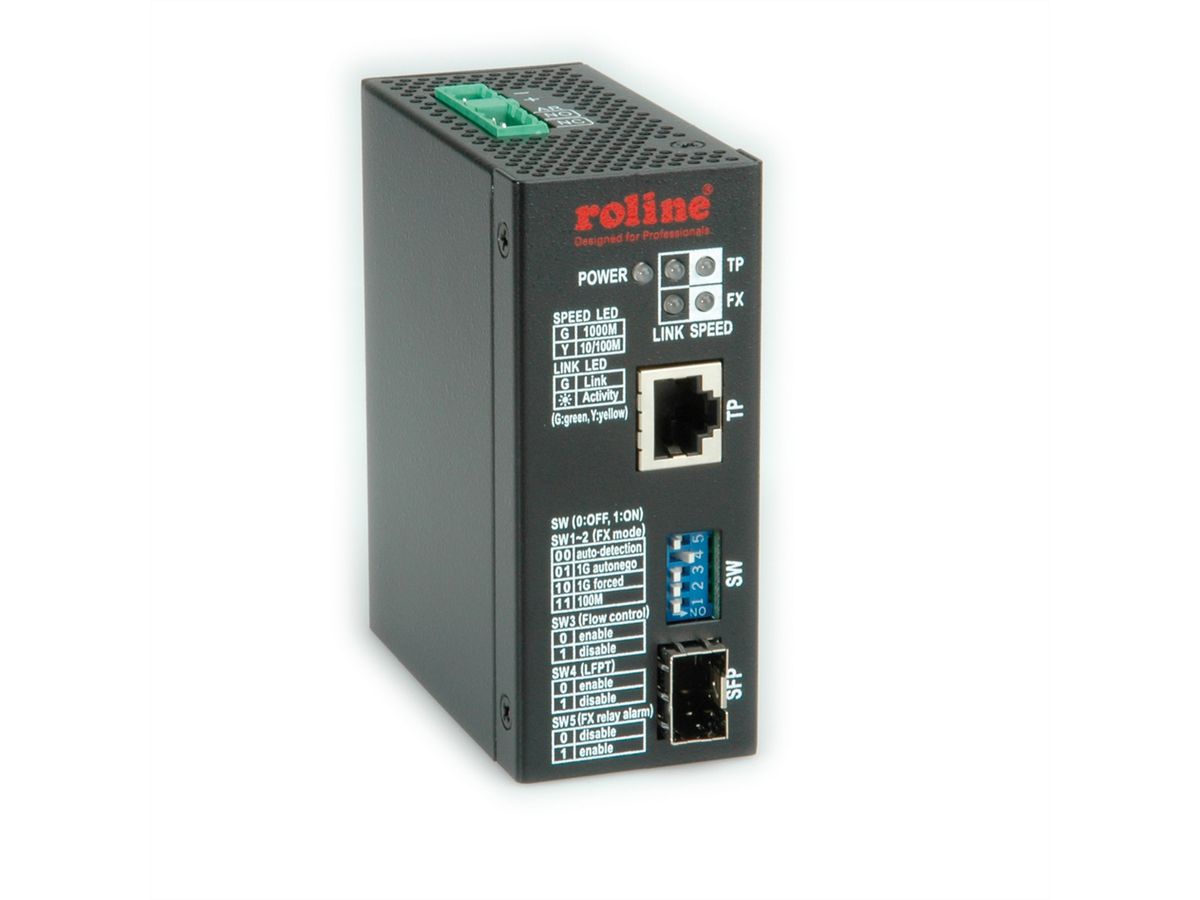

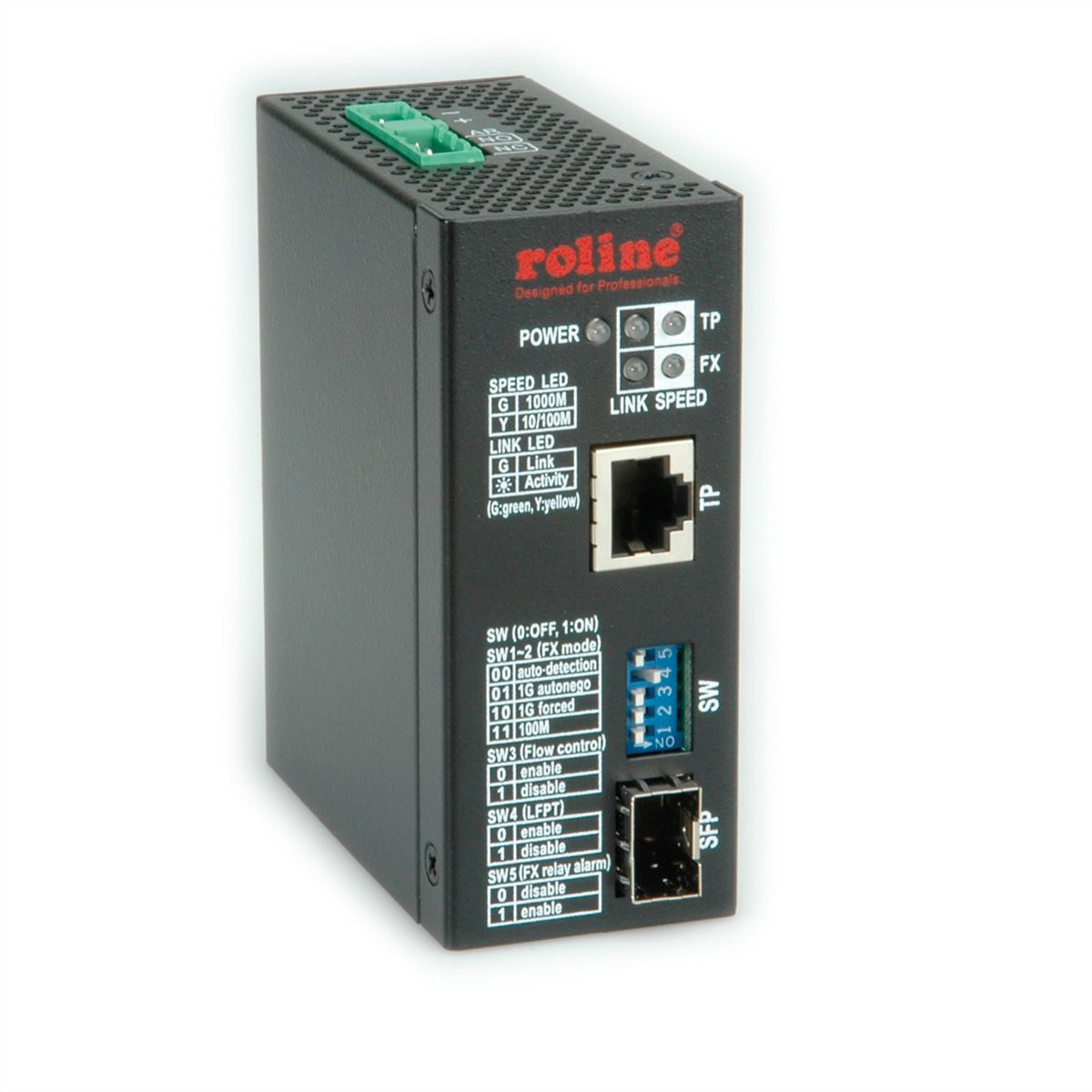

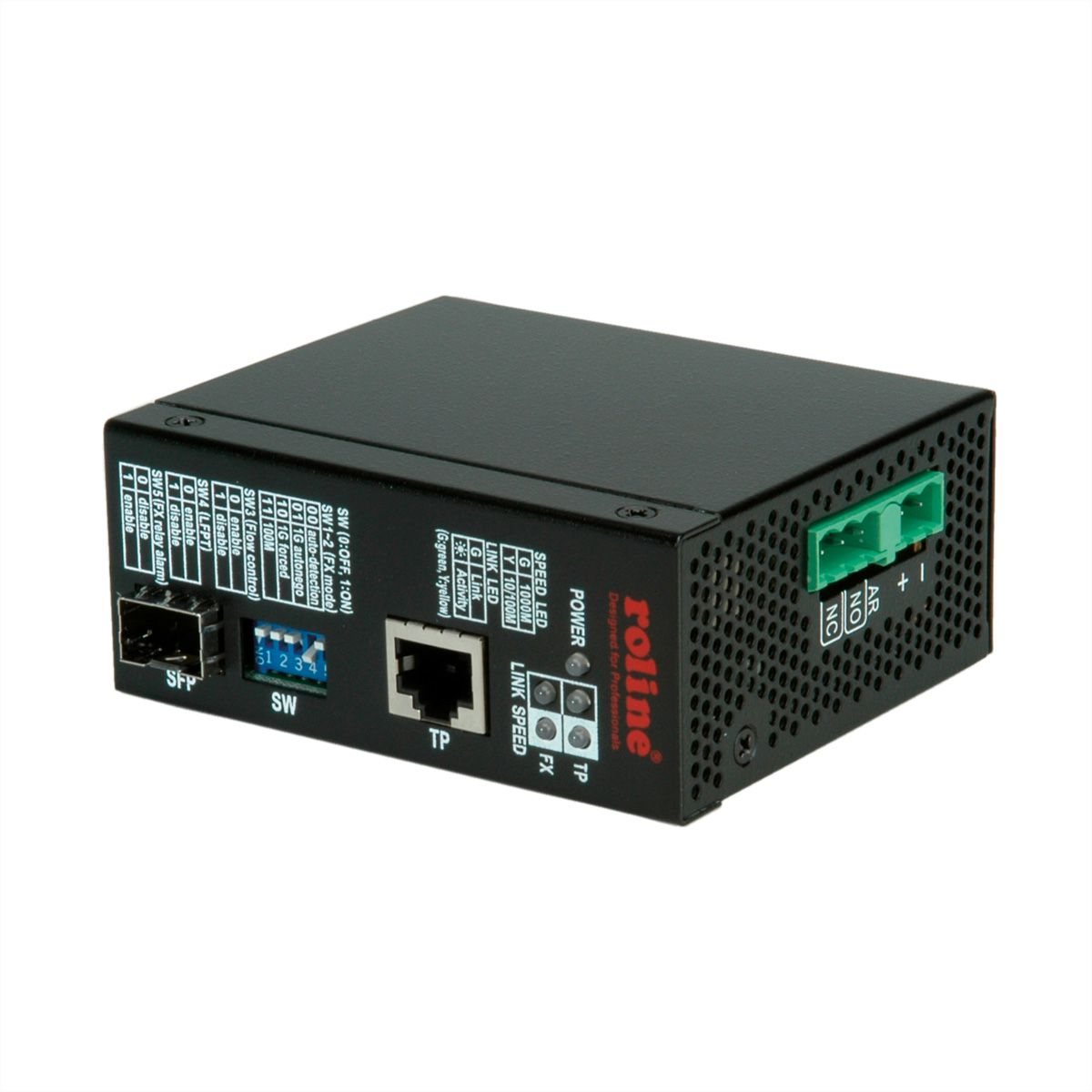

ROLINE Industrial Converter, 10/100/1000T - 100/1000 Fiber

ROLINE Industrial Converter, 10/100/1000T - 100/1000 Fiber

Please log in to be able to use the shopping cart and then complete orders.

Log in
Available
Ordered until 3 pm - usually dispatched on the same day
Item no. 21.13.1149-1
Brand / Manufacturer ROLINE
Manuf. no. 21.13.1149
EAN 7611990124695
Package weight 0.428 kg

Description

  • Support full wire speed copper-to-fiber media conversion for 10/100Mbit/s speed and media types
  • Tri-speed 10/100M/1Gbit/s copper to dual-speed 100M/1Gbit/s fiber conversion
  • Comply with IEEE 802.3, 802.3u, 802.3ab, 802.3z standard
  • Choice for SFPs for 100Base-FX (21.14.3499) or for Gigabit Ethernet (Mini-GBICs: 21.14.3500, 21.14.3501, 21.14.3502)
  • Support full wire speed conversion for Gigabit copper to Gigabit fiber SFP port
  • Support auto-negotiation with link partners
  • Supports auto-negotiation 10/100Mbps or forced mode on the copper port
  • Auto-MDI/MDIX on the copper port
  • Ideal solution for multimode, short reach up to long reach single mode fiber, Bi-Di applications
  • Provide dual-speed SFP on fiber port for mounting variety of fiber options
  • Provide important LFPT (Link Fault Pass Through) media converter function
  • Support Jumbo frame conversion
  • Energy efficient ethernet (EEE) support
  • Alarm events relay output
  • Operation temp. : - 20 ºC - +70 ºC

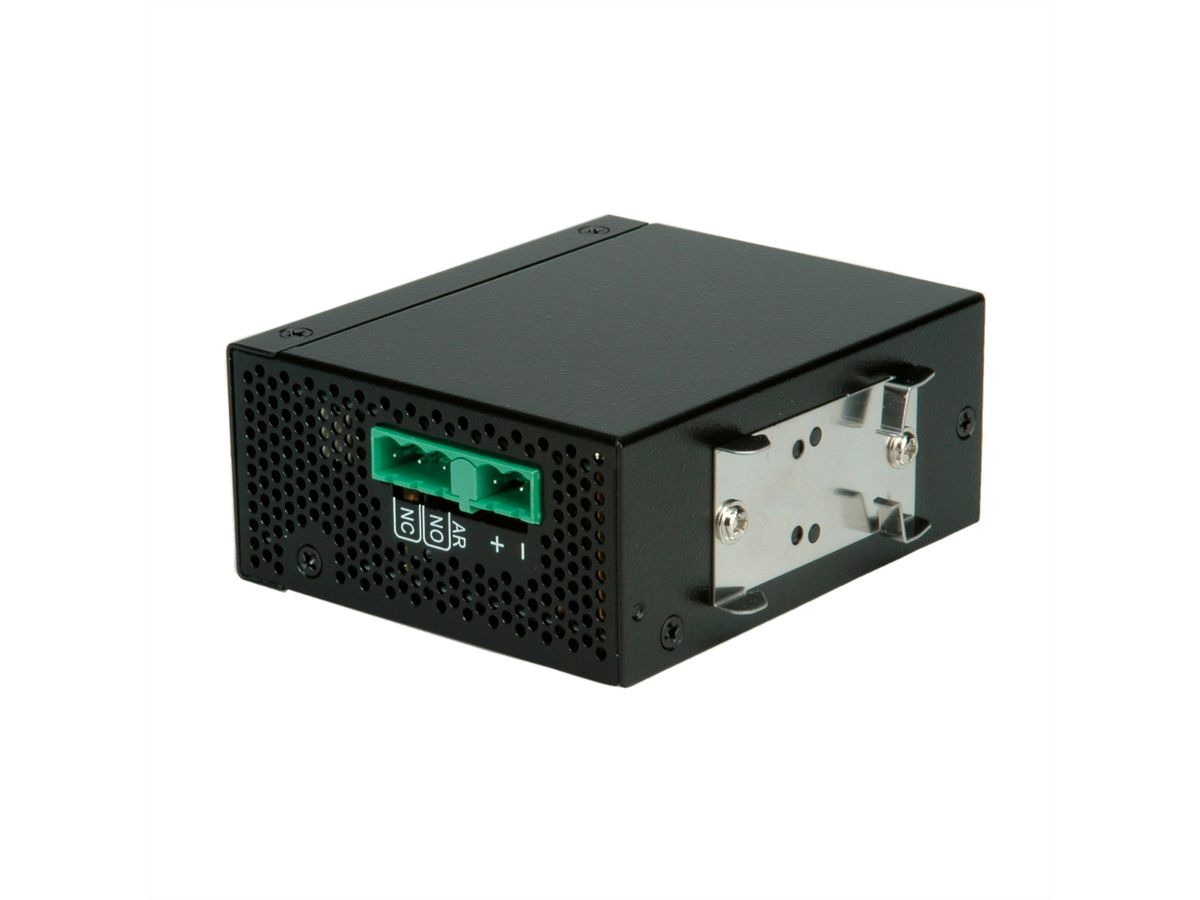

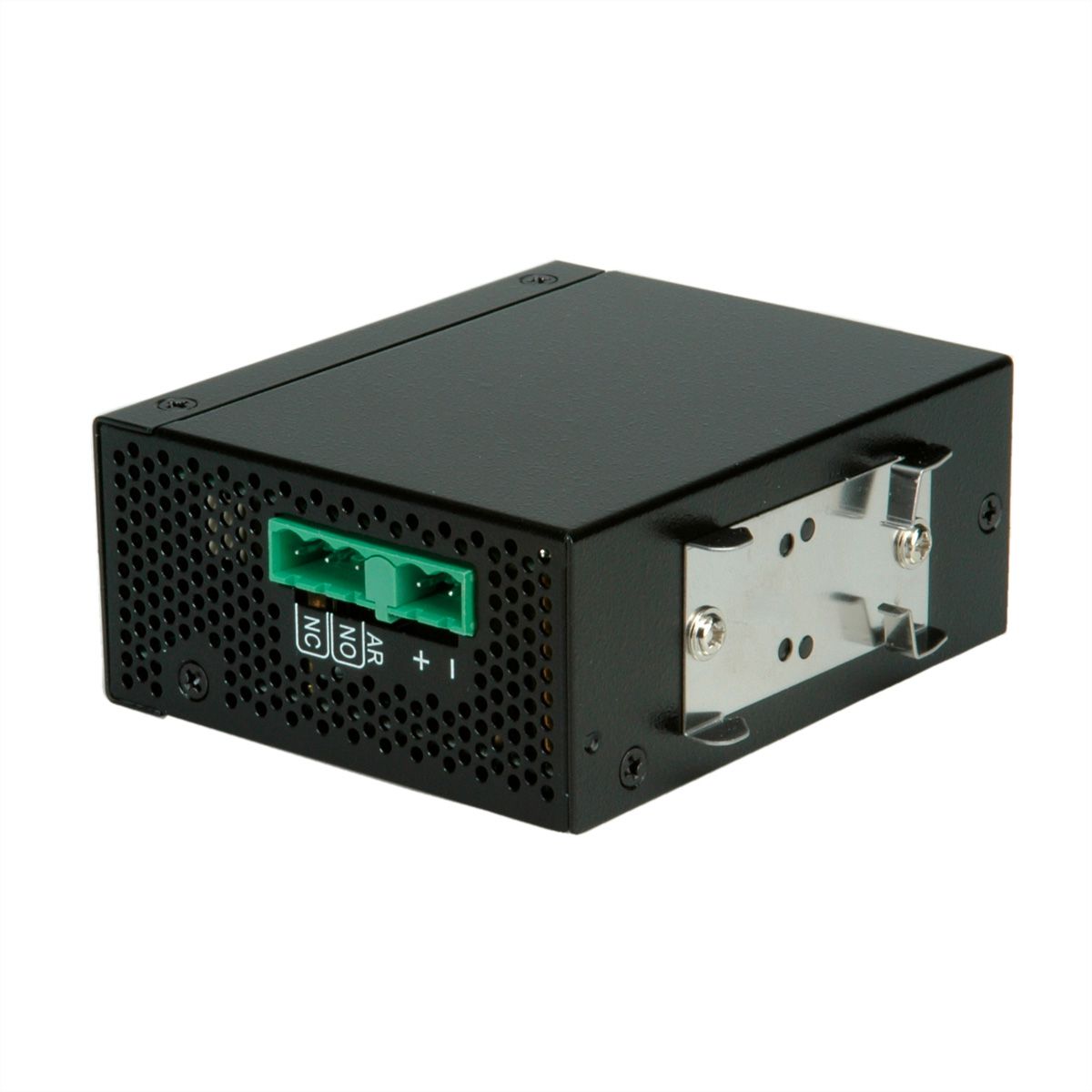

  • Supports DIN rail mounting
  • DC Input via terminal block
  • As PSU u order : 21.13.1311

Specifications

Manufacturer ROLINE
Product group Network converters
Product type Media Converter
Colour black
Operating temperature min. -40 °C
Operating temperature max. 75 °C
Height 95 mm
Width 40 mm
Depth 80 mm
Weight 314.4 g
Height of packaging (single piece) 70 mm
Width of packaging (single piece) 130 mm
Depth of packaging (single piece) 190 mm
Package weight (single piece) 0.428 kg

Downloads

Product data sheet - English (46.0 KB)

Download

Manufacturer data sheet - DATA SHEET - English (123.0 KB)

Download

The products of our own brand ROLINE are designed for professional continuous operation.

With a 2-year functional guarantee, we stand by our performance promise.

ROLINE – Quality makes the difference.
