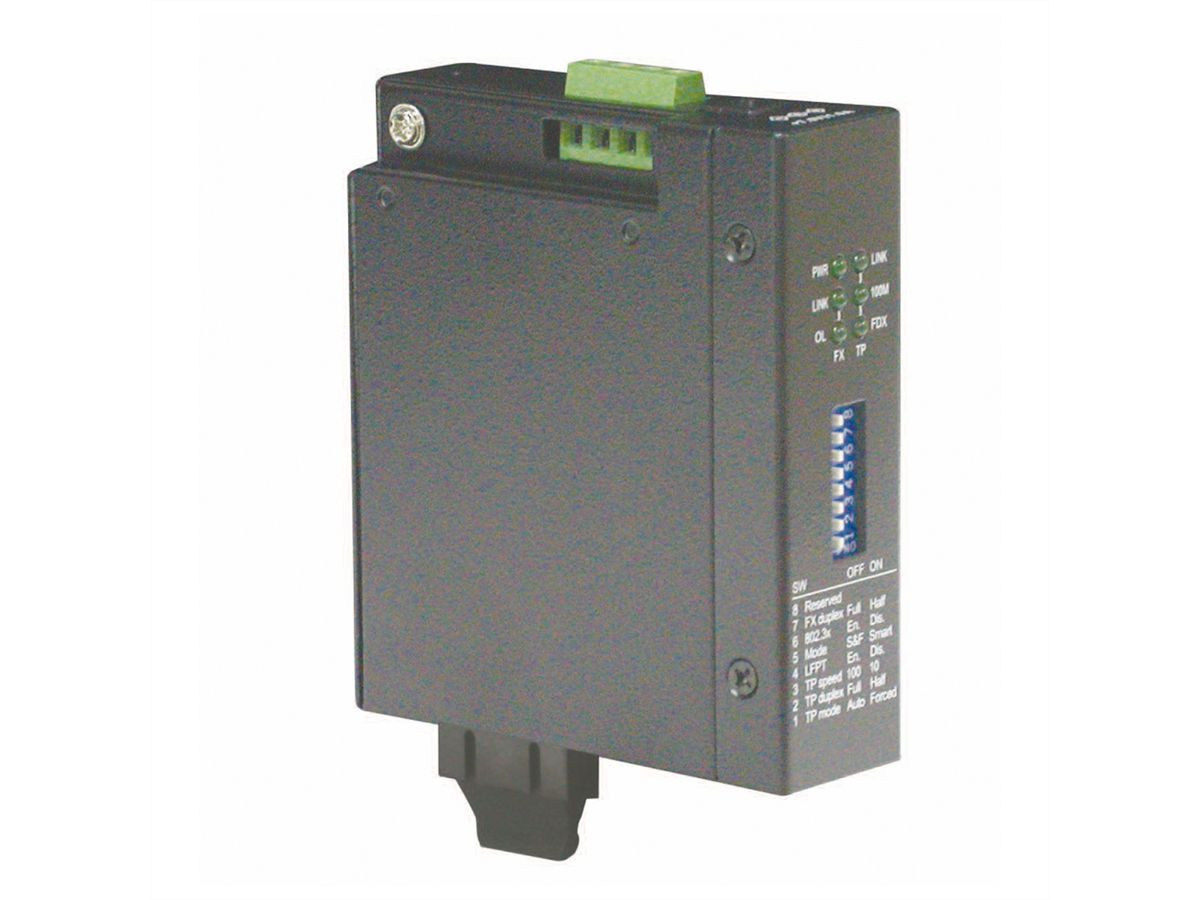

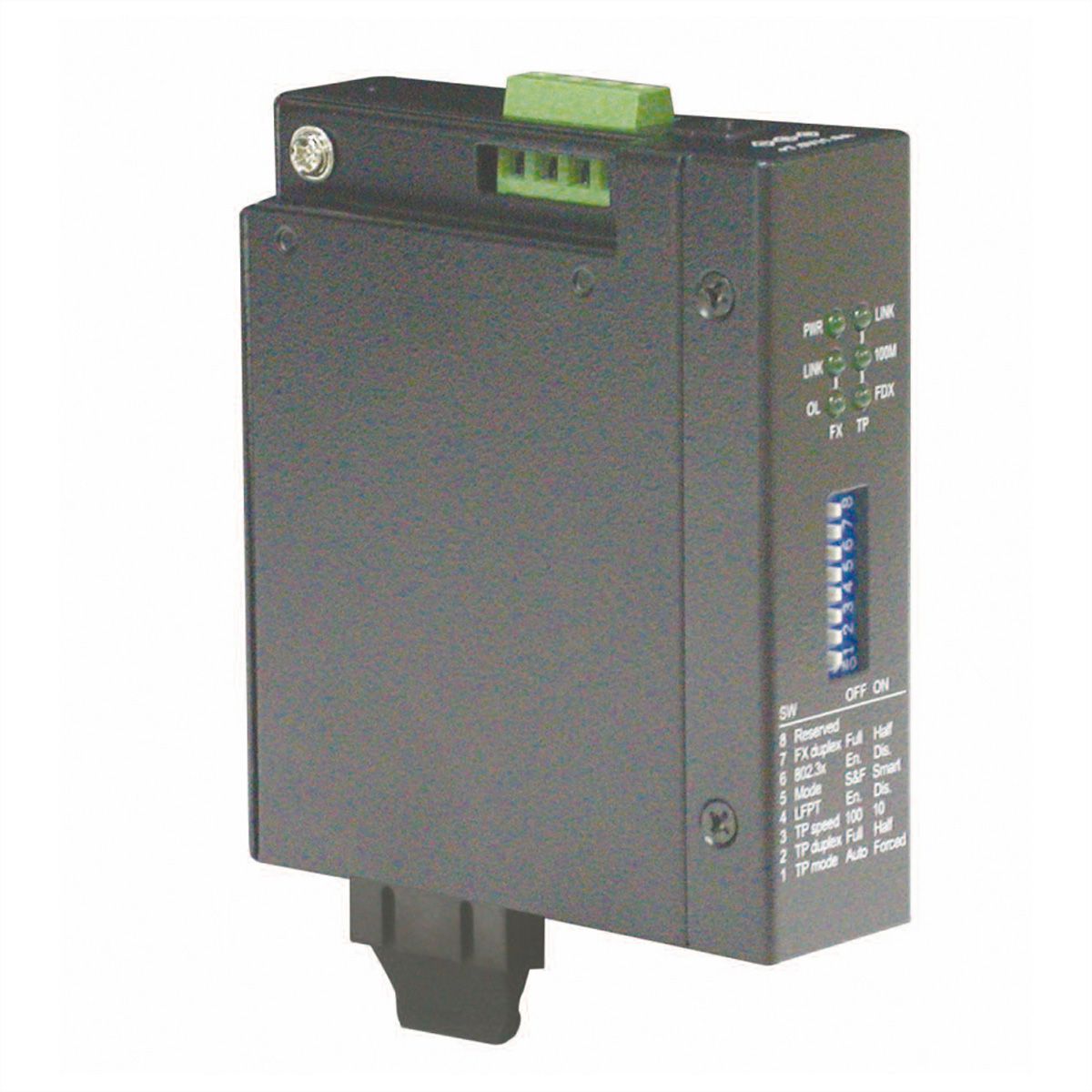

Description

• Support full wire speed copper-to-fiber media conversion for 10/100Mbit/s speed and media types
• Support auto-negotiation 10/100Mbps or forced mode on TP copper port
• Auto MDI/MDI-X crossover function on the TP copper port
• Provide Link Fault Pass Through function
• Provide comprehensive manual configuration settings
• Transparent conversion to 802.1Q VLAN tagged packets
• Provides Far End Fault function on FX (fiber) port
• Low power consumption
• DC Input via terminal block or DC power jack (6.3mm/2.0mm)
• Power: Input: 7 - 30V DC, Consumption: 2.6W (max.)
• Operating Temperature: - 10 °C - +70 °C
• Supports DIN rail mounting
• Industrial-rated Emission and Immunity performance
• Dimensions: 28 x 82 x 95 mm (WxDxH)
• As according Power Supply Unit we recommend 21.13.1226

Specifications

Manufacturer	ROLINE
Product group	Network converters
Product type	Media Converter
Colour	black
RJ-45 Port (Mbps/s)	10/100
Fibre Ports (Mbps)	100
Quantity of RJ45 ports	1
Quantity of fibre SC ports	1
Fibre	Multi mode
Ethernet fibre standard	100Base-FX
Max. range 50 µm fibre	2 km
Max. range 62,5 µm fibre	2 km
Managed	no
Operating temperature min.	-10 °C
Operating temperature max.	70 °C
Height	95 mm
Width	28 mm
Depth	82 mm
Weight	277.2 g
Height of packaging (single piece)	70 mm
Width of packaging (single piece)	130 mm
Depth of packaging (single piece)	160 mm
Package weight (single piece)	0.355 kg

Downloads

Product data sheet - English (39.1 KB)

Download

Manufacturer data sheet - English (1.7 MB)

Download
