Description

• Provides direct media conversion for Gigabit copper and Gigabit fiber
• Plug and play design with no configuration setting

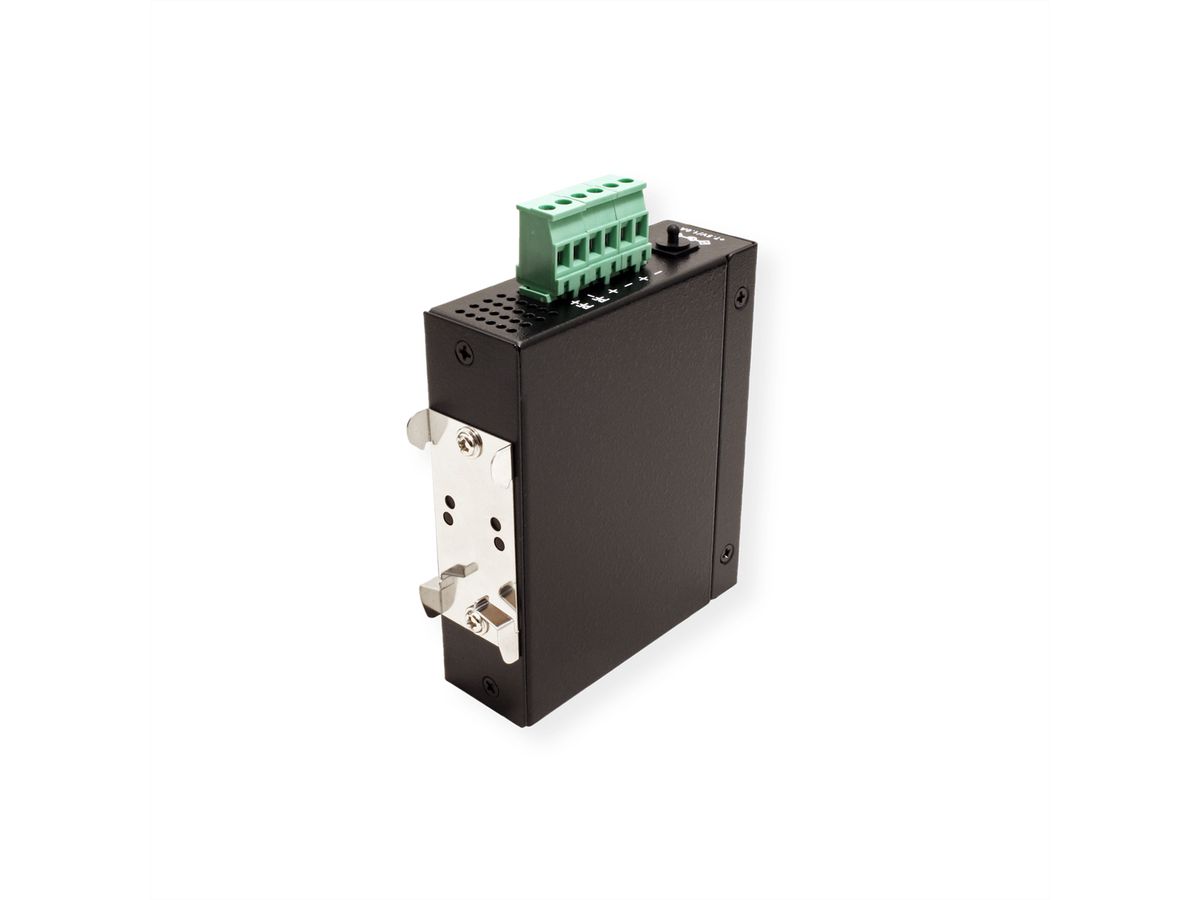

• Support DIN-rail mounting and panel mounting

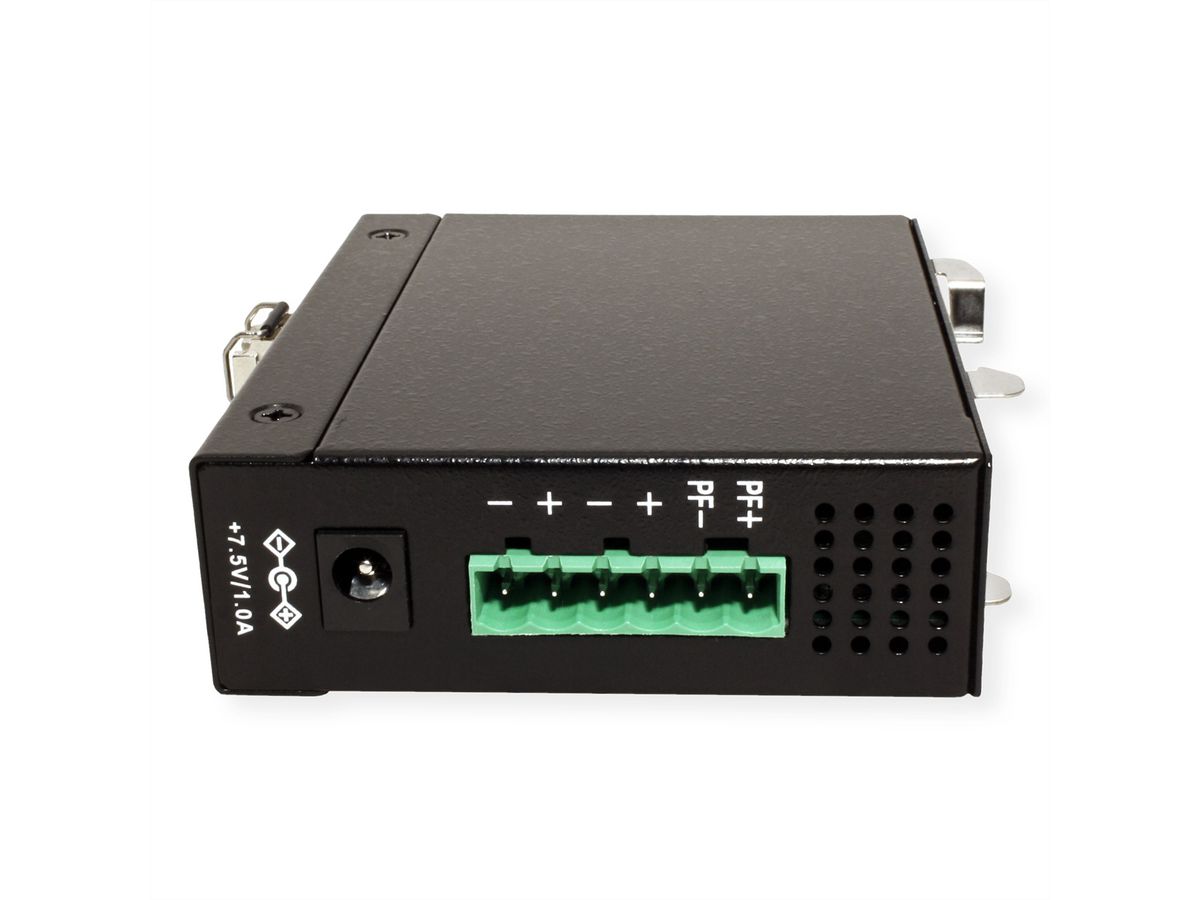

• Two power interface types: screw terminal block and DC Jack
• Low power consumption
• Support full wire speed conversion
• Support transparent conversion of any packet types with no packet length limitation
• Support auto-negotiation with link partners
• Provide link pass through between copper and fiber link
• Supports DIN-rail mounting
• Copper port:

- Shielded RJ-45,1000Mbps
- Auto-negotiation capable
- Auto-MDI/MDI-X crossover function

• Fiber port:

- SFP connector with pre-configured SFP fiber transceiver
- Far End Fault support

• Power: Input: 7 - 30V DC, consumption: 2,5W (max.)
• Operating Temperature: - 20 °C - +70 °C
• Dimensions: 28 x 82 x 95 mm (WxDxH)

Specifications

Manufacturer	ROLINE
Product group	Network converters
Product type	Media Converter
Colour	black
RJ-45 Port (Mbps/s)	1000
Fibre Ports (Mbps)	1000
Quantity of RJ45 ports	1
Quantity of fibre LC ports	1
Fibre	Multi mode
Ethernet fibre standard	1000Base-SX
Max. range 50 µm fibre	500 m
Max. range 62,5 µm fibre	220 m
Managed	no
Operating temperature min.	-20 °C
Operating temperature max.	70 °C
Height	95 mm
Width	28 mm
Depth	82 mm
Weight	279.55 g
Height of packaging (single piece)	70 mm
Width of packaging (single piece)	130 mm
Depth of packaging (single piece)	170 mm
Package weight (single piece)	0.346 kg

Downloads

Product data sheet - English (46.5 KB)

Download

Manufacturer data sheet - English (567.0 KB)

Download
