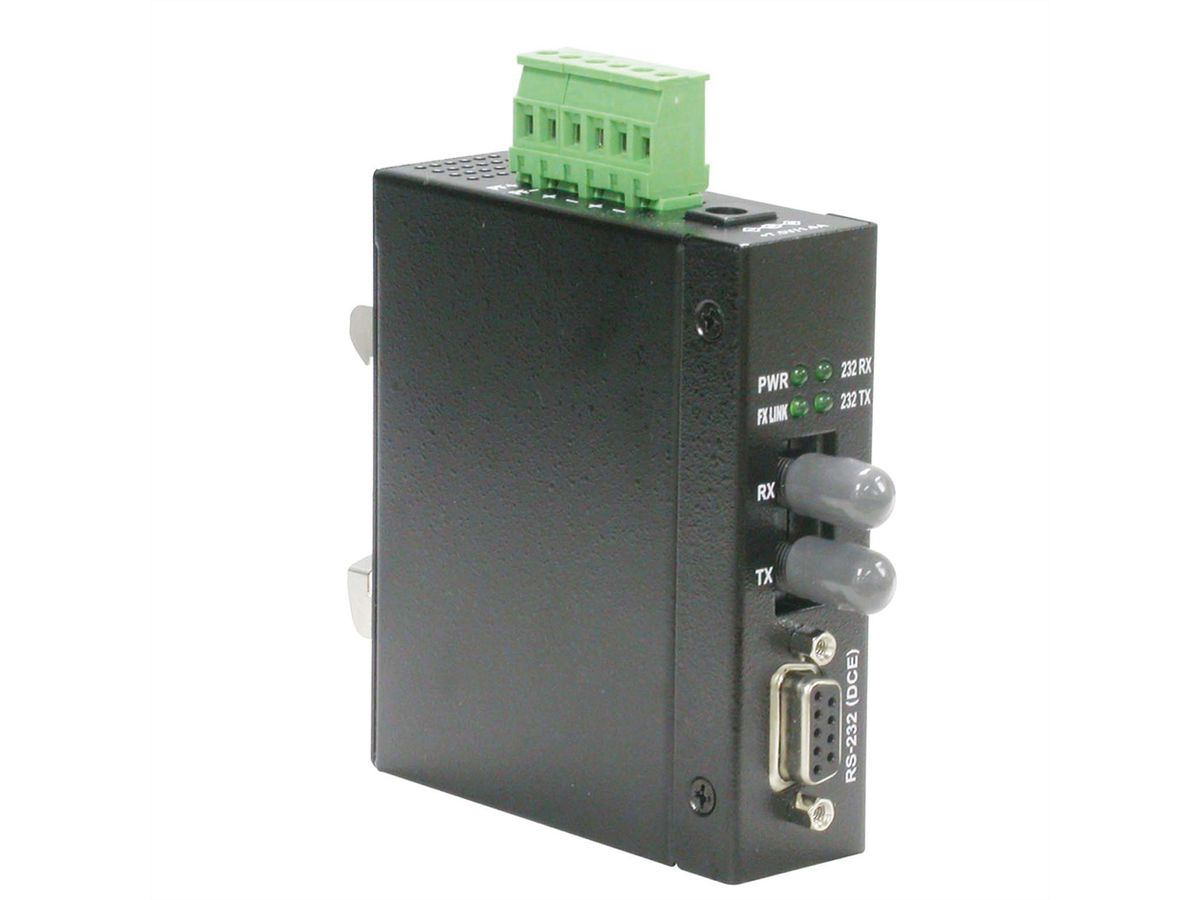

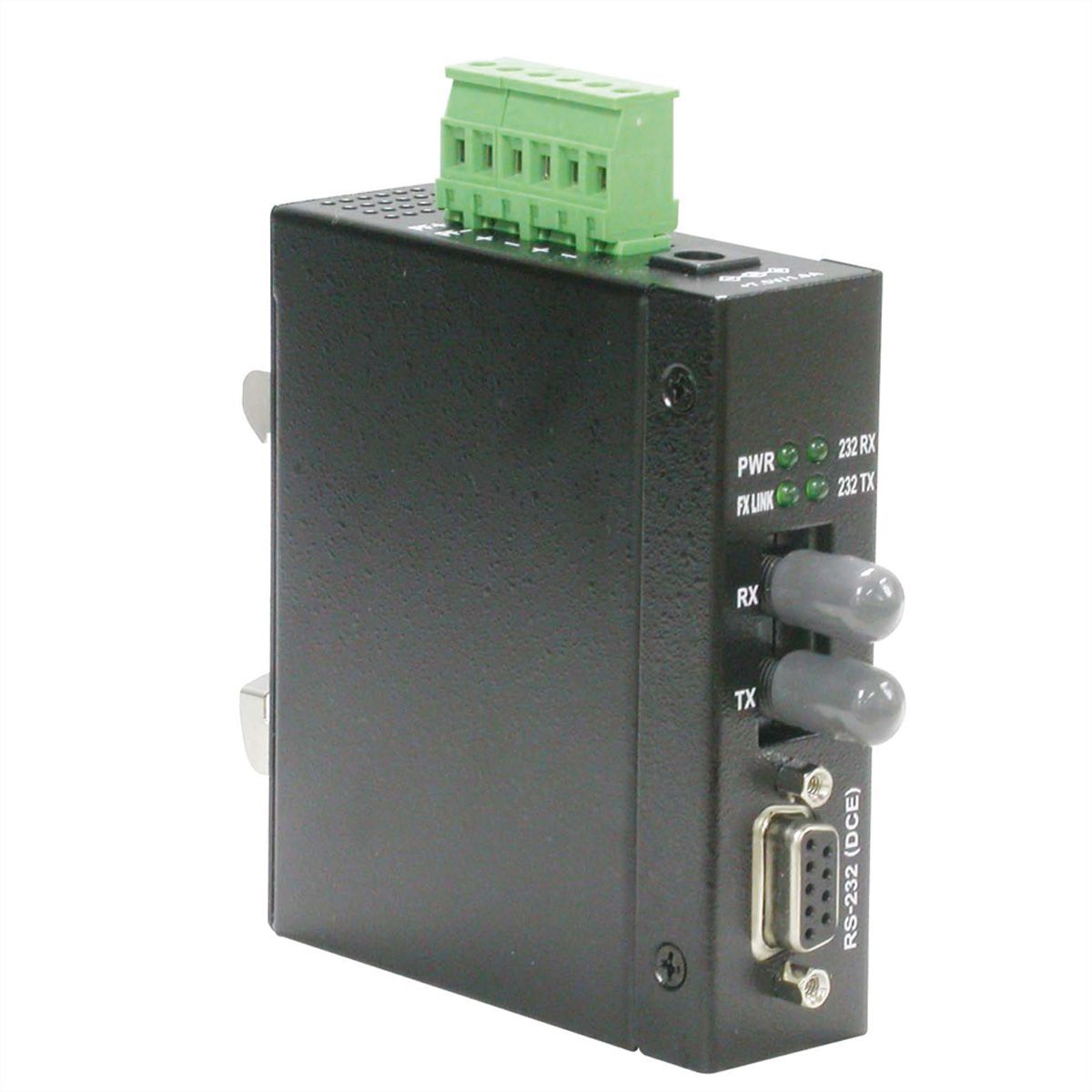

ROLINE Industrial Converter RS232 - Multimode Optical Fiber, ST
Item no.
21.13.1140-1
Brand / Manufacturer
ROLINE
Manuf. no.
21.13.1140
EAN
7611990176632
Package weight
0.336 kg
:strip_icc():strip_exif()/logos/roline.png "ROLINE")
Please log in to be able to use the shopping cart and then complete orders.
Log in
Available
Ordered until 3 pm - usually dispatched on the same day
Description

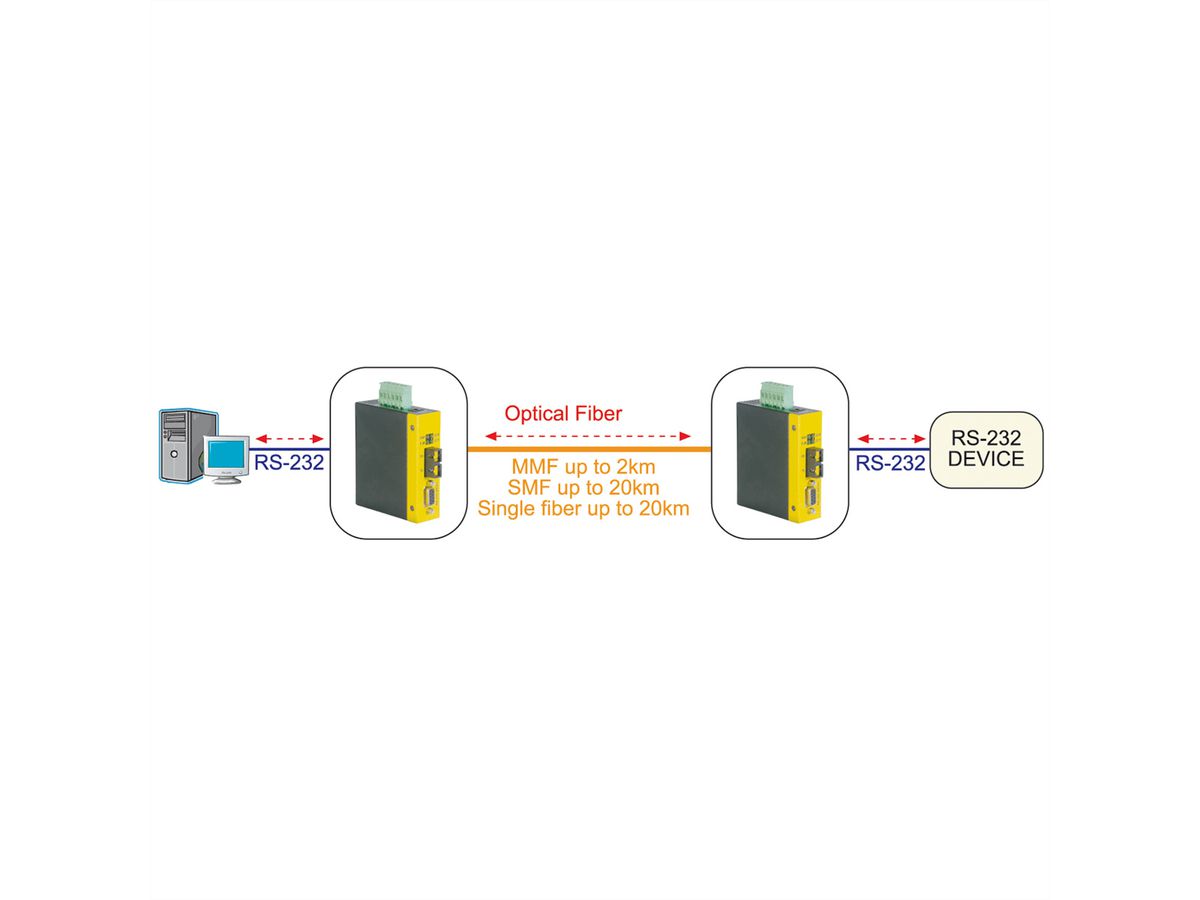

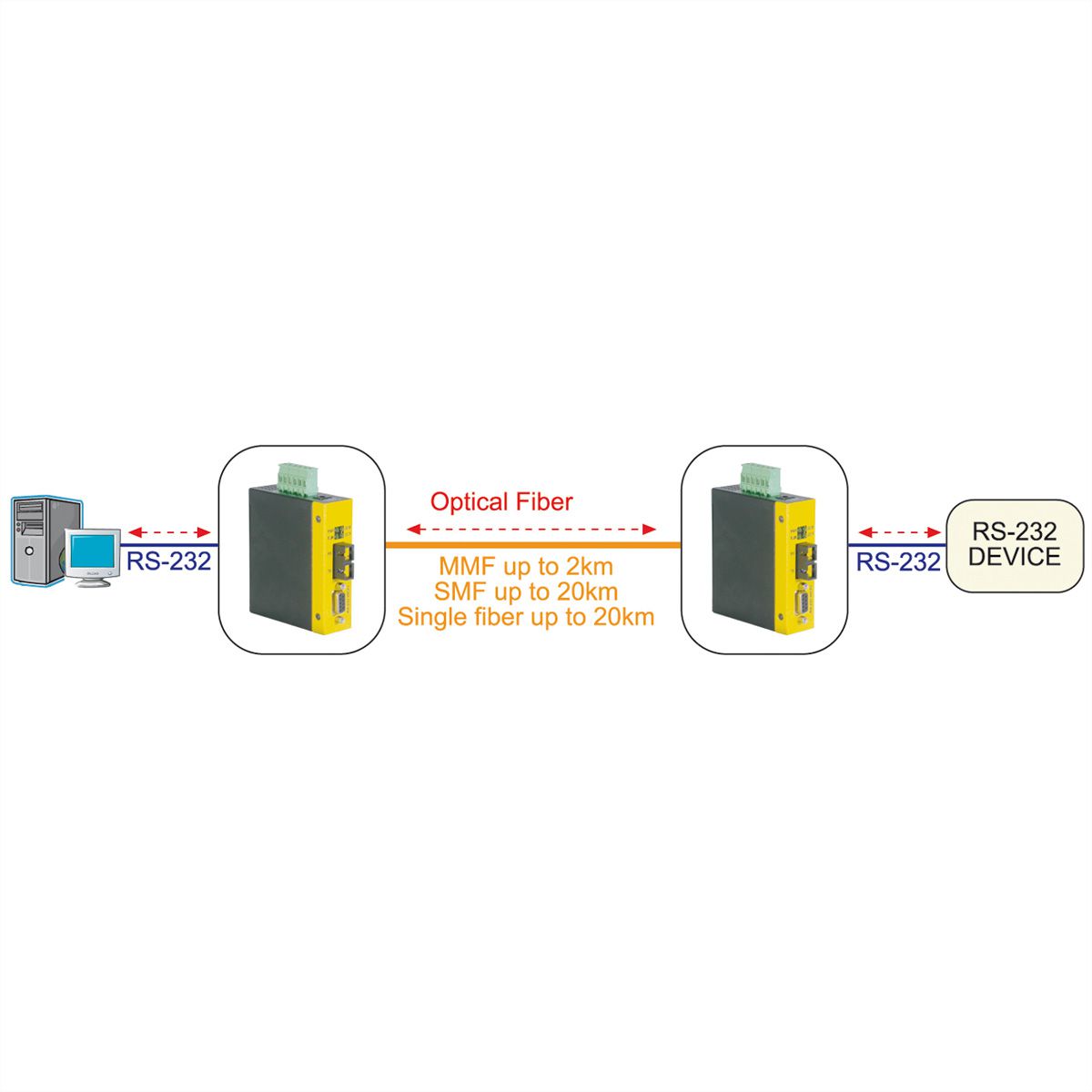

The converter is designed to provide the most versatile connection possible between 2 RS-232 serial equipment using fiber optic cable.
The converter supports transparent conversion for not only RS-232 data lines, but also all RS-232 control signals. It also supports all RS-232 baud rates with no need for user configuration. The Din-rail mountable design makes it ideal for industrial cabinets and enclosures. Further, more designs such as signal protection, wide operating temperature range, wide power voltage range are also provided to suit for more industrial applications.
- Transparent conversion for all RS-232 signals
- Designed for industrial environments with:
- DIN-rail mounting support
- Wide power voltage range support
- Terminal block and DC plug (6.3 mm/2.0 mm) power connectors
- Wide operating temperature range
- Industrial-rated emission and immunity performance
- Fanless, rugged metal housing
- Power: Input: 7-30 VDC (2.4 W max.)
- Operating Temperature: - 20 °C - +70 °C
- As according power supply we recommend using DIN-rail power supply unit 21.13.1226
Specifications
- Manufacturer
- ROLINE
- Product group
- Network converters
- Product type
- Media Converter
- Colour
- black
- Scope of delivery
- 1x converter, 1x terminal block, 1x product CD-ROM
- Quantity of fibre ST ports
- 1
- Fibre
- Multi mode
- Max. range 50 µm fibre
- 2 km
- Max. range 62,5 µm fibre
- 2 km
- Managed
- no
- Operating temperature min.
- -20 °C
- Operating temperature max.
- 70 °C
- Weight
- 266.85 g
- Height of packaging (single piece)
- 70 mm
- Width of packaging (single piece)
- 130 mm
- Depth of packaging (single piece)
- 170 mm
- Package weight (single piece)
- 0.336 kg
