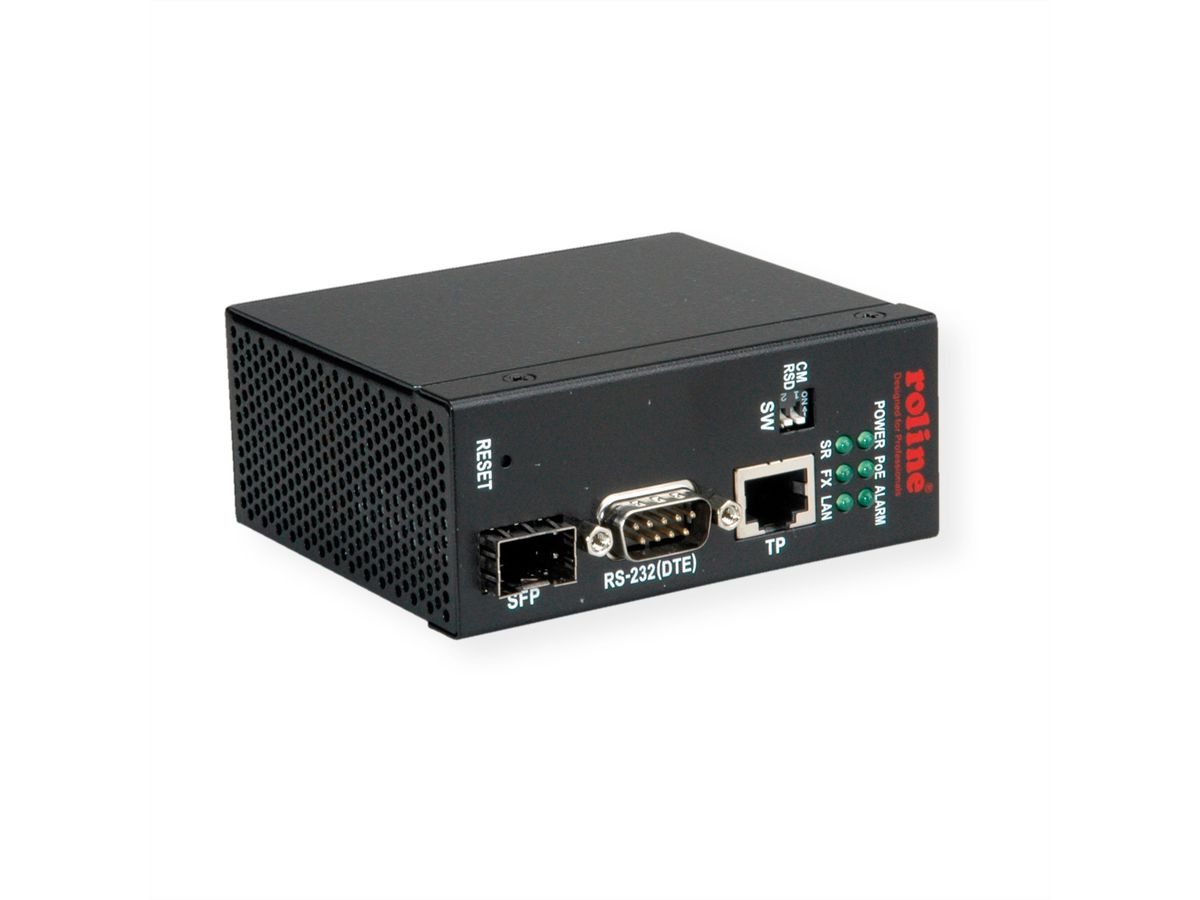

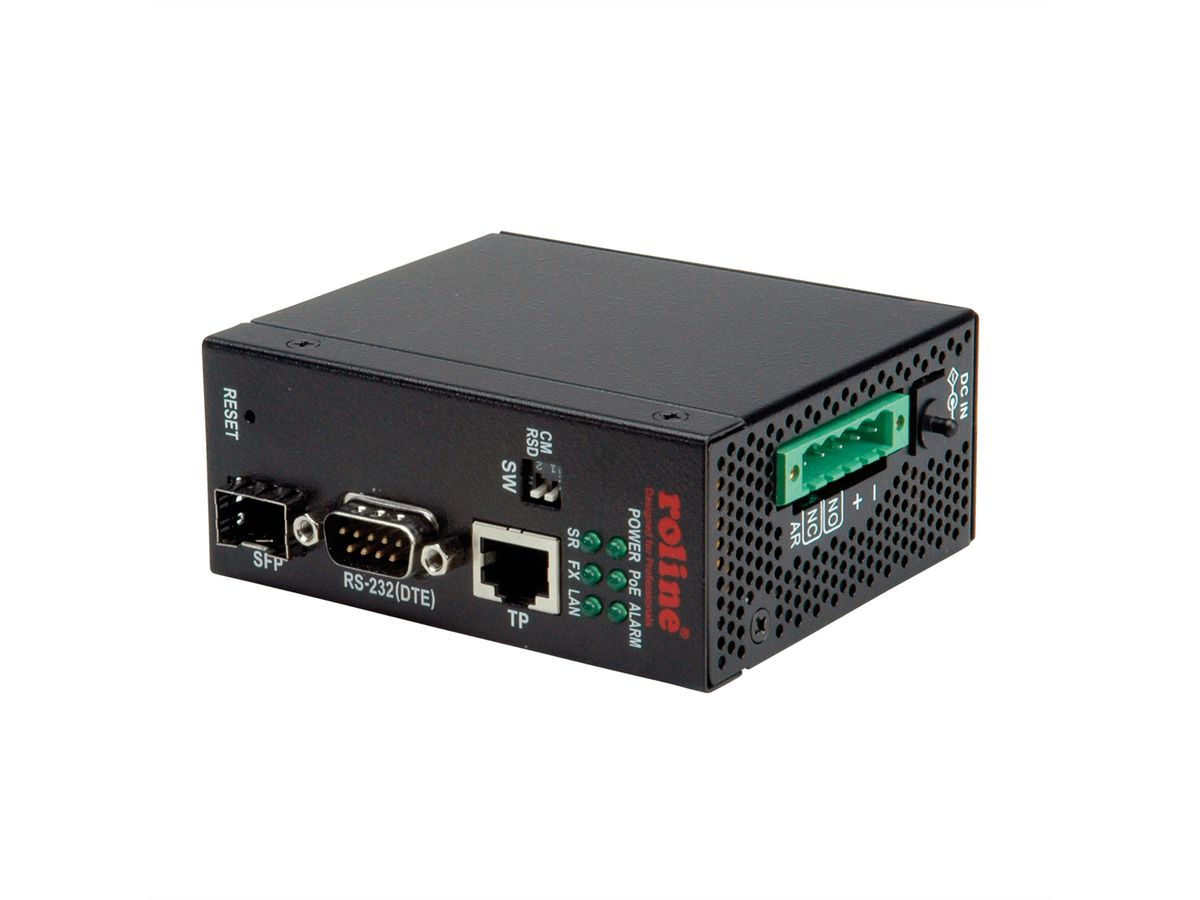

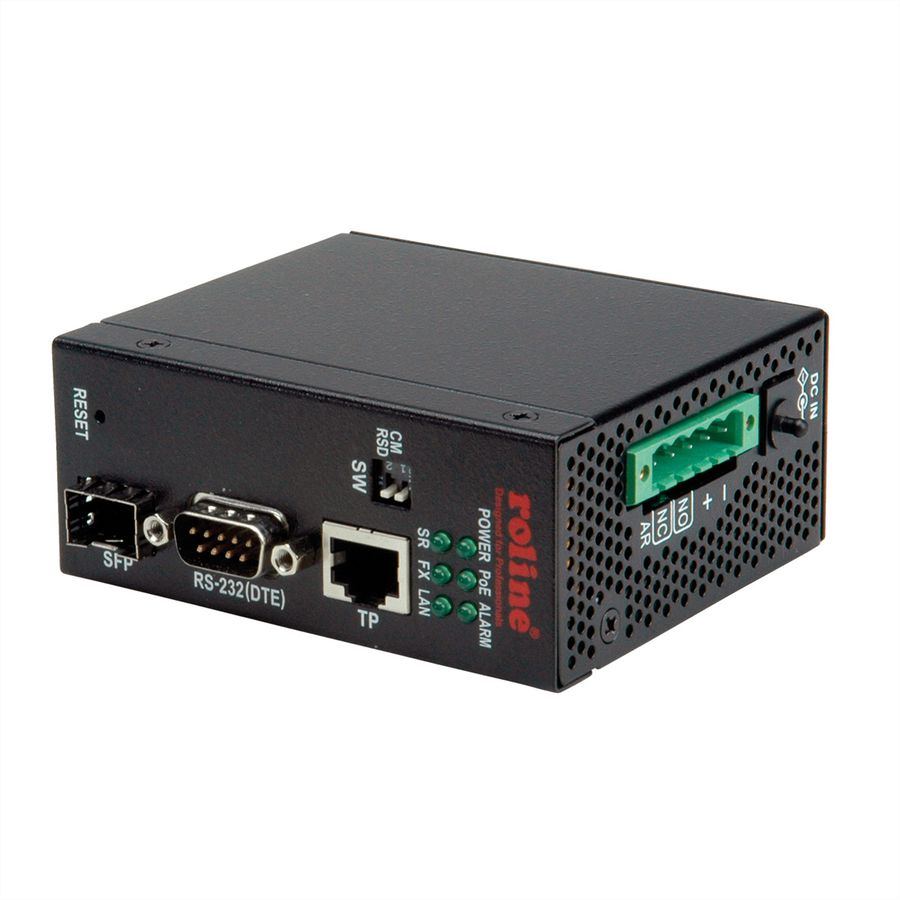

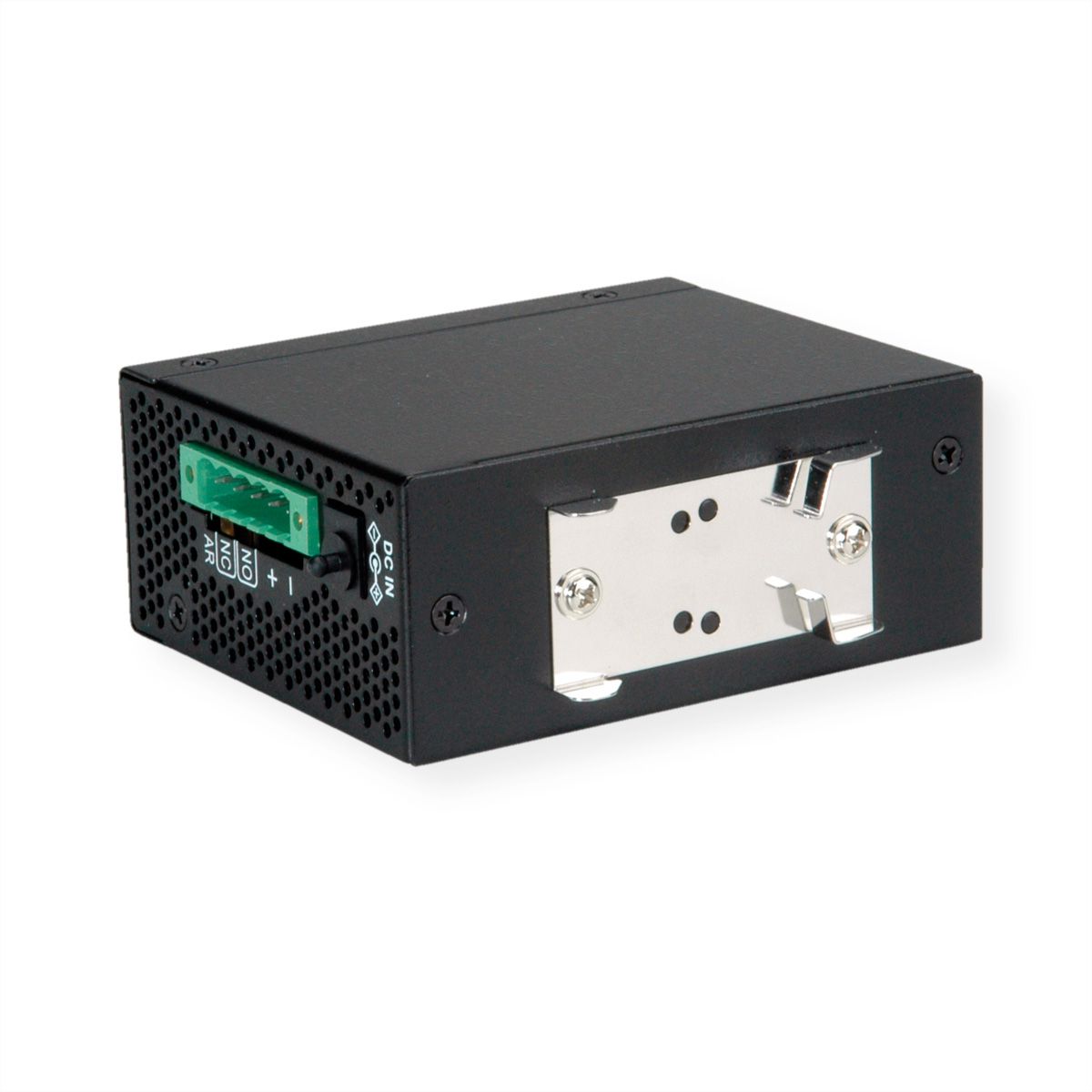

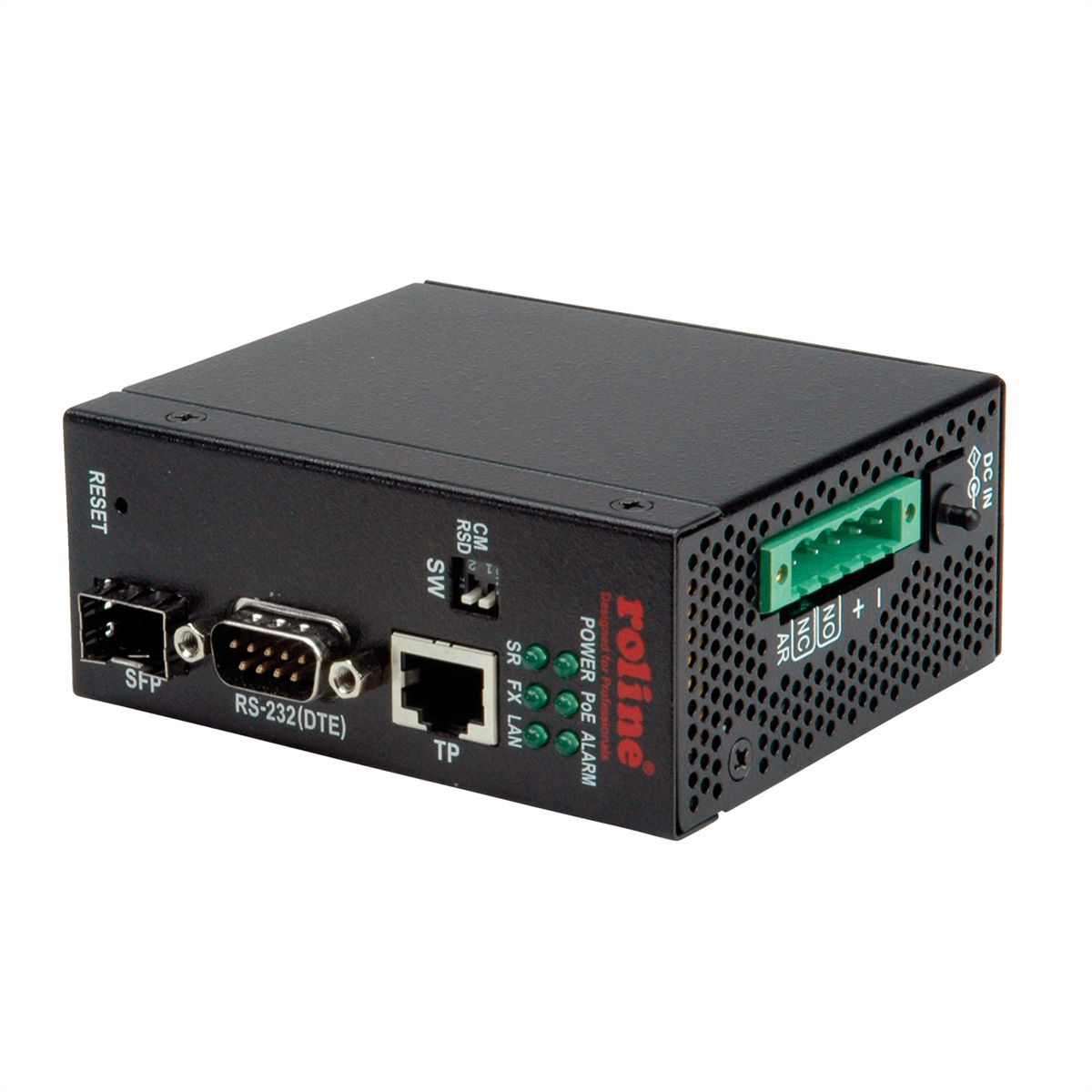

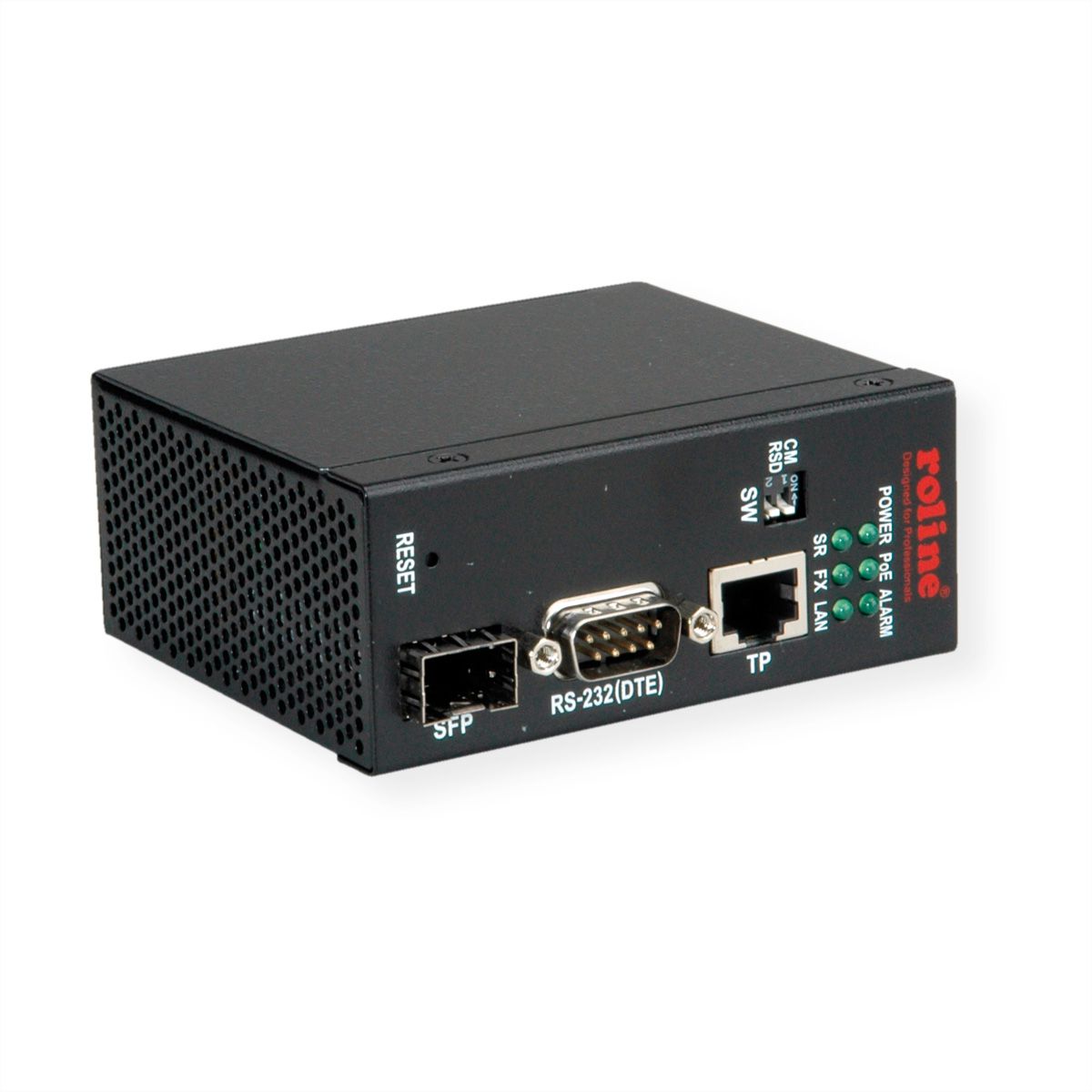

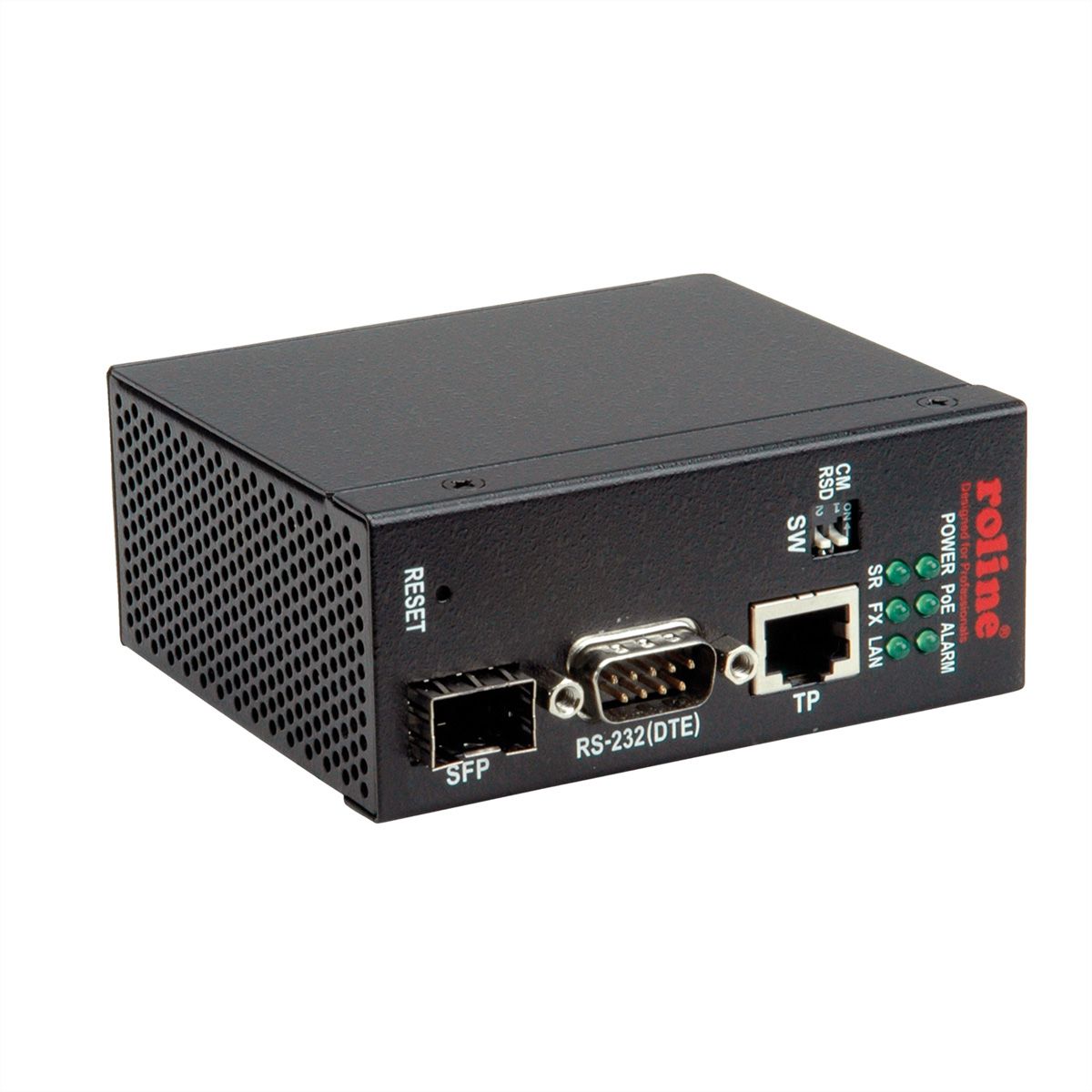

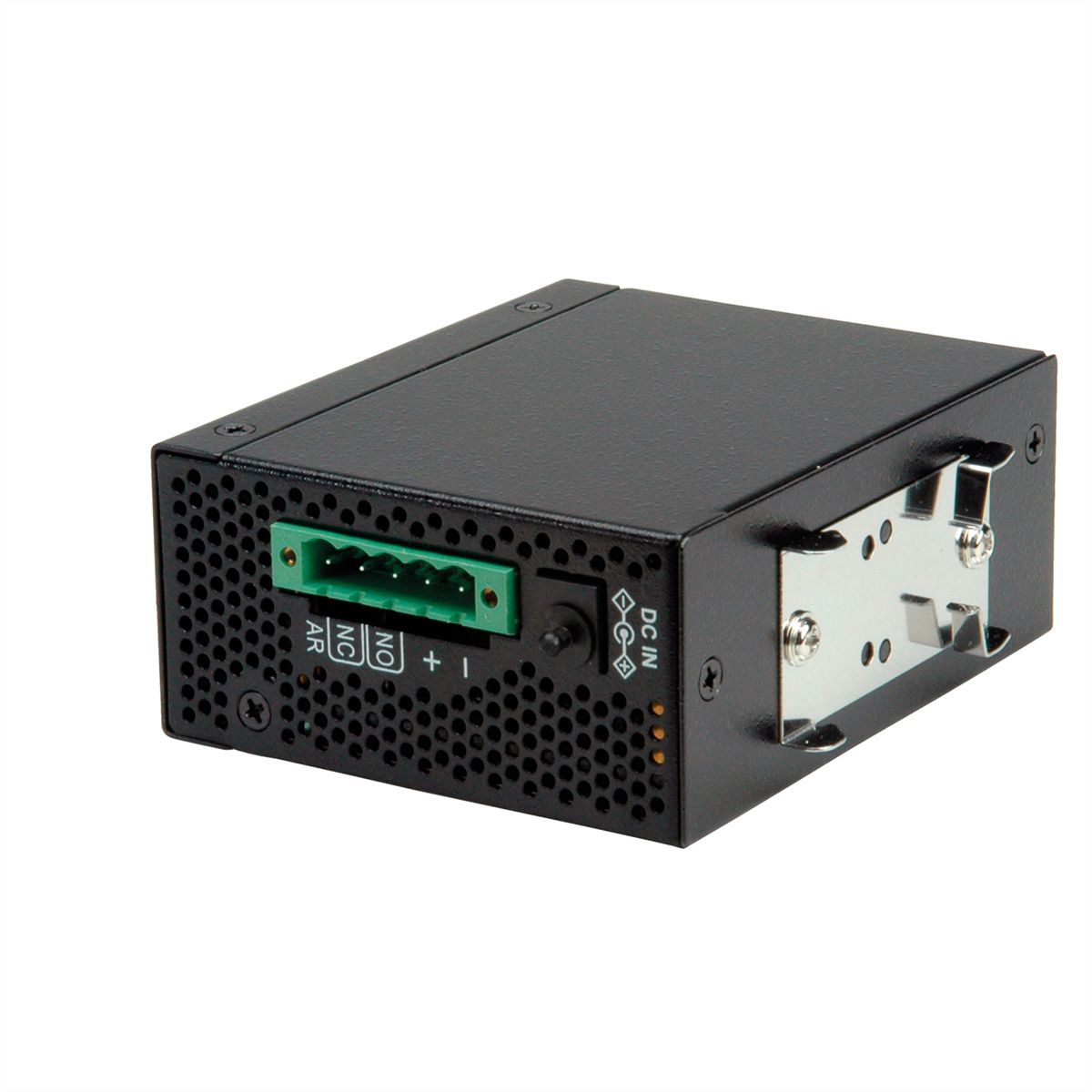

ROLINE Industrial Ethernet to Serial Media Converters (RS-232), 1x SFP
Please log in to be able to use the shopping cart and then complete orders.
Log in| Item no. | 21.13.1138-1 |
|---|---|
| Brand / Manufacturer | ROLINE |
| Manuf. no. | 21.13.1138 |
| EAN | 7611990176366 |
| Package weight | 0.403 kg |
:strip_icc():strip_exif()/logos/roline.png "ROLINE")
Description

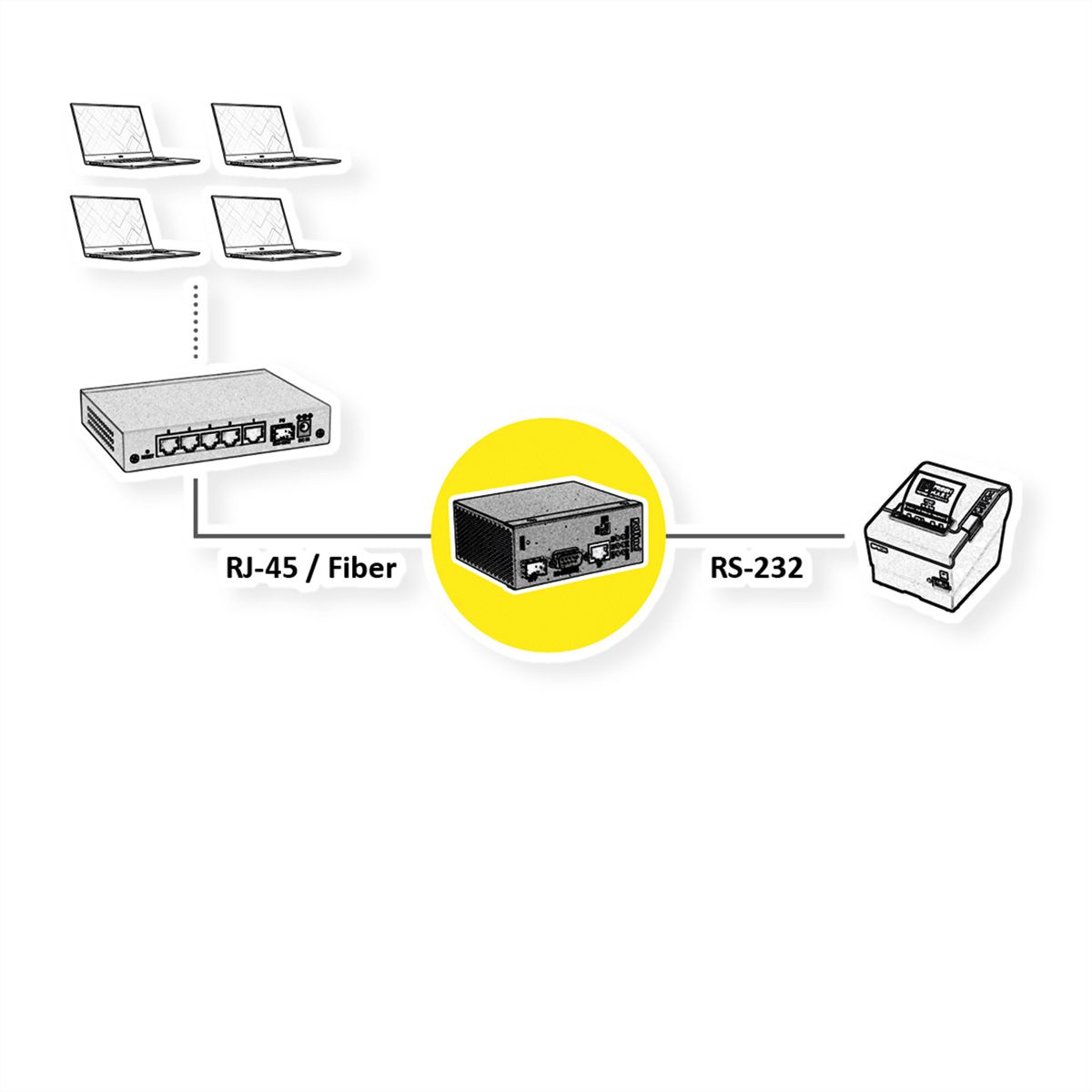

Network media converter from Ethernet (RJ-45) to serial (RS-232), for use in industrial environments - including an additional SFP port!
- Ethernet interface provides combo port of 10/100Mbps copper RJ-45 and 100M fiber SFP slot
- Serial interface RS-232
- Serial port supports baud-rate up to 230400bps
- Galvanic isolation on serial interface
- Data conversion throughput up to 230Kbps
- Wide range of direct power voltage support, DC 8V-60V
- Powered over Ethernet through RJ-45 interface (PoE-enabled)
- Alarm relay output for power failure, port link down and failure in connecting to server
- Application support for remote COM port, serial server over TCP, reverse telnet, pair connection, and serial broadcast
- Remote COM driver support for Windows PC
- Web-based and serial-based console configuration
- Event notification over SMTP and SNMP traps
- Designed for industrial environments with:
- Fanless, rugged metal housing
- Power: Input: 8 - 60 VDC
- Power over Ethernet:
- Operating Temperature: - 30 °C - +70 °C
Specifications
| Manufacturer | ROLINE |
|---|---|
| Product group | Network converters |
| Product type | Media Converter |
| Colour | black |
| Quantity of fibre ST ports | 1 |
| Fibre | Multi mode |
| Managed | no |
| Operating temperature min. | -30 °C |
| Operating temperature max. | 70 °C |
| Weight | 305.1 g |
| Height of packaging (single piece) | 70 mm |
| Width of packaging (single piece) | 130 mm |
| Depth of packaging (single piece) | 150 mm |
| Package weight (single piece) | 0.403 kg |
