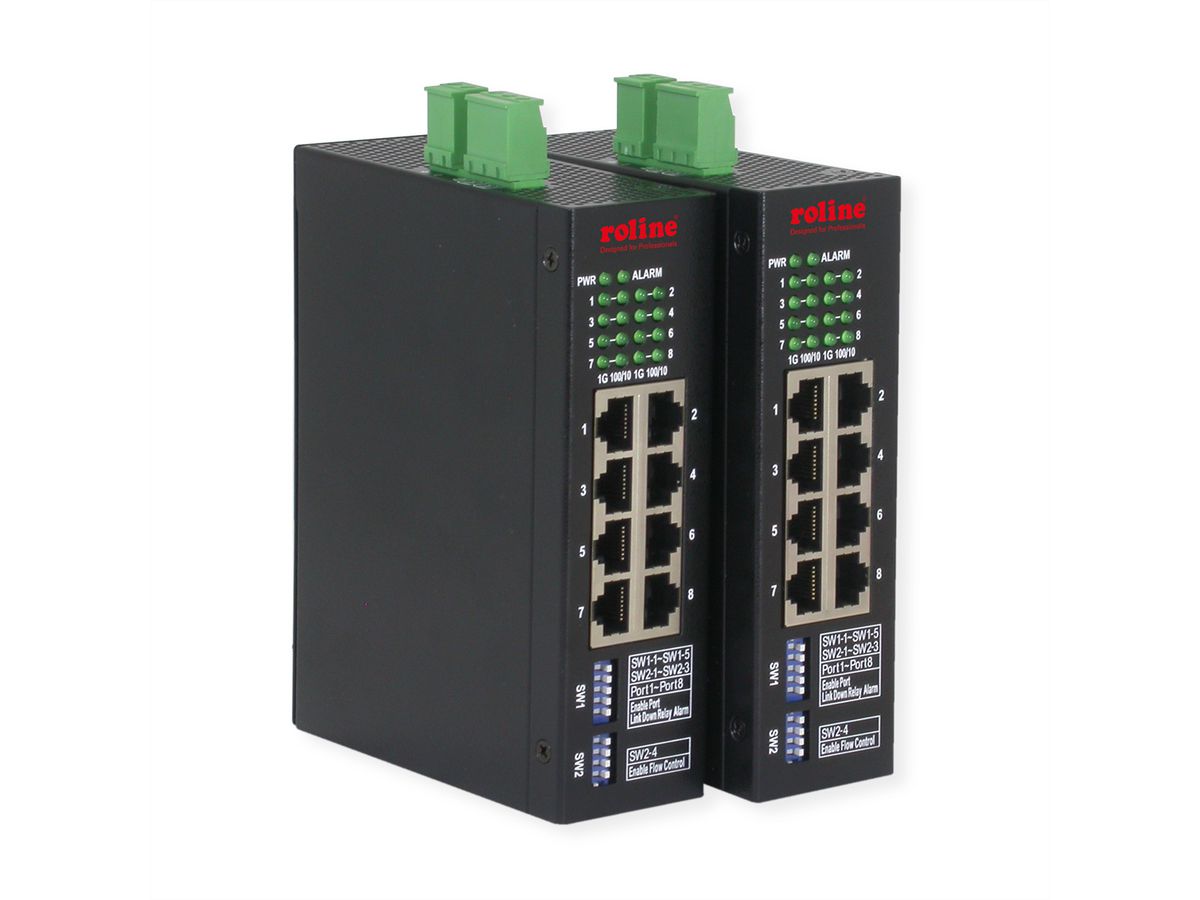

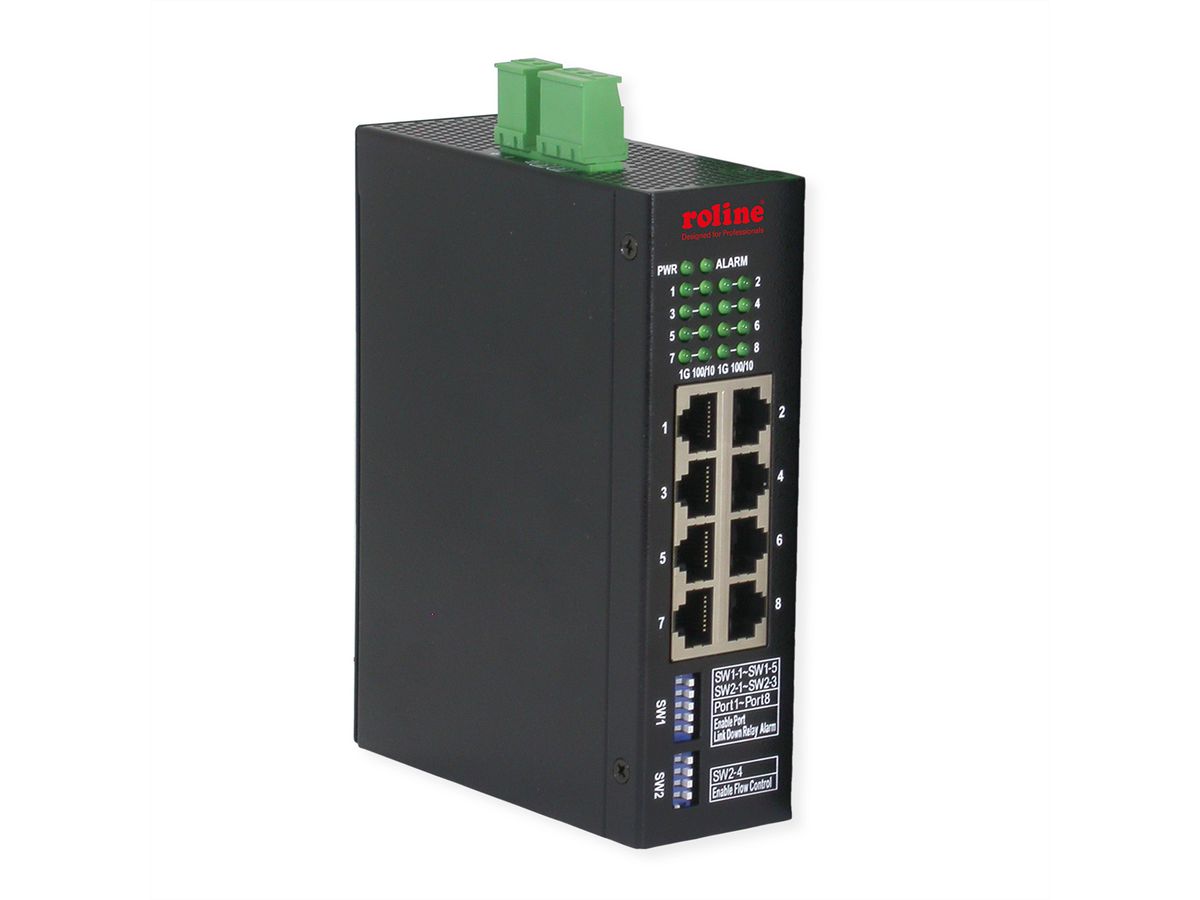

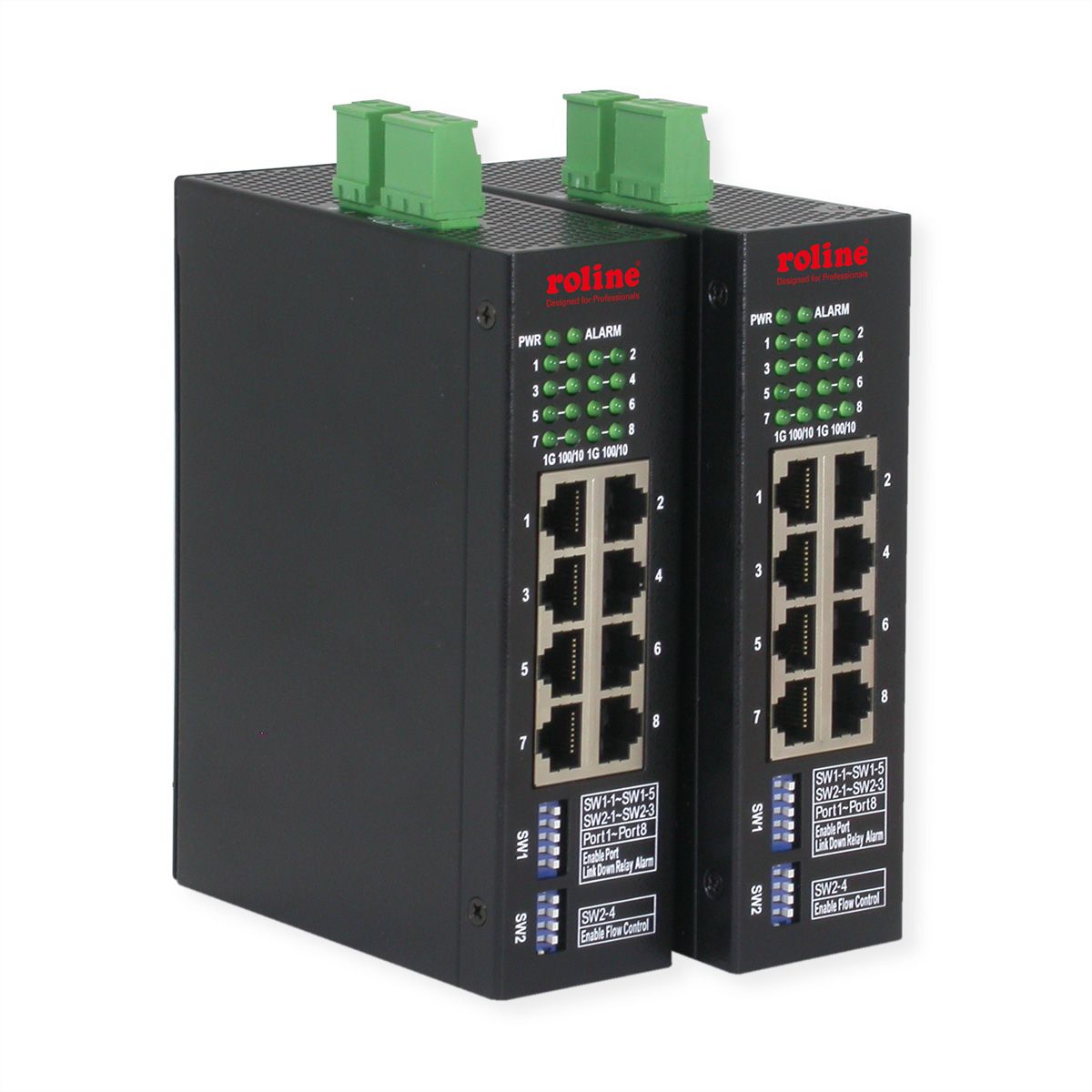

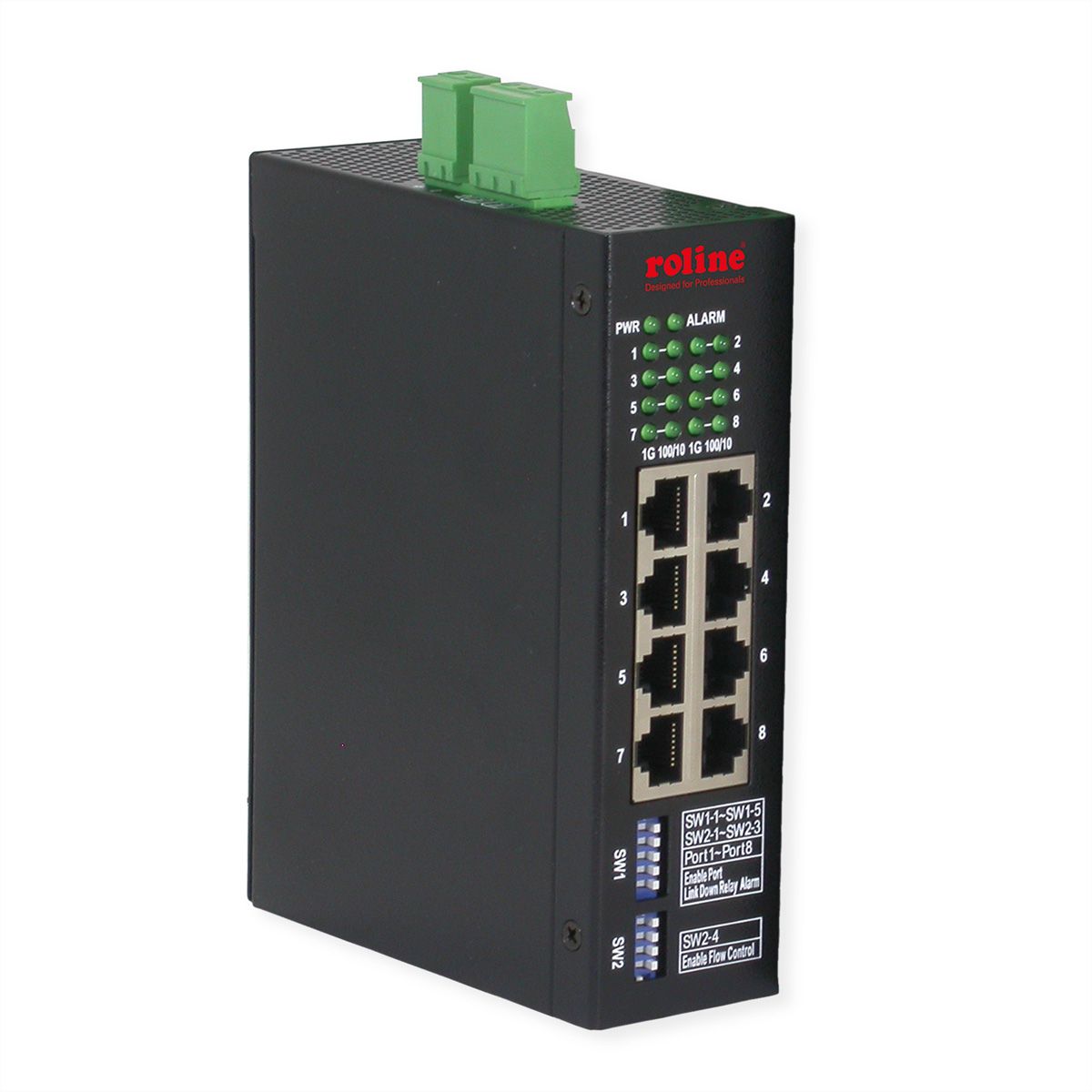

ROLINE Industrial Managed 8-Port L2 Gigabit Ethernet Switch

Please log in to be able to use the shopping cart and then complete orders.

Available

Ordered until 3 pm - usually dispatched on the same day

Description

Provides 8 10/100/1000Mbps copper ports
Complies with IEEE 802.3, 802.3u, 802.3ab, 802.3x and 802.3az standards
Auto-negotiation / Auto MDI/MDI-X crossover function
Supports IEEE 802.3x flow control for full duplex
Supports back pressure flow control for half duplex
Fully non-blocking Gigabit full wire speed switching performance
Jumbo frame support (9.6K bytes)
Alarm relay output for power failure event and software configured port link fault events
802.1Q VLAN / QoS (Quality of Service) function
Port mirroring / IGMP snooping function
Web management
SNMP MIB-II support and trap function
Wide operating temperature range
Supports IEEE 802.3az Energy Efficient Ethernet
Supports DIN-Rail mounting and panel mounting
LED Indication Unit: Power status, per port: Speed/Link/Activity
Metal casing

Manufacturer	ROLINE
Product group	Network Switches
Product type	Gigabit Ethernet Switch
Colour	black
Scope of delivery	Switch, manual
Network standard	Gigabit Ethernet
LAN (Mbps)	10/100/1000
Quantity of ports	8
Gigabit Ethernet Ports RJ-45	8
Mounting form	DIN Rail
Management	Smart
Stackable	no
Dimensions (HxWxD)	140 x 42 x 106 mm
Power supply unit (internal/external)	External
Mains connection	Loose cable / screw terminals
Height	140 mm
Width	42 mm
Depth	106 mm
Weight	535.5 g
Height of packaging (single piece)	60 mm
Width of packaging (single piece)	170 mm
Depth of packaging (single piece)	210 mm
Package weight (single piece)	0.4 kg
