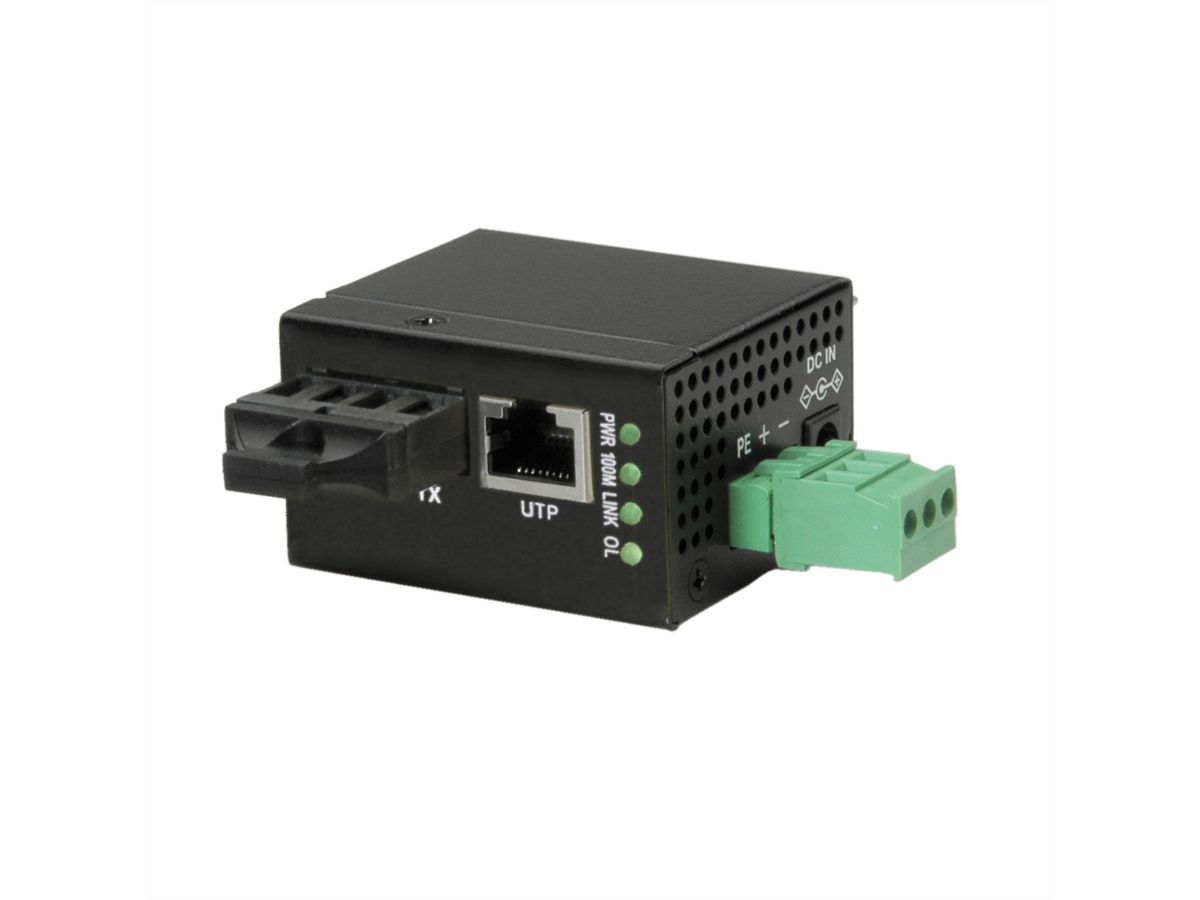

ROLINE Industrial Mini Converter, 10/100TX - 100FX (SC)

ROLINE Industrial Mini Converter, 10/100TX - 100FX (SC)

Please log in to be able to use the shopping cart and then complete orders.

Log in
Available
Ordered until 3 pm - usually dispatched on the same day
Item no. 21.13.1147-1
Brand / Manufacturer ROLINE
Manuf. no. 21.13.1147
EAN 7611990197026
Package weight 0.222 kg

Description

Network converter for use in industrial environments

  • Support full wire speed copper-to-fiber media conversion for 10/100Mbit/s speed and media types
  • Supports auto-negotiation 10/100Mbps or forced mode on the copper port
  • Auto-MDI/MDIX on the copper port
  • Provides Link Fault Pass Through function
  • Transparent conversion to 802.1Q VLAN tagged packets
  • Provides Far End Fault function on FX (fiber) port
  • The optimal latency for 100Mbit/s to 100Mbit/s conversion
  • Low power consumption
  • Power: Input: +4.5 - 50 VDC, Consumption: 1.6 W@ 7.5 V, 1.6 W@ 12 V, 2 W@ 48 V
  • Supports DIN rail mounting
  • Compact design for easy installation in enclosure and chassis
  • Supports wide operating temperature range
  • Industrial-rated emission and immunity performance
  • DC Input via terminal block or DC power jack
  • Dimensions: 34 x 49 x 56 mm (WxDxH)
  • Operating Temperature: - 20 °C - +70 °C
  • As according power supply unit we recommend NDR-75-24 (21.13.1311)

Specifications

Manufacturer ROLINE
Product group Network converters
Product type Media Converter
Colour black
Operating temperature min. -20 °C
Operating temperature max. 70 °C
Height 56 mm
Width 34 mm
Depth 49 mm
Weight 151.2 g
Height of packaging (single piece) 80 mm
Width of packaging (single piece) 130 mm
Depth of packaging (single piece) 170 mm
Package weight (single piece) 0.222 kg

Downloads

Product data sheet - English (30.6 KB)

Download

Manufacturer data sheet - English (1.1 MB)

Download
