The products of our own brand ROLINE are designed for professional continuous operation.
With a 2-year functional guarantee, we stand by our performance promise.
ROLINE – Quality makes the difference.
:strip_icc():strip_exif()/bilder/s21/21131156_093.jpg "ROLINE Industrial Switch, 8x RJ-45, unmanaged")
:strip_icc():strip_exif()/bilder/s21/21131156_2015_b_1_hi.jpg "ROLINE Industrial Switch, 8x RJ-45, unmanaged")

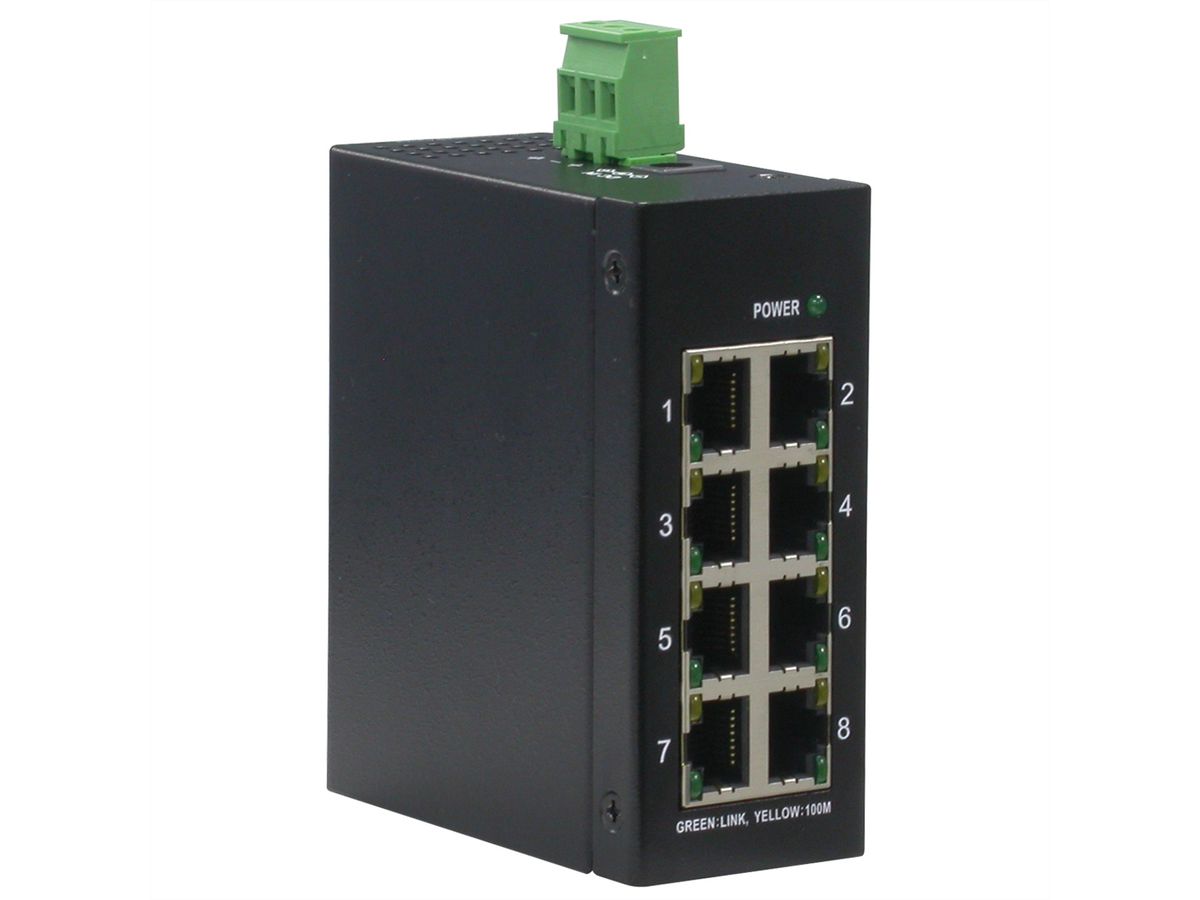

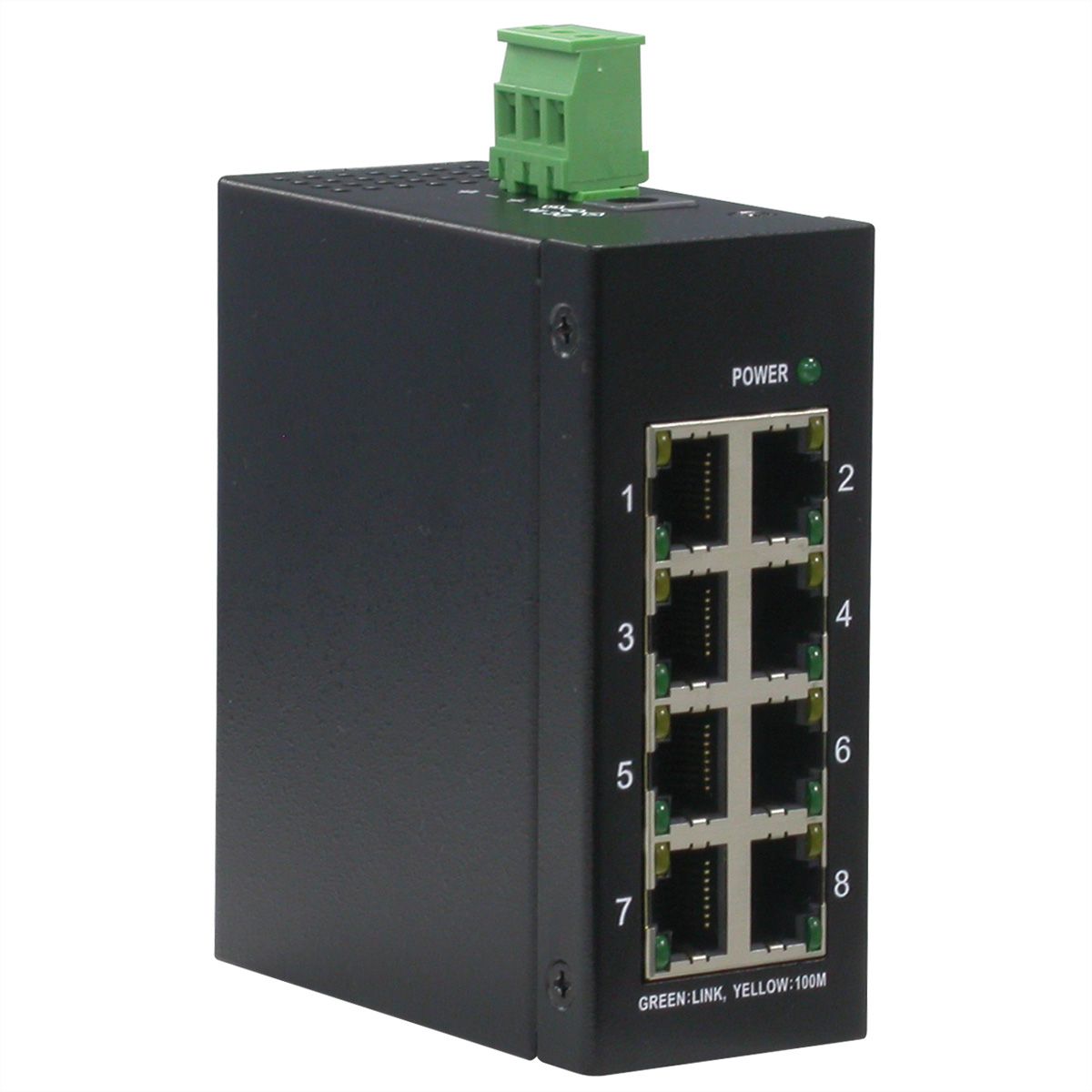

ROLINE Industrial Switch, 8x RJ-45, unmanaged
Please log in to be able to use the shopping cart and then complete orders.
Log in| Item no. | 21.13.1156-1 |
|---|---|
| Brand / Manufacturer | ROLINE |
| Manuf. no. | 21.13.1156 |
| EAN | 7611990189168 |
| Package weight | 0.365 kg |
:strip_icc():strip_exif()/logos/roline.png "ROLINE")
Description
- Fast Ethernet switch with 8 shielded 10/100 Base-T copper ports
- Wide operating temperature range for temperature critical environment
- Auto MDI/MDI-X crossover function
- Supports IEEE 802.3x flow control for full-duplex operation
- Supports Back-pressure flow control for half-duplex operation
- Supports DIN-rail mounting
- Power: Input: 5 - 30V DC, Consumption: 2.3W (max.)
- Operating Temperature: - 10 °C - +70 °C
- DC Input via terminal block or DC power jack (6.3mm / 2.0mm)
- Dimensions: 40 x 80 x 95 mm (WxDxH)
- As according power supply we recommend 21.13.1226
- Contents: Switch
Specifications
| Manufacturer | ROLINE |
|---|---|
| Product group | Network Switches |
| Product type | Fast Ethernet Switch |
| Colour | black |
| Network standard | Fast Ethernet |
| LAN (Mbps) | 10/100 |
| Quantity of ports | 8 |
| Fast Ethernet Ports RJ-45 | 8 |
| Mounting form | DIN Rail |
| Management | no |
| Stackable | no |
| Dimensions (HxWxD) | 95 x 40 x 80 mm |
| Power supply unit (internal/external) | External |
| Mains connection | Loose cable / screw terminals |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 70 °C |
| Height | 95 mm |
| Width | 40 mm |
| Depth | 80 mm |
| Weight | 300.56 g |
| Height of packaging (single piece) | 60 mm |
| Width of packaging (single piece) | 130 mm |
| Depth of packaging (single piece) | 160 mm |
| Package weight (single piece) | 0.365 kg |
