Description

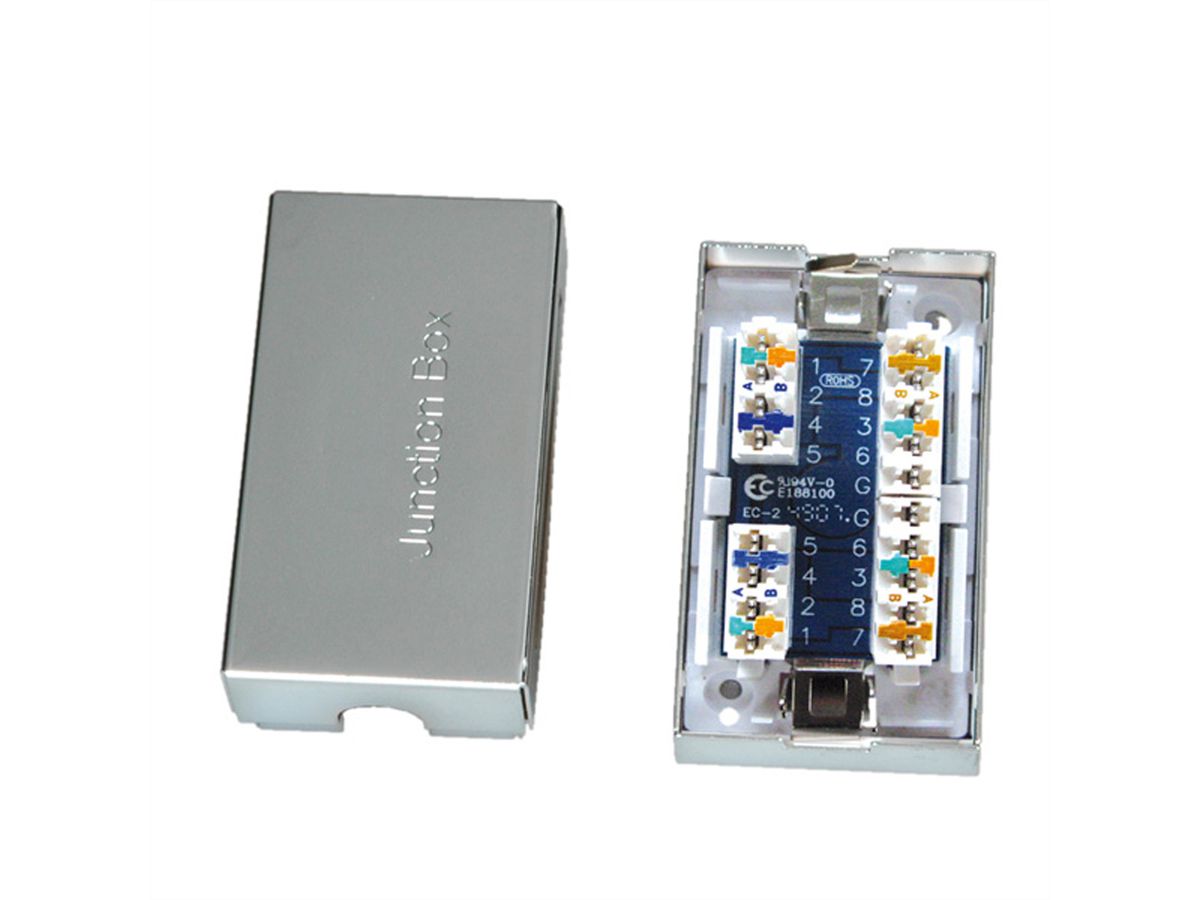

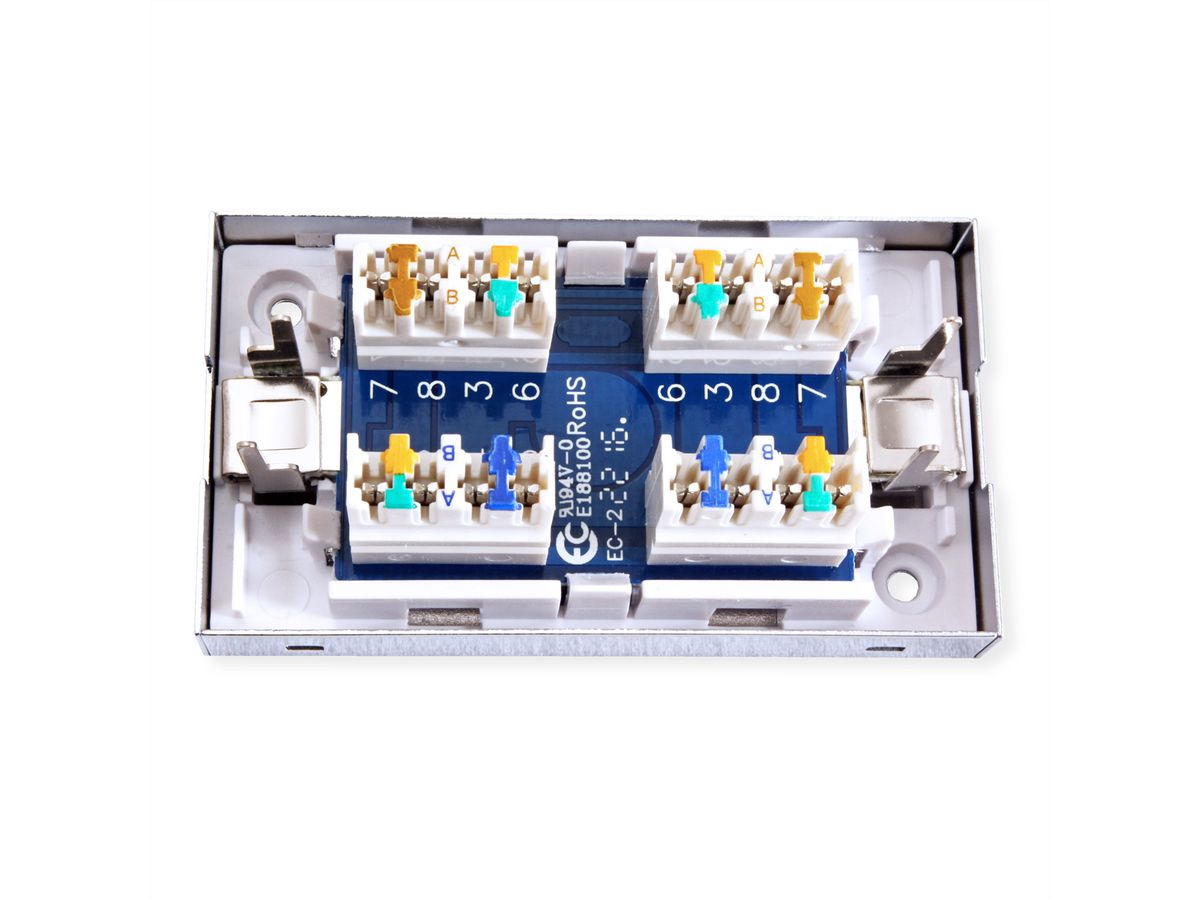

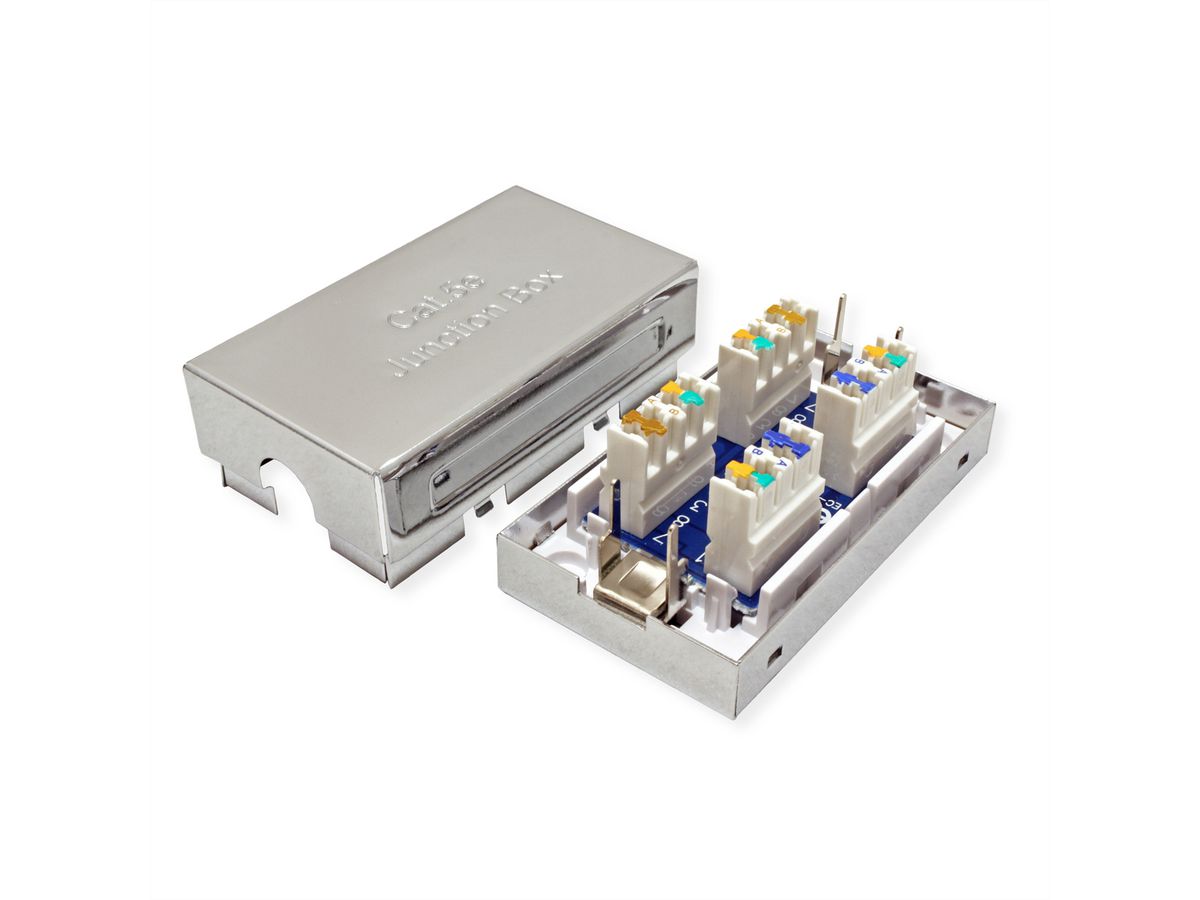

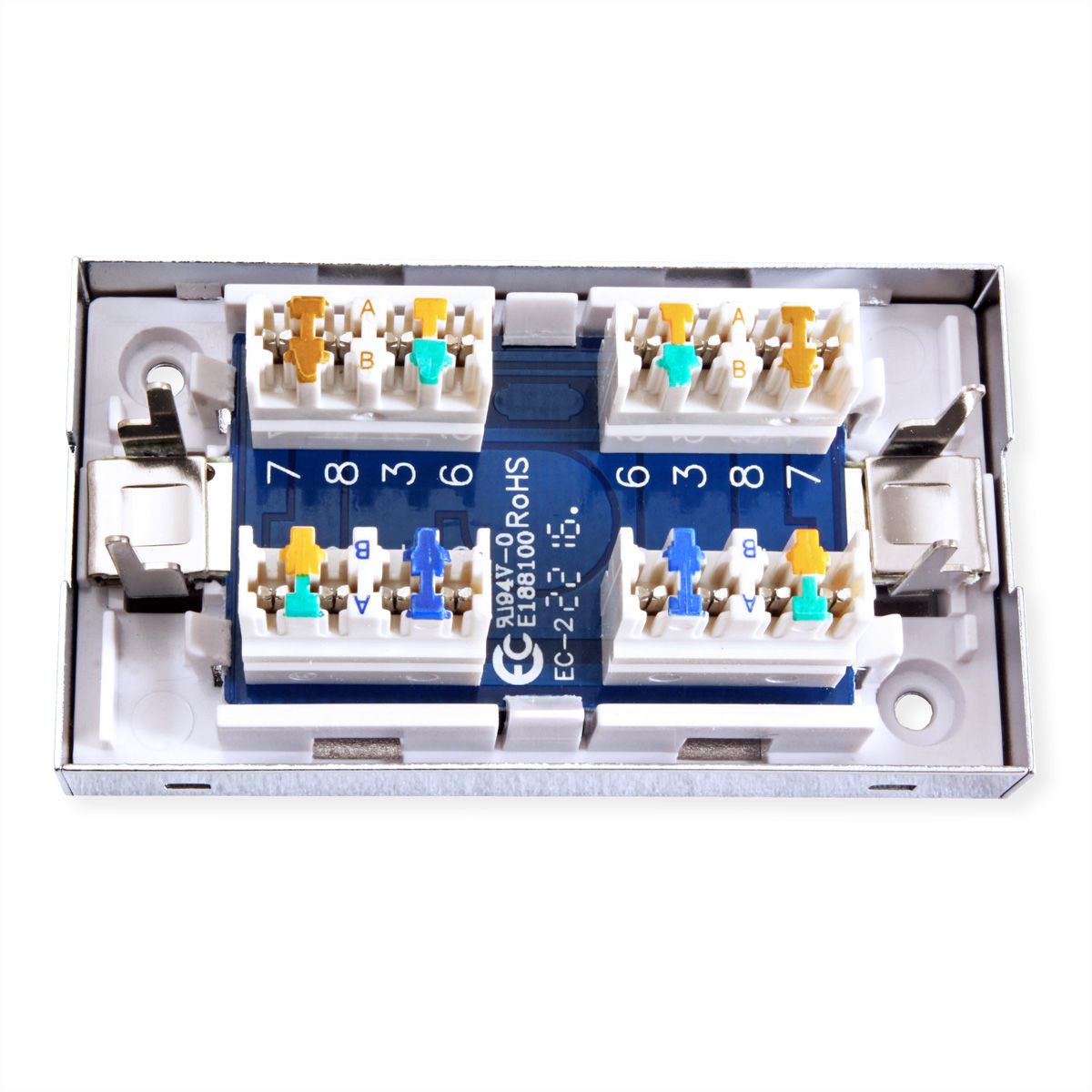

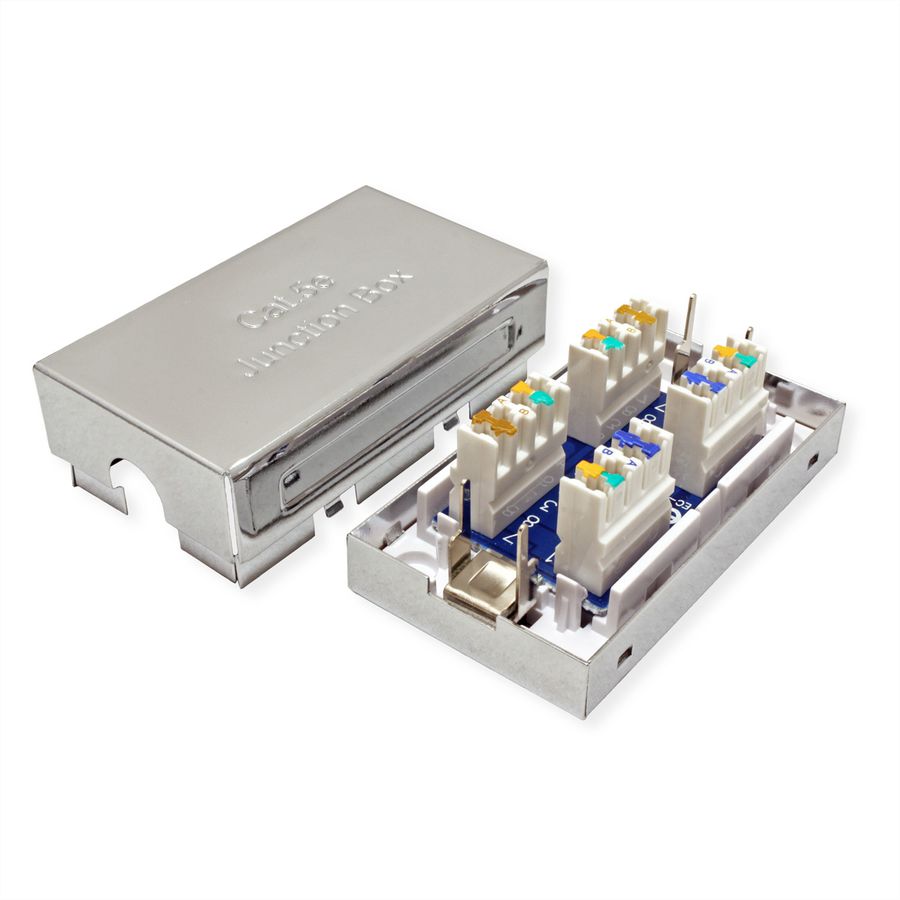

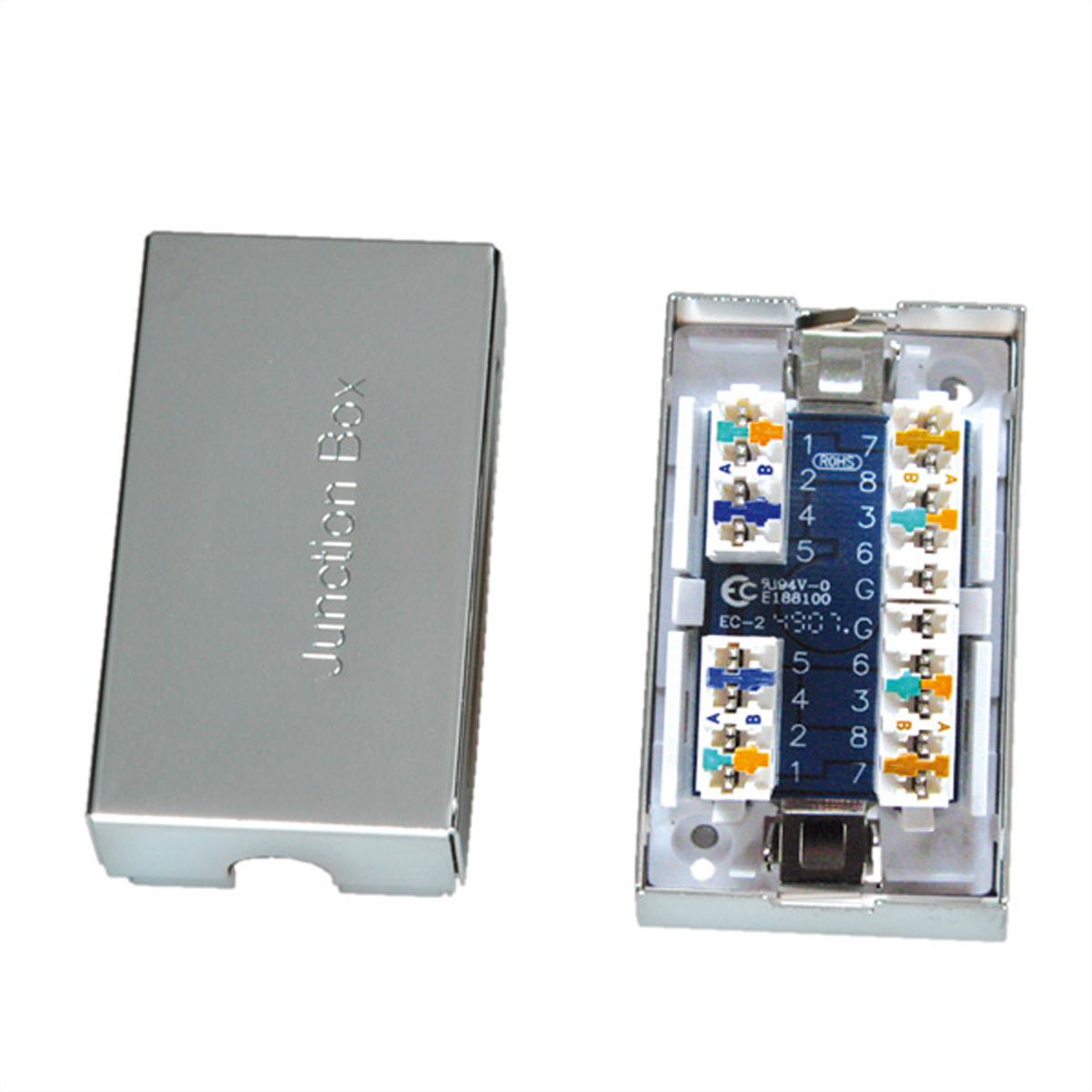

• The ROLINE Junction box is used to repair shielded Cat. 5e cables
• With this box all 4 or 8 wired installation cables with AWG24 and with a cover from 6.2mm can be installed
• Equipped with the modern LSA connection technology, all cables in accordance with EIA/TIA or 568B can be easily installed
• With the use of the STP type junction box, it's safe against electrical and magnetical interferences

Specifications

Manufacturer	ROLINE
Product group	Connection technology TP
Product type	Network junction box
Colour	white
Shield type	Screened
Transfer quality	Cat5e / Class D
Quantity of ports	1
Assembly cable connection	Krone LSAplus
Assignment	EIA/TIA 568B
Shield contacts	yes
separate strain relief	no
Connection direction	Straight
Operating temperature min.	-40 °C
Operating temperature max.	80 °C
Height	23.95 mm
Width	34.9 mm
Depth	62.8 mm
Weight	61.3 g
Height of packaging (single piece)	30 mm
Width of packaging (single piece)	50 mm
Depth of packaging (single piece)	80 mm
Package weight (single piece)	0.05 kg
