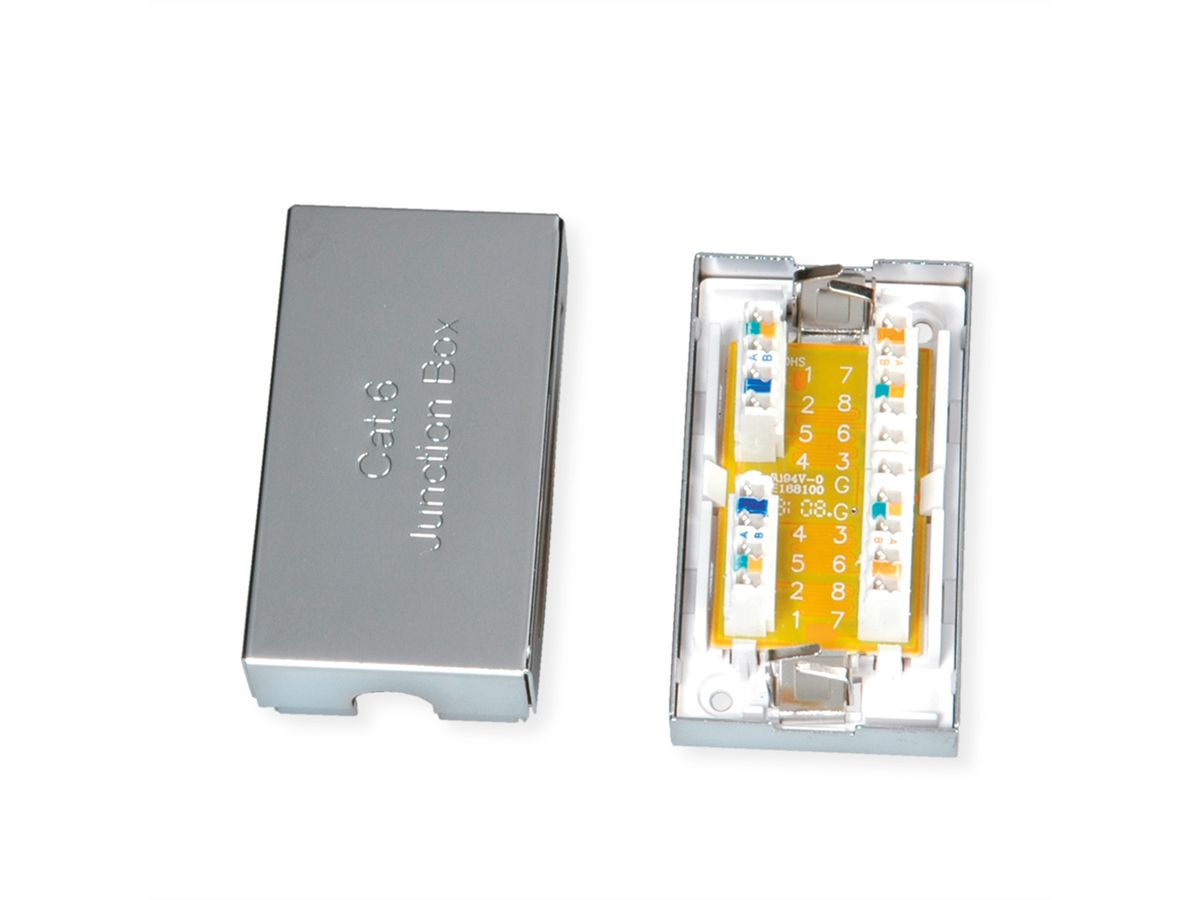

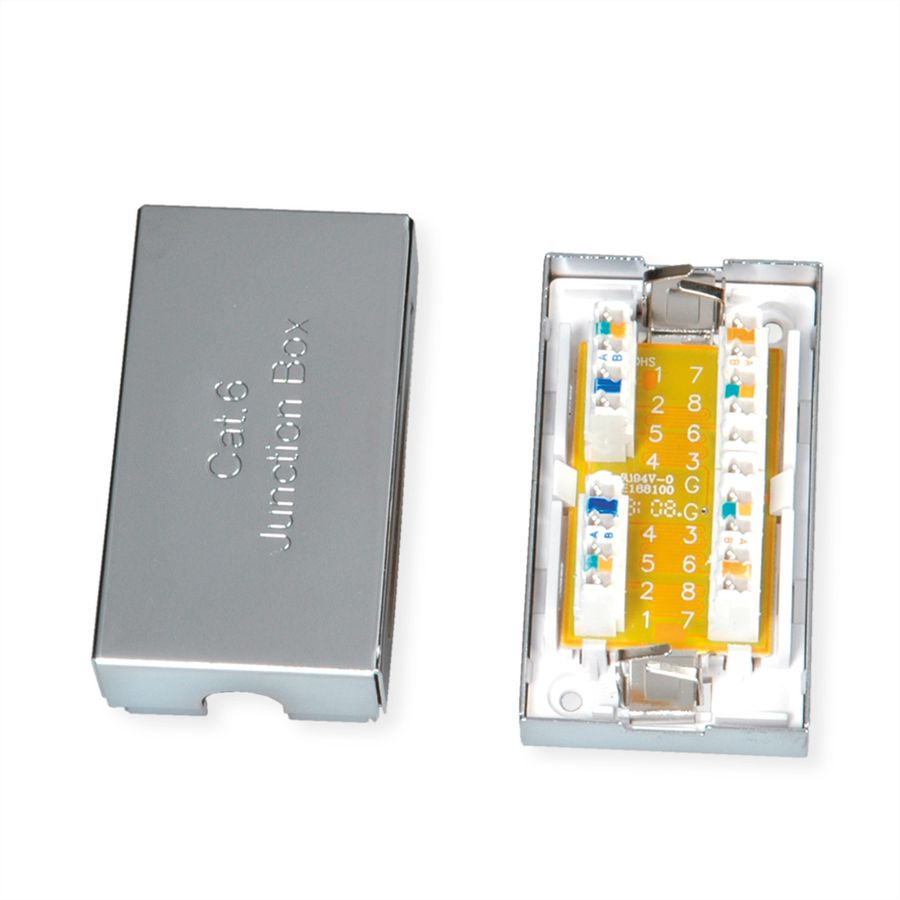

ROLINE Junction Box Cat.6 (Class E), STP

Item no. 21.17.3065-20 Brand / Manufacturer ROLINE Manuf. no. 21.17.3065 EAN 7611990986651 Package weight 0.069 kg
ROLINE

Please log in to be able to use the shopping cart and then complete orders.

Log in
Available
Ordered until 3 pm - usually dispatched on the same day
Download PDF

Description

  • The ROLINE Junction box is used to repair or extend shielded Cat. 6 cables
  • With this box all 4 or 8 wired installation cables with AWG24 and with an outside diameter from 6.2mm can be installed
  • Equipped with the modern LSA connection technology, all cables in accordance with EIA/TIA 568A or 568B can be easily installed
  • With the use of the STP type junction box, it's safe against electrical and magnetical interferences

Specifications

Manufacturer
ROLINE
Product group
Connection technology TP
Product type
Network junction box
Colour
white
Shield type
Screened
Transfer quality
Cat6 / Class E
Quantity of ports
1
Assembly cable connection
Krone LSAplus
Assignment
EIA/TIA 568B
Shield contacts
yes
separate strain relief
no
Connection direction
Straight
Dimensions (HxWxD)
26 x 32 x 60 mm
Height
26 mm
Width
32 mm
Depth
60 mm
Weight
61.6 g
Height of packaging (single piece)
30 mm
Width of packaging (single piece)
30 mm
Depth of packaging (single piece)
90 mm
Package weight (single piece)
0.069 kg

Downloads

Product data sheet - English (30.8 KB) Manufacturer data sheet - English (279.5 KB)
