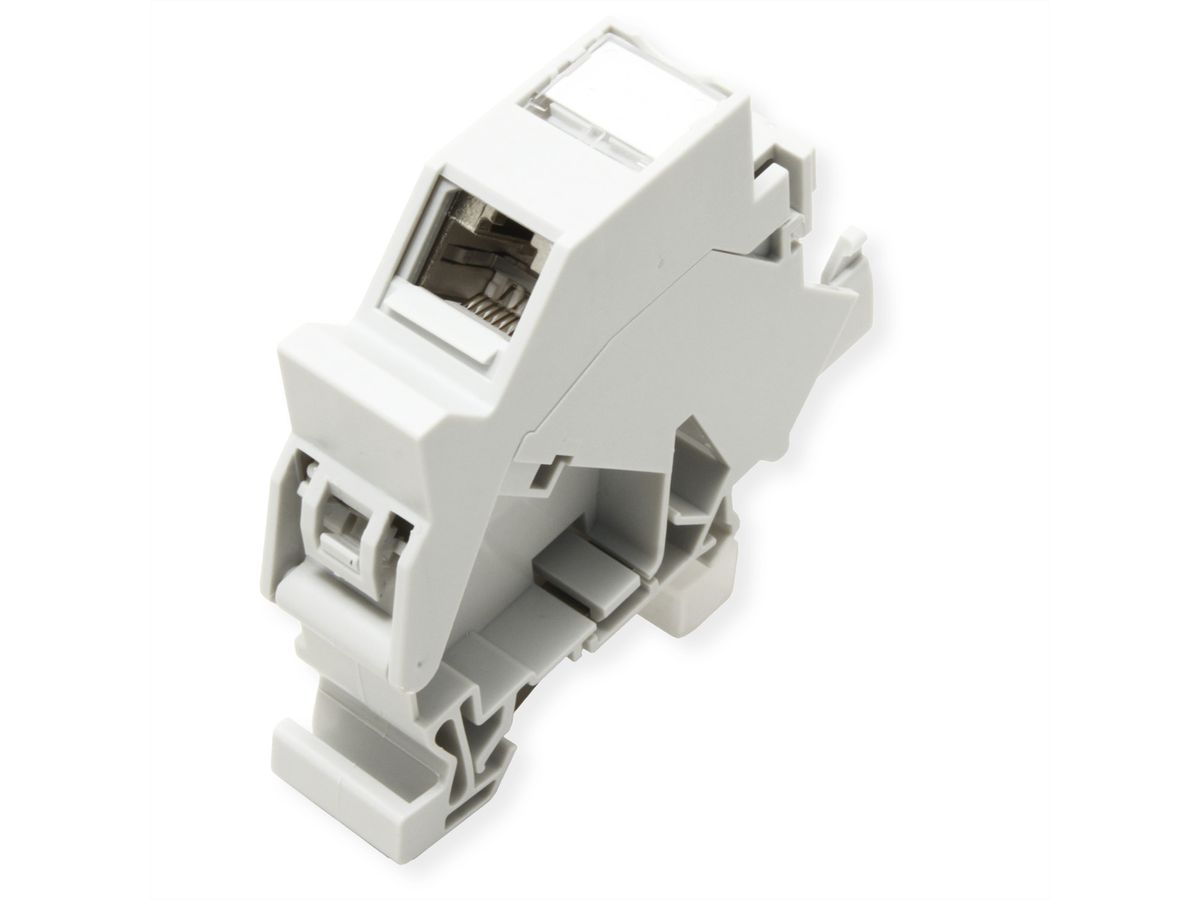

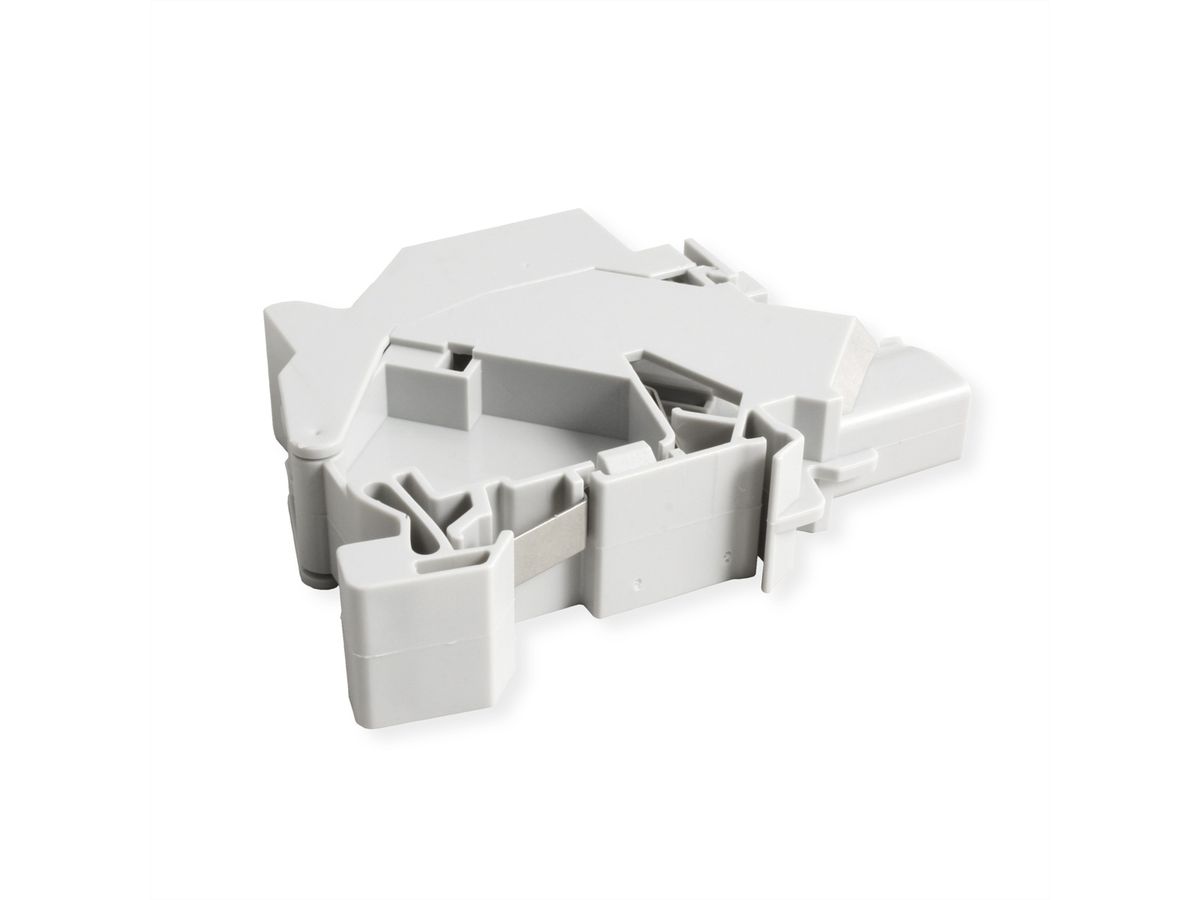

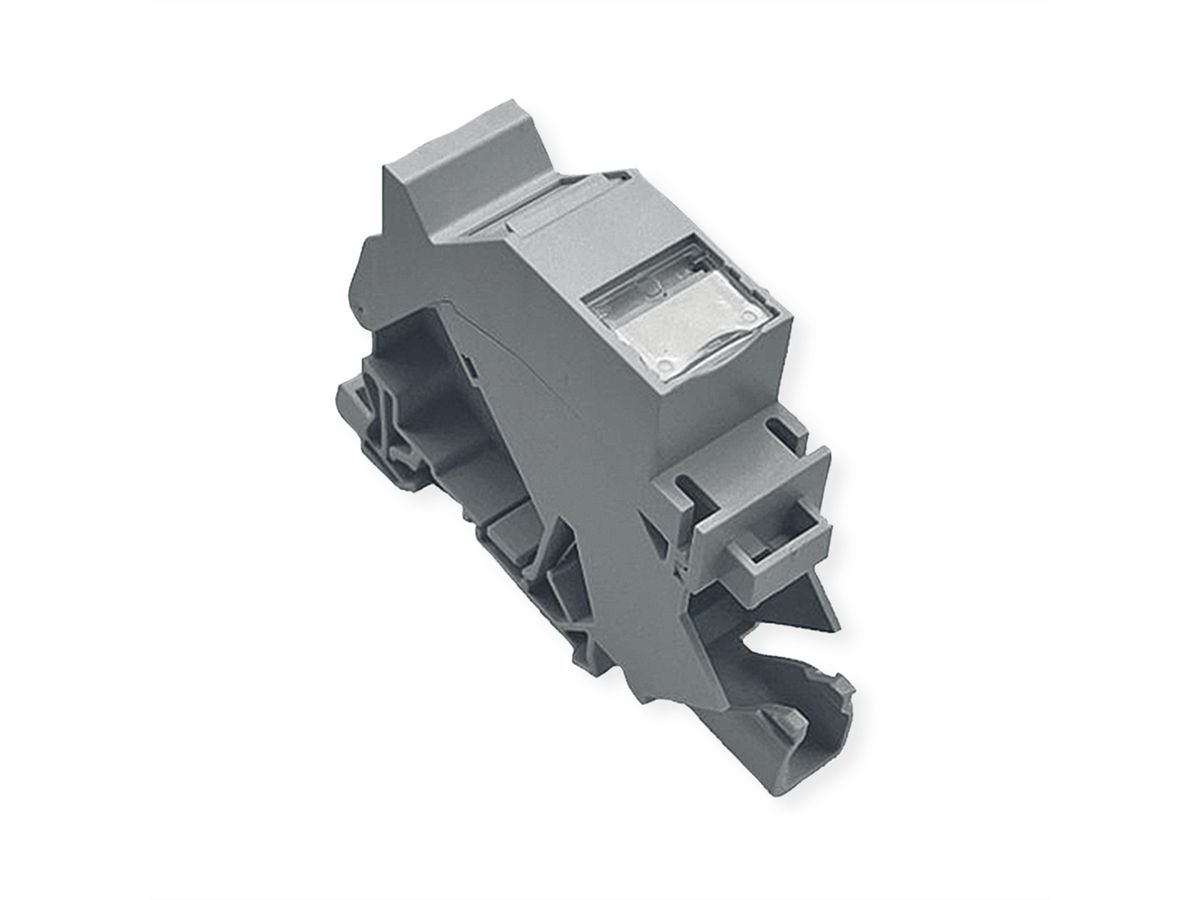

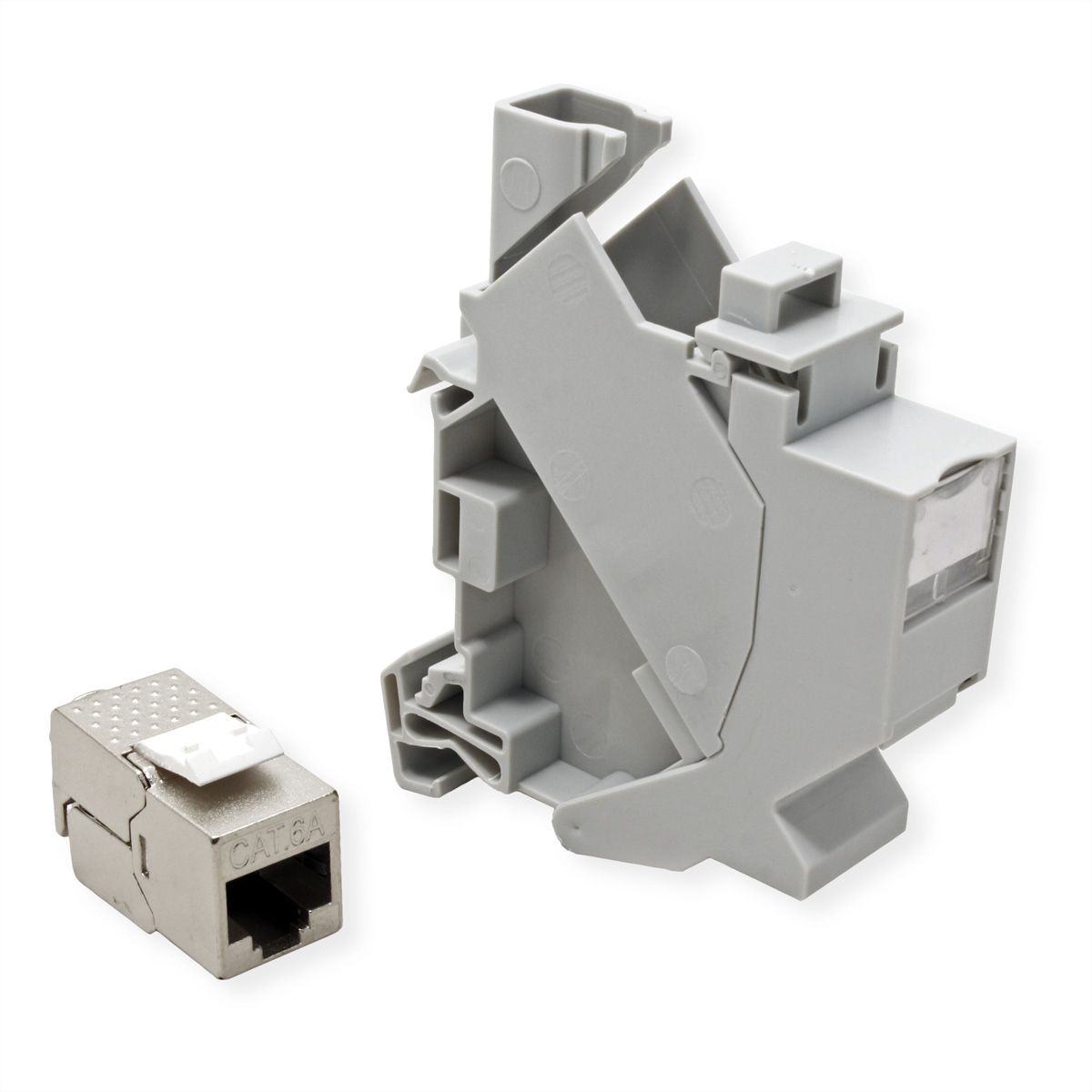

ROLINE Keystone Holder, with Cat.6A Keystone, shielded, DIN-Rail, 45°
Please log in to be able to use the shopping cart and then complete orders.
Log in| Item no. | 26.11.0379-10 |
|---|---|
| Brand / Manufacturer | ROLINE |
| Manuf. no. | 26.11.0379 |
| EAN | 7630049675698 |
| Package weight | 0.05 kg |
:strip_icc():strip_exif()/logos/roline.png "ROLINE")
Description

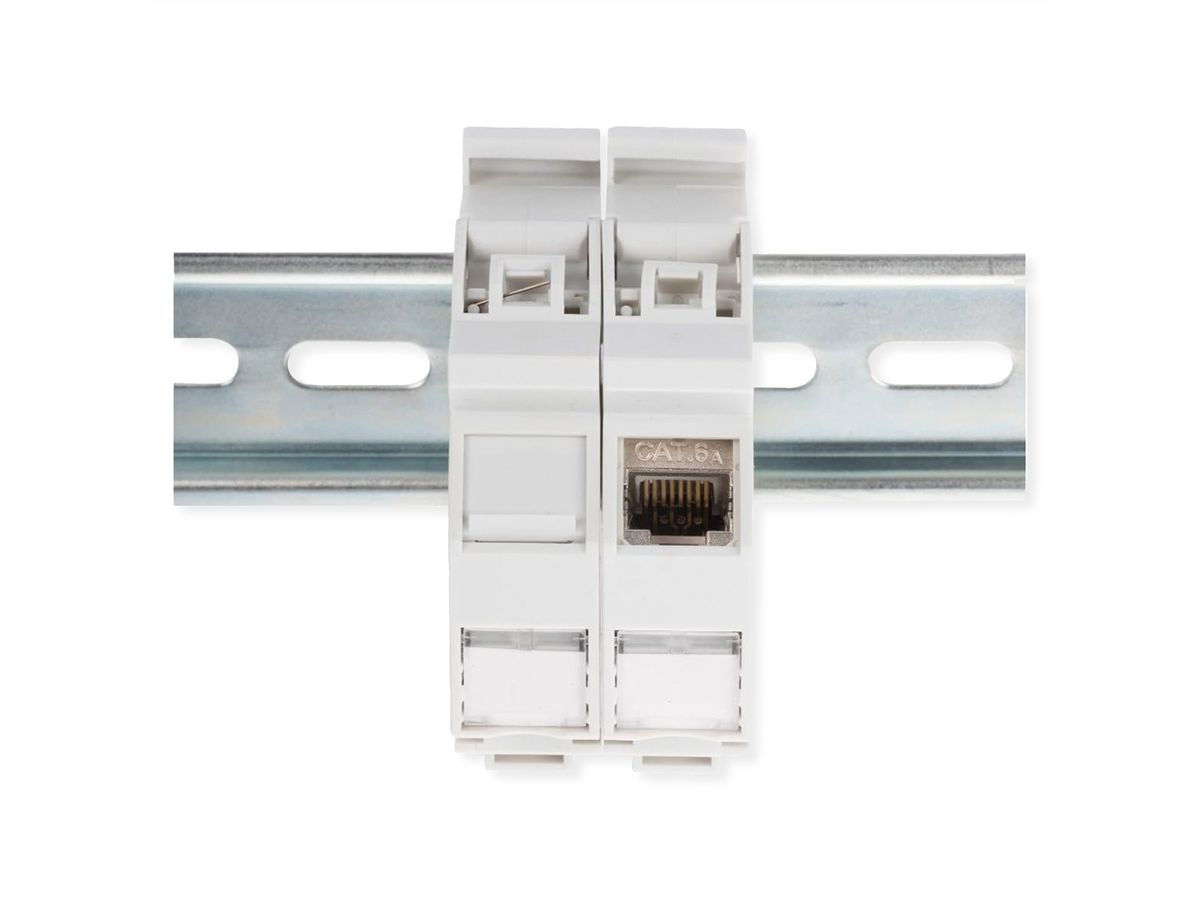

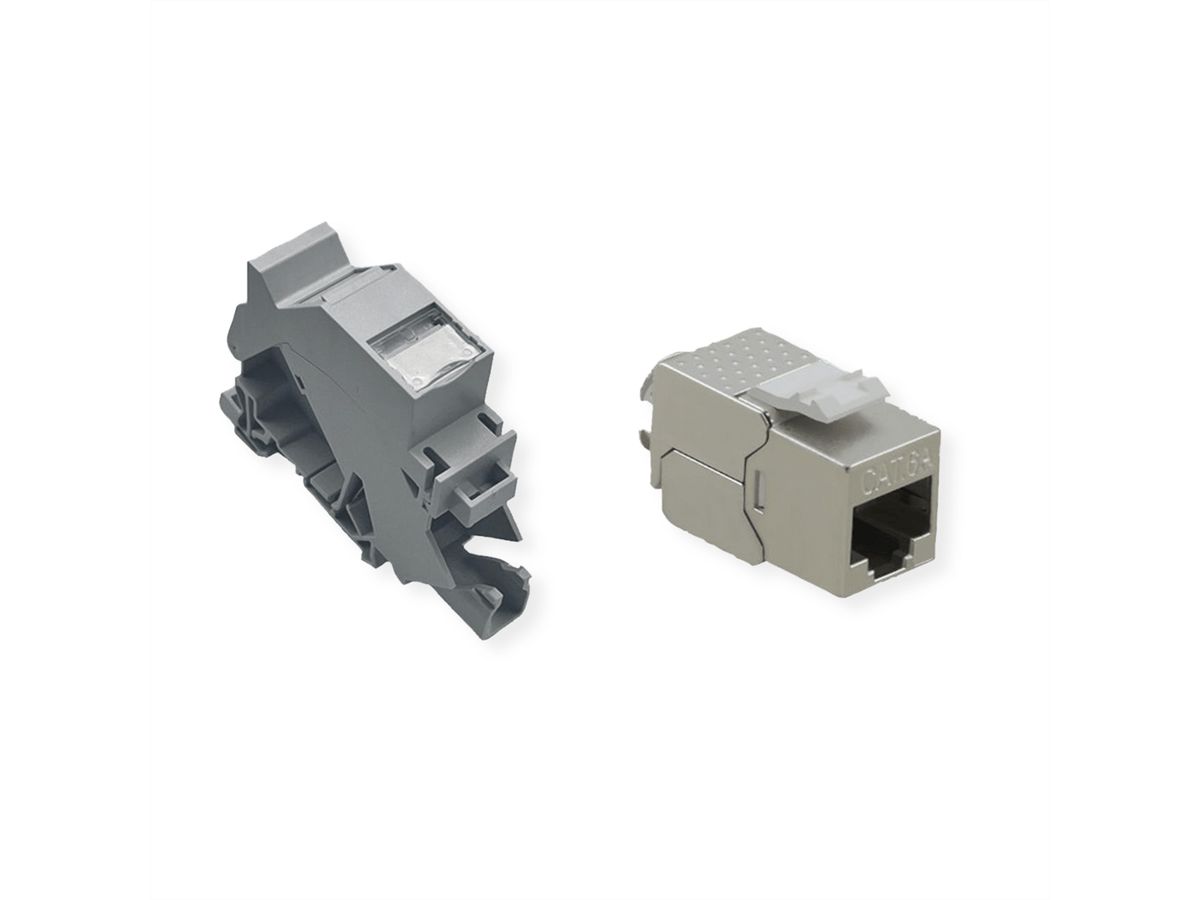

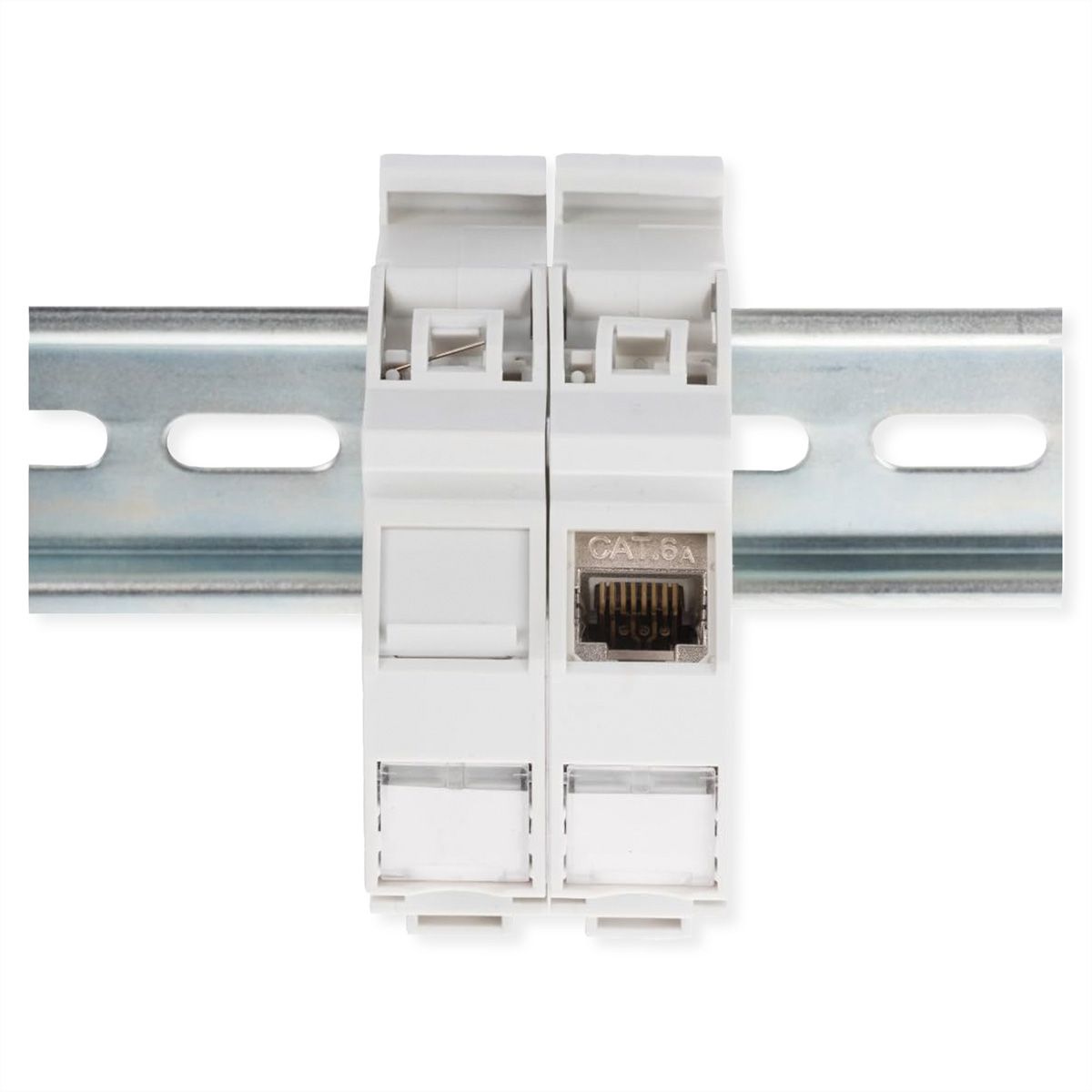

Keystone holder including shielded Cat.6A keystone, for installation on DIN rail

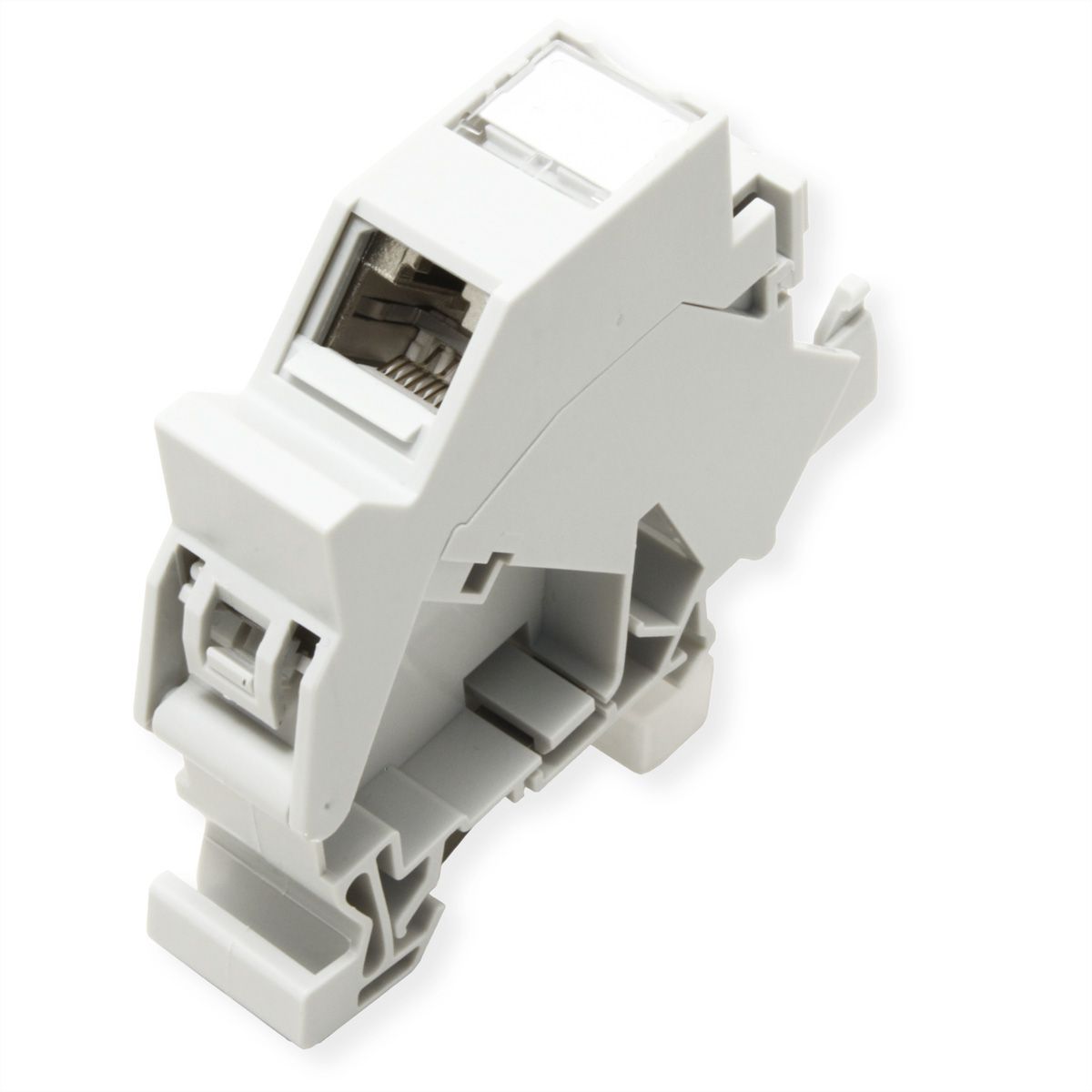

- Cable access 45° from the top or bottom, connection direction 45° downwards
- With shielded plate (grounding)
- Keystones with printed colour coding in accordance with EIA/TIA 568

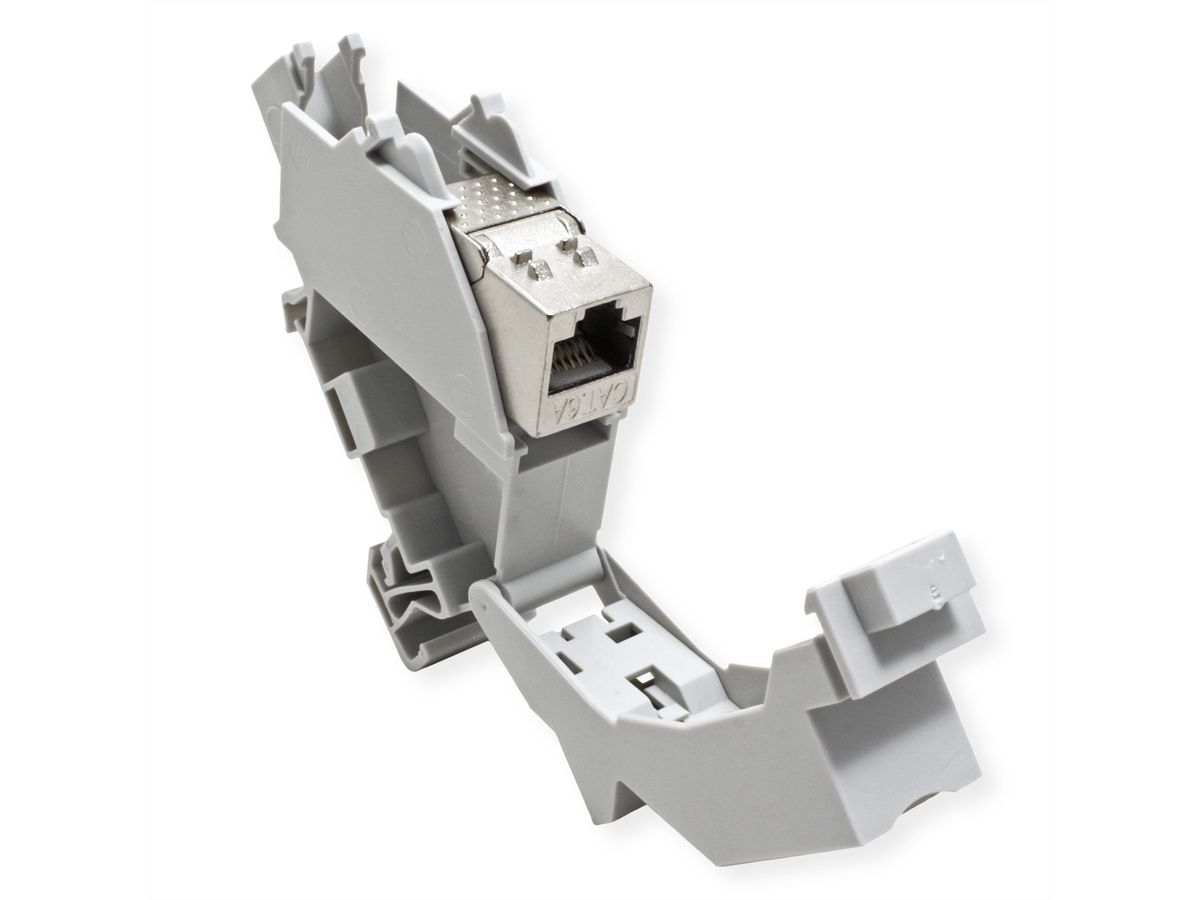

- Cables can be connected to the keystones without tools – simply place the cable wires in the guides, close the module and press it together – and the connection is complete

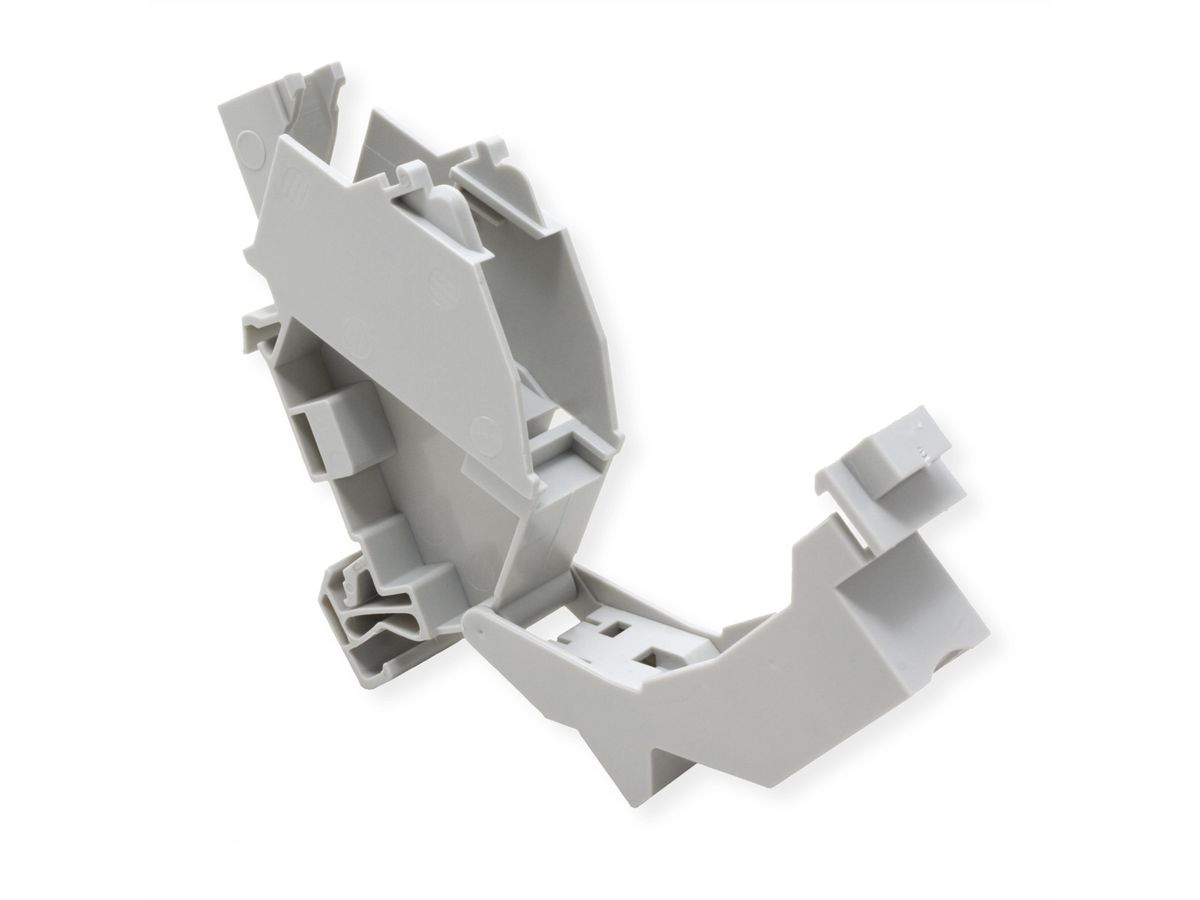

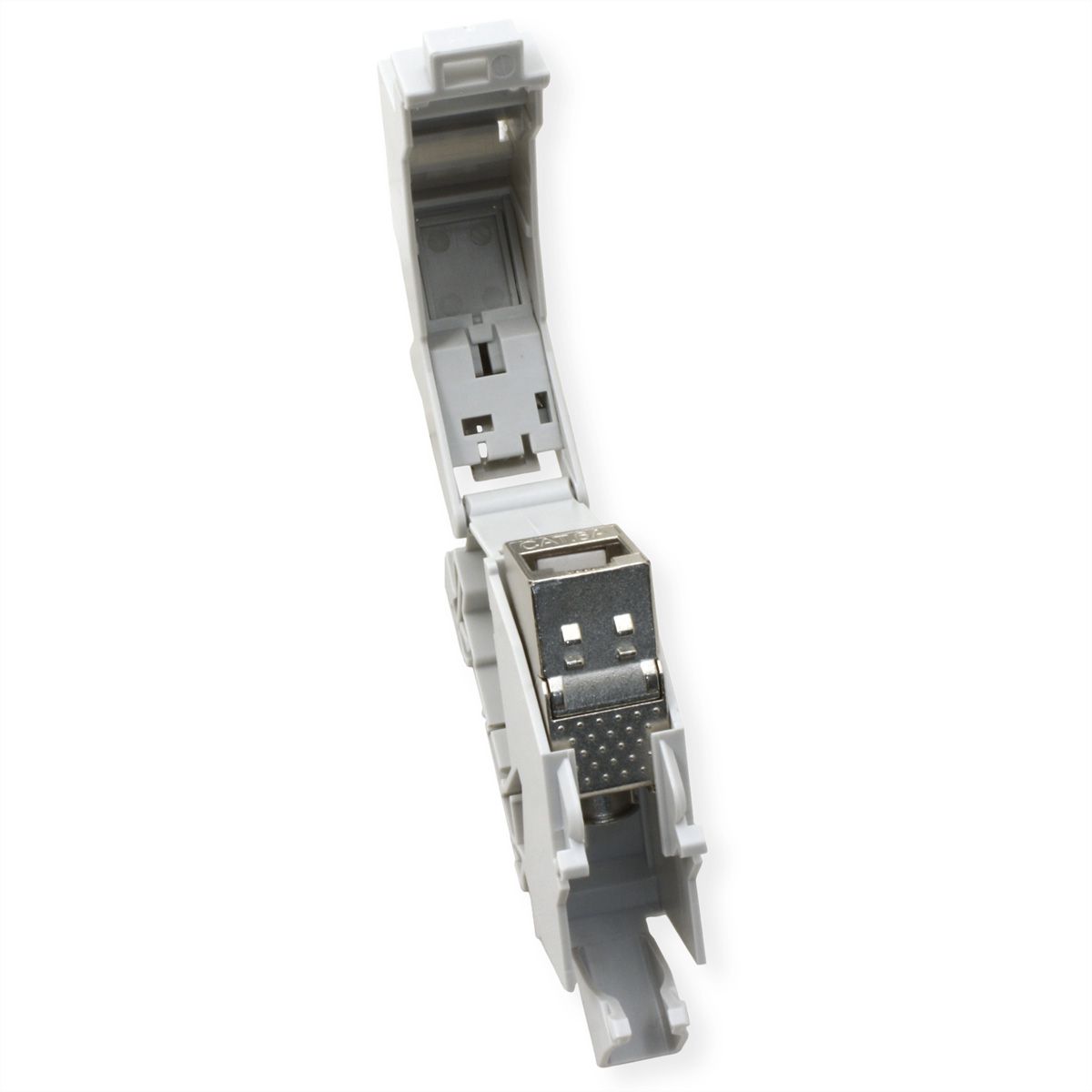

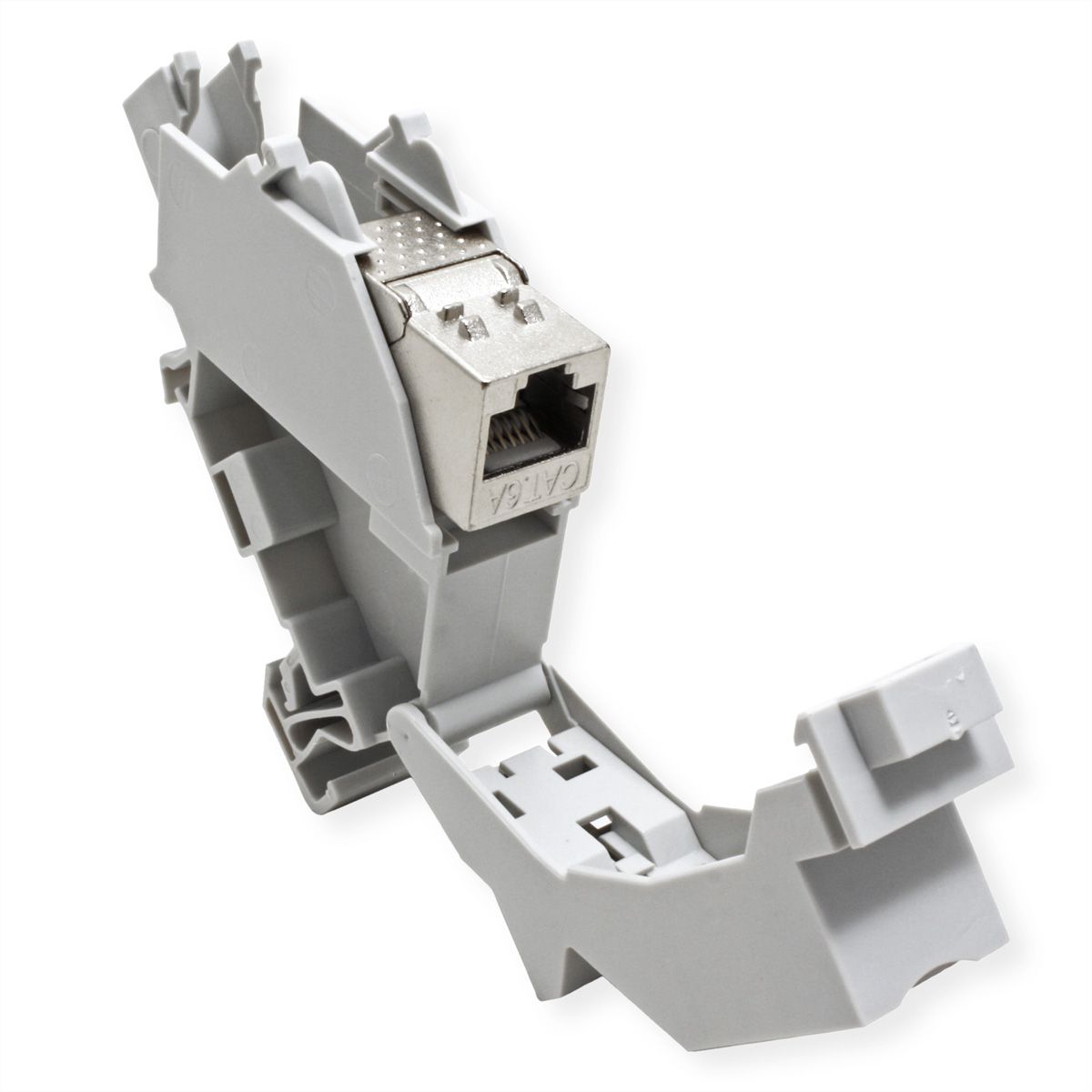

- Holder with integrated dust cover
- For cables with outer diameter: 5.0 - 8.0mm
- Suitable for 26AWG (0.40mm) - 22AWG (0.65mm) cables
- Dimensions Keystone Holder: 78.25 x 17.7 x 63.9mm

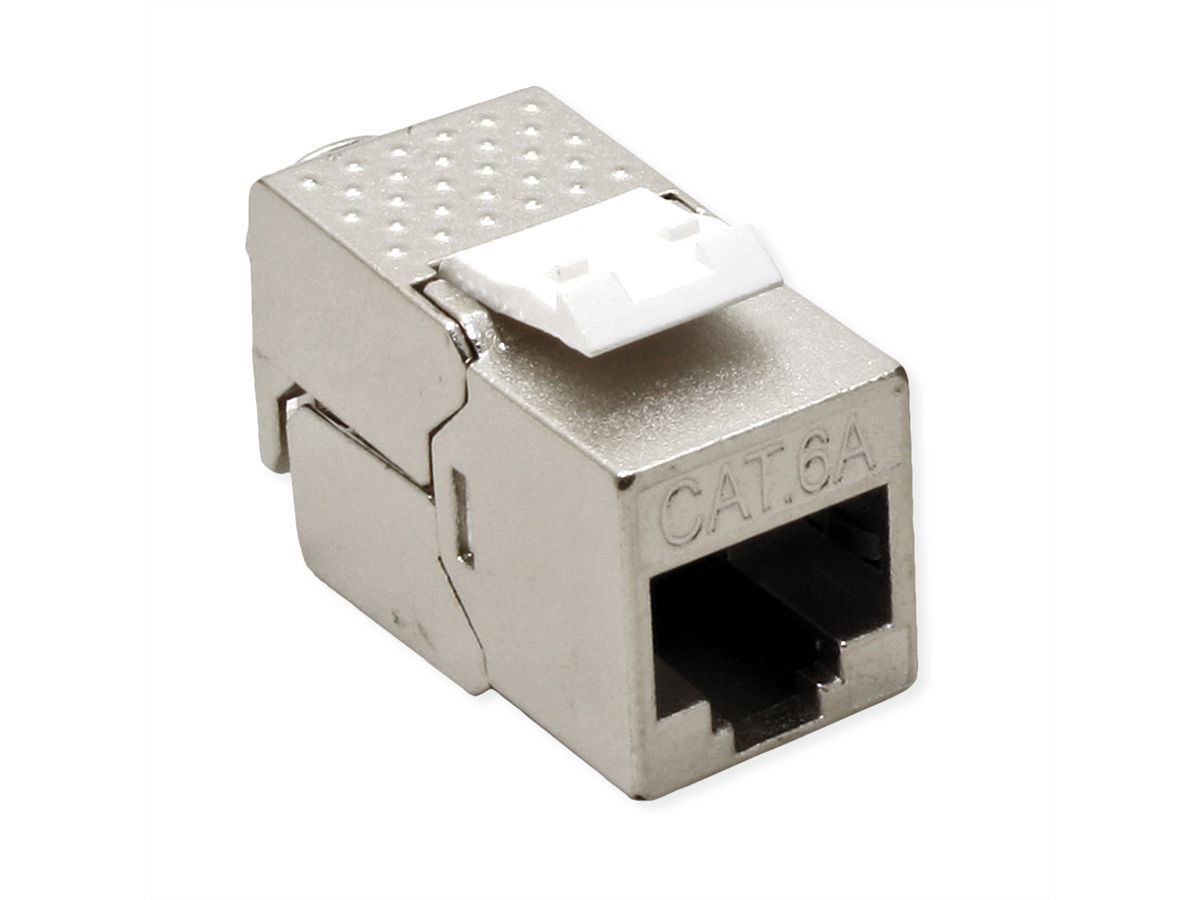

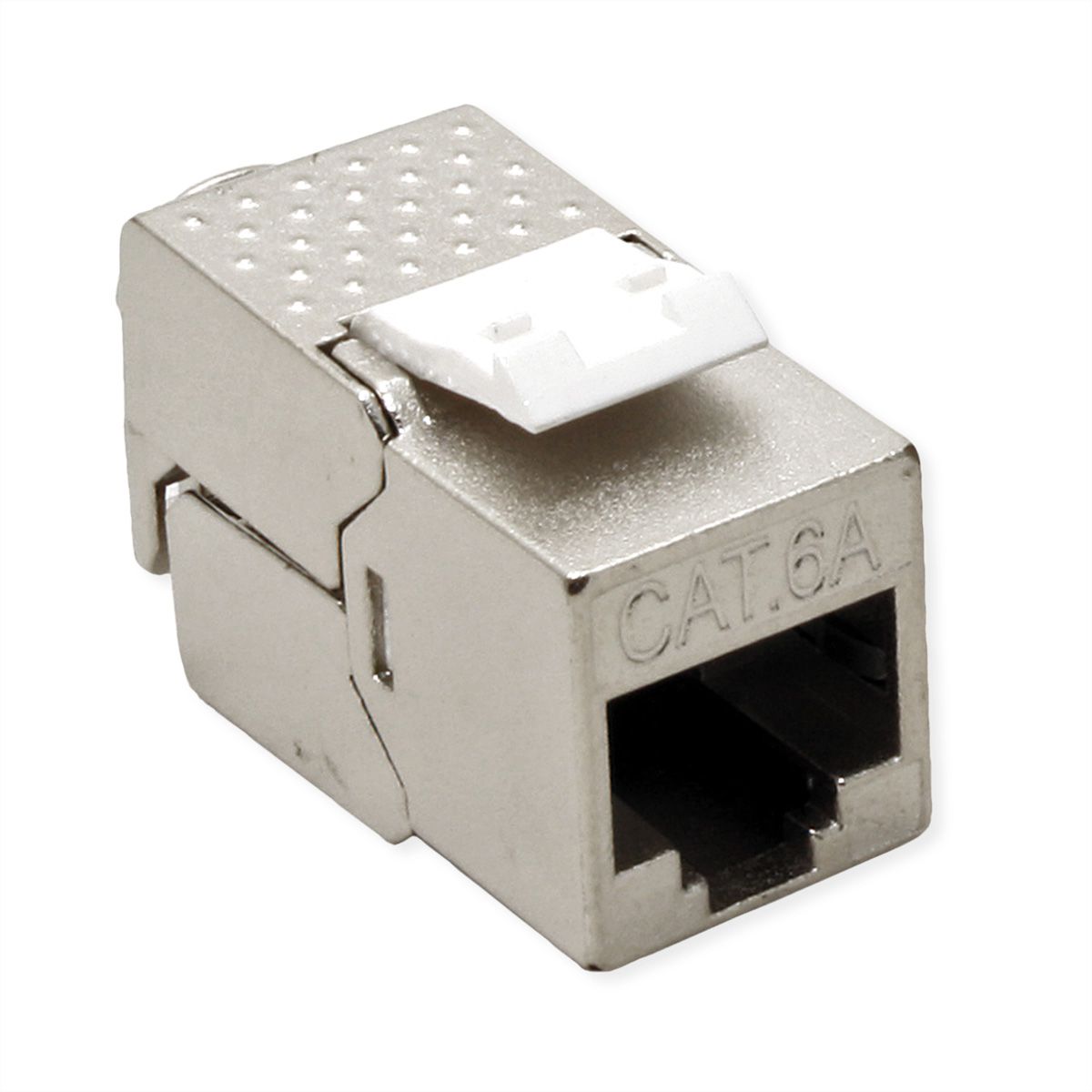

- Dimensions Keystone: 21.5 x 14.7 x 34.5 mm
Specifications
| Manufacturer | ROLINE |
|---|---|
| Product group | Connection technology TP |
| Product type | DIN rail adapter |
| Colour | grey |

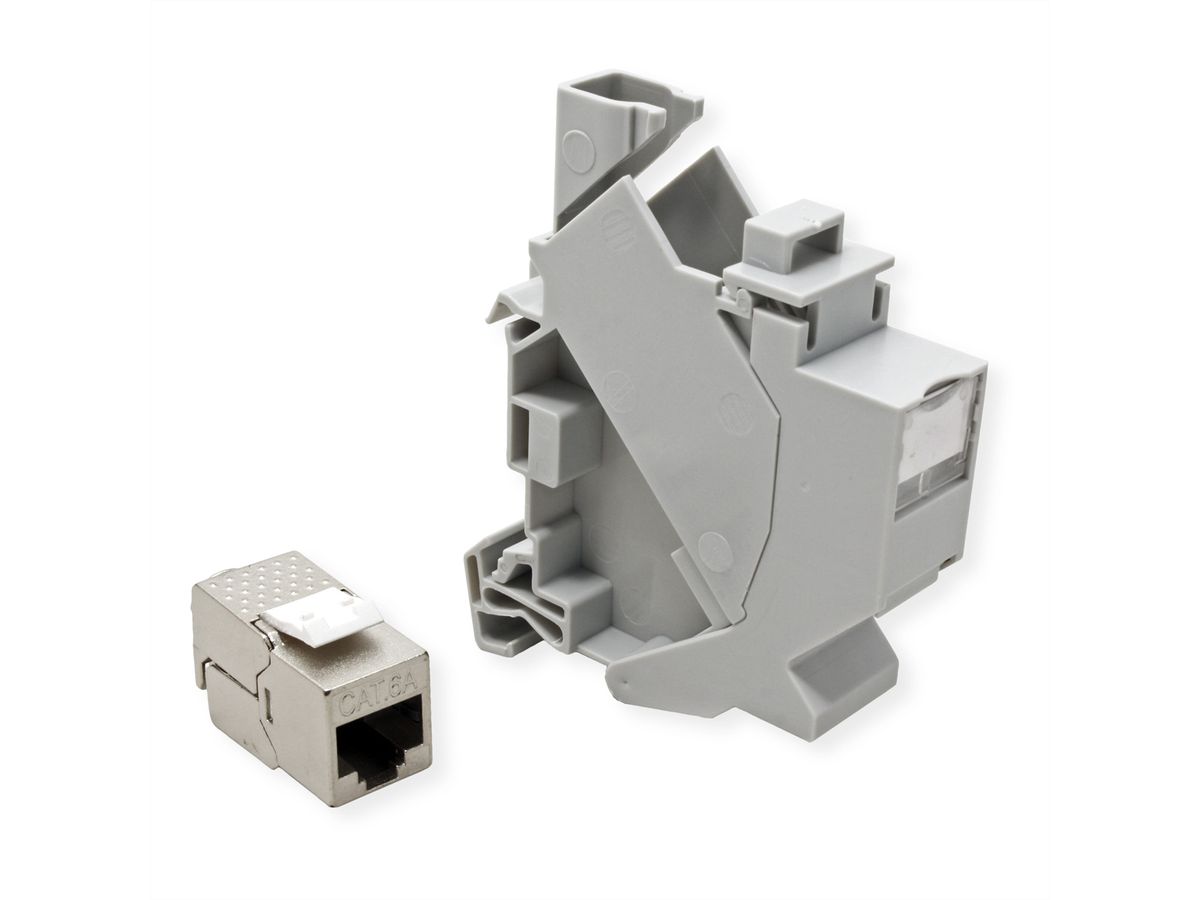

| Scope of delivery | DIN-Rail Keystone Holder and Keystone, Installation Guide, Cable Tie |
| Shield type | Screened |
| Transfer quality | Cat6A / Class EA |
| Quantity of ports | 1 |
| Assignment | EIA/TIA 568A & 568B |
| Material (casing) | ABS + Zinc Alloy |
| Connection direction | 45°-inclination |
| Dimensions (HxWxD) | Keystone Holder: 78.25 x 17.7 x 63.9mm, Keystone: 21.5 x 14.7 x 34.5 mm |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 60 °C |
| Storage temperature min. | -40 °C |
| Storage temperature max. | 70 °C |
| Height | 78.25 mm |
| Width | 17.7 mm |
| Depth | 63.9 mm |
| Weight | 31 g |
| Height of packaging (single piece) | 10 mm |
| Width of packaging (single piece) | 60 mm |
| Depth of packaging (single piece) | 60 mm |
| Package weight (single piece) | 0.05 kg |
