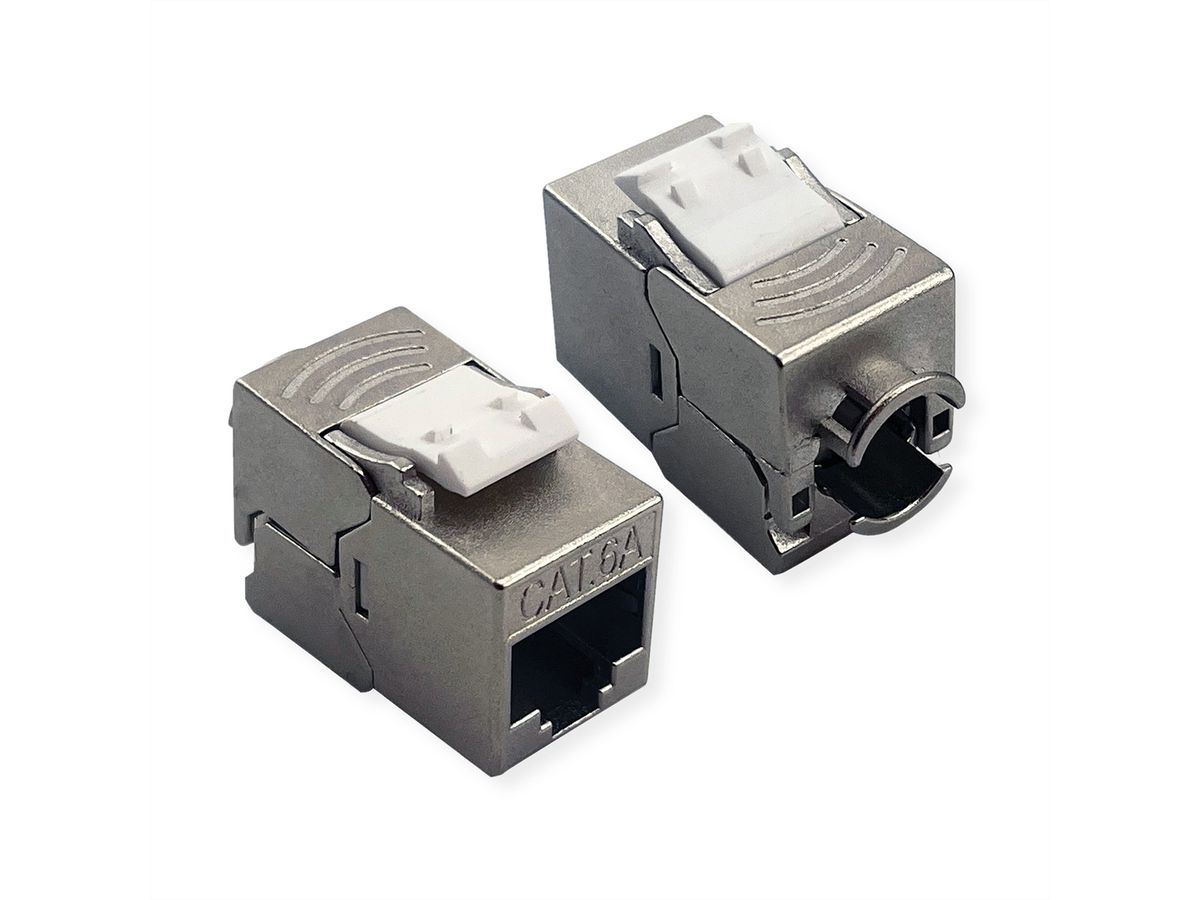

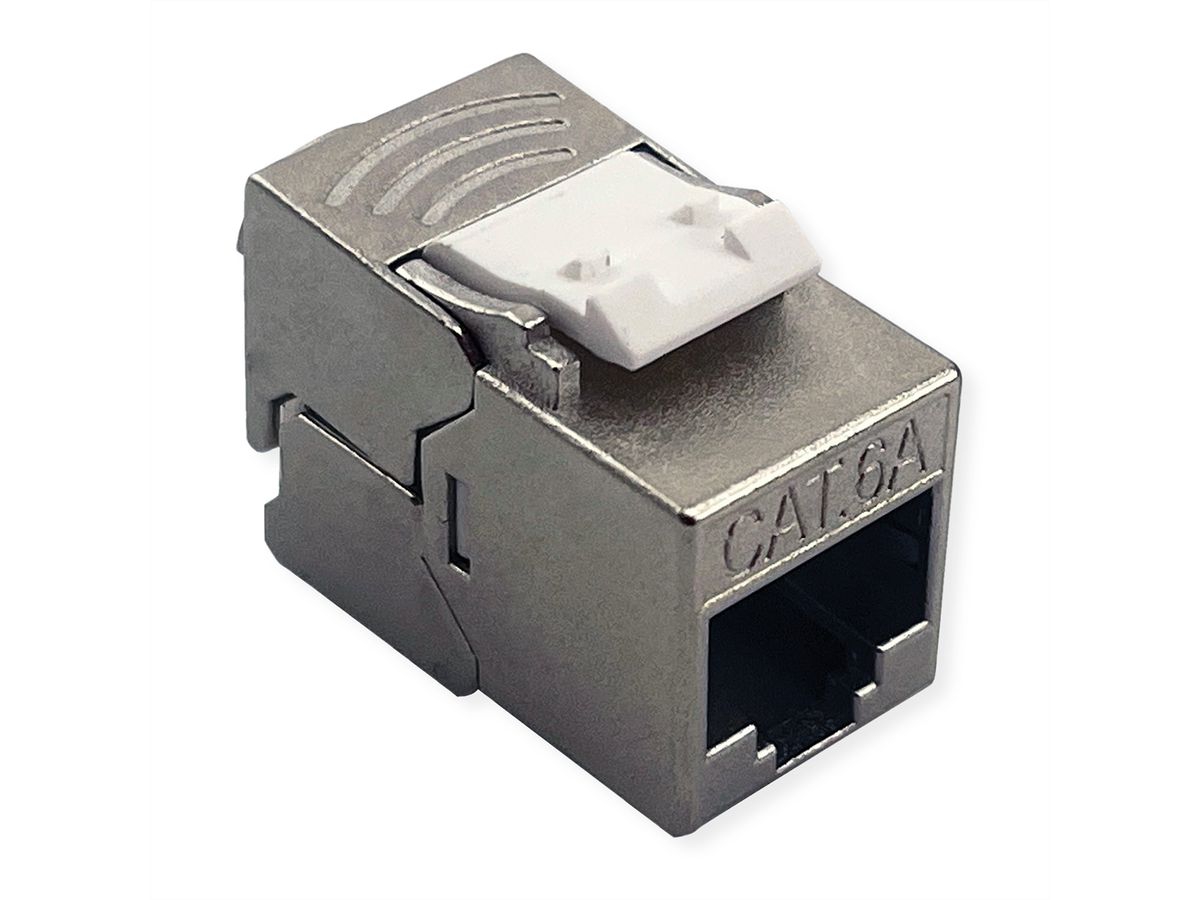

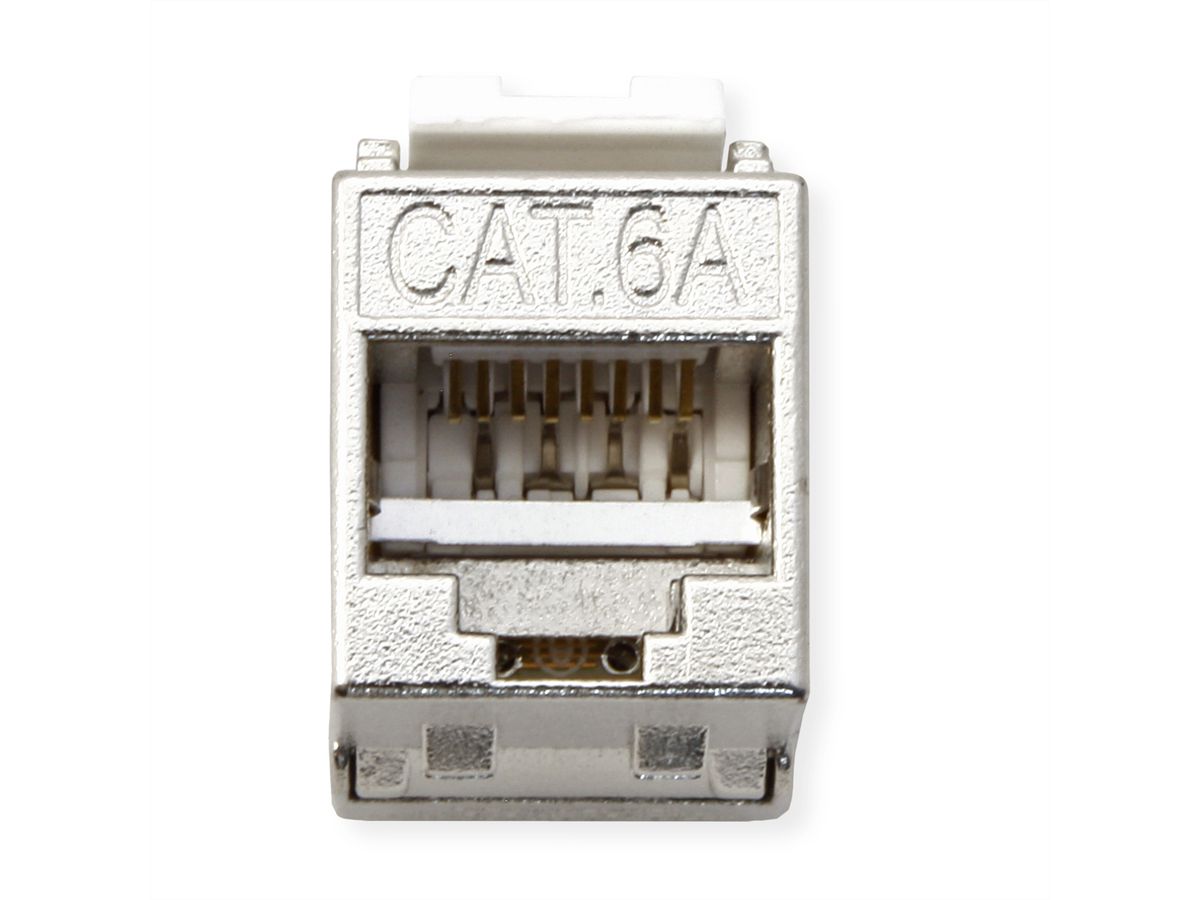

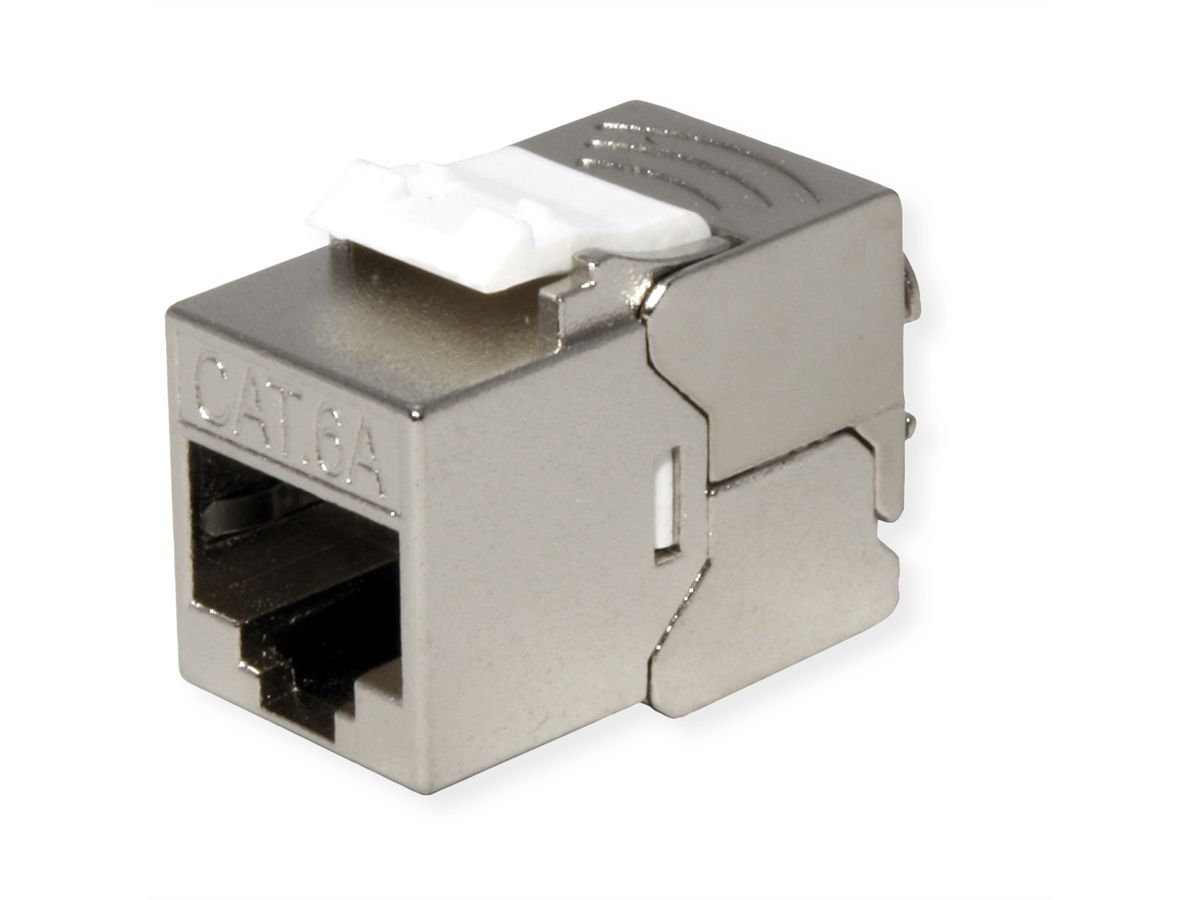

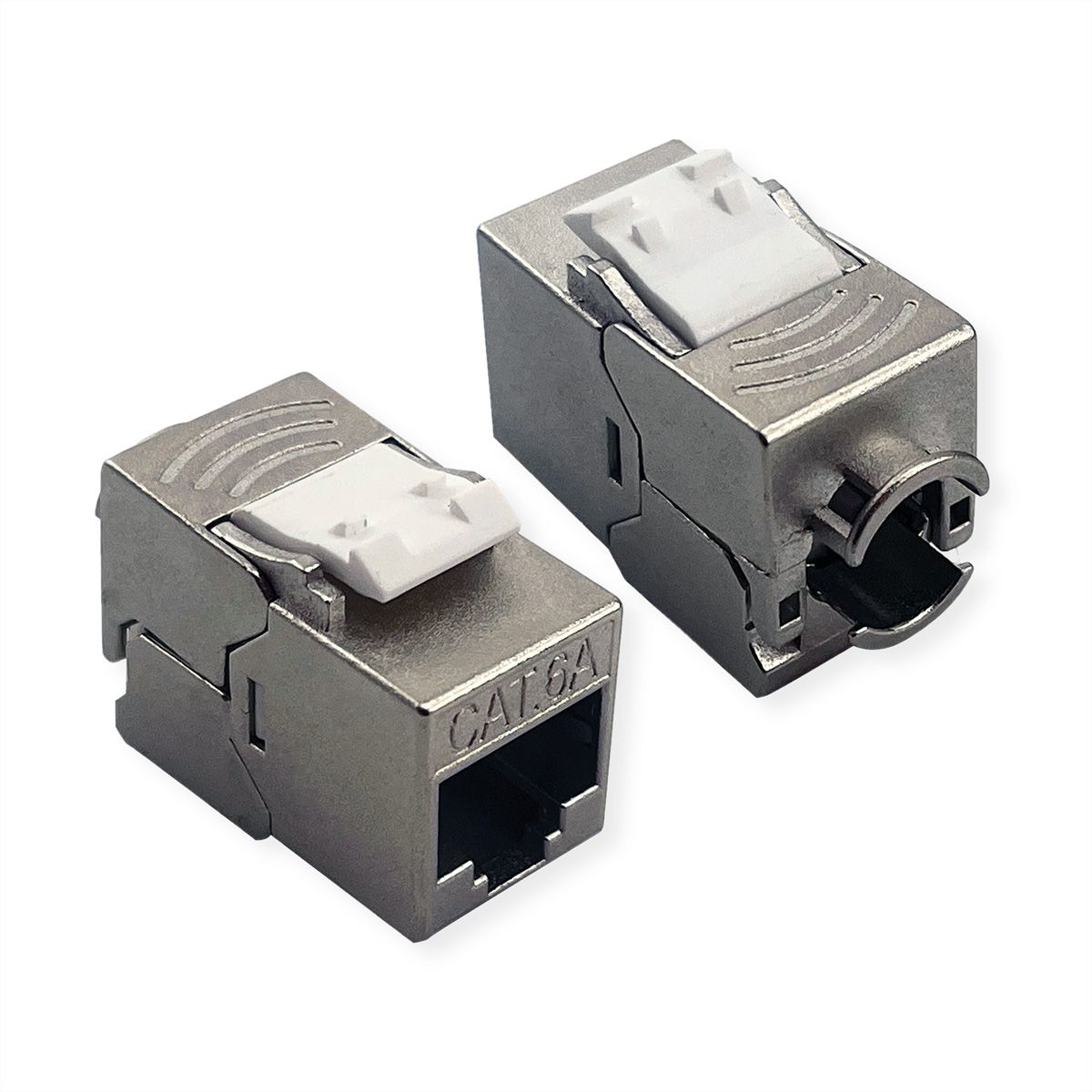

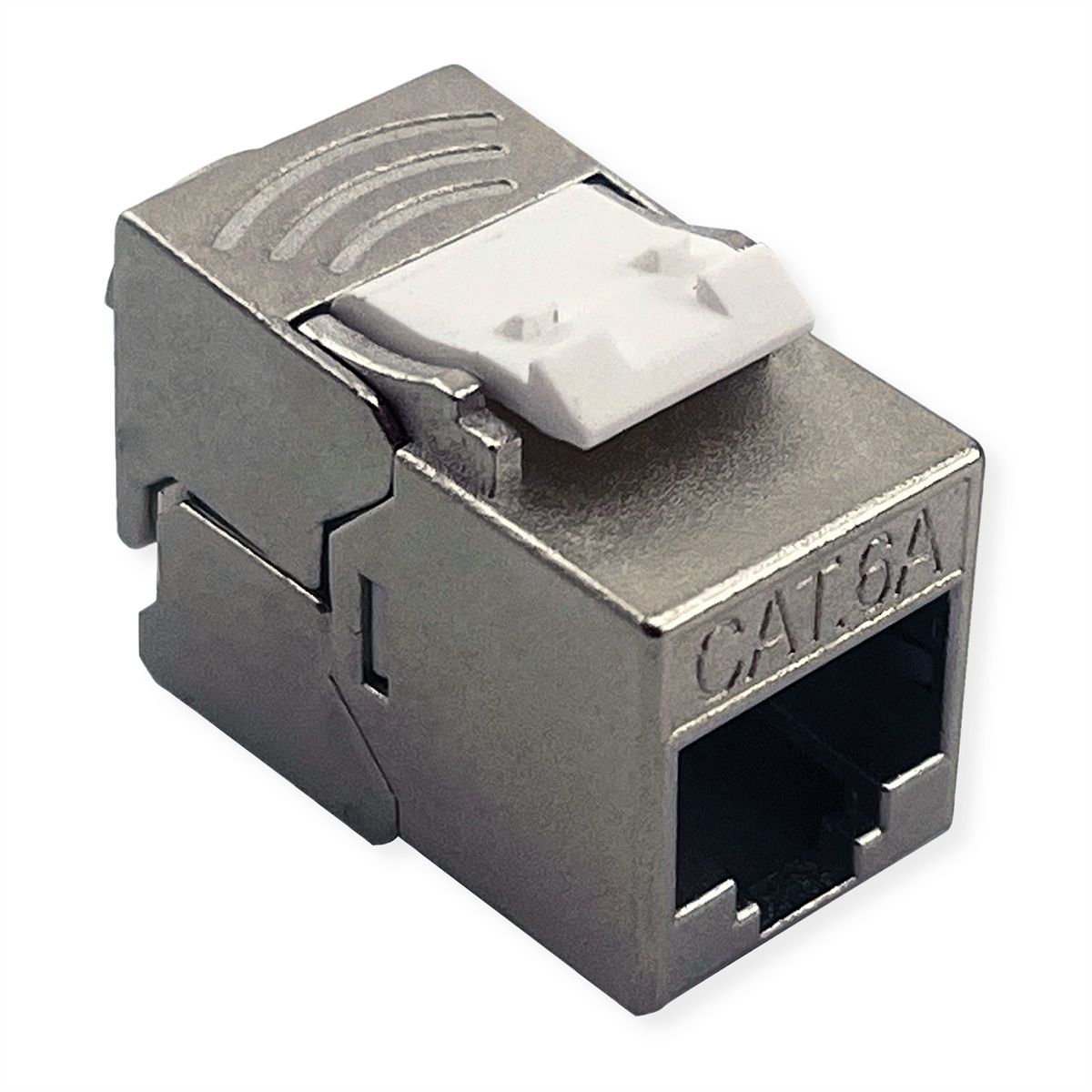

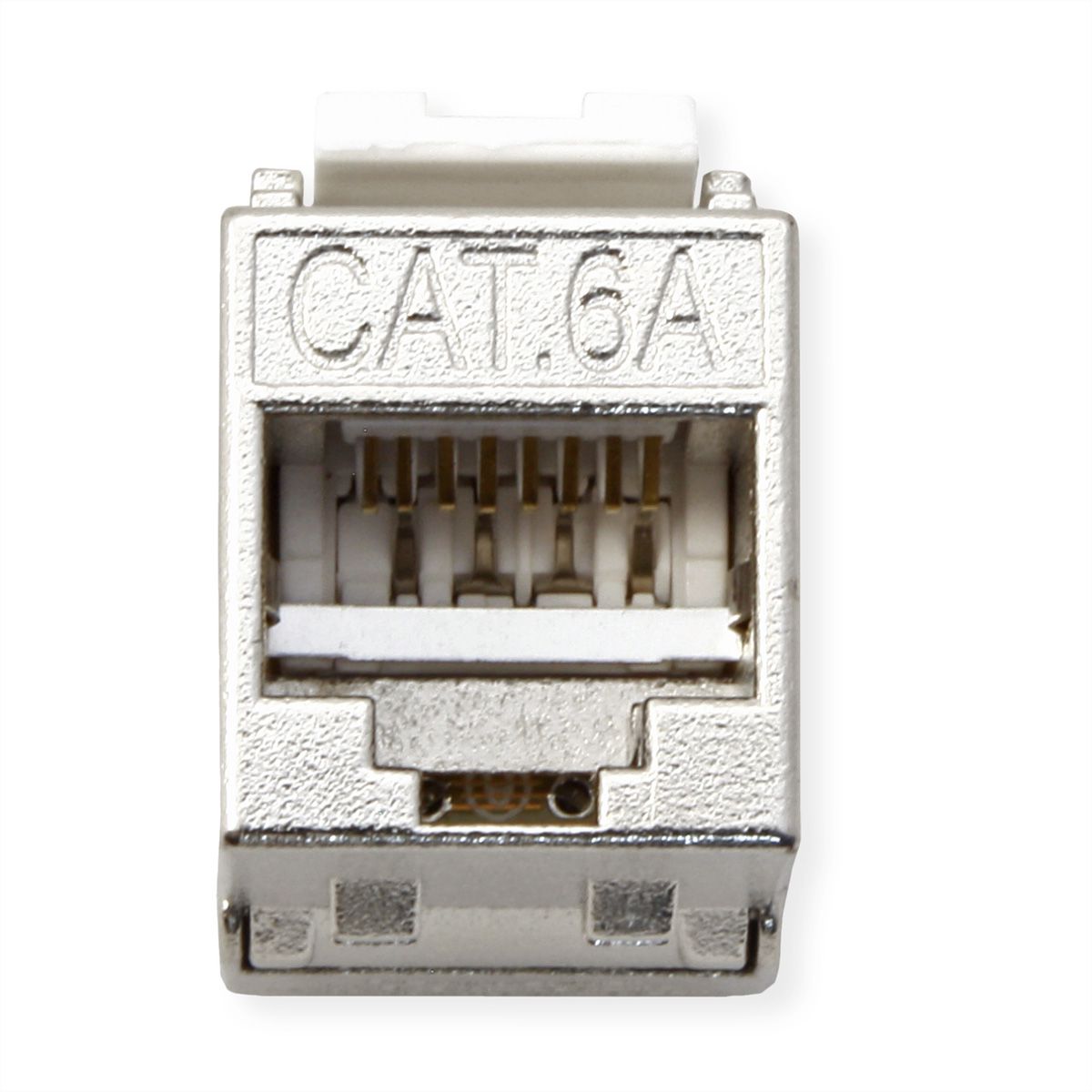

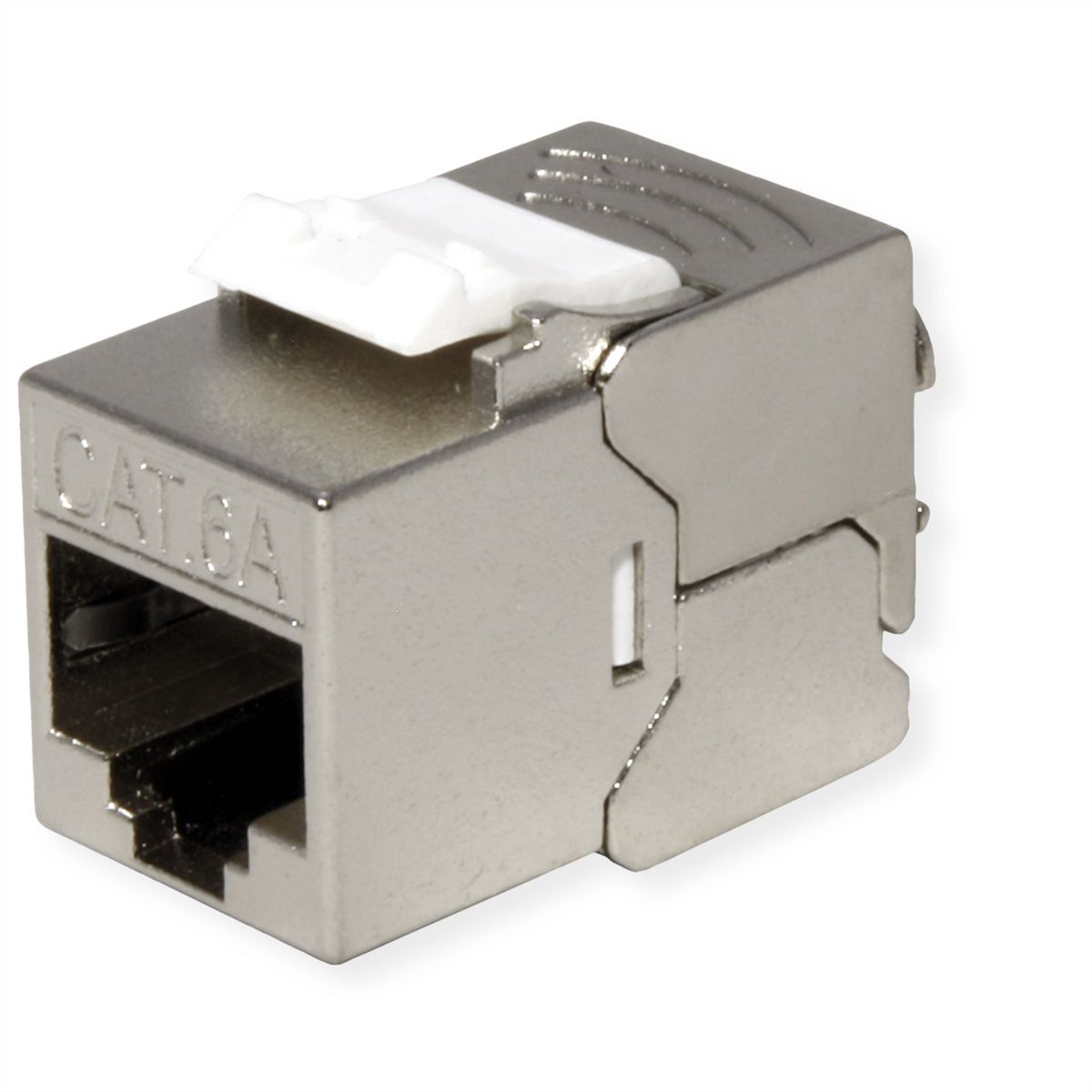

ROLINE Keystone Jack, Cat.6A (Class EA), RJ-45, STP, tool-free, SLIM and SHORT, silver

Please log in to be able to use the shopping cart and then complete orders.

Available

Ordered until 3 pm - usually dispatched on the same day

Description

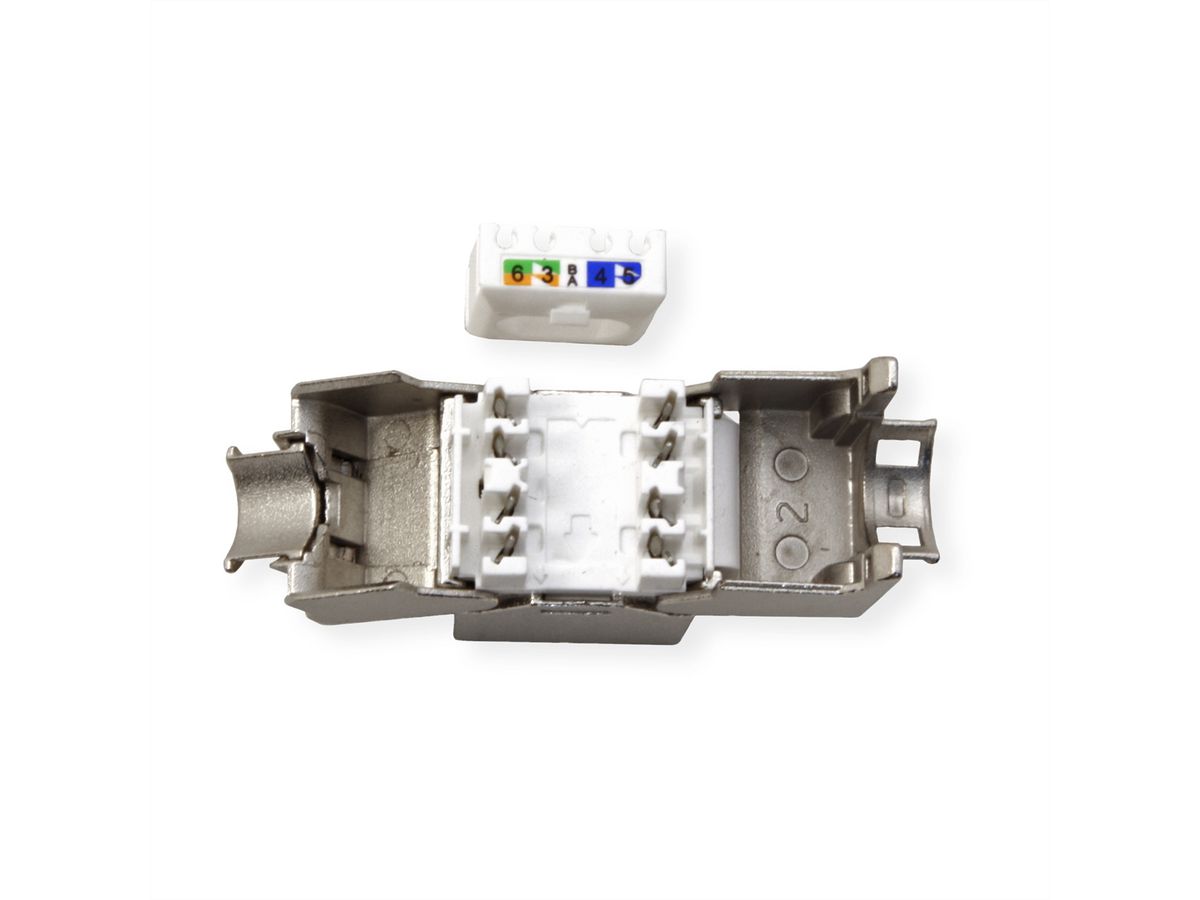

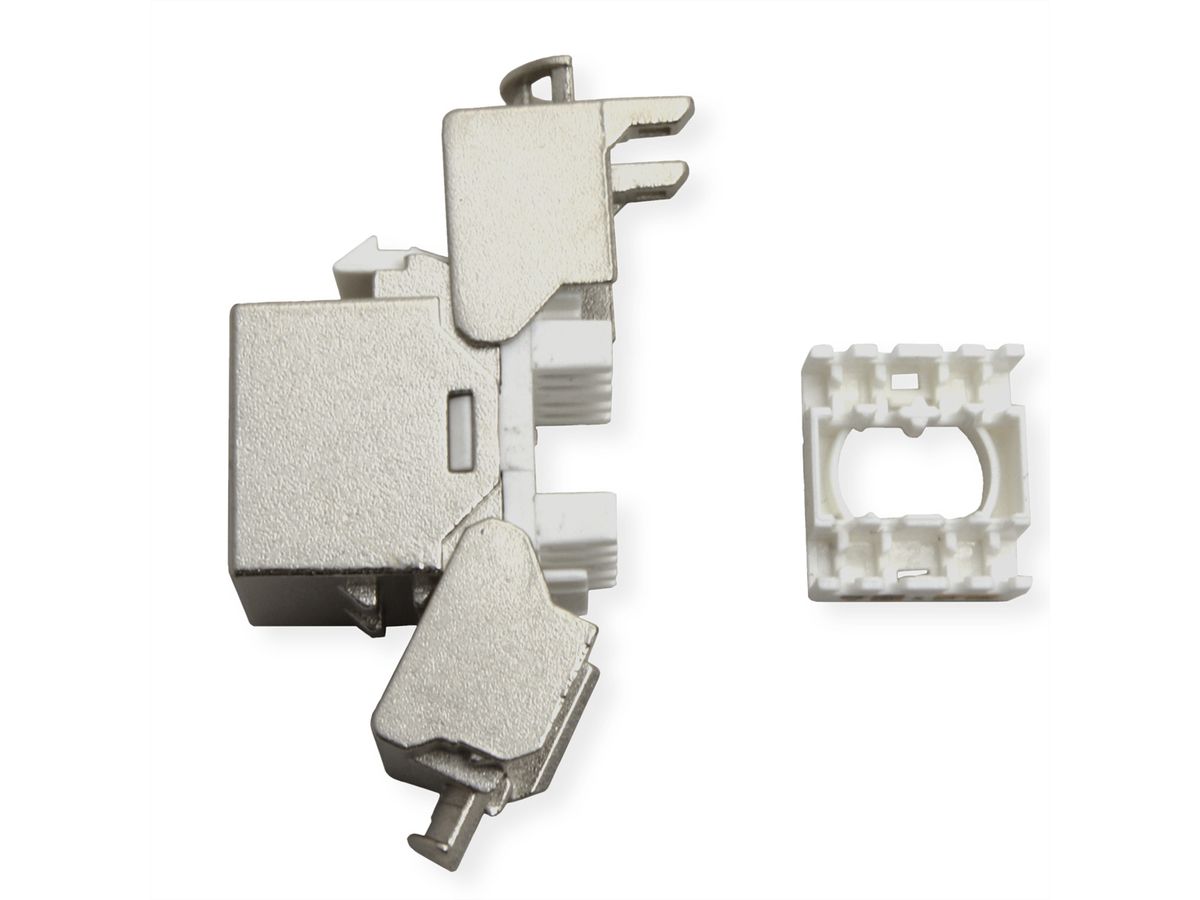

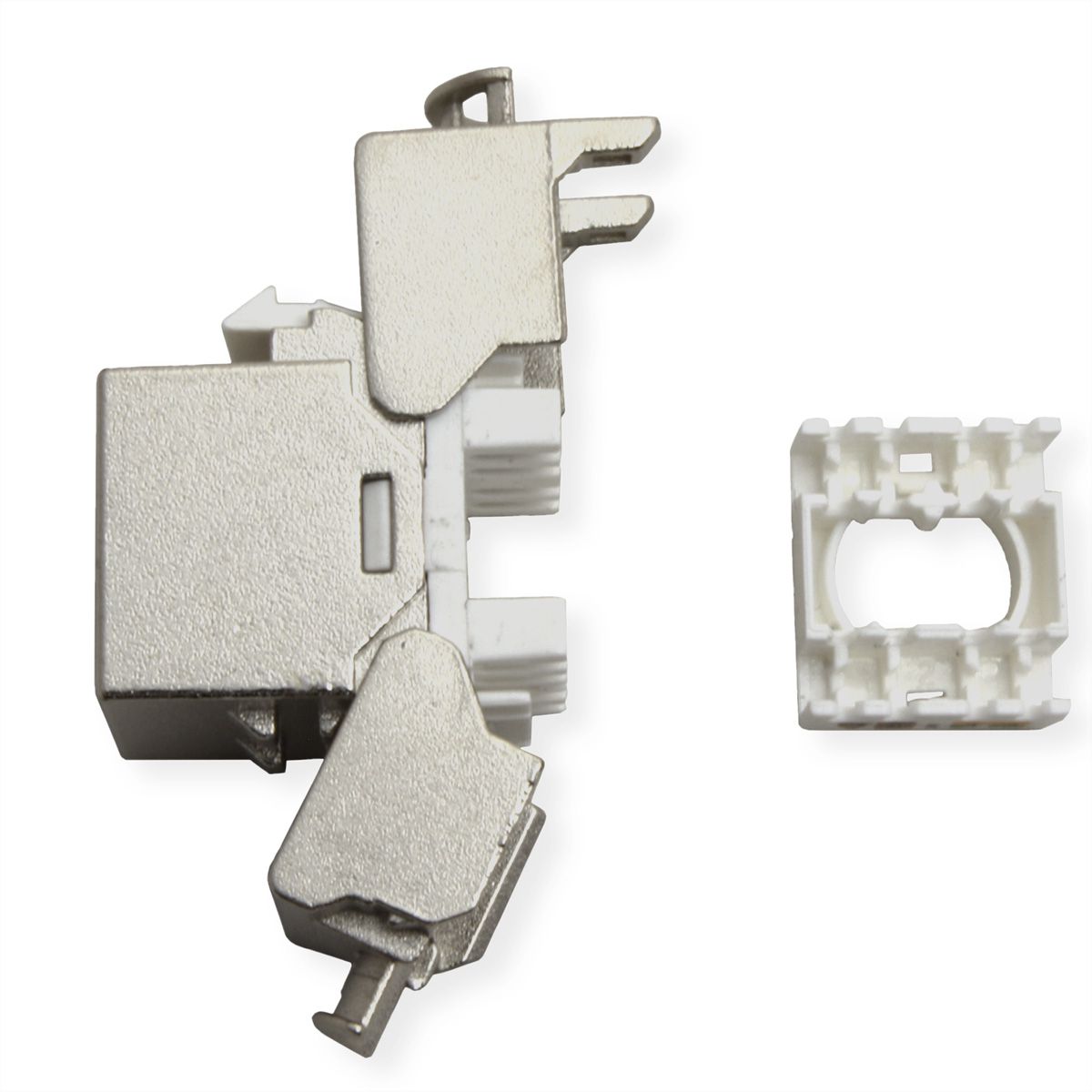

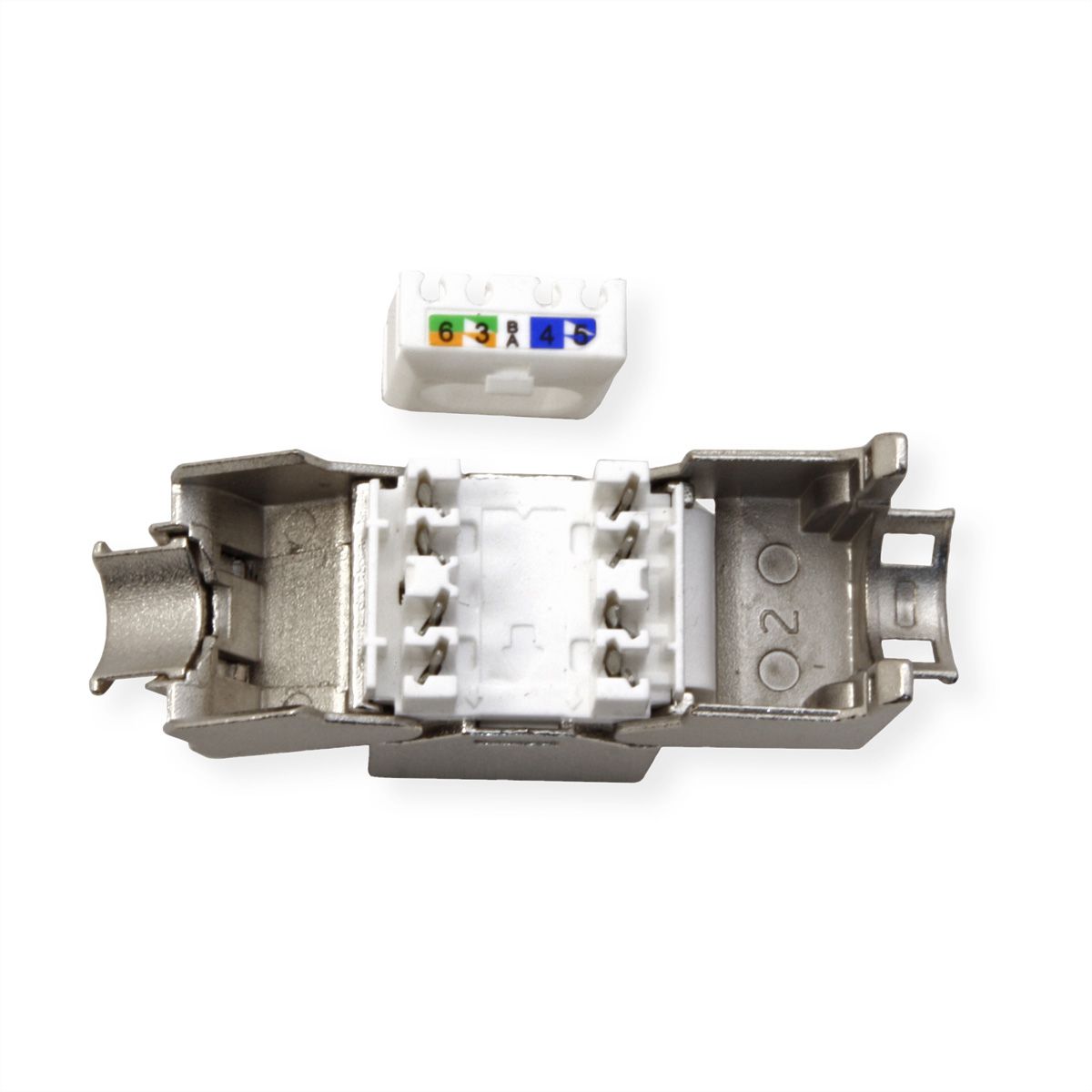

The cables are connected to the Keystone without tools - the cable cores are simply placed in the guides, the module is closed and pressed together - the connection is complete
Keystone with printed color coding in accordance with EIA / TIA 568
The ROLINE Cat.6/Class E 19" keystones meet the transmission properties of a Cat.6A/Class EA link
Shielded
Slim and short
Color: silver

The Keystone modules can be clipped into a 19" module support (26.11.0360 in black or 26.11.0359 in light gray) with an earthing connection. Or they can be used together with a module holder 25.16.8579 to form a junction box.

Manufacturer	ROLINE
Product group	Connection technology TP
Product type	RJ45 Keystone Jack
Colour	silver
Scope of delivery	Keystone, Cable Tie
Shield type	Screened
Transfer quality	Cat6A / Class EA
Quantity of ports	1
Assignment	EIA/TIA 568A & 568B
Connection direction	Straight
Operating temperature min.	-10 °C
Operating temperature max.	60 °C
Storage temperature min.	-40 °C
Storage temperature max.	70 °C
Height	21 mm
Width	15 mm
Depth	30 mm
Weight	16 g
Height of packaging (single piece)	40 mm
Width of packaging (single piece)	20 mm
Depth of packaging (single piece)	20 mm
Package weight (single piece)	0.005 kg

Product data sheet - English (59.9 KB)

Manufacturer data sheet - English (320.4 KB)
