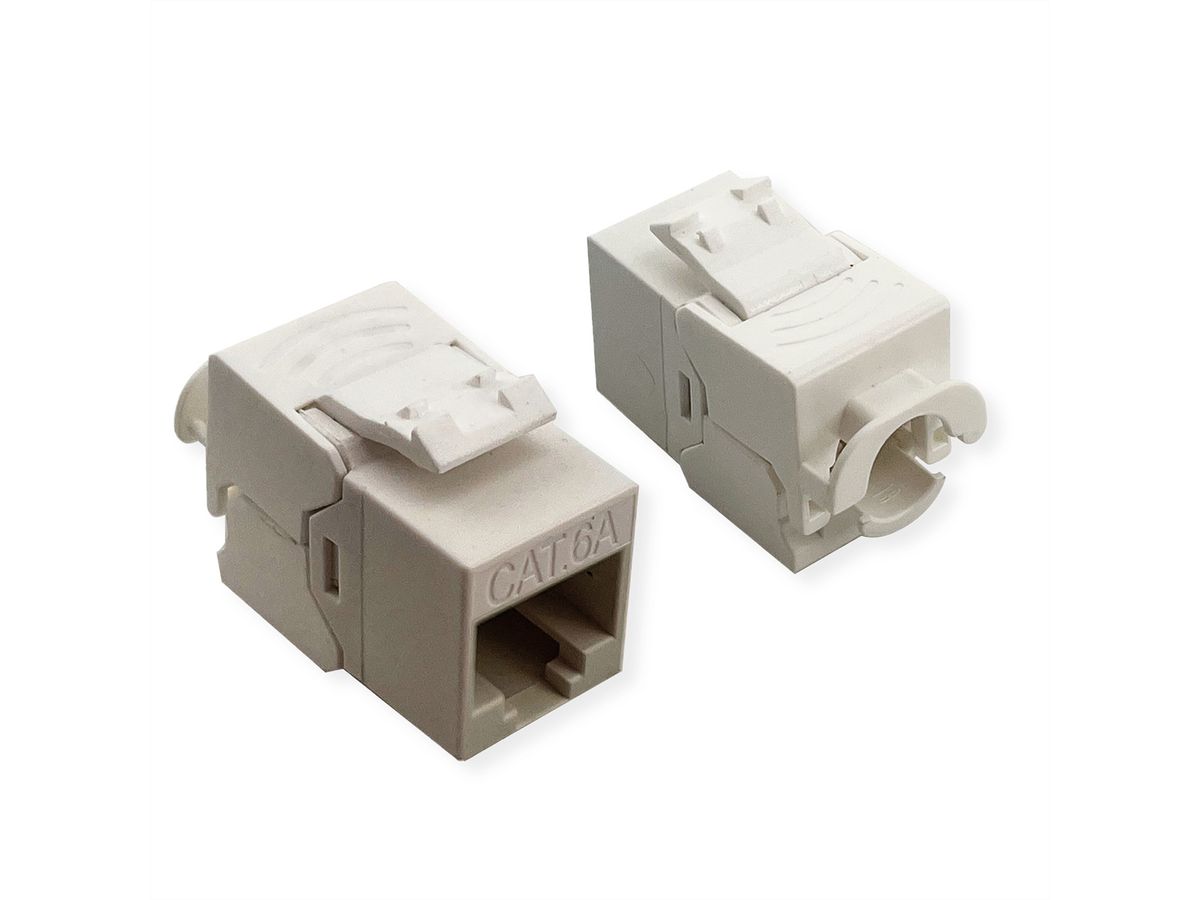

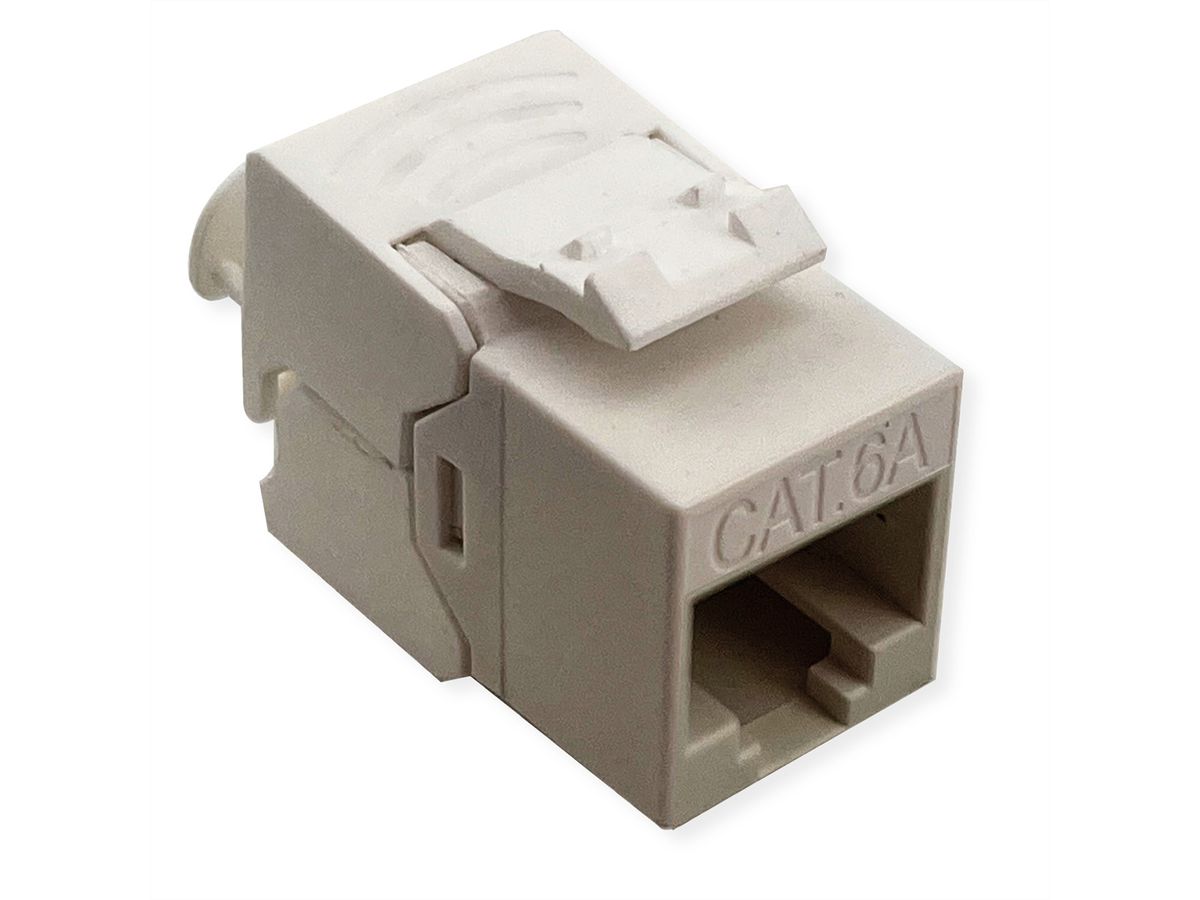

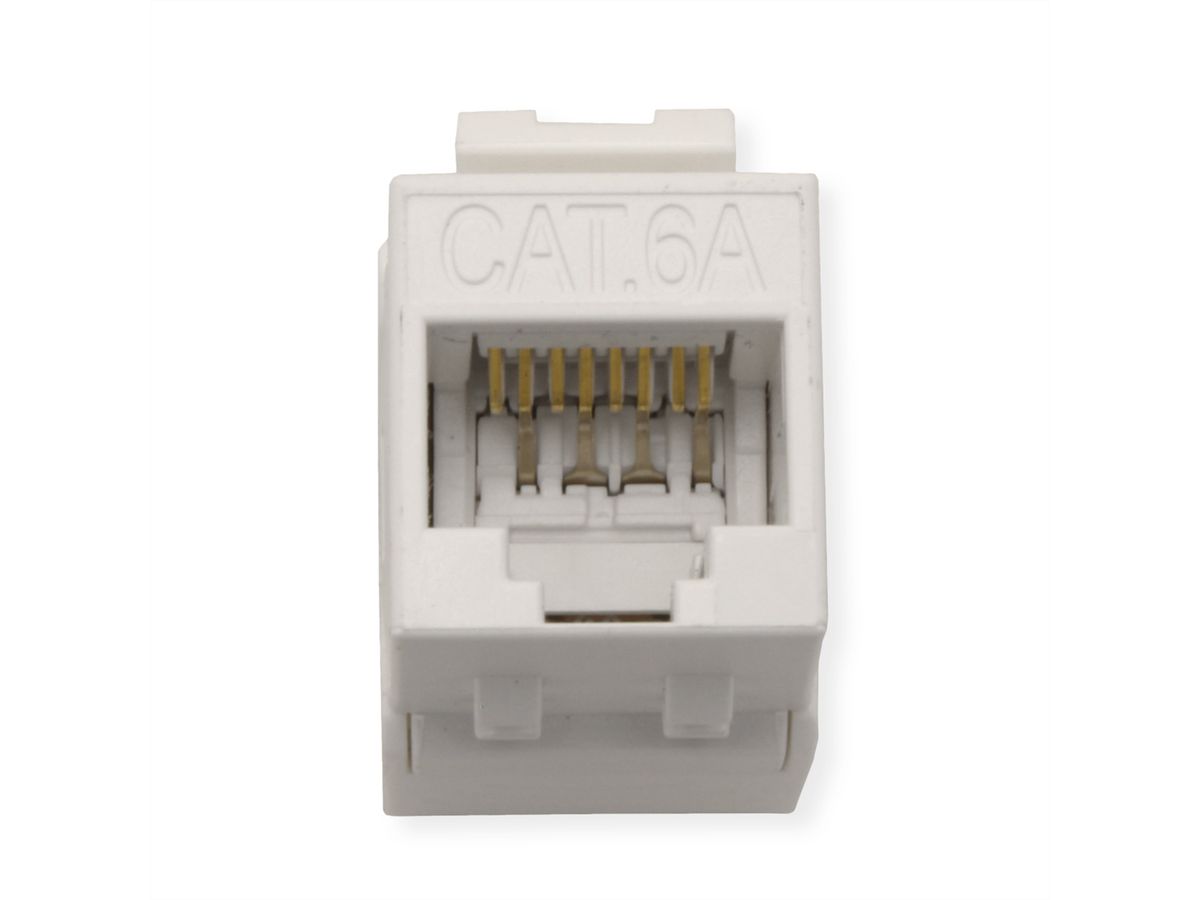

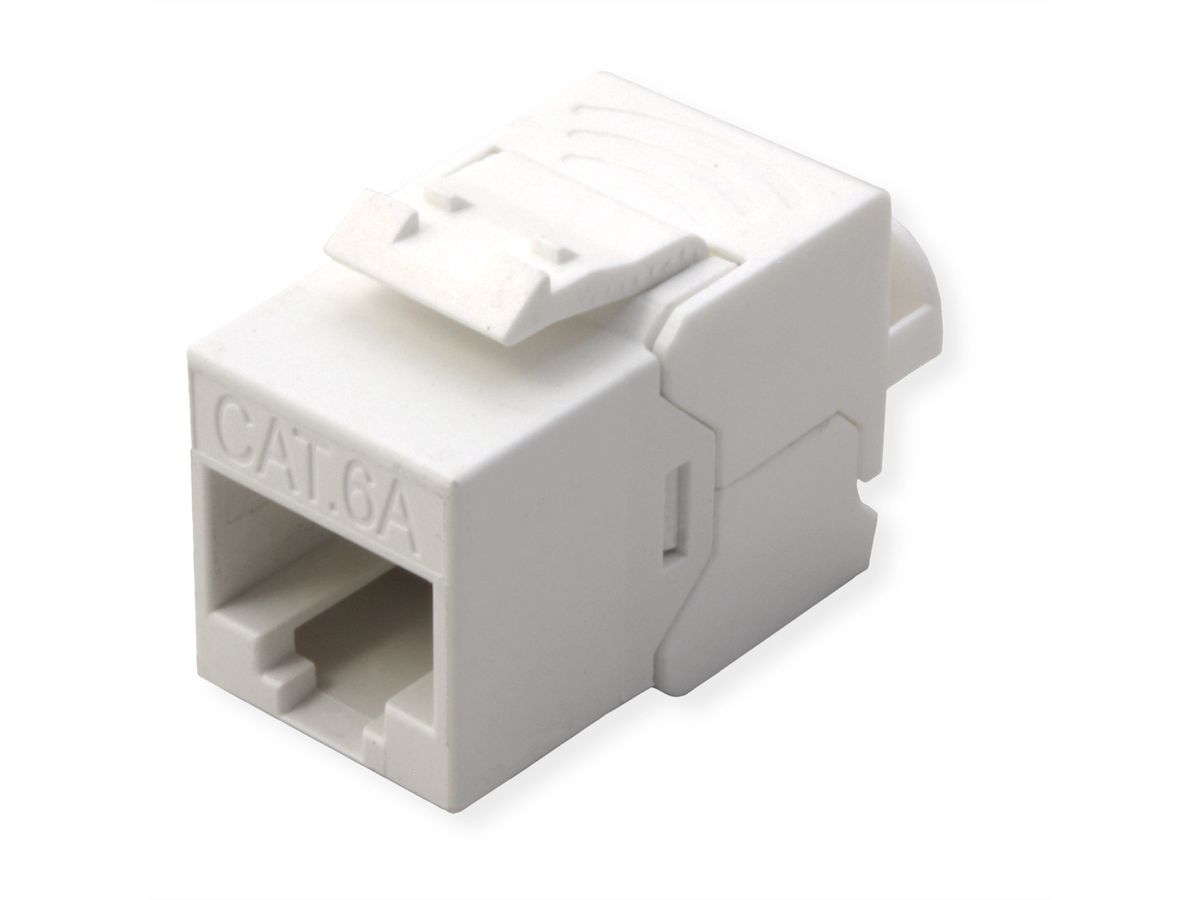

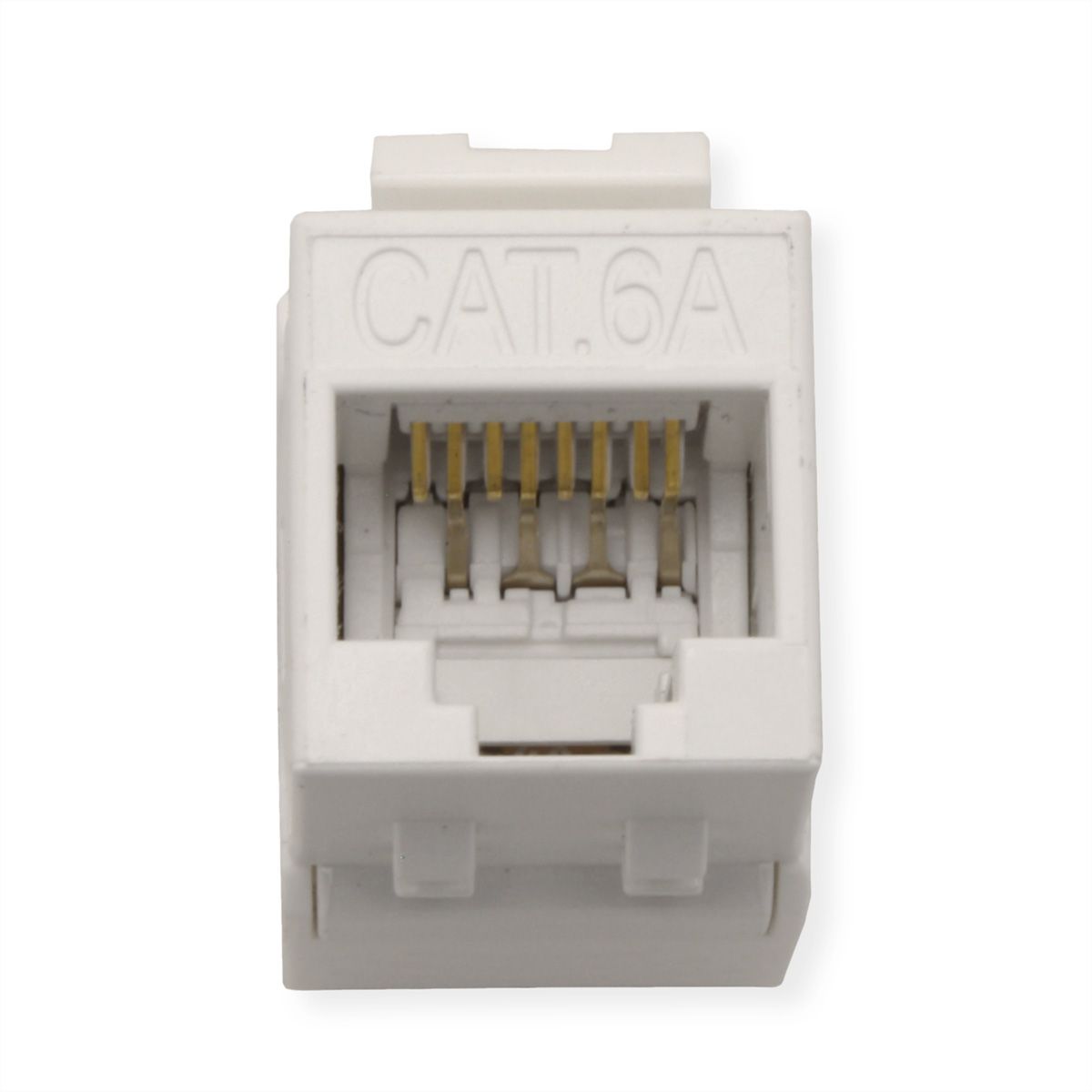

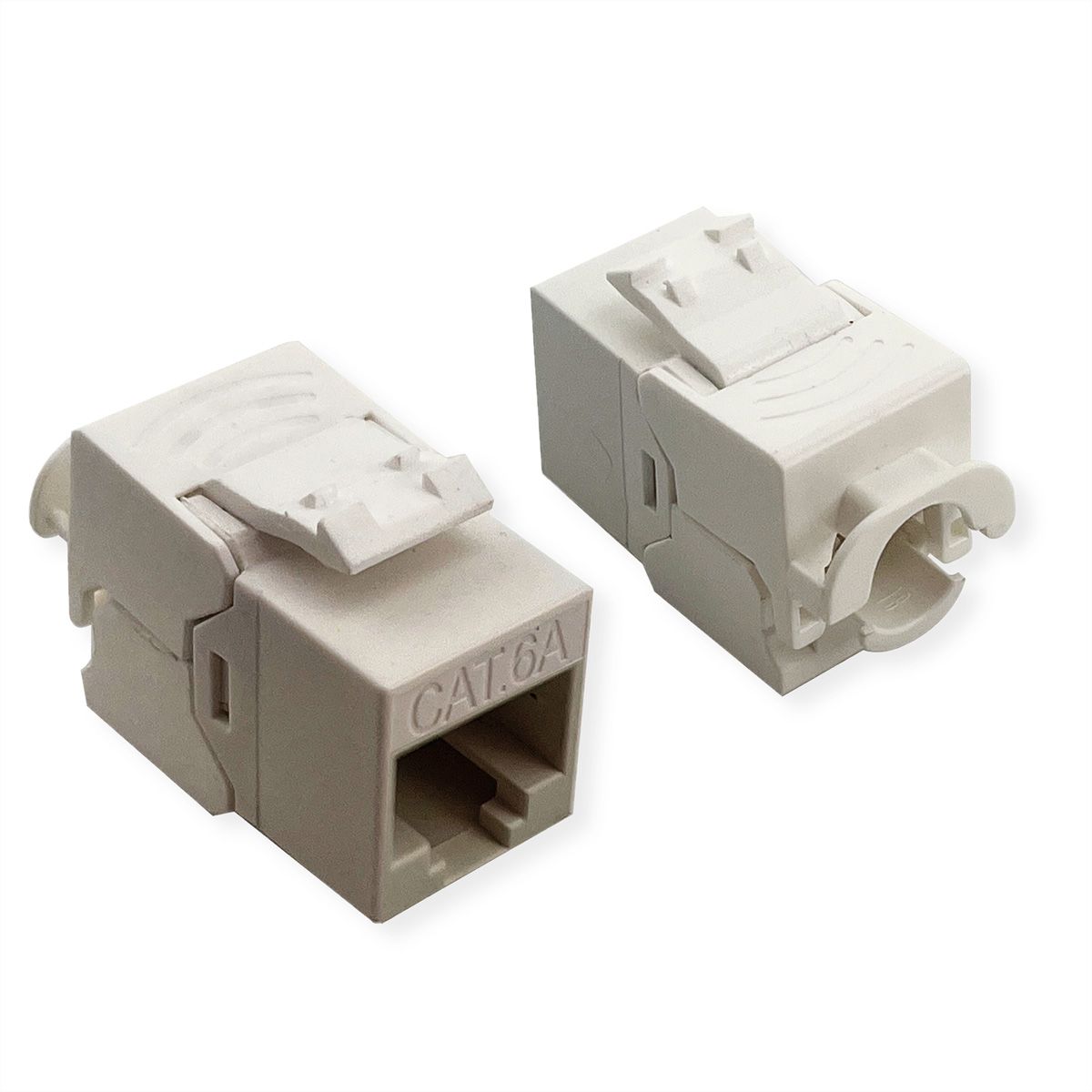

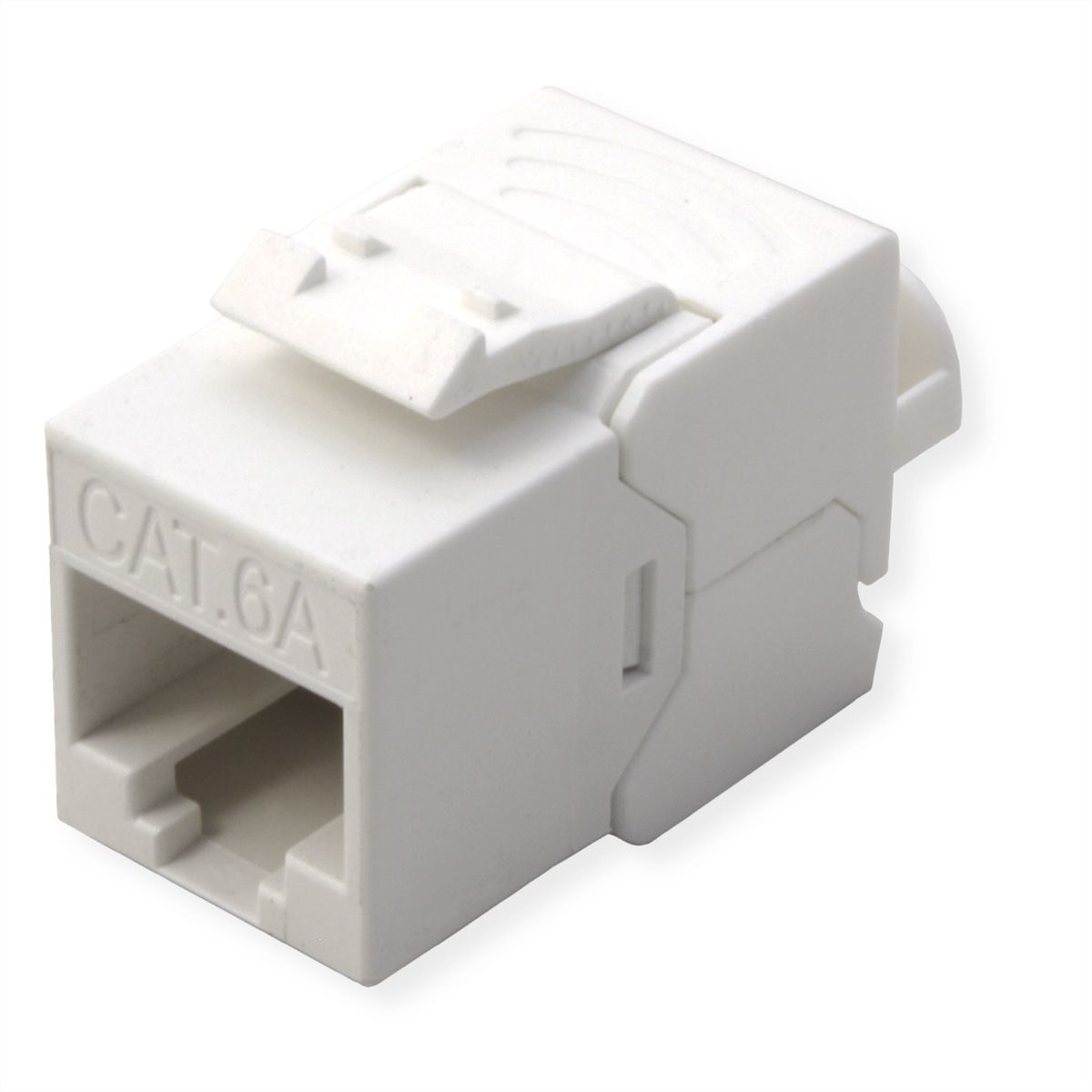

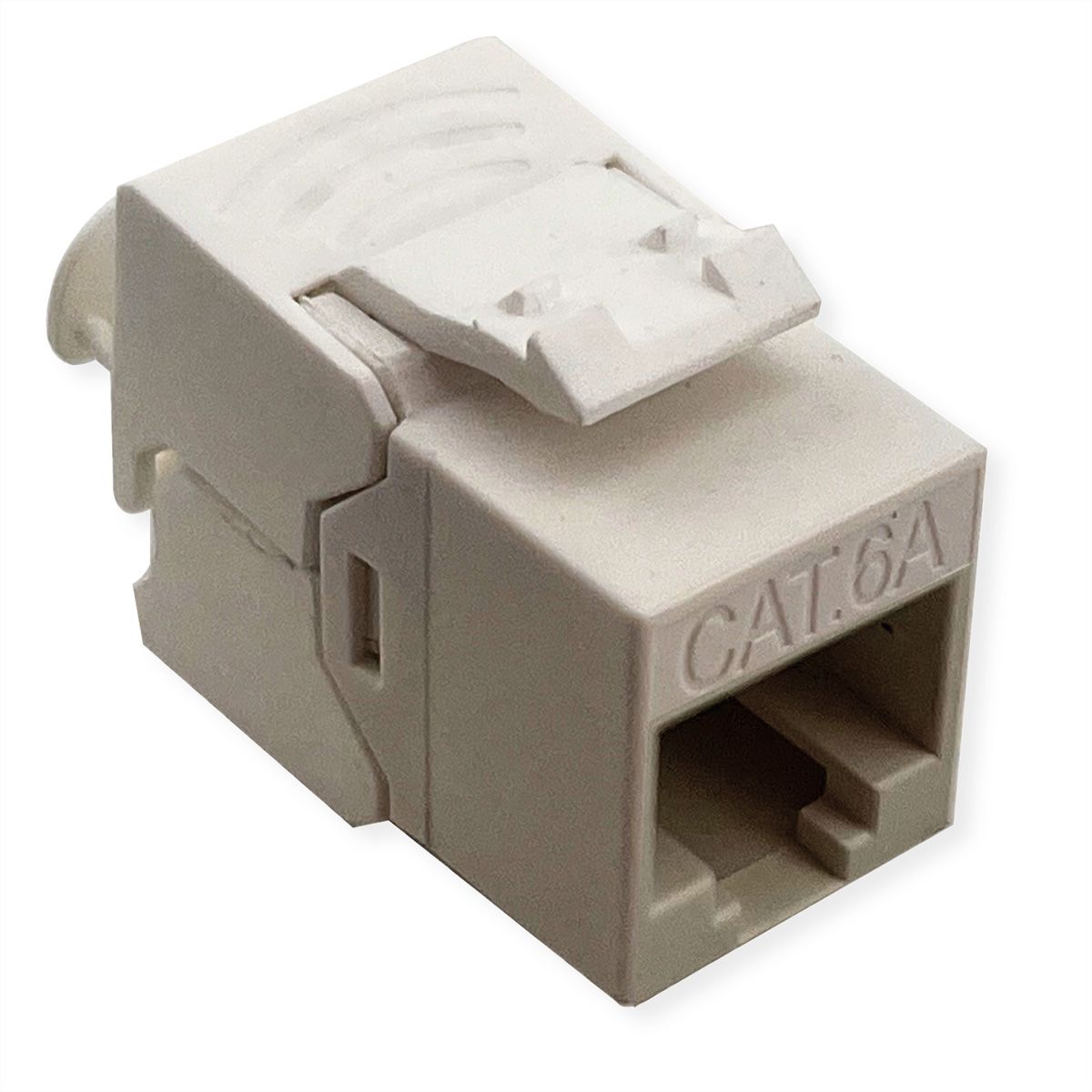

ROLINE Keystone Jack, Cat.6A (Class EA), RJ-45, UTP, tool-free, SLIM and SHORT, white

Item no. 26.11.0392-10 Brand / Manufacturer ROLINE Manuf. no. 26.11.0392 EAN 7630049675032 Package weight 0.005 kg
ROLINE

Please log in to be able to use the shopping cart and then complete orders.

Log in
Available
Ordered until 3 pm - usually dispatched on the same day

Description

ROLINE Cat. 6A Keystone for use in a 10 Gigabit network, using a bandwith of 500 MHz, unshielded, with a very small form factor!

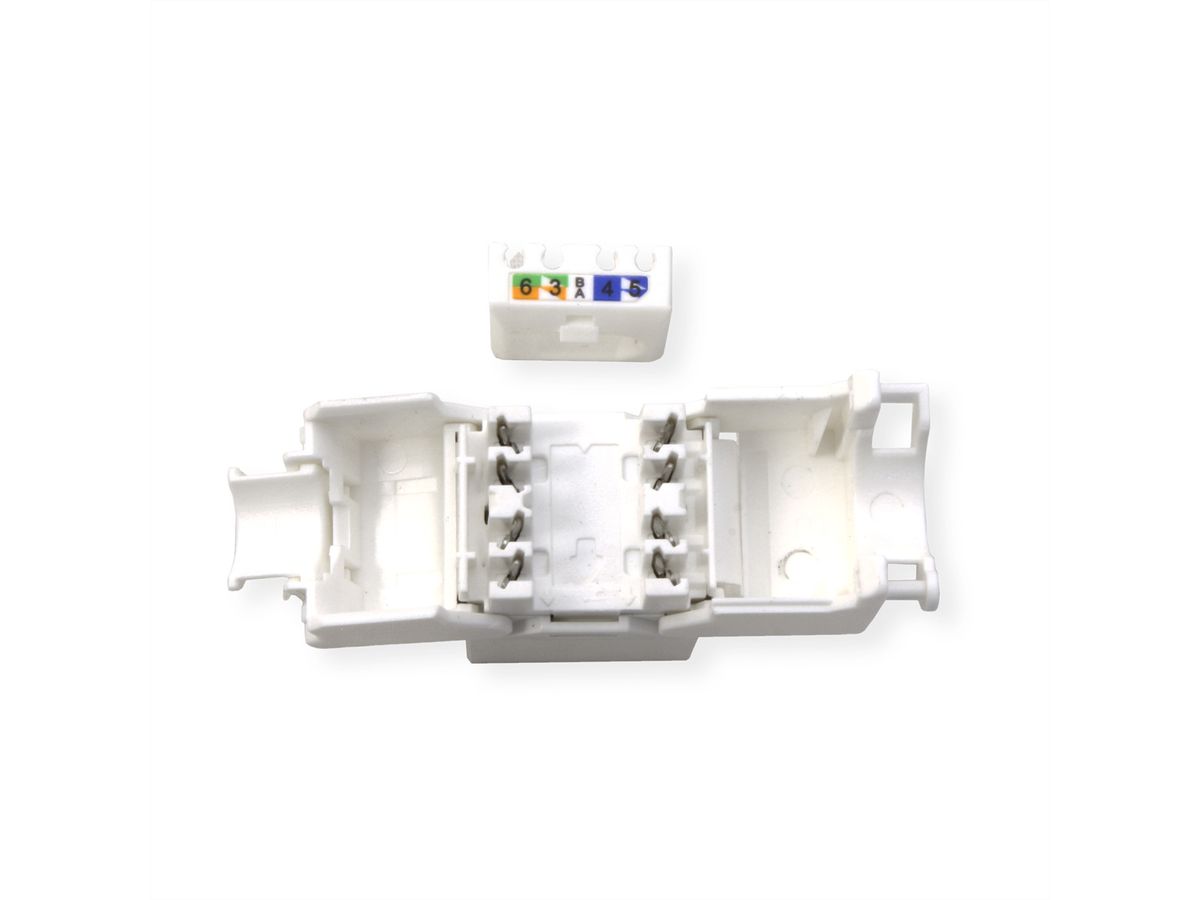

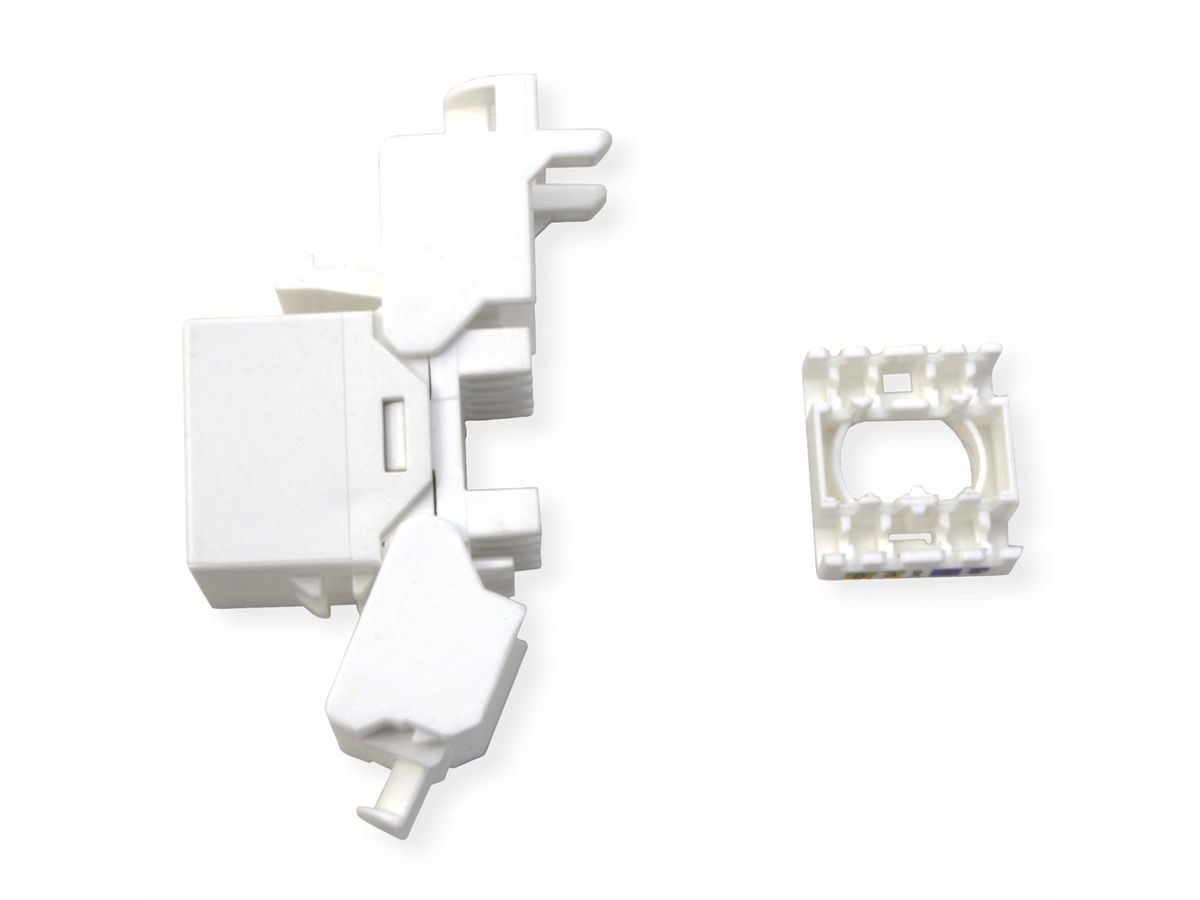

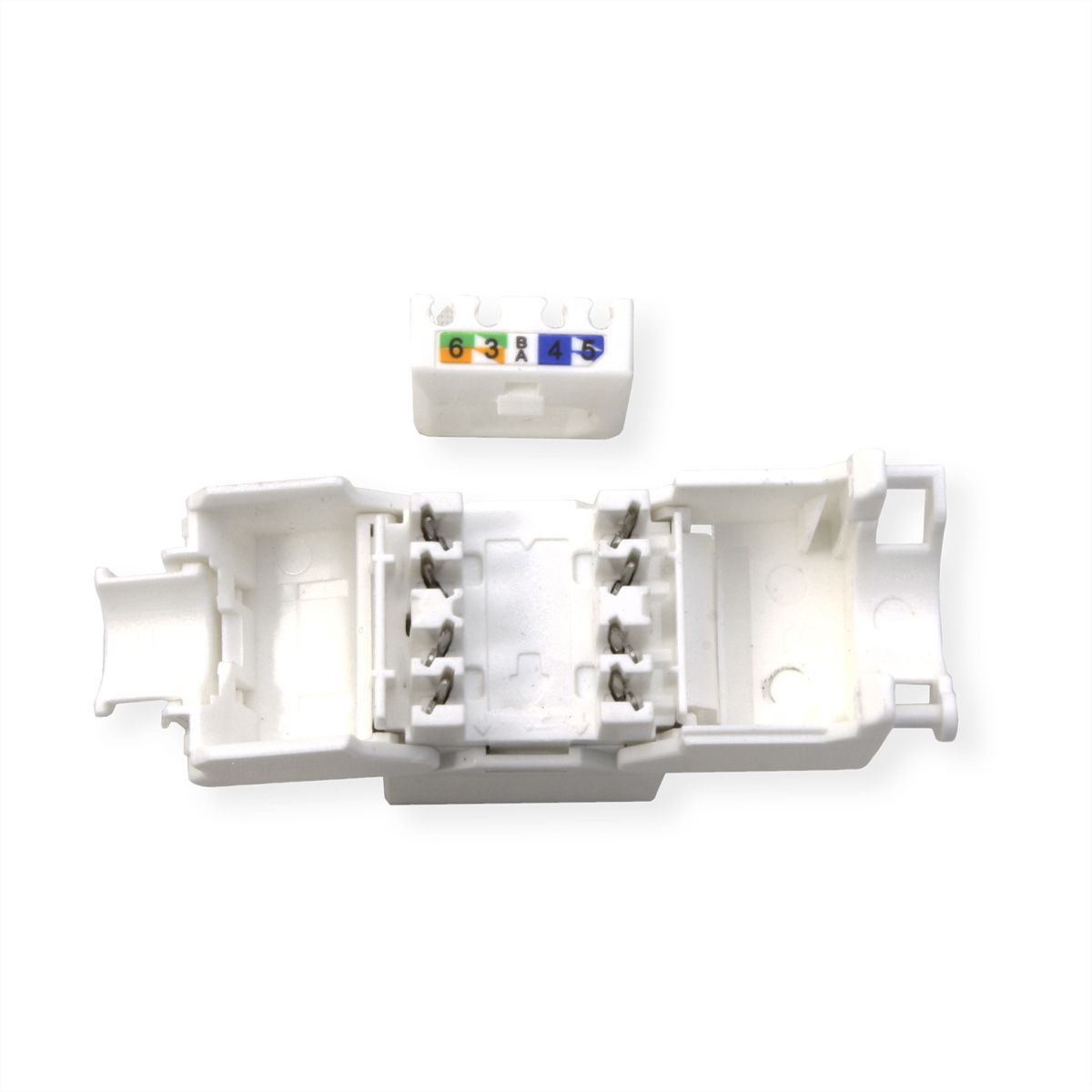

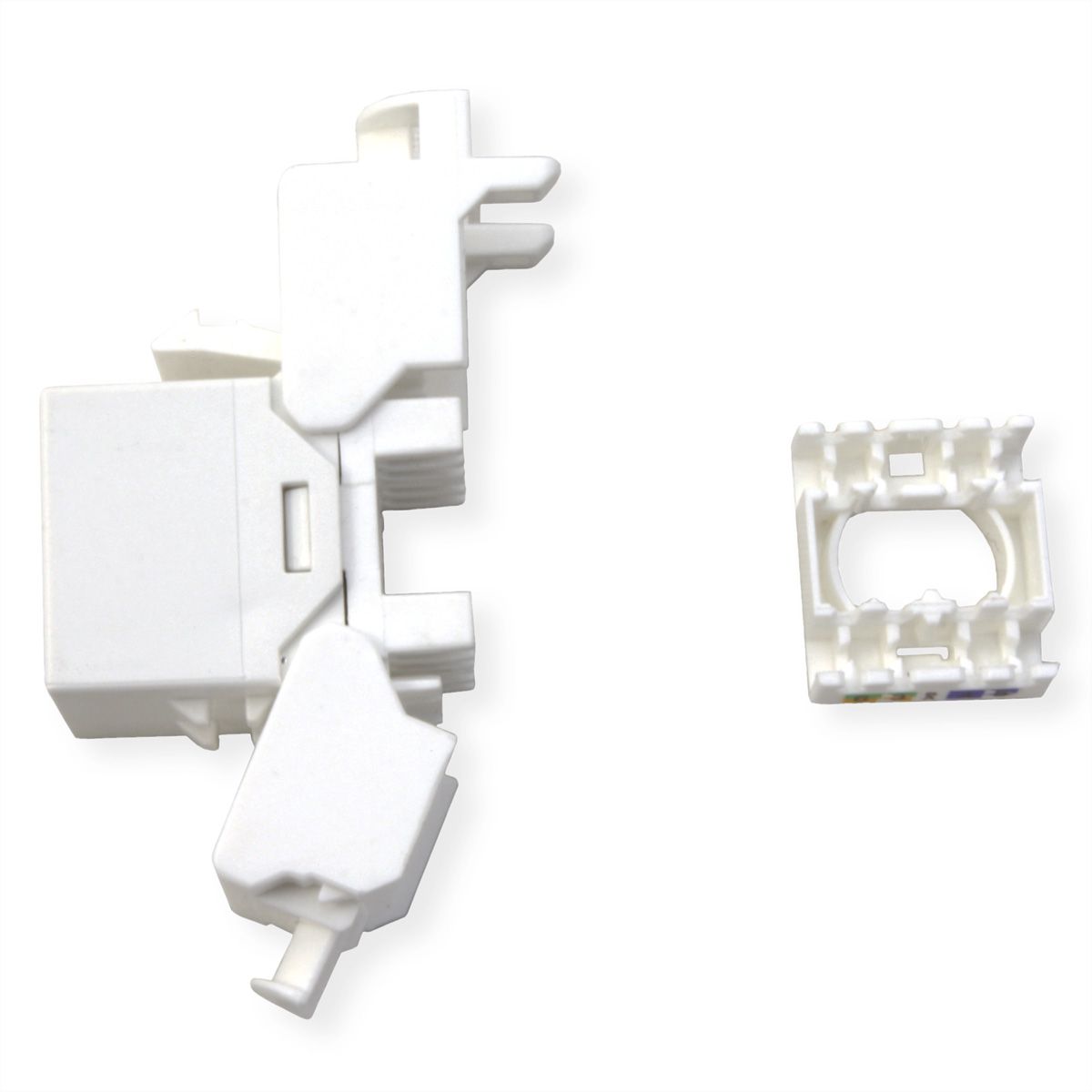

  • The cables are connected to the Keystone without tools - the cable cores are simply placed in the guides, the module is closed and pressed together - the connection is complete
  • Keystone with printed color coding in accordance with EIA / TIA 568
  • The ROLINE Cat.6/Class E 19" keystones meet the transmission properties of a Cat.6A/Class EA link
  • Unshielded
  • Slim and short
  • Color: white
  • The Keystone modules can be clipped into a 19" module support (26.11.0357 in black or 26.11.0356 in light gray) with an earthing connection. Or they can be used together with a module holder 25.16.8579 to form a junction box.

Specifications

Manufacturer
ROLINE
Product group
Connection technology TP
Product type
RJ45 Keystone Jack
Colour
white
Scope of delivery
Keystone, Cable Tie
Shield type
Not screened
Transfer quality
Cat6A / Class EA
Quantity of ports
1
Assignment
EIA/TIA 568A & 568B
Connection direction
Straight
Operating temperature min.
-10 °C
Operating temperature max.
60 °C
Storage temperature min.
-40 °C
Storage temperature max.
70 °C
Height
21 mm
Width
15 mm
Depth
30 mm
Weight
5.5 g
Height of packaging (single piece)
20 mm
Width of packaging (single piece)
20 mm
Depth of packaging (single piece)
20 mm
Package weight (single piece)
0.005 kg

Downloads

Product data sheet - English (56.0 KB) Manufacturer data sheet - English (311.3 KB)
