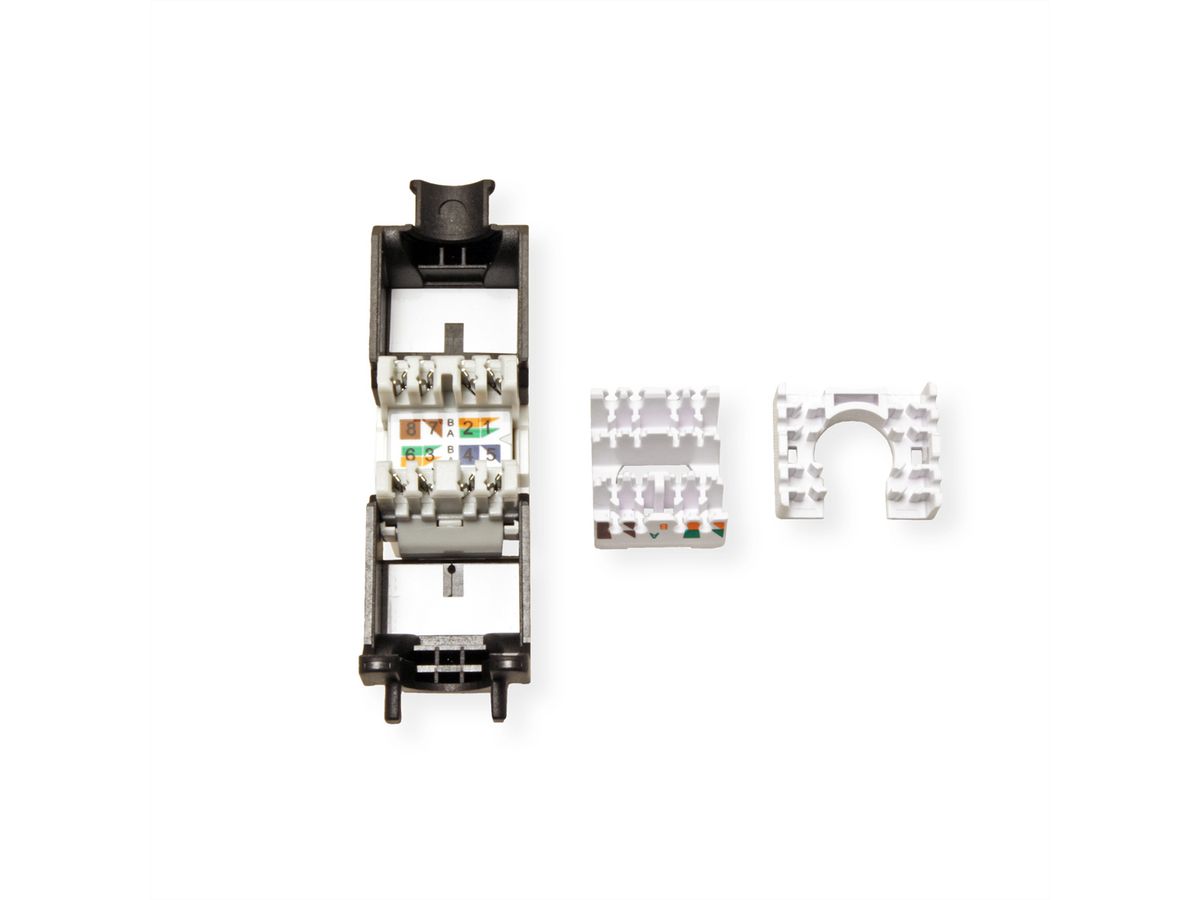

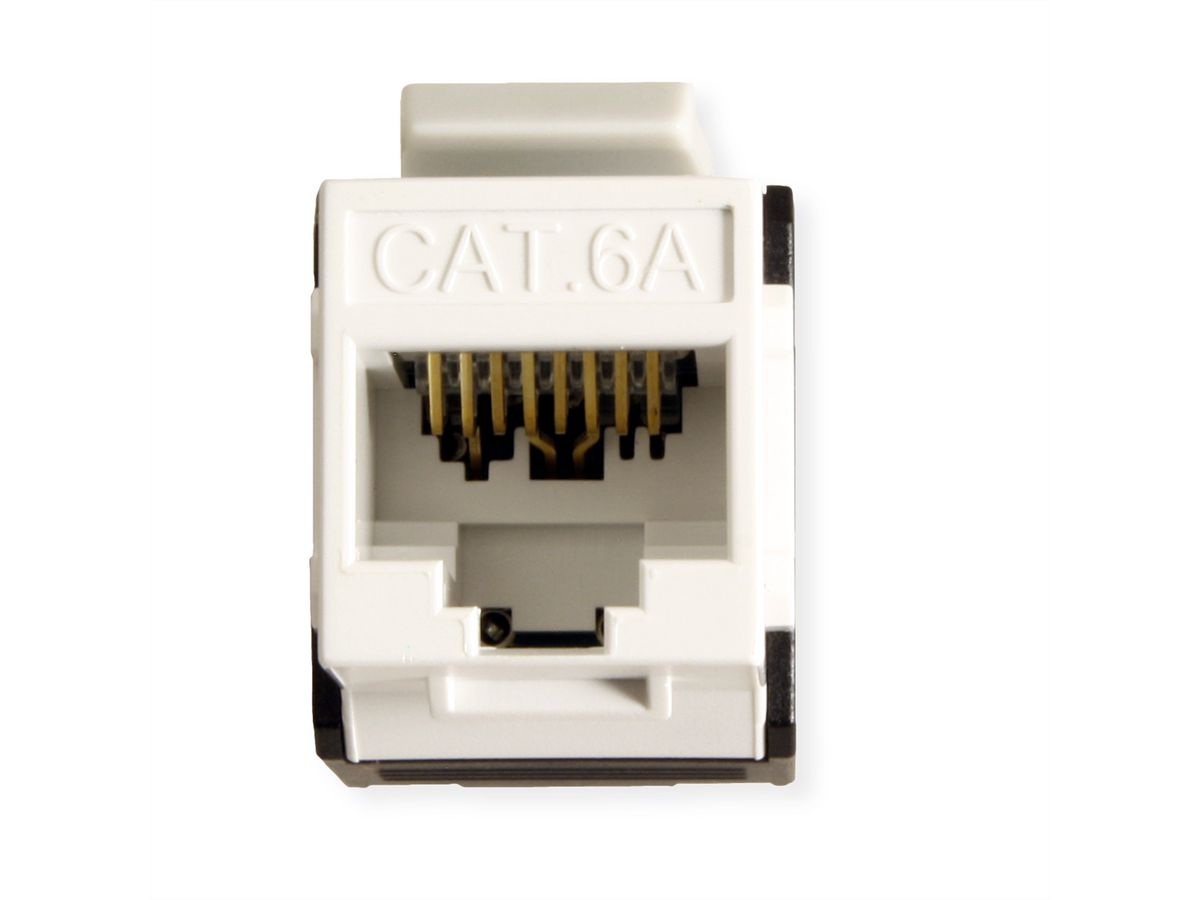

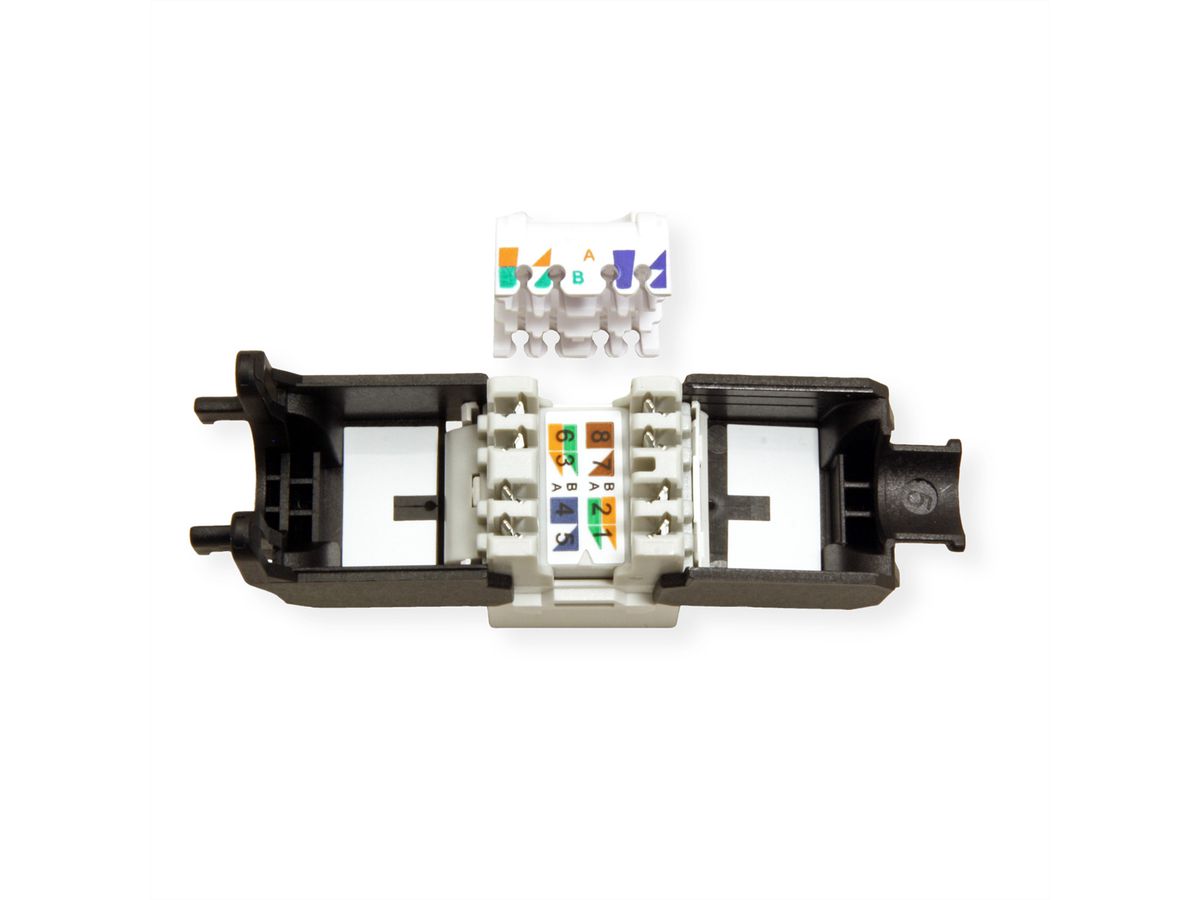

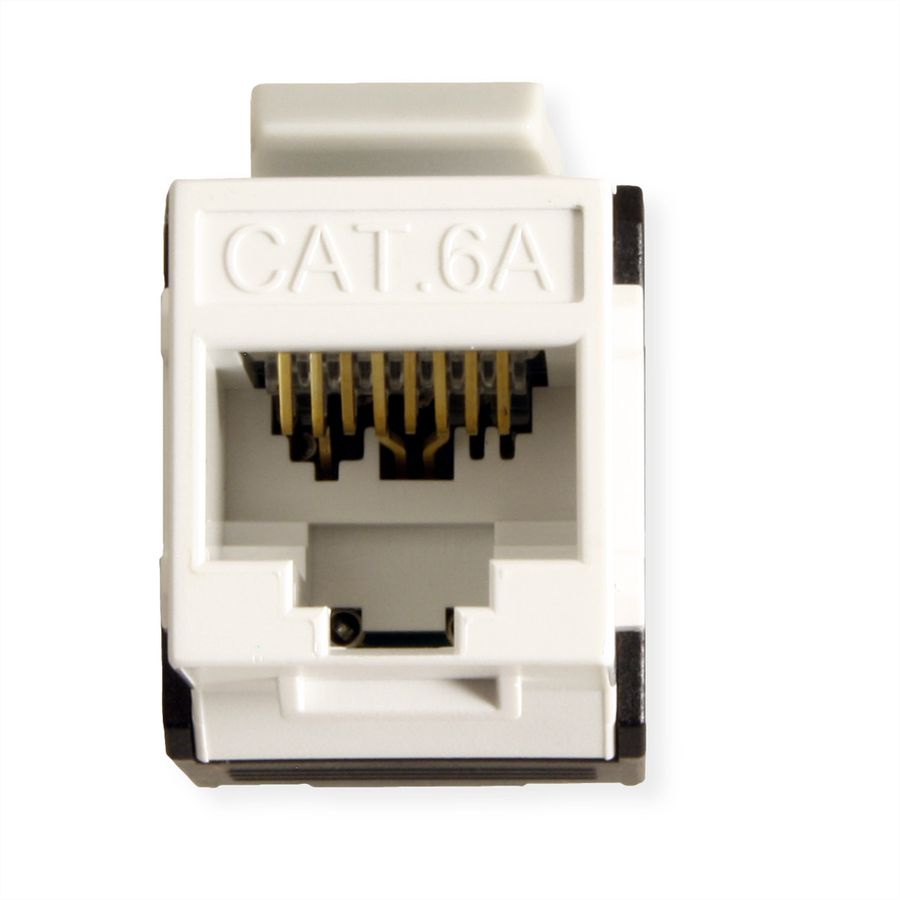

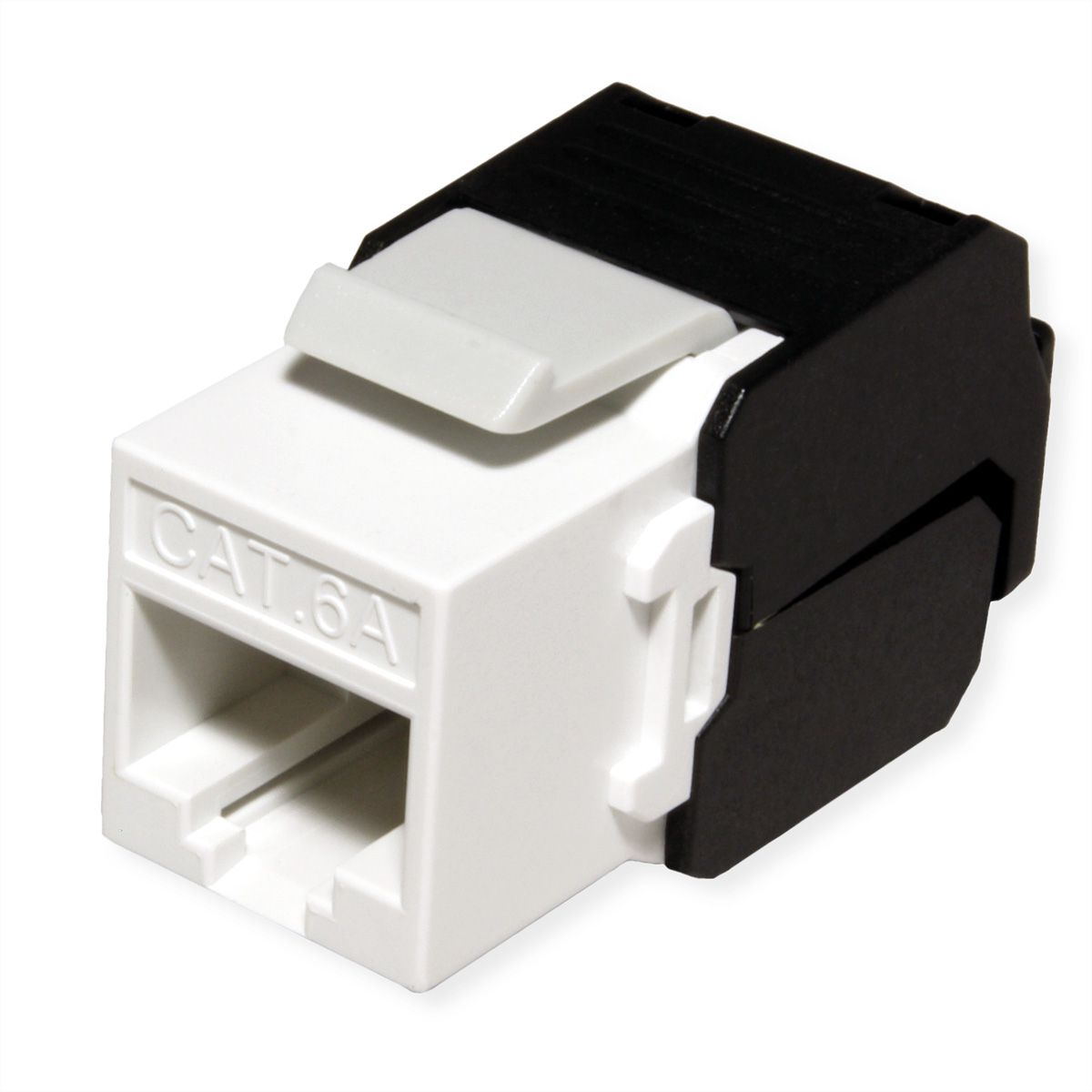

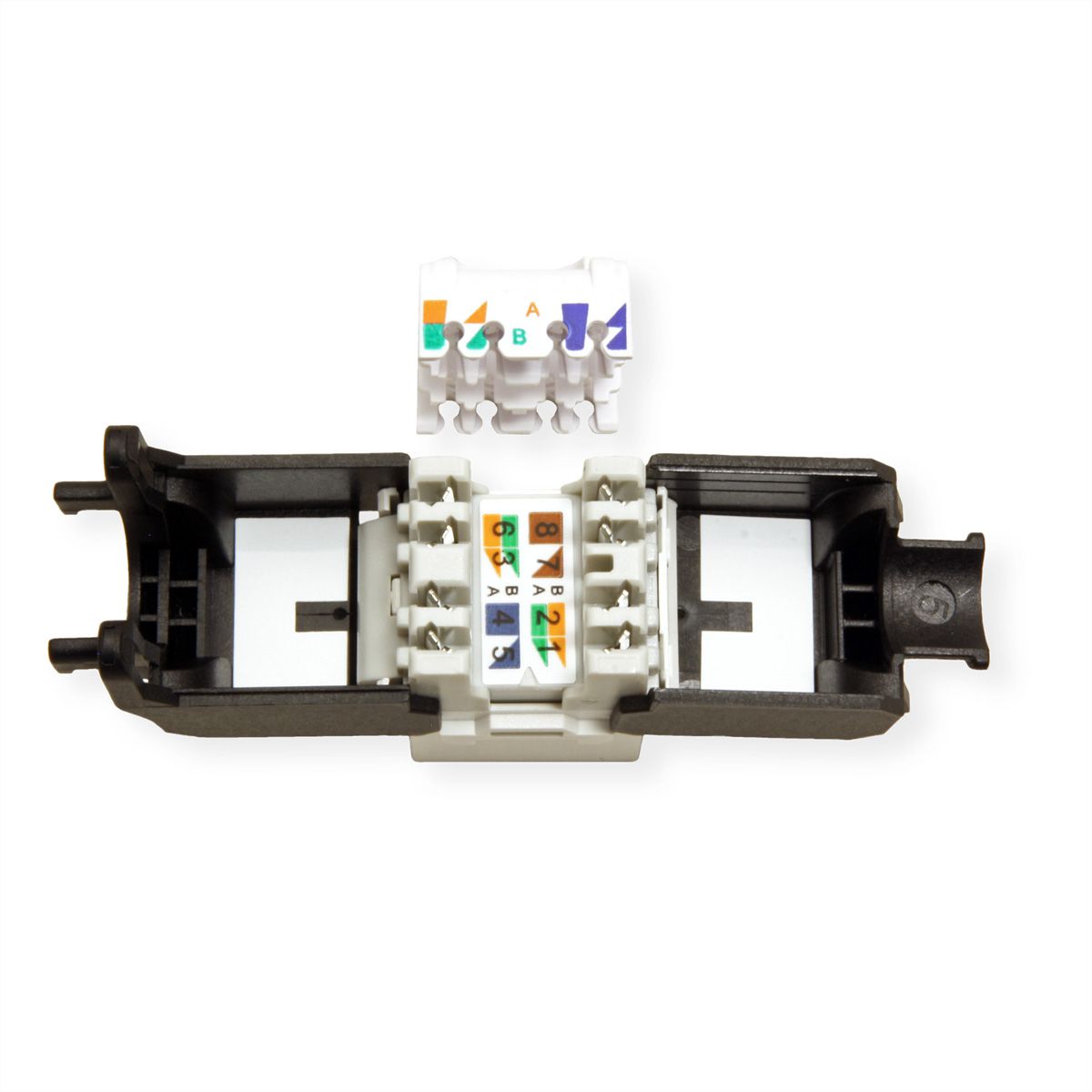

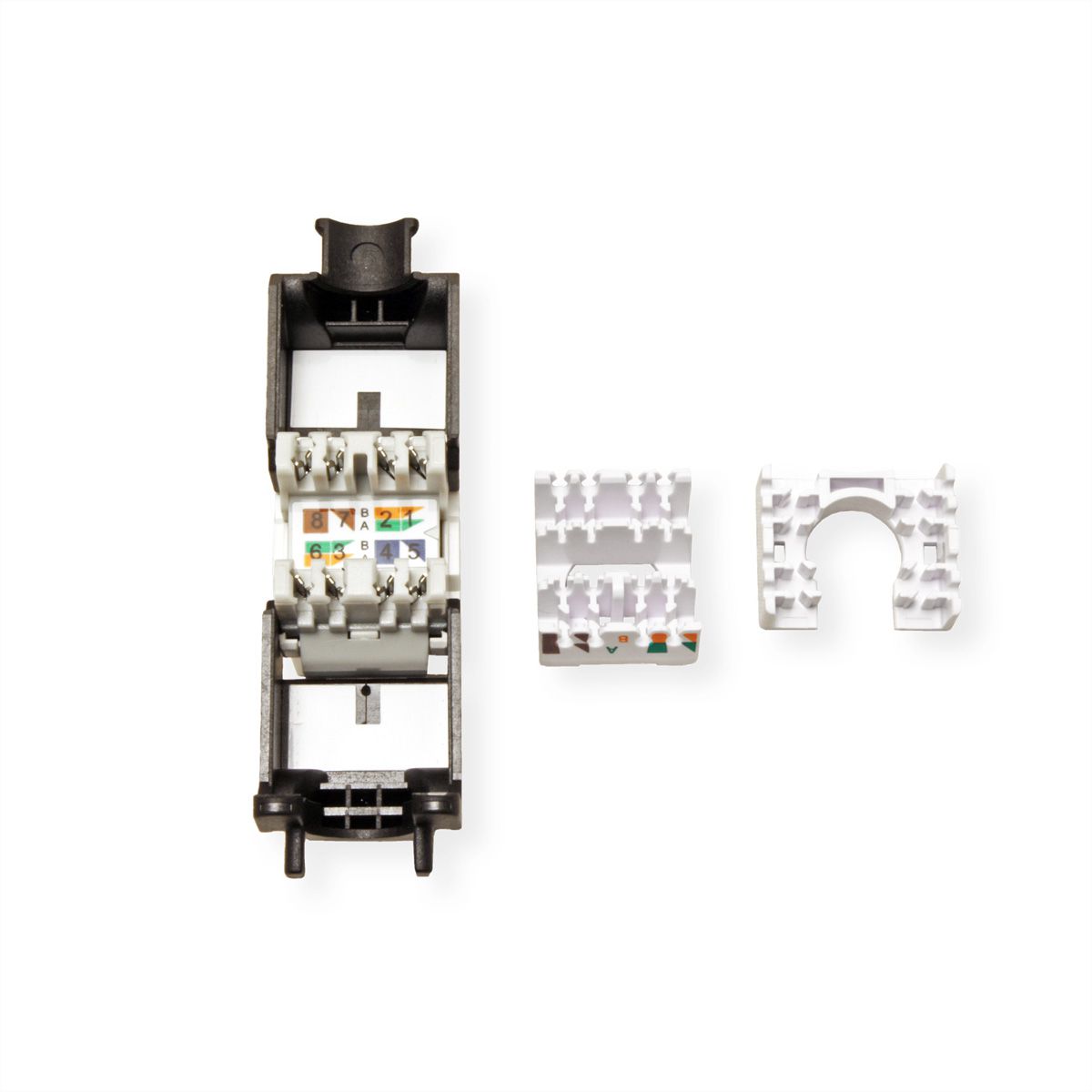

ROLINE Keystone Jack, Cat.6A (Class EA), RJ-45, UTP, tool-free, white

Item no. 26.11.0337-50 Brand / Manufacturer ROLINE Manuf. no. 26.11.0337 EAN 7611990998487 Package weight 0.02 kg
ROLINE

Please log in to be able to use the shopping cart and then complete orders.

Log in
Available
Ordered until 3 pm - usually dispatched on the same day

Description

  • The Cat.6a keystones support data transfer rates of up to 10 GBit/s and a bandwidth of 500 MHz
  • Assembling takes place over LSA plus
  • Colour code on the keystone jacks is based on the standard EIA/TIA 568
  • Can be used together with Keystone Module frame 26.11.0357 (black) or 26.11.0356 (light grey), Flush Mount Wall Oulet for Keystones, 2-port (25.16.8579)
  • Colour: white

Specifications

Manufacturer
ROLINE
Product group
Connection technology TP
Product type
RJ45 Keystone Jack
Colour
white
Scope of delivery
1x Keystone
Shield type
Not screened
Transfer quality
Cat6A / Class EA
Quantity of ports
1
Assembly cable connection
Krone LSAplus
Assignment
EIA/TIA 568A & 568B
Connection direction
Straight
Operating temperature min.
-10 °C
Operating temperature max.
60 °C
Height
23 mm
Width
16 mm
Depth
38 mm
Weight
7.8 g
Height of packaging (single piece)
20 mm
Width of packaging (single piece)
70 mm
Depth of packaging (single piece)
120 mm
Package weight (single piece)
0.02 kg

Downloads

Product data sheet - English (43.7 KB) Manufacturer data sheet - English (186.0 KB) User manual - Deutsch (2.2 MB) User manual - English (2.2 MB) User manual - Français (2.1 MB)
