The products of our own brand ROLINE are designed for professional continuous operation.
With a 2-year functional guarantee, we stand by our performance promise.
ROLINE – Quality makes the difference.
:strip_icc():strip_exif()/bilder/s14/14013427_2024_m_0_hi.jpg "ROLINE KVM Switch, with USB Hub, HDMI 4K@60Hz, 2x USB A + 1x USB C")
:strip_icc():strip_exif()/bilder/s14/14013427_2023_d_1_hi.jpg "ROLINE KVM Switch, with USB Hub, HDMI 4K@60Hz, 2x USB A + 1x USB C")
:strip_icc():strip_exif()/bilder/s14/14013427_2024_d_0_hi.jpg "ROLINE KVM Switch, with USB Hub, HDMI 4K@60Hz, 2x USB A + 1x USB C")
:strip_icc():strip_exif()/bilder/s14/14013427_2024_p_2_hi.jpg "ROLINE KVM Switch, with USB Hub, HDMI 4K@60Hz, 2x USB A + 1x USB C")
:strip_icc():strip_exif()/bilder/s14/14013427_2024_p_0_hi.jpg "ROLINE KVM Switch, with USB Hub, HDMI 4K@60Hz, 2x USB A + 1x USB C")
:strip_icc():strip_exif()/bilder/s14/14013427_2024_p_1_hi.jpg "ROLINE KVM Switch, with USB Hub, HDMI 4K@60Hz, 2x USB A + 1x USB C")

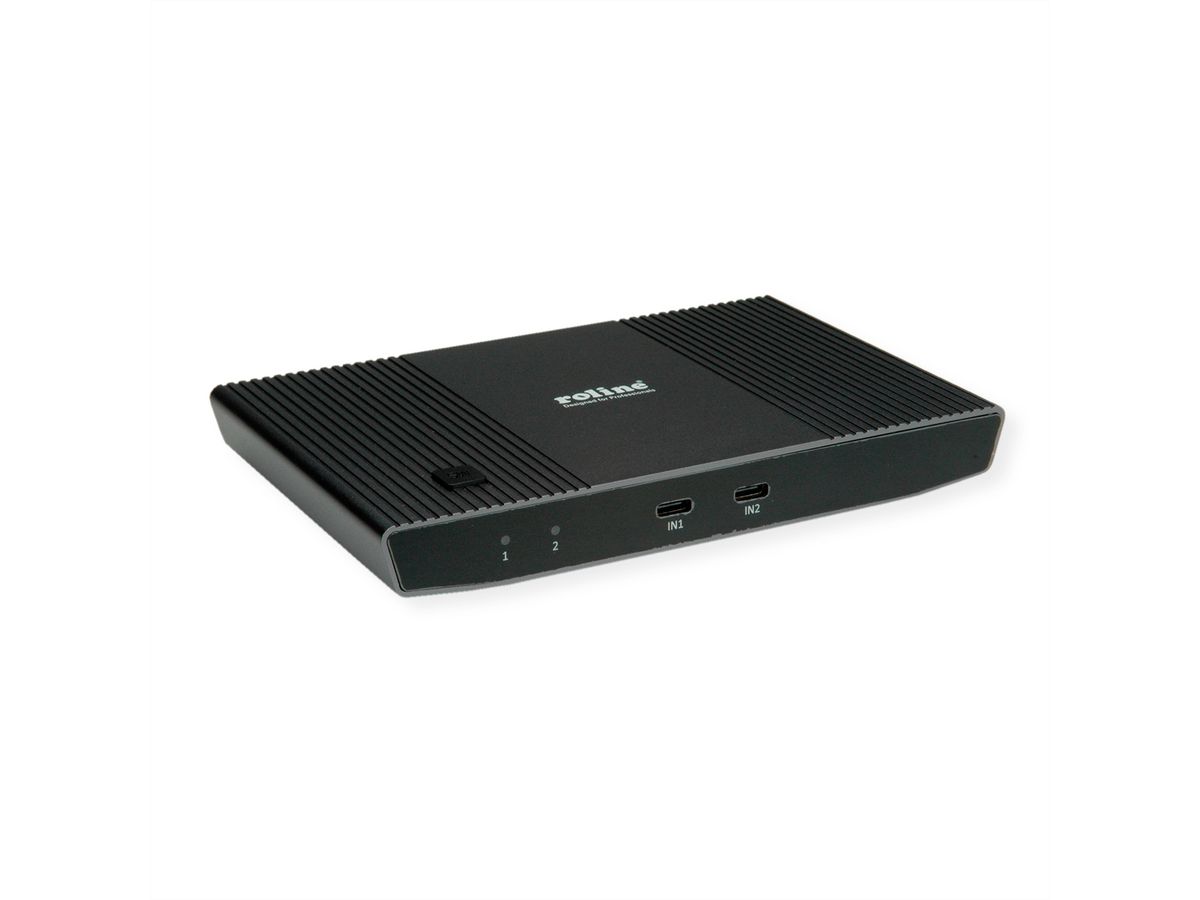

ROLINE KVM Switch, with USB Hub, HDMI 4K@60Hz, 2x USB A + 1x USB C
Please log in to be able to use the shopping cart and then complete orders.
Log in| Item no. | 14.01.3427-4 |
|---|---|
| Brand / Manufacturer | ROLINE |
| Manuf. no. | 14.01.3427 |
| EAN | 7630049672390 |
| Package weight | 0.8 kg |
:strip_icc():strip_exif()/logos/roline.png "ROLINE")
Description

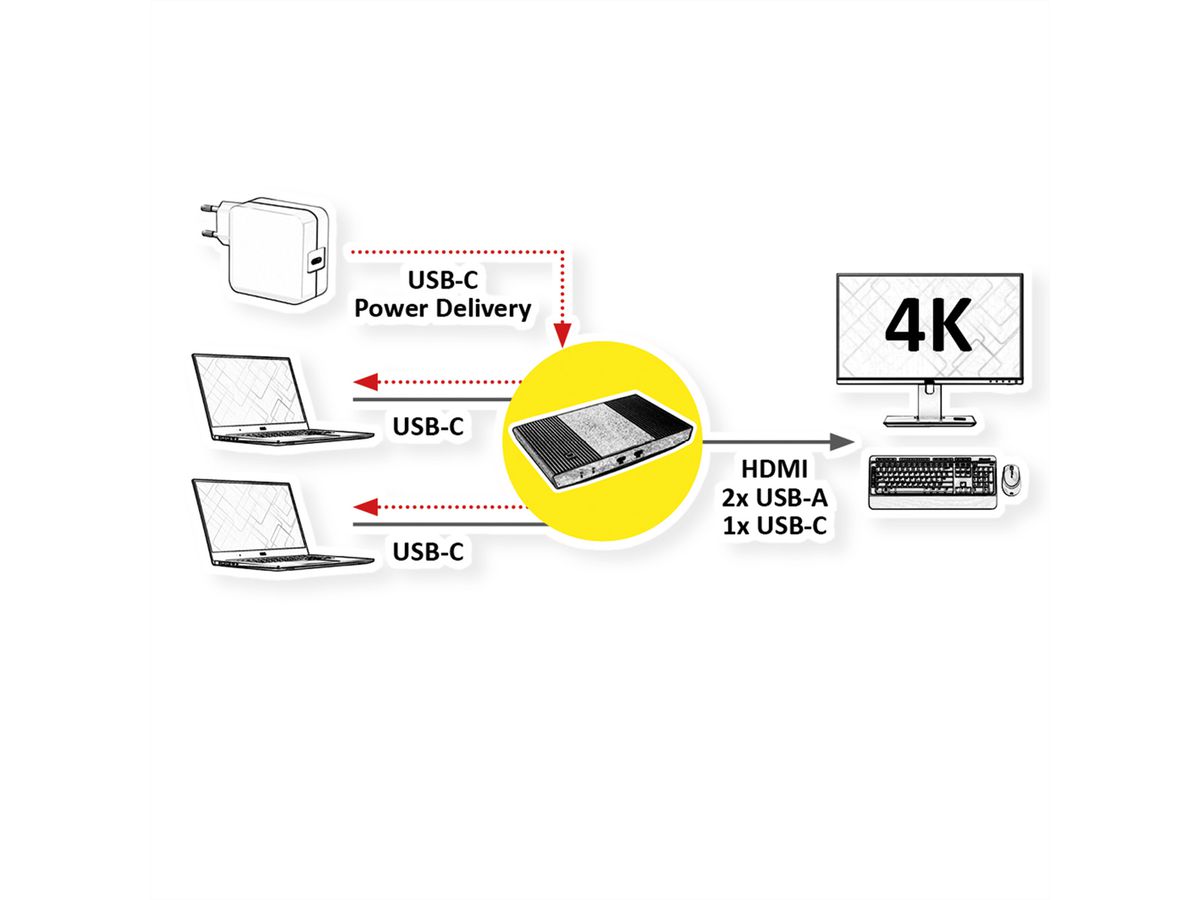

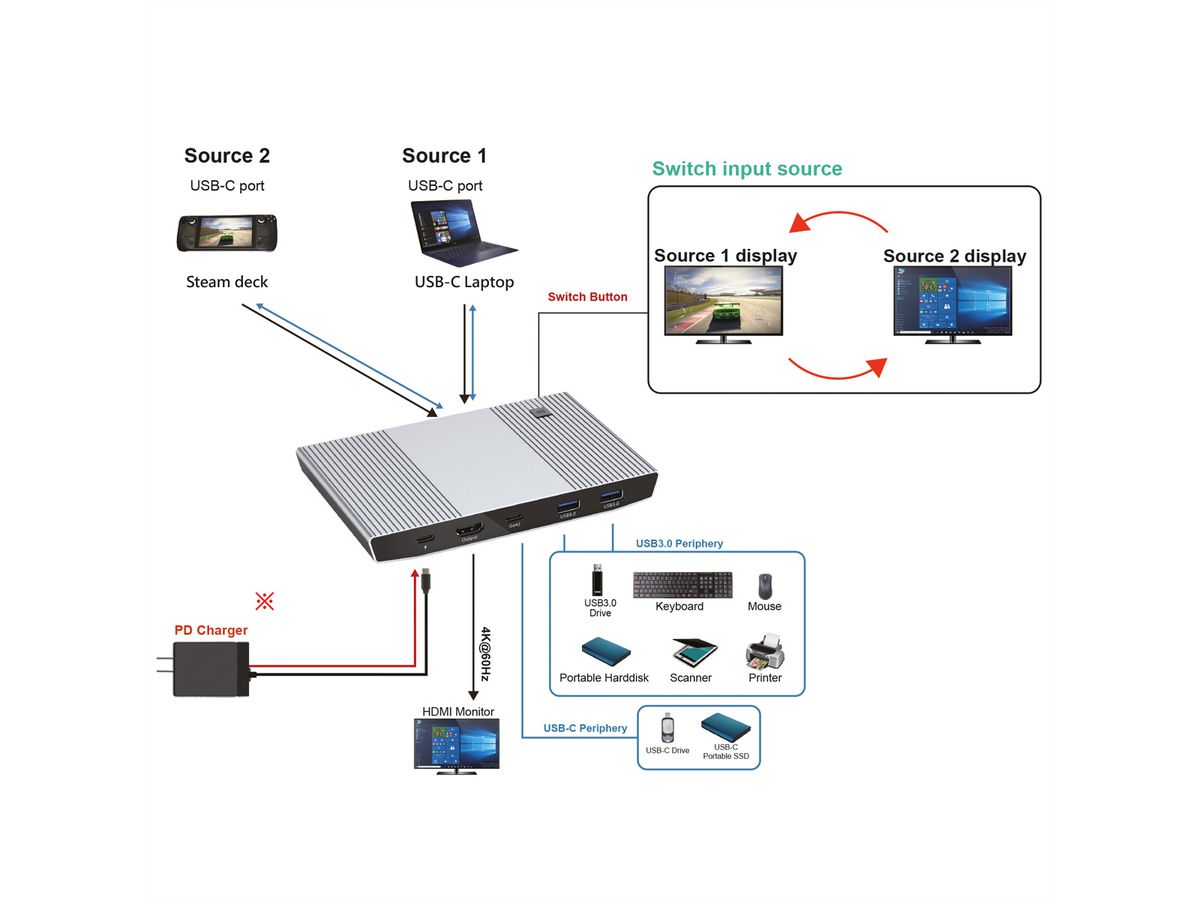

This is a KVM switch, including an USB Hub. You can operate two USB-C devices with just one USB mouse, one USB keyboard and one HDMI monitor - with a resolution of up to 3840x2160 @60Hz!
KVM switch
- Switching between the devices is done via a button on the switch
- LED display provides information about the active connection to the device
- Max. Video display resolution: 3840x2160 @60Hz
- Solid metal housing
USB Hub

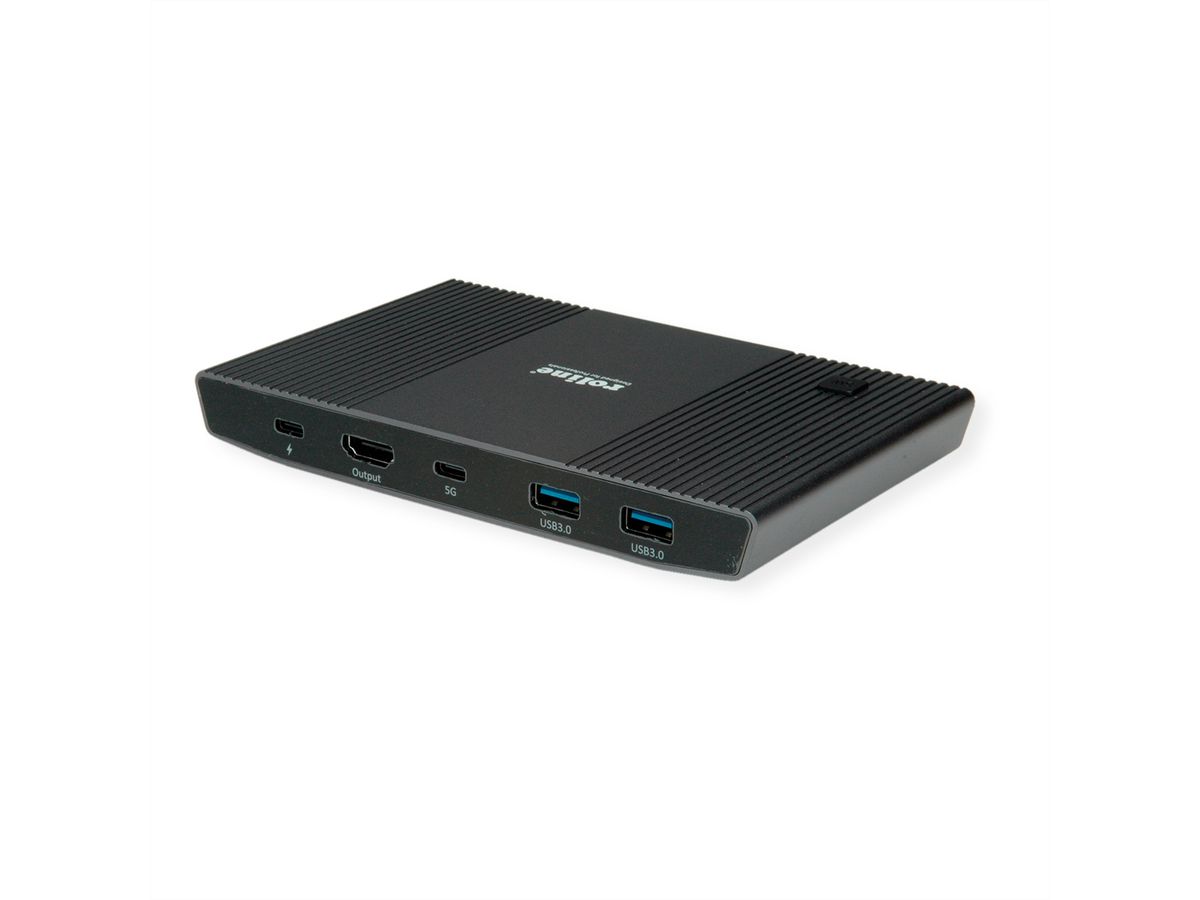

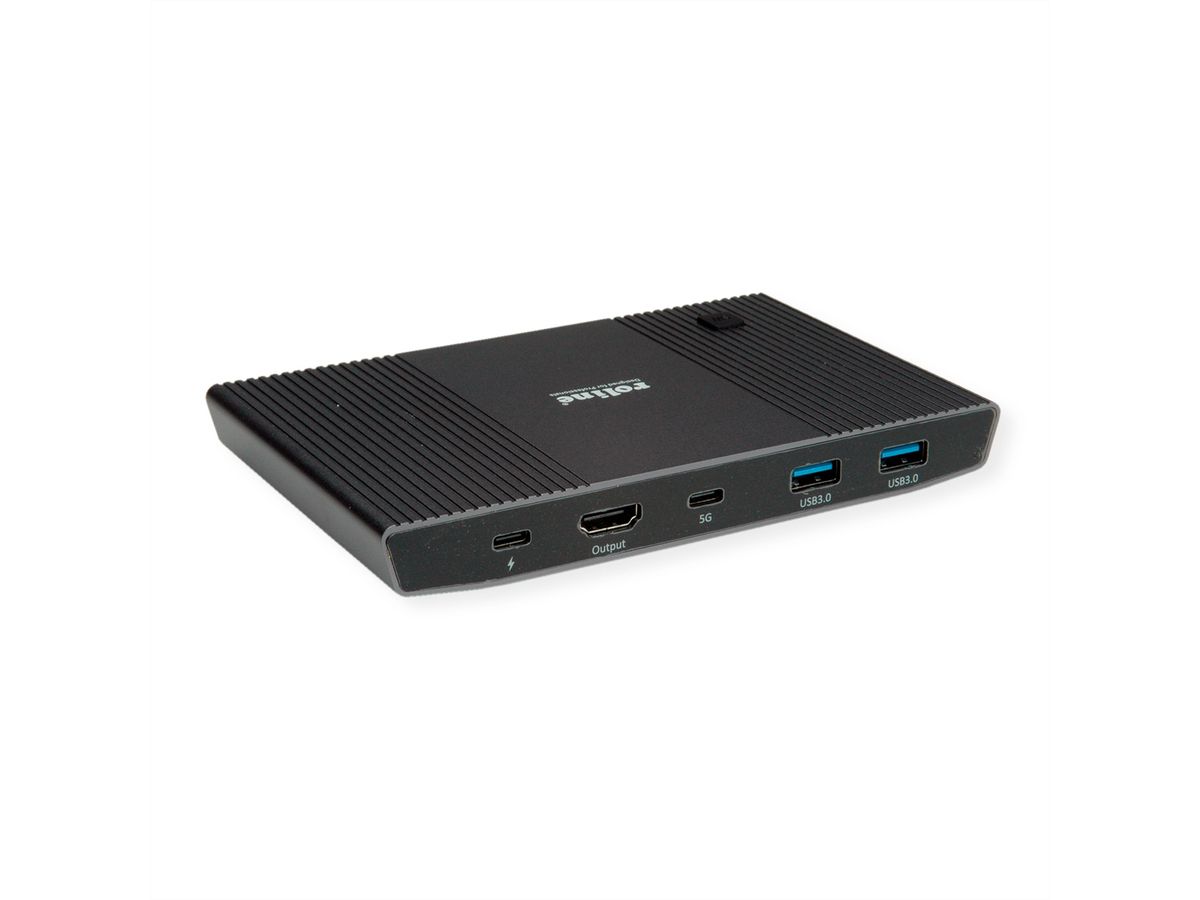

- Three USB 3.2 Gen. 1 / USB 3.0 (2x Type A, 1x Type C) ports for connecting e.g. keyboard and mouse, external hard disk, printer, scanner or other peripheral devices
- 1 port with USB type C PD for connecting a PD charger (min. 100 W)
- If two devices are connected, they are charged via PD with 60W (port 1) and 20W (port 2);
if only one device is connected, it can be charged with up to 80W.
Specifications
| Manufacturer | ROLINE |
|---|---|
| Product group | KVM switches / PC shares |
| Product type | KVM-Switch, HDMI |
| Colour | black |
| Scope of delivery | Main Unit, 2 USB-C cables, User Manual |
| Interface | HDMI |
| Inputs | 2 |
| Outputs | 1 |
| Quantity of PCs | 2 |
| Supported PC-Systems | USB |
| PC: monitor connection | HDMI |
| PC: mouse/keyboard connection | 2x USB |
| PC: connection on moulded cables | no |
| Analogue Console: Mouse/Keyboard connection | USB |
| Integrated console | no |
| Switching over Scan Run | no |
| Print button on device | yes |
| Switching over Hot Keys | no |
| Switching over OSD | no |
| Integrated Hub | yes |
| Quantity of USB-Hub ports | 3 |
| Keyboard/mouse emulation | yes |
| 19" compatible | no |
| Cascadable | no |
| Hot plug compatible | yes |
| Max. resolution (nominal) | 3840 x 2160 @60Hz |
| Colour (Design profile) | black |
| Material (casing) | Metal |
| Power supply unit required | yes |
| Operating temperature min. | 0 °C |
| Operating temperature max. | 40 °C |
| Height | 20 mm |
| Width | 161 mm |
| Depth | 100 mm |
| Weight | 261 g |
| Height of packaging (single piece) | 80 mm |
| Width of packaging (single piece) | 140 mm |
| Depth of packaging (single piece) | 200 mm |
| Package weight (single piece) | 0.8 kg |
