ROLINE LCD Monitor Arm, Extra, Wall Mount, 3 Joints

ROLINE LCD Monitor Arm, Extra, Wall Mount, 3 Joints

Please log in to be able to use the shopping cart and then complete orders.

Log in
Available
Ordered until 3 pm - usually dispatched on the same day
Item no. 17.03.0007
Brand / Manufacturer ROLINE
Manuf. no. 17.03.0007
EAN 7611990941308
Package weight 1.919 kg

Description

  • Quick and simple installation
  • Meets VESA 75/100/200x100/180x120/200
  • Wall mount fixing
  • Material: steel
  • Colour: black

TV size: 25 - 100 cm (10"- 40")
Load capacity: up to 25 kg
No. of pivots: 5
Max. arm length: 28 cm

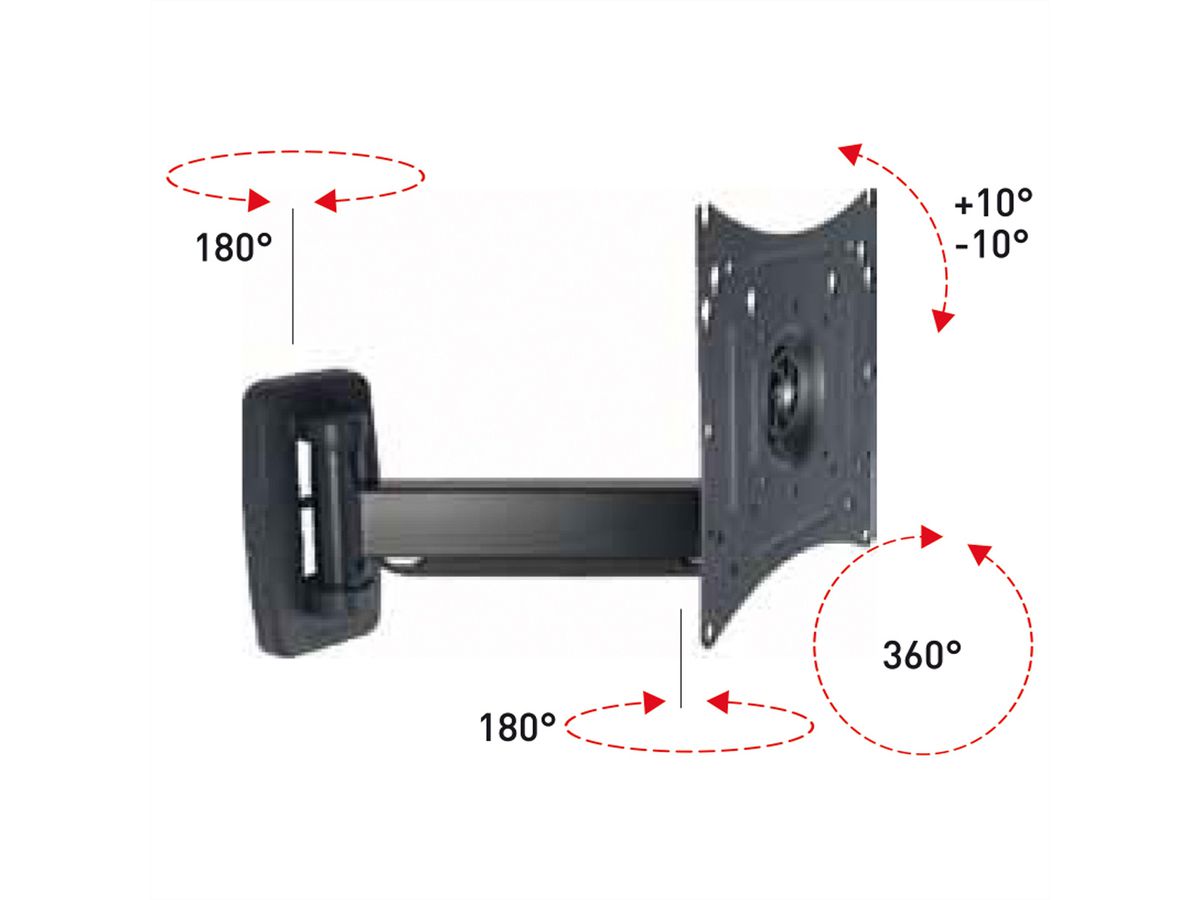

Tiltable up and down: 10°

Specifications

Manufacturer ROLINE
Product group LCD-Monitor arms
Product type Monitor Arms, wall mount
Colour black
Maximum weight capacity 25 kg
Quantity of pivots 5
Adjustments Adjustable spring gauge
Inclinable yes
Rotatable yes
Wall distance 5 cm
Number of monitors 1
Max. Screen diagonal (cm) 100 cm
Max. Screen diagonal (inch) 40 inch
Min. Screen diagonal (cm) 25 cm
Min. Screen diagonal (inch) 10 inch
VESA 75 x 75 mm yes
VESA 100 x 100 mm yes
VESA 200 x 100 mm yes
VESA 200 x 200 mm yes
Material group metal
Weight 1642.3 g
Height of packaging (single piece) 90 mm
Width of packaging (single piece) 260 mm
Depth of packaging (single piece) 340 mm
Package weight (single piece) 1.919 kg

Downloads

Product data sheet - English (48.8 KB)

Download

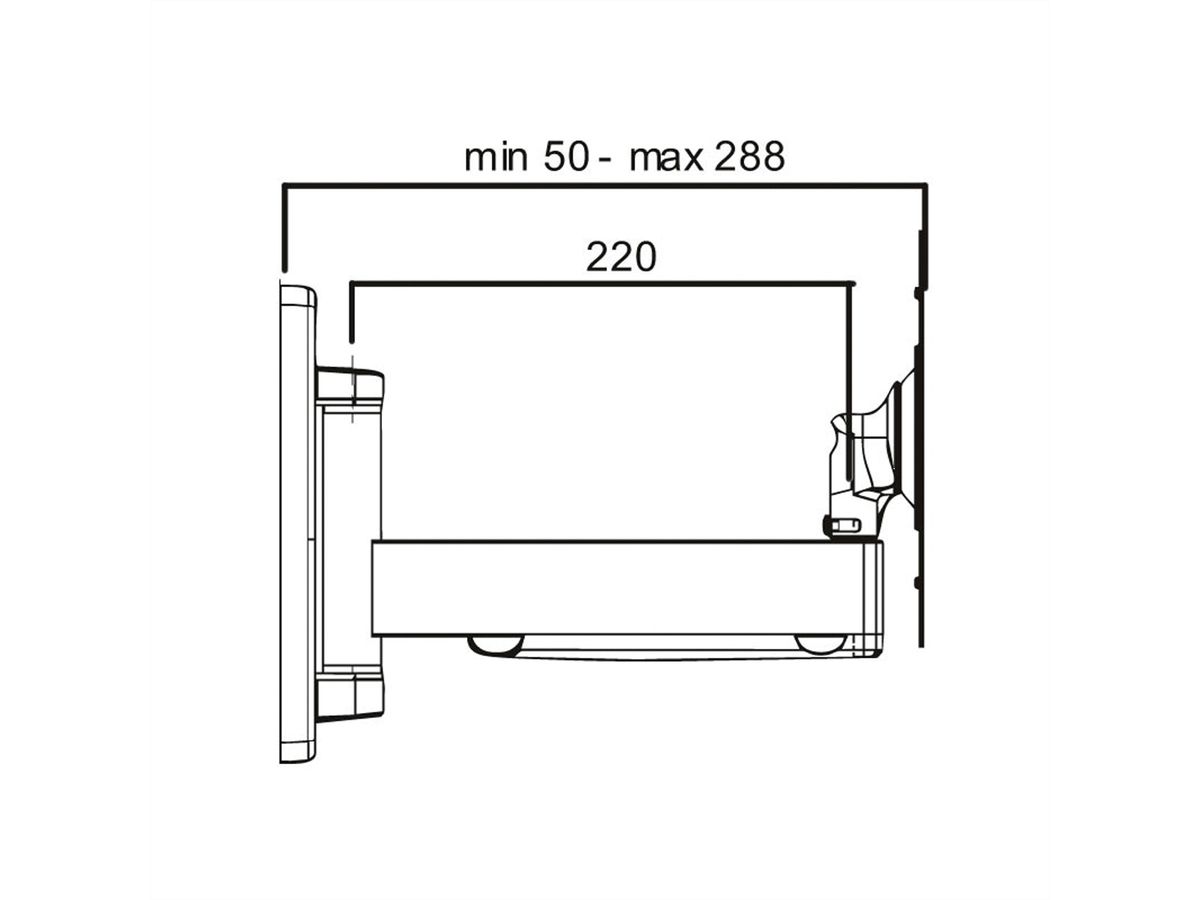

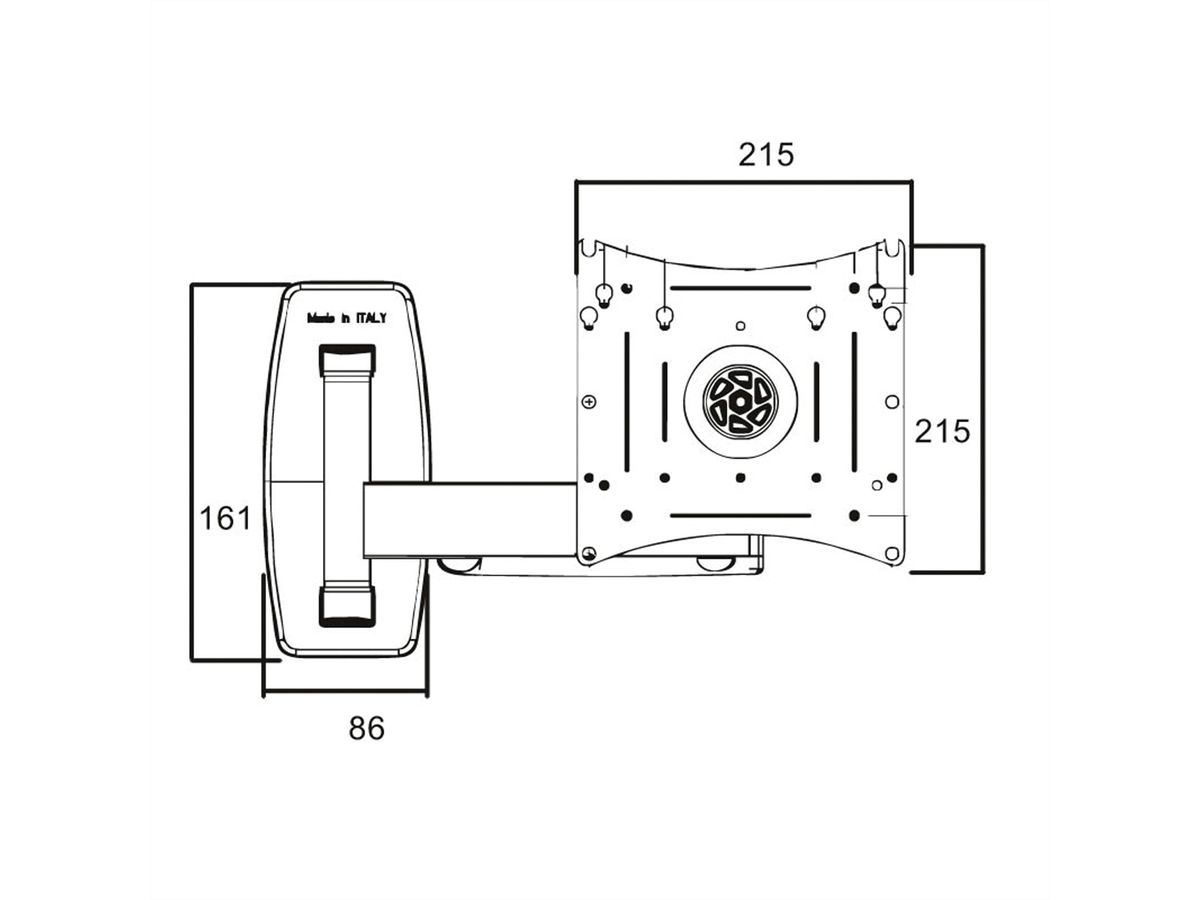

Technical drawing - English (695.5 KB)

Download

The products of our own brand ROLINE are designed for professional continuous operation.

With a 2-year functional guarantee, we stand by our performance promise.

ROLINE – Quality makes the difference.
