Description

• Delicate and streamlined design
• Made of high quality aluminum alloy

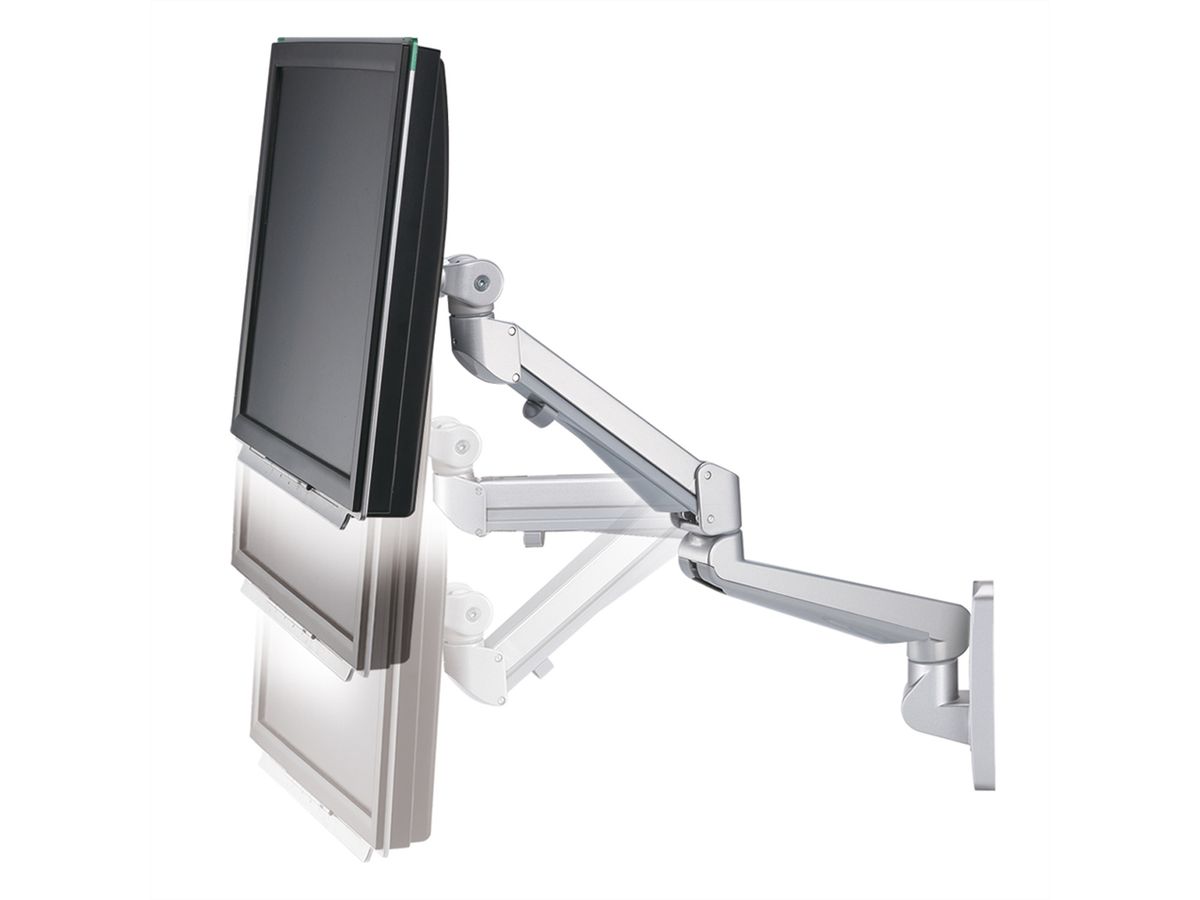

• Gas spring integrated allows users to move the LCD panel in most positions at will
• Meets VESA 75 (75x75 mm) or VESA 100 (100x100 mm)
• Special feature: Pivot function - screen is 90 degrees rotatable

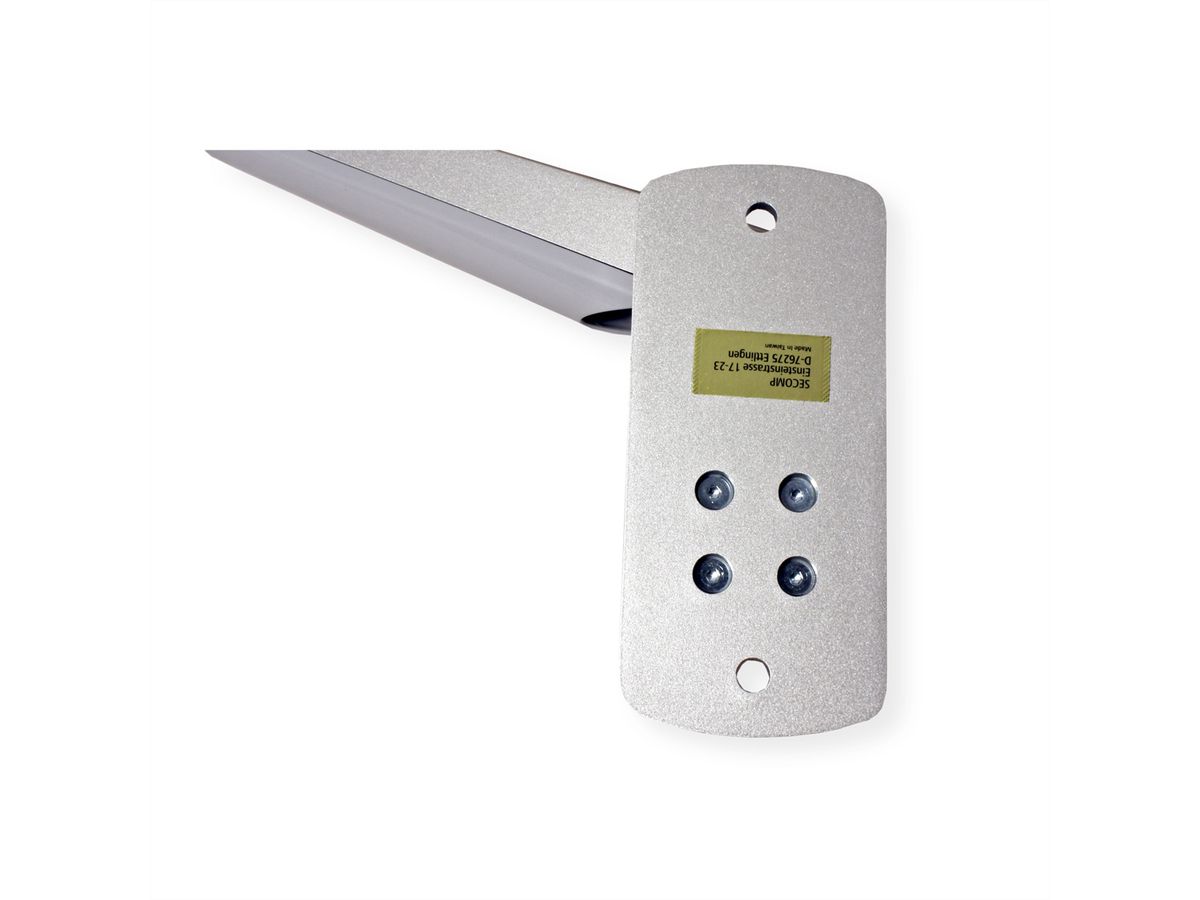

• Wall Mount
• A clever cable management is built into the rear arm

Specifications:

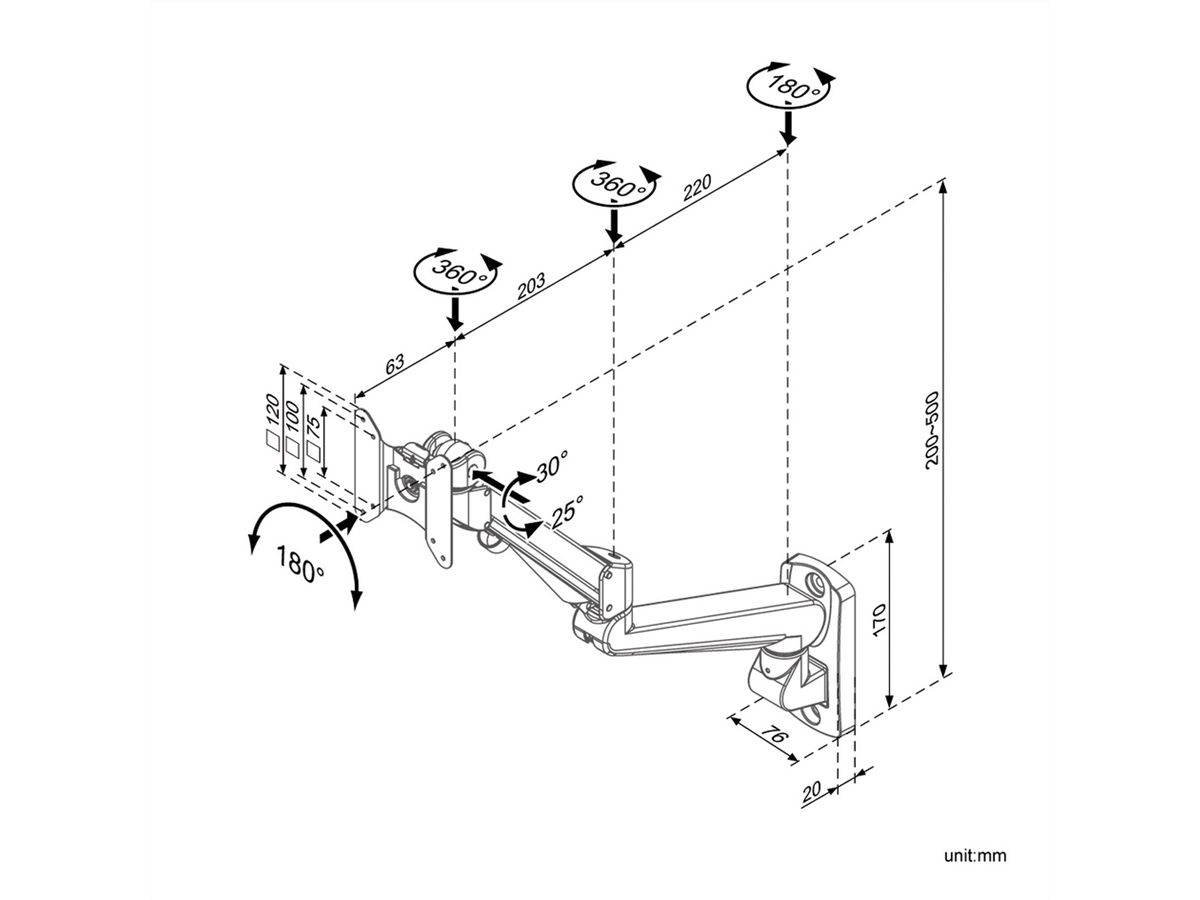

• Arm extension: ~ 486 mm
• Lift: 200 ~ 500 mm
• Monitor pivot: 180°
• Rotation: 360° (arm & display)
• Loading capacity: 3 ~ 8 kg

Specifications

Manufacturer	ROLINE
Product group	LCD-Monitor arms
Product type	Monitor Arms, wall mount
Colour	silver
Load capacity	8 kg
Quantity of pivots	4
Fixing	Wall Mount
Maximal arm length	486 mm
Adjustments	Gas spring
Inclinable	yes
Height adjustable	yes
Rotatable	yes
Number of monitors	1
VESA 75 x 75 mm	yes
VESA 100 x 100 mm	yes
Material group	metal
Technical particularity	Pivot functionality
Weight	2599.6 g
Height of packaging (single piece)	130 mm
Width of packaging (single piece)	330 mm
Depth of packaging (single piece)	610 mm
Package weight (single piece)	3.606 kg

Downloads

Product data sheet - English (46.2 KB)

Download

Manufacturer data sheet - English (372.2 KB)

Download

The products of our own brand ROLINE are designed for professional continuous operation.

With a 2-year functional guarantee, we stand by our performance promise.

ROLINE – Quality makes the difference.
