The products of our own brand ROLINE are designed for professional continuous operation.
With a 2-year functional guarantee, we stand by our performance promise.
ROLINE – Quality makes the difference.
:strip_icc():strip_exif()/bilder/s19/19401111_013.jpg "ROLINE LineSecure 1000R")

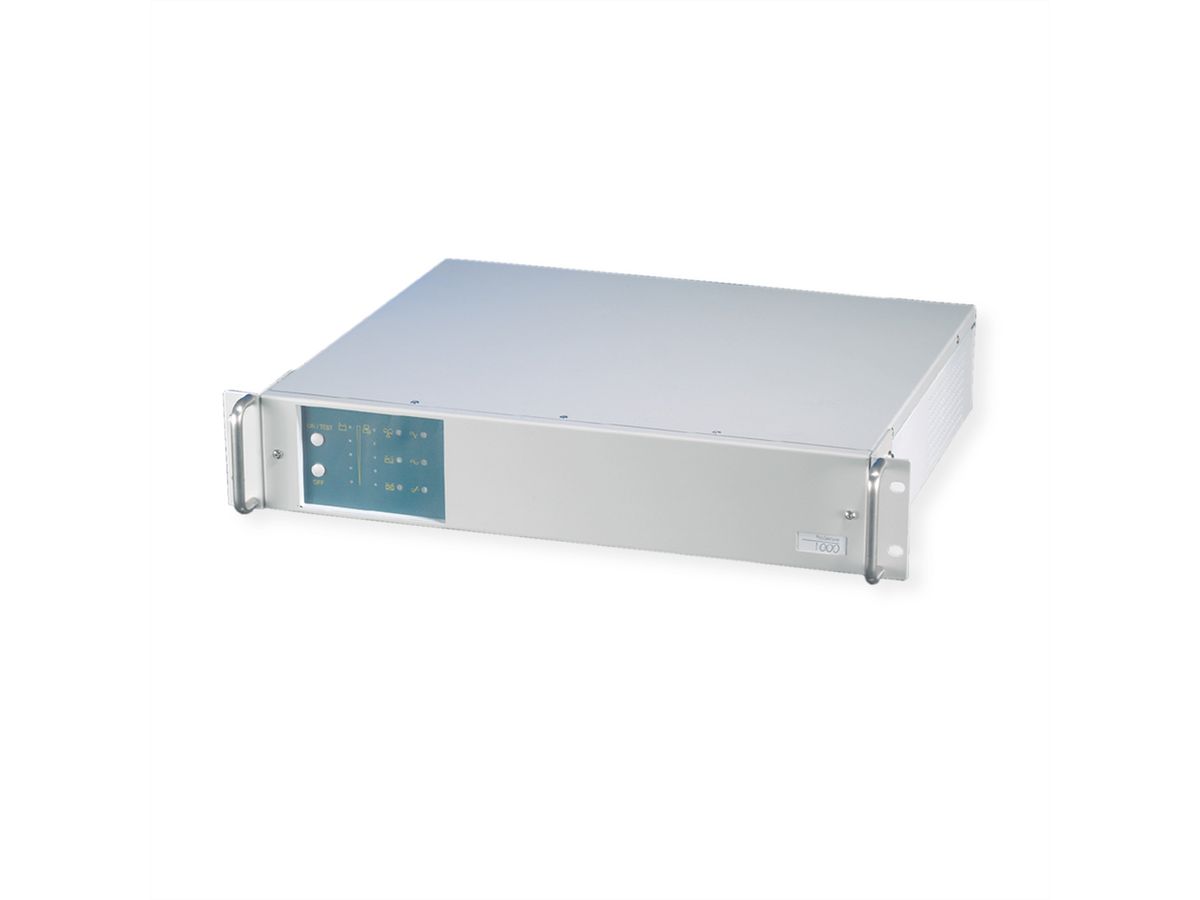

ROLINE LineSecure 1000R
Please log in to be able to use the shopping cart and then complete orders.
Log in| Item no. | 19.40.1111 |
|---|---|
| Brand / Manufacturer | ROLINE |
| Manuf. no. | 19.40.1111 |
| EAN | 7611990154791 |
| Package weight | 20 kg |
| Output (VA/W) | |
| Interface |
:strip_icc():strip_exif()/logos/roline.png "ROLINE")
Description
LineSecure UPS's work with the "buck & boost" line interactive technology; used when reliable protection against strong voltage fluctuations is essential. Protect against: power failure, power sag, power surge, under voltage, over voltage.Product features:
- Compact, quiet, user-friendly
- Desktop and 19" RM models
- Short circuit and overload protection
- AVR (Automatic Voltage Regulation)
- ABM (Automatic Battery Management) increases battery life up to 50%
- Telephone/Modem connections
- Shutdown software including License for 1 server
- Serial Port for advanced Power Management Software (incl, in content of delivery)
- UPS Management Software : Windows NT/ 2k / XP / 7 / 8 /Server 2003 / 2008 / 2012 x86/x64,
- Content: UPS, Cable set, Software CD
Specifications
| Manufacturer | ROLINE |
|---|---|
| Product group | UPS |
| Product type | UPS Line Interactive, Rackmount |
| Colour | grey |
| Scope of delivery | UPS, Software, Cable Set |
| Classification (IEC 62040-3) | VI-SS-333 |
| UPS technology | Line Interactive |
| Power class | 1000 ... 1900 VA |
| Output (VA/W) | 1000 / 670 |
| Efficiency | 95 % |
| Backup time | 3 min |
| Backup time full/half-load | 3 / 6 min |
| Dimensions (HxWxD) | 84 x 483 x 430 |
| Mounting form | 19" Rackmount |
| Voltage (input) | 230V +- 15% |
| Voltage (output) | 230V |
| Frequency | 50Hz |
| Connector type (input) | cold connector IEC320 C14 |
| Outputs | 4 |
| Connector type (output) | 3x cold connector IEC320 C13 |
| Phase in/output | 230V/230V / 50Hz |
| Over current protection | EMI,- RFI-Filter |
| Max. quantity of delay expansion units | 0 |
| Delay expansion unit | -- |
| Slots for adapter card | 0 |
| Slot for adapter card | -- |
| Acoustic level | 40dBA |
| Interface | RS232 |
| RS-232 Interface | yes |
| Hot swap batteries | no |
| Bypass | no |
| Additional over current protector | Telephone/Fax |
| Activity | LED |
| Activity LED | 8 LED |
| Activity Display | -- |
| incl.Management Software | Windows |
| Internal cooling | Active, fan |
| Ambient temperature | 0-40°C |
| Mains connection | Cold appliance connection |
| Battery category | Industrial battery |
| Number of batteries | 2 pieces |
| Battery type | Pack |
| Battery | built-in |
| Battery technology | Lead-acid |
| Operating temperature min. | 0 °C |
| Operating temperature max. | 40 °C |
| Height | 84 mm |
| Width | 483 mm |
| Depth | 430 mm |
| Weight | 20 kg |
| Height of packaging (single piece) | 200 mm |
| Width of packaging (single piece) | 530 mm |
| Depth of packaging (single piece) | 580 mm |
| Package weight (single piece) | 20 kg |
