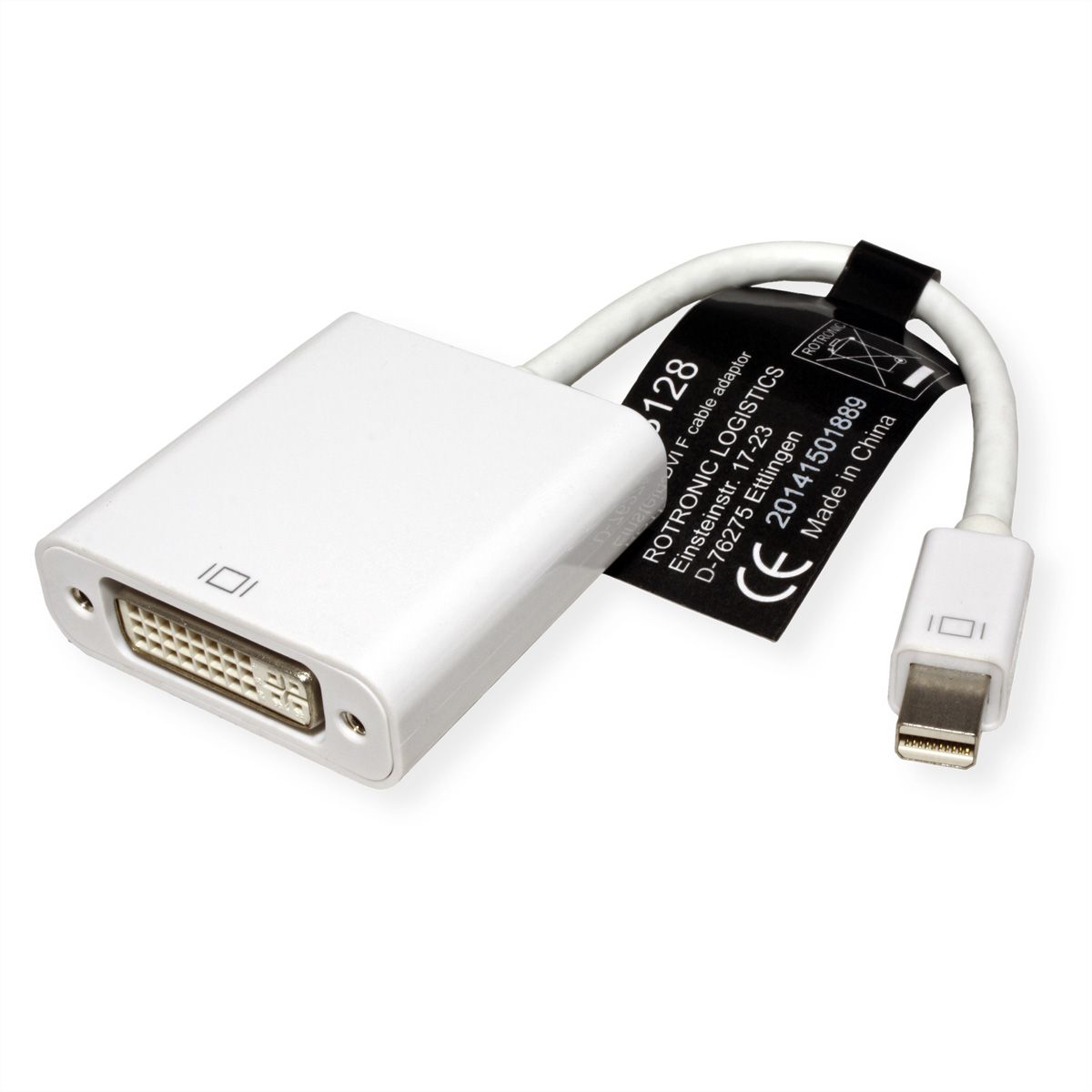

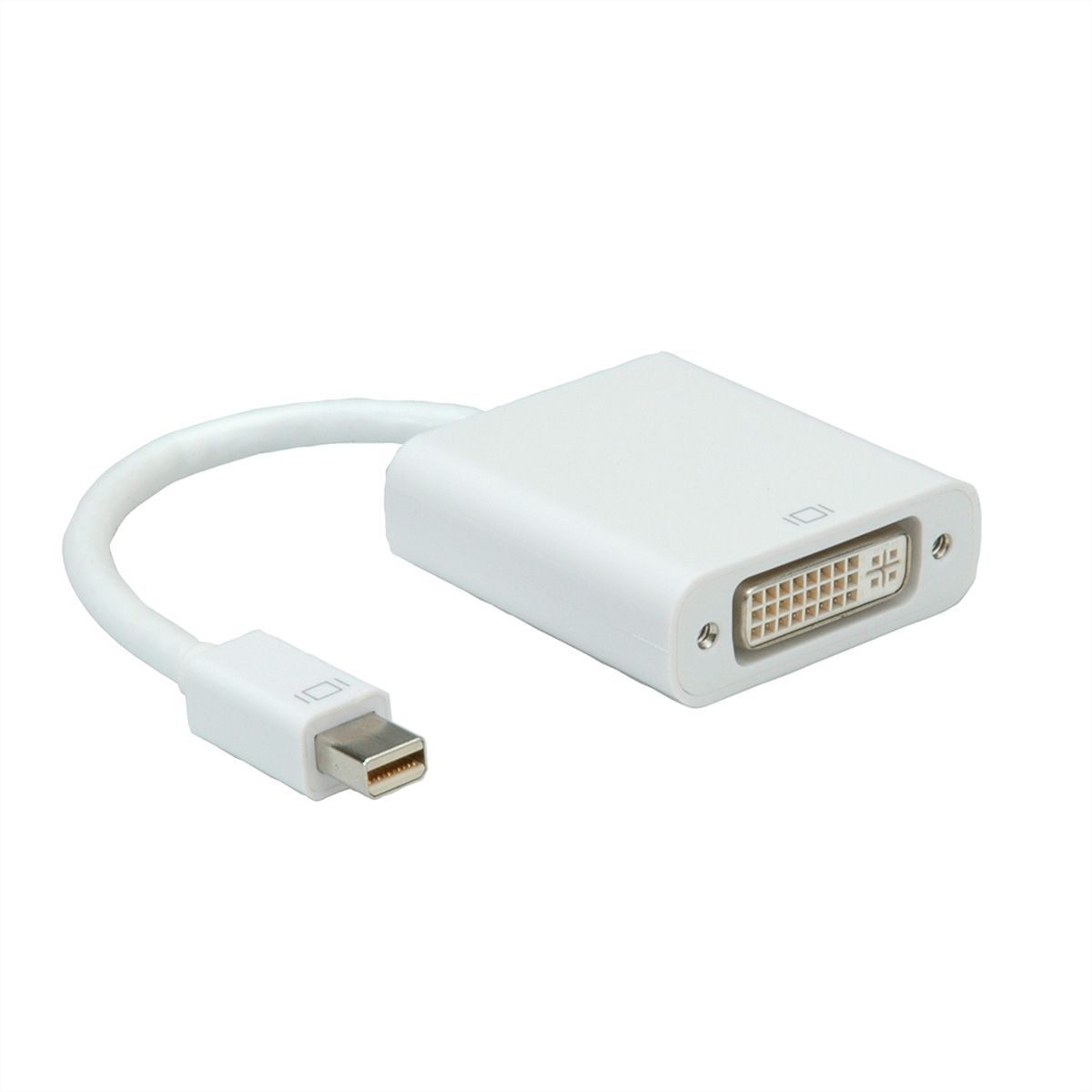

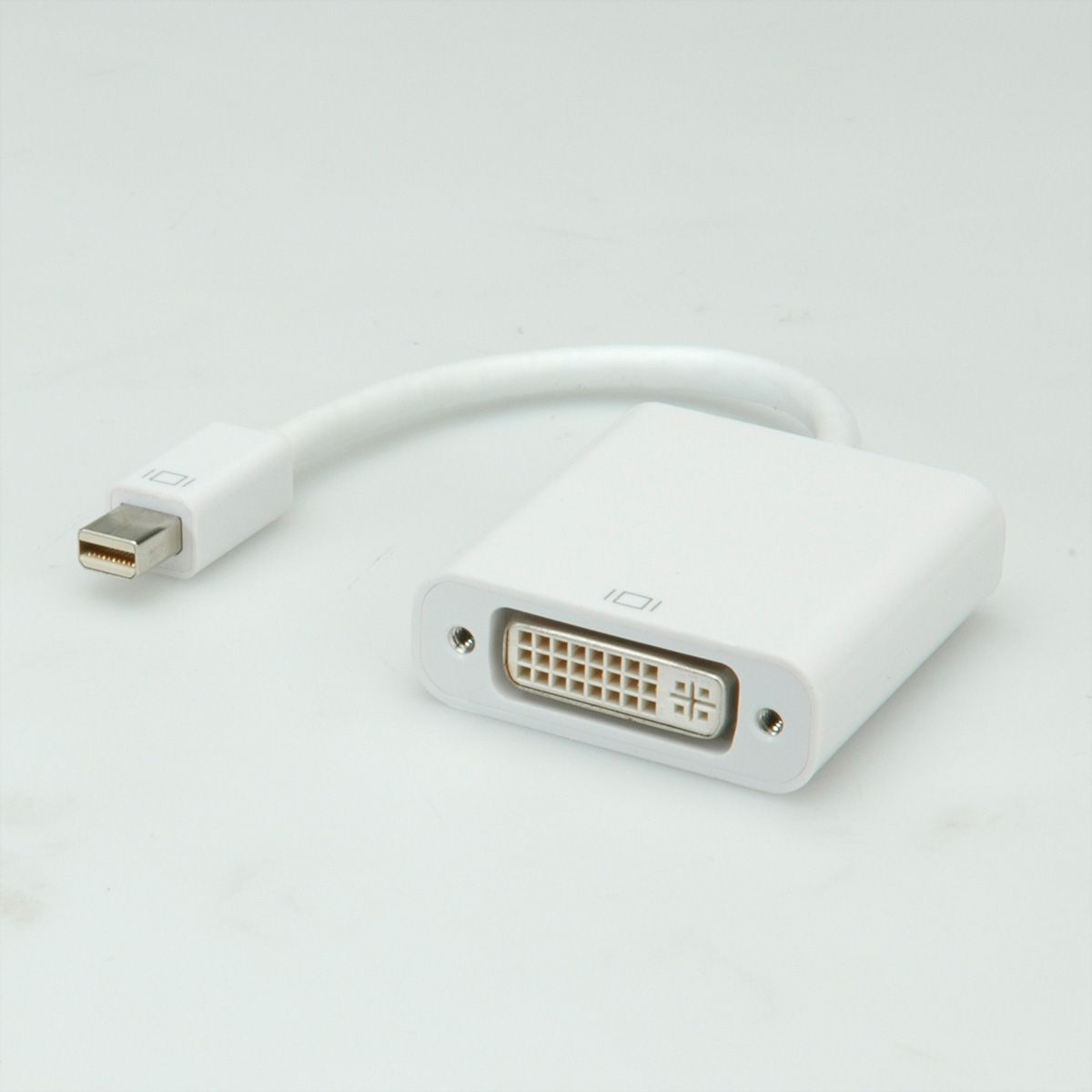

ROLINE Mini DisplayPort-DVI Adapter, MiniDP M - DVI F

Item no. 12.03.3128-10 Brand / Manufacturer ROLINE Manuf. no. 12.03.3128 EAN 7611990989393 Package weight 0.036 kg
ROLINE

Please log in to be able to use the shopping cart and then complete orders.

Log in
Available
Ordered until 3 pm - usually dispatched on the same day
Download PDF

Description

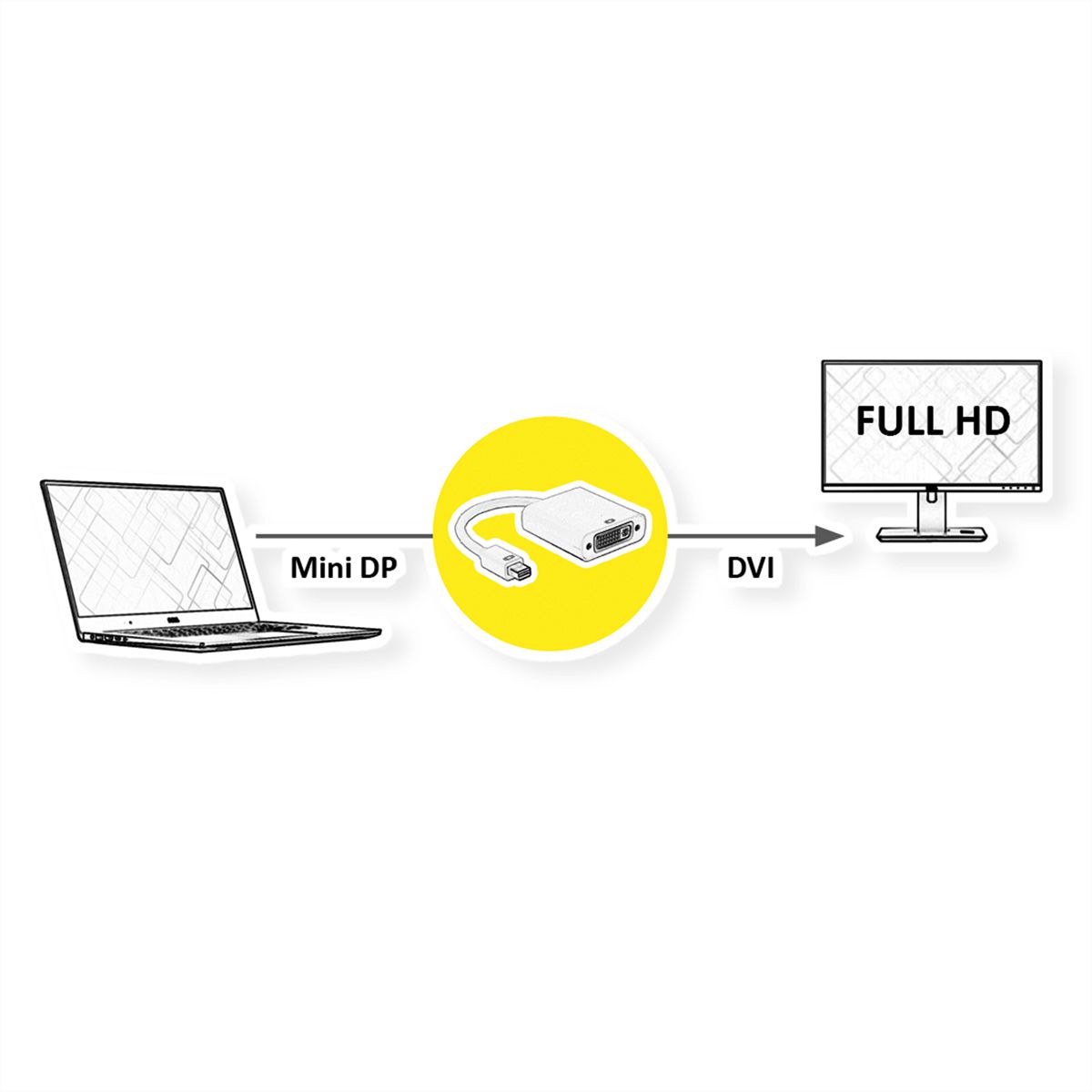

  • For connecting a graphic card with Mini DisplayPort connector to a DVI monitor by using a DVI M-M cable
  • Connectors: Mini DisplayPort Male and DVI Female, cable length ca. 10 cm
  • Length: ca. 10 cm
  • Remark: The DisplayPort-DVI adapter is only working in one direction: the DisplayPort plug has to be connected to the source device (e.g. graphic card)

Specifications

Manufacturer
ROLINE
Product group
Adapters, Terminators, Converters
Product type
Mini DisplayPort-DVI Adapter
Colour
white
Length
0.1 m
Max. resolution
1920 x 1080 / 1920 x 1200 @60Hz (2K, Full HD)
Side 1 connection (PC)
Mini DisplayPort Male
Side 2 connection (Peripherals)
DVI Female
Side 1 Connector Type
Mini DisplayPort
Side 1 Connector Gender
Male
Side 2 Connector Type
DVI-D 24+1, Dual-Link
Side 2 Connector Gender
Female
Active / Passive
Passive
Area of application
External
Weight
31.1 g
Height of packaging (single piece)
10 mm
Width of packaging (single piece)
70 mm
Depth of packaging (single piece)
130 mm
Package weight (single piece)
0.036 kg

Downloads

Product data sheet - English (46.1 KB) Manufacturer data sheet - English (409.3 KB)
