ROLINE Mini DisplayPort-VGA Adapter, v1.2, Mini DP M - VGA F, white

ROLINE Mini DisplayPort-VGA Adapter, v1.2, Mini DP M - VGA F, white

Please log in to be able to use the shopping cart and then complete orders.

Log in
Available
Ordered until 3 pm - usually dispatched on the same day
Item no. 12.03.3140-10
Brand / Manufacturer ROLINE
Manuf. no. 12.03.3140
EAN 7611990935420
Package weight 0.03 kg

Description

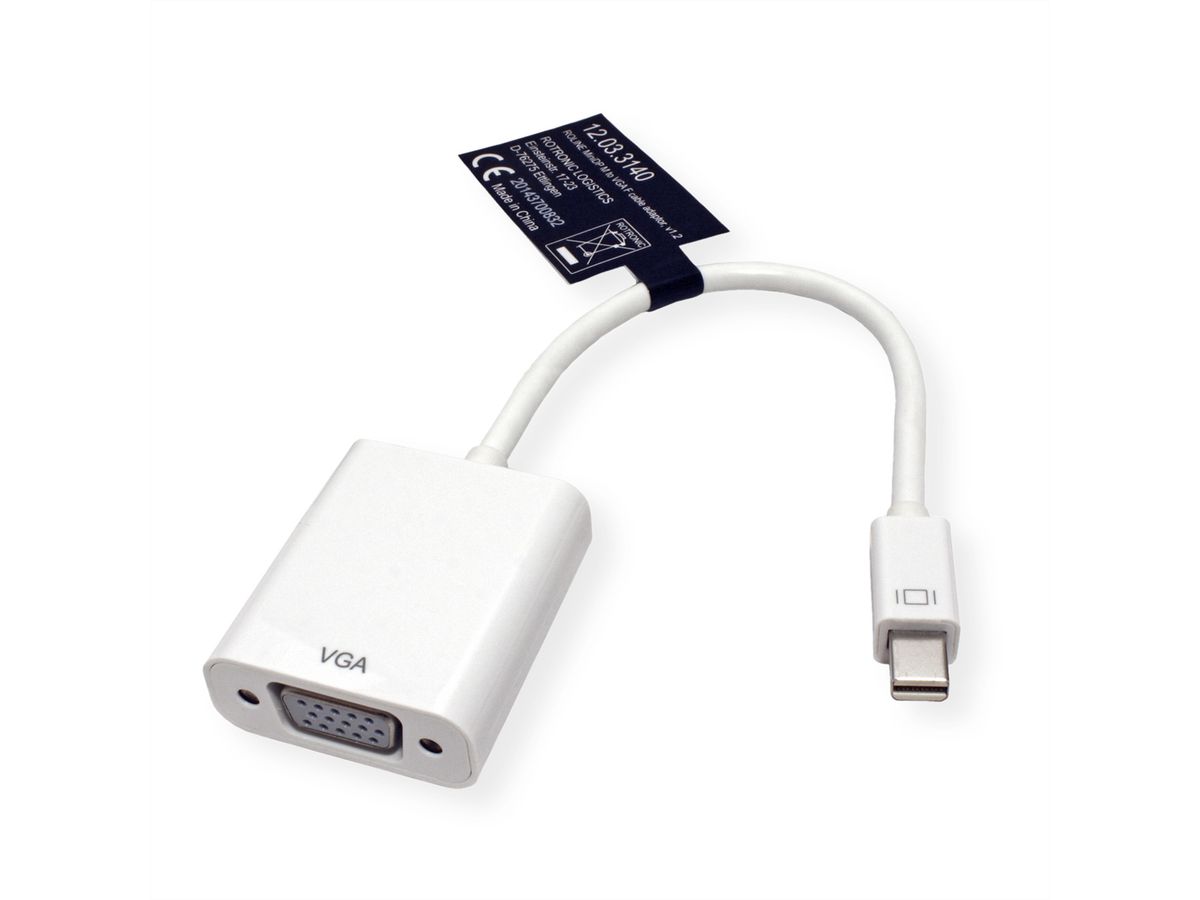

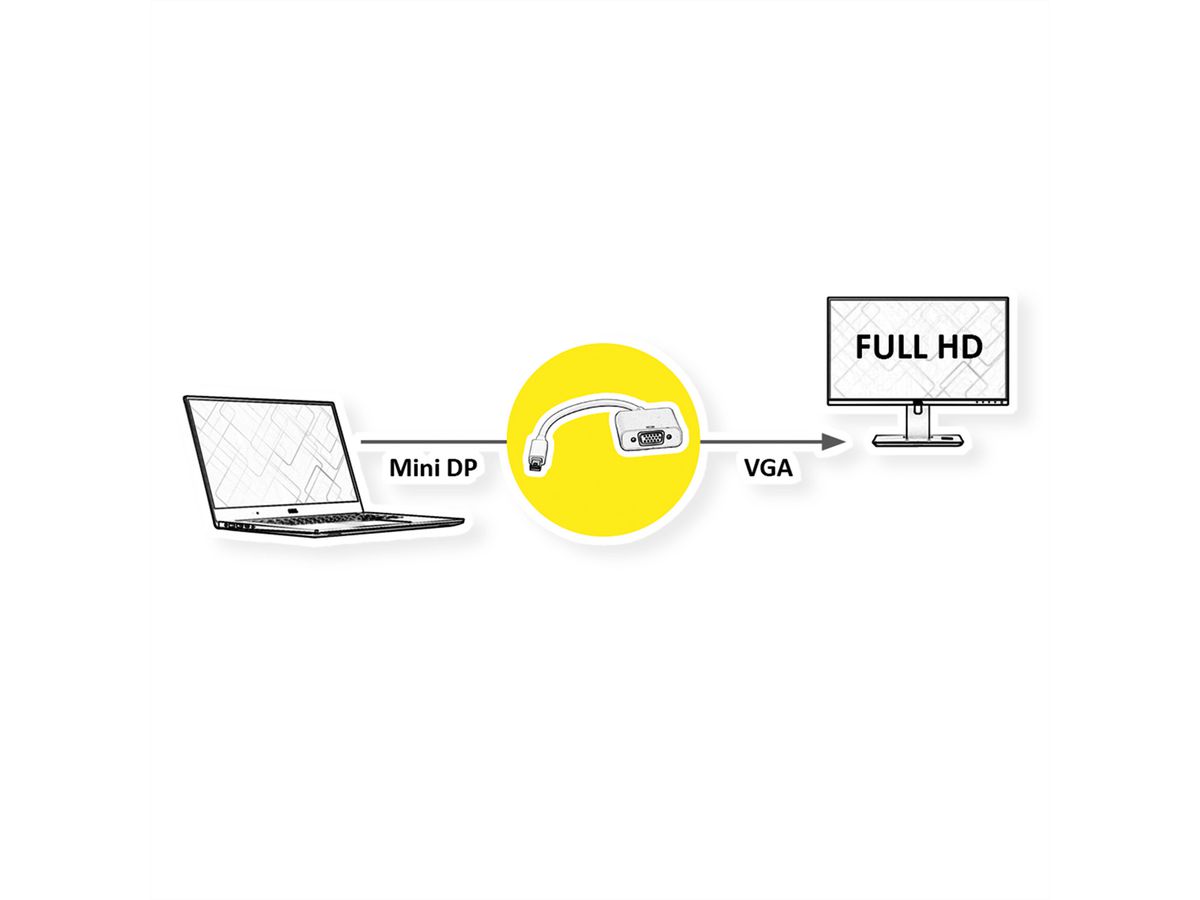

  • For connecting a graphic card with Mini DisplayPort connector to a VGA monitor by using a VGA M-M cable
  • Connectors: Mini DisplayPort Male and VGA Female
  • Cable length: ca. 10 cm
  • DisplayPort Version 1.2 allows increased resolutions, higher refresh rates, and greater color depth
  • Remark: The Mini DisplayPort-VGA adapter is only working in one direction: the DisplayPort plug has to be connected to the source device (e.g. graphic card)

What are the benefits of using Active adapters and converters?

Active products can have a huge advantage when working with long cable runs and video conversion applications. In terms of video converters, active units generally have hardware inside to improve your image.

Specifications

Manufacturer ROLINE
Product group Adapters, Terminators, Converters
Product type Mini DisplayPort-VGA Adapter
Colour white
Length 0.1 m
Max. resolution 1920 x 1080 / 1920 x 1200 @60Hz (2K, Full HD)
Side 1 connection (PC) Mini DisplayPort Male
Side 2 connection (Peripherals) VGA Female
Side 1 Connector Type Mini DisplayPort
Side 1 Connector Gender Male
Side 2 Connector Type HD D-Sub 15-pin (HD-15), VGA
Side 2 Connector Gender Female
Active / Passive Active
Area of application External
Technical particularity DisplayPort Version 1.2
Weight 27.9 g
Height of packaging (single piece) 15 mm
Width of packaging (single piece) 105 mm
Depth of packaging (single piece) 190 mm
Package weight (single piece) 0.03 kg

Downloads

Product data sheet - English (46.4 KB)

Download

Manufacturer data sheet - English (964.2 KB)

Download

The products of our own brand ROLINE are designed for professional continuous operation.

With a 2-year functional guarantee, we stand by our performance promise.

ROLINE – Quality makes the difference.
