ROLINE Multiport Docking Station Type C, 4K HDMI, 2x Audio (TRRS + Mic), 1x USB Type C PD (Power Delivery)

ROLINE Multiport Docking Station Type C, 4K HDMI, 2x Audio (TRRS + Mic), 1x USB Type C PD (Power Delivery)

Please log in to be able to use the shopping cart and then complete orders.

Log in
Available
Ordered until 3 pm - usually dispatched on the same day
Item no. 12.02.1125-10
Brand / Manufacturer ROLINE
Manuf. no. 12.02.1125
EAN 7630049688612
Package weight 0.05 kg

Description

The USB Type C Docking Station provides your MacBook, Ultrabook, Notebook or Laptop with a 4K HDMI port, 2x Audio (Micro + Headset), 1x USB Type C PD (Power Delivery)!

  • Plug & Play
  • Aluminium housing in space grey
  • Multiport Docking Station with HDMI connection, allows the expansion of a display or mirroring to another monitor, television or beamer.
  • Max. Resolution: 3840x2160 at 60Hz
  • Compact and flat design
  • System requirements: Windows 7/8/10 or MacOS X10.2 and higher

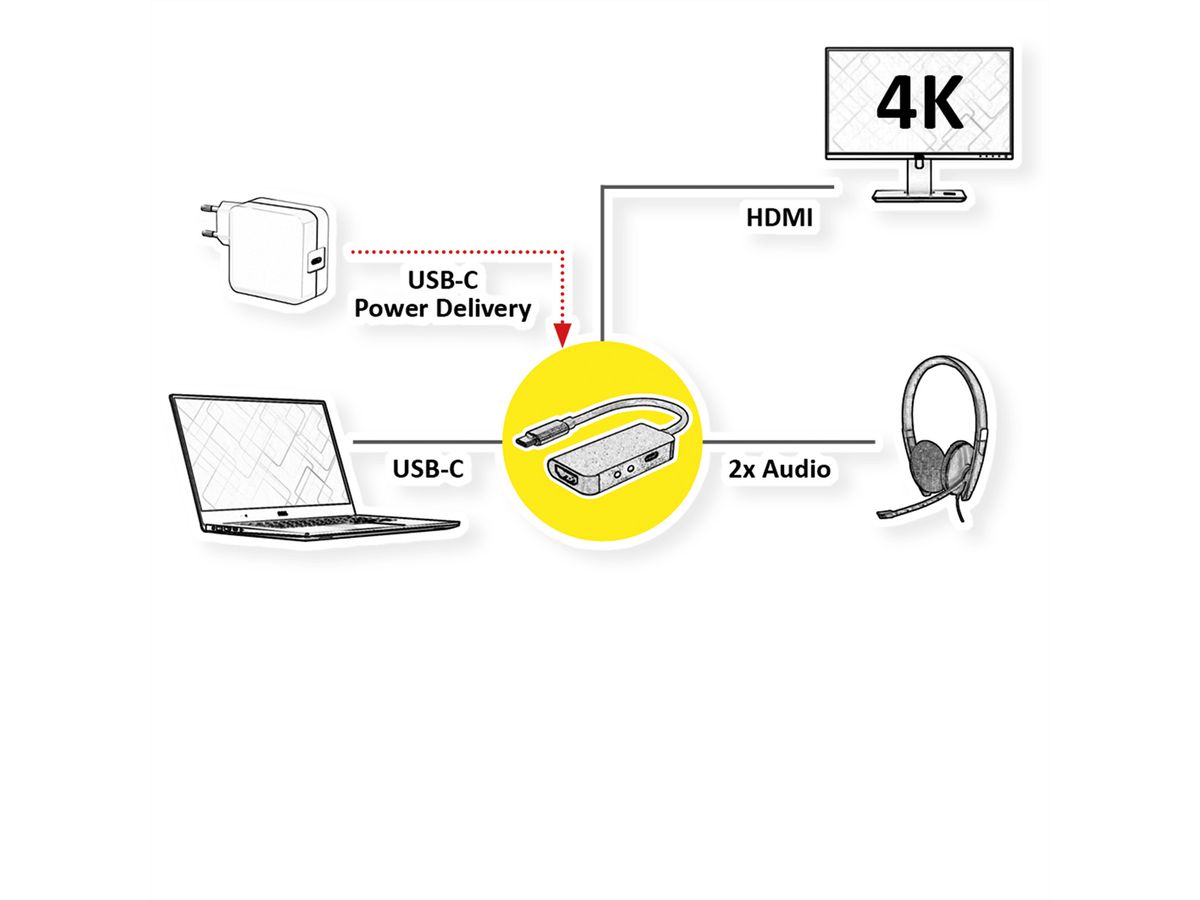

Connection to the mobile device:
  • 1x USB Type C connector

Connections for peripheral devices:
  • 1x HDMI 4K video output: Mirror or expand your screen to a TV, monitor or projector.
  • 2x Audio (3.5mm) ports for connecting e.g. Microphone + Headsets etc.
  • 1x USB Type C PD (Power Delivery, max. 100W)

Note: According to the current specifications of USB.org we have adapted the technical data of our USB 3 products. The new designation for the already known USB specifications has been changed to USB 3.2 Gen 1 (formerly USB 3.0 / USB 3.1 Gen 1) and USB 3.2 Gen 2 (formerly USB 3.1 / USB 3.1 Gen 2).

Specifications

Manufacturer ROLINE
Product group Adapters, Terminators, Converters
Product type Notebook-Docking-Station
Colour grey
Scope of delivery Docking Station
Max. resolution 3840 x 2160 @60Hz (4K, UHD-1)
Side 1 connection (PC) USB Type C
Side 2 connection (Peripherals) 1x HDMI socket, 2x Audio, 1x PD
Side 1 Connector Type USB Type C (USB-C)
Side 1 Connector Gender Male
Side 2 Connector Type
  • HDMI Type A
  • USB Type C PD (Power Delivery)
  • Mini Phone Stereo 3.5 mm, 3-pin
  • Mini Phone Stereo 3.5 mm, 4-pin
Side 2 Connector Gender Female
Material Aluminum
Height 10 mm
Width 28 mm
Depth 79 mm
Weight 33 g
Height of packaging (single piece) 10 mm
Width of packaging (single piece) 10 mm
Depth of packaging (single piece) 70 mm
Package weight (single piece) 0.05 kg
