Description

• For printers with Centronics connection

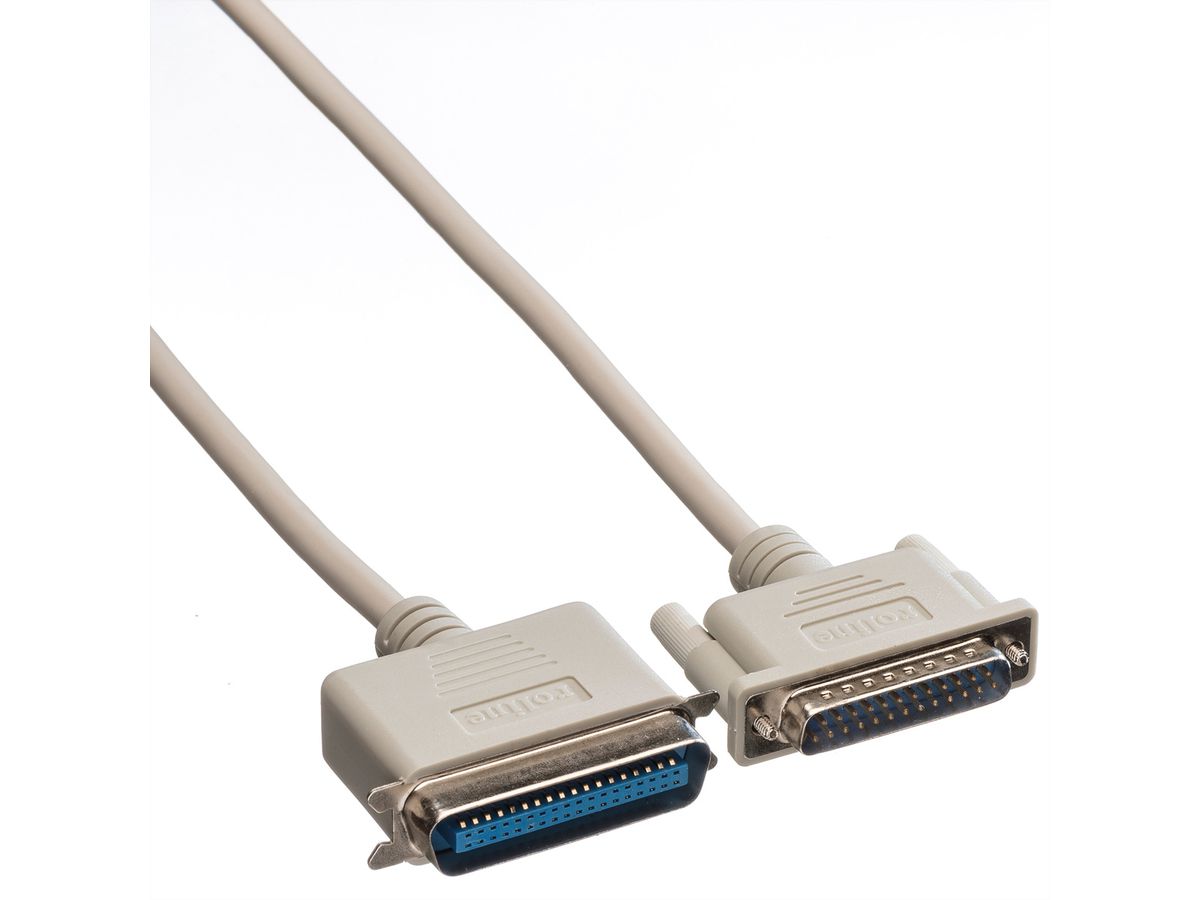

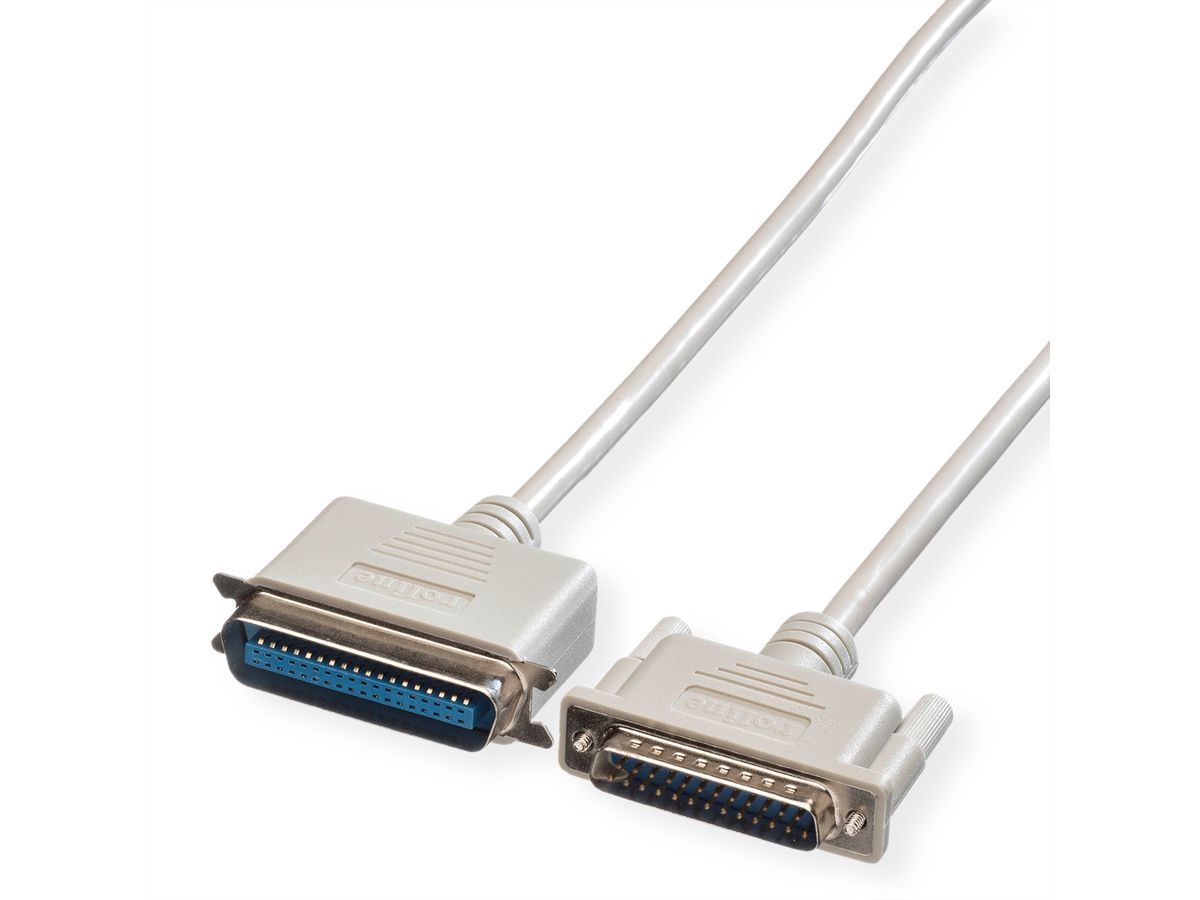

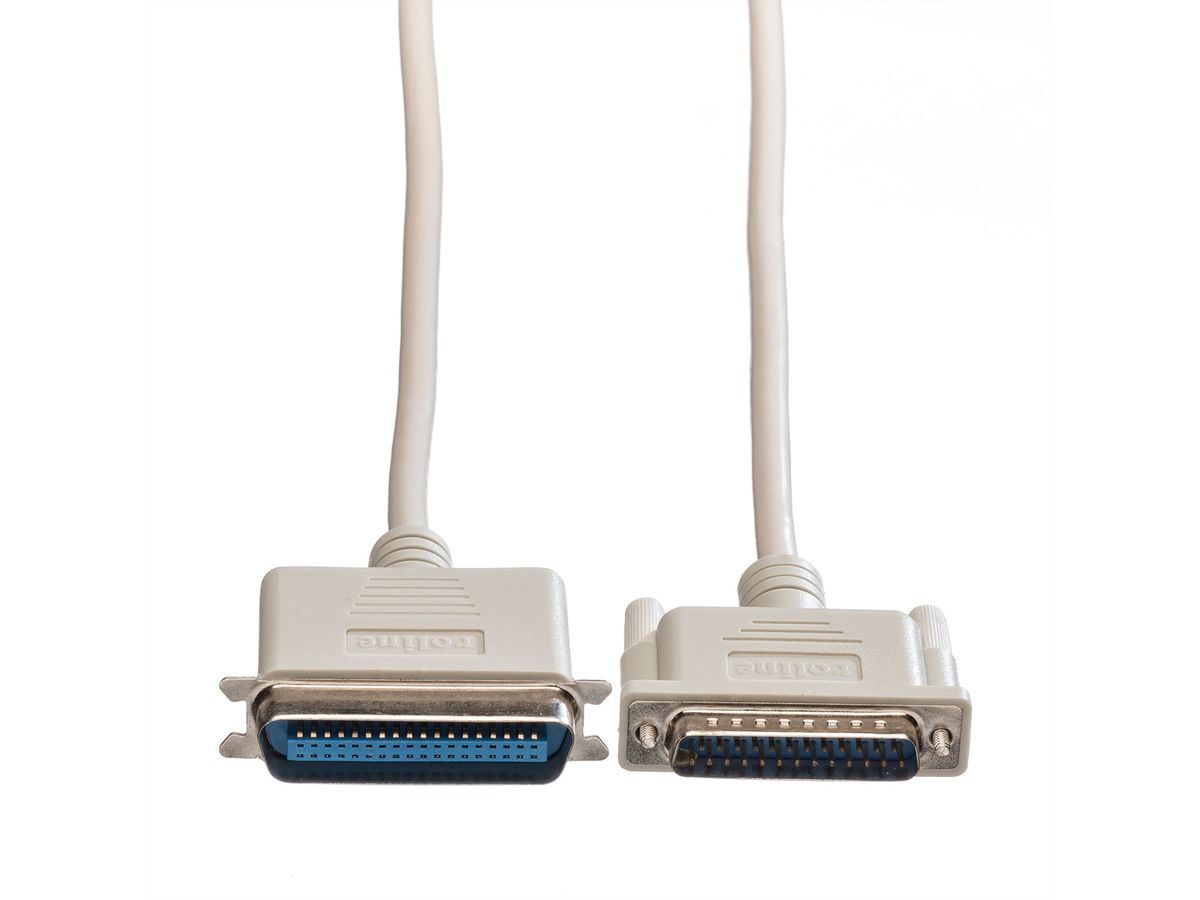

• Cable with 25-pole D-Sub plug and 36-pole Centronics plug
• 25 lines
• Screen line connected with the foil screen and both plugs
• Connector casing moulded with special plastic, for optimal strain reduction, cable break not possible
• Very good screening prevents data loss and electromagnetic interference
• Thumbscrews
• Bronze contacts with gold coating

Connection list for parallel printer cable
25-pole connector: 1-14|15|16|17|18|19|20|21|22|23|24|25
36-pole connector: 1-14|32|31|36|33|19|21|23|25|27|29|30

Specifications

Manufacturer	ROLINE
Product group	Cable
Product type	Parallel printer cable
Colour	grey
Length	1.8 m
Connection ports	Male / Male
Side 1 Connector Type	D-Sub 25-pin (DB-25)
Side 1 Connector Gender	Male
Side 2 Connector Type	Centronics 36
Side 2 Connector Gender	Male
Area of application	External
Cable shielding	Screened
Connector Casing	moulded
Hand locking screws	partially
Weight	207.7 g
Height of packaging (single piece)	20 mm
Width of packaging (single piece)	170 mm
Depth of packaging (single piece)	170 mm
Package weight (single piece)	0.215 kg

Downloads

Product data sheet - English (44.9 KB)

Download

Manufacturer data sheet - English (1.3 MB)

Download
