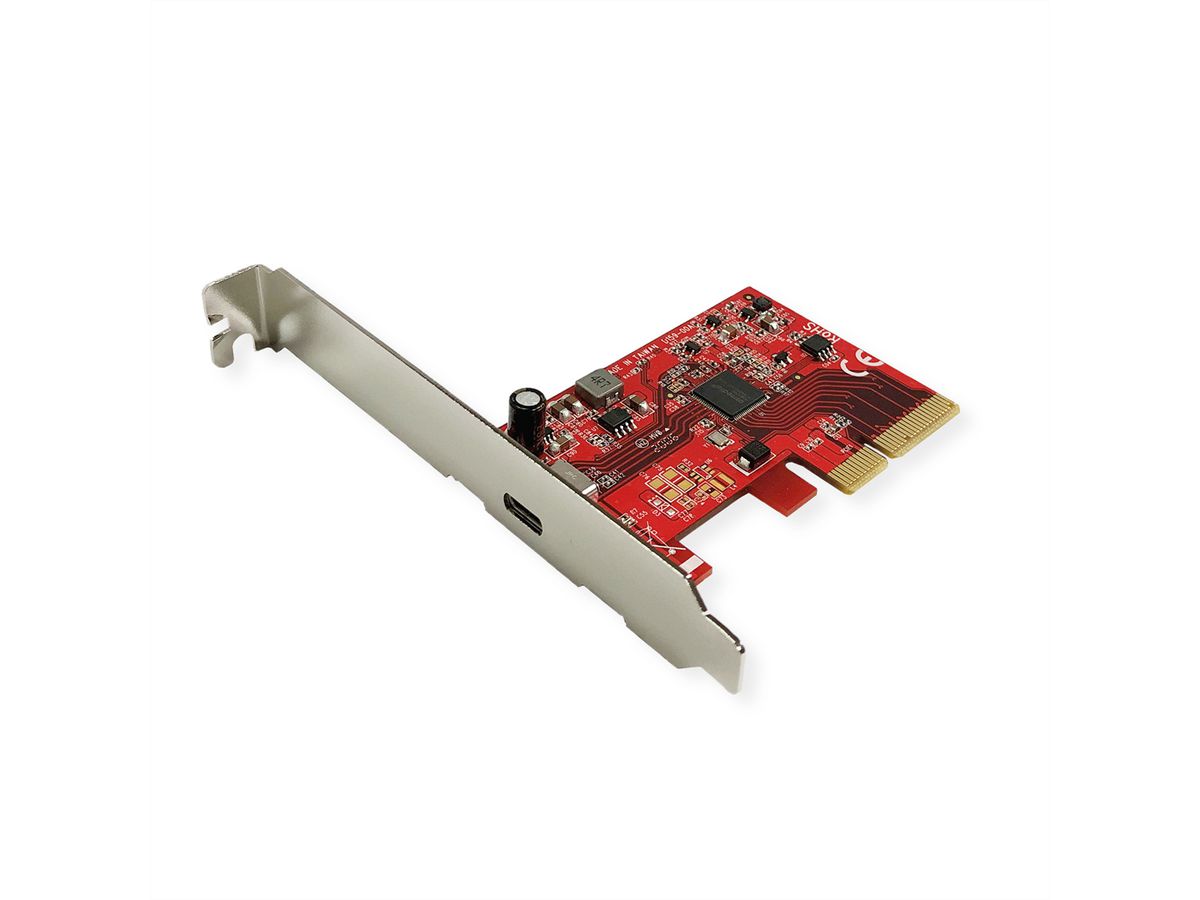

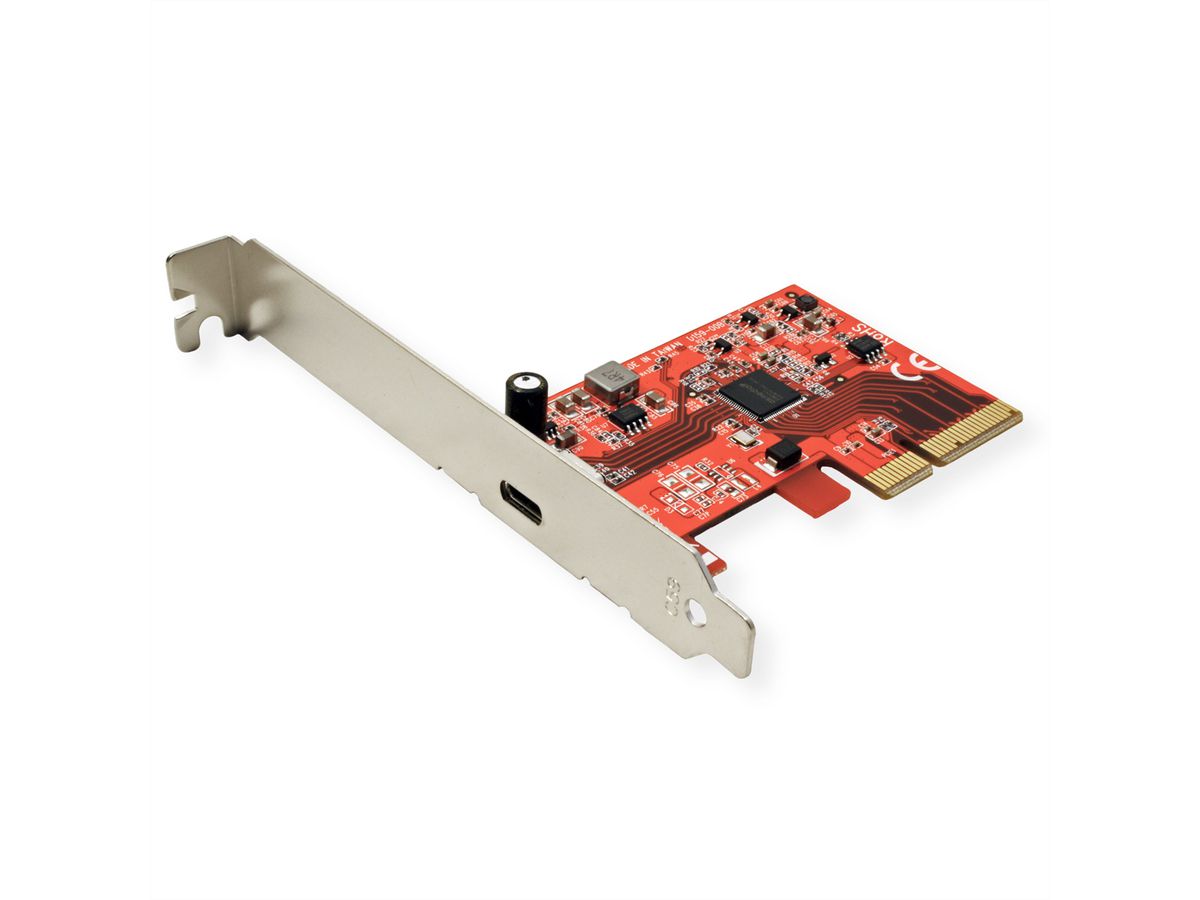

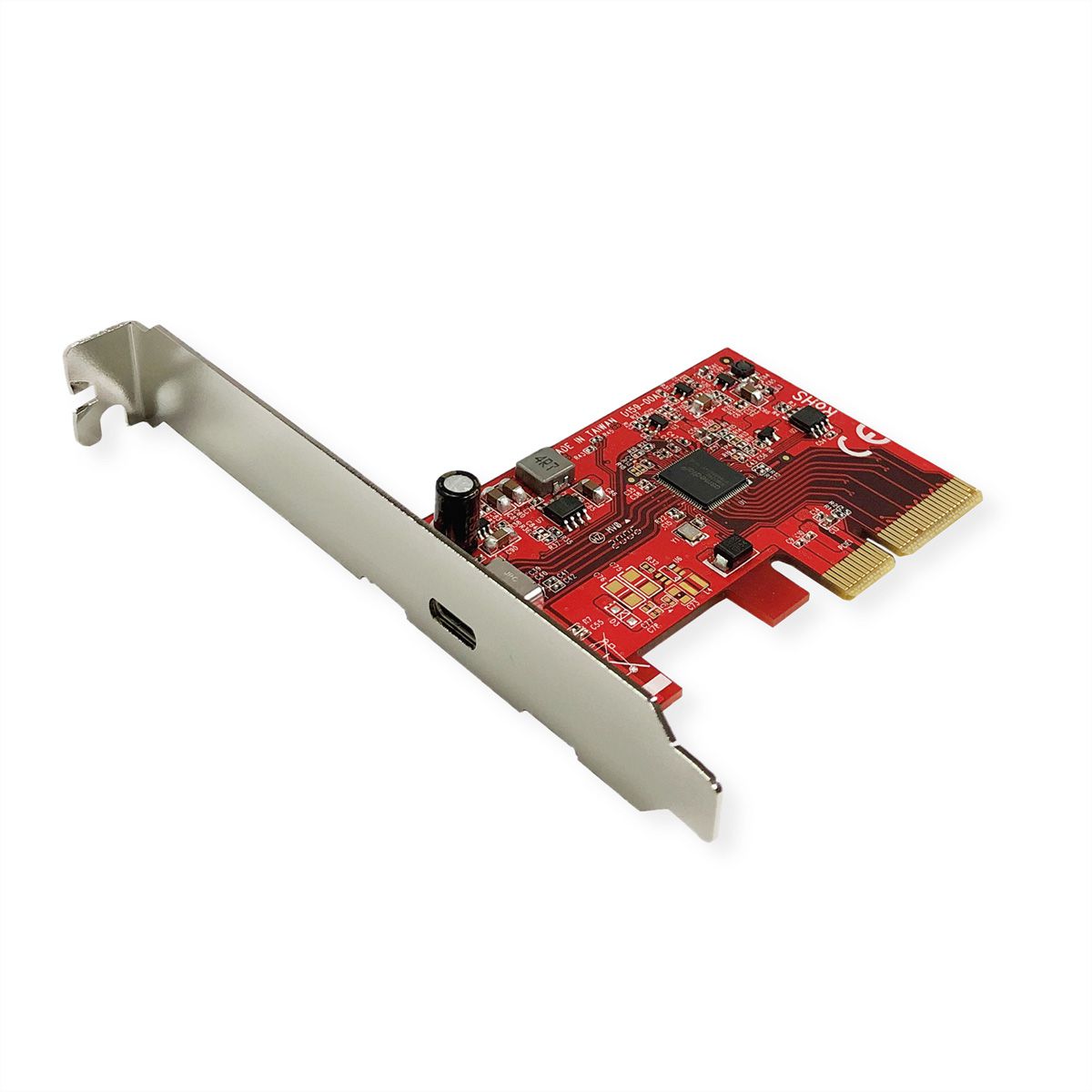

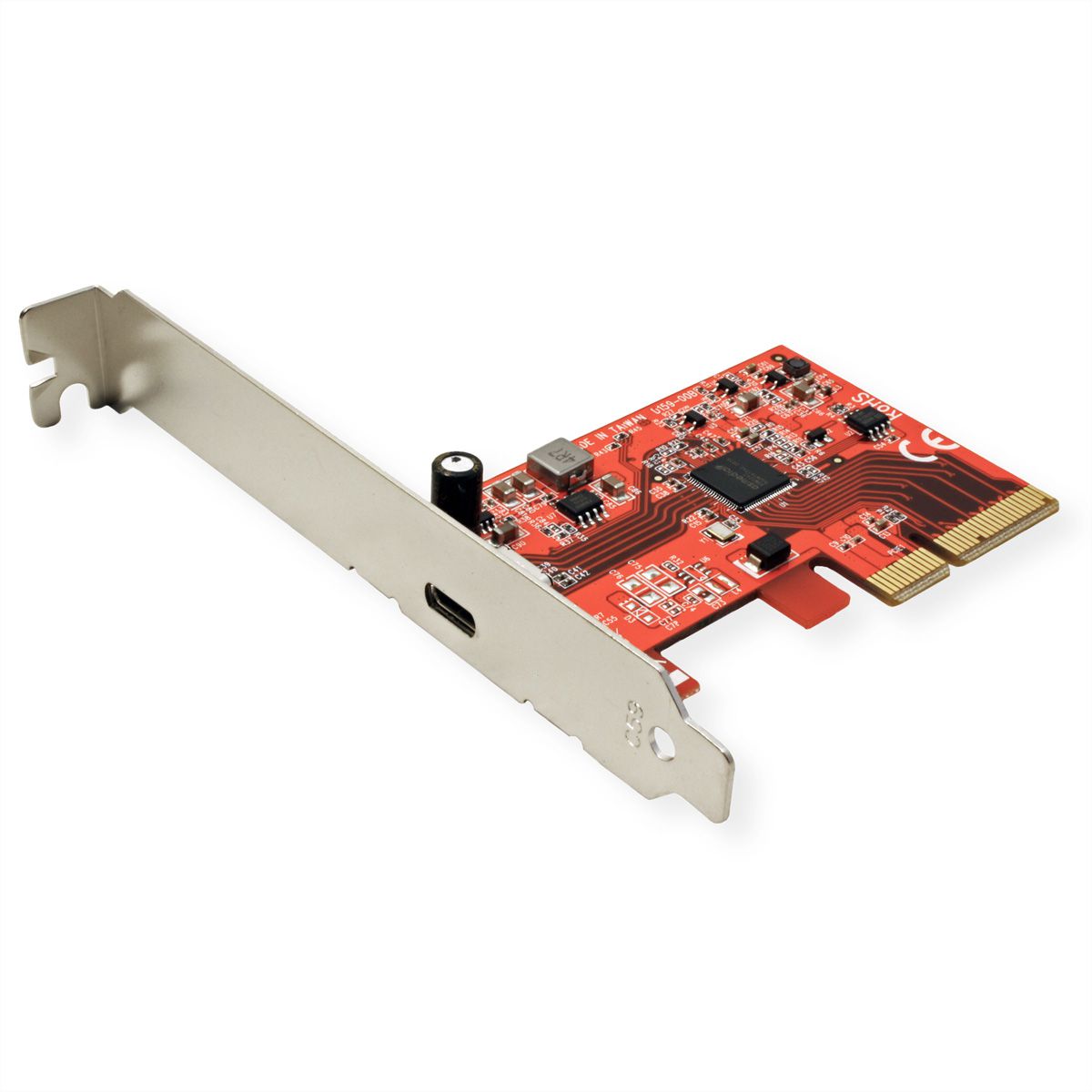

ROLINE PCI-Express Adapter, 1x Port Type C USB 3.2 Gen 2x2

ROLINE PCI-Express Adapter, 1x Port Type C USB 3.2 Gen 2x2

Please log in to be able to use the shopping cart and then complete orders.

Log in
Deliverable approx. 01/27/2025
Item no. 15.06.2195-10
Brand / Manufacturer ROLINE
Manuf. no. 15.06.2195
EAN 7630049699236
Package weight 0.05 kg

Description

Expand your PC with one USB 3.2 Gen 2x2 port

  • USB 3.2 Gen 2x2 PCIe x4 Lane Host Adapter
  • USB 3.2 Gen 2x2 offers data transfer rates of up to 20 Gbit/s
  • Connectors: 1x Type C downstream connector on board
  • Compliant with Universal Serial Bus 3.2 Specification Revision 1.0
  • Supports 5V3A USB bus power USB 3.1 Type C port
  • Supports PCIe 3.0 motherboard
  • Low profile PCI form factor
  • Plug & Play
  • Require an empty PCIe 3.0 slot in computer for USB3.2 Gen 2x2 full performance
  • Supports Windows 10 / 32/64-bit
  • Contents: Adapter, manual

Note: According to the current specifications of USB.org we have adapted the technical data of our USB 3 products. The new designation for the already known USB specifications has been changed to USB 3.2 Gen 1 (formerly USB 3.0 / USB 3.1 Gen 1) and USB 3.2 Gen 2 (formerly USB 3.1 / USB 3.1 Gen 2).

Specifications

Manufacturer ROLINE
Product group I/O Card
Product type PCI-Express Adapter
Colour multicolored

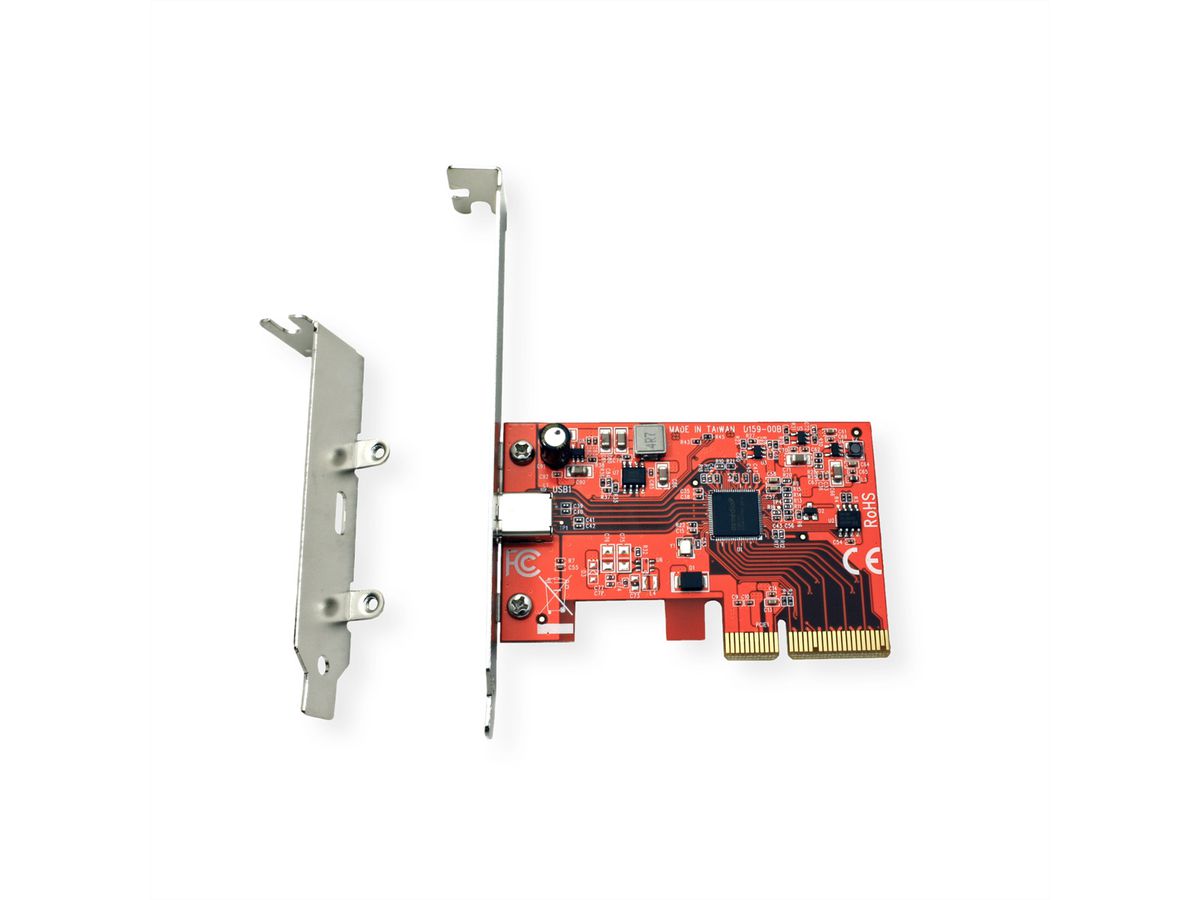

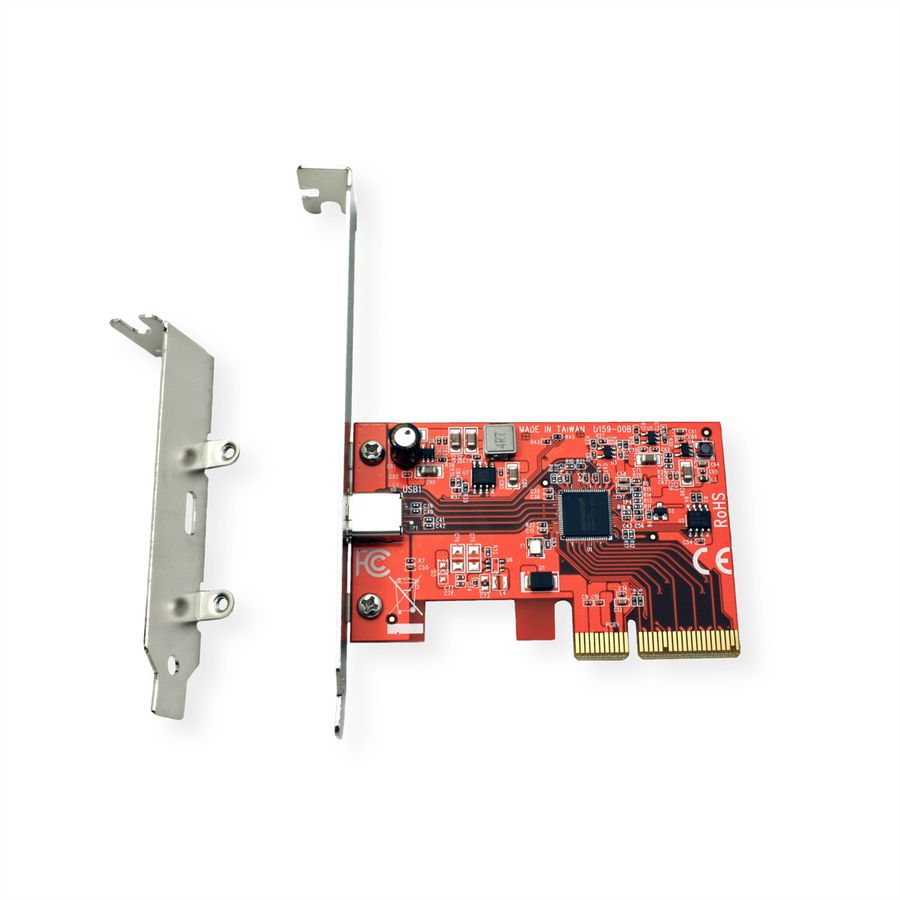

Scope of delivery Adapter, low profile bracket, manual
BUS system PCI Express
Interface USB 3.2 Gen 2x2
USB 3.0 Interface yes
Data transfer rate 20 Gbit/s
Operating System Windows 10, Mac OS X
Connection ports 2x USB 3.2 Gen 2x2 external
Mounting height Low Profile
Installation Guide / Manual yes
Weight 36.9 g
Height of packaging (single piece) 30 mm
Width of packaging (single piece) 150 mm
Depth of packaging (single piece) 160 mm
Package weight (single piece) 0.05 kg

Downloads

Product data sheet - English (43.5 KB)

Download

User manual - Deutsch (341.6 KB)

Download

User manual - English (339.5 KB)

Download

User manual - Français (274.6 KB)

Download

The products of our own brand ROLINE are designed for professional continuous operation.

With a 2-year functional guarantee, we stand by our performance promise.

ROLINE – Quality makes the difference.
