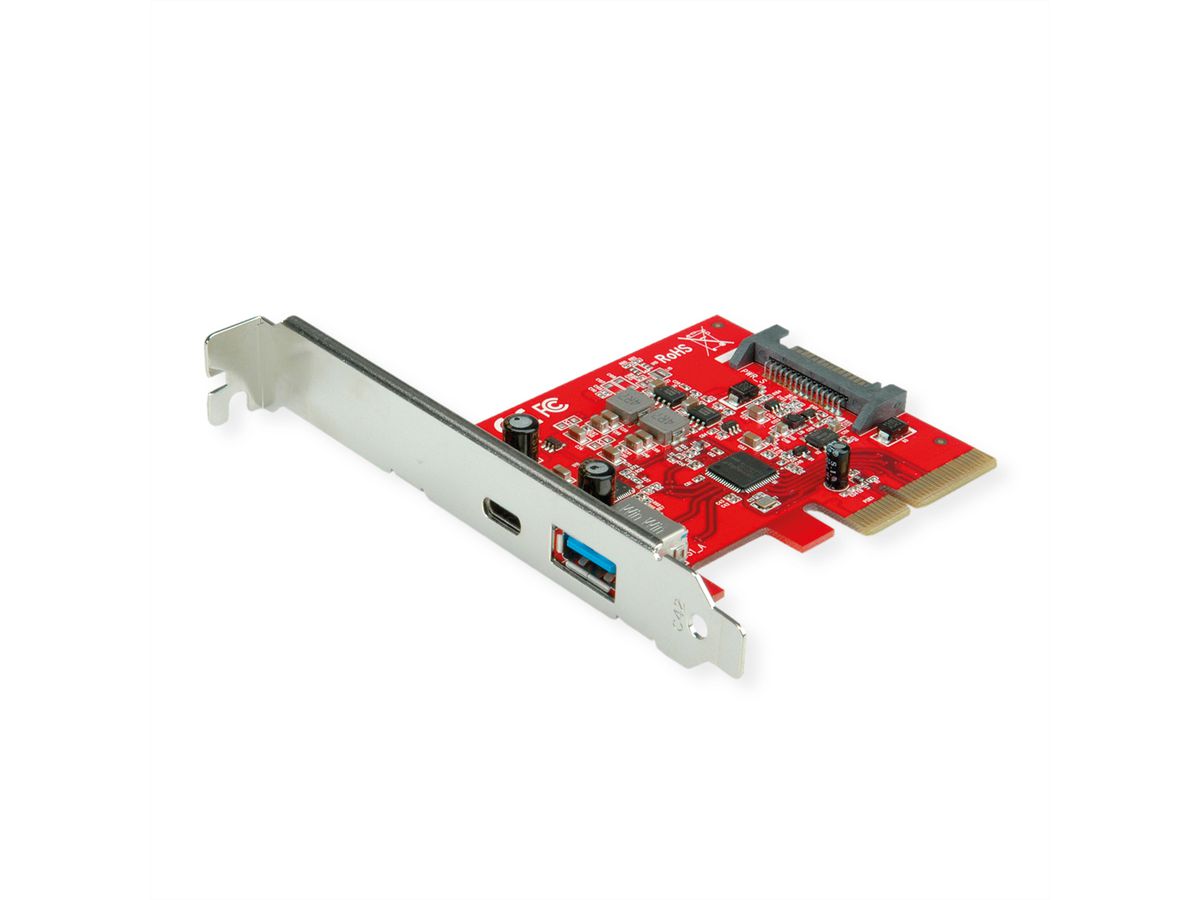

ROLINE PCI-Express x4 Adapter, USB 3.2 Gen2, 2 Ports, 1x USB A + 1x USB C

ROLINE PCI-Express x4 Adapter, USB 3.2 Gen2, 2 Ports, 1x USB A + 1x USB C

Please log in to be able to use the shopping cart and then complete orders.

Log in
Ordered until 3 pm - usually dispatched on the same day
Item no. 15.06.2142-10
Brand / Manufacturer ROLINE
Manuf. no. 15.06.2142
EAN 7630049681460
Package weight 0.12 kg

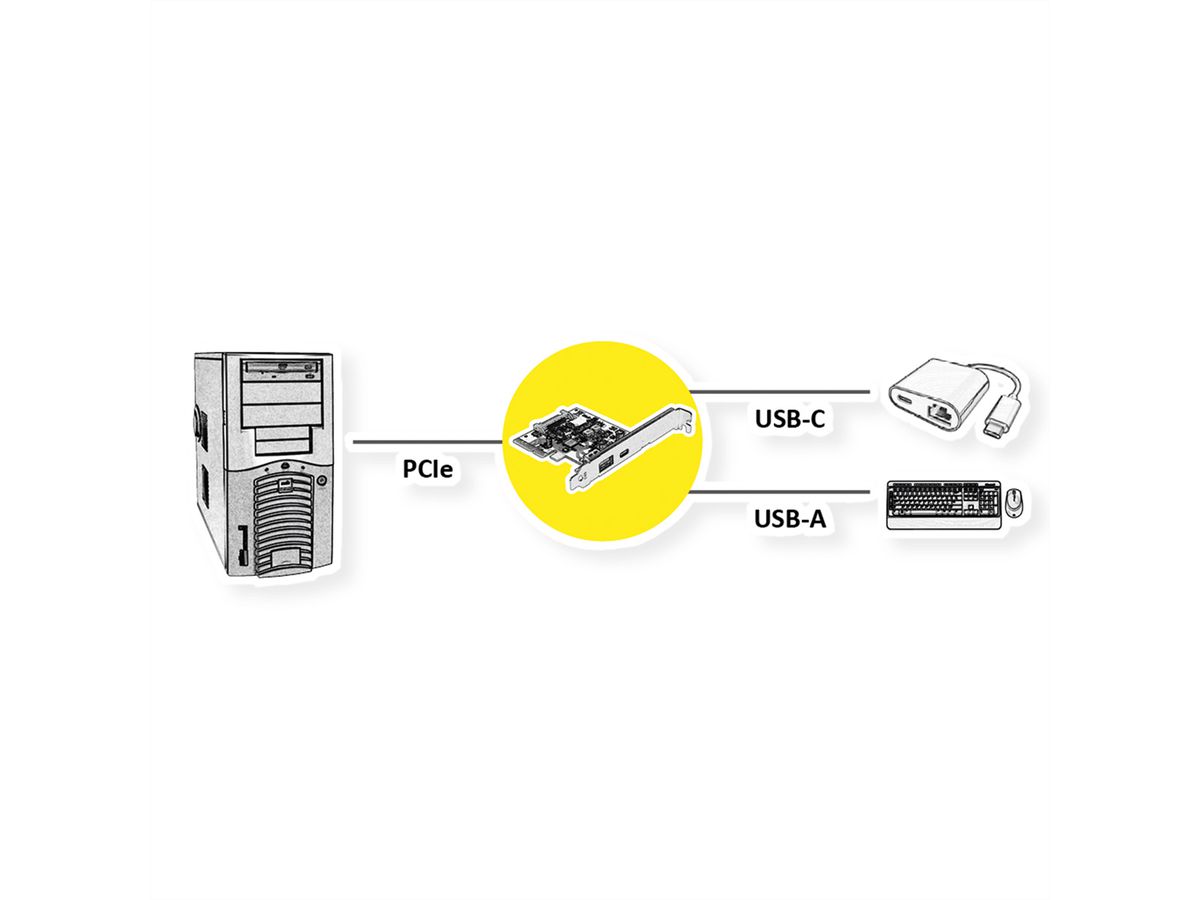

Expand your PC with two SuperSpeed+ USB 3.1 ports.

  • PCIe x4 Lane Host Adapter with USB3.1 PCIe Gen3 x2 fast chipset
  • USB 3.1 Type C 1x and Type A 1x downstream receptacle ports
  • USB bus power USB-C port 5V3A and USB-A 5V2A
  • Compliant with Universal Serial Bus 3.1 Specification Revision 1.0
  • Compliant with Intel eXtensible Host Controller Interface (xHCI) Specification 1.1
  • Compliant with USB Attached SCSI Protocol Specification 1.0
  • Support USB3.1, USB3.0, USB2.0 and USB1.1 devices
  • Compliant with PCI Express Specification 3.0
  • Low Profile PCIe Form Factor
  • Regular size PCIe bracket on board and Low Profile PCIe Bracket included
  • Require an empty PCIe 2.0 or PCIe 3.0 x4 or x8 or x16 slot in computer for USB3.1 full

Note: According to the current specifications of we have adapted the technical data of our USB 3 products. The new designation for the already known USB specifications has been changed to USB 3.2 Gen 1 (formerly USB 3.0 / USB 3.1 Gen 1) and USB 3.2 Gen 2 (formerly USB 3.1 / USB 3.1 Gen 2).


Manufacturer ROLINE
Product group I/O Card
Product type PCI-Express Adapter
Colour red
Scope of delivery Adapter, low profile bracket, driver CD, manual
BUS system PCI Express
Interface USB 3.1
USB 2.0 Interface yes
USB 3.0 Interface yes
USB 3.1 Interface yes
Data transfer rate 10 Gbit/s
Operating System Windows 10 / 8.1/ 8 / 7 / Vista / 2012 / 2008 / 2003
Connection ports 2x USB 3.1 Type C, external
Mounting height Full profile
Installation Guide / Manual yes
Weight 47.7 g
Height of packaging (single piece) 30 mm
Width of packaging (single piece) 150 mm
Depth of packaging (single piece) 180 mm
Package weight (single piece) 0.12 kg


Product data sheet - English (37.4 KB)


Manufacturer data sheet - English (106.9 KB)


User manual - Deutsch (318.3 KB)


User manual - English (339.9 KB)


User manual - Français (251.4 KB)


The products of our own brand ROLINE are designed for professional continuous operation.

With a 2-year functional guarantee, we stand by our performance promise.

ROLINE – Quality makes the difference.
