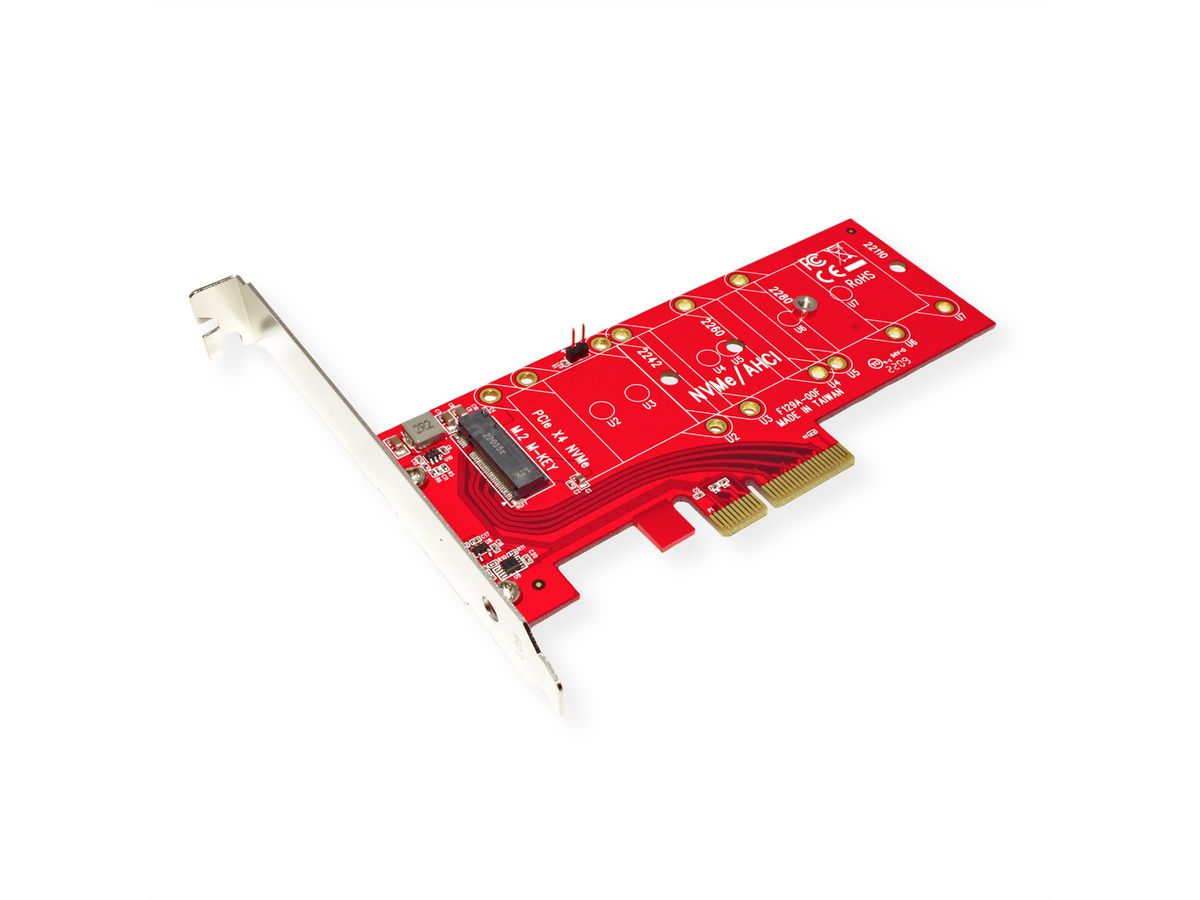

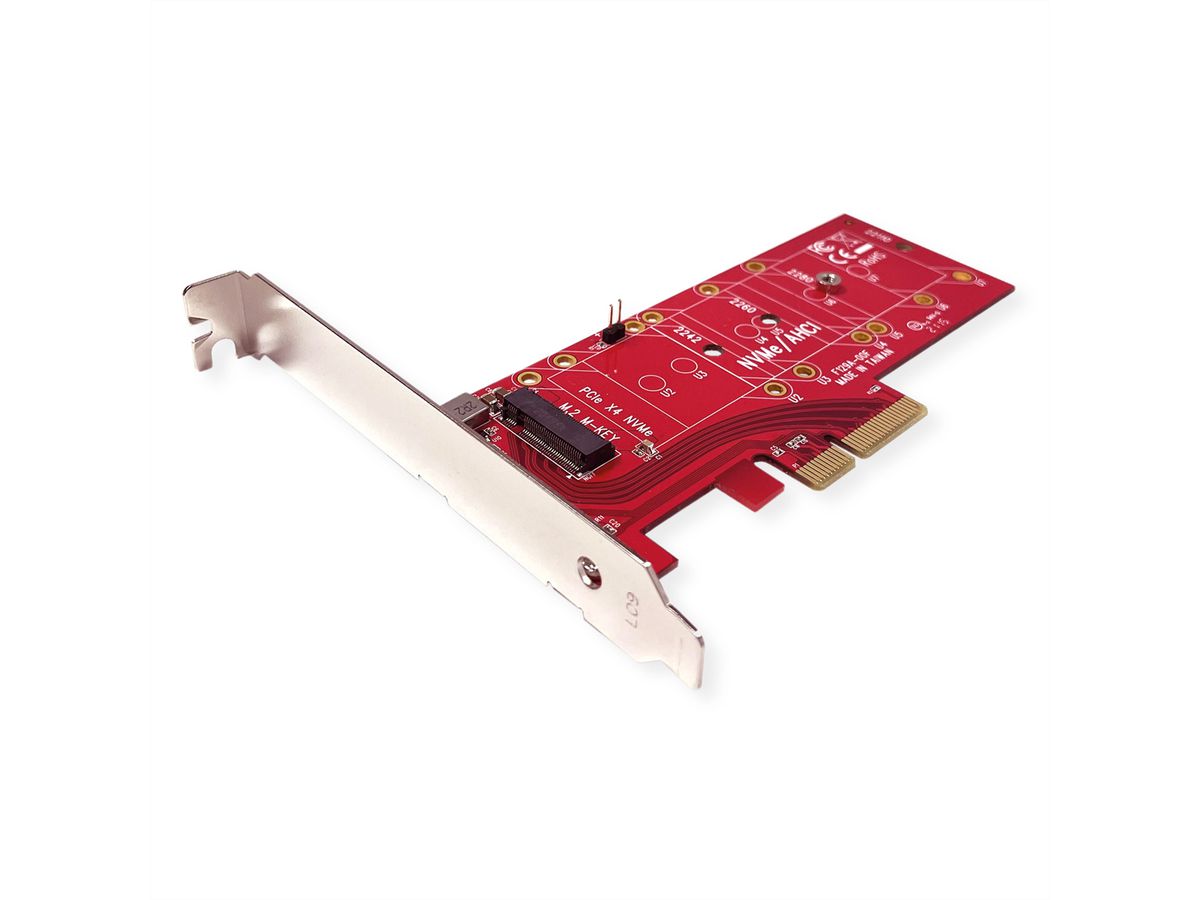

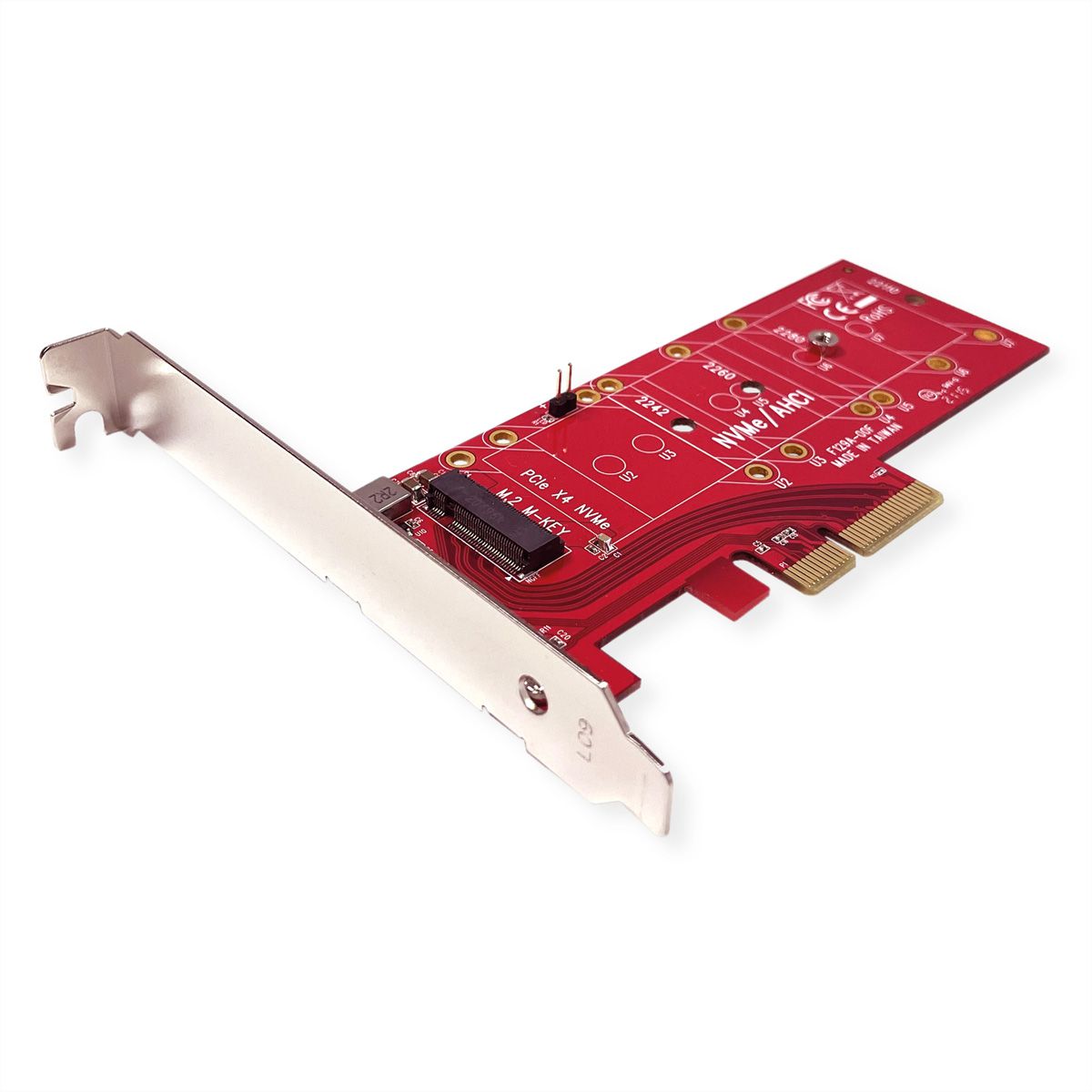

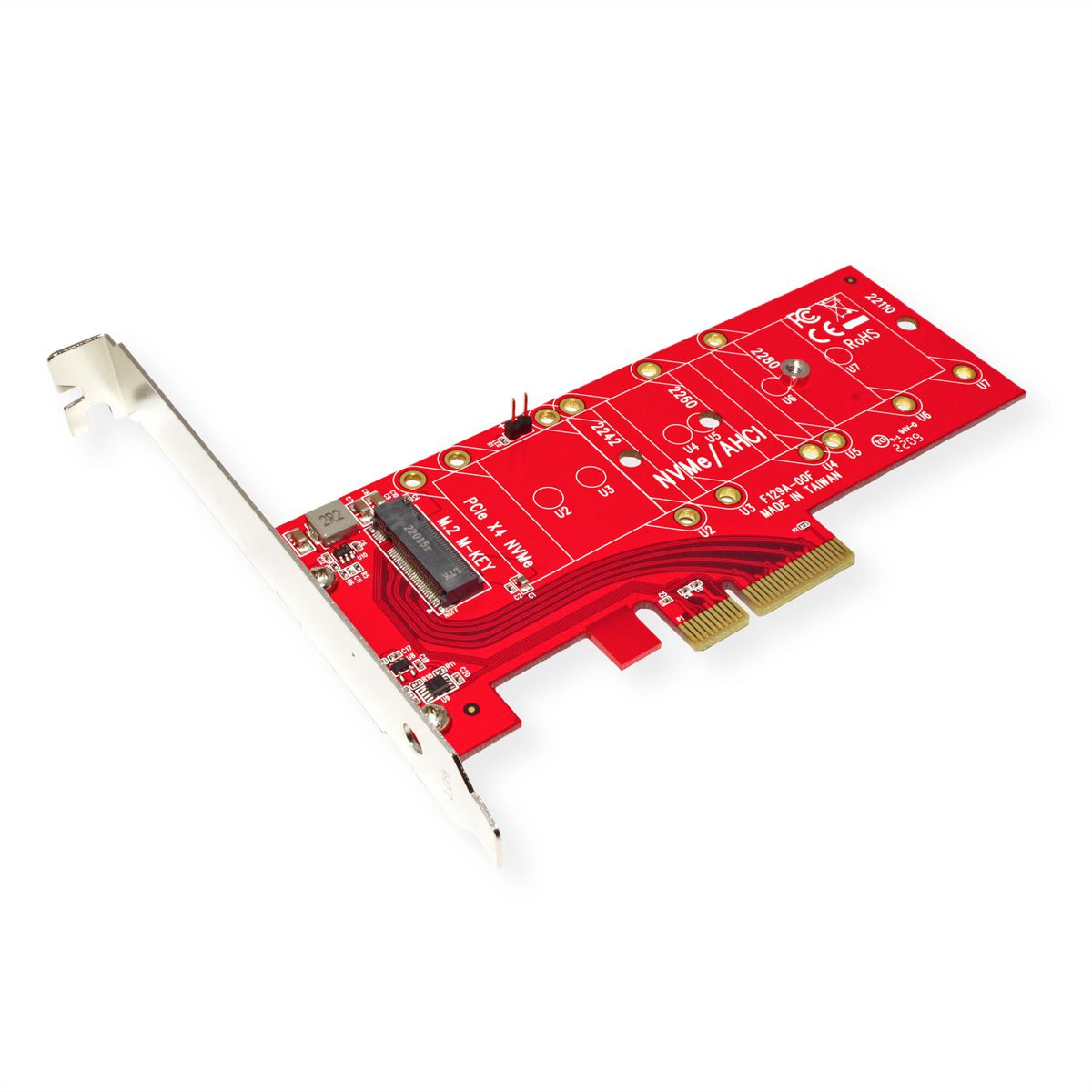

ROLINE PCIe 4.0 x4 3.3V5A Host Adapter for PCIe-NVMe M.2 110mm SSD

ROLINE PCIe 4.0 x4 3.3V5A Host Adapter for PCIe-NVMe M.2 110mm SSD

Please log in to be able to use the shopping cart and then complete orders.

Log in
Ordered until 3 pm - usually dispatched on the same day
Item no. 15.06.2196-10
Brand / Manufacturer ROLINE
Manuf. no. 15.06.2196
EAN 7630049681118
Package weight 0.19 kg


New NVMe standard (based on PCI Express 4.0 with 4 lanes) makes it possible to increase data speed even further compared to a normal SATA SSD. The result: more bandwidth and reduced latency compared to the SATA interface.
Optimal solutions for workstations.

  • PCIe 4.0 x4 NVMe and PCIe-AHCI M.2 SSD work in main board PCIe x4 bus slot
  • PCI Express 4.0 x4 Lane Host adapter
  • Supports PCIe Gen3 and PCIe Gen2 M.2 NGFF 110mm, 80mm, 60mm, 42mm SSD
  • M.2 NGFF type 22110-D5-M connector on board
  • Movable M.2 NGFF stand-off and multiple plated-holes supports type 22110, 2280, 2260 and 2242 SSD
  • Supports PCIe 3.0, PCIe 2.0 motherboard
  • Supports dual-sided SSD module 1.5mm component height on the top and bottom side
  • Compliant with PCI Express 4.0
  • Pin header on board for drive LED connection
  • Low Profile PCIe Form Factor

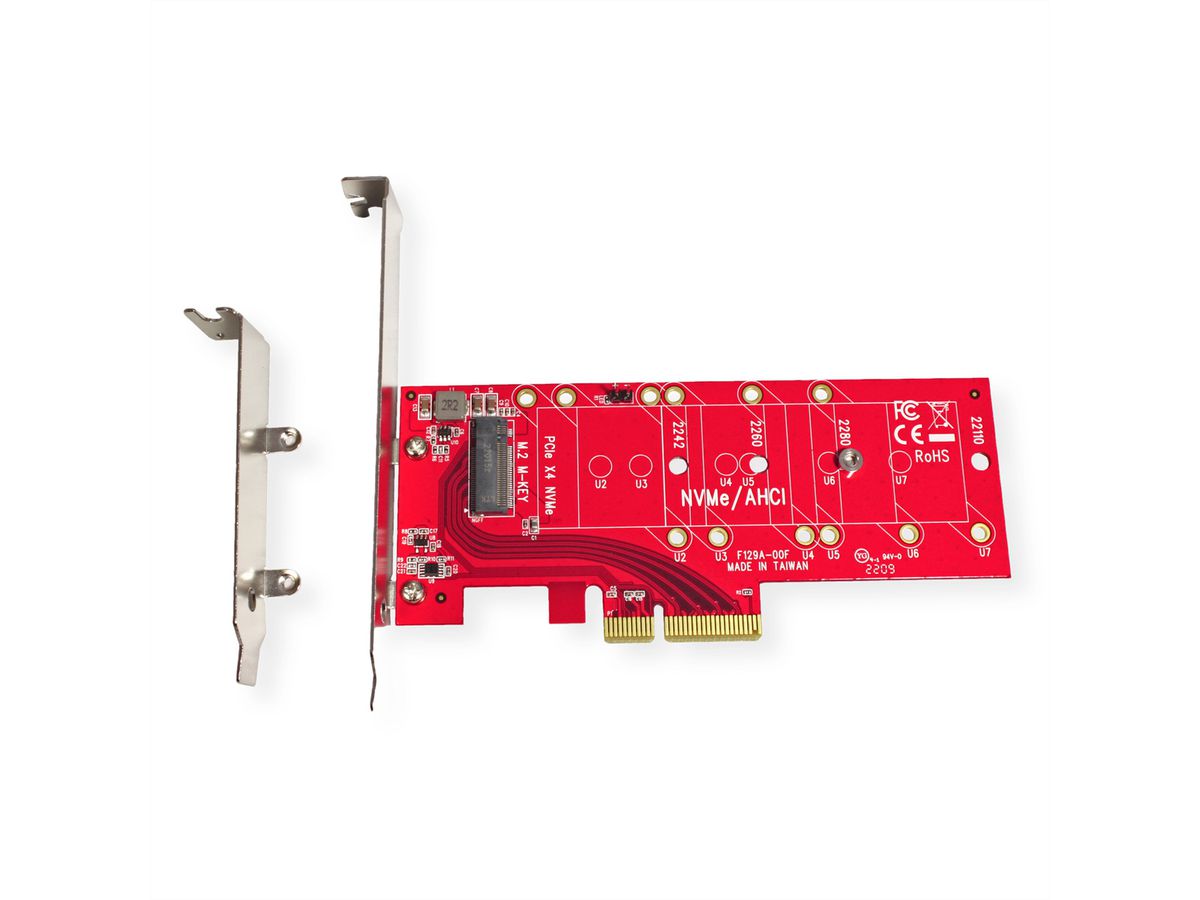

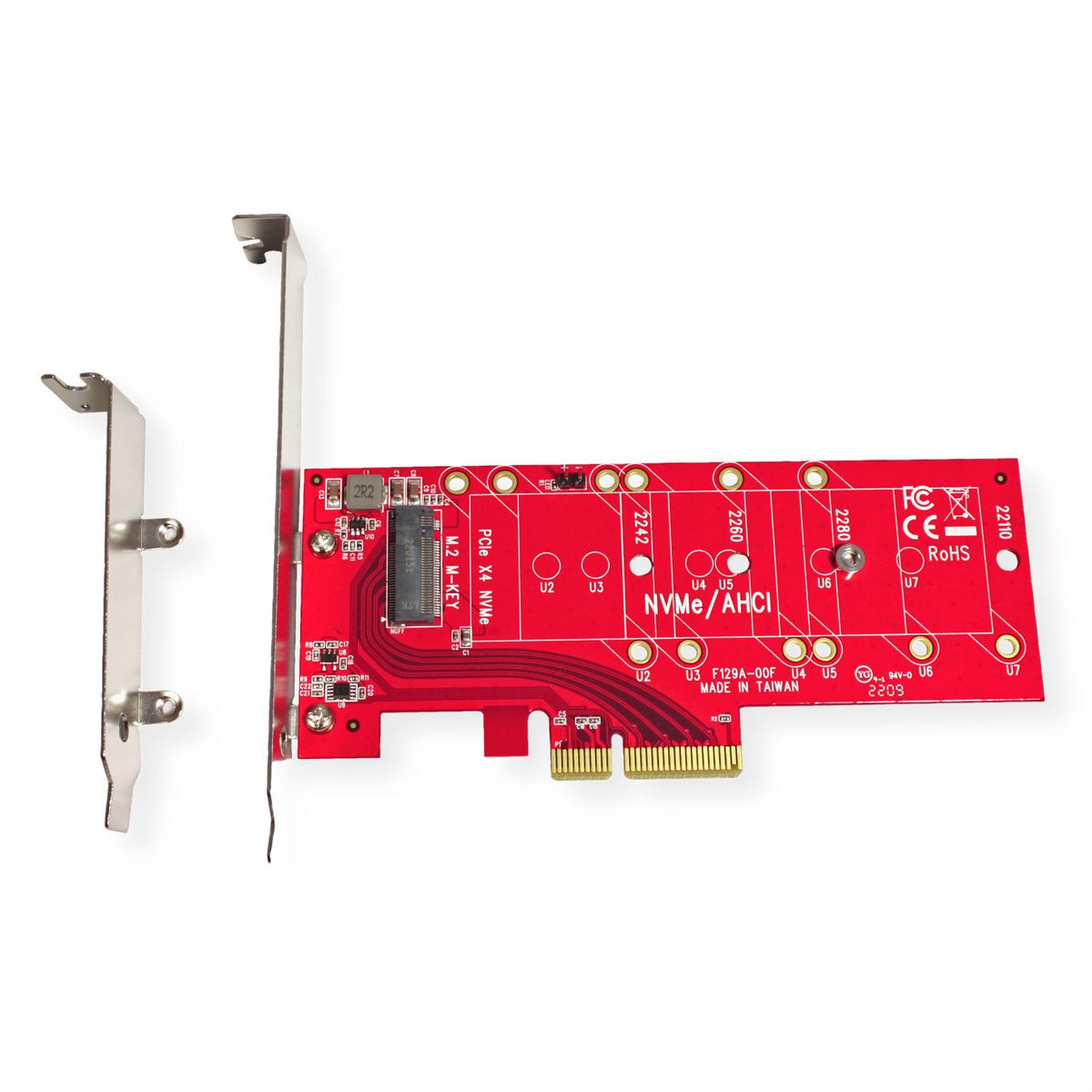

  • Low Profile PCIe bracket on board and Regular size bracket included
  • Transparent to the operating system and no board driver required
  • Operating system: Windows 7/8/10 Vista, Server 2012 (64bit / 32bit), and Mac OS 10.x
  • Supports M.2 PCIe SSD High Power 3.3V5A


Manufacturer ROLINE
Product group I/O Card
Product type PCI-Express Adapter
Colour red
Scope of delivery Adapter, manual
Interface 1x 110mm M.2 NGFF
Installation Guide / Manual yes
Weight 60.4 g
Height of packaging (single piece) 50 mm
Width of packaging (single piece) 160 mm
Depth of packaging (single piece) 210 mm
Package weight (single piece) 0.19 kg


Product data sheet - English (47.9 KB)


Manufacturer data sheet - English (229.1 KB)


The products of our own brand ROLINE are designed for professional continuous operation.

With a 2-year functional guarantee, we stand by our performance promise.

ROLINE – Quality makes the difference.
