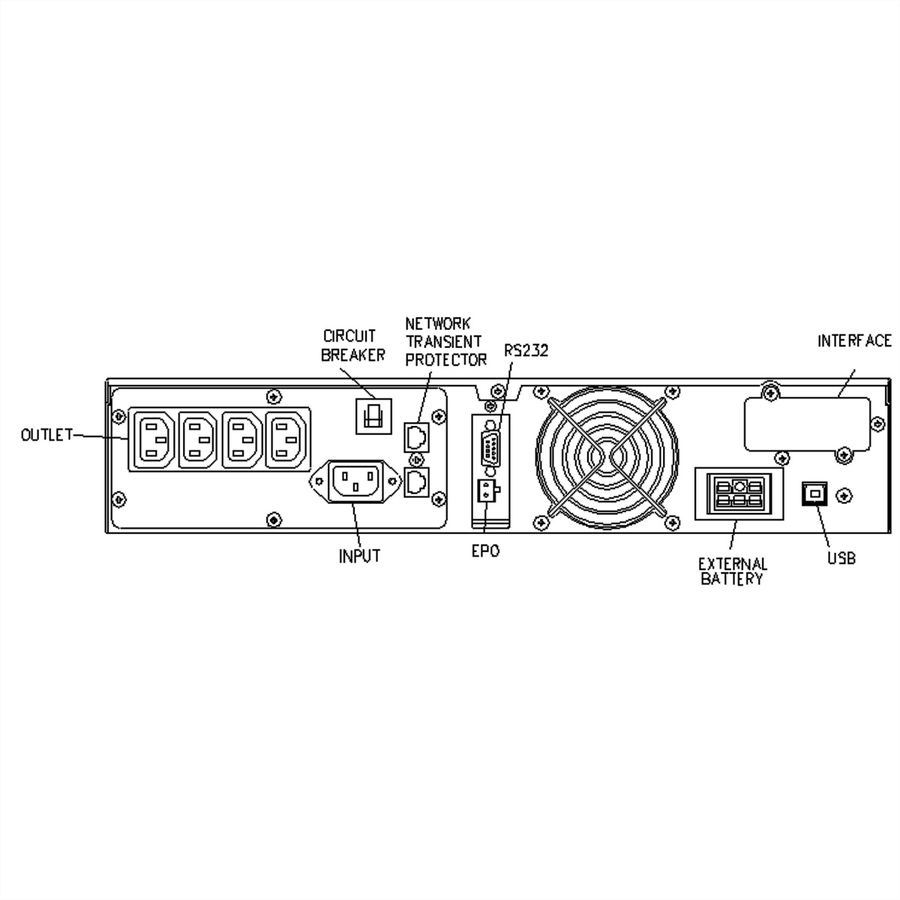

ROLINE ProSecure III 1500 RM2U - Online UPS, 19" Rack Version, black

Please log in to be able to use the shopping cart and then complete orders.

Available

Ordered until 3 pm - usually dispatched on the same day

Item no.	19.40.1070
Brand / Manufacturer	ROLINE
Manuf. no.	19.40.1070
EAN	7611990130504
Package weight	20 kg
Output (VA/W)
Interface

Description

The ROLINE ProSecure Series - for optimum power protection is a truly state of the art online double conversion UPS, ideal for all essential computer systems and servers. Protects against: power failure, power sag, power surge, under voltage, over voltage, switch transient, line noise, frequency variation, harmonic distortion.

Product features:

Cold start function (DC power on)
Lightning and surge protection
Battery replacement warning
Emergency Power Off function
Battery remain time display
LCD display front panel
Power factor correction
Support USB communication
Multiple language LCD display
On line output voltage selected

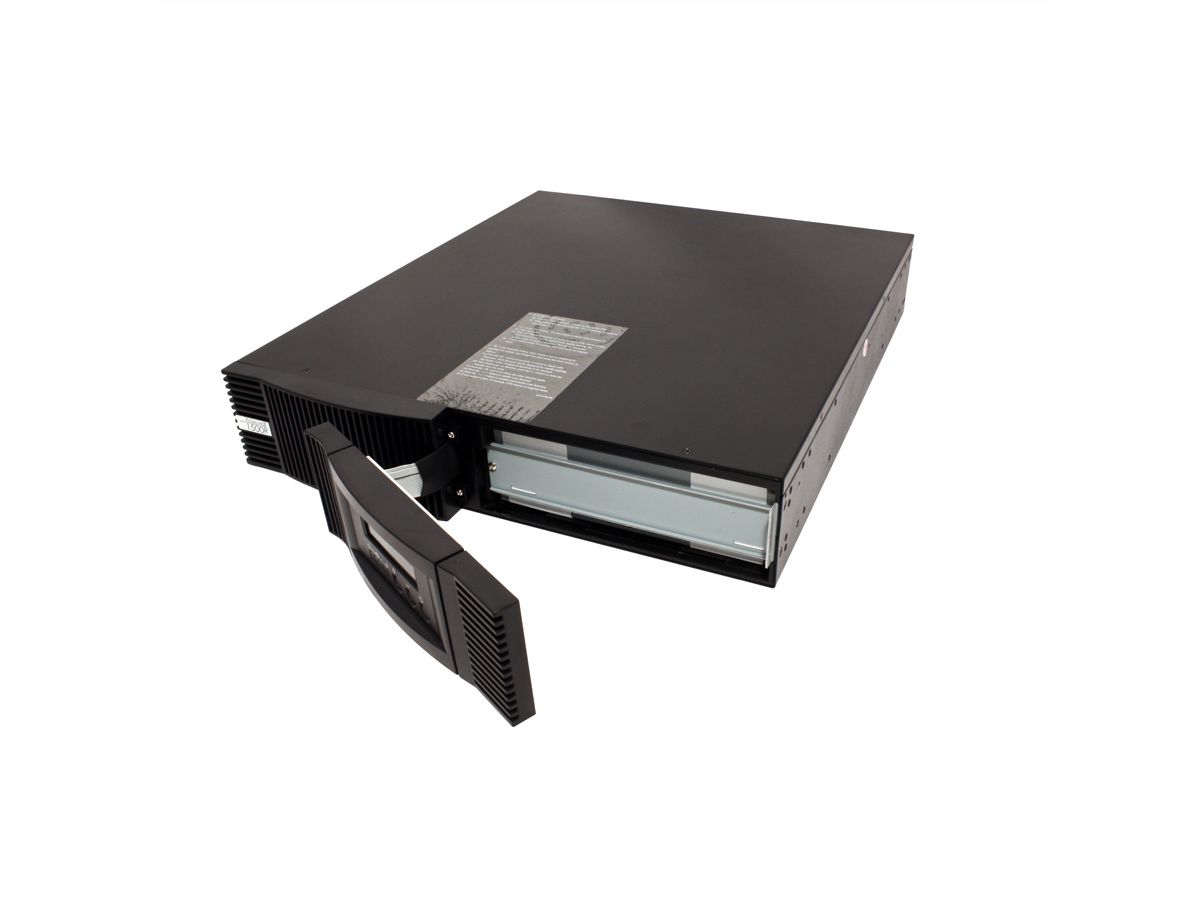

Hot swappable battery by user
True on-line technology provides all power protection
Pure sine-wave output with less than 3% THD
Fully digitized microprocessor controlled
Short Circuit and overload protection
Advanced

management (ABM)

Automatic battery charge in UPS off mode
Automatic diagnostics & battery check
RS-232 communication port with monitoring software
Network/fax/modem surge protection
Extended back up time with battery pack
Load segmentation receptacles controllable
High efficiency mode selectable
Fan speed auto control when loads varies
UPS Management Software : Windows NT/ 2k / XP / 7 / 8 /Server 2003 / 2008 / 2012 x86/x64,

MAC OS X (Intel) 10.6.x, 10.7.x, 10.8.x Mountain Lion, 10.9.x MavericksMAC OS, LINUX

Contents: UPS, cable set, UPS management software

Specifications

Manufacturer	ROLINE
Product group	UPS
Product type	UPS Online, Rackmount
Colour	black
Scope of delivery	UPS, Software, Cable Set
Classification (IEC 62040-3)	VFI-SS-111
UPS technology	Online
Power class	1000 ... 1900 VA
Output (VA/W)	1500 / 1350 @ Pf. 0,9
Efficiency	95 %
Backup time	3 min
Backup time full/half-load	3-5 / 9 min
Dimensions (HxWxD)	84 x 428 x 500 mm; 2 HE

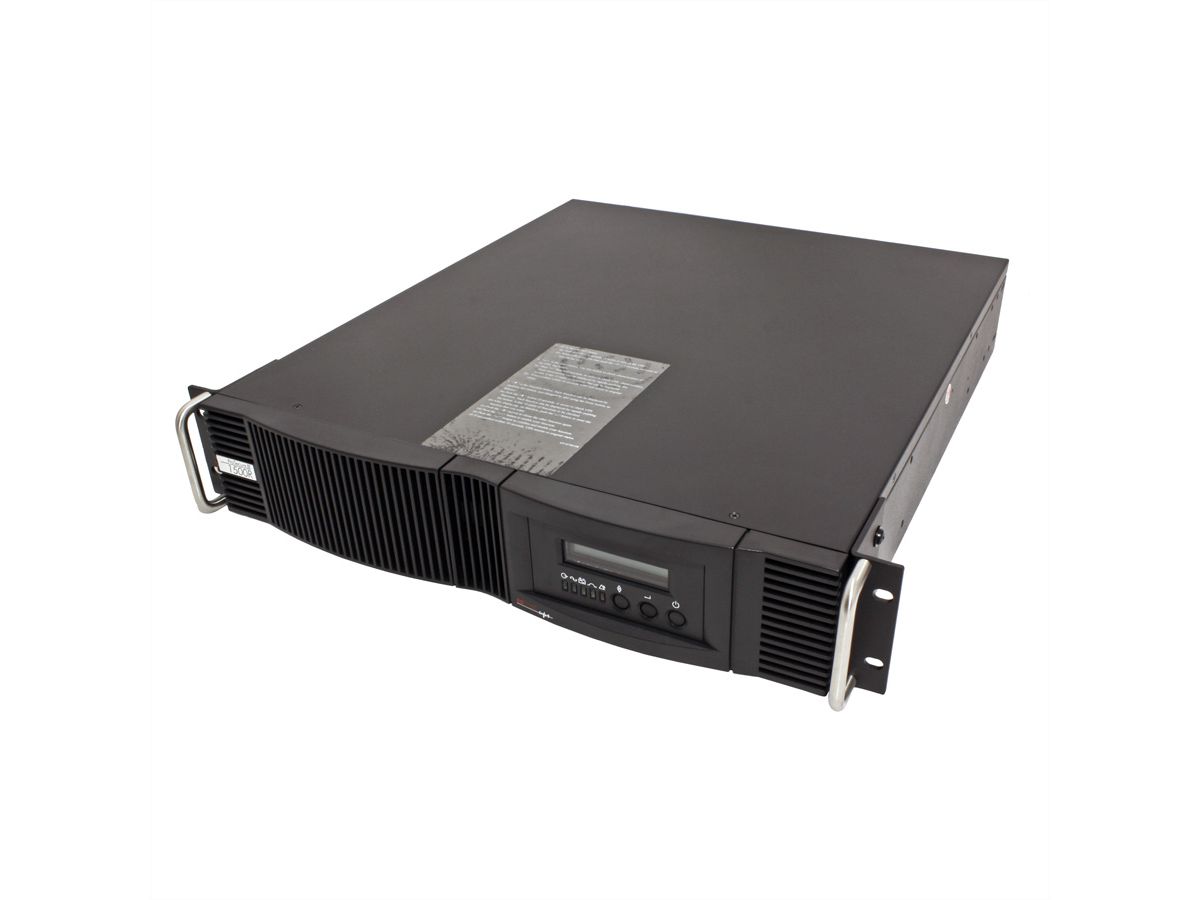

Mounting form	19" Rackmount
Voltage (input)	160-230V
Voltage (output)	230V
Output voltage regulation	± 2%
Frequency	50Hz ± 3%

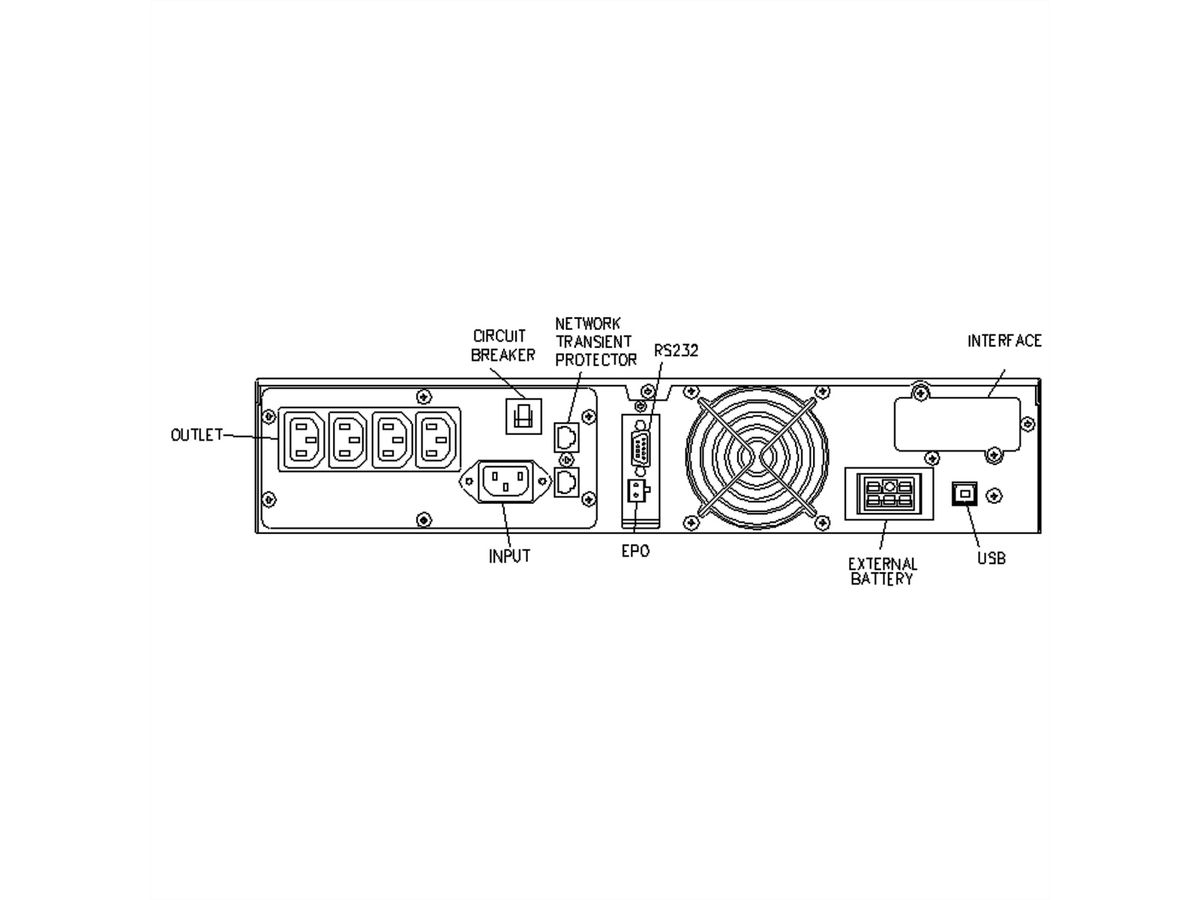

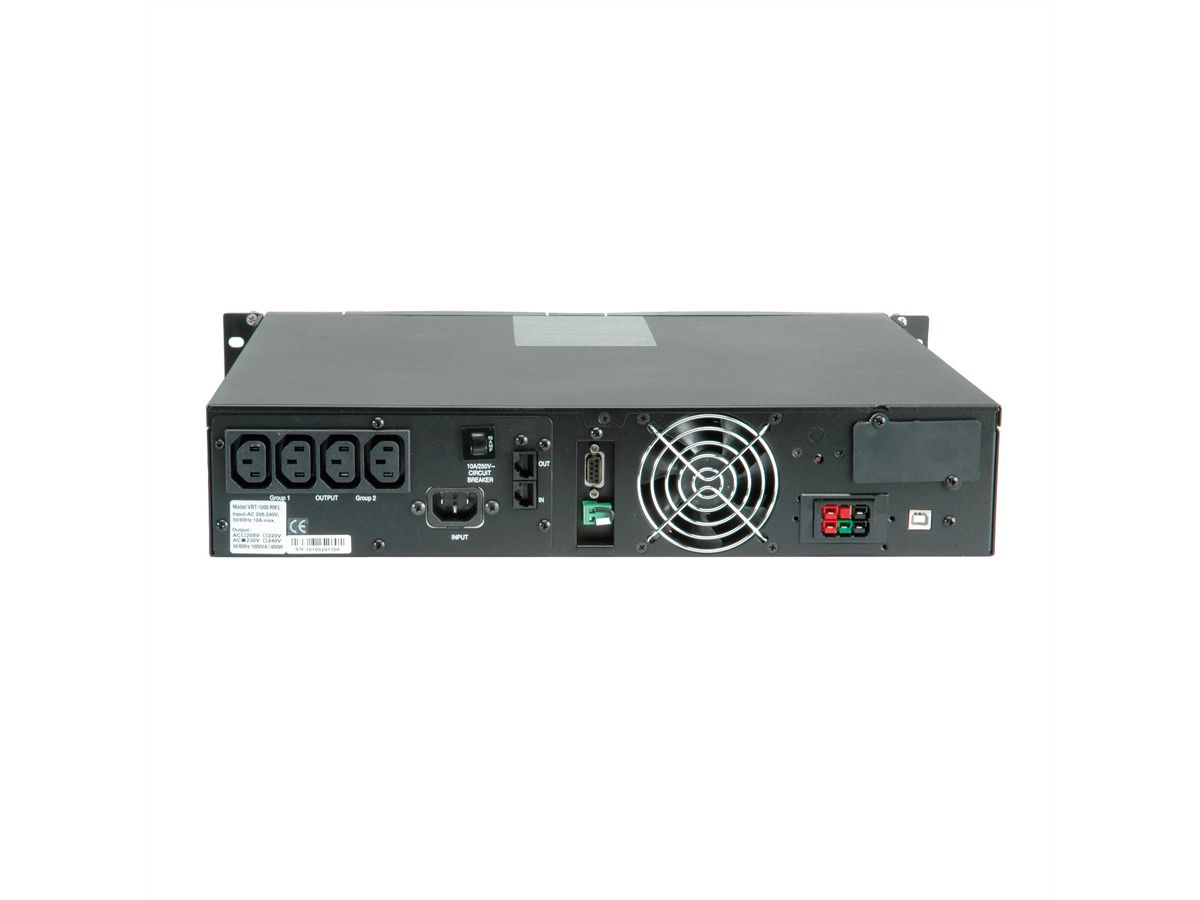

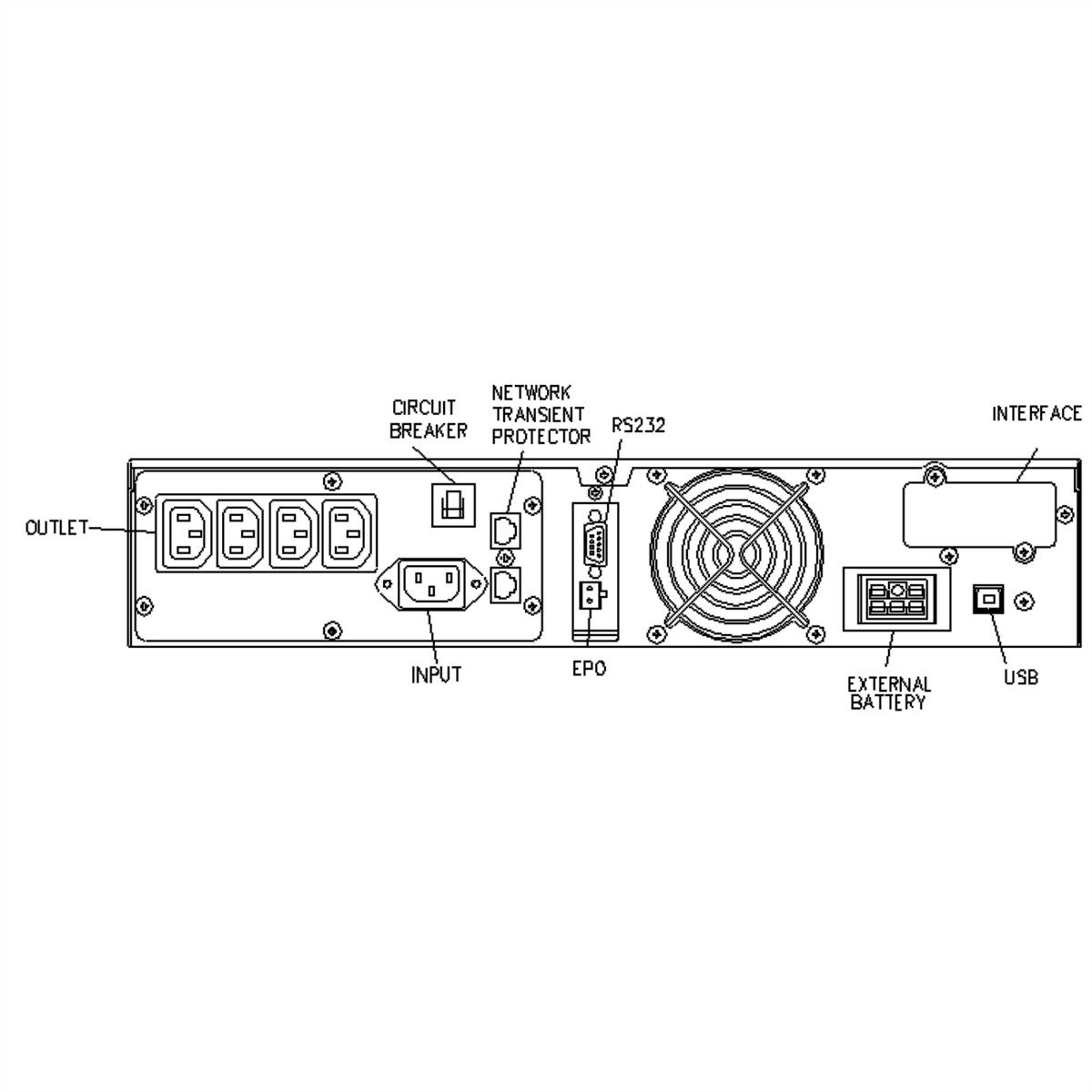

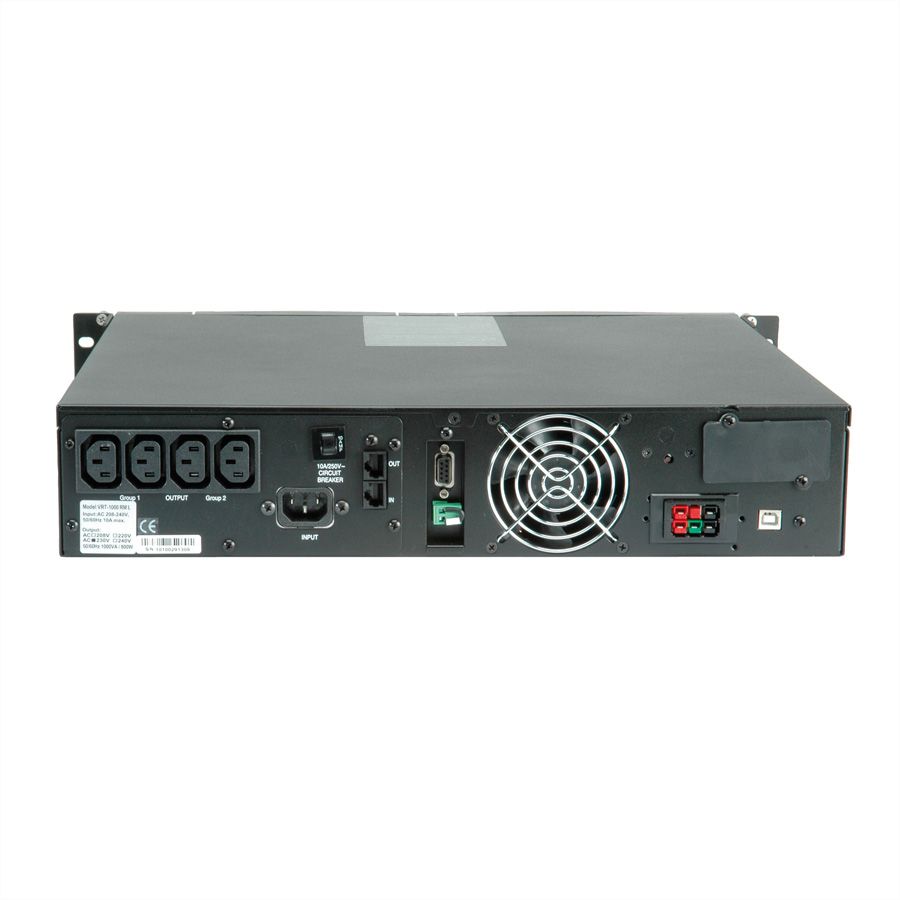

Connector type (input)	cold connector IEC 320 C14
Outputs	4
Connector type (output)	4x cold connector IEC 320 C13
Phase in/output	230V/230V / 50Hz
Over current protection	EMI,- RFI-Filter
Max. quantity of delay expansion units	2
Delay expansion unit	2
Slots for adapter card	1
Slot for adapter card	1
Interface	RS232, USB
RS-232 Interface	yes
USB 2.0 Interface	yes
Hot swap batteries	Yes, front side
Bypass	Automatic + manual
Additional over current protector	no
Activity	Display
Activity LED	5
Activity Display	LCD
incl.Management Software	Windows
Internal cooling	Active, fan
Ambient temperature	0-40°C
Mains connection	Cold appliance connection
Battery category	Industrial battery
Number of batteries	4 pieces
Battery type	Pack
Battery	built-in
Battery technology	Lead-acid
Operating temperature min.	0 °C
Operating temperature max.	40 °C
Height	84 mm
Width	428 mm
Depth	500 mm
Weight	18 kg
Height of packaging (single piece)	250 mm
Width of packaging (single piece)	550 mm
Depth of packaging (single piece)	610 mm
Package weight (single piece)	20 kg
