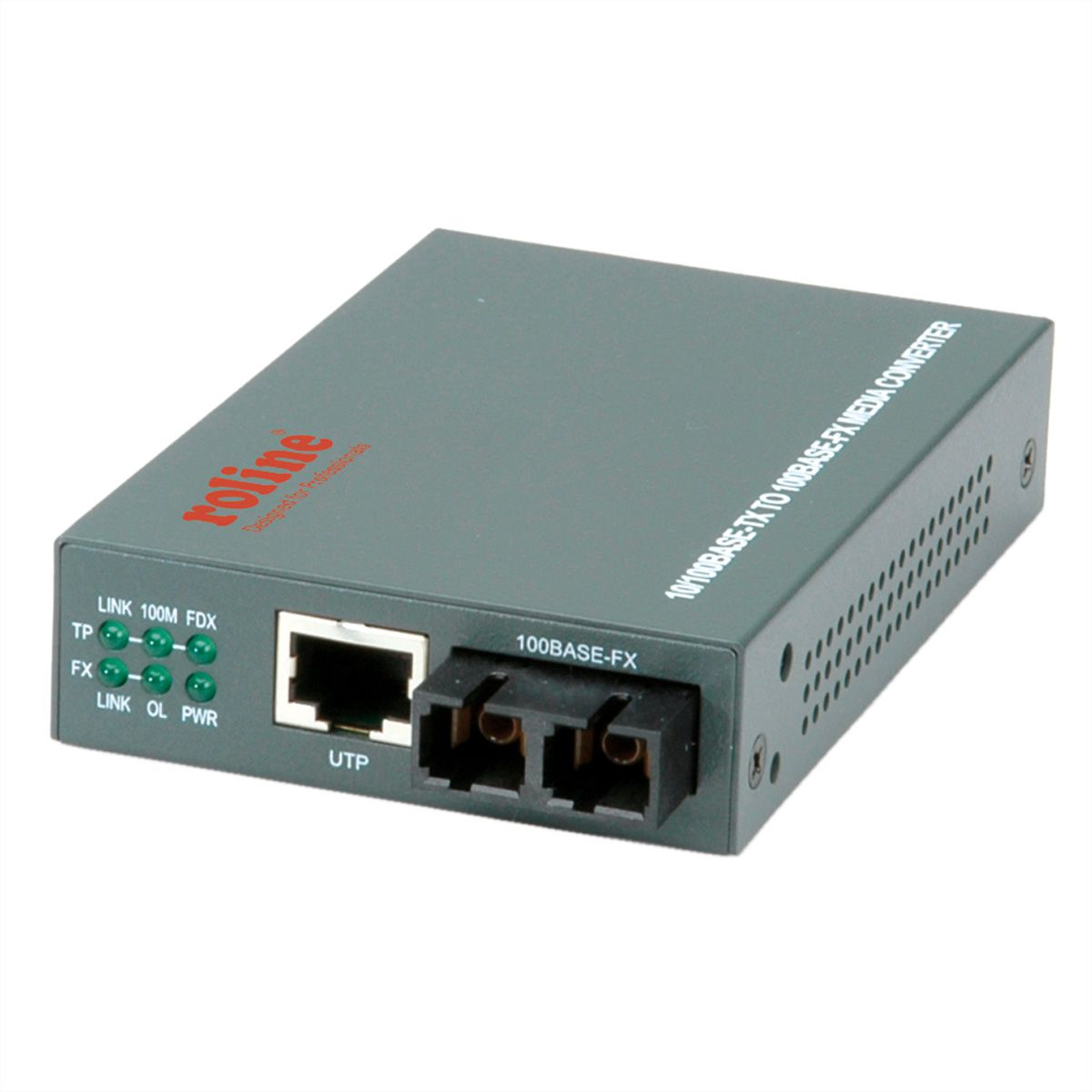

ROLINE RC-100FX/SC Fast Ethernet Converter, RJ-45 to SC, Loop-back

Item no. 21.13.1071-5 Brand / Manufacturer ROLINE Manuf. no. 21.13.1071 EAN 7611990967766 Package weight 0.5 kg
ROLINE
Product recommendations

Please log in to be able to use the shopping cart and then complete orders.

Log in
Available
Ordered until 3 pm - usually dispatched on the same day

Description

  • These converters are the ideal connectivity solution for networks using a combination of STP and fiber optic types
  • Provides media conversion from STP to multimode SC media type
  • RC-100FX/SC: The maximum cable length for fiber is 2000m by using a 50/125µm fiber
  • Power supplied by included power supply
  • Colour: grey
  • Remark: The converters do not offer a repeater function!
  • Contents: Converter, power supply (7.5V DC, 500mA), manual

Remark: Picture similar

Specifications

Manufacturer
ROLINE
Product group
Network converters
Product type
Media Converter
Colour
black
Scope of delivery
Converter, power supply (7.5V DC, 500mA), manual
RJ-45 Port (Mbps/s)
10/100
Fibre Ports (Mbps)
100
Quantity of RJ45 ports
1
Quantity of fibre SC ports
1
Converts to
RJ-45/SC
Fibre
Multi mode
Ethernet fibre standard
100Base-FX
Max. range 50 µm fibre
2km
Max. range 62,5 µm fibre
2km
Height
108 mm
Width
72 mm
Depth
23 mm
Weight
206.2 g
Height of packaging (single piece)
70 mm
Width of packaging (single piece)
170 mm
Depth of packaging (single piece)
260 mm
Package weight (single piece)
0.5 kg

Downloads

Product data sheet - English (40.4 KB) Manufacturer data sheet - English (604.1 KB)

The products of our own brand ROLINE are designed for professional continuous operation.

With a 2-year functional guarantee, we stand by our performance promise.

ROLINE – Quality makes the difference.
